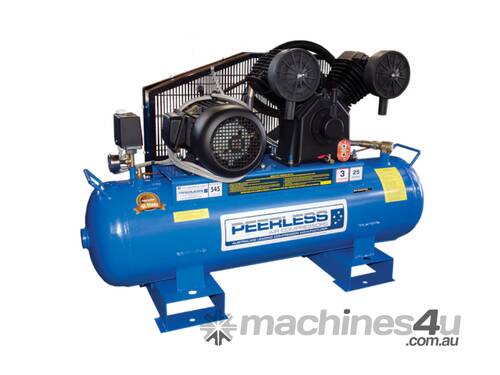

PEERLESS PV25 Belt Drive Compressors

Maximum air performance: 545L/min, slow revving cast iron pump with 90mm pistons.

The PV25 is a V cast iron pump single stage air compressor. It gives a massive 545 litres of free air, with a maximum pump pressure of 145PSI.

The pistons are 90mm in diameter, making each stroke count for maximum air performance without having to over speed the pump RPM. When it comes to pump reliability, keeping the pump RPM under 1200RPM means you're not over working it.

This is one of the most popular three phase models on the market and is ideal for a 2-3 man workshop.

Able to run;
Low & high pressure spray guns
Car tyre inflation gun
Truck tyre inflation gun
Stapling / fitting gun
Framing nail / Grease gun
Chalking gun / Riveter gun
Screw driver
1/2” Ratchet gun
1/2” Impact gun
Air duster
4” Angle grinder
6” Orbital sander
Air drill
Engine cleaning gun
Sand blasting gun
Air hammer
Hi torque 1/2” Impact gun
Hi torque 3/4” Impact gun
1/4” Die grinder
Plasma Cutter
Air Gauging Tool
Helpful tip:
When mounting, be sure to get "high density" rubber matting (00011) and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration. Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637. For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Code : 555
Model : PV25
Pump Displacement (CFM) : 25 CFM
Free Air Delivery (LPM) : 545 LPM
Max PSI : 145
Motor HP : 5.5
Warranty Pump : 3 Year
Warranty Motor : 1 Year
Tank Capacity (L) : 110L
Pump up time to 100PSI : 1.00 - 1.05 Min
Dimensions (mm) / Weight (kg) : 1090Lx450Wx930H / 158kg
Cooling Method : Air cooled
Pump Type : V90
Cylinders : 2
Pump Head Tension : 30 FT LB 40.67NM
Oil Capacity : 1.5L
Pump RPM : 1050
Outlet Thread : 1/4" BSP & 1/2" BSP
Electricity : 415V
Amps draw : 6.6
