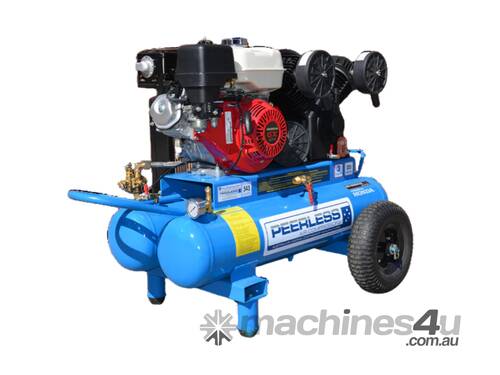

PEERLESS PV25 Belt Drive Twin Tank Petrol Air Compressors

The PV25 is a V cast iron 9HP Honda air compressor. It gives a massive 545 litres of free air. It has a maximum operating pressure of 145PSI and out performs equivalent models on the market from 50 - 110 litres of free air. This model is one of the most popular petrol models on the market and is ideal for a 2-3 man workshop. Please refer to our flow chart when selecting a compressor that is right for you. Electric start optional extra. Please call Peerless for a quote.

Twin Tank The twin tank model is designed for better portability and stability in the back of vehicles. It's low center of gravity ensures stability in the back of utilities and on uneven ground The handle is also removeable making it a very compact unit when needed.

2" Tube Tank With the performance of the 2" tube tank there is no down time on waiting for a receiver to fill, just instant pressure. If you lose pressure just take your finger off the trigger and then you’re back to full pressure again in less than 2 seconds. Being such a unique design, this frees up valuable space on or in the service truck/van which can help with any space or weight issues you may currently have.

Under / Over The under & over model is extremely popular for saving space in the back of service vehicles or trailers. The greatest advantage of these and the tube models is their quick recovery time within 6 seconds you are back to full pressure and there is not much sense in pumping up a large air receiver before you pump up your tyres.

Electric start engine does not come with battery, leads or provisions for battery. We can manufacture to your design plus there are other standard designs for each model.

Performance of all our belt driven air compressors are to AS4637.

Code : 563
Model : Twin Tank
Pump Displacement (CFM) : 25 CFM
Free Air Delivery (LPM) : 545 LPM
Max PSI : 145
Engine : Honda GX270
Warranty Pump : 3 Year
Warranty Engine : 3 Year
Tank Capacity (L) : 65L
Pump up time to 100PSI : 0.45 - 0.50 Min.
Dimensions (mm) / Weight (kg) : 1300Lx740Wx910H / 150kg
Cooling Method : Air cooled
Pump Type : V90
Cylinders : 2
Pump Head Tension : 30 FT LB 40.67NM
Pump Oil Capacity : 1.5L
Pump RPM : 1050
Outlet Thread : 1/4"BSP & 1/2”BSP
Engine Fuel Capacity : 5.3L
Engine Oil Capacity : 1.1L 10W/30
