PETRO Fuel storage tank - PS STORE Small Footprint Tank Range 5,500L to 22,000L

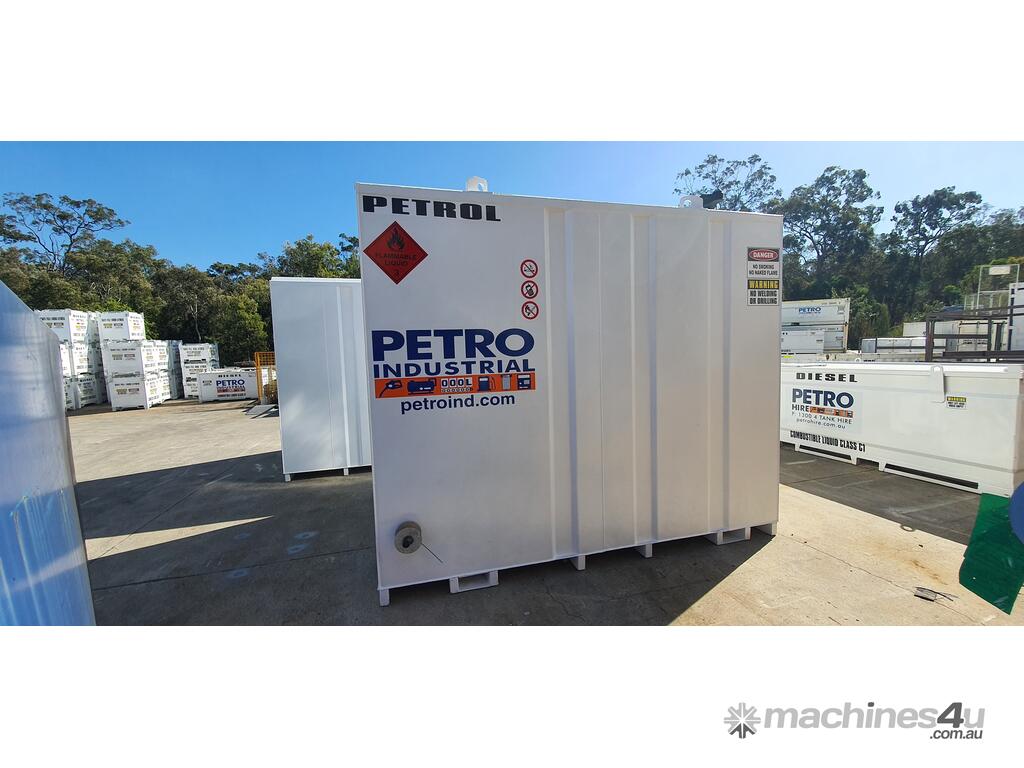

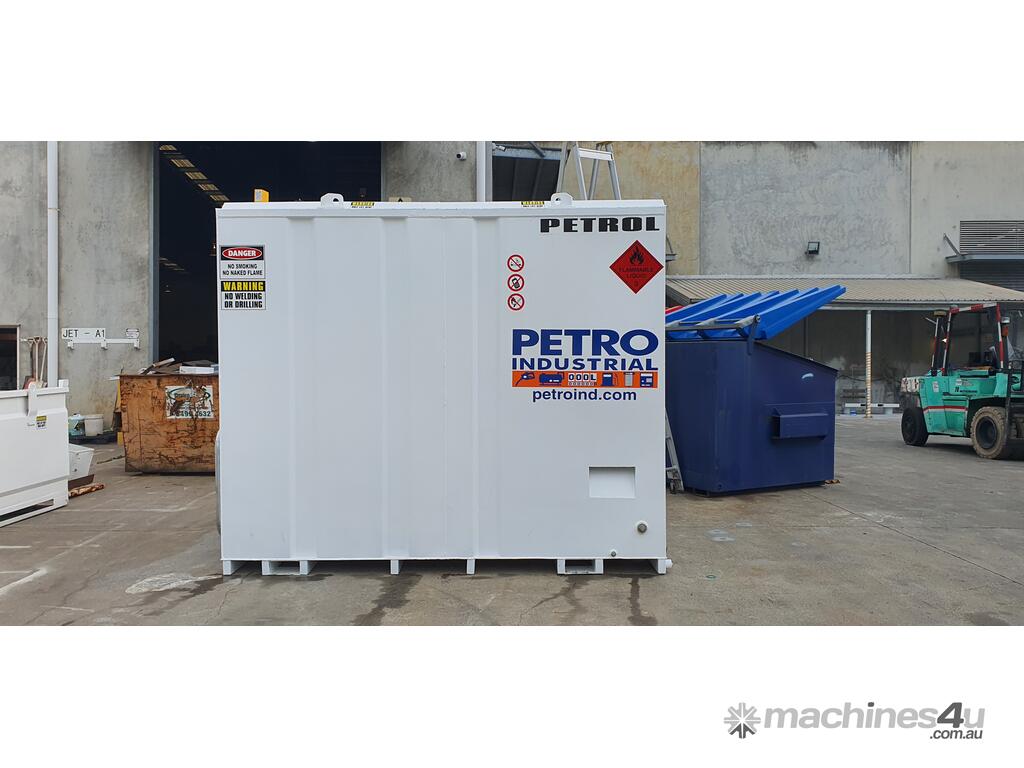

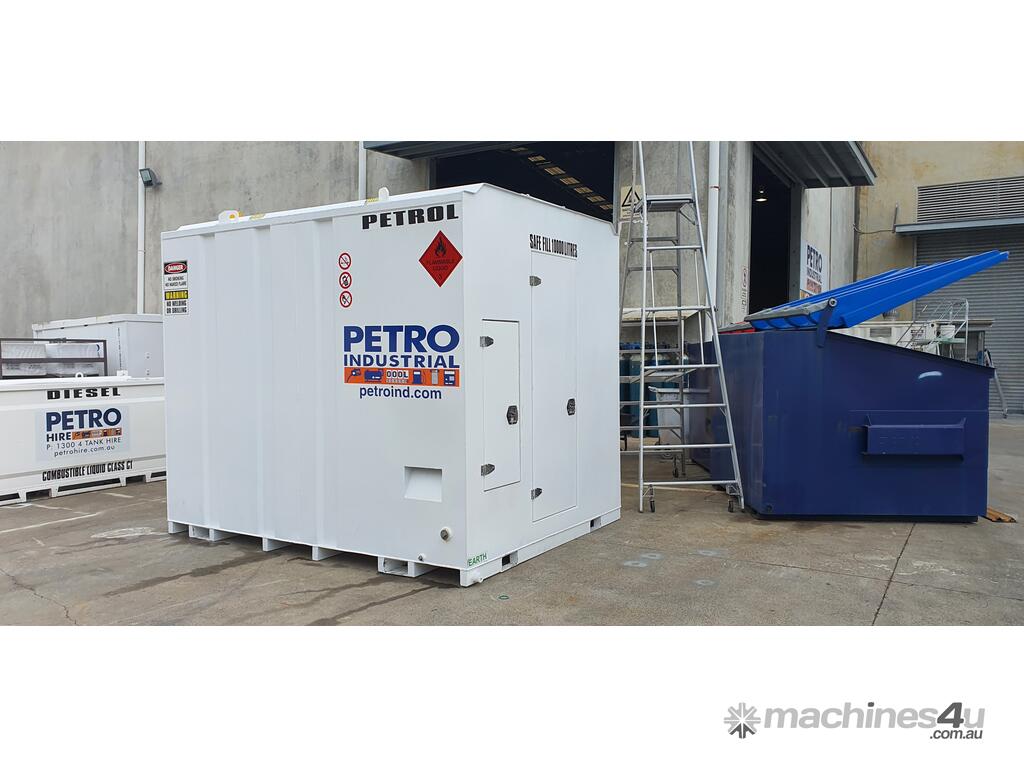

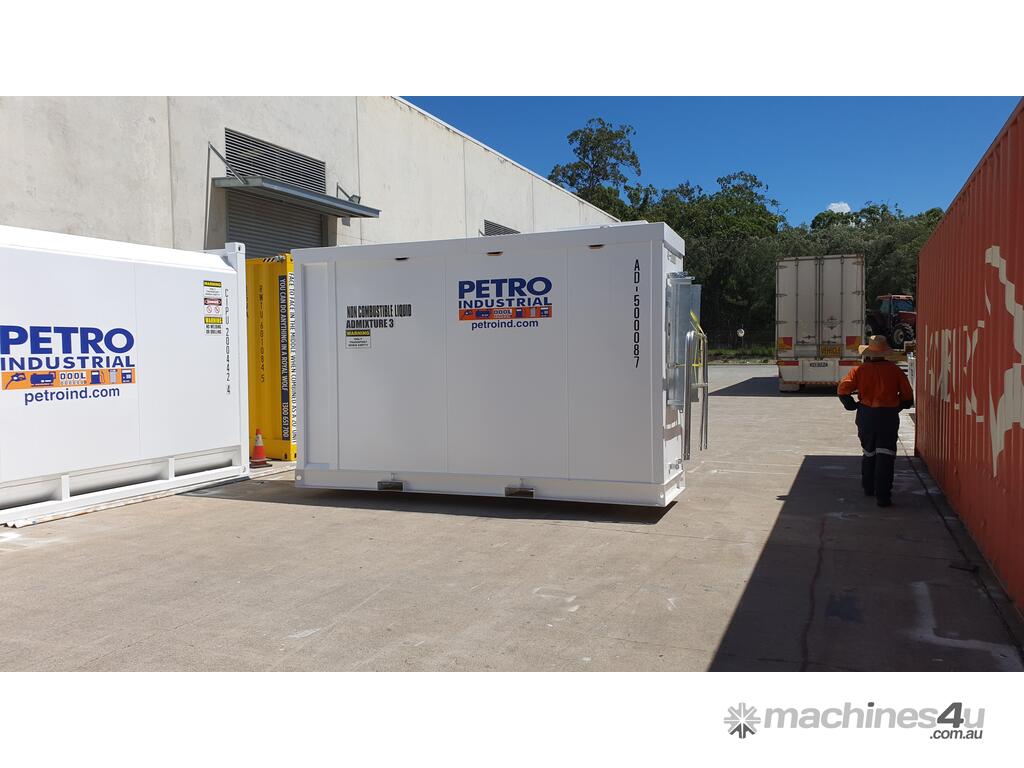

PETRO STORE - Self Bunded (Double Wall) Small Footprint Tank Range

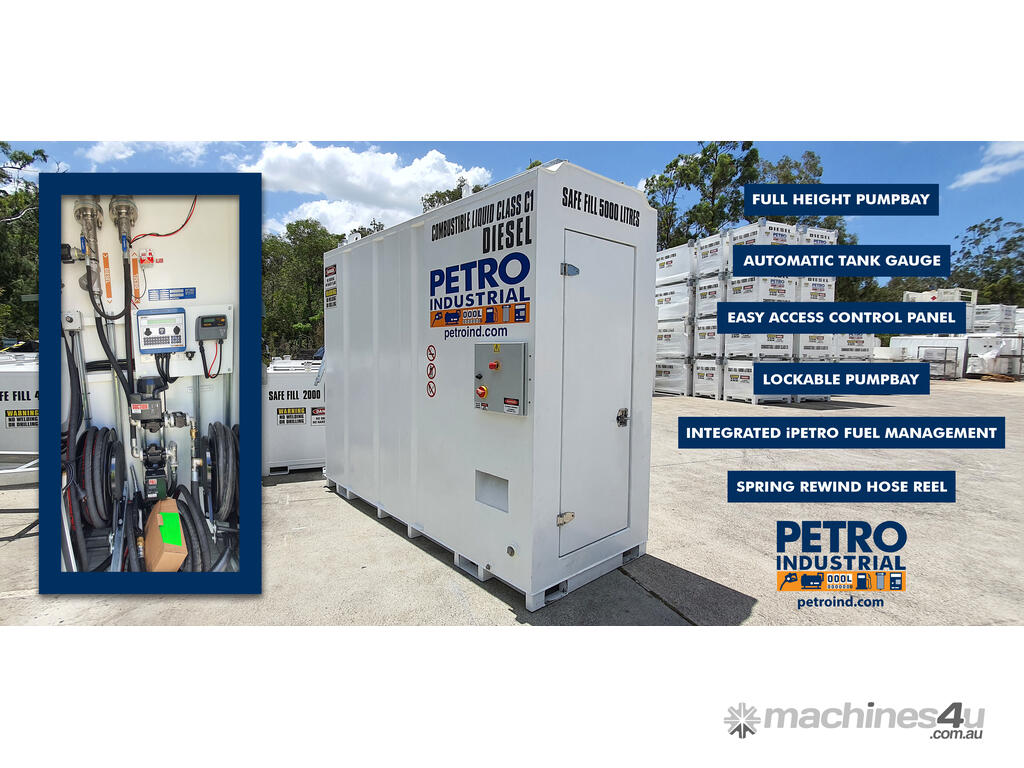

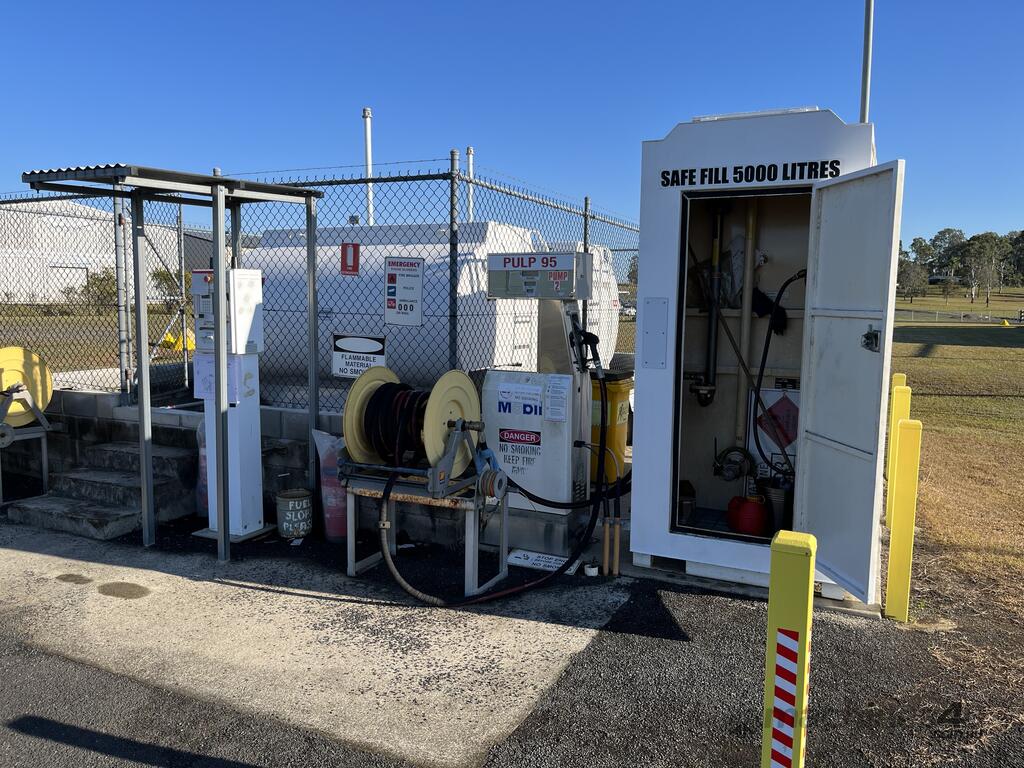

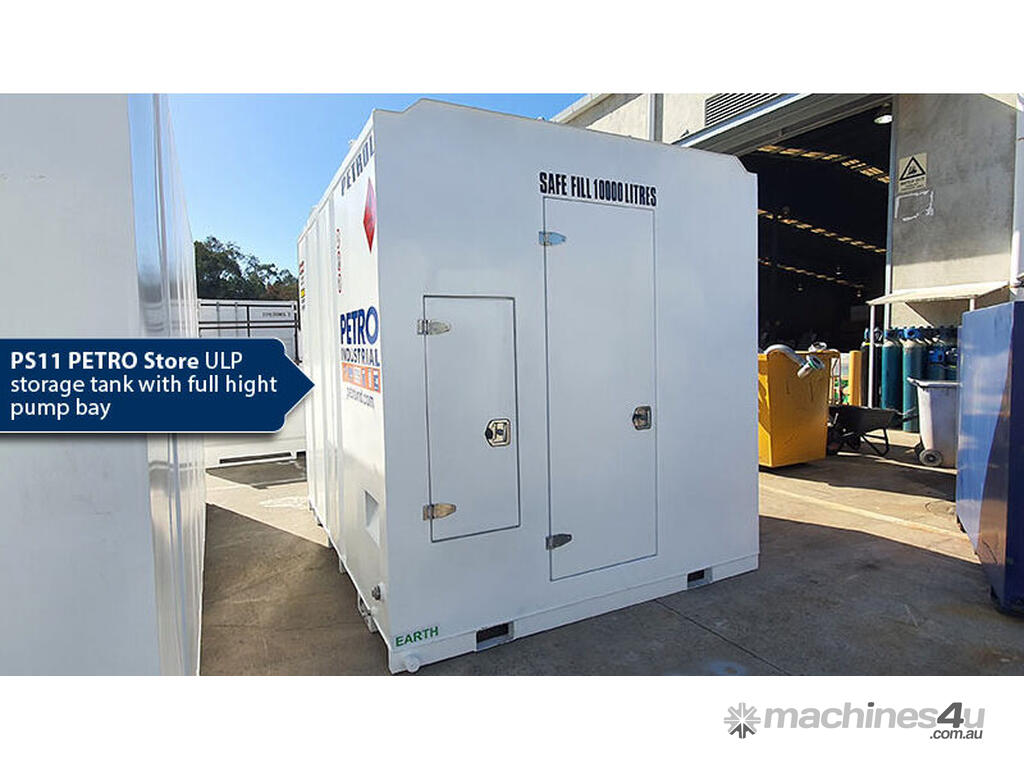

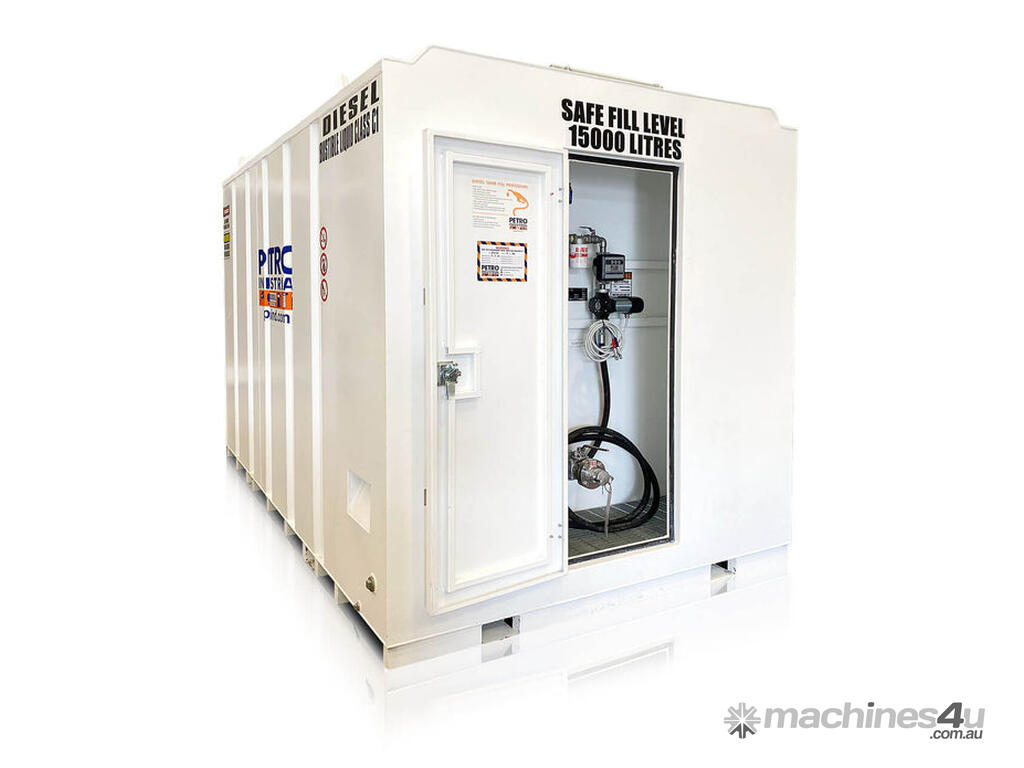

The PETRO STORE Self Bunded Tank Range offers an innovative, small footprint design with a full-height pump bay, perfect for home base refueling needs.

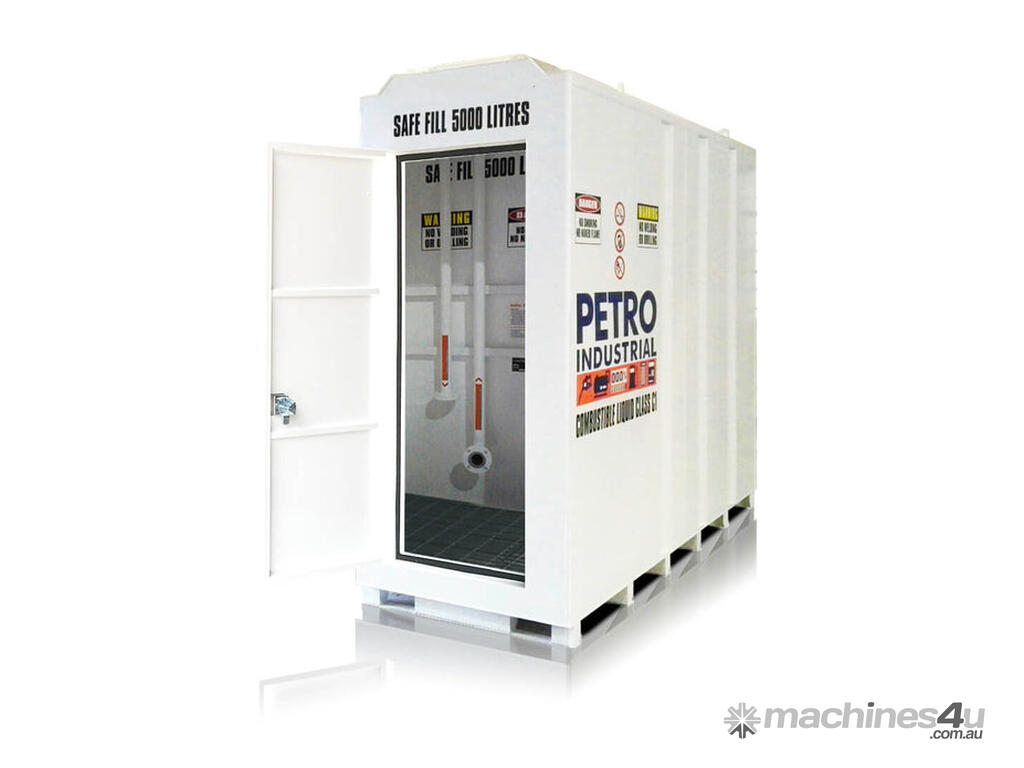

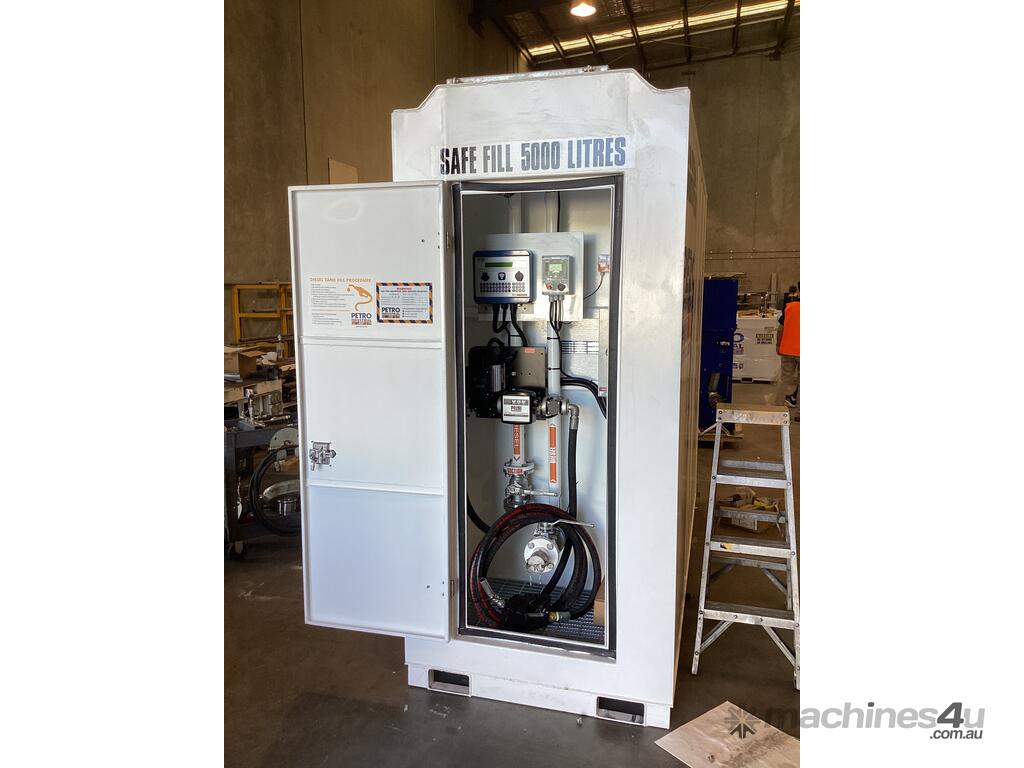

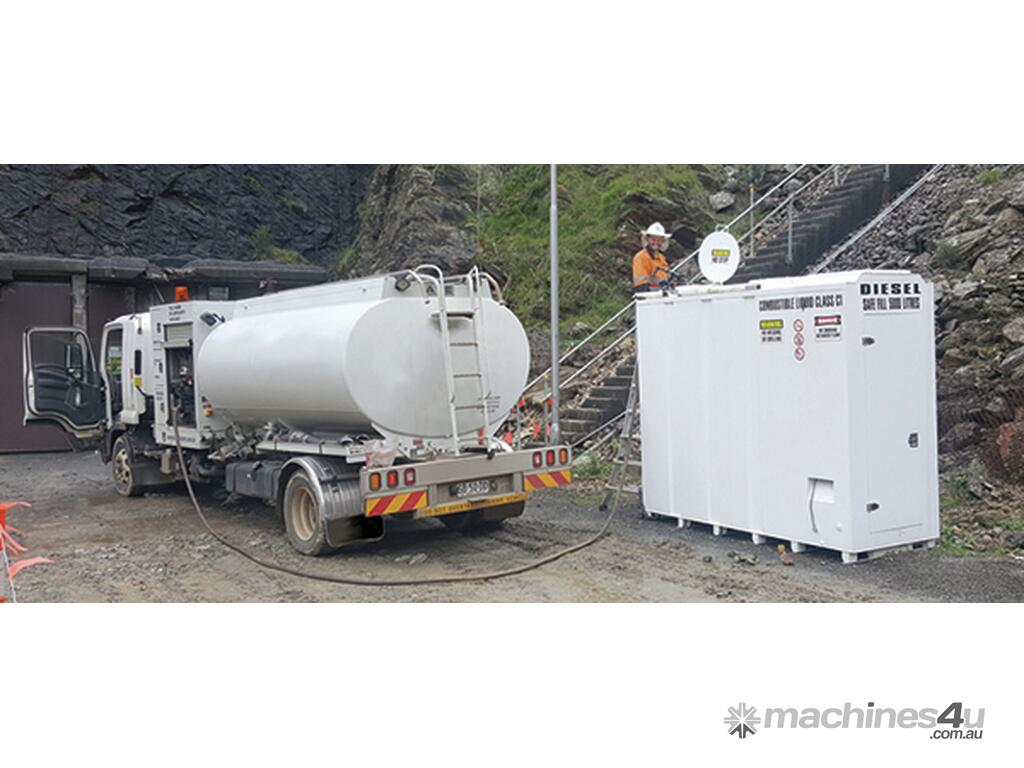

Key features include a lockable full-height pump bay housing for secure storage of dispensing equipment, ensuring compliance with AS1940, AS1692, and AS1657 standards. The tank has a galvanized grated bunded area with a drain for spill containment. The fill point is equipped with a DN50 (2") flanged 150# fill point, full bore ball valve, non-return valve, male camlock fitting, dust cap, mechanical overfill protection valve, and a 12V overfill alarm. Additionally, there's a DN50 (2") flanged 150# suction point with an anti-syphon and foot valve assembly, along with a spare DN25 (1") suction outlet.

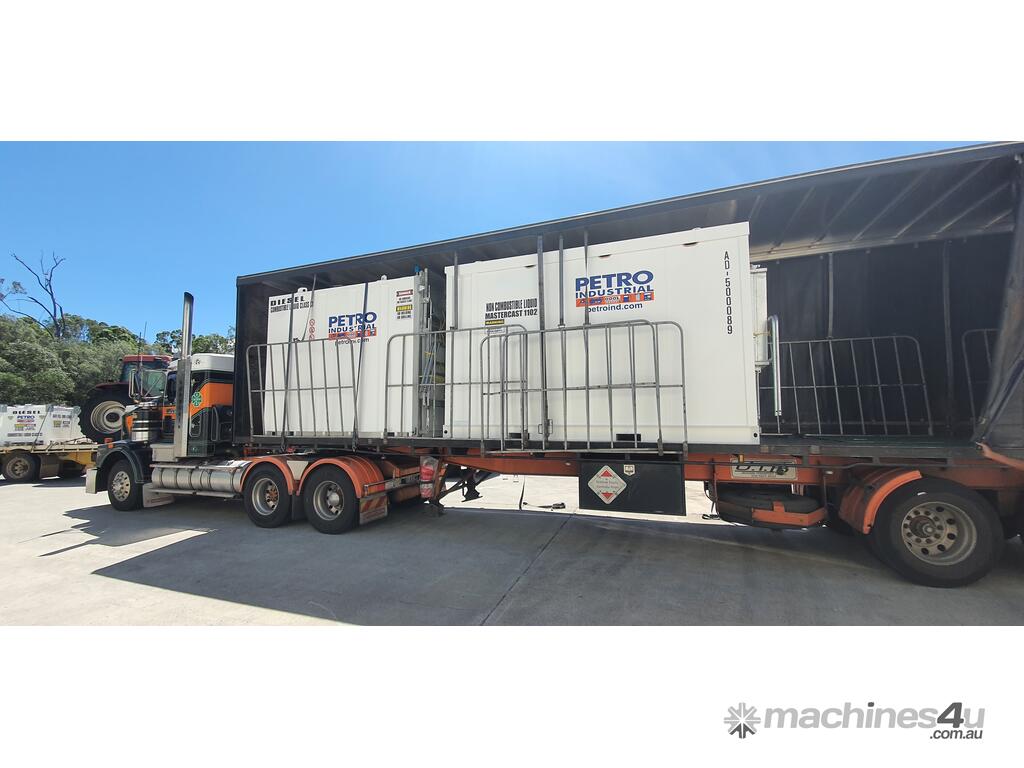

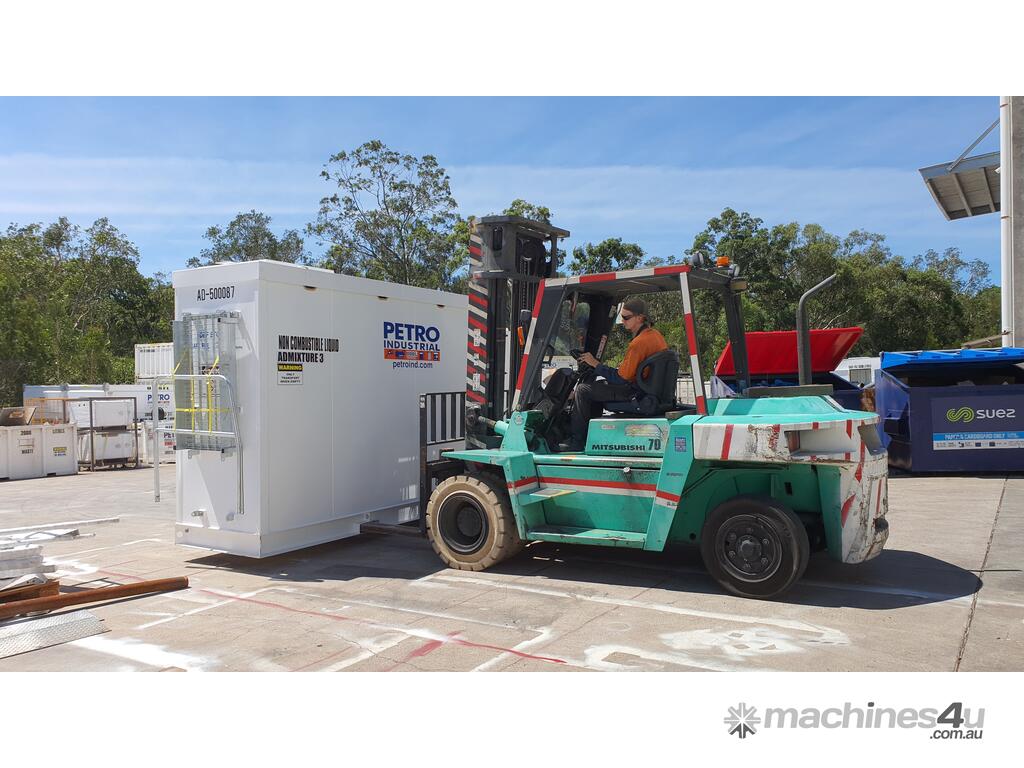

The tank features numerous spare fittings on top for retrofitting instrumentation or other devices, a 600mm diameter manway with an internal ladder, a calibrated anodized aluminum dipstick with a brass lockable cover fitting, and an anodized aluminum interstitial dipstick with a brass lockable cover fitting. It also includes an interstitial emergency vent, a primary tank free air vent, statutory safety decals, and forklift tynes at the front and rear for easy offloading and positioning. Certified crane lifting lugs are included for crane offloading, though they are not certified for lifting the tank when full. The hose outlet features a letterbox-style secure weatherproof inlet/outlet assembly.

The tank is painted in RAL9003 Signal White, with a three-stage Hempel Marine Paint process, including a Hempadur 1530 primer, a Hempadur Hi-Build 4520 second coat, and a Hempathane Enamel 55100 final coat, ensuring a finished dry film thickness of no less than 180 µm.

View the brochure for the full range of Self Bunded Tanks manufactured by PETRO Industrial today. For more information, contact PETRO Industrial's team of bulk fuel storage and dispensing specialists.
