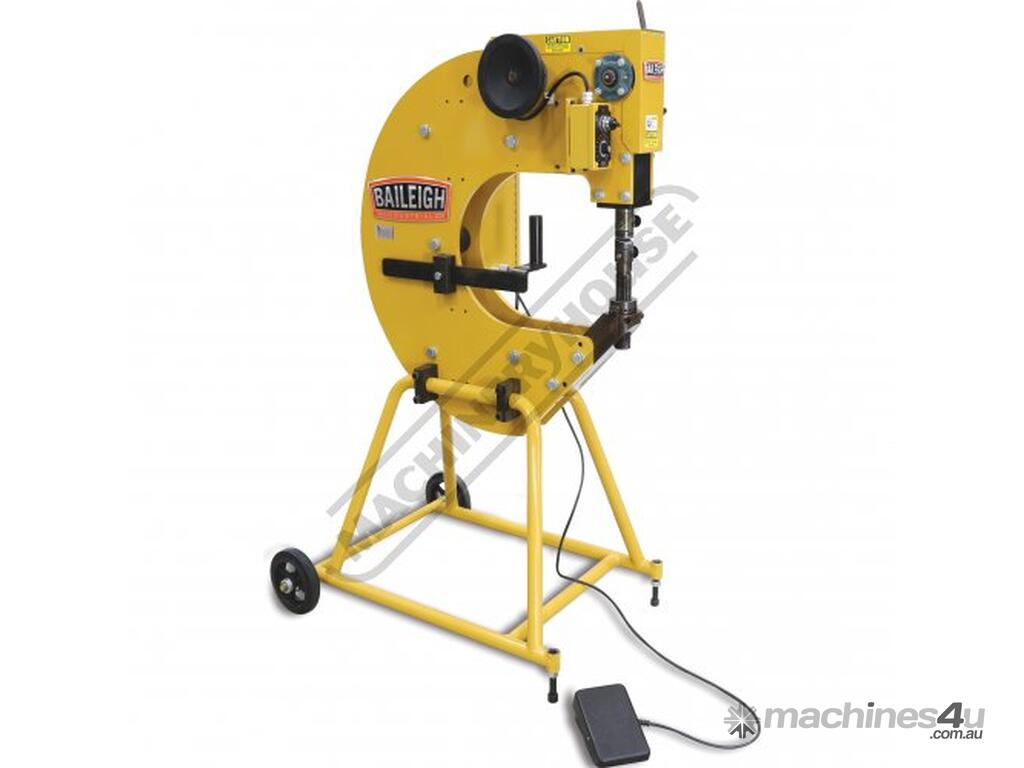

PH-19VS Reciprocating Hammer Package Deal 1.6mm Mild Steel Capacity, 482mm Throat Depth Includes 4 x

BAILEIGH PH-19VS Reciprocating Hammer Package Deal 1.6mm Mild Steel Capacity, 482mm Throat Depth Includes 4 x Additional Dies
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K4030

Need precise speed control for delicate jobs? That’s why we added an inverter drive to our PH-19 and created a variable-speed power hammer that more shops can afford.

Recommended for: Small automotive and airplane shops with limited space and/or budgets, as well as schools and educational institutions.

Features:
Delivers enough force to shape 1.6mm mild steel
482mm throat allows you get deep into panels and covers most metal shaping projects
Adjustable speed from 100 to 1500 to beats per minute
You can control the speed either by foot pedal or the control box on the side of the machine
Plug it into any 240-volt power outlet

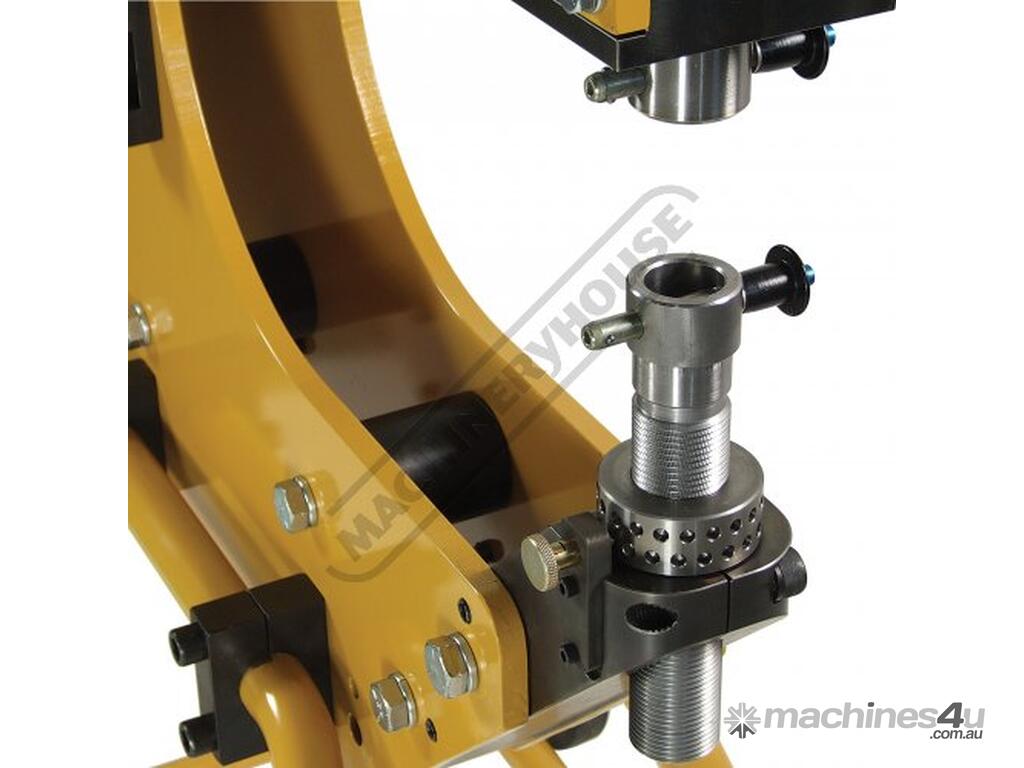

Quick-release tooling handle lets you start in the middle of a panel while keeping the pressure constant
Tooling changes take just a few seconds and don’t require any hand tools

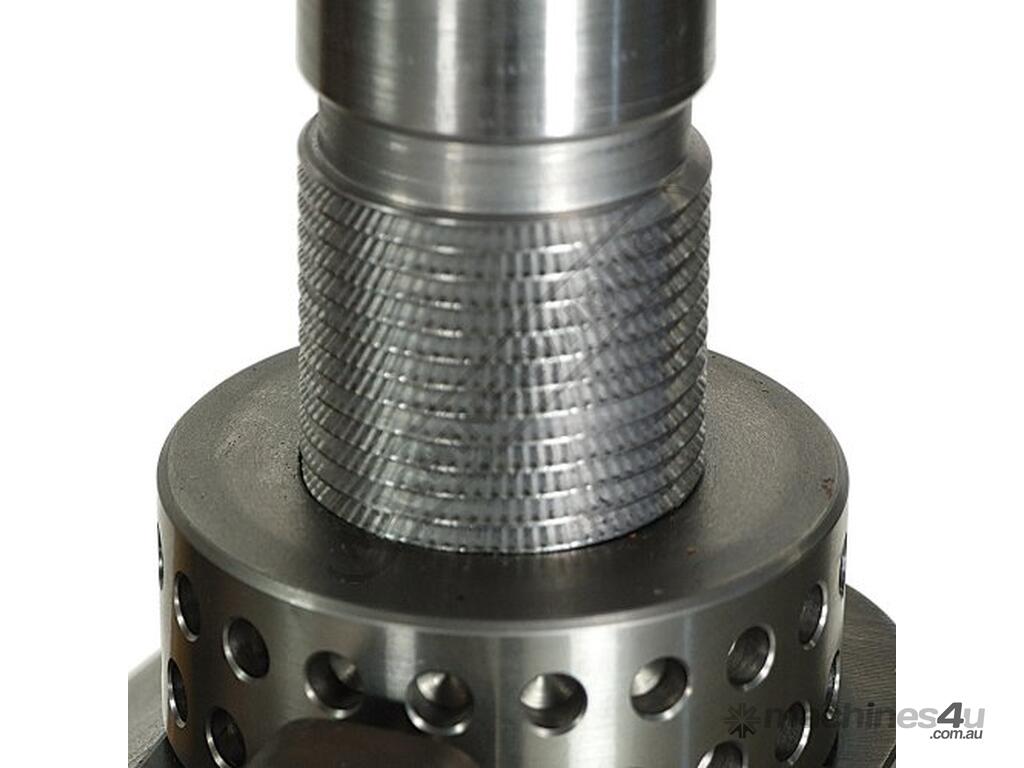

Comes standard with a mini thumbnail shrinker die set
Wide variety of tooling available for shrinking stretching planishing and drastic metal shaping
Heavy 12.7mm plate steel frame and rigid steel stand enable this power hammer to hit with full force and prevent deflection
Small footprint saves space in smaller shops
Wheels on the base make it easy to move out of the way
Tooling and replacement parts are available

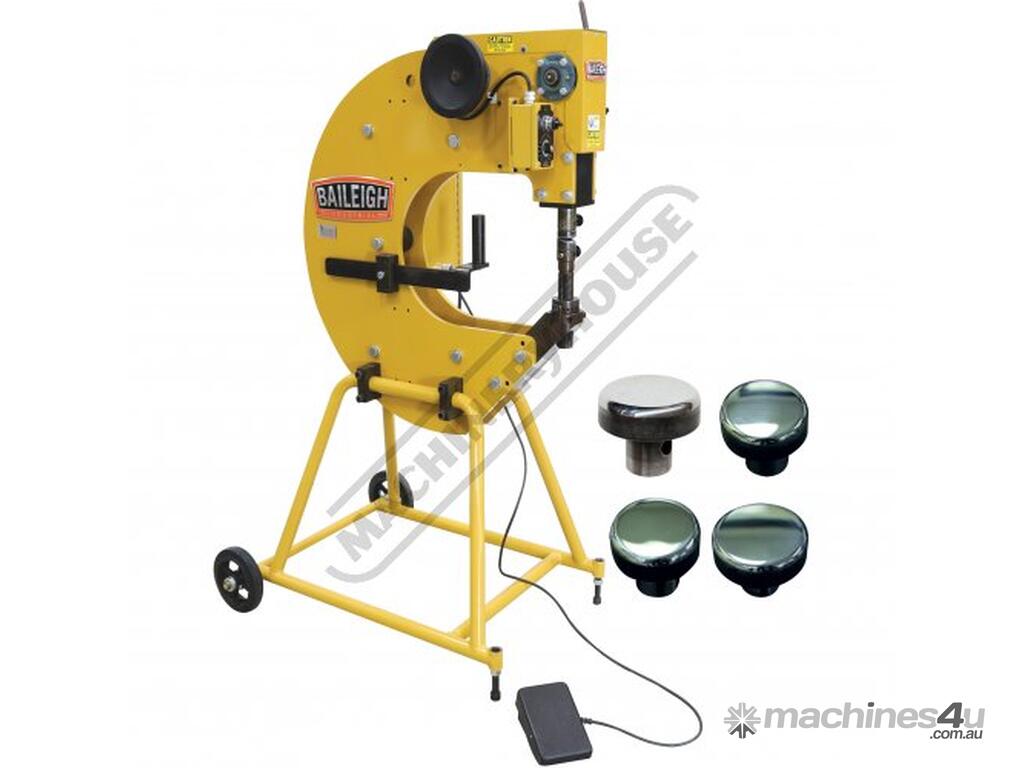

Includes:
- 1005979 - Master Flat Top Die - (B8957)
- 3" (76.2mm)
-
- 1005985 - Doming Bottom Die - (B8967)
- 12" (304.8mm) radius 3" (76.2mm) face diameter
-
- 1005986 - Doming Bottom Die - (B8969)
- 24" (609.6mm) radius 3" (76.2mm) face diameter
-
- 1005987 - Doming Bottom Die - (B8971)
- 36" (914.4mm) radius 3" (76.2mm) face diameter



Specifications:
ORDER CODE: K4030
MODEL: PH-19VS
Machine (Type): Reciprocating Hammer Package Deal
Machine (Type): ~
Mild Steel - Capacity (mm / Gauge): 1.6 / 16
Aluminium - Capacity (mm / Gauge): 2.5 / 12
Cubic feet per minute (CFM): ~
Tooling Height Adjustment (mm): 127
Throat Depth (mm): 482
Length of Stroke Adjustment (mm): 4.5 - 14
Radius Anvil Sizes (mm): ~
Speed - blows per minute (BPM): 100 - 1500 (Variable)
Air Consumption (CFM): ~
Working Height (mm): ~
Air Pressure (psi): ~
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240
Nett Weight (kg): 454
