PHM-560MK2 Power Hammer 1.2mm Mild Steel Capacity 560mm Throat Depth

METALMASTER PHM-560MK2 Power Hammer 1.2mm Mild Steel Capacity 560mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S228

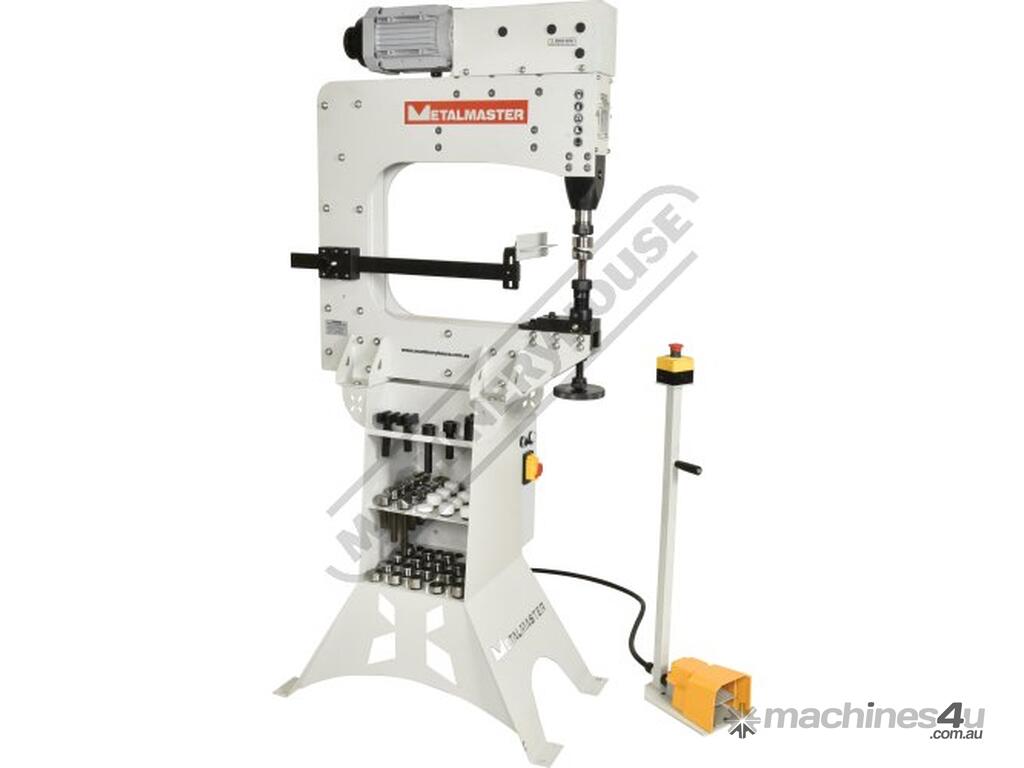

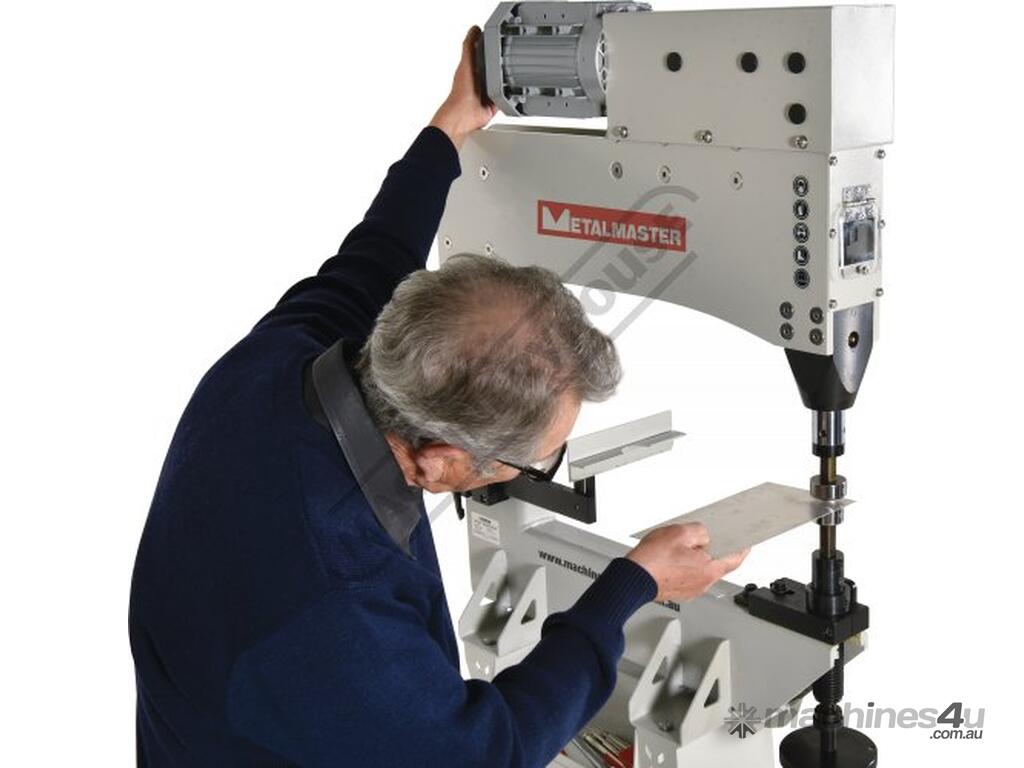

At last, there’s an affordable solution for metal shaping. The PHM-560MK2 Metalmaster Electric Power Hammer was designed to have all the features of larger machines without the price tag. The ability to switch between rigid and non-rigid modes to suit your project makes this machine even more flexible. Only limited by your imagination the PHM-560MK2 can shrink, stretch, dome, edge turn, bead and form louvers, ideal for shaping sheet metal for cars, motorbikes & airplane panels. It has a 12mm thick steel fabricated upper frame and is supplied with and extensive range of CR12 hardened steel dies for shaping steel and nylon dies for forming softer metals like aluminium. It has variable speed via inverter control, with 0-960 strokes per minute and the capability of shaping up to 1.2mm thick sheet mild steel and up to 1.6mm thick sheet aluminium.

Features:
Capacity - 1.2mm thick sheet mild steel

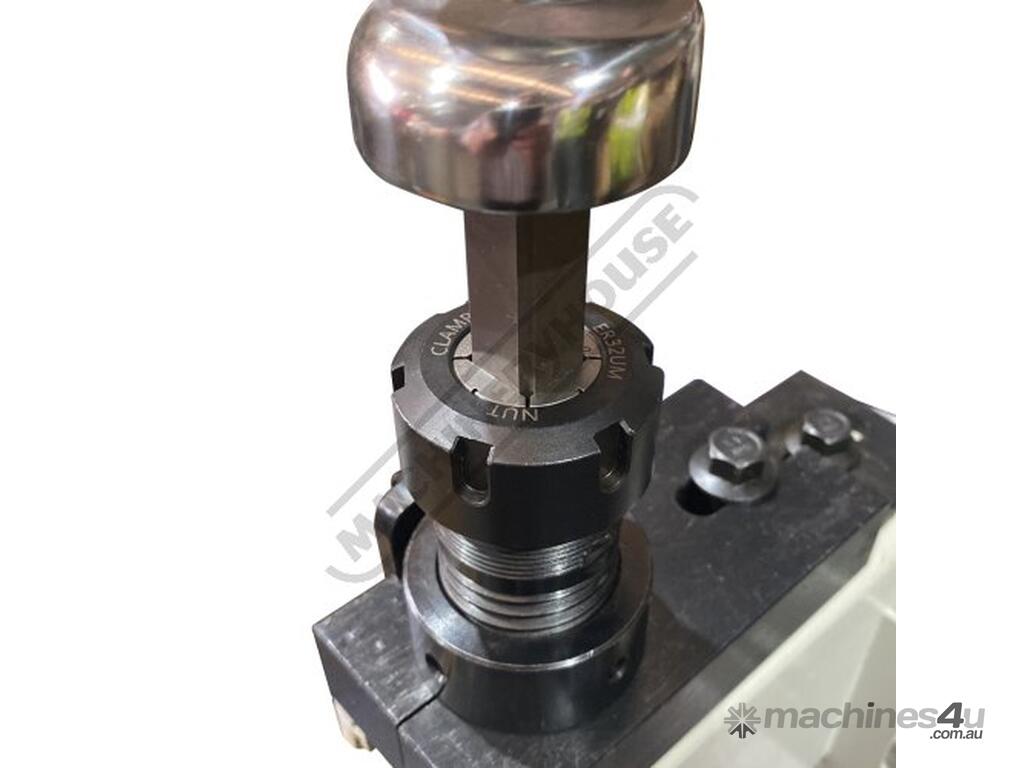

Quick change tool holder
16mm square Shank Tooling

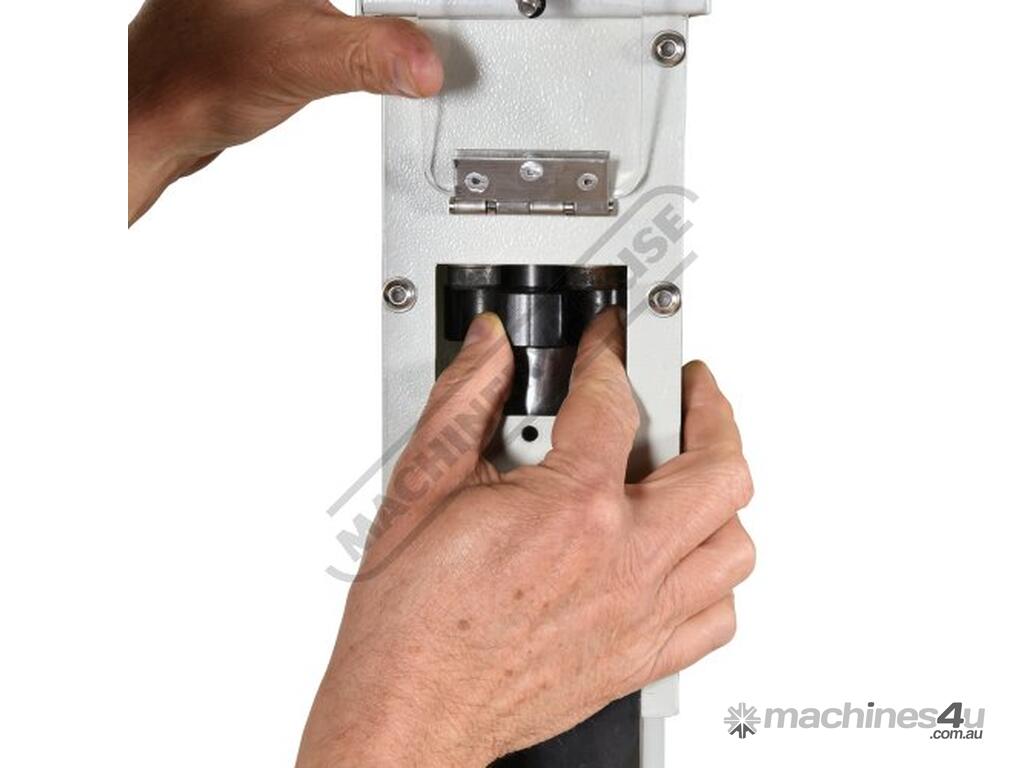

Rigid & Spring Modes
Variable speed via inverter control 0 - 960 blows per minute
560mm throat depth capacity
395mm throat height capacity

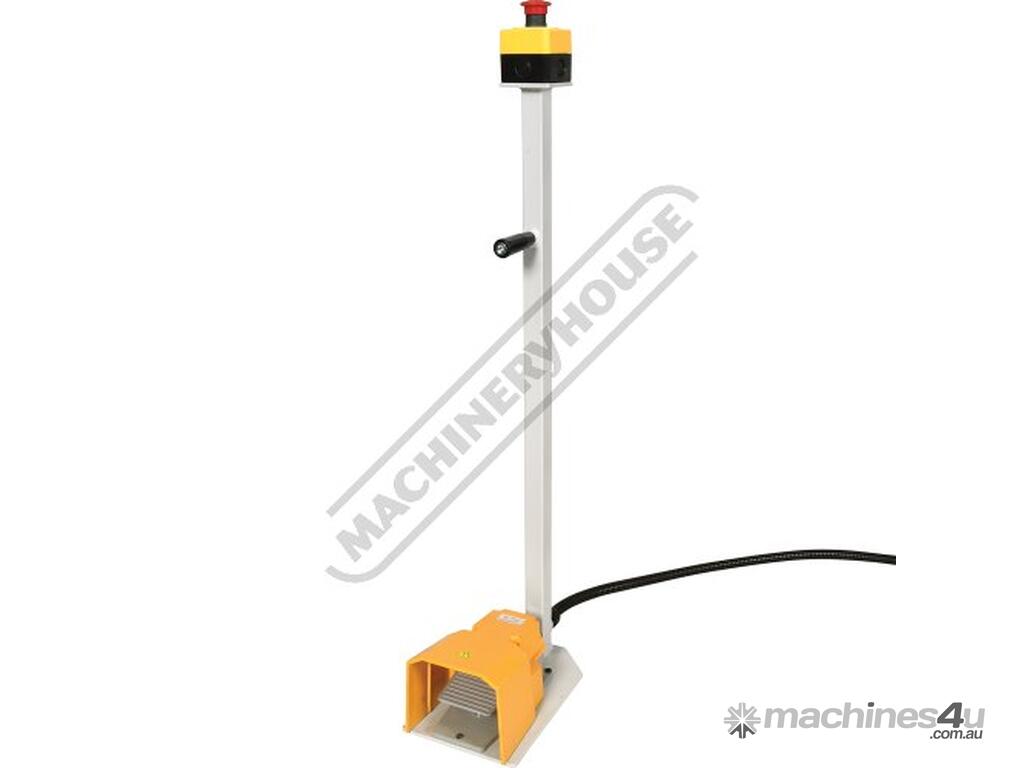

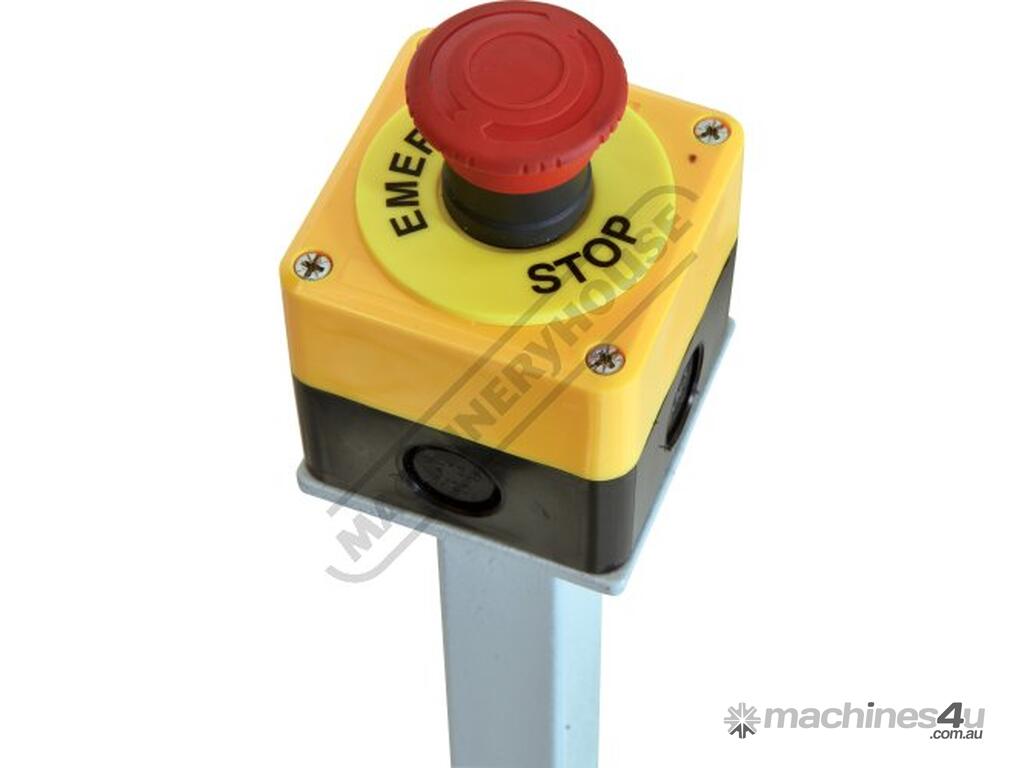

Foot pedal control with emergency stop
Steel fabricated upper frame - 12mm thick plate
Steel fabricated lower box section steel frame
Drive shafts have bronze bushes & greasing points

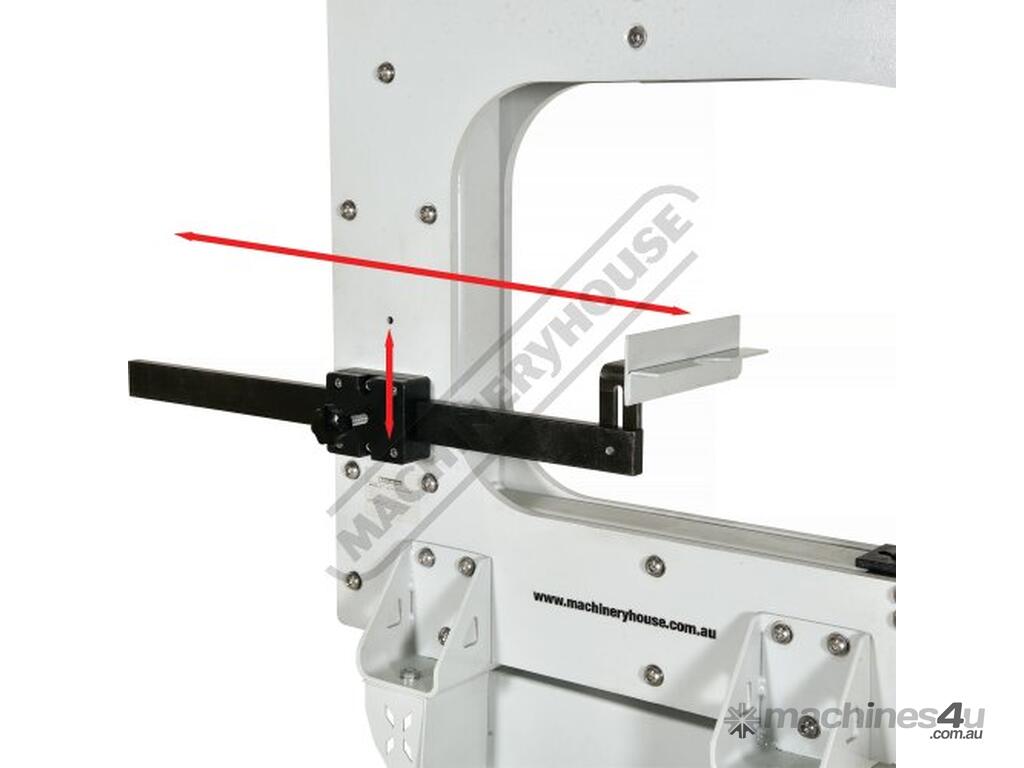

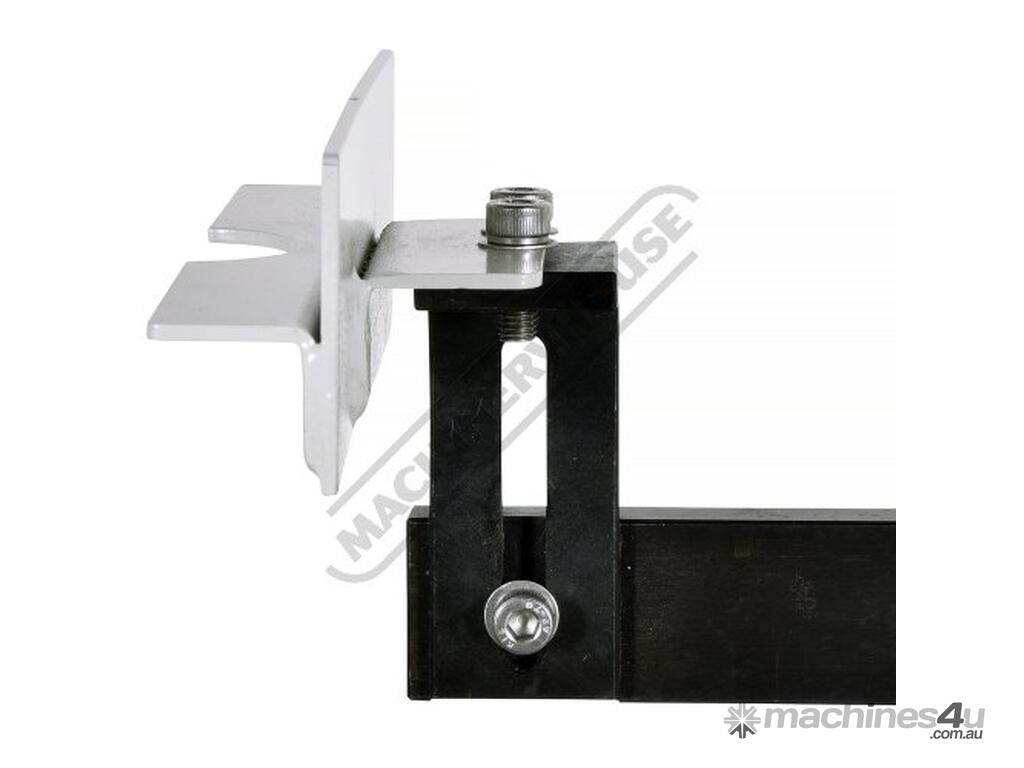

Adjustable heavy duty single arm length stop with 1 round roller & guide fence
Safety magnetic power switch
Steel dies made from CR12 steel & hardened
Nylon dies made from durable nylon

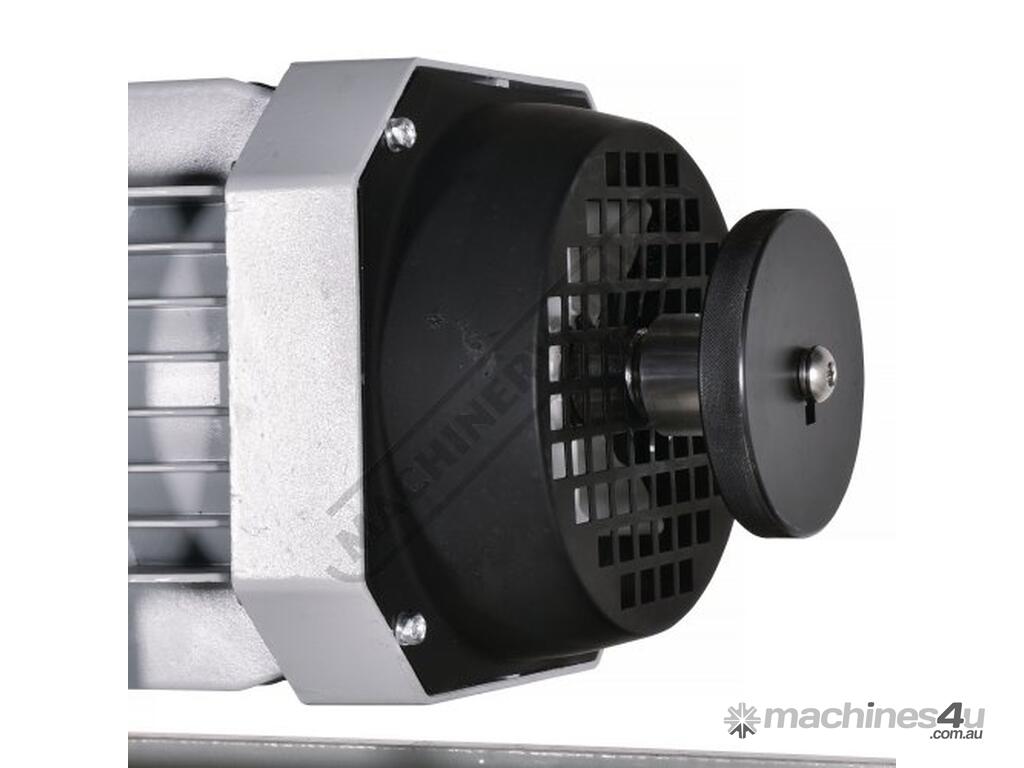

1.1kW / 1.5hp 240V motor

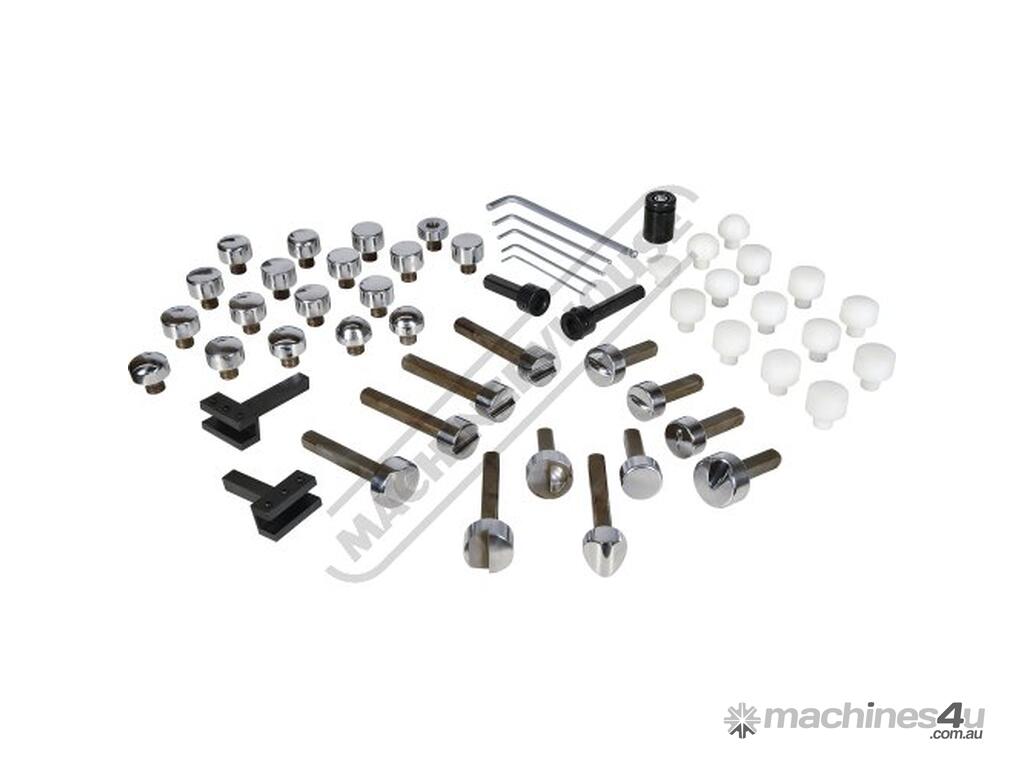

Includes:
- 1 x Straight Fence

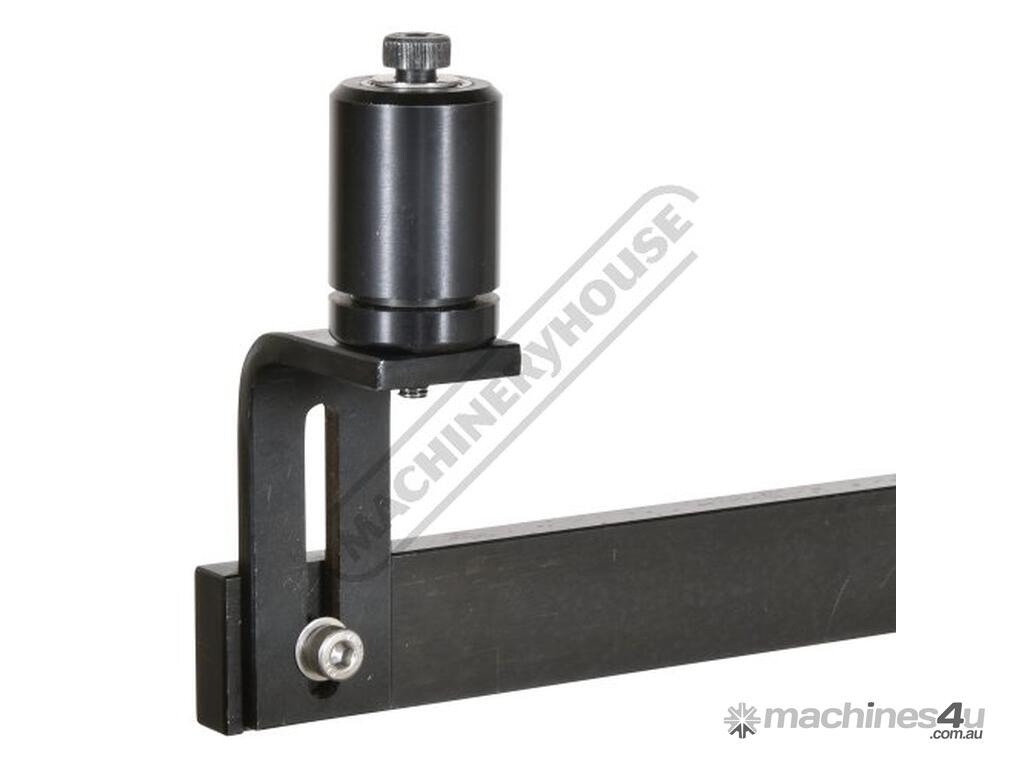

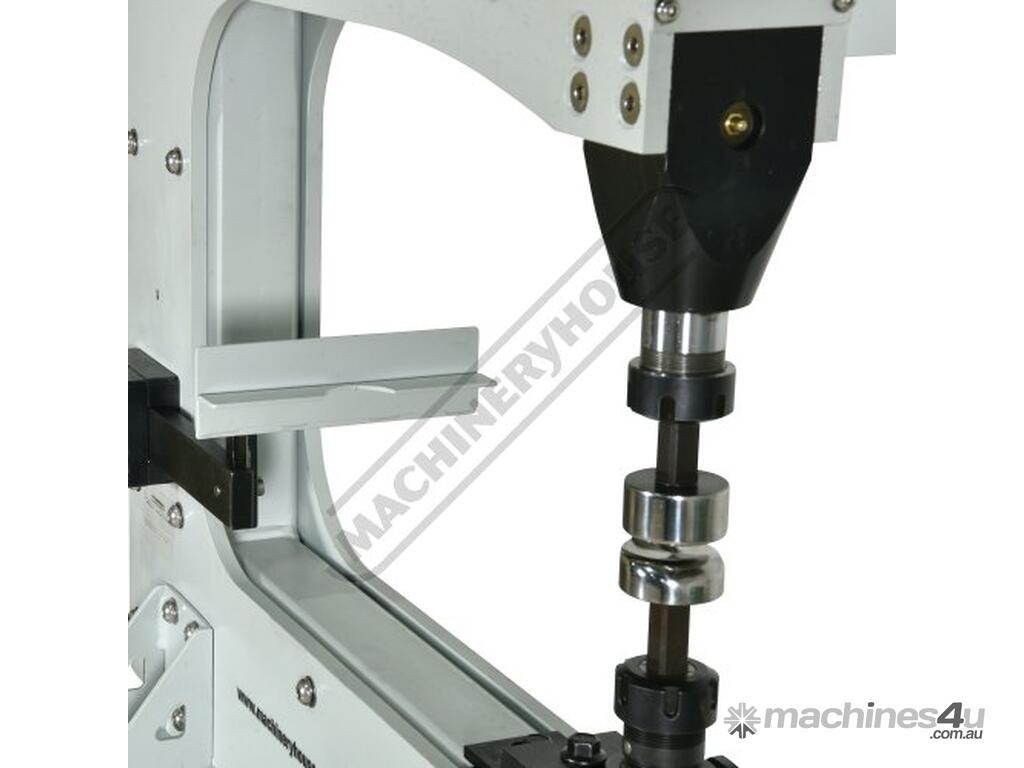

- 1 x Contour Roller Guide for concave or convex shapes
-
-

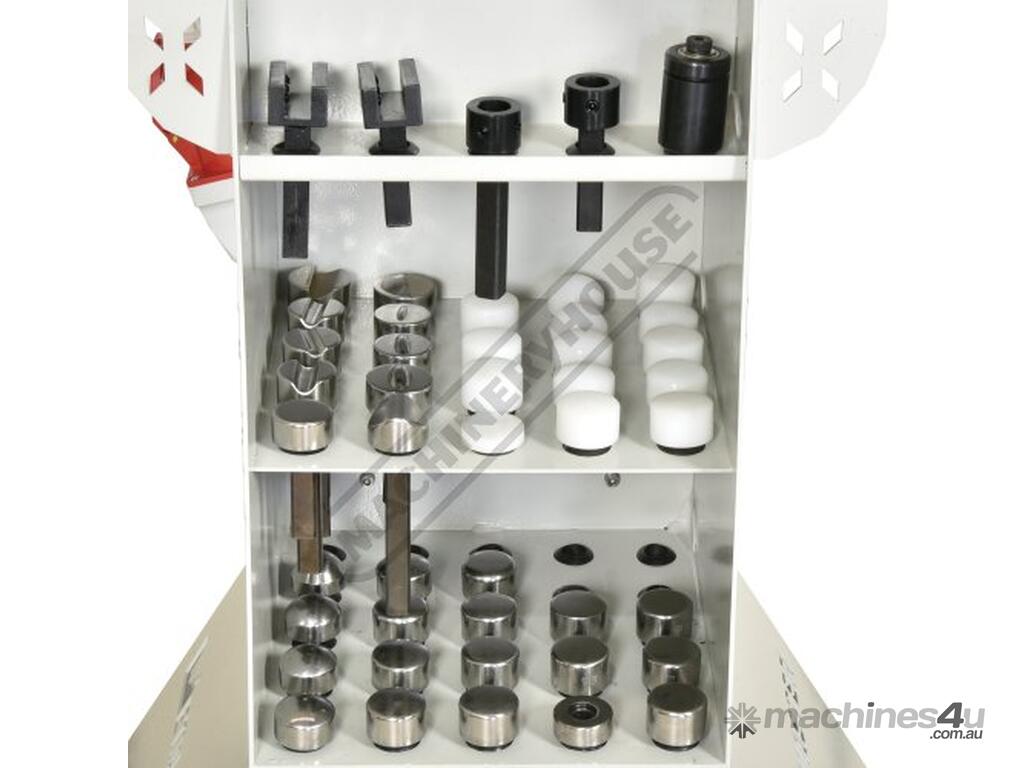

- STEEL DIES

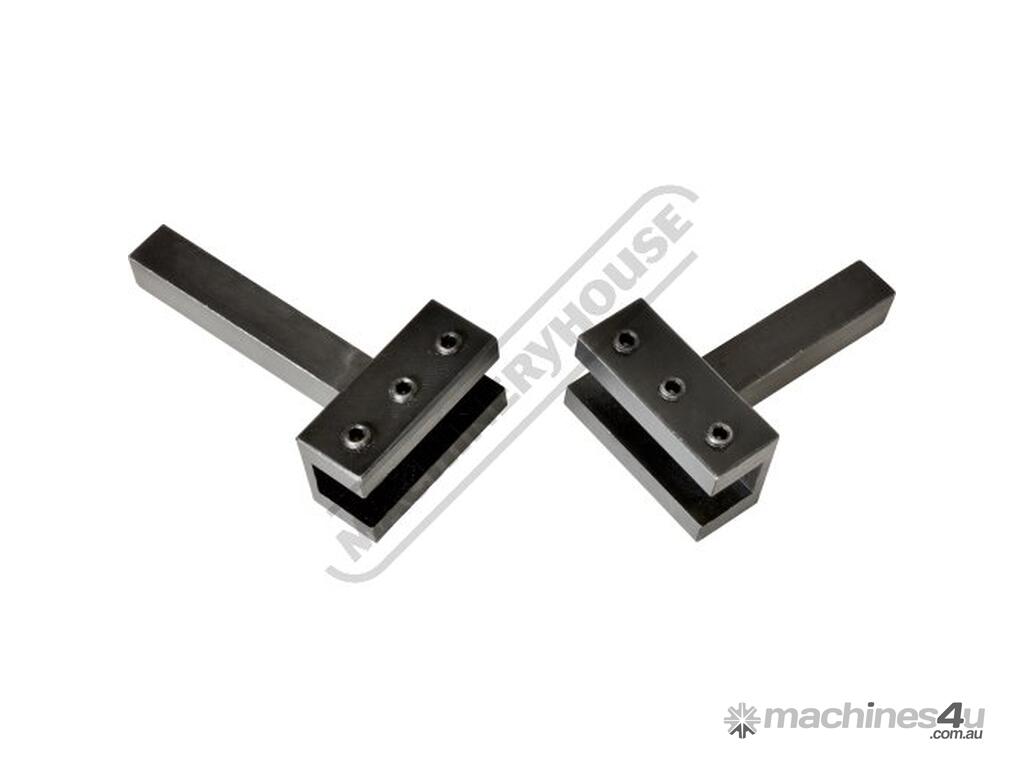

- 1 x Set of Universal holders (16mm opening) for custom tooling (16mm square shank)
- 1 x Set of Thumbnail Shrinking Dies (16mm square shank)
- 1 x Set of Louvre Dies (16mm square shank)
- 3 x Sets of Beading Dies (1/4” 3/8” 1/2”) (16mm square shank)
- 1 x Linear Stretching Die (16mm square shank)
- 1 x Flat Upper Hammer Die (16mm square shank)
-

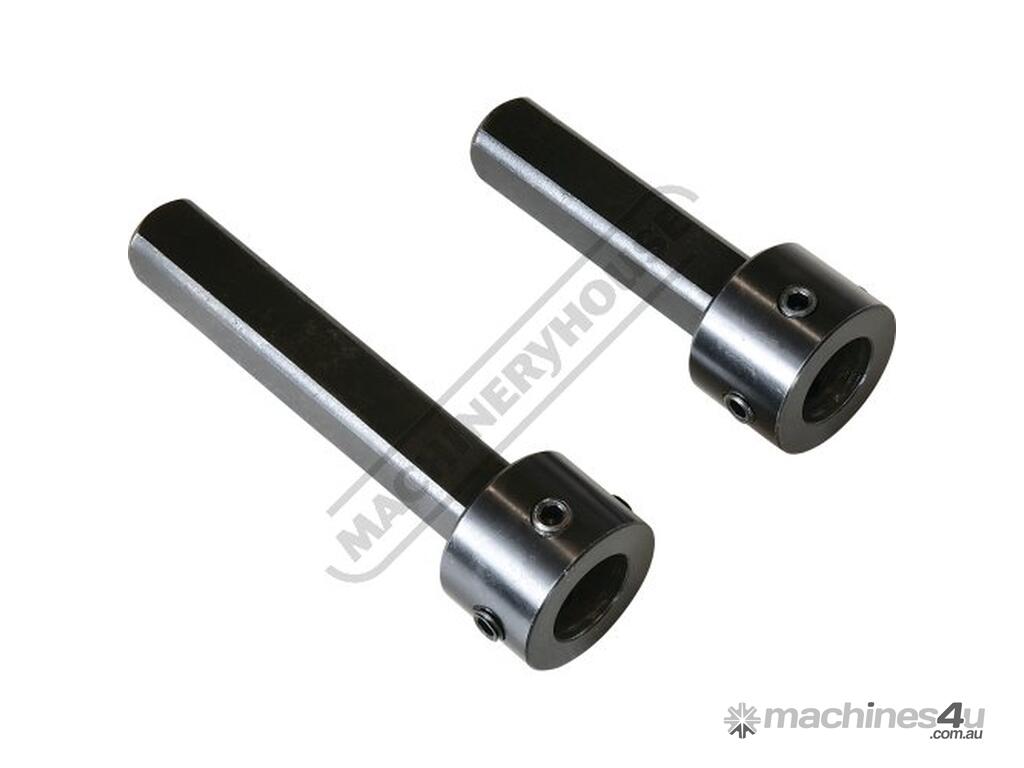

- 1 x Set of Round Die Holders Ø20 x 20mm (16mm square shank)
- 1 x Set of 3.1" Doming Dies (Ø20 x 20mm Shank)
- 16 x Steel Lower Dies - 3/4" 7/8" 1" 1-1/8" 1-1/2" 1-7/8" 2" 3" 4" 5" 6" (1/16" radius edge) 6" radius (1/4" radius edge) 8" 14-1/2" 24" 36" Radius (Ø20 x 20mm Shank)
-

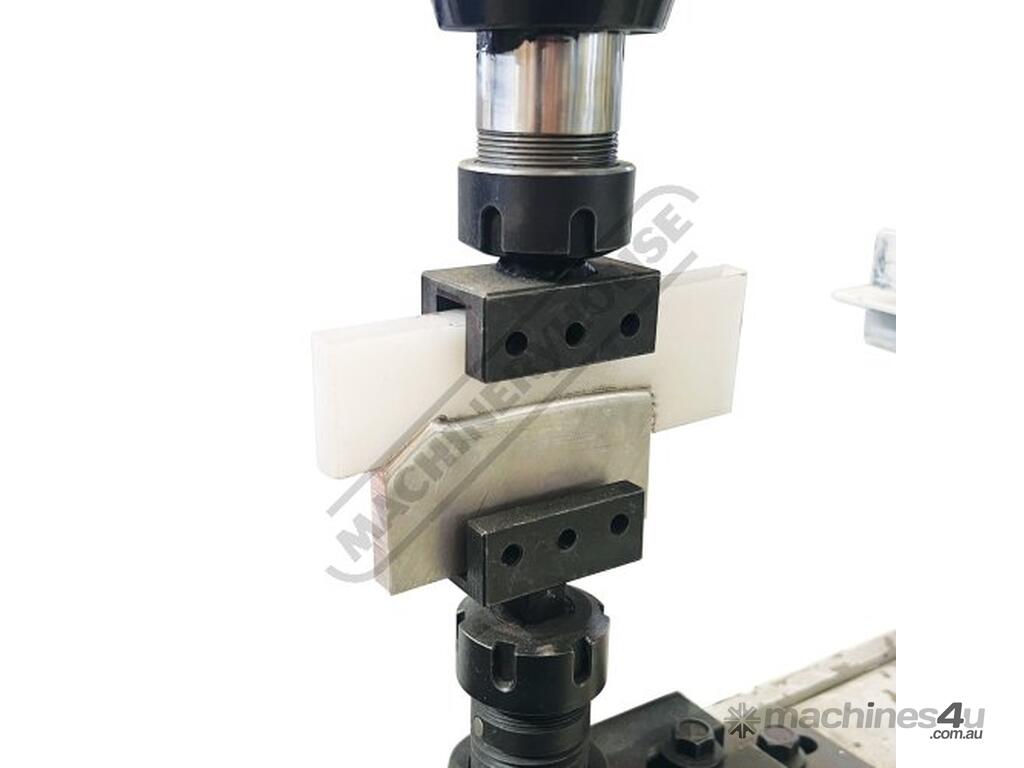

- NYLON DIES
- 1 x Flat Upper Hammer Die (Ø20 x 20mm Shank)
- 13 x Nylon Lower Dies - 3/4" 7/8" 1-1/8" 1-1/2" 1-7/8" 4" 5" 6" (1/16" radius edge) 6" (1/4" radius edge) 8" 14-1/2" 24" 36" Radius (Ø20 x 20mm Shank)



Specifications:
ORDER CODE: S228
MODEL: PHM-560MK2
Machine (Type): Power Hammer
Machine (Type): ~
Mild Steel - Capacity (mm / Gauge): 1.2 / 18
Aluminium - Capacity (mm / Gauge): 1.6 / 16
Cubic feet per minute (CFM): ~
Tooling Height Adjustment (mm): ~
Tooling Shank Size (mm): 16
Throat Depth (mm): 560
Throat Height (mm): 395
Length of Stroke Adjustment (mm): ~
Radius Anvil Sizes (mm): ~
Speed - blows per minute (BPM): 0 - 960 (Variable)
Air Consumption (CFM): ~
Working Height (mm): ~
Air Pressure (psi): ~
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 10
Machine Dimensions (LxWxH) (mm): 530 x 860 x 1790
Tooling Holder/Power Unit Dimensions (LxWxH) (mm): ~
Nett Weight (kg): 195
