PHM-760HD Power Hammer 2.0mm Mild Steel Capacity 760mm Throat Depth

METALMASTER PHM-760HD Power Hammer 2.0mm Mild Steel Capacity 760mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S2285

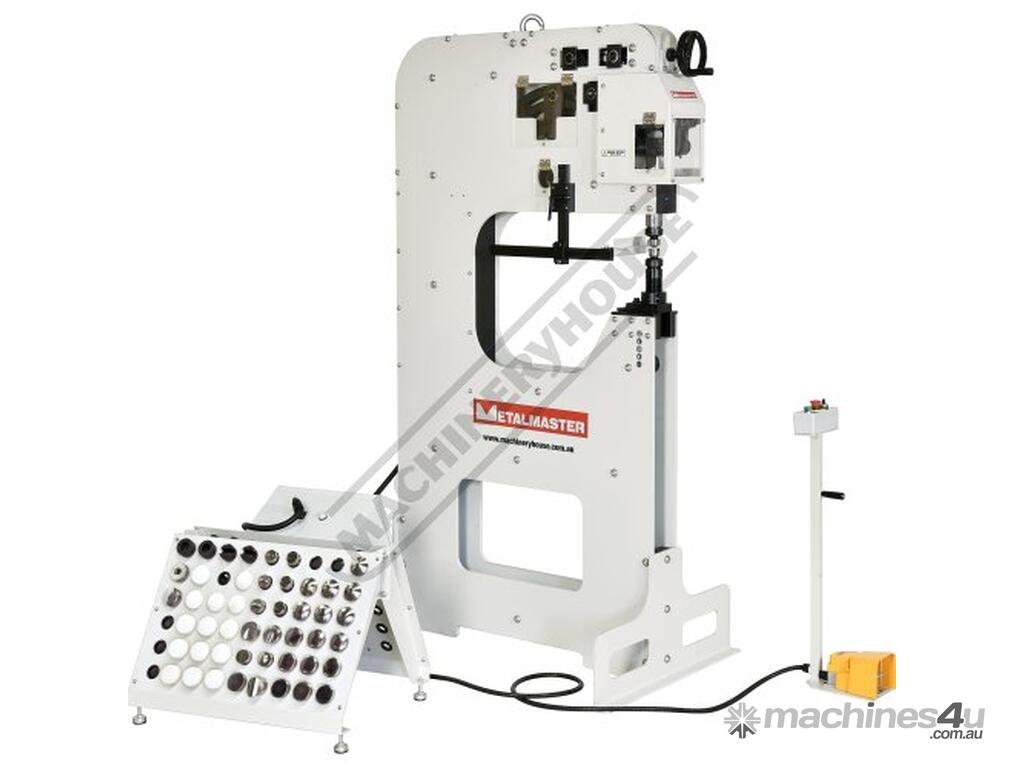

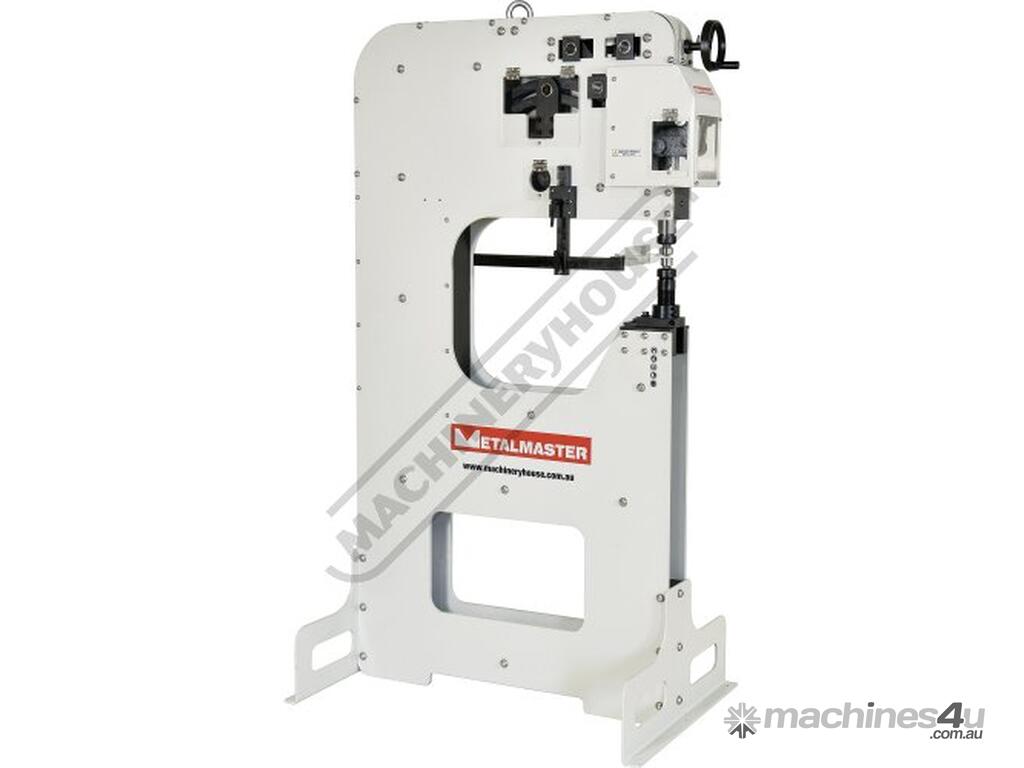

At last, there’s an affordable solution for metal shaping. The PHM-760HD Metalmaster Electric Power Hammer was designed to have all the features of larger machines without the price tag. The ability to switch between rigid and non-rigid modes to suit your project makes this machine even more flexible. Only limited by your imagination the PHM-760HD can shrink, stretch, dome, edge turn, bead and form louvers, ideal for shaping sheet metal for cars, motorbikes & airplane panels. It has a 14mm thick steel fabricated upper frame and is supplied with and extensive range of CR12 hardened steel dies for shaping steel and nylon dies for forming softer metals like aluminium. It has variable speed and the capability of shaping up to 2.0mm thick sheet mild steel and up to 3.0mm thick sheet aluminium.

Features:
Capacity - 2.0mm thick sheet mild steel

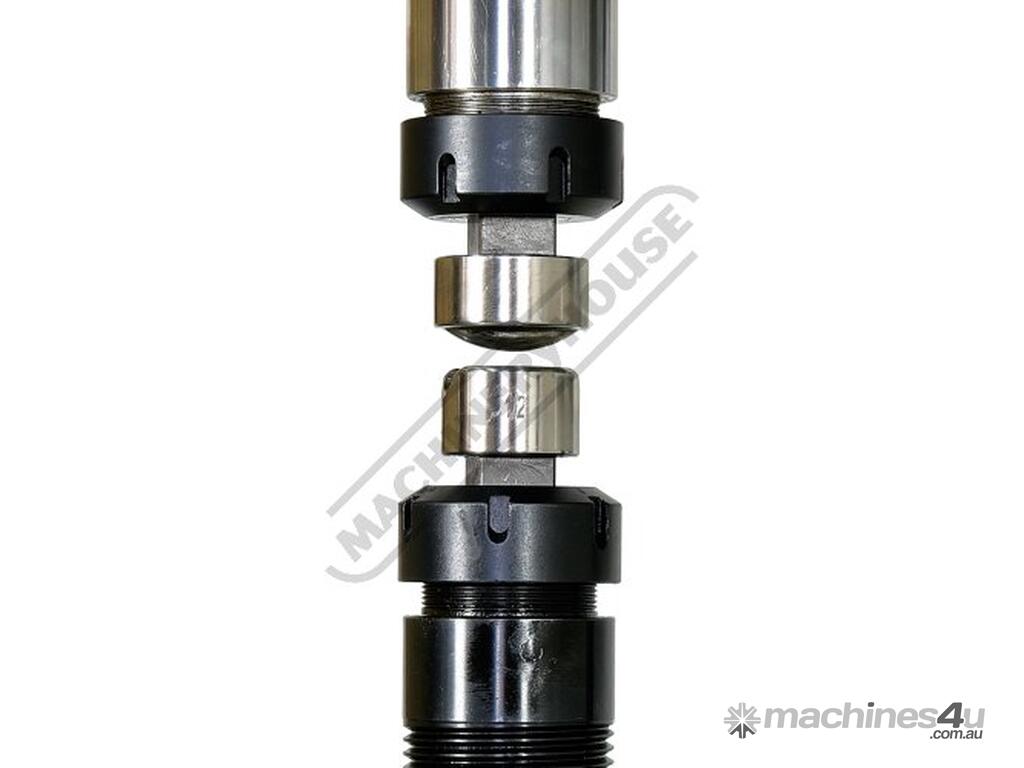

Quick change tool holder
22mm square Shank Tooling
Variable speed
760mm throat depth capacity
570mm throat height capacity

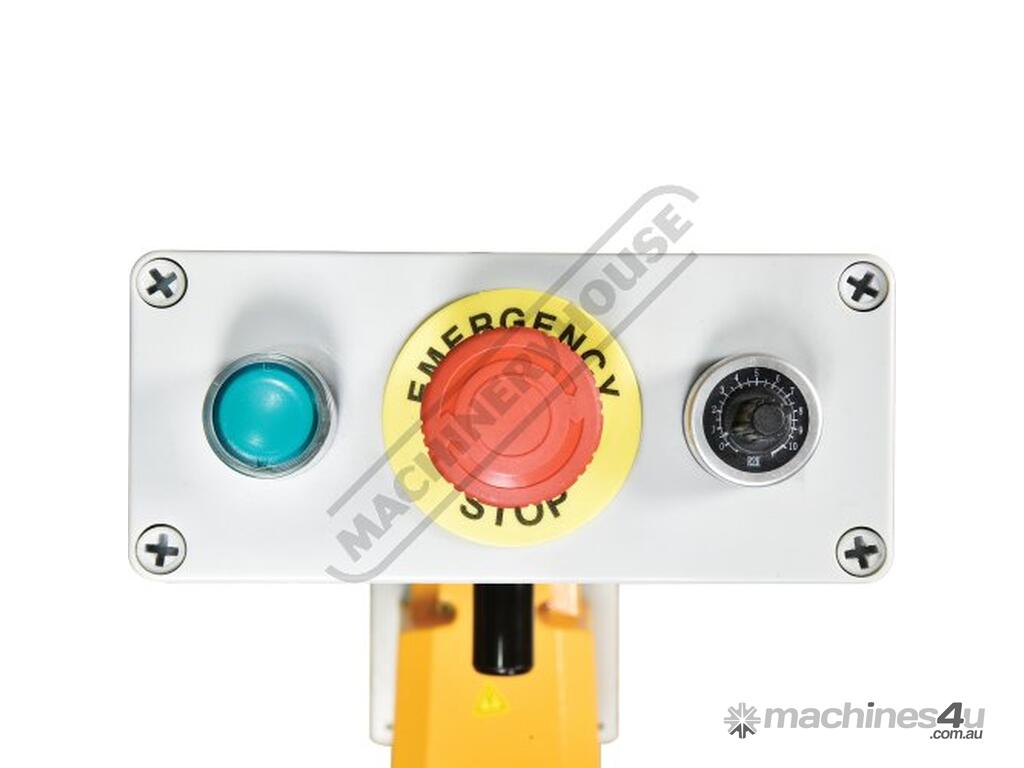

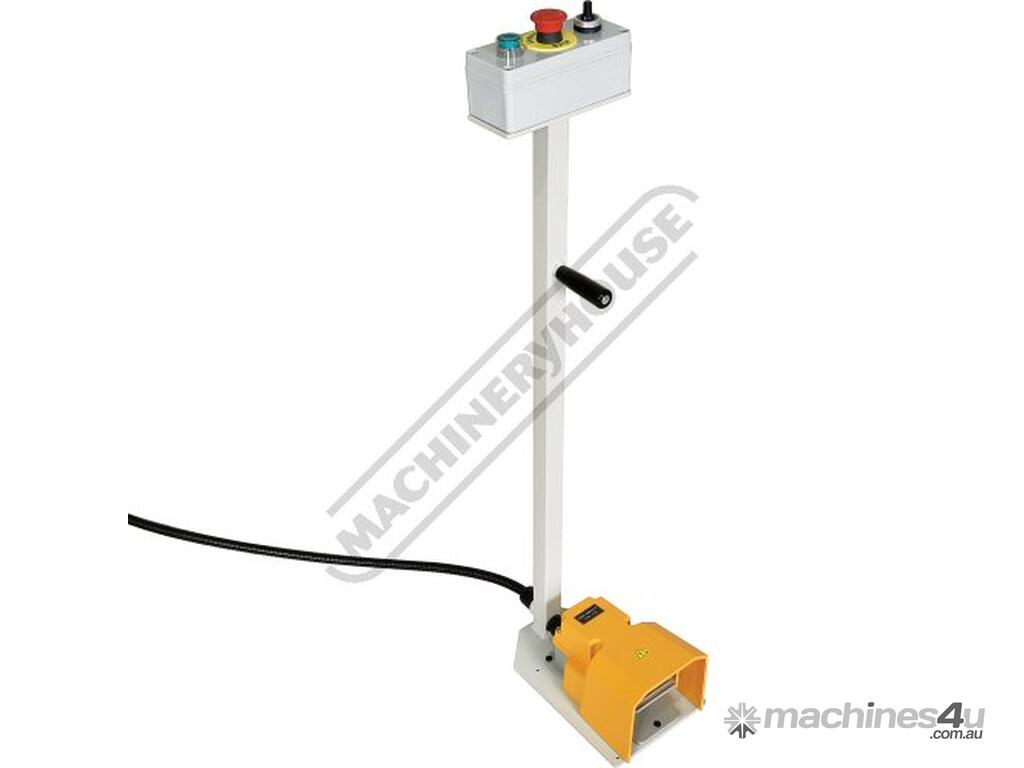

Foot pedal control with emergency stop

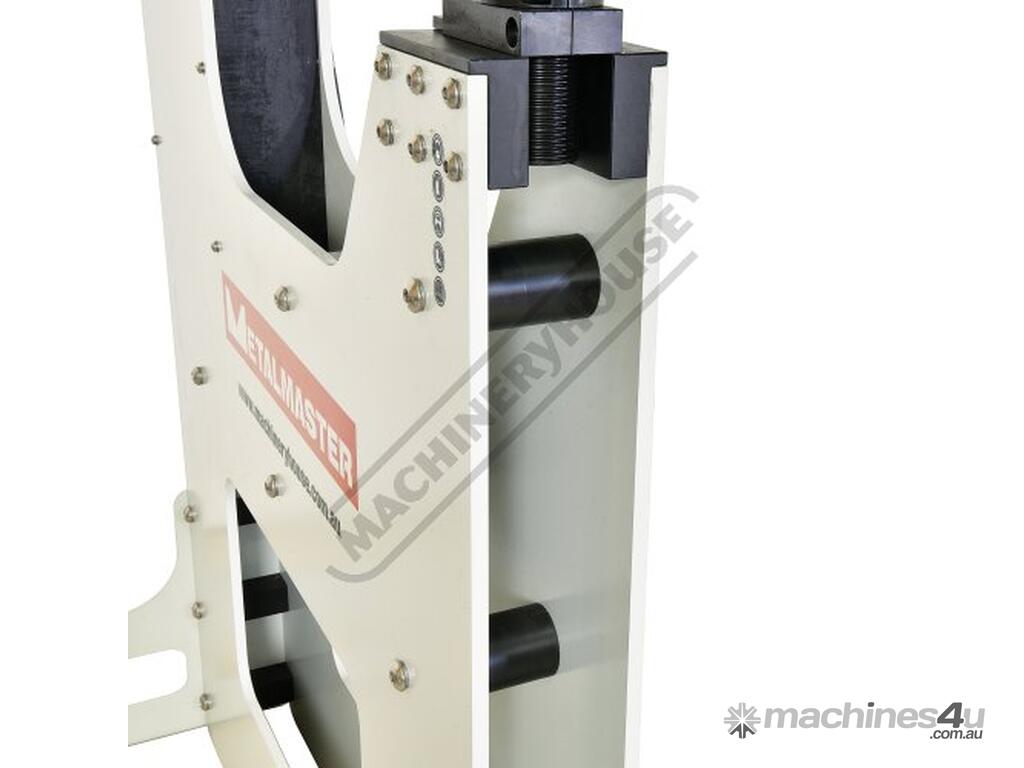

Steel fabricated upper frame - 14mm thick plate

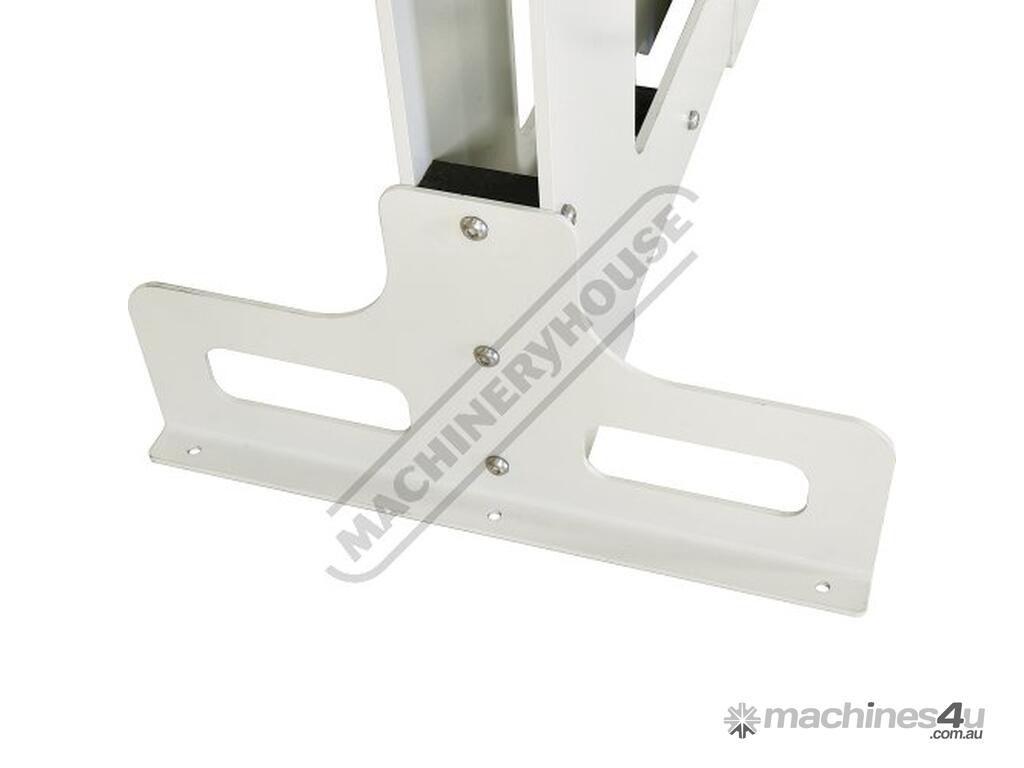

Steel fabricated lower box section steel frame

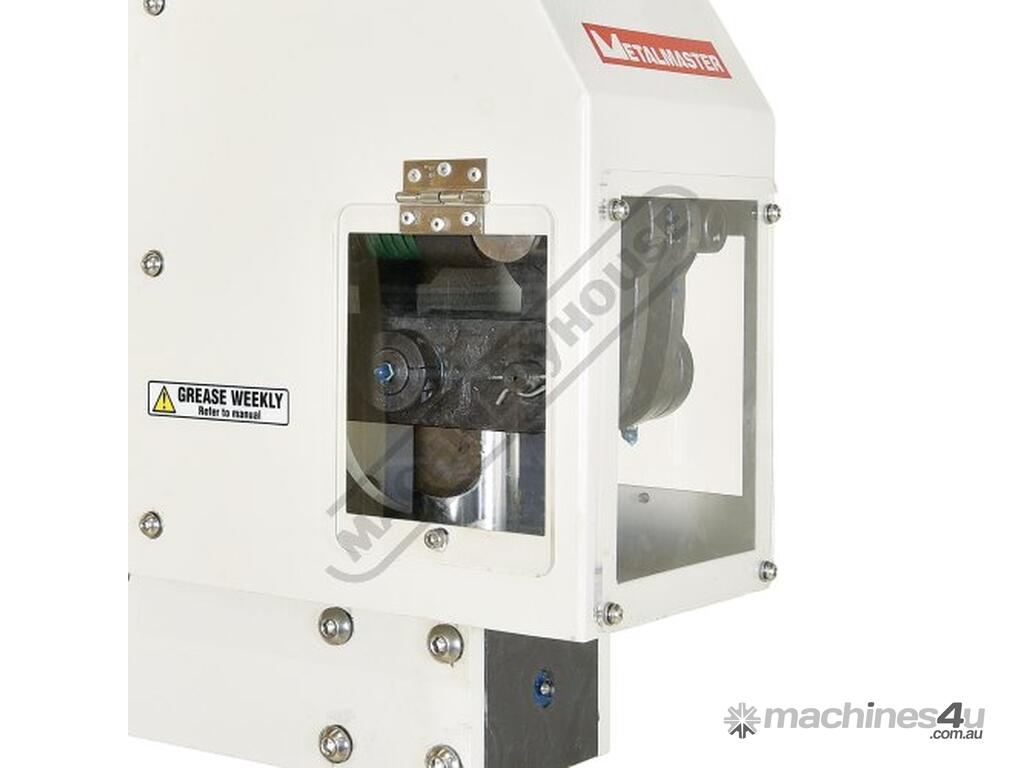

Drive shafts have bronze bushes & greasing points

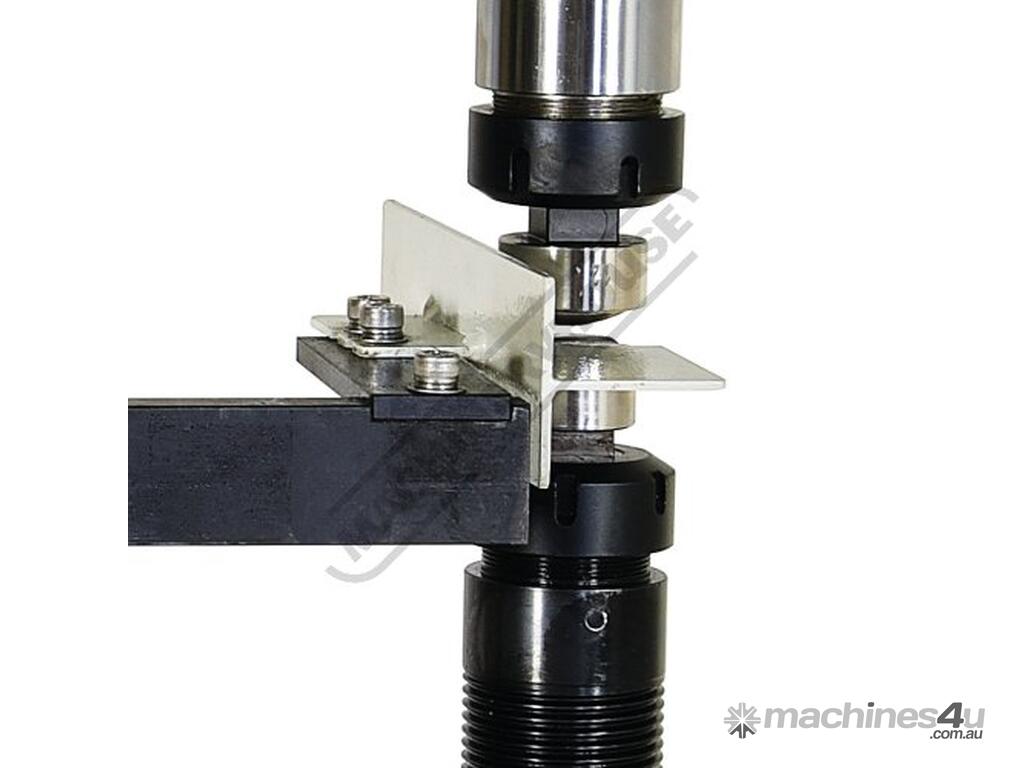

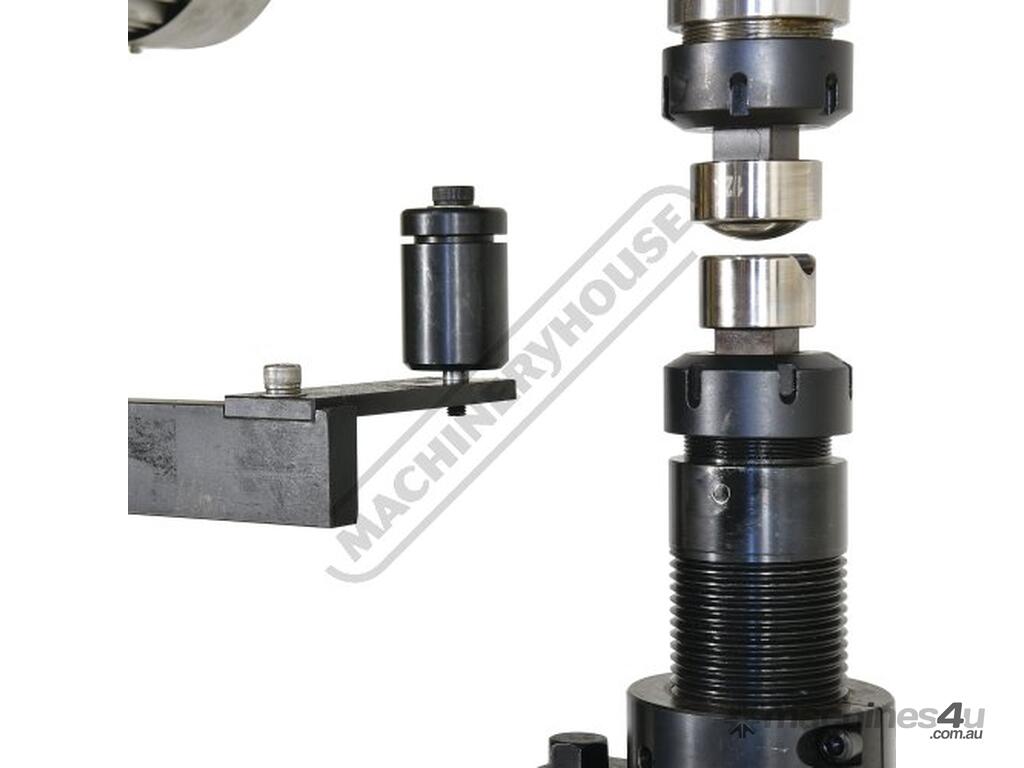

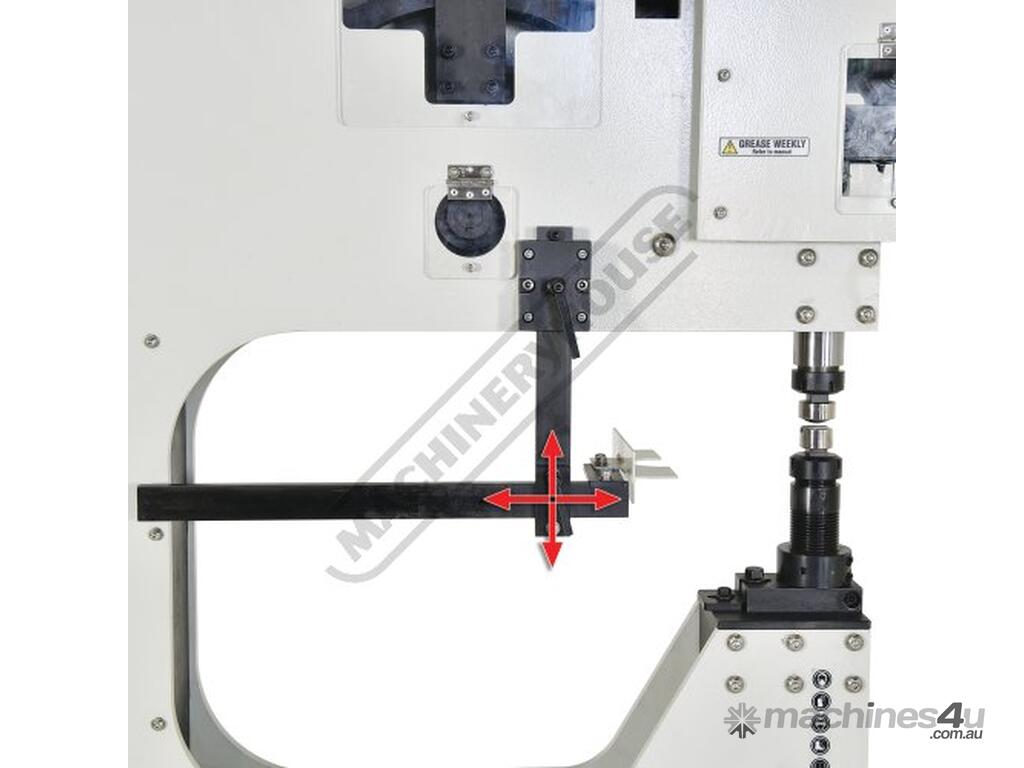

Adjustable heavy duty single arm length stop with 1 round roller & guide fence
Safety magnetic power switch
Steel dies made from CR12 steel & hardened
Nylon dies made from durable nylon

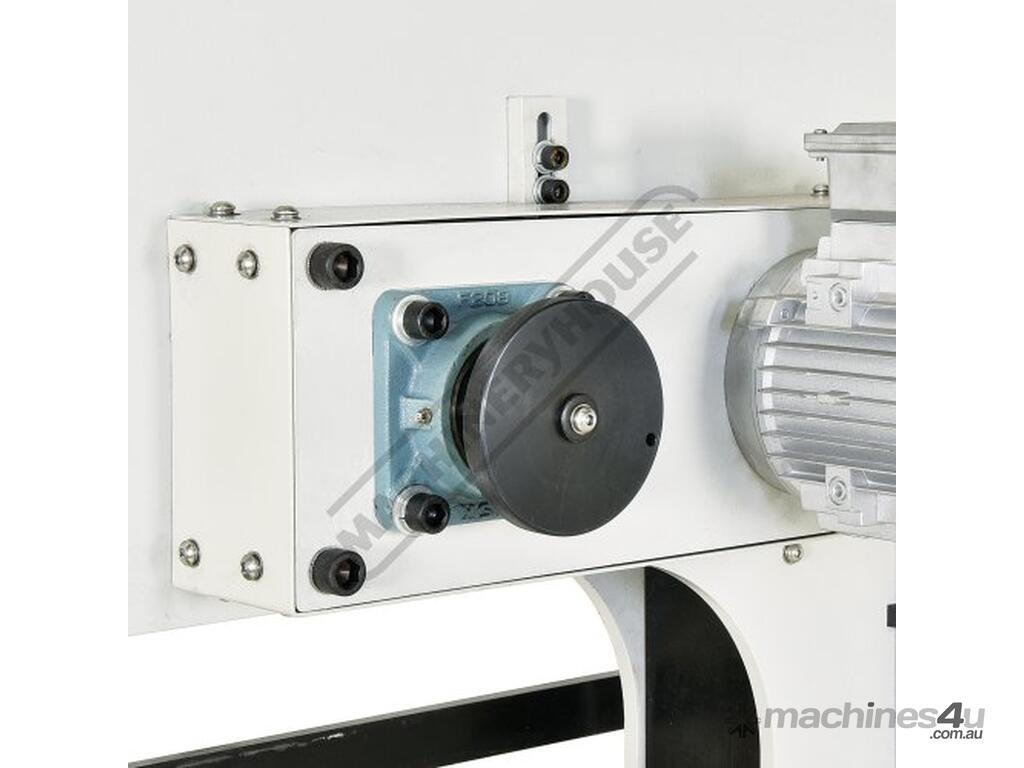

2.2kW / 3hp 240V motor

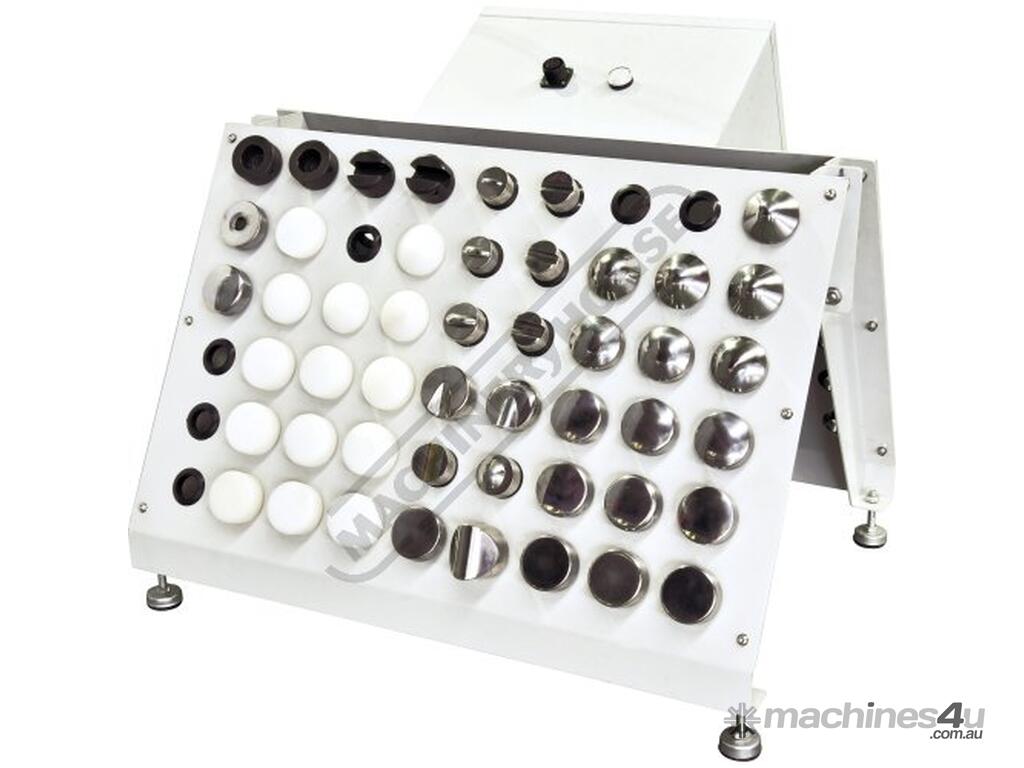

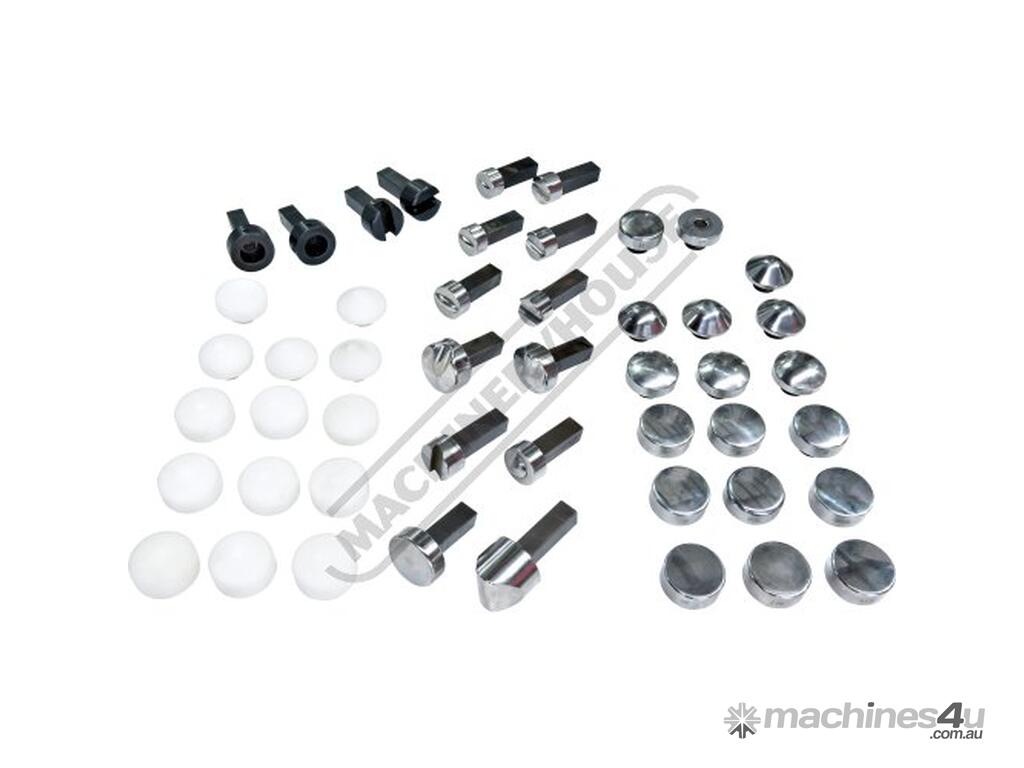

Includes:

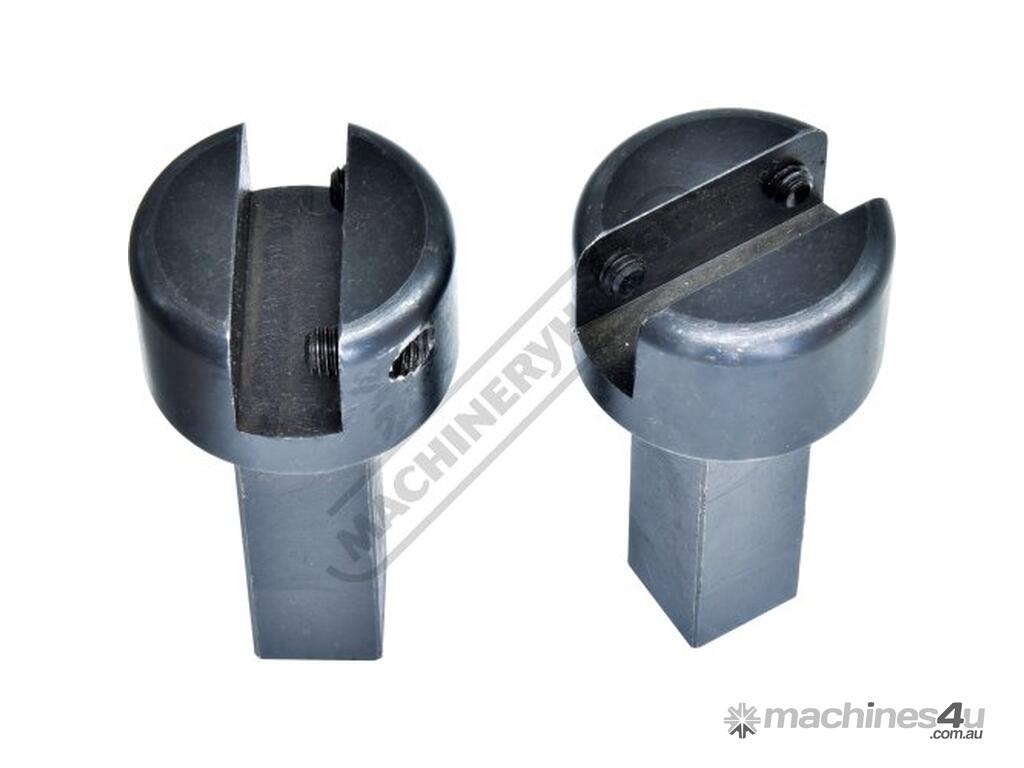

- 1 x Set of Universal Die Holders - 16mm opening (16mm square shank)

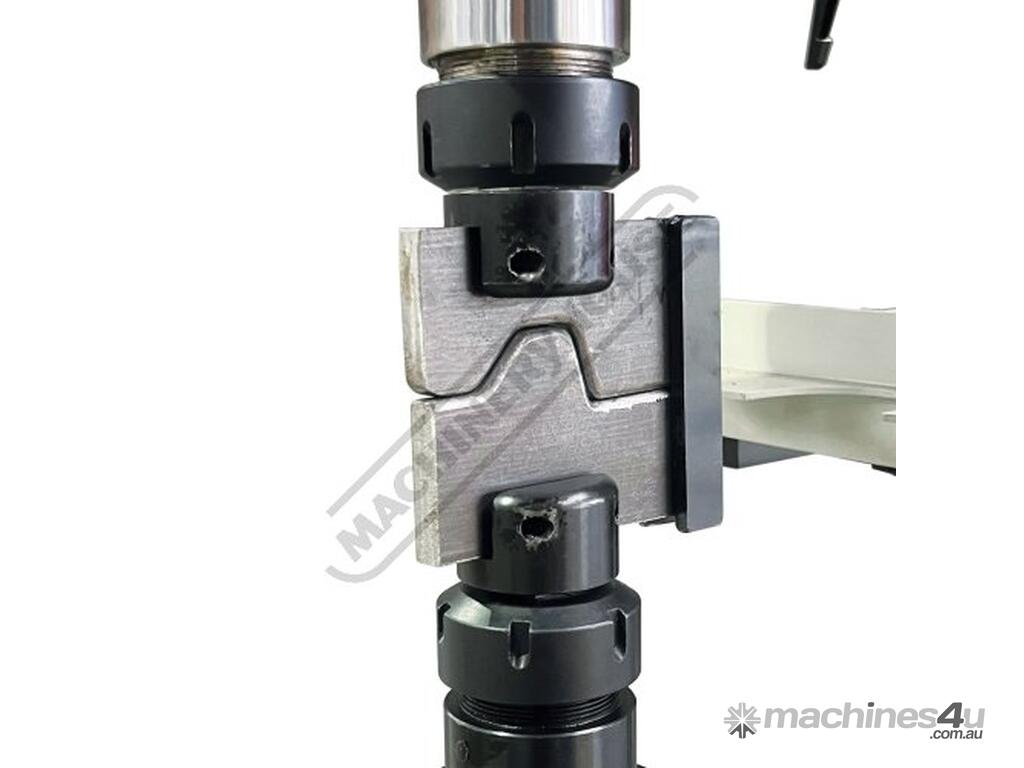

- 1 x Set of Louvre Dies (16mm square shank)
- 1 x Set of Thumbnail Shrinking Dies (16mm square shank)
- 1pc x Linear Stretching Die (16mm square shank)
-
- 1 x Set of 1/4" Beading Dies (16mm square shank)
- 1 x Set of 3/8" Beading Dies (16mm square shank)
- 1 x Set of 1/2" Beading Dies (16mm square shank)
-
- 1pc x Steel Upper Die (16mm square shank)
-

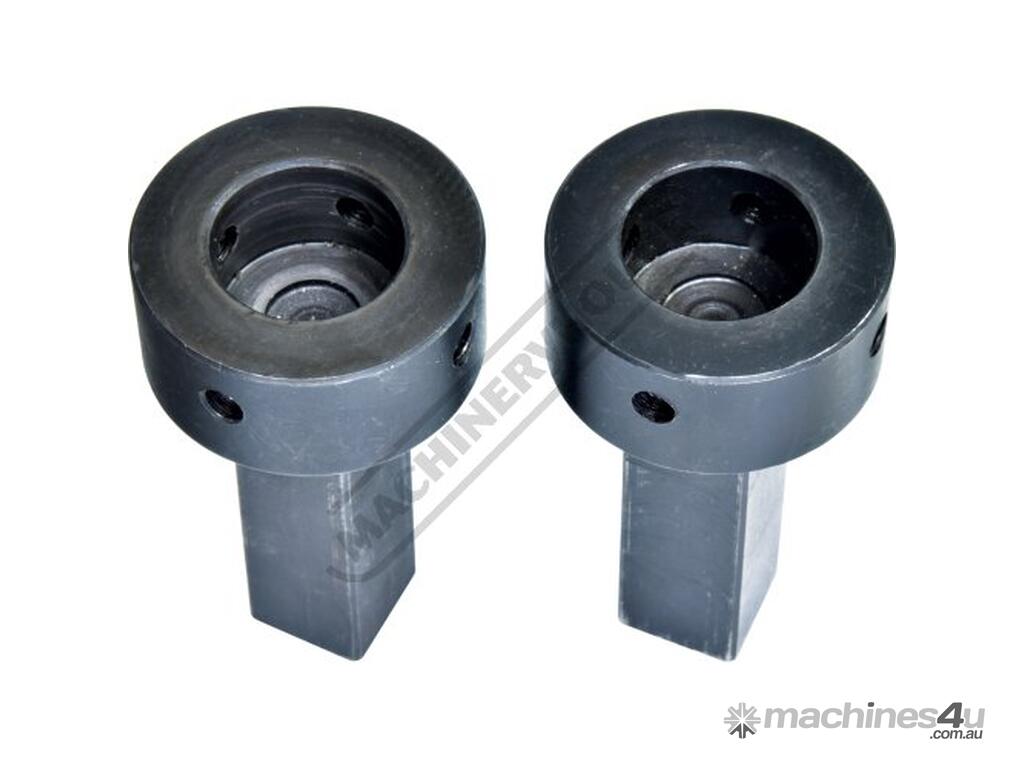

- 1 x Set of Round Die Holders - Ø30 x 20mm (16mm square shank)
- 1 x Set of 3.1" Doming Dies (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 3/4" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 7/8" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 1" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 1-1/8" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 1-1/2" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 1-7/8" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 2" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 3" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 4" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 5" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 6" Radius x 1/16" Radius Edge (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 6" Radius x 1/4" Radius Edge (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 8" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 14-1/2" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 24" Radius (Ø30 x 20mm round shank)
- 1pc x Steel Lower Die - 36" Radius (Ø30 x 20mm round shank)
-
- 1pc x Nylon Upper Die (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 3/4" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 7/8" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 1-1/8" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 1-1/2" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 1-7/8" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 4" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 5" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 6" Radius x 1/16" Radius Edge (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 6" Radius x 1/4" Radius Edge (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 8" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 14-1/2" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 24" Radius (Ø30 x 20mm round shank)
- 1pc x Nylon Lower Die - 36" Radius (Ø30 x 20mm round shank)



Specifications:
ORDER CODE: S2285
MODEL: PHM-760HD
Machine (Type): Power Hammer
Machine (Type): ~
Mild Steel - Capacity (mm / Gauge): 2.0 / 12
Aluminium - Capacity (mm / Gauge): 3.0 / 8
Cubic feet per minute (CFM): ~
Tooling Height Adjustment (mm): ~
Tooling Shank Size (mm): 22
Throat Depth (mm): 760
Throat Height (mm): 570
Length of Stroke Adjustment (mm): ~
Radius Anvil Sizes (mm): ~
Speed - blows per minute (BPM): 0 - 960 (Variable)
Air Consumption (CFM): ~
Working Height (mm): ~
Air Pressure (psi): ~
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Machine Dimensions (LxWxH) (mm): 940 x 1450 x 2260
Tooling Holder/Power Unit Dimensions (LxWxH) (mm): 800 x 850 x 700
Nett Weight (kg): 760
