PHM-940HD Power Hammer 2.0mm Mild Steel Capacity 940mm Throat Depth

METALMASTER PHM-940HD Power Hammer 2.0mm Mild Steel Capacity 940mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S2287

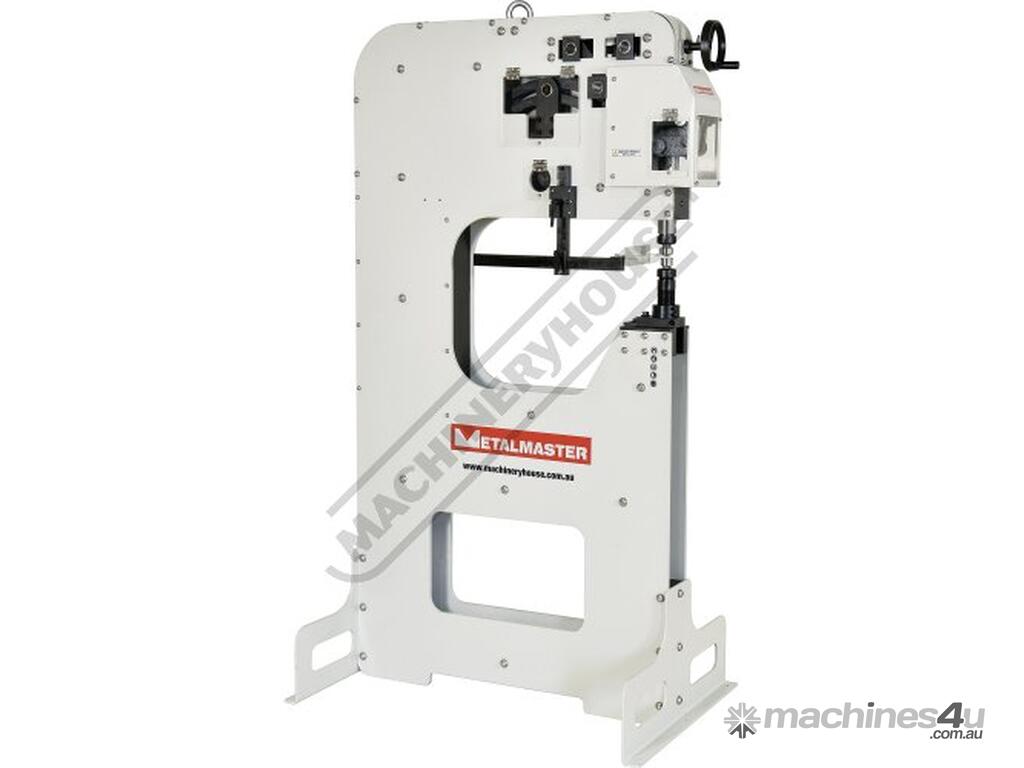

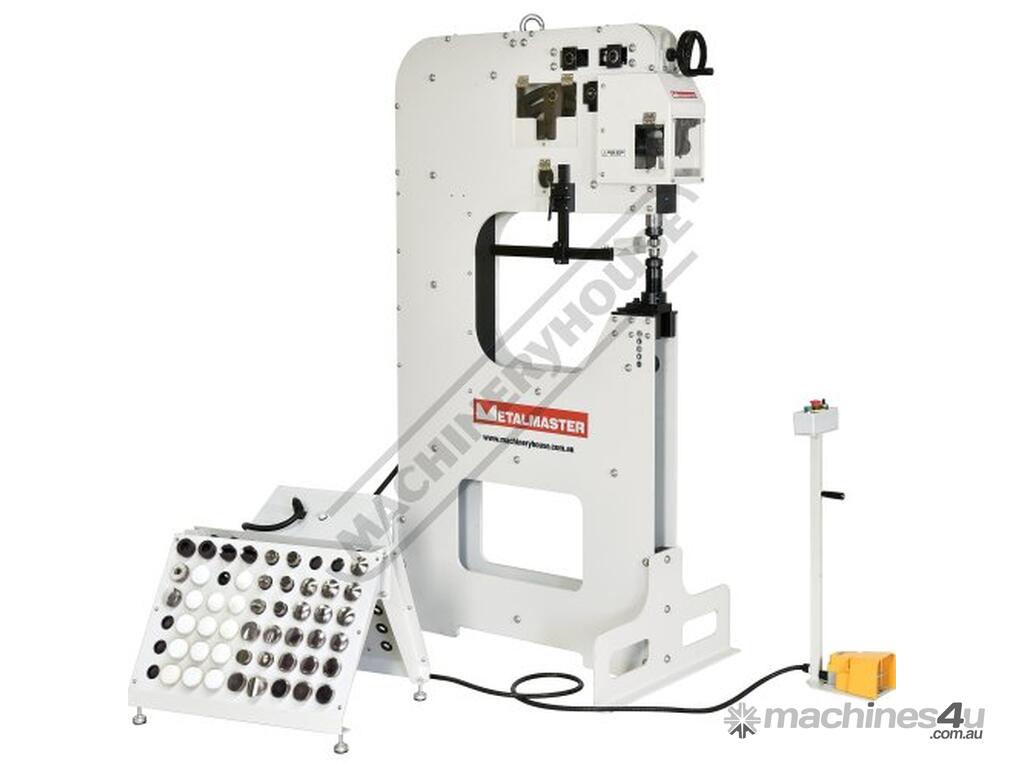

At last, there’s an affordable solution for metal shaping. ThePHM-940HD Metalmaster Electric Power Hammer was designed to have all the features of larger machines without the price tag. The ability to switch between rigid and non-rigid modes to suit your project makes this machine even more flexible. Only limited by your imagination the PHM-940HD can shrink, stretch, dome, edge turn, bead and form louvers, ideal for shaping sheet metal for cars, motorbikes & airplane panels. It has a 14mm thick steel fabricated upper frame and is supplied with and extensive range of CR12 hardened steel dies for shaping steel and nylon dies for forming softer metals like aluminium.It has variable speed and the capability of shaping up to 2.0mm thick sheet mild steel and up to 3.0mm thick sheet aluminium.

Features:
Capacity - 2.0mm thick sheet mild steel

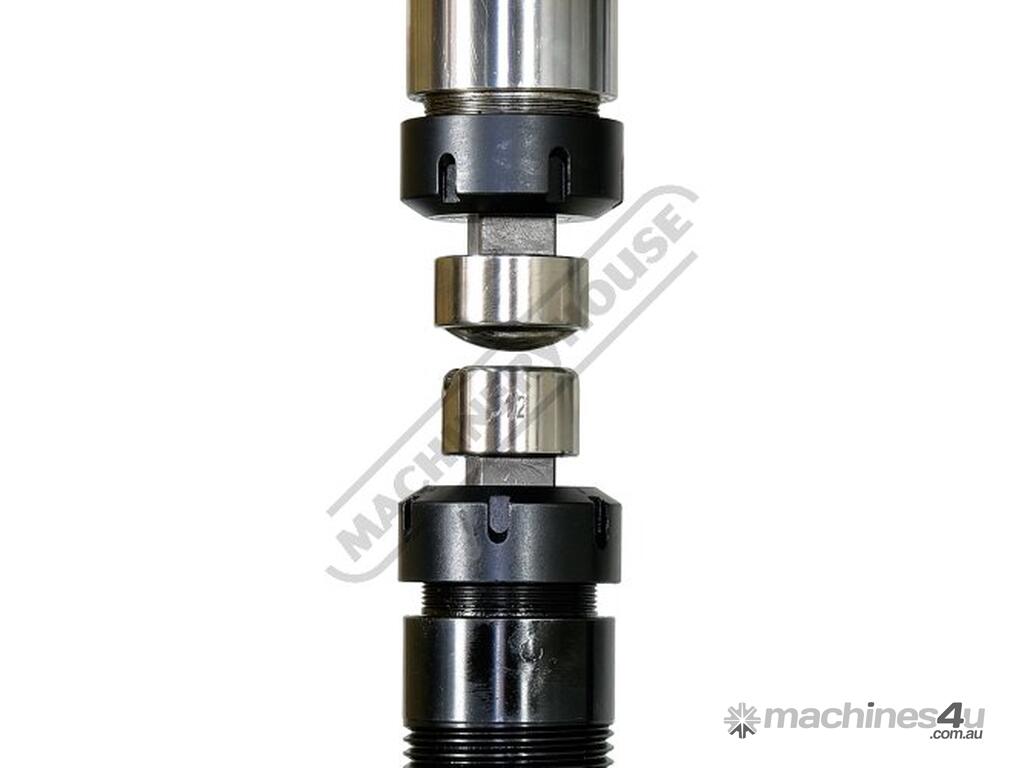

Quick change tool holder
Variable speed
940mm throat depth capacity
570mm throat height capacity

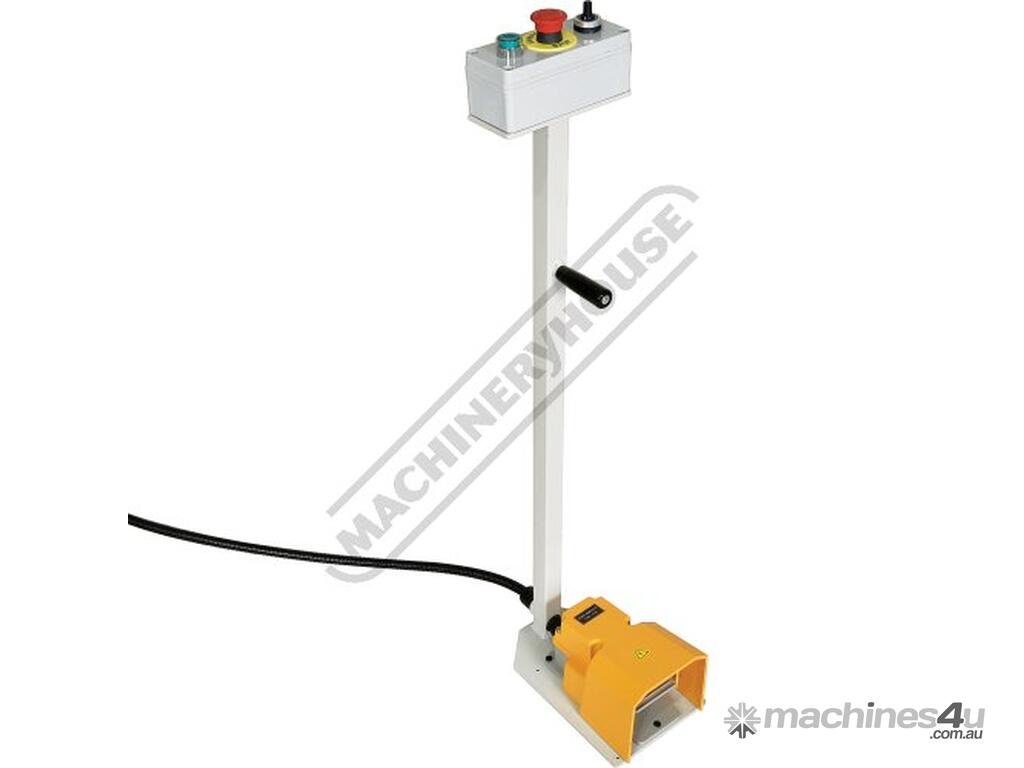

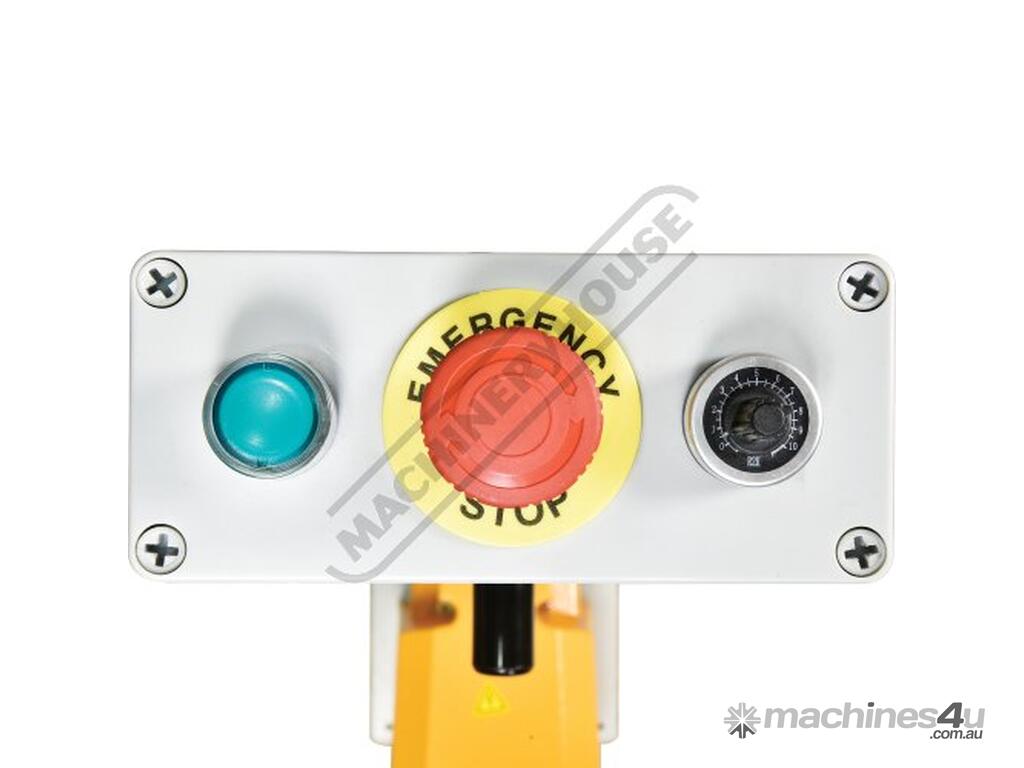

Foot pedal control with emergency stop

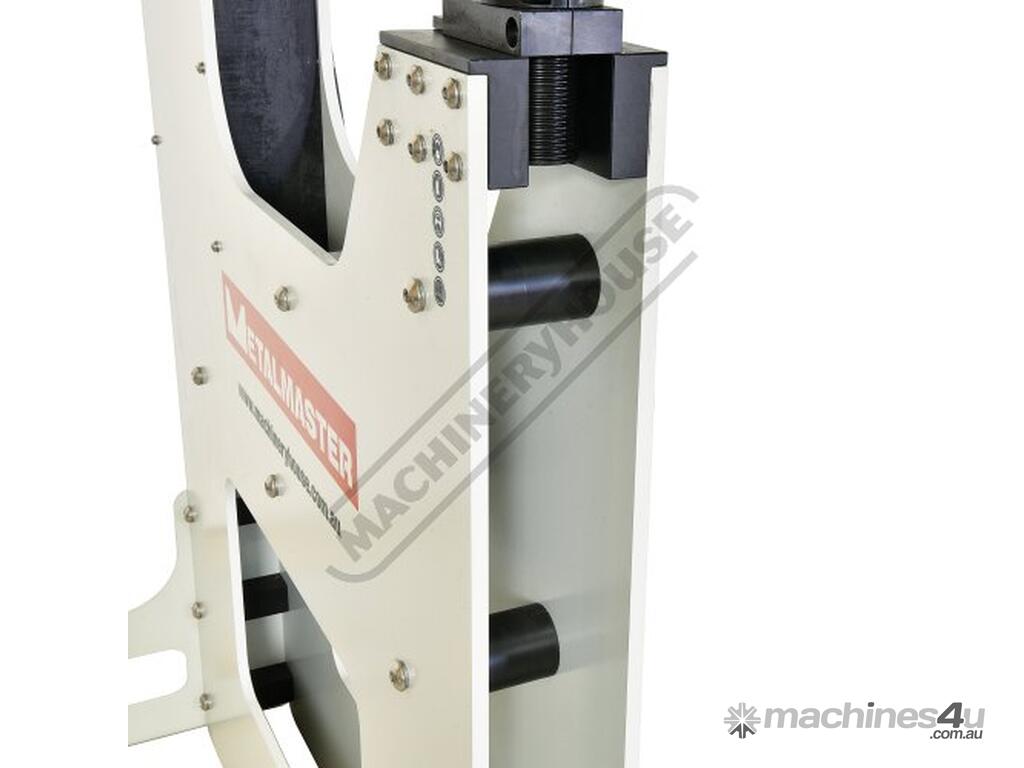

Steel fabricated upper frame - 14mm thick plate

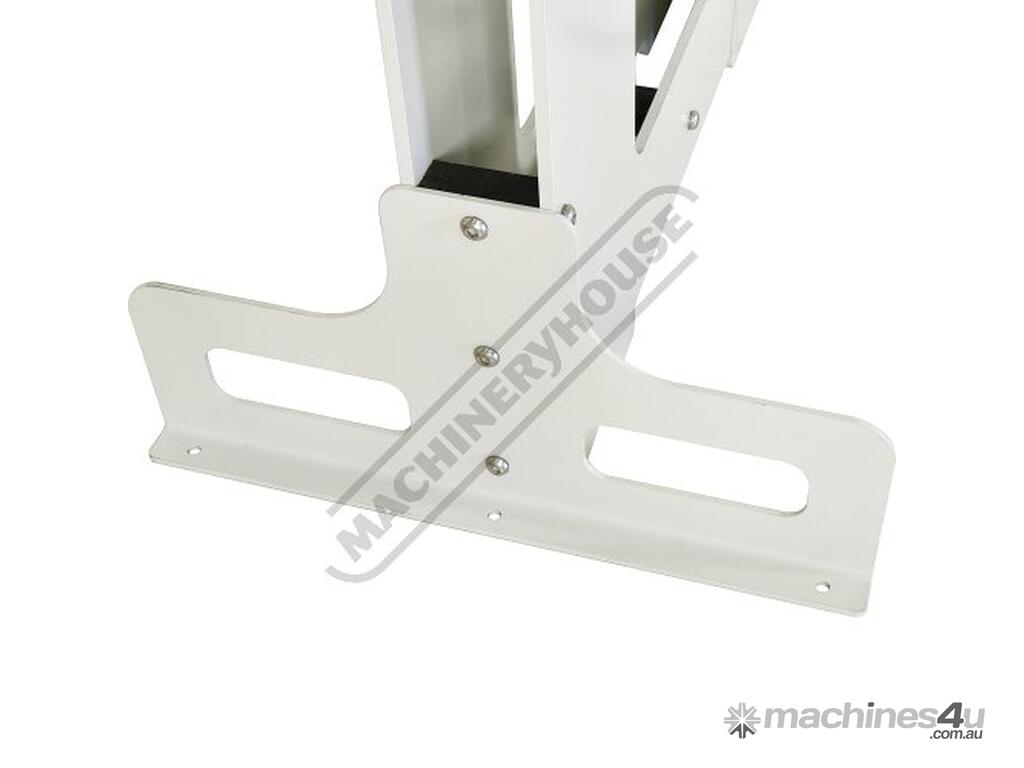

Steel fabricated lower box section steel frame

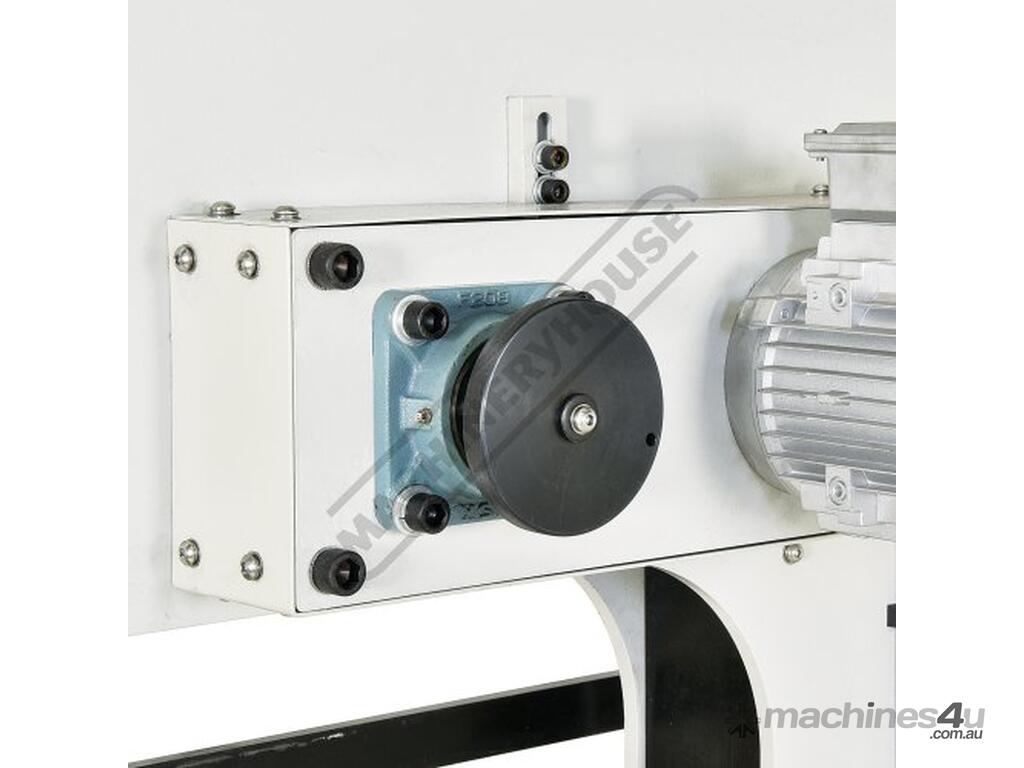

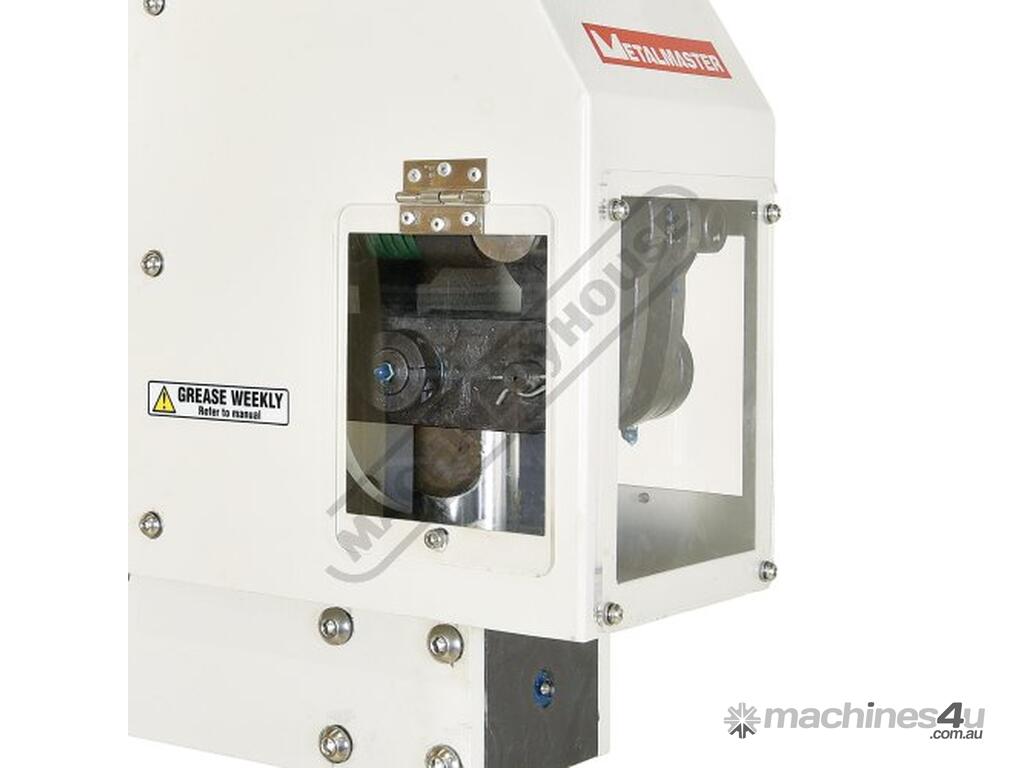

Drive shafts have bronze bushes & greasing points

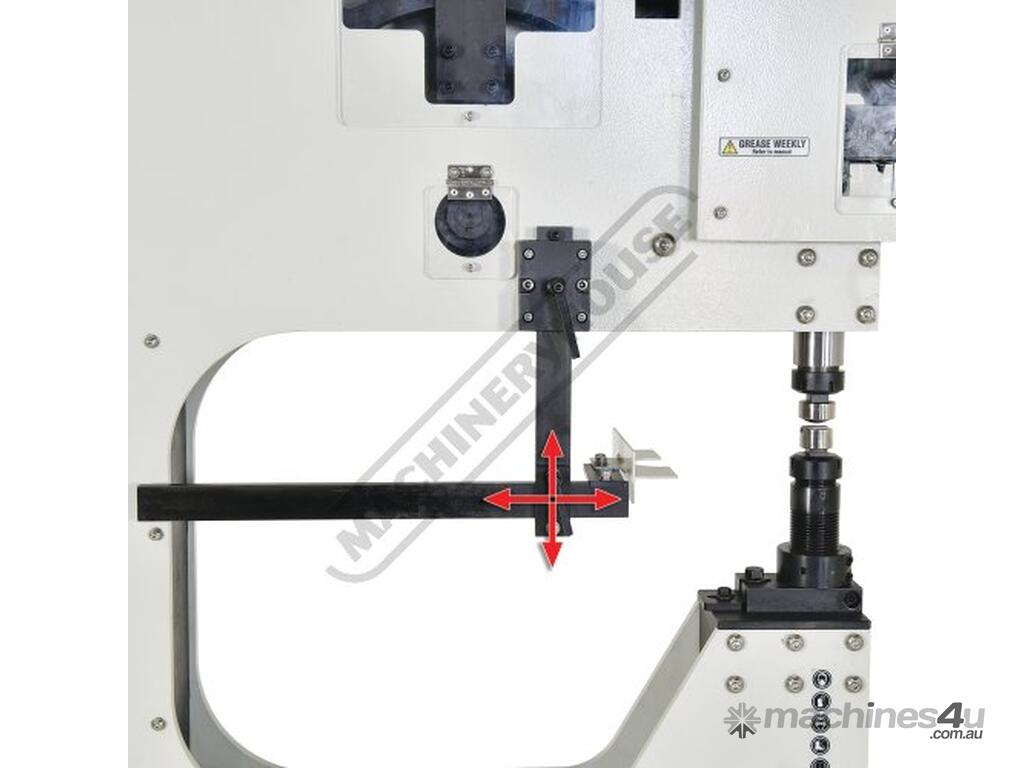

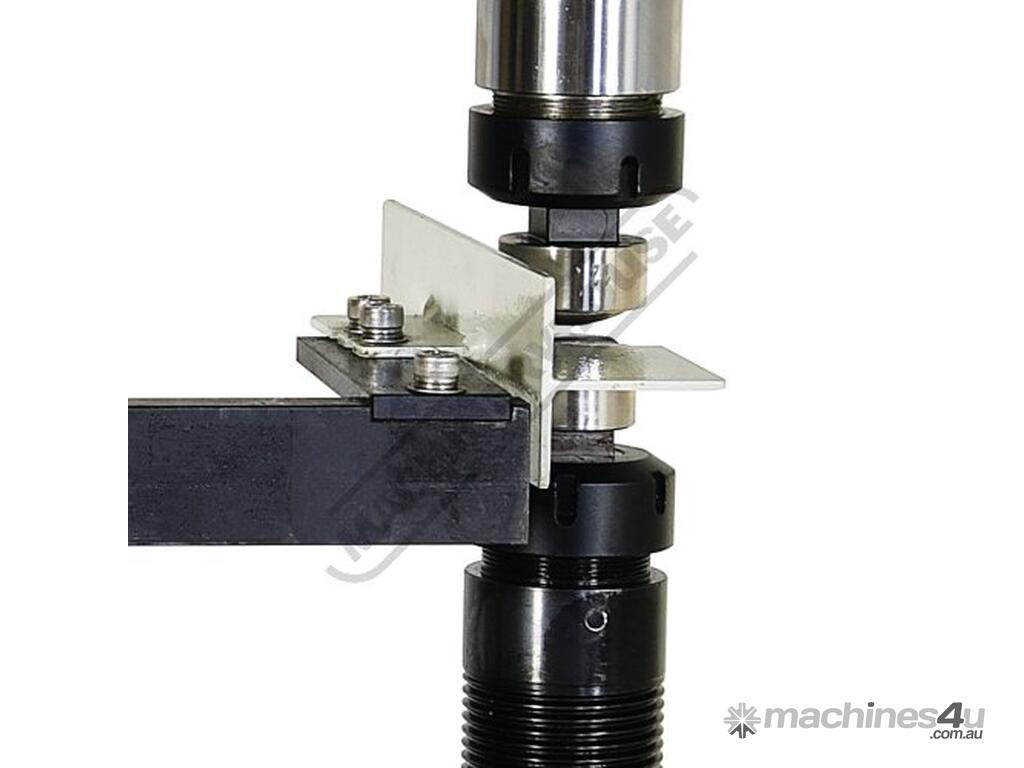

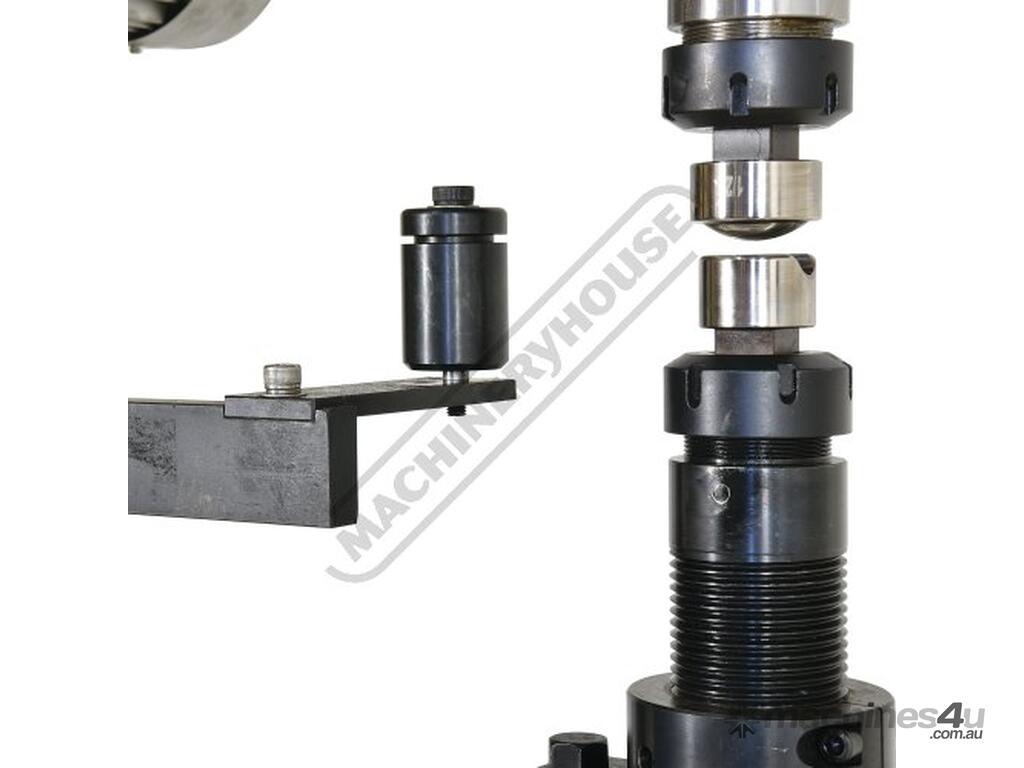

Adjustable heavy duty single arm length stop with 1 round roller & guide fence
Safety magnetic power switch
Steel dies made from CR12 steel & hardened
Nylon dies made from durable nylon
3kW / 4hp 240V motor

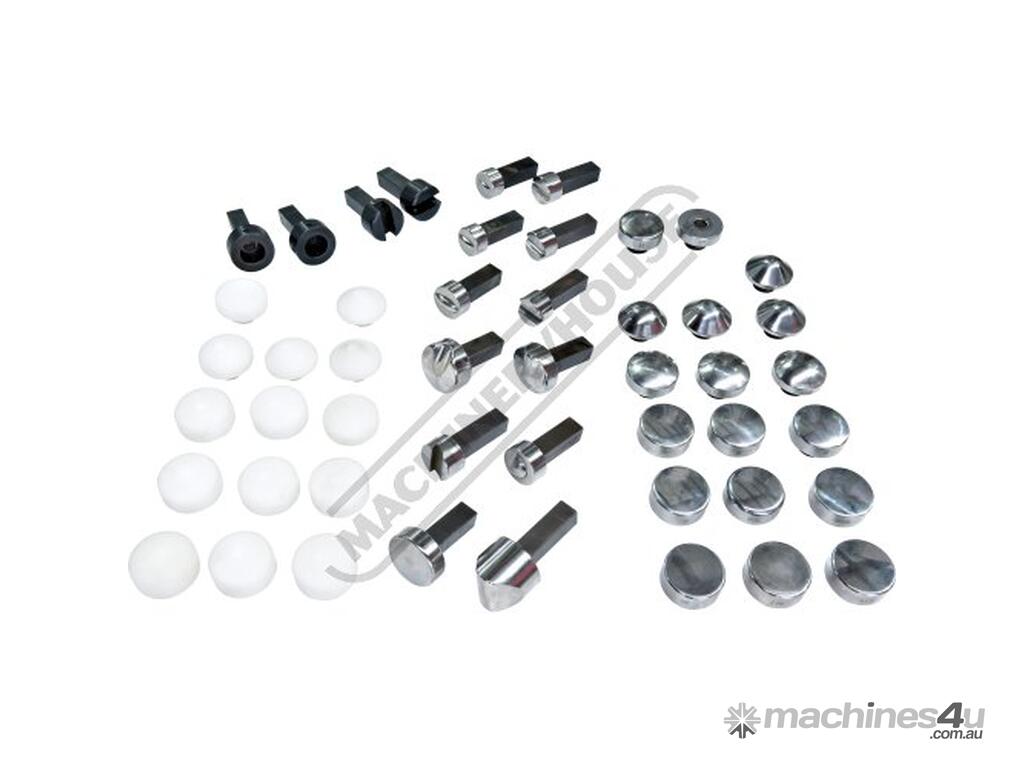

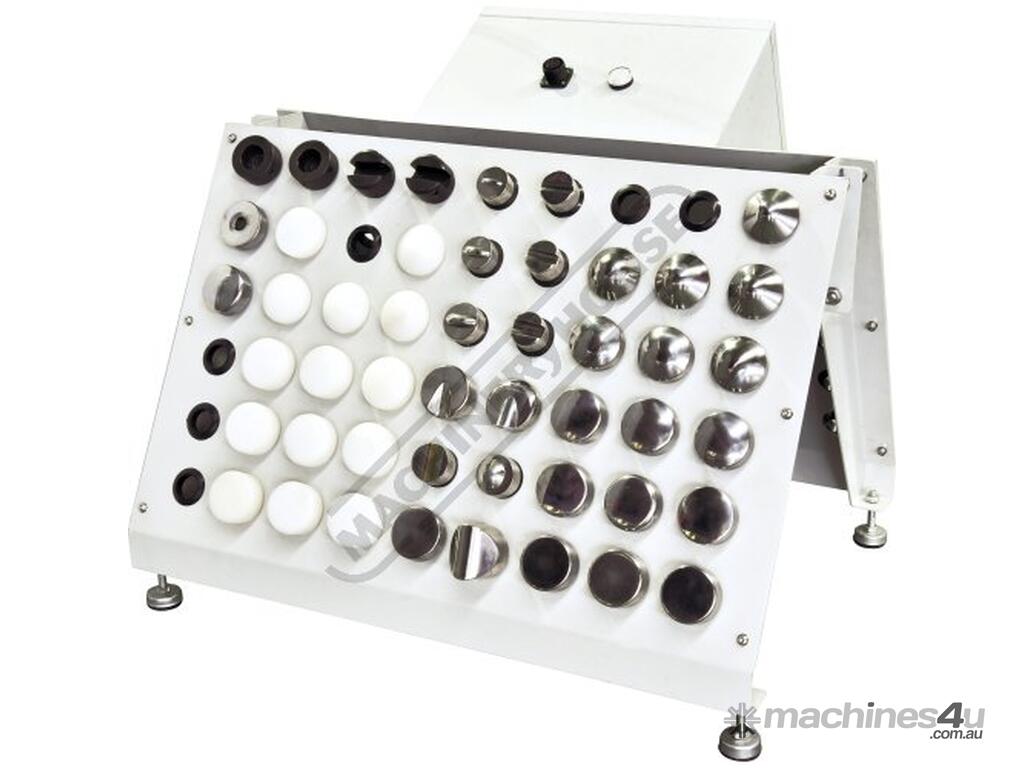

Includes:
- 1 set (pair) of Thumbnail Shrinking Dies
- 1 set (pair) of Doming Dies
- 1pc Linear Stretching Die
- 1 set (pair) of 1/4" Beading Dies
- 1 set (pair) of 3/8" Beading Dies
- 1 set (pair) of 1/2" Beading Dies
- 1pcs Steel Upper Die
- 1pc Steel Lower Die - 3/4" Radius
- 1pc Steel Lower Die - 7/8" Radius
- 1pc Steel Lower Die - 1" Radius Dies
- 1pc Steel Lower Die - 1-1/2" Radius
- 1pc Steel Lower Die - 2" Radius

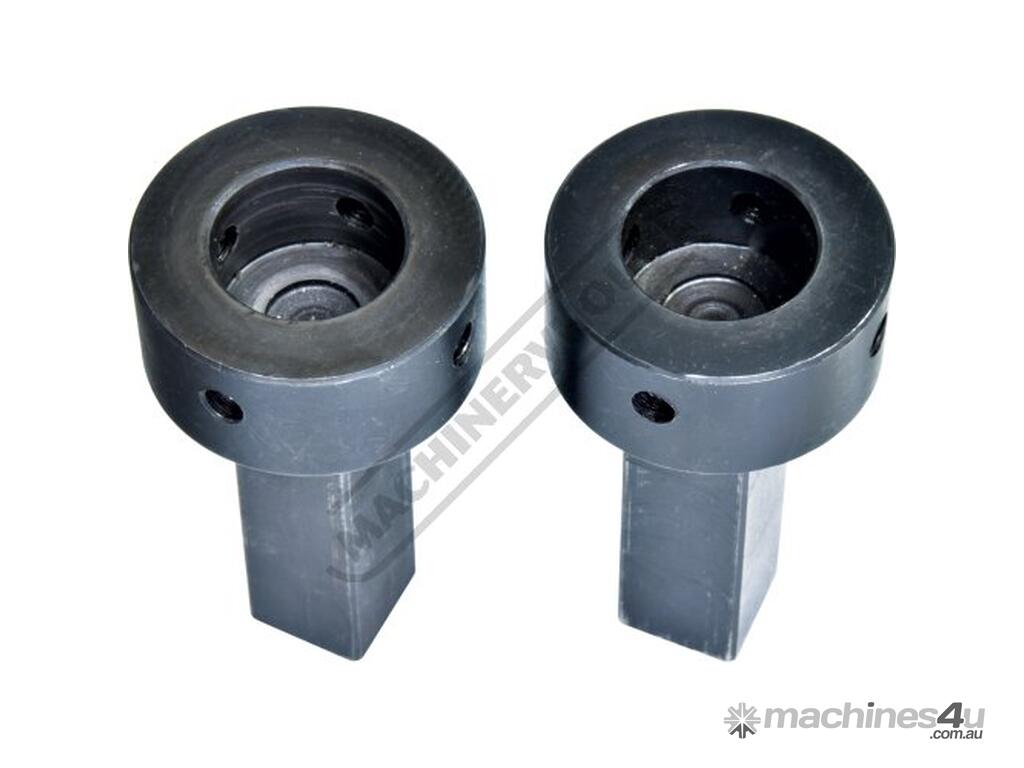

- 1 set (pair) of universal holders with 16mm opening
- 1pc Steel Lower Die - 1-1/8" Radius
- 1pc Steel Lower Die - 1-7/8" Radius
- 1pc Steel Lower Die - 3" Radius
- 1pc Steel Lower Die - 4" Radius
- 1pc Steel Lower Die - 5" Radius
- 1pc Steel Lower Die - 6" Radius (1/16" Radius Edge)
- 1pc Steel Lower Die - 6" Radius (1/4" Radius Edge)
- 1pc Steel Lower Die - 8" Radius
- 1pc Steel Lower Die - 14-1/2" Radius
- 1pc Steel Lower Die - 24" Radius
- 1pc Steel Lower Die - 36" Radius
- 1pcs Nylon Upper Die
- 1pc Nylon Lower Die - 3/4" Radius
- 1pc Nylon Lower Die - 7/8" Radius
- 1pc Nylon Lower Die - 1-1/8" Radius
- 1pc Nylon Lower Die - 1-1/2" Radius
- 1pc Nylon Lower Die - 1-7/8" Radius
- 1pc Nylon Lower Die - 4" Radius
- 1pc Nylon Lower Die - 5" Radius
- 1pc Nylon Lower Die - 6" Radius (1/16" Radius Edge)
- 1pc Nylon Lower Die - 6" Radius (1/4" Radius Edge)
- 1pc Nylon Lower Die - 8" Radius
- 1pc Nylon Lower Die - 14-1/2" Radius
- 1pc Nylon Lower Die - 24" Radius
- 1pc Nylon Lower Die - 36" Radius

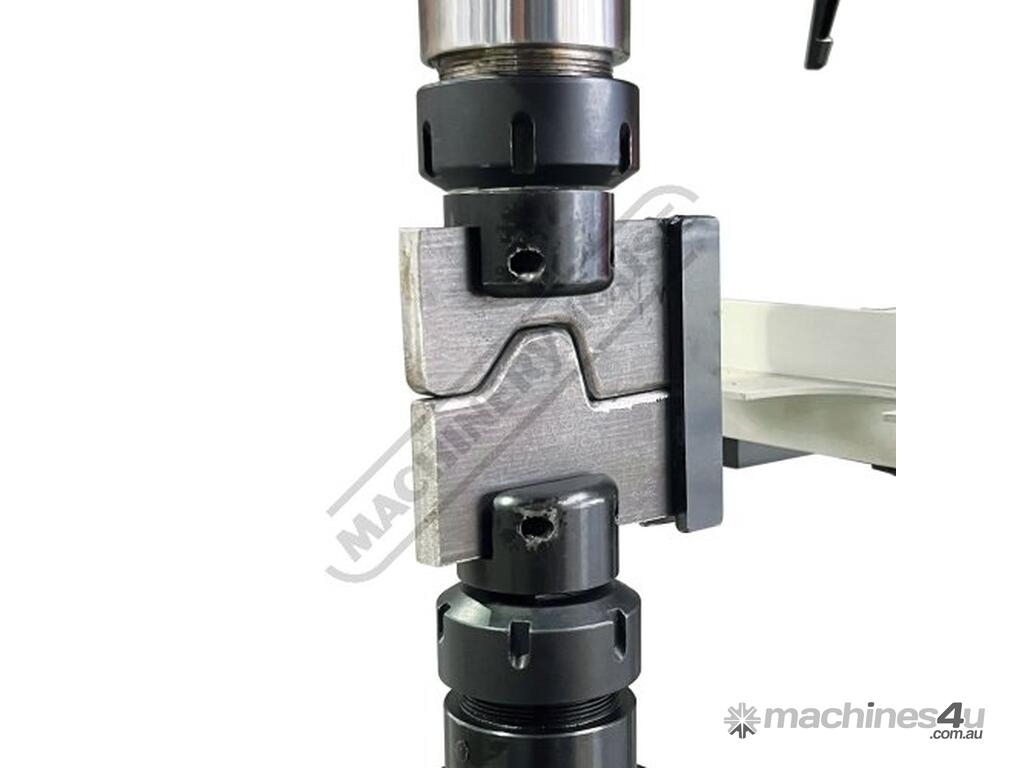

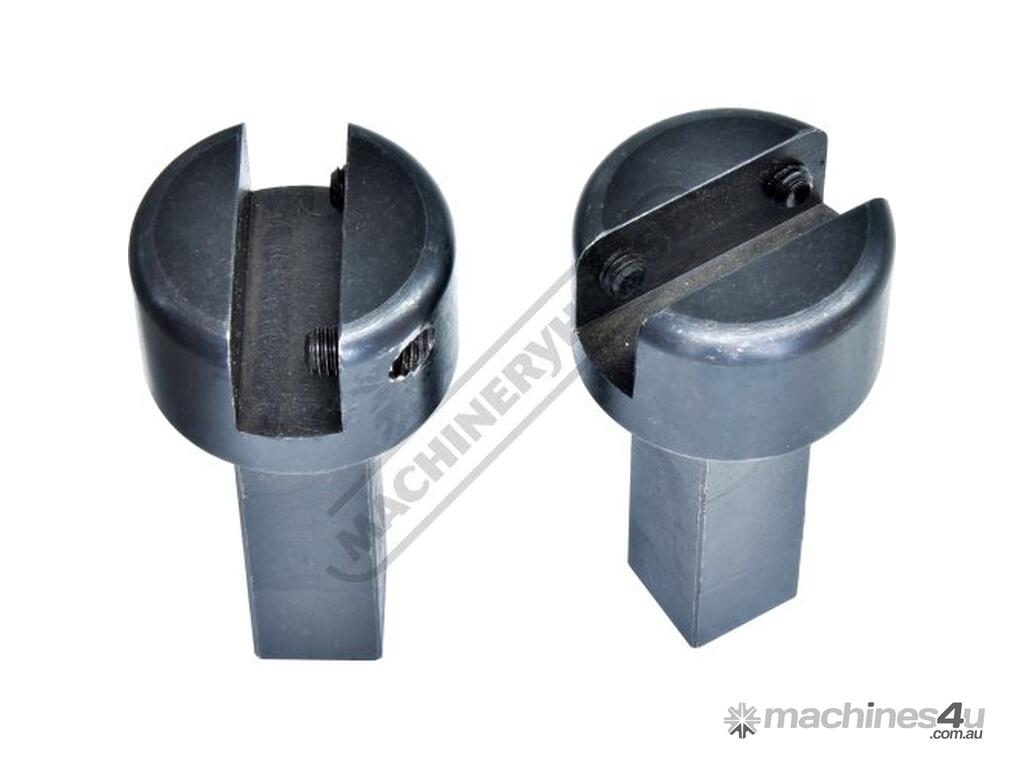

- 1 set (pair) of Lourve Dies



Specifications:
ORDER CODE: S2287
MODEL: PHM-760HD
Machine (Type): Power Hammer
Machine (Type): ~
Mild Steel - Capacity (mm / Gauge): 2.0 / 12
Aluminium - Capacity (mm / Gauge): 3.0 / 8
Cubic feet per minute (CFM): ~
Tooling Height Adjustment (mm): ~
Throat Depth (mm): 940
Length of Stroke Adjustment (mm): ~
Radius Anvil Sizes (mm): ~
Speed - blows per minute (BPM): 0 - 960 (Variable)
Air Consumption (CFM): ~
Working Height (mm): ~
Air Pressure (psi): ~
Motor Power (kW / hp): 3 / 4
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 970
