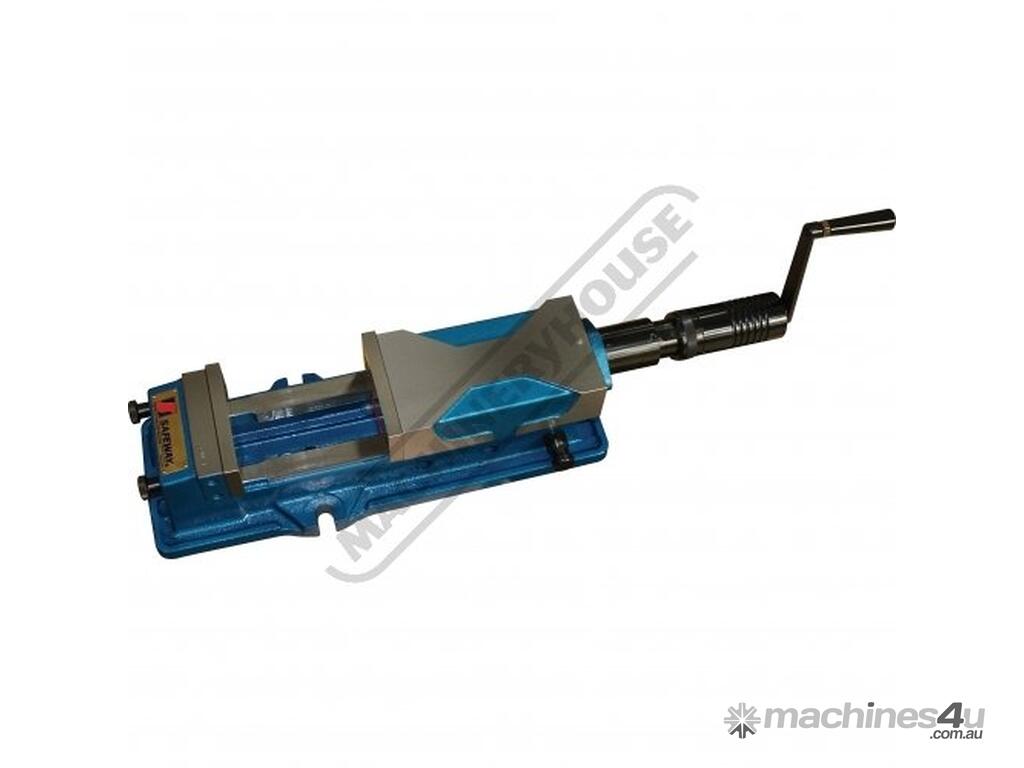

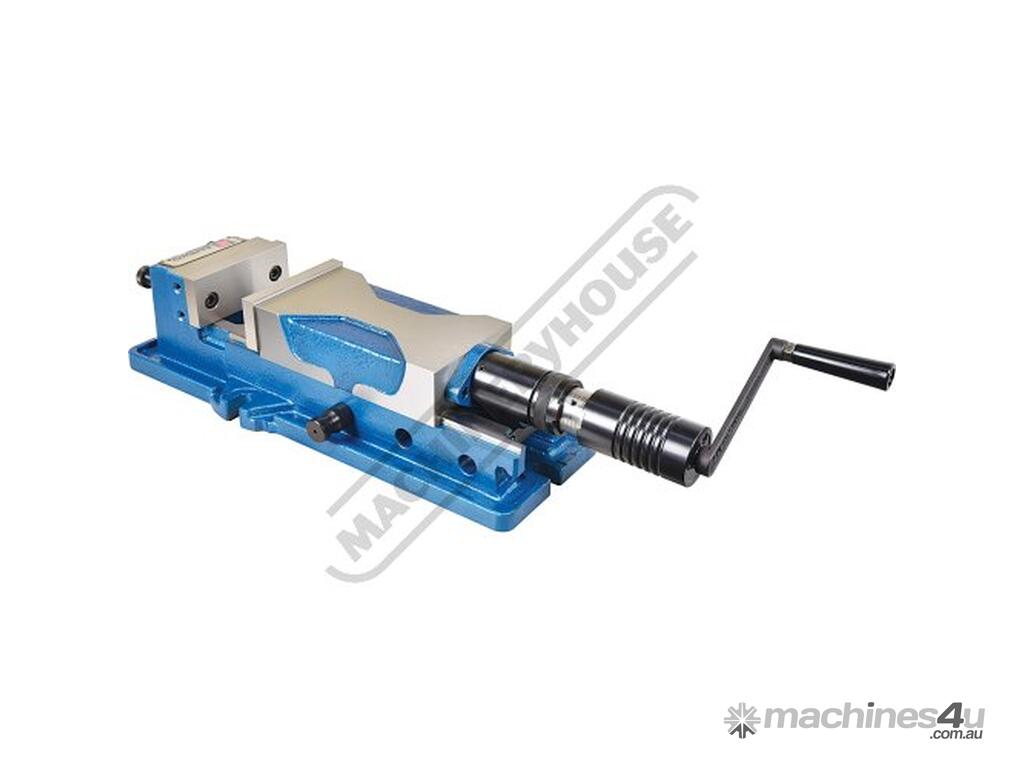

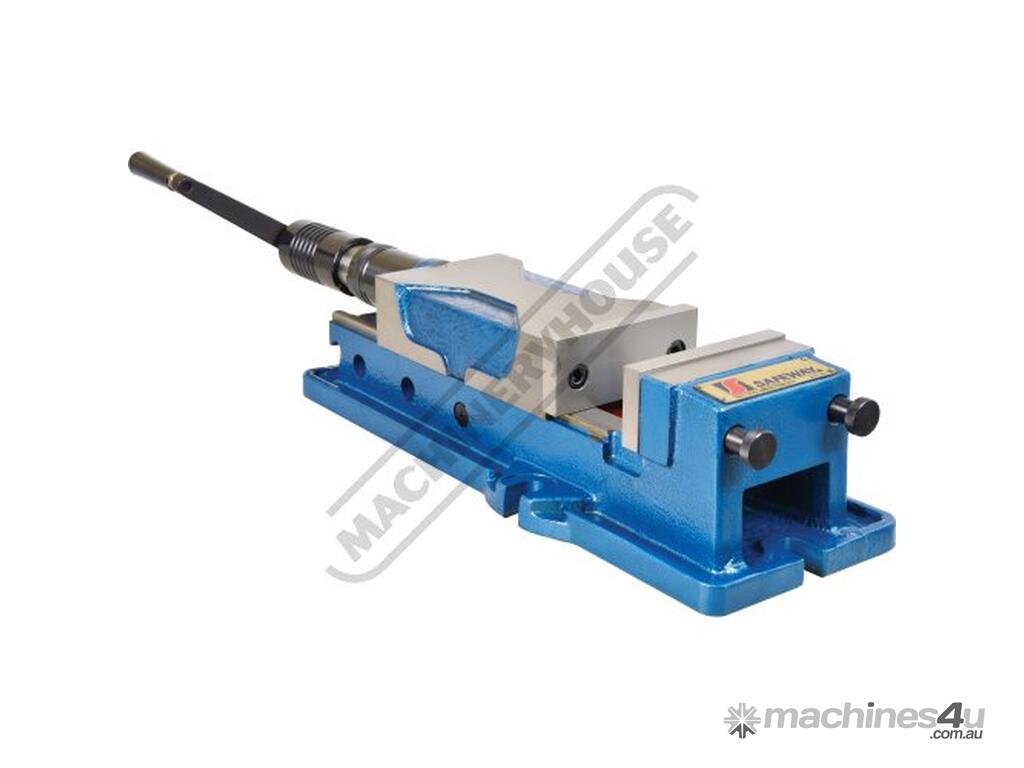

PHV-130 Safeway Mechanical/Hydraulic Machine Vice 130mm Jaw Width 225mm Jaw Opening

SAFEWAY PHV-130 Safeway Mechanical/Hydraulic Machine Vice 130mm Jaw Width 225mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V330

Precision manufactured from rigid material - Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength.
All Safeway vices are precision ground and the surfaces set to the tolerances set out below. This allows these vices to be used in pairs and multiple configurations.

Features:

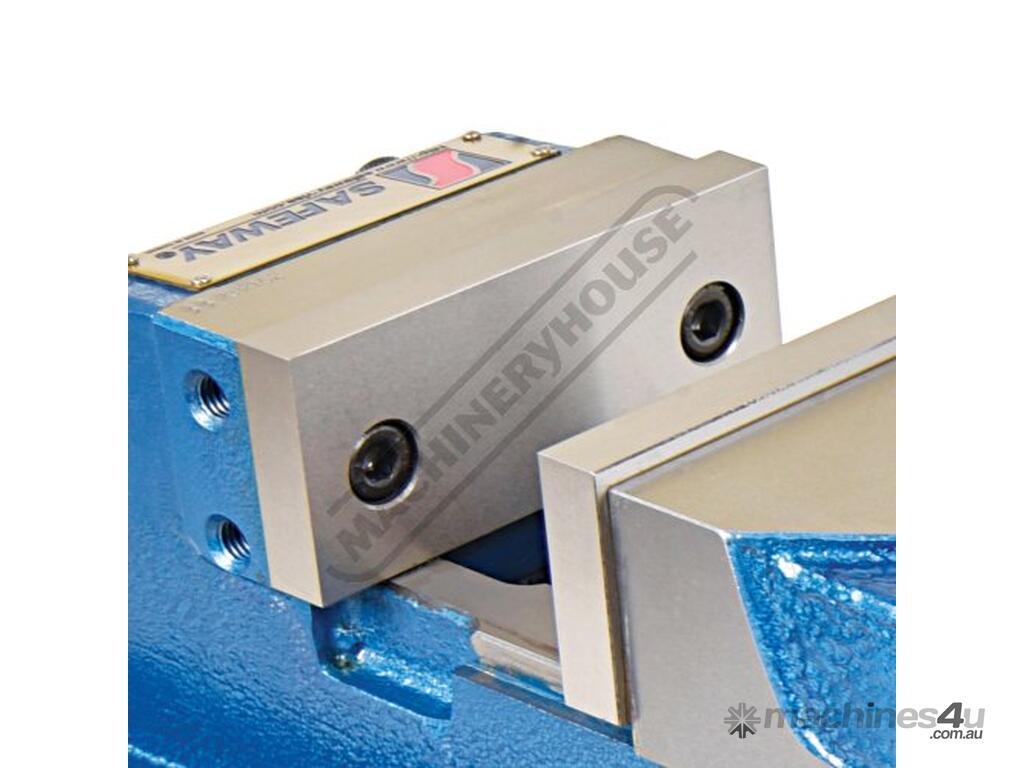

Flame-hardened to HRC 45 to take up wear and maintain accuracy
The semi-sphere segment eliminates movable jaw lifting and creates a down force of 1kg for every 2kg of clamping force preventing the work piece from tilting

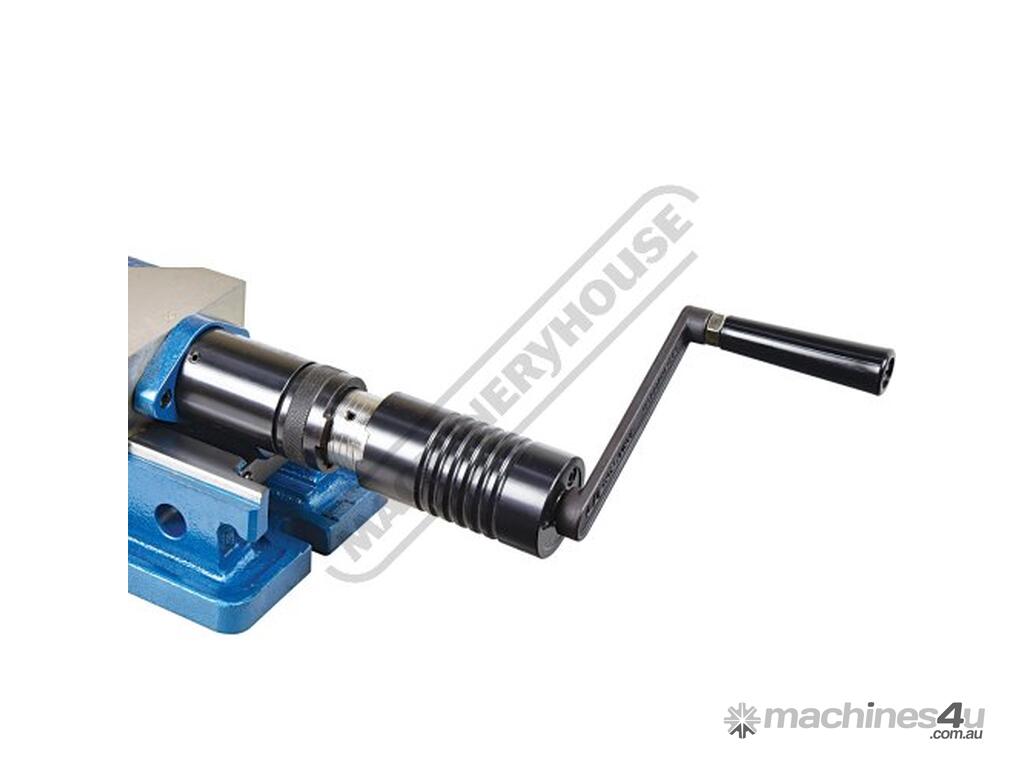

The hydraulic cylinder is mounted externally for easy maintenance

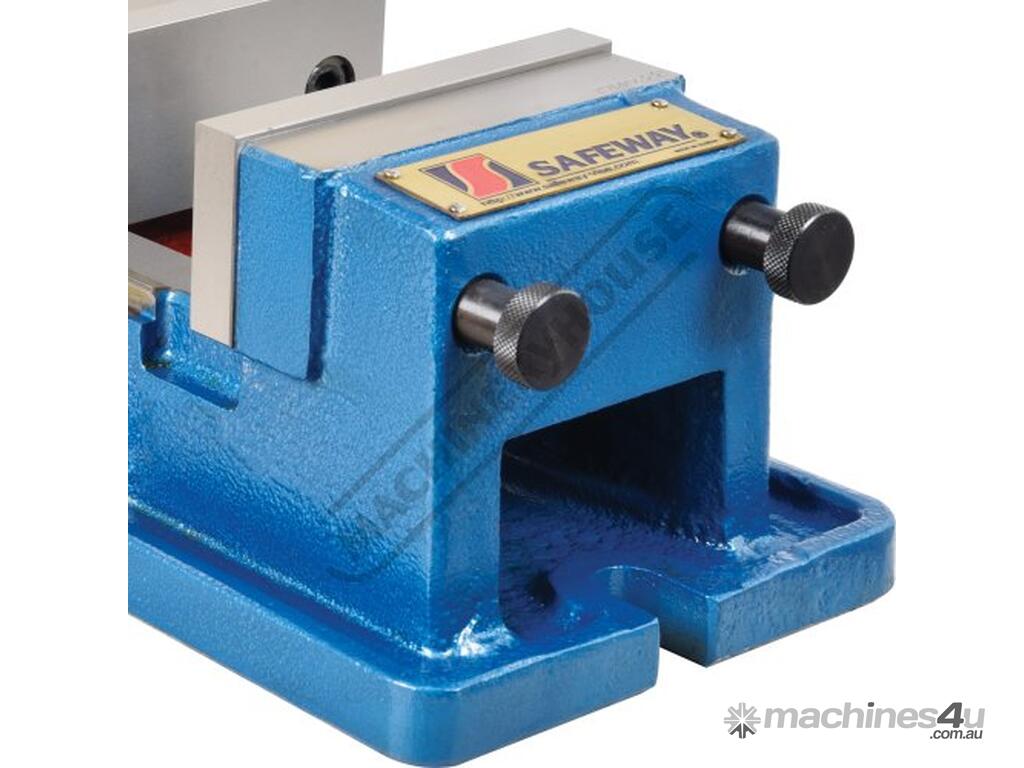

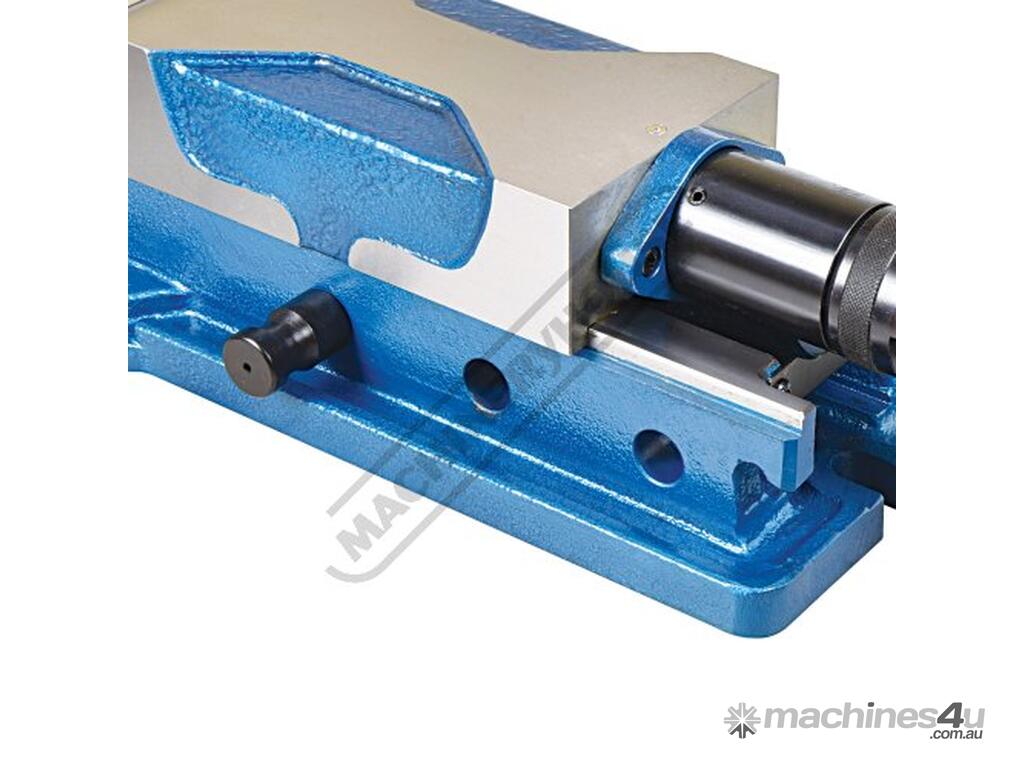

Large clamping range through screw adjustment and 3 pin positions in the base.
The vise can be used in either a mechanical mode or in a hydraulic mode.



Specifications:
ORDER CODE: V330
MODEL: PHV-130
C - Jaw Width (mm): 130
Max. - Jaw Opening (mm): 225
F - Jaw Height (mm): 55
Max. Pressure (kgf): 3500
A (mm): 505
B (mm): 190
D (mm): 170
E (mm): 127
G (mm): 72
H (mm): 163
I (mm): 36
J (mm): 95
K (mm): 290
L (mm): 106
M (mm): 180
N (mm): 250
O (mm): 160
P (mm): 695
Q (mm): 570
X (mm): 18
Keyway (W) (mm): 16
Nett Weight (kg): 37
