PIERALISI MOLINOVA SERIE ORO OLIVE PROCESSING

Automatic continuous plant Molinova Serie Oro (Gold Series) represents today the top product of the Pieralisi range. Designed for batch processing, it is completely automated and able to run also in continuous.

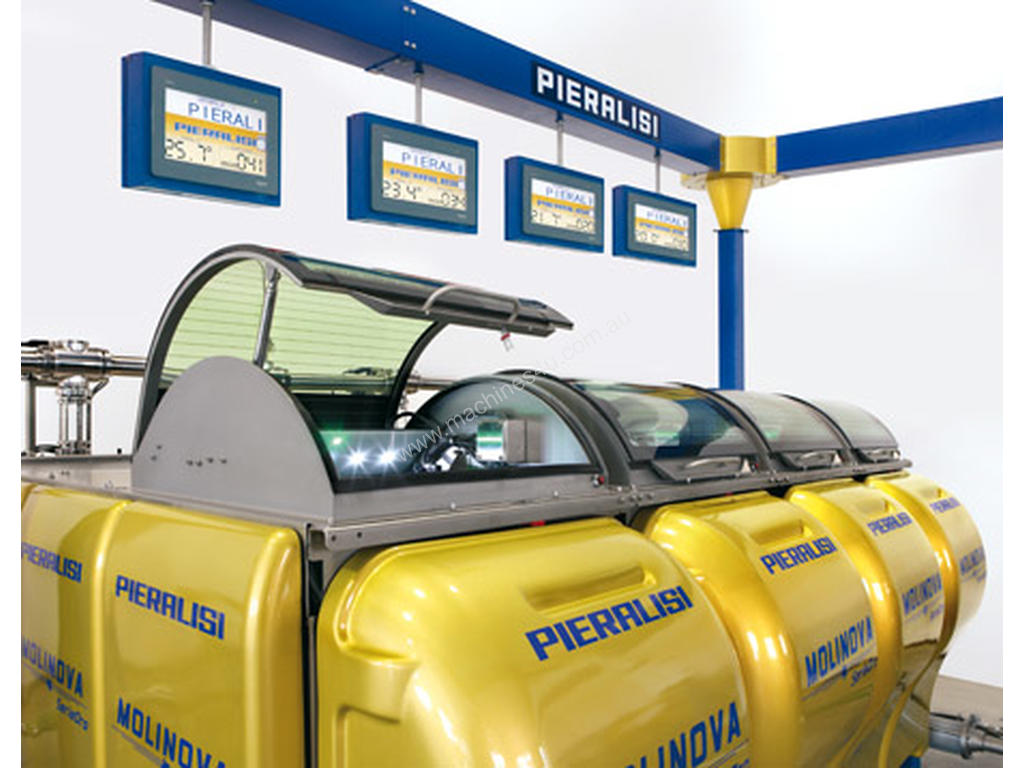

MODULARITY OF THE PLANT
Flexibility in the composition of the kneading group: it is possible to add just one module to the plant, depending on customer needs.

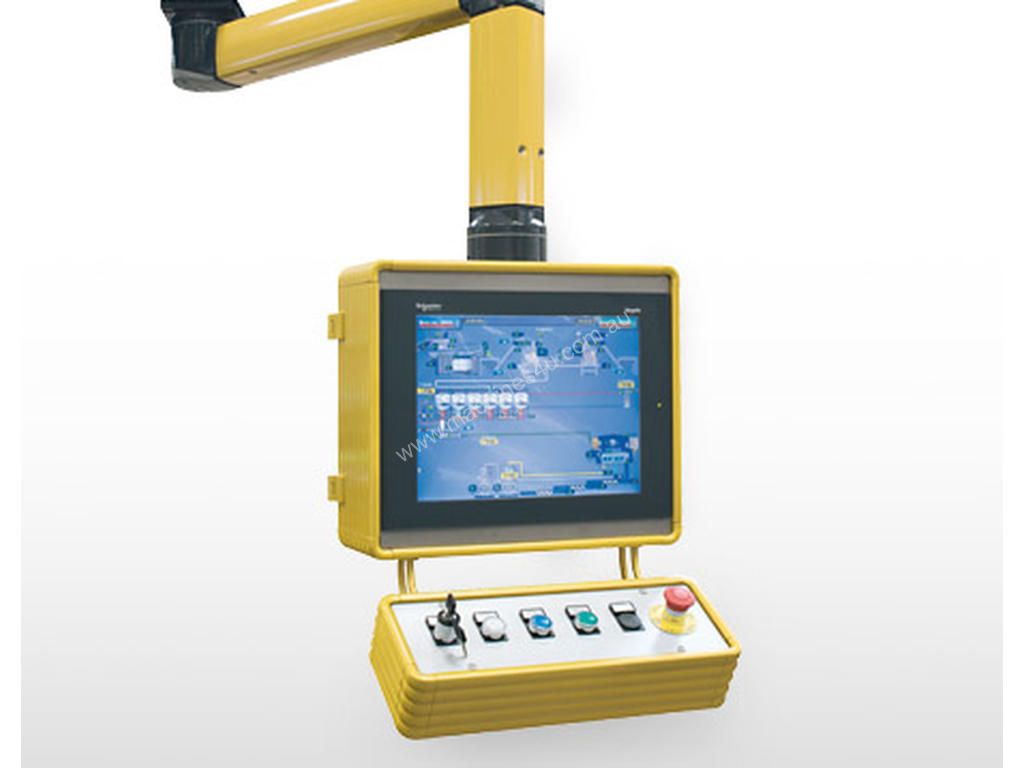

COMPUTERIZED MANAGEMENT OF THE KNEADING TIMES
Since each kneader is equipped with an independent motor, it is possible to start just one kneader in case of need. At the end of the programmed kneading time, the blades turning speed will be automatically reduced.

BEST THERMAL EFFICIENCY OF THE SINGLE KNEADERS
The thermal insulation of the kneaders and the independent heating facilitate electrical costs saving, obtaining best quality and best yield in oil.

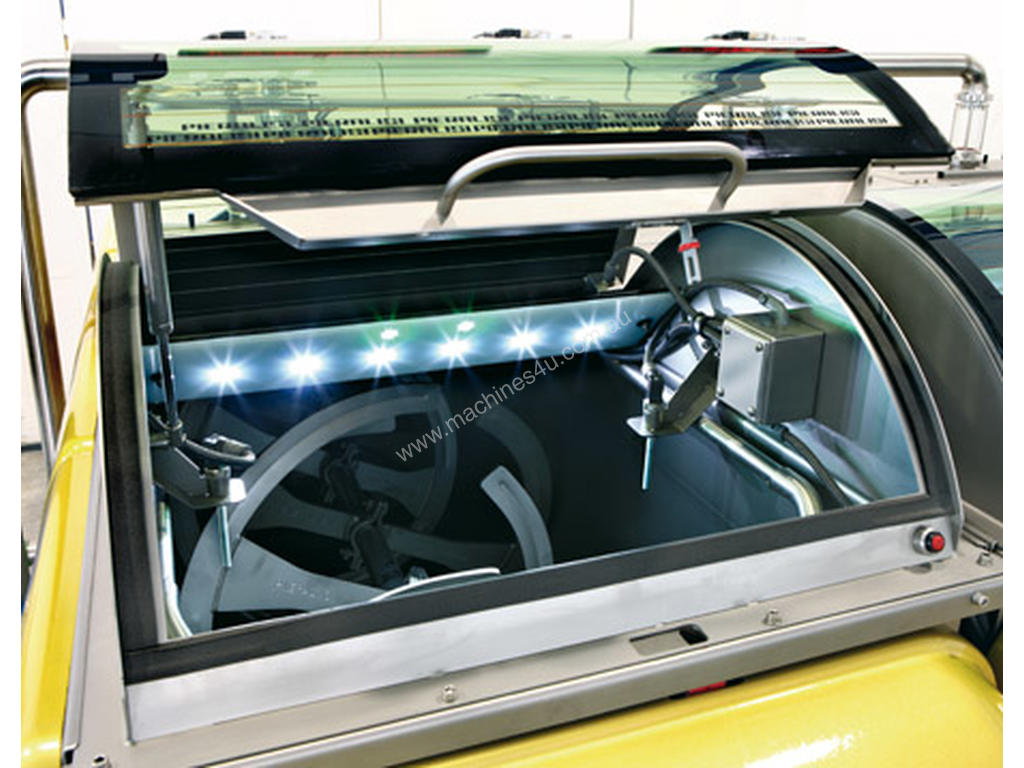

WASHING OF THE KNEADERS
Independent washing system for each kneader: possibility to wash basins and blades whenever required, improving the oil quality.

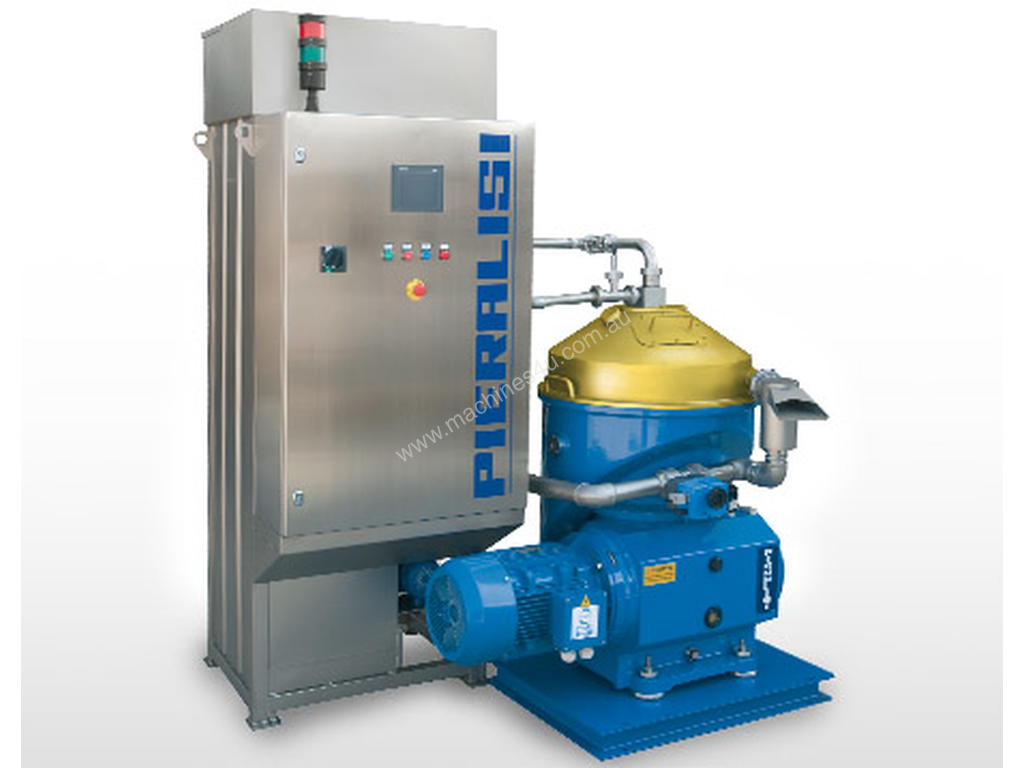

WASHING OF THE SEPARATORS
The plant is equipped with a new type of separators, preset for automatic washing of the plates (MISTER CIP system), according to the operator’s needs.

Available MODELS:

MOD 600:
Installed power [kW]: 0.75
Capacity [l]: 600
Total length [mm]: 2150
Total width [mm]: 710
Total height [mm]: 1420

MOD 800:
Installed power [kW]: 0,75
Capacity [l]: 800
Total length [mm]: 2650
Total width [mm]: 710
Total height [mm]: 1420

MOD 1000:
Installed power [kW]: 0,75
Capacity [l]: 1000
Total length [mm]: 3150
Total width [mm]: 710
Total height [mm]: 1420

MOD 1200:
Installed power [kW]: 0.75
Capacity [l]: 1200
Total length [mm]: 3150
Total width [mm]: 710
Total height [mm]: 1530

MOD 2000:
Installed power [kW]: 0.75
Capacity [l]: 2000
Total length [mm]: 3650
Total width [mm]: 998
Total height [mm]; 1960

The company reserves the right to change specifications without prior notification.
