PIUSI Mechanical Flow Meter K33 ATEX - 25mm FF 20-120lpm Litre Display - Suitable for PETROL

The new commercial mechanical flow meter meets ATEX requirements for accurate metering of the dispensed quantity of fluid (petrol, kerosene, diesel fuel) in environments with a high explosion risk.

It is reliable, inexpensive and easy to install and calibrate at the place of installation. Due to its low flow resistance, it is also able to operate under gravity.

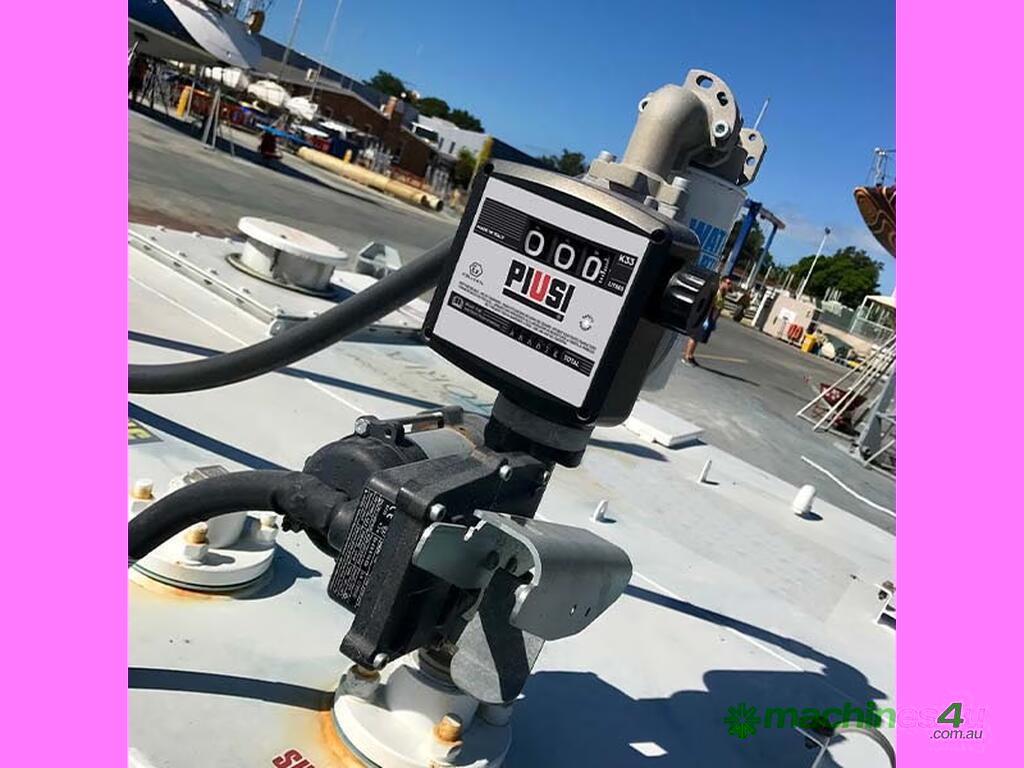

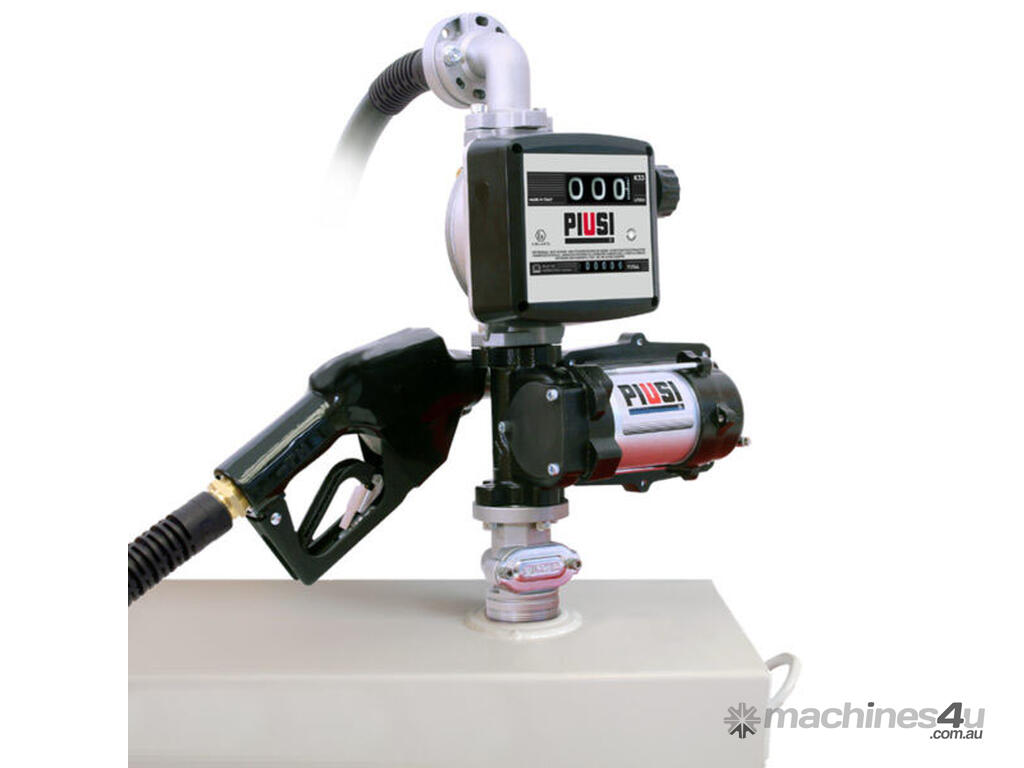

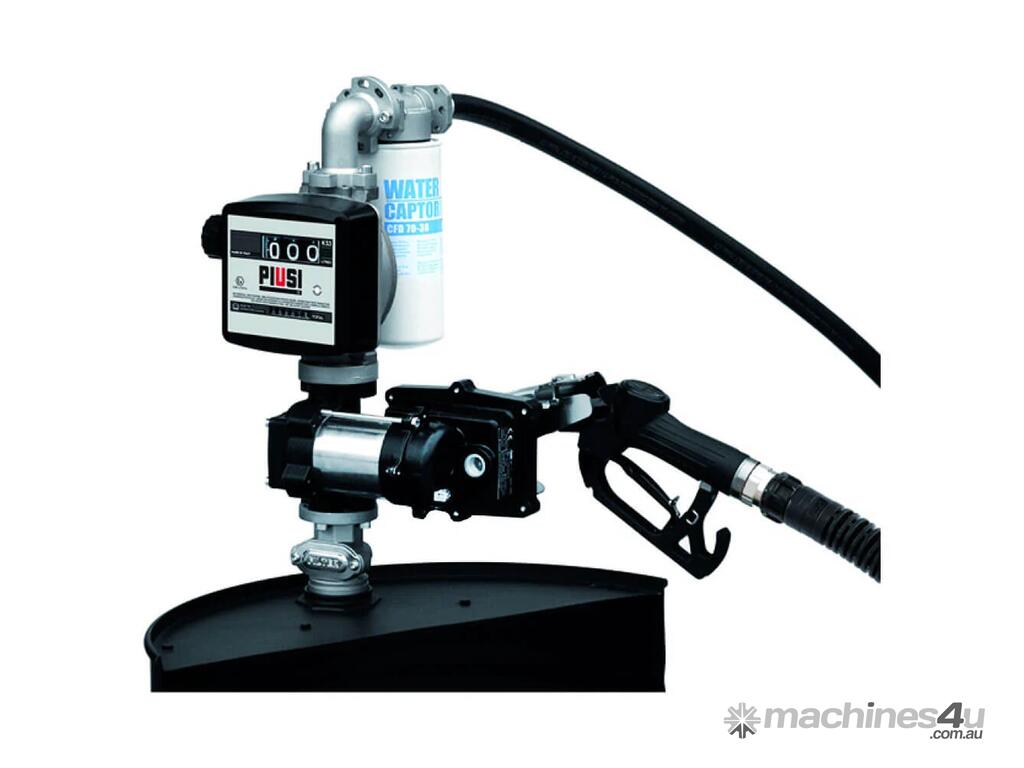

The K33 ATEX flow meter can be installed in any position on either rigid or flexible pipes or on pumps or tanks.

The equipment is classified as Group II, category 2 G IIB T=85°C (T6), so the flow meter is suitable for working in areas classified as 1 and 2 in accordance with directive 99/92/CE.

FEATURES:

3-digit partial indicator (max. 999 litres), total 6 digits.
Flow rates 20 - 120 l/min
Accuracy +/- 1%
Repeatability +/- 0.3%
Operating pressure 3.5 bar
Bursting pressure 28 bar
