PJ-6B Bench Planer Jointer 153mm Width Capacity

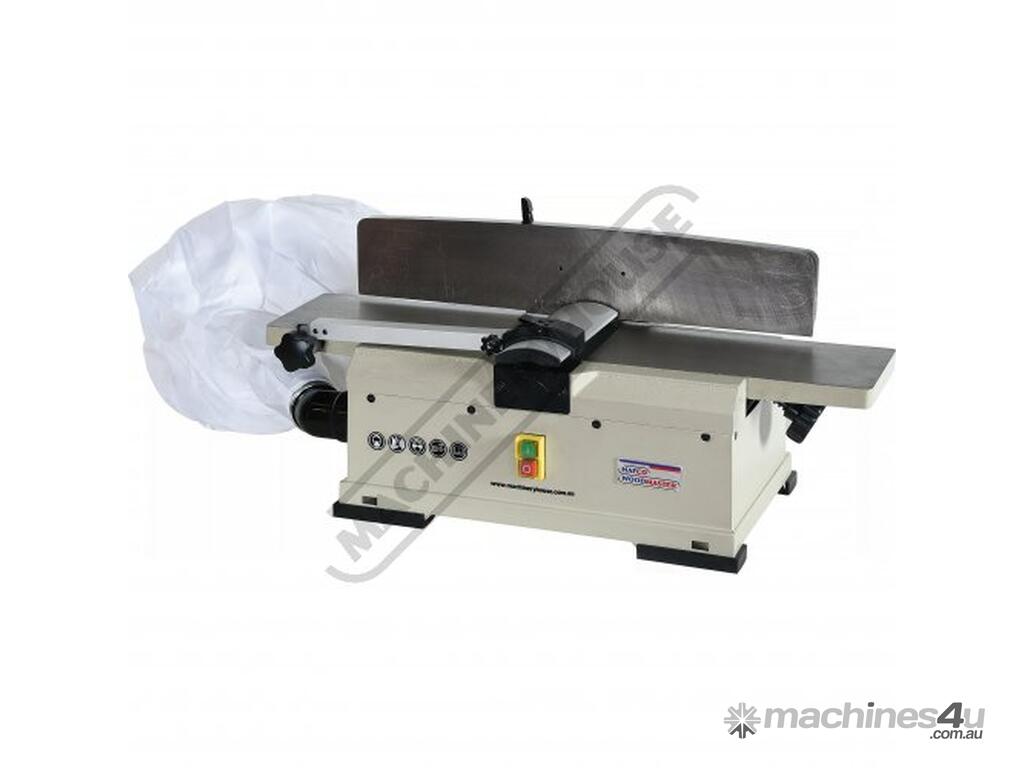

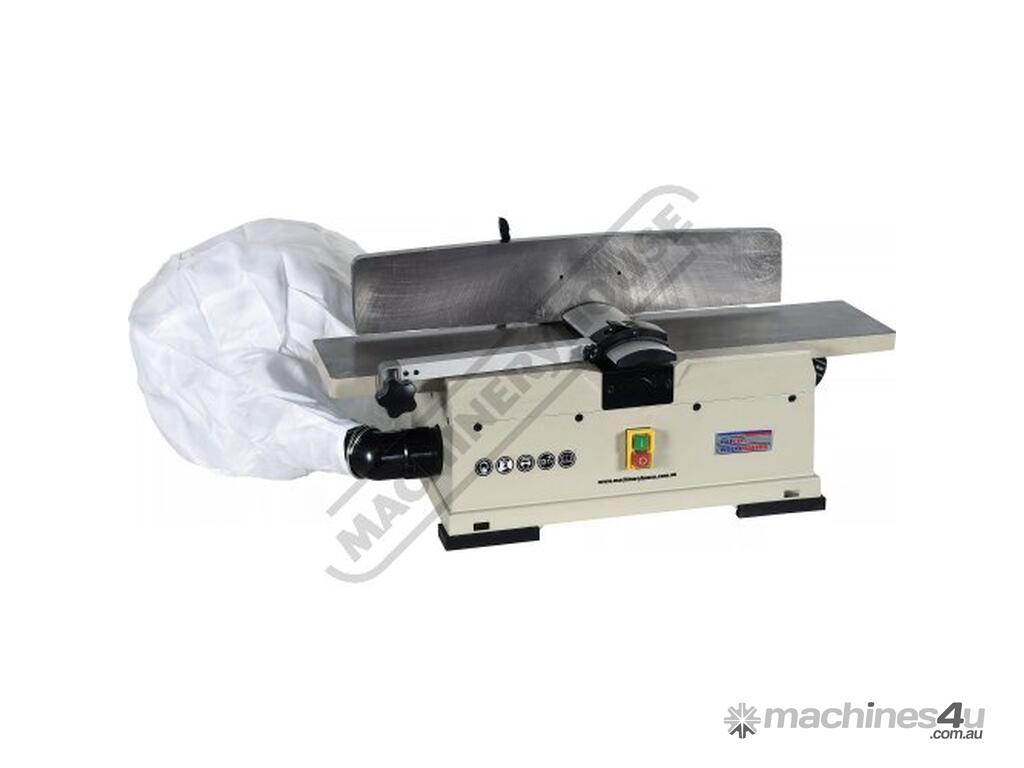

HAFCO-WOODMASTER PJ-6B Bench Planer Jointer 153mm Width Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W618

The PJ-6B Planer/Joiner is perfectly designed for all those light to medium duty applications. This unique jointer comes with a 730mm long cast iron table and a 580 x 110mm adjustable tilting fence that allows the operator many options to pane timber effortlessly at the desired angle.

This little planer has a very generous 153mm maximum cut width, and it is mainly constructed from cast iron material to provide ample rigidity, and helps dramatically reduce vibration when under load. The two HSS cutting blades are powered by a 1.5hp 240V motor, and spins the blades at a very impressive 10000rpm. Another great feature that's supplied standard with this machine is the unique built-in fan with dust chute and bag system to collect its own timber waste.

The PJ-6B Planer is perfect for when a portable compact machine is needed for all those one-off jobs, and also to save on valuable storage space. This is ideal for any small woodwork shop or for the home hobbyist who needs to occasionally plane timber.

Features:
153mm width capacity

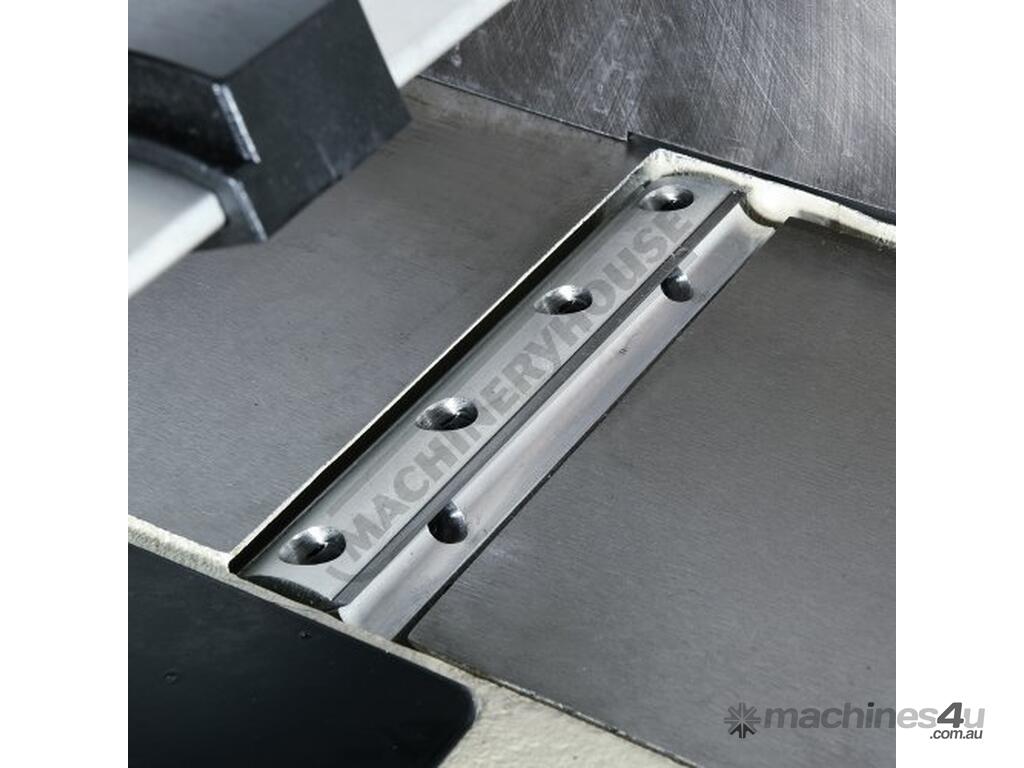

2 x HSS blade cutter head
Cast iron table & fence
Cast aluminium body

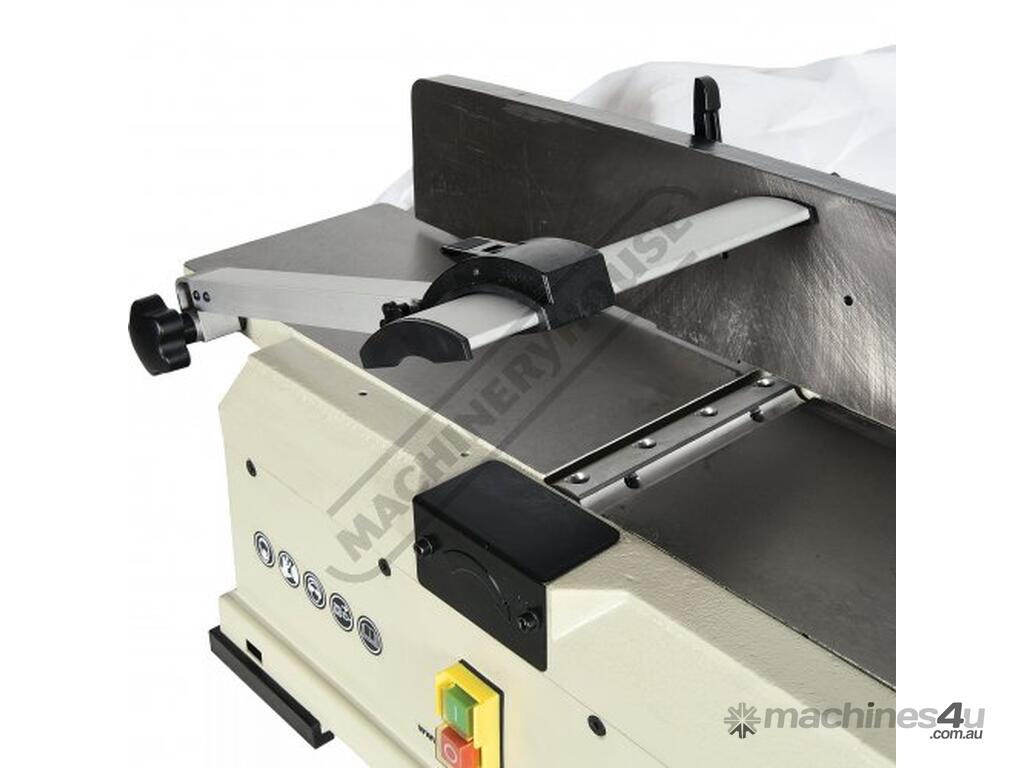

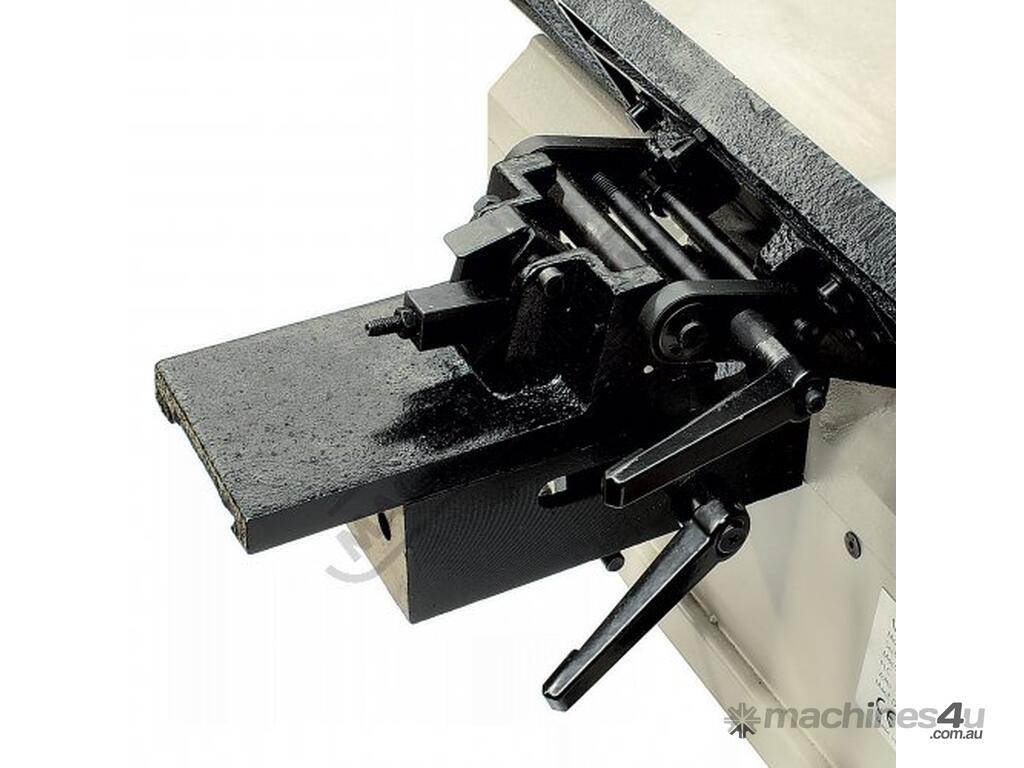

Adjustable tilting fence to 45?

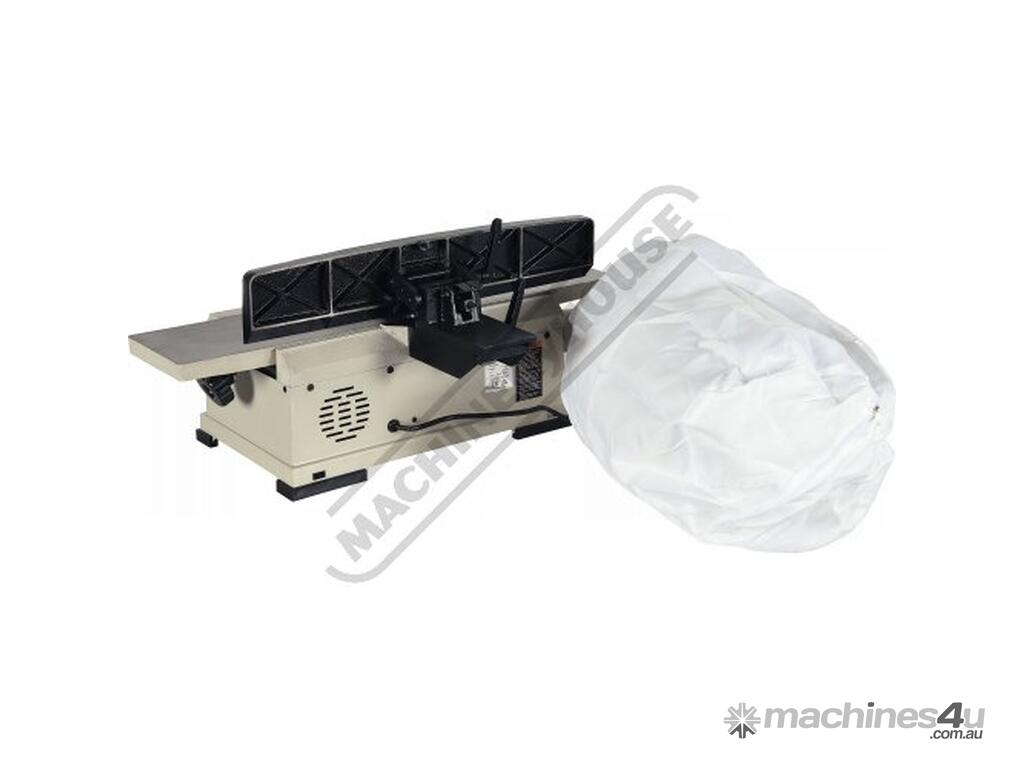

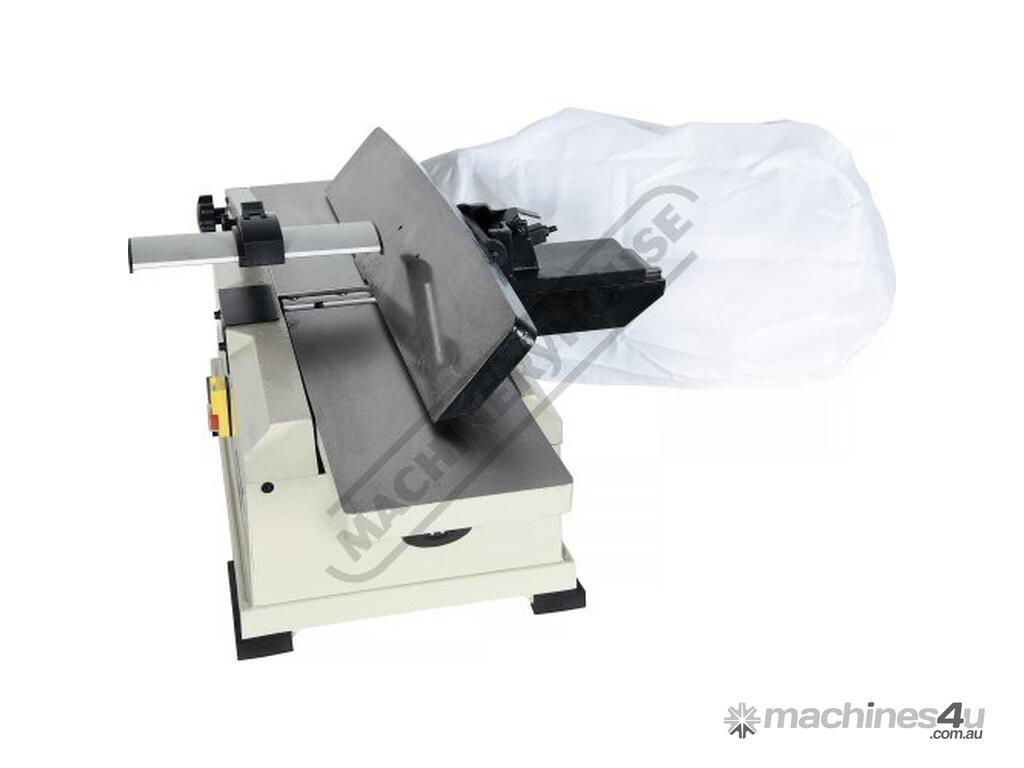

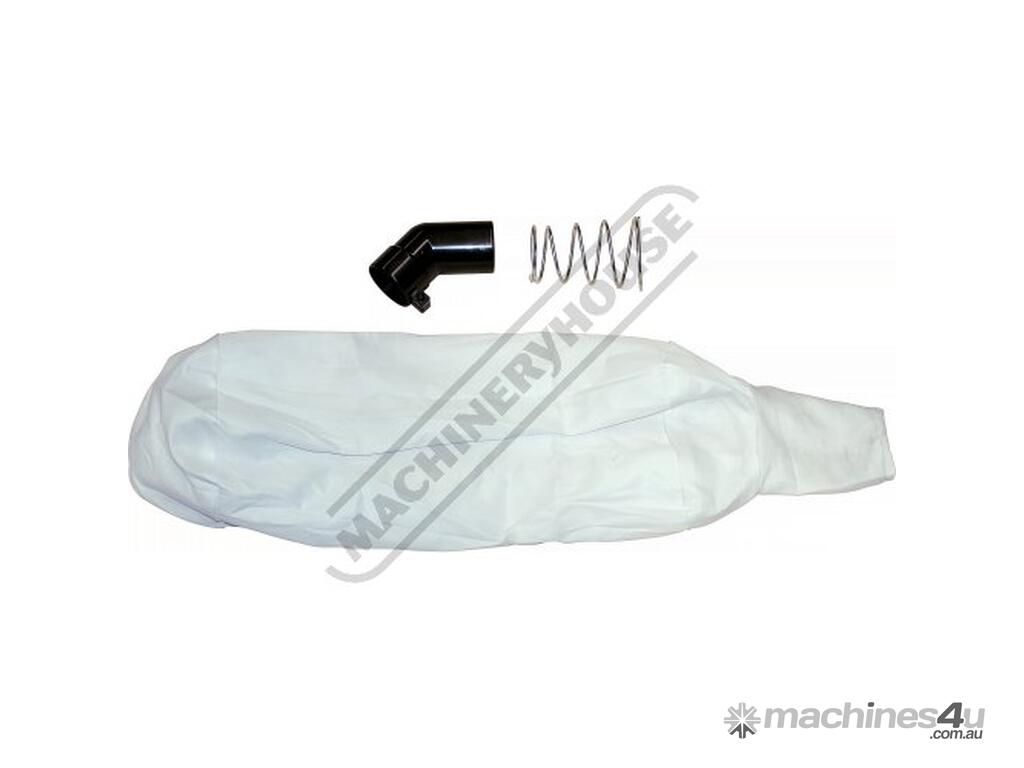

Built in fan with dust chute & collection bag
10000rpm blade speed with 20000 cuts per minute

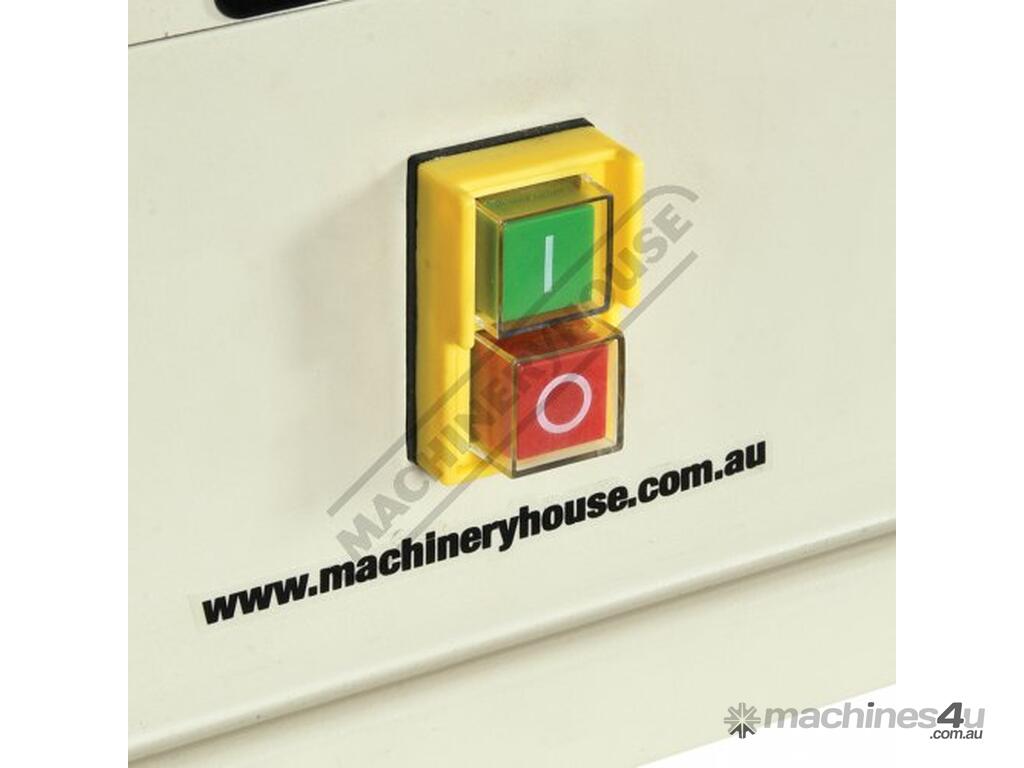

Magnetic safety power switch with stop button
Aluminium blade cover with quick action lock
3mm maximum depth of cut

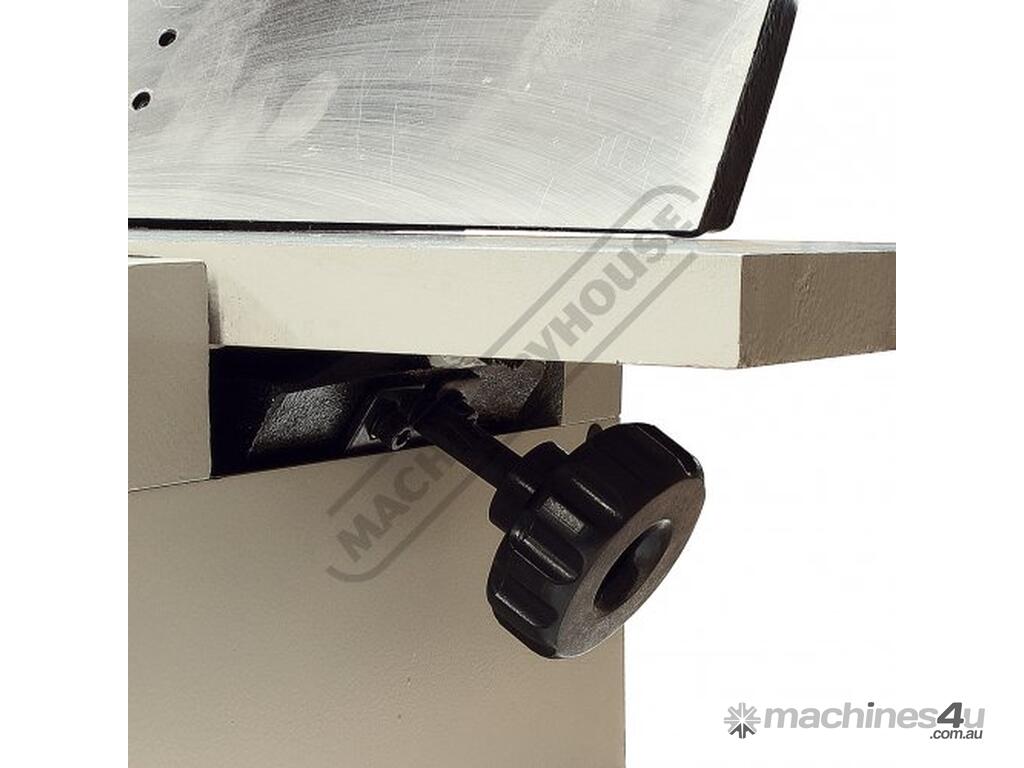

Adjustable in-feed table
Anti vibration rubber feet
1.1kW / 1.5hp 240V motor


Specifications:
ORDER CODE: W618
MODEL: PJ-6B
Width Capacity (mm / inch): 153 / 6
Maximum Depth of Cut (mm): 3
Table Length (mm): 730
Length of Infeed Table (mm): 340
Length of Outfeed Table (mm): 347
Rebate (mm): ~
Fence Length x Height (mm): 580 x 110
Blade Cutter (Type): HSS
Blade Quantity (No.): 2
Cutter Block Diameter (mm): ~
Cutter Block Speed (rpm): 10000
Dust Port Diameter (mm): 60
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1150 x 650 x 320
Nett Weight (kg): 40
