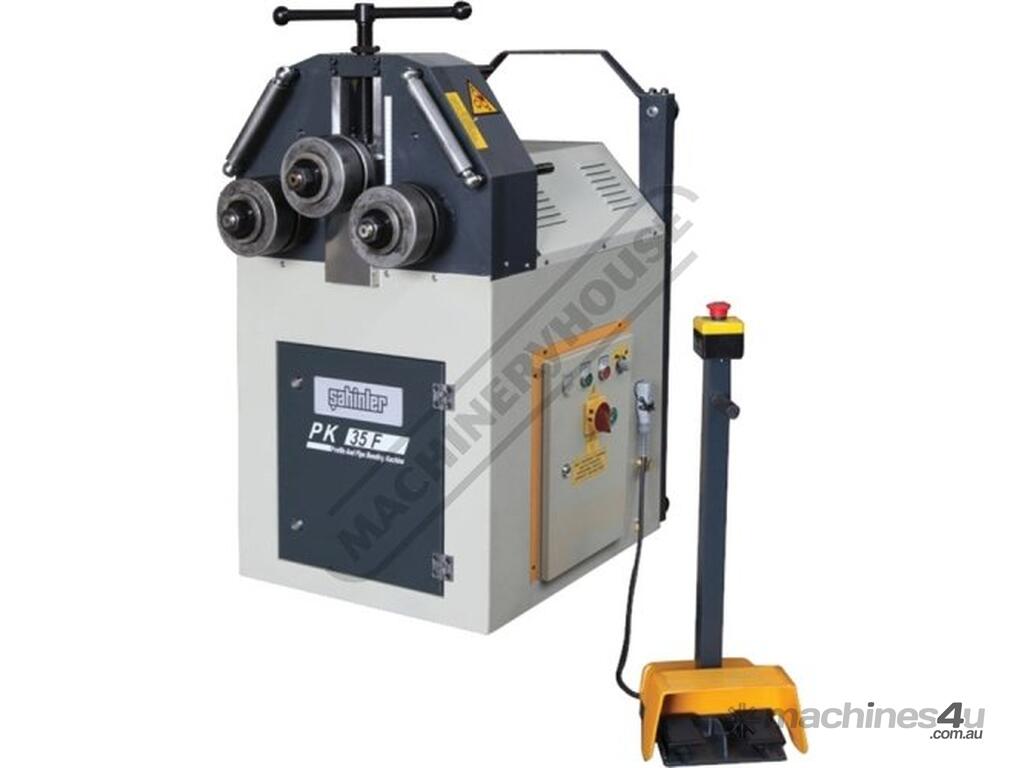

SAHINLER PK-35F Section & Pipe Rolling Machine 50 x 50 x 5mm Angle Capacity Includes Variable Speed Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S745
Features:
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position

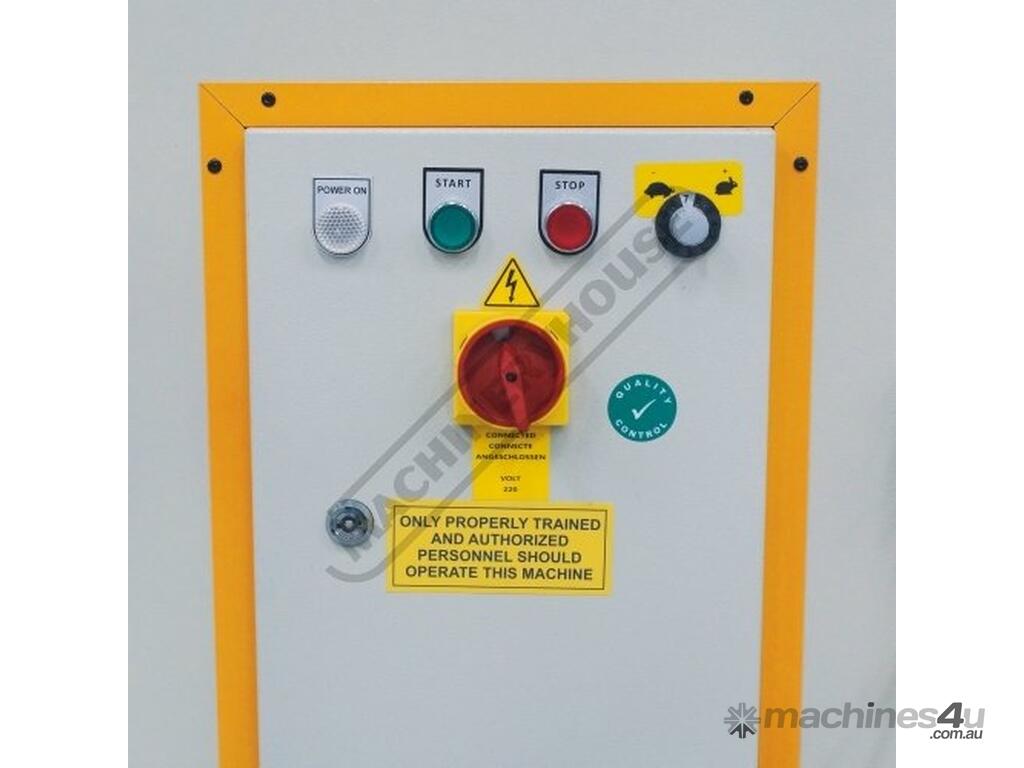

Variable speed rollers via control panel
Roving foot pedal control with emergency stop
Geared direct drive via motor & gearbox
Standard rolls and guide rolls are included
European quality
Includes:
- Steel fabricated frame
- Two rollers are powered
- Manual top roller adjustment
Specifications:
ORDER CODE: S745
MODEL: PK-35F
Powered Driven Rolls (Qty): 2
Bending Rolls (Type): Manual Top
Top Roll Shaft Diameter (Ø) (mm): 50
Lower Roll Shaft Diameter (Ø) (mm): 50
Top Roll Diameter (Ø) (mm): 155
Lower Roll Diameter (Ø) (mm): 155
Flat Bar Edge Capacity - MS (size / Ø) (mm): 60 x 10 / 500
Flat Bar Capacity - MS (size / Ø) (mm): 100 x 15 / 450
Square Bar Solid Capacity - MS (size / Ø) (mm): 35 x 35 / 900
Rectangle Tube Capacity - MS (size / Ø) (mm): 50 x 40 x 3 / 1200*
Square Tube Capacity - MS (size / Ø) (mm): 50 x 50 x 3 / 1700*
Round Bar Solid Capacity - MS (size / Ø) (mm): Ø35 / 600*
Round Tube Capacity - MS (size / Ø) (mm): Ø70 x 2 / 1000*
Round Pipe Capacity - MS (size / Ø) (inch / mm): Ø2" x 2.9mm / 1000mm*
Angle Capacity - MS (size / Ø) (mm): 50 x 50 x 5 / 1000 mm*
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Dimensions (L x W x H) (mm): 750 x 1000 x 1400
Note: Requires Additional Tooling (No / Yes*): Yes* (S7455 for angle capacity)
Nett Weight (kg): 400
