New PLASQUIP Plastic Polishing Equipment from as LOW AS $79 Per WEEK

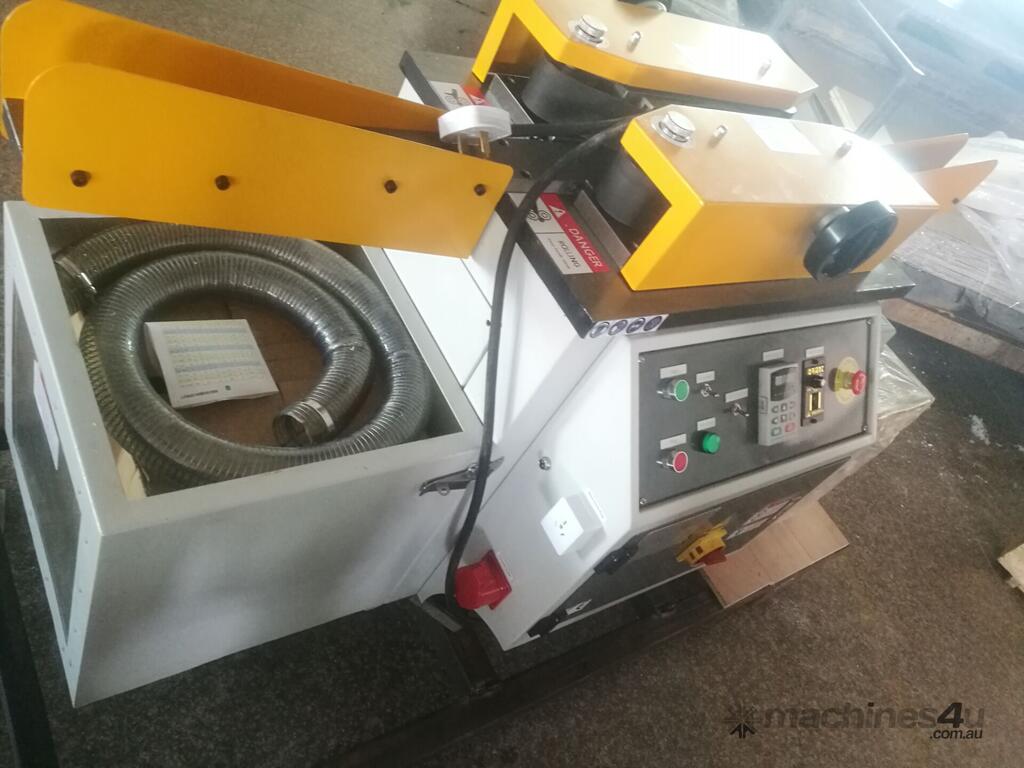

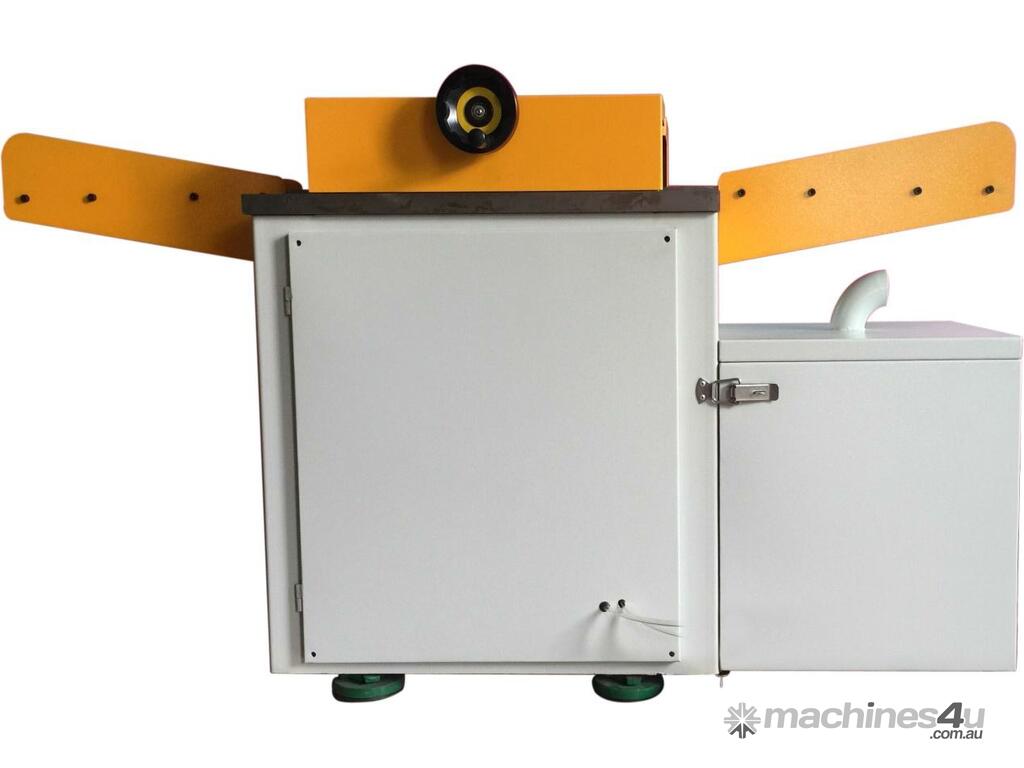

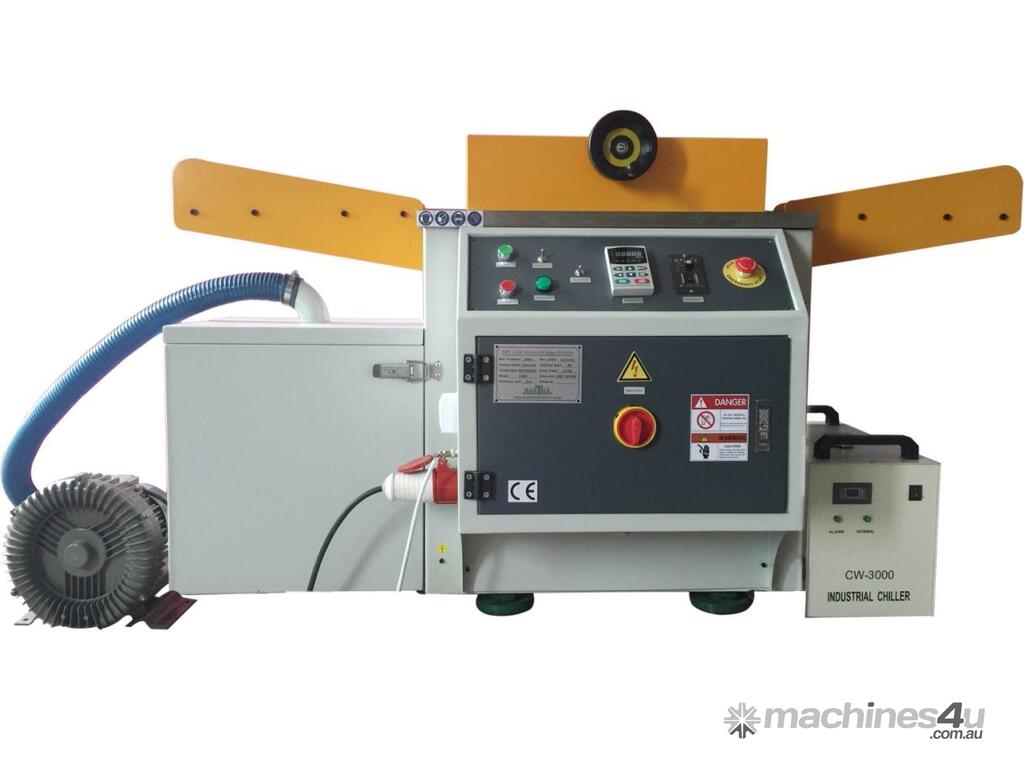

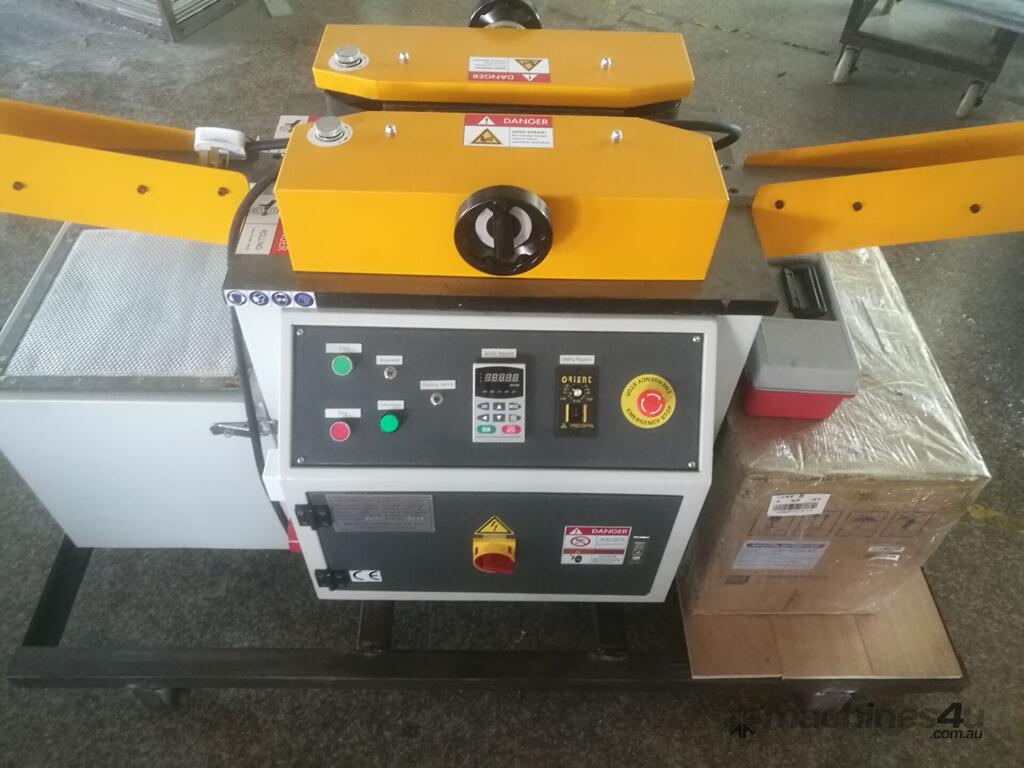

Newly released to the Australian and New Zealand markets, the Model PT-1200 offers polishing of up to a maximum of 80mm and an infinite length. This machine boasts an overall Infeed & Outfeed track length of 1,800mm which provides excellent support for longer sheets.
With an easy adjustment for handling different material thicknesses, there is an Auto Compensation Feature which can allow for the well-known problem of sheet thickness variations, and the Dual Motor/Belt System allows for synchronised material feeding of 'gang-stacked' pieces of acrylic.

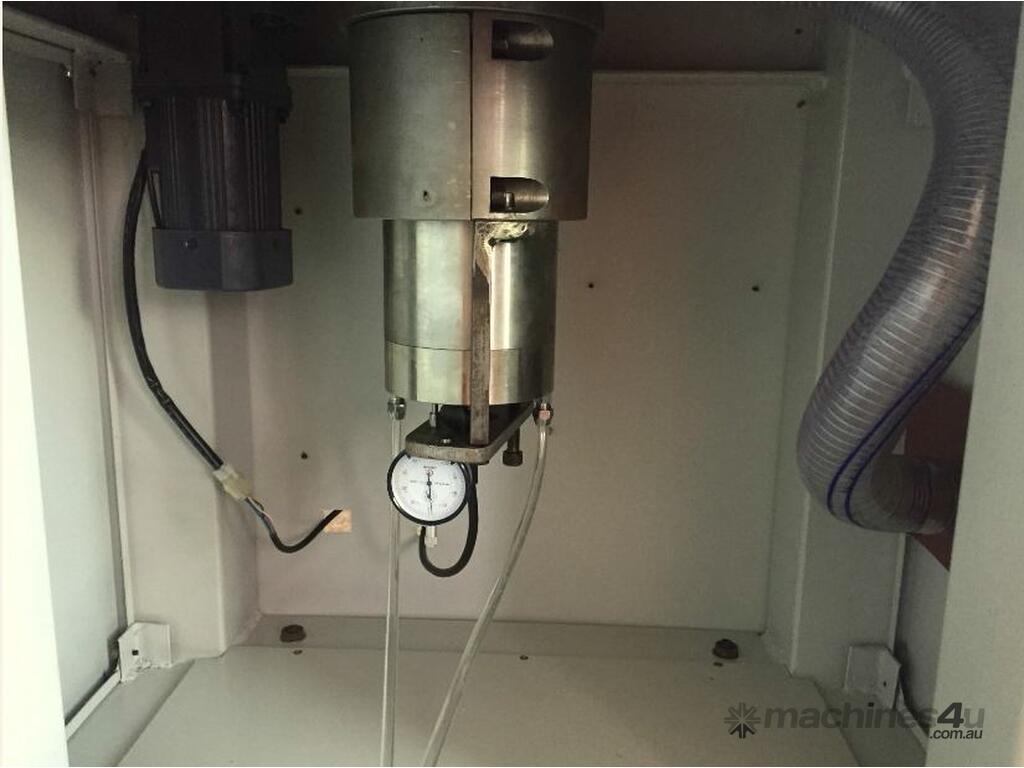

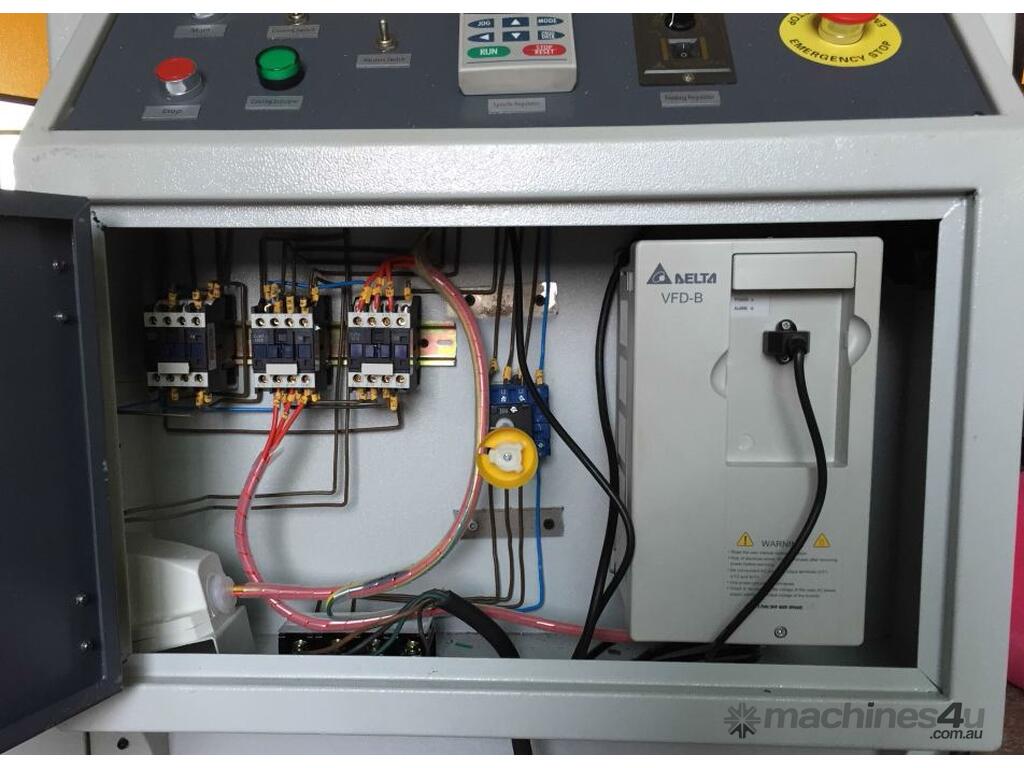

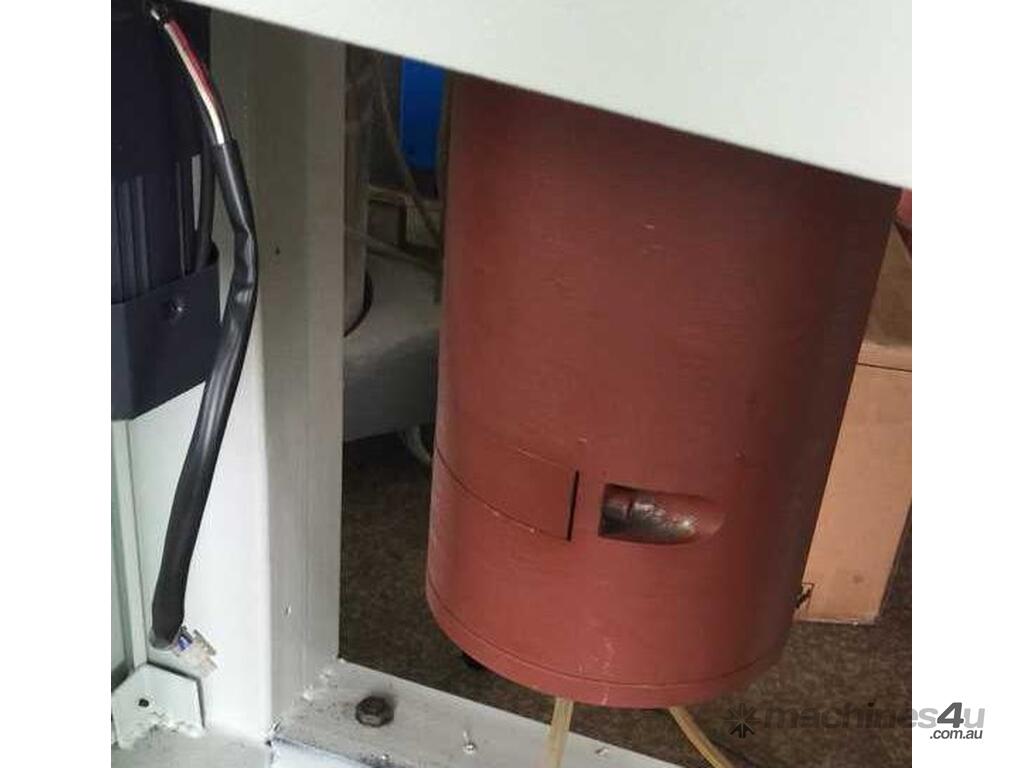

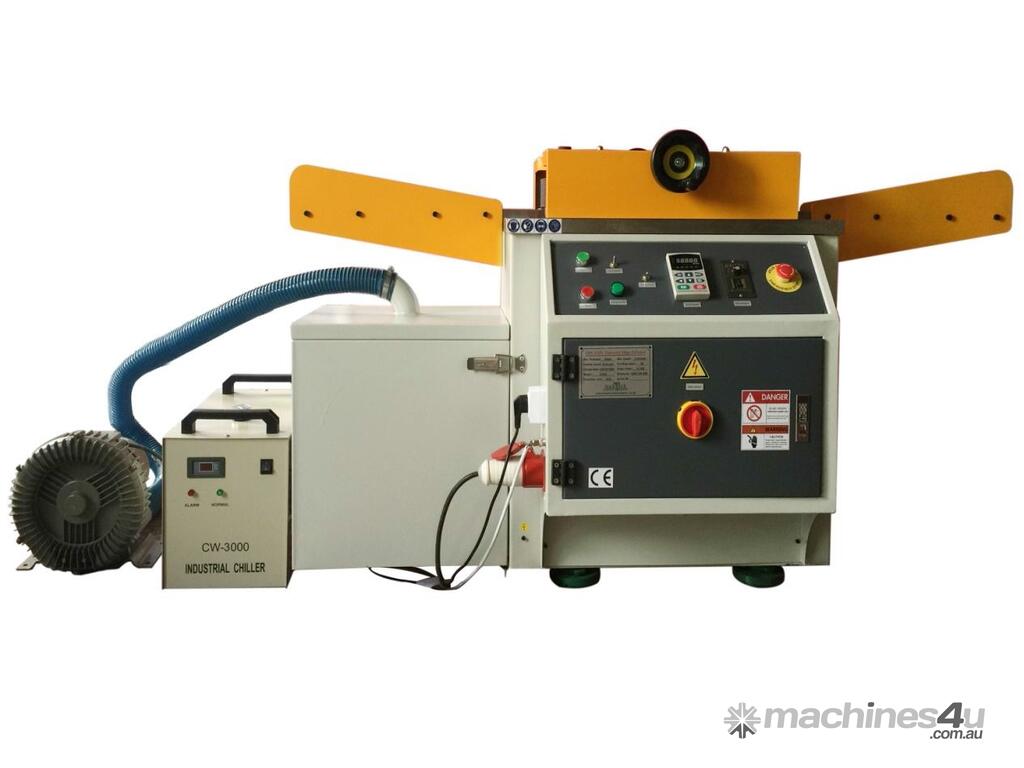

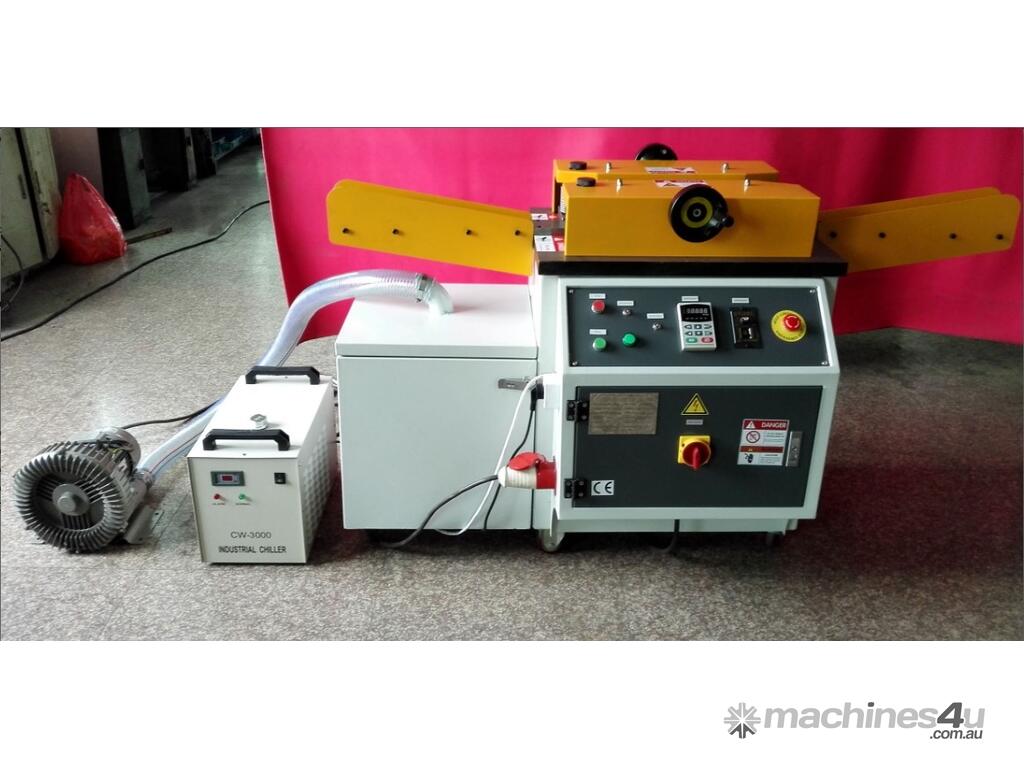

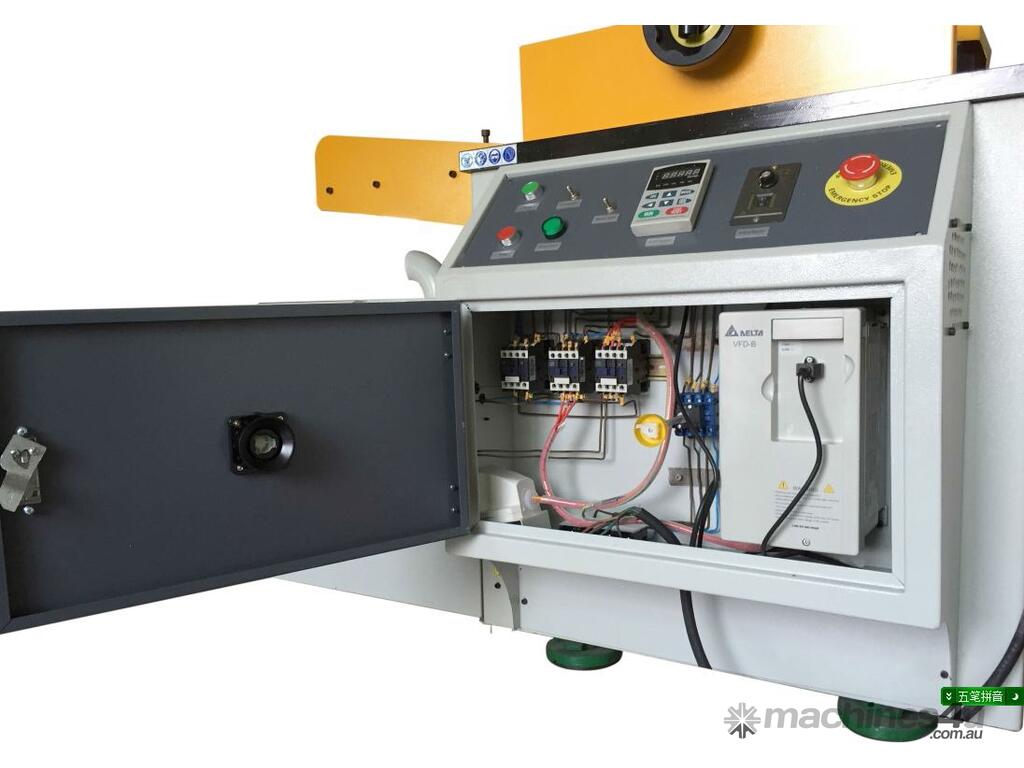

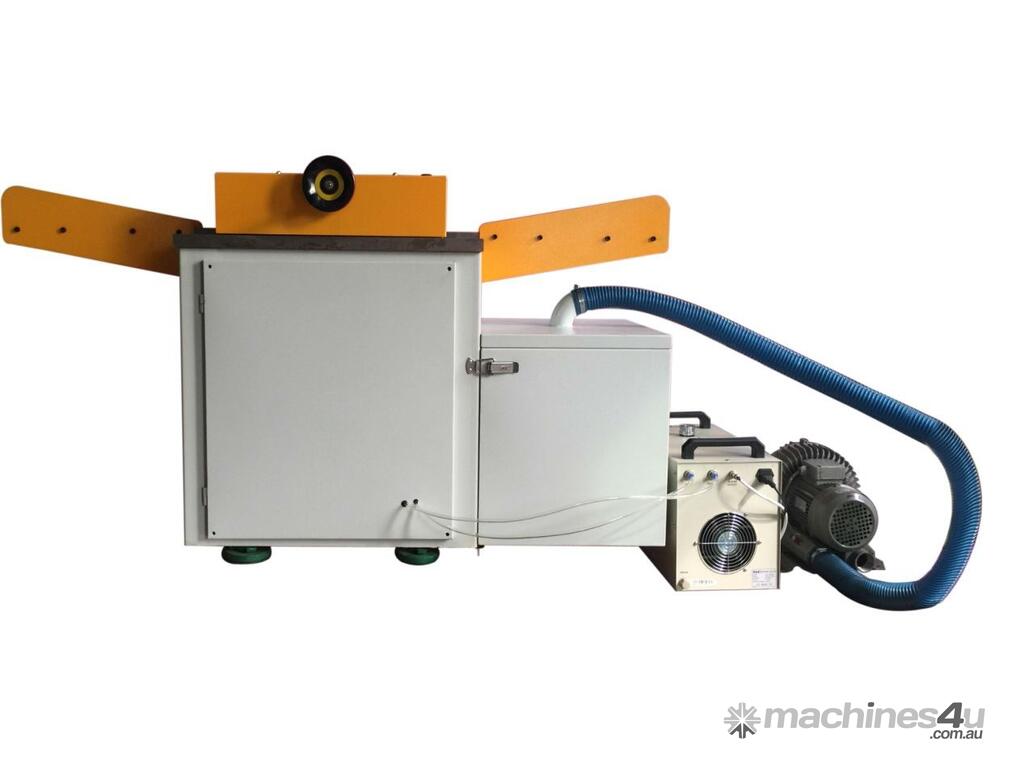

The PLASQUIP Model PT-1200 uses the MITSUBISHI Belts (MADE IN JAPAN), SKF Bearings (MADE IN SWITZERLAND), Quality Coil Springs (MADE IN GERMANY), and a DELTA Frequency Inverter and Spindle Motor(MADE IN TAIWAN). The fully-imported DELTA High-Speed Spindle Motor offers high speed, precision, and stability. The Model PT-1200 is equipped with an Swarf Extraction Unit with a vortex pump for higher pressure ratio, low noise, low energy consumption, and is virtually maintenance-free.

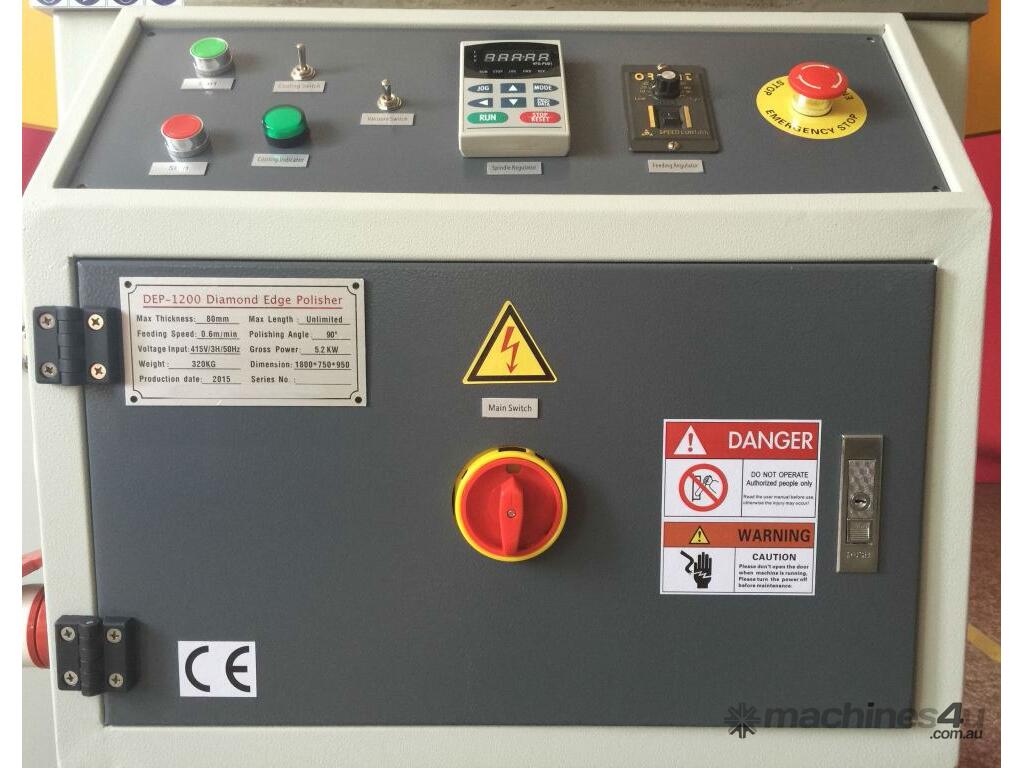

The Model PT-1200 is safe and easy-to-use, is very operator-friendly, and is CE Certified. Using a special 3-Tip Diamond Tool configuration, PLASQUIP can offer a full Machine & Tool Servicing back-up with our local Diamond Tool specialist and Machine Technicians Australia-Wide.
Other Technical Specifications are:
*Spindle Speed = 2,000 - 6,600RPM
*Cutting Speed = max. 1,000mm/min. (suggested average Working Speed = 600mm/min.)
*Machine Input Power = 220/1PH or 380V/3PH
*Rated Machine Power = 4kW (normal use = 2kW) **Includes Swarf Extraction Unit**
*Machine Weight = 360kg
*Overall Machine Dimensions = 1,850mm x 800mm x 900mm

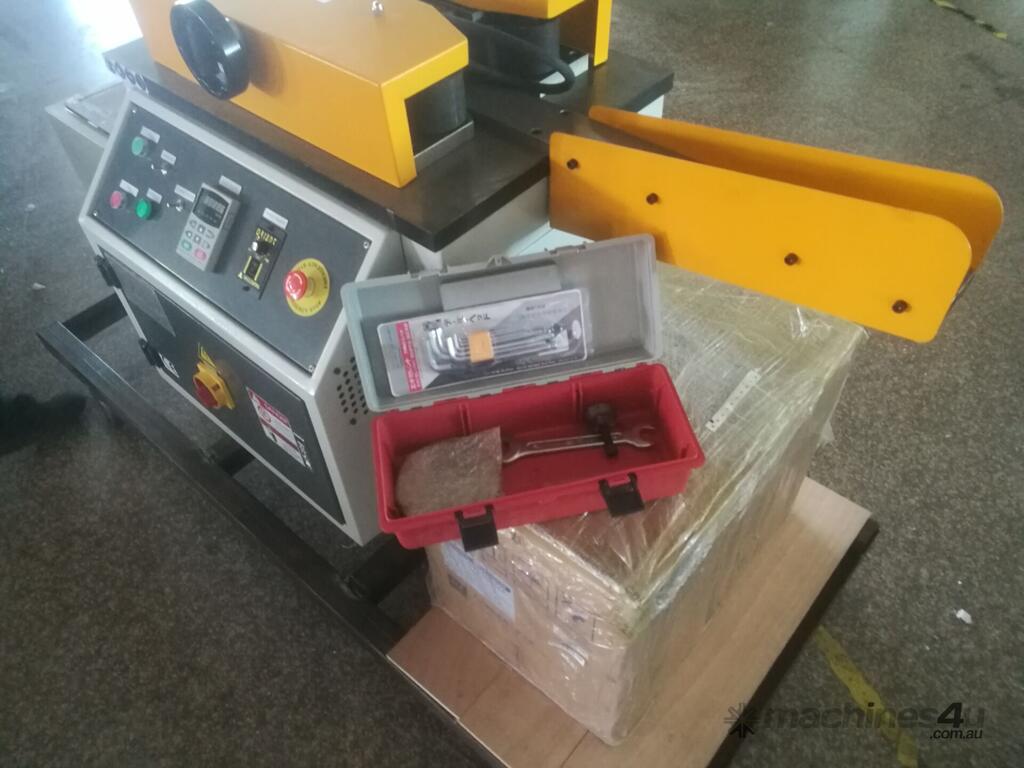

The PLASQUIP Model PT-1200 is provided with an Accessory Box, Tool Kit, and Operating Manual and CD.
