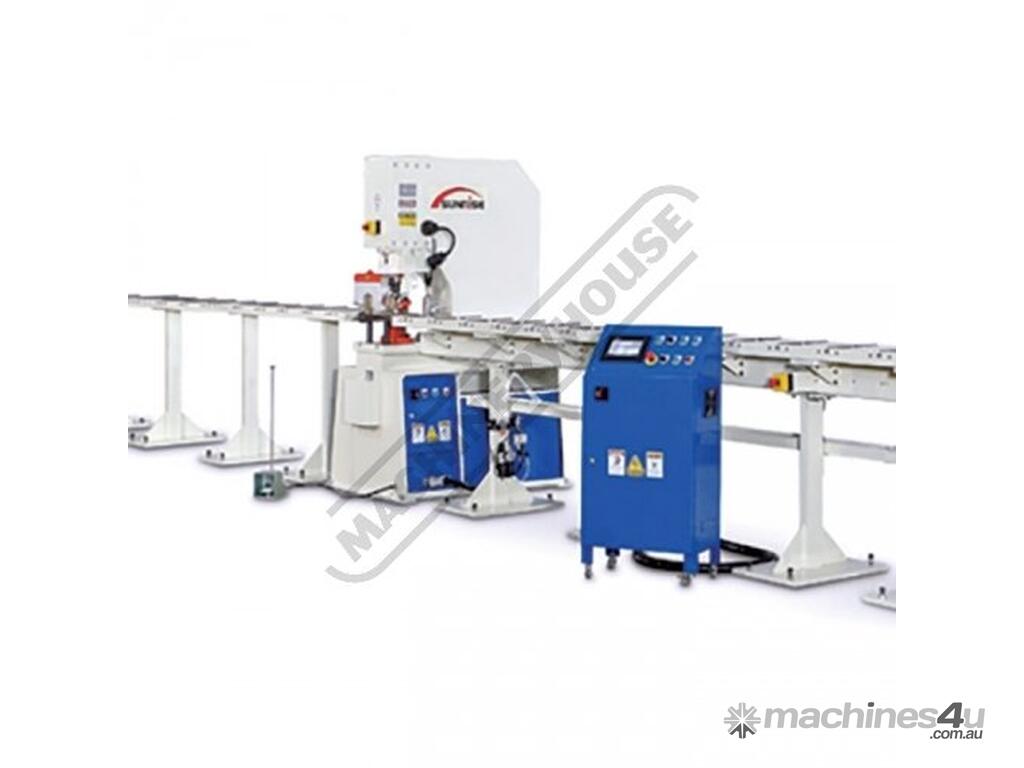

PM-80T-ANC CNC Punching Machine 80 Tonne Includes CNC Programmable Positioning Table 6000mm

SUNRISE PM-80T-ANC CNC Punching Machine 80 Tonne Includes CNC Programmable Positioning Table 6000mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P196L

The Sunrise Punching Machines are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

CNC Feeding System – For Angles, Channel Webs, and Flat Plates

Features:
The user friendly Delta 7” colour touch-screen controller with pre-set patterns makes programming a simple task

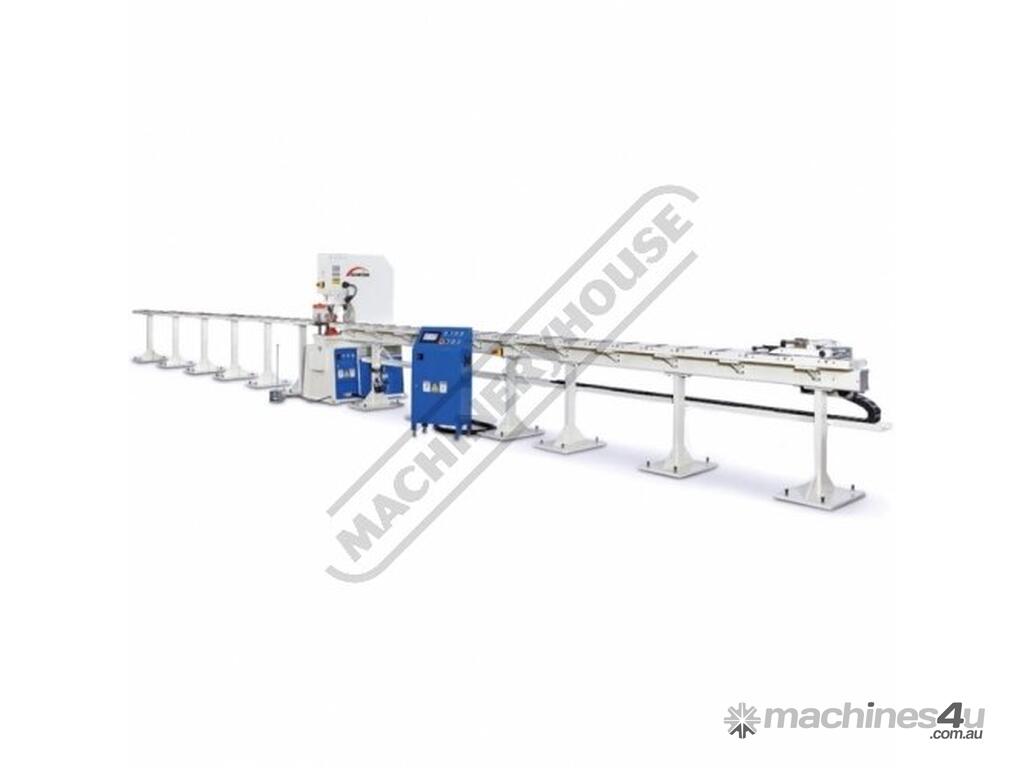

The new version of ANC is a fully automatic single-axis in-feed system for punching angles channel webs and flat plates available in 6000mm X-axis travel distance
The main frame of the ANC is a heavily proportioned machined structural steel tube that provides unmatched rigidity and quality yet offers simple set-up adjustment and maintenance

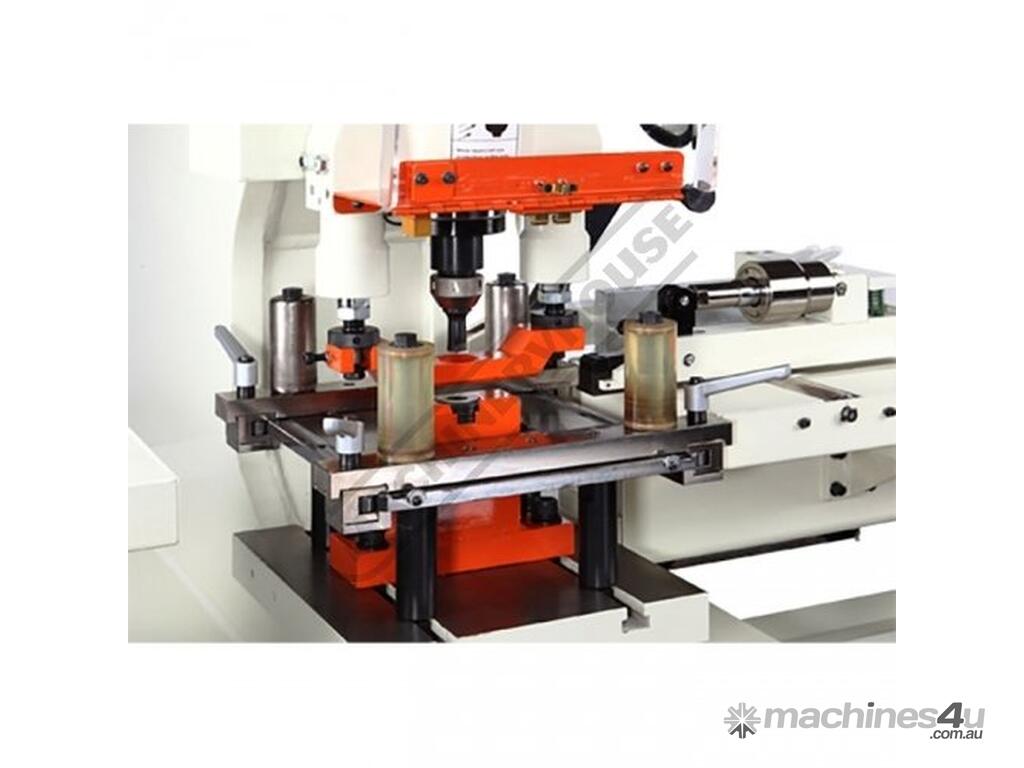

The ANC features a hydraulic stripper as well as pneumatic material clamping for fully automatic operation
In-feed roller tables and support stand are included for full support of the material
Specially designed strippers and punching accessories for processing a wide variety of materials

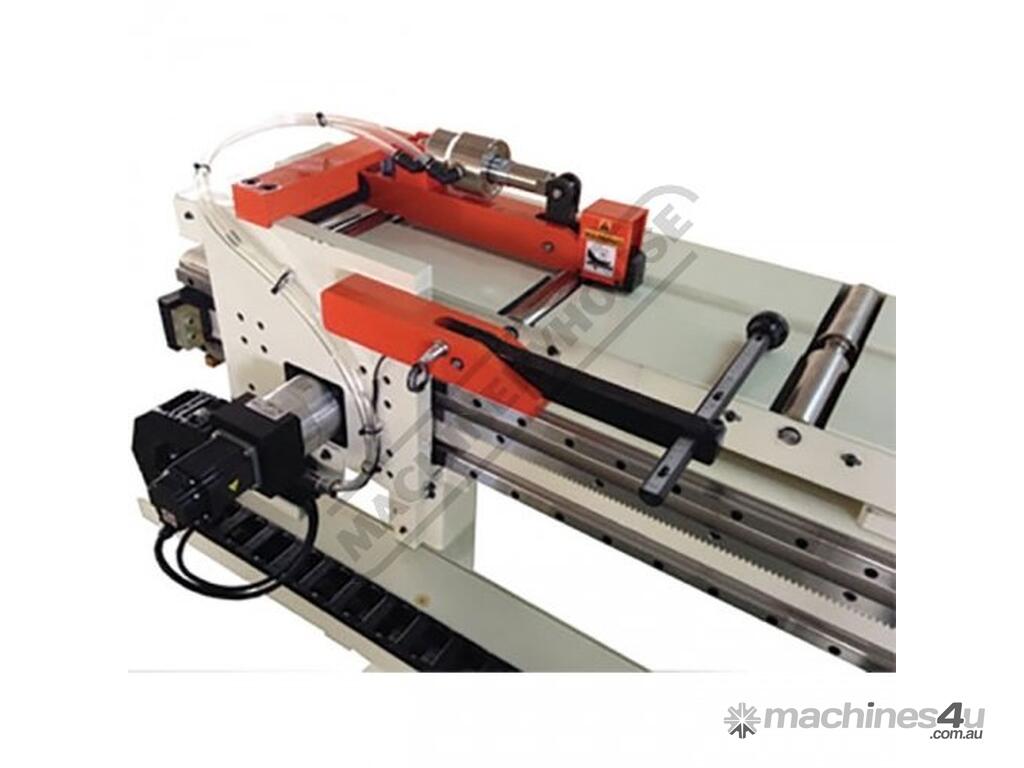

The highly precise gear drive components provide excellent accuracy repeatability and efficiency


Pre-Commissioning:
1. Punching machine is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- Fully-automatic CNC table 6000mm (X-Axis)



Specifications:
ORDER CODE: P196L
MODEL: PM-80T-ANC
Punching Pressure (Tonne): 80
Punching Table Feed (Type): CNC Positioning
Punching Table Dimensions (mm): 6000 (X-Axis)
Punching Ø x Thickness Capacity - Mild Steel (mm): Ø30 x 15
Channel Flange Punching (h) (mm): ~
Throat Depth (mm): 310
Maximum Stroke Length (mm): 100
Cycle/min (20mm Stroke) (cpm): 28
Table Working Height (mm): 1050
Motor Power (kW / hp): 5.6 / 7.5
Voltage (V): 415
Nett Weight (kg): 2300
