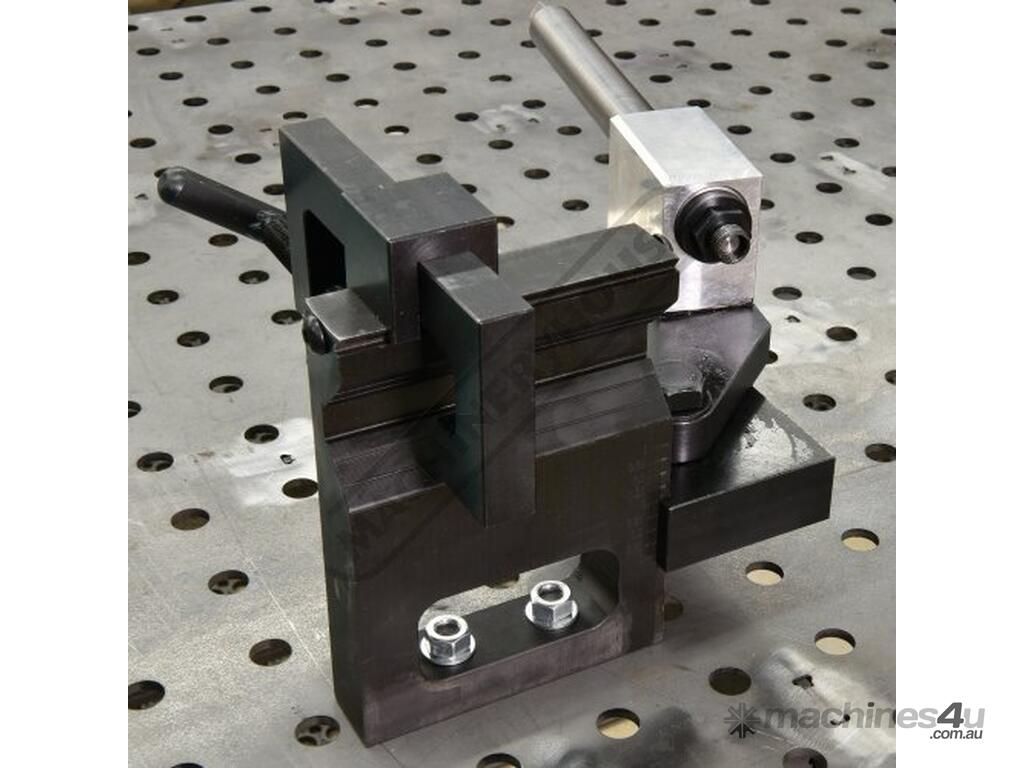

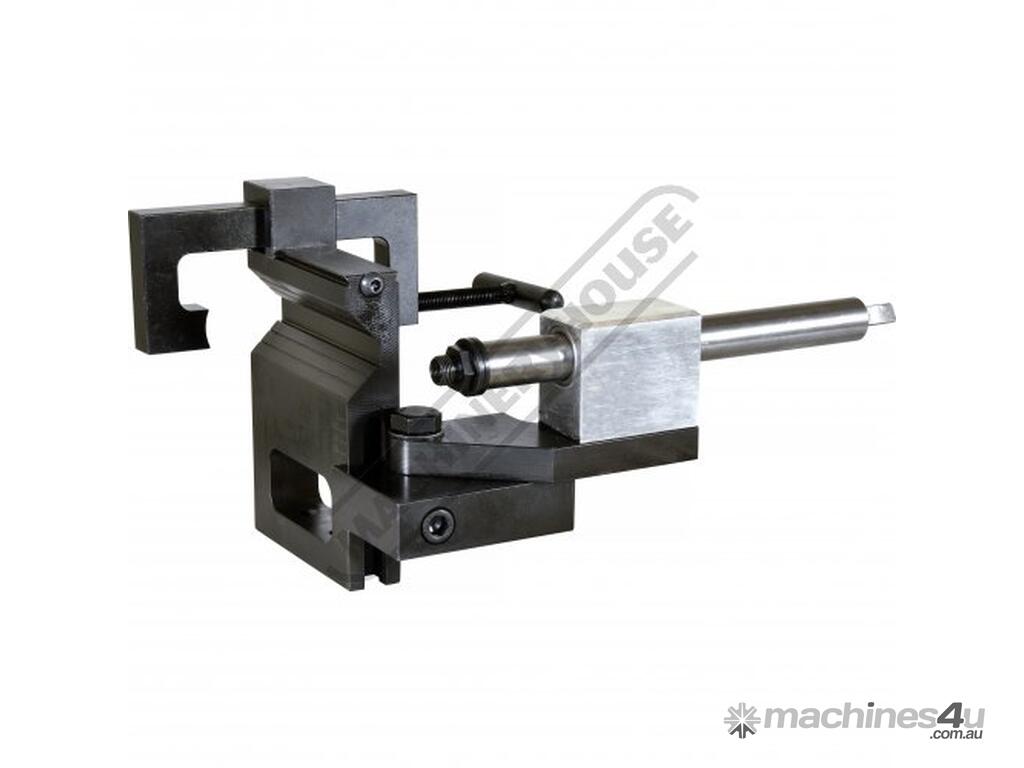

PNP-3/4-3" Offset Pipe & Tube Notcher Adjustable Cutting Angle Up To 50º

HAFCO PNP-3/4-3" Offset Pipe & Tube Notcher Adjustable Cutting Angle Up To 50º
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P092

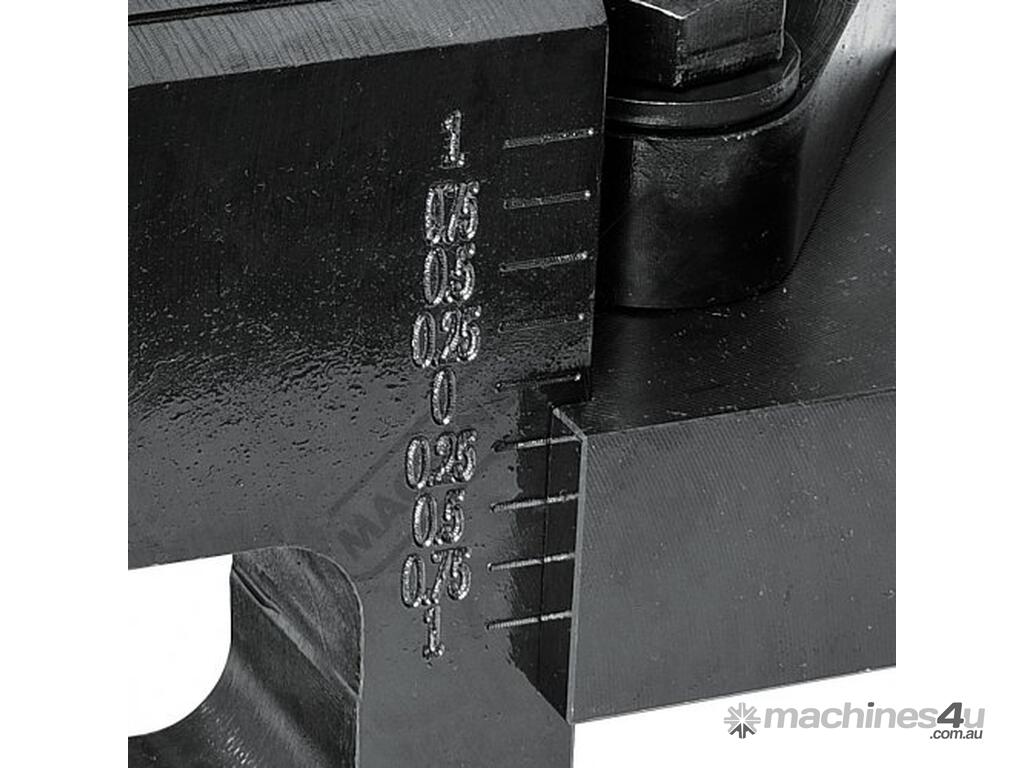

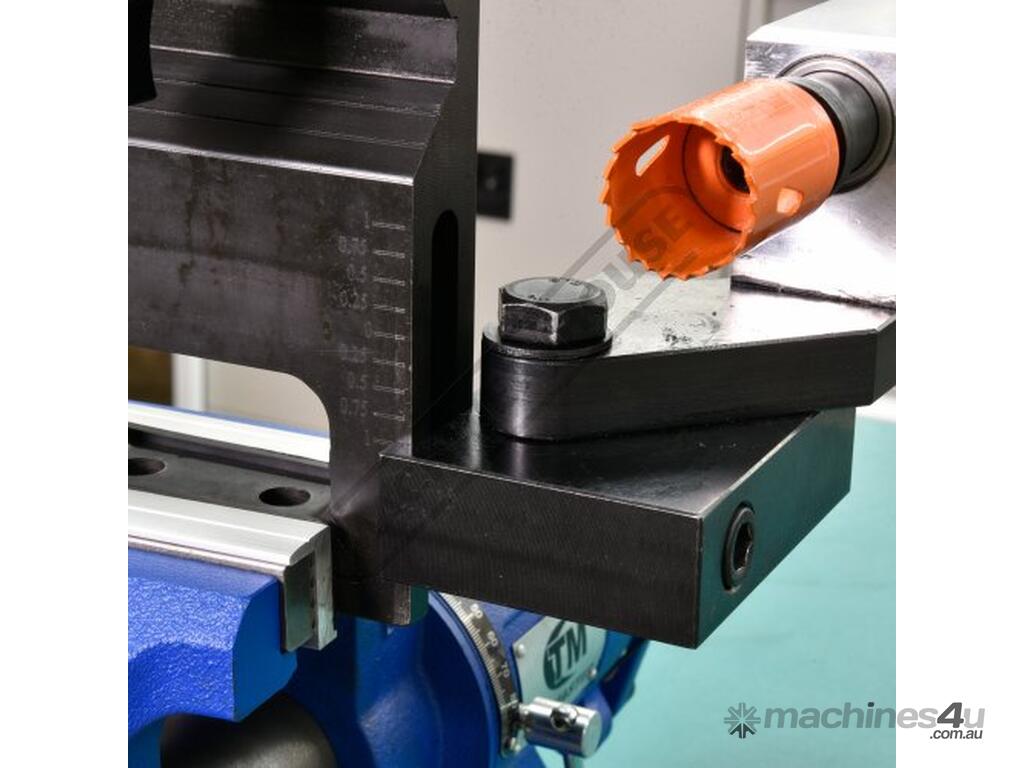

Accurately notches tubes and pipe from 0- 50º with the additional ability to offset the notch +/- 25mm from the centre line.
Solid steel construction with needle roller bearing to ensure smooth operation

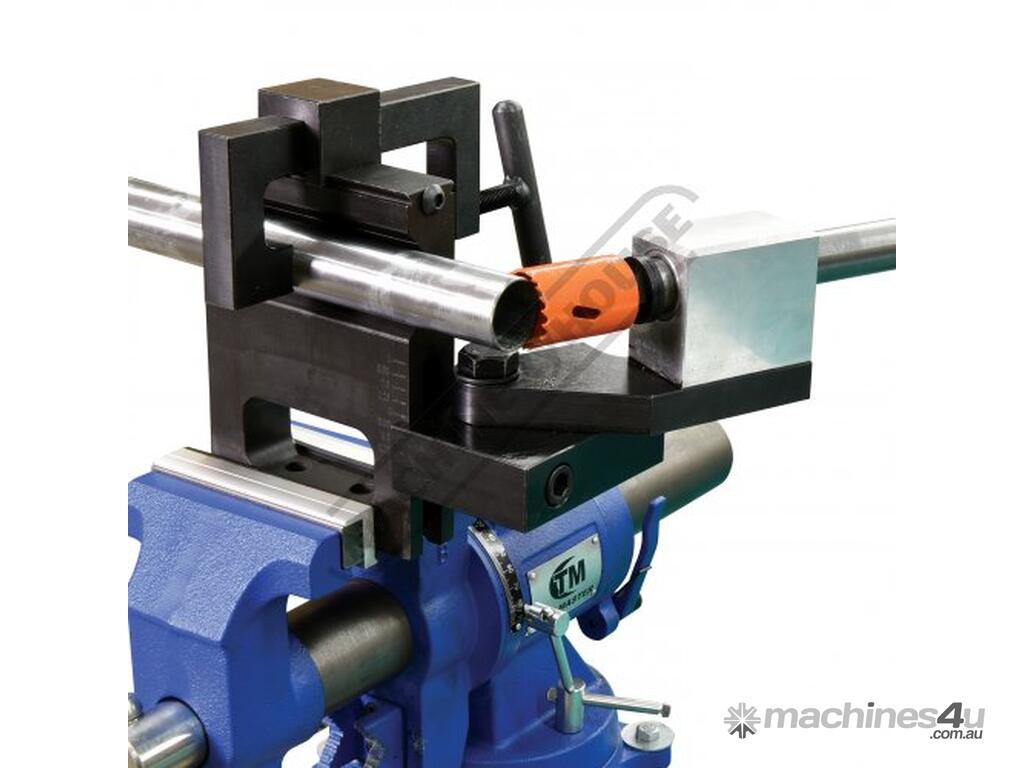

Clamp in a vice or bolt to a table and use with any hand held drill
Notch pipes and tubes with a OD from 19mm to 76.2mm (3/4-3")

Features:
The cutter centreline is height adjustable to accommodate a wide variety of workpieces

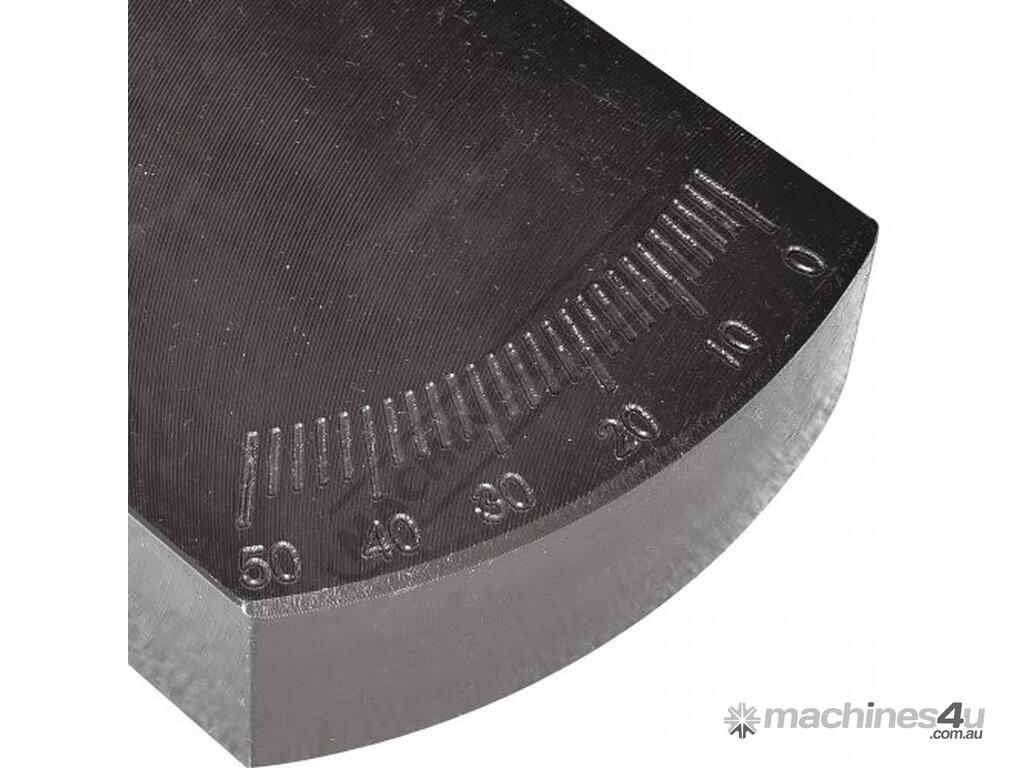

Adjust cutting angle up to 50º
Works with a 12mm chuck Power Drill

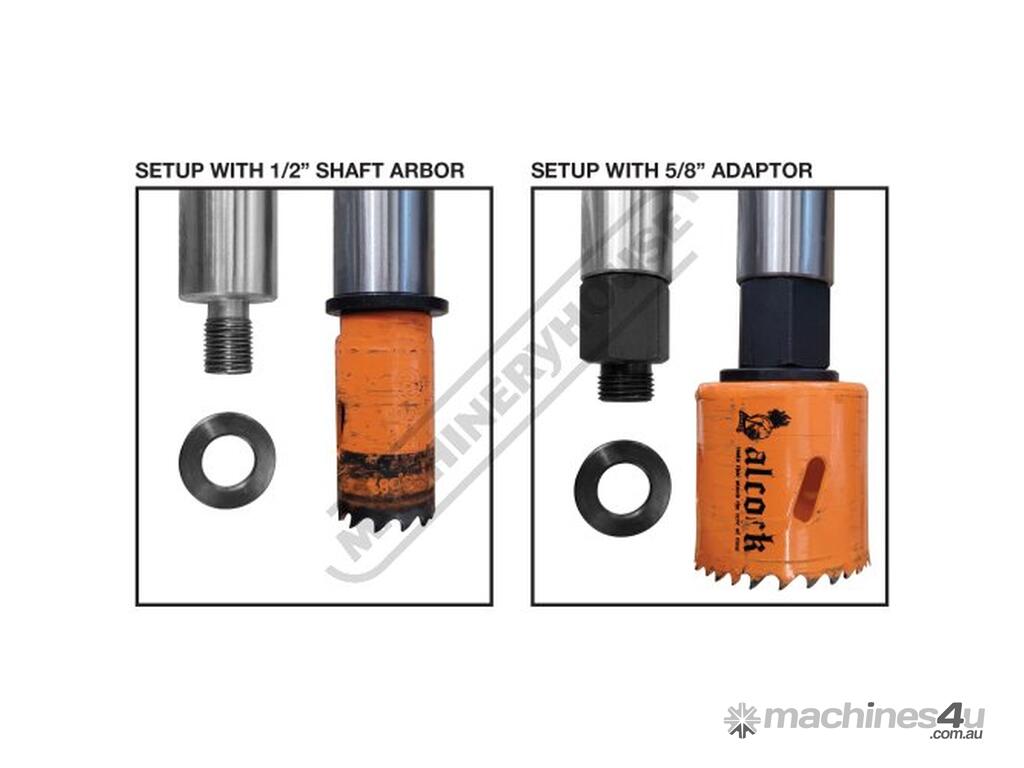

Accepts hole saw thread sizes: 1/2” x 20tpi 5/8” x 18tpi
25mm steel shaft


Specifications:
ORDER CODE: P092
MODEL: PNP-3/4-3"
Machine (Type): Pipe & Tube
Machine (Type): Notcher Attachment
Notching Cutter (Type): Hole Saw (Optional) Thread 1/2" x 20tpi, 5/8"
Tube Capacity (OD) - Mild Steel (mm): Ø25 - Ø75
Pipe Capacity (NB) - Mild Steel (inch / mm): ~
Angle Adjustment (Degree): 0 - 50°
End Mill Size (inch / mm): ~
Belt Size (mm): ~
Belt Speed: ~
Cutting Speed (rpm): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Dimensions ((mm)): 280 x 180 x 100
Nett Weight (kg): 10
