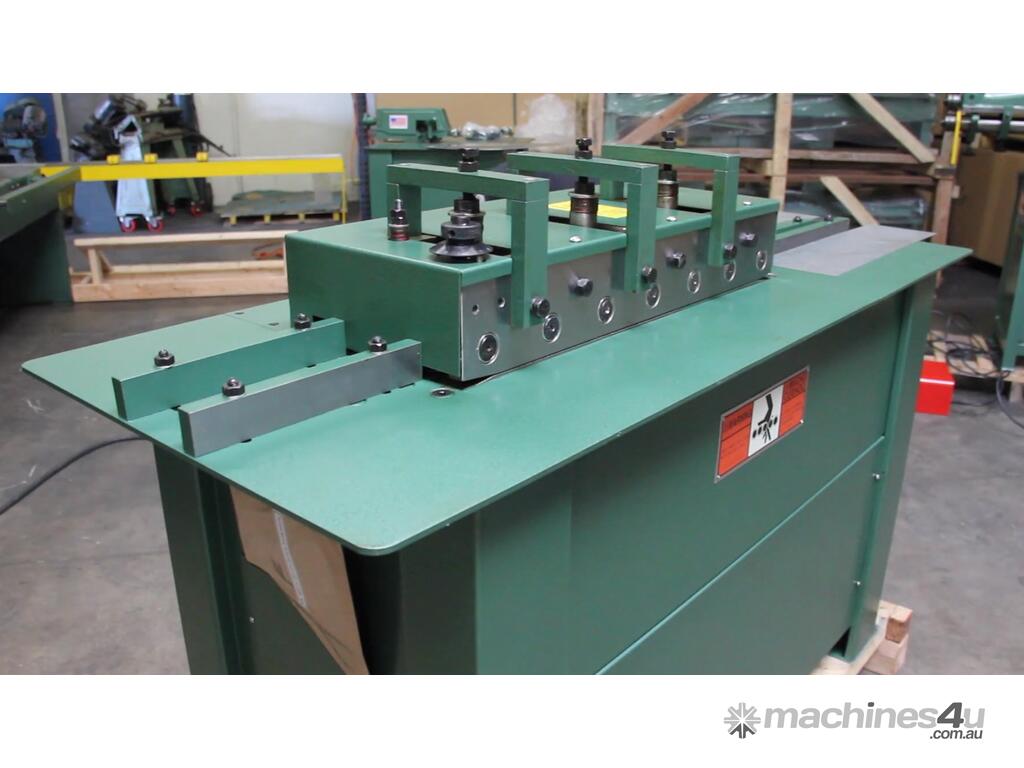

POWER MACHINERY - 16 Gauge Pittsburgh Lock Machine - Tin Knocker

The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions.

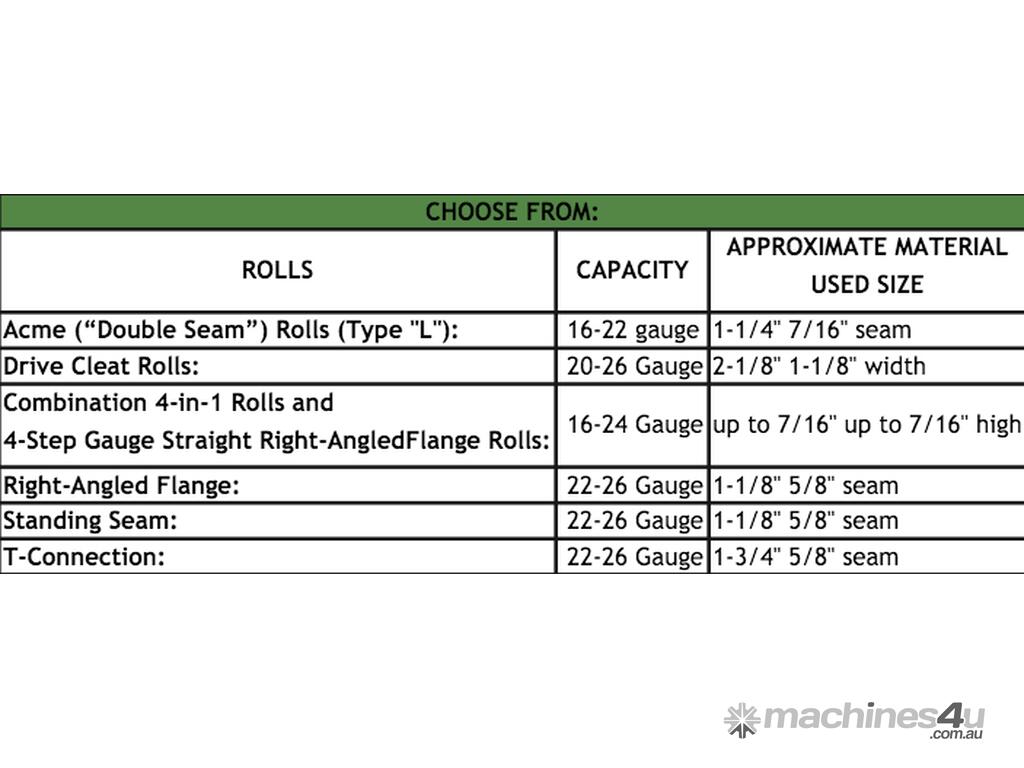

One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, including:
* Acme;
* Drive Cleat; or
* 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection.

You don’t pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls.


UNIQUE FEATURES

• Capacity: 16-20 Ga. uses approx. 1-3/8” of material
• Motor: 3HP, 230/3/60, 1PH Optional
• Depth of pocket size: ½” width of hammer-over edge adjustable up to 3/8
• Speed: 40-45 ft

DOWNLOAD THE BROCHURE NOW
