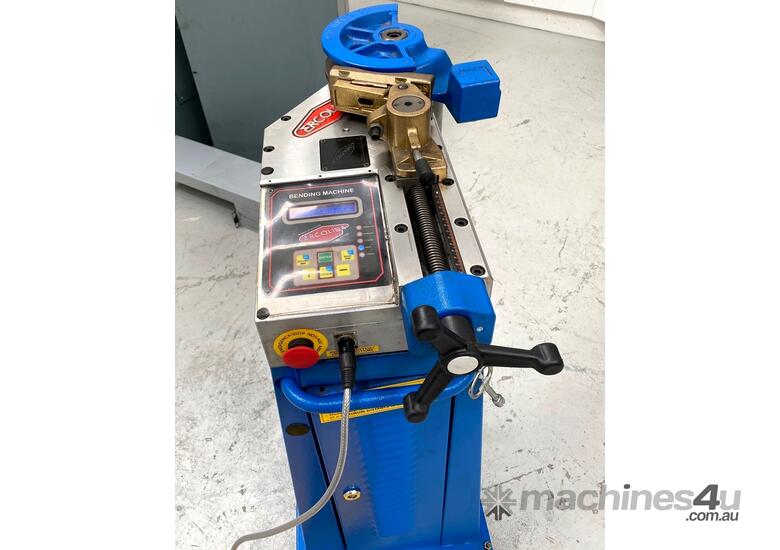

Italian made ERCOLINA MEDIBENDER MB42T. The original mandreless tube and pipe bender are still the best. Used machine but AS NEW condition.
Bending Radii 10 - 260 mm
Max Rotation Angle 210°
Max Bending Speed 4 rpm

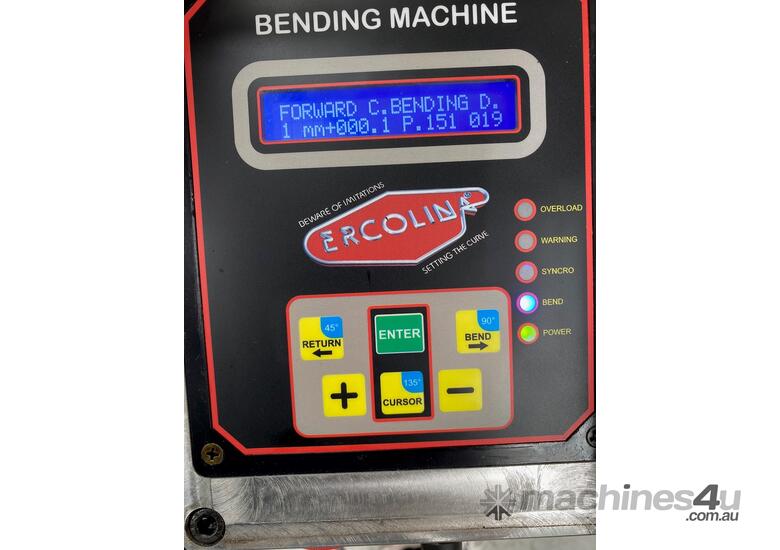

Control Electronic Microprocessor
Number of Programs 30 x 9 bends each
Overload System Control Yes
Voltage Three Phase 415V
Motor 1.1 kW

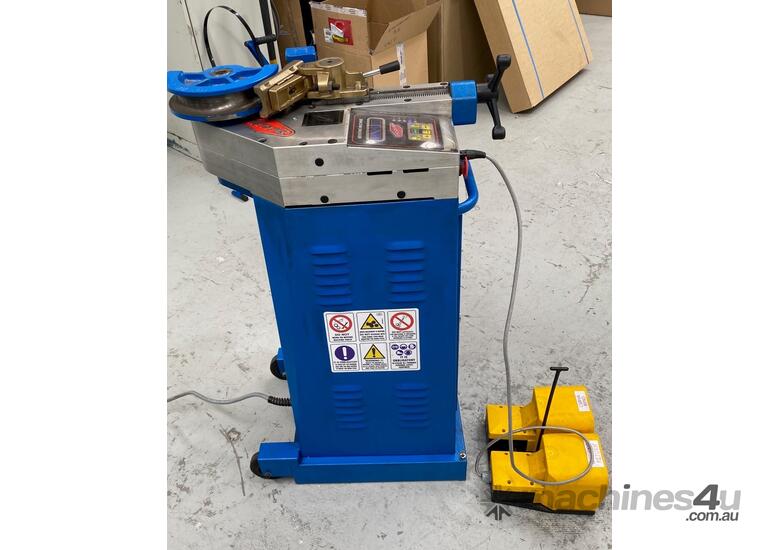

Footswitch Control
Dimensions 410 x 570 x 1000 mm
Weight 80 kg
Capacity Material Max Dia x Wall thickness in mm
• Gas Pipe 32 (1 1/4`` Gas) x 3.5
• Standard Steel Tube 42 x 3
• Hydraulic Steel Tube ST35 42 x 4
• Stainless Steel Tube x 3
• Stainless Steel Tube 308 42 x 2.5
• Soft Brass 50 x 3
• Hard Copper & Aluminium 54 x 2
• Soft Copper 60 x 2
• Mild Steel Round Bar 30
• Mild Steel Rectangular Bar 7 x 42
• Mild Steel Square Bar 25 x 25
• Mild Steel Square Tube RHS 35 x 35 x 3
Tooling included suitable for tube. Diameters given are OD.
• 1.5” x CL Radius 112mm
• 1.25” x CL Radius 112mm
• 1.25” x CL Radius 82mm
• 1.0” x CL Radius 82mm
• 0.75” x CL Radius 56mm
• 1.5” x CL Radius 130mm
• 20mm x CL Radius 56mm
• 7/8” x CL Radius 56mm
• 1.0” x CL Radius 90mm
