PP-10HD Workshop Hydraulic Bench Type Press - 10 Tonne Robotic Welded Steel Frame Construction Inclu

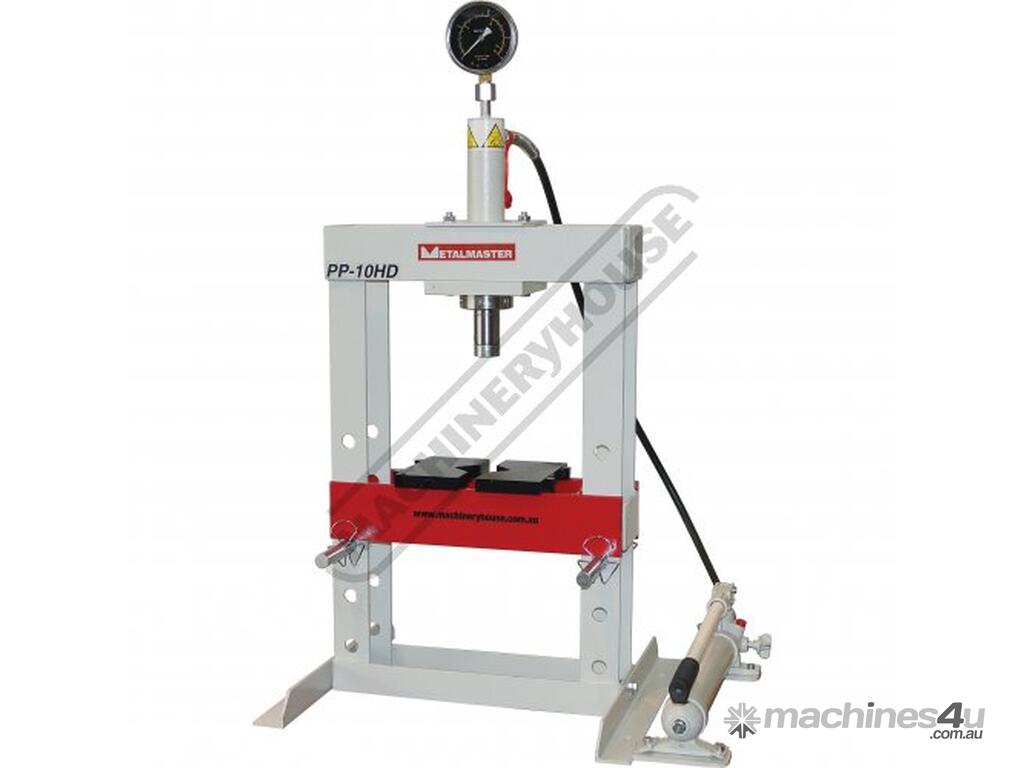

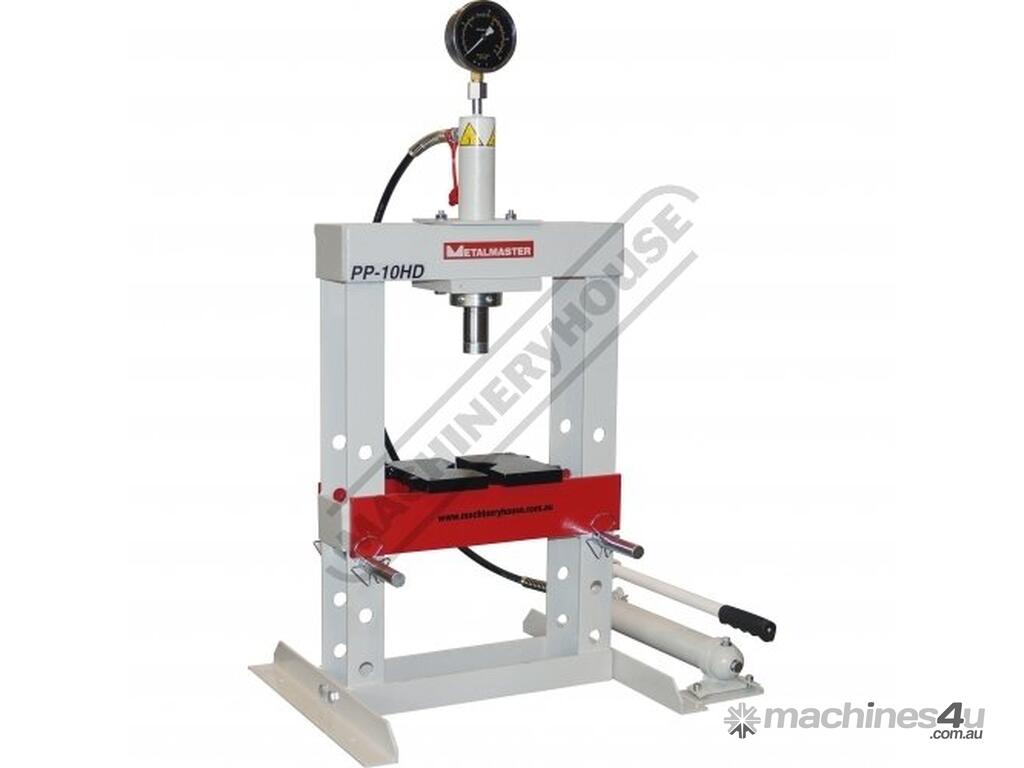

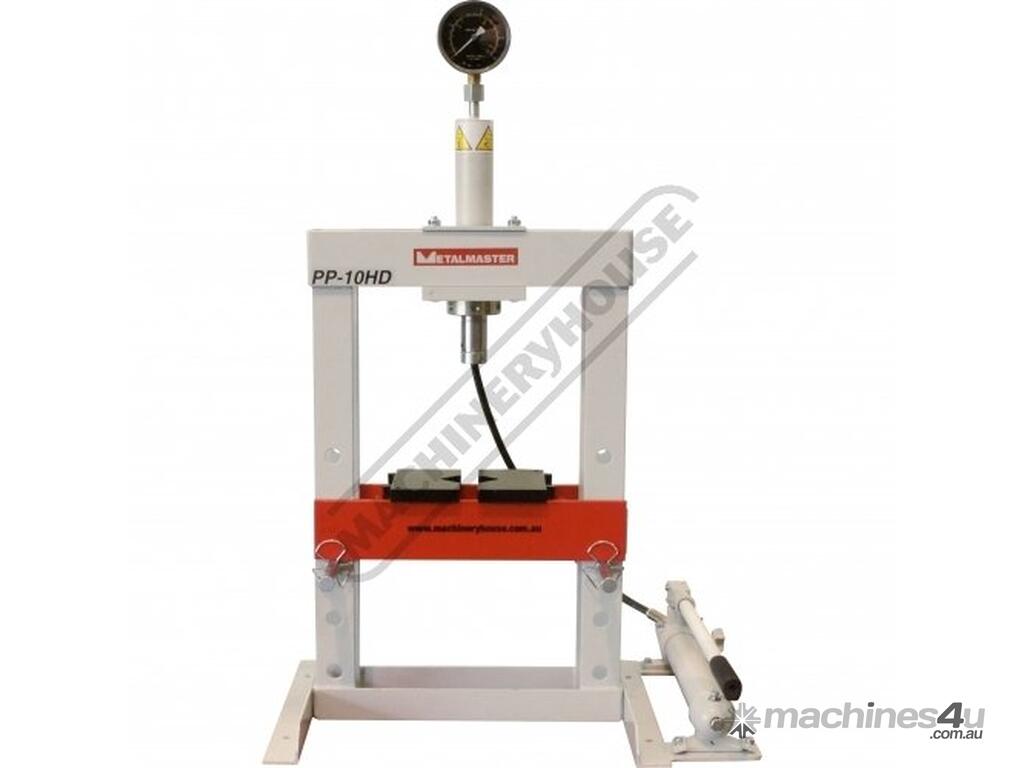

METALMASTER PP-10HD Workshop Hydraulic Bench Type Press - 10 Tonne Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Plates
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P141

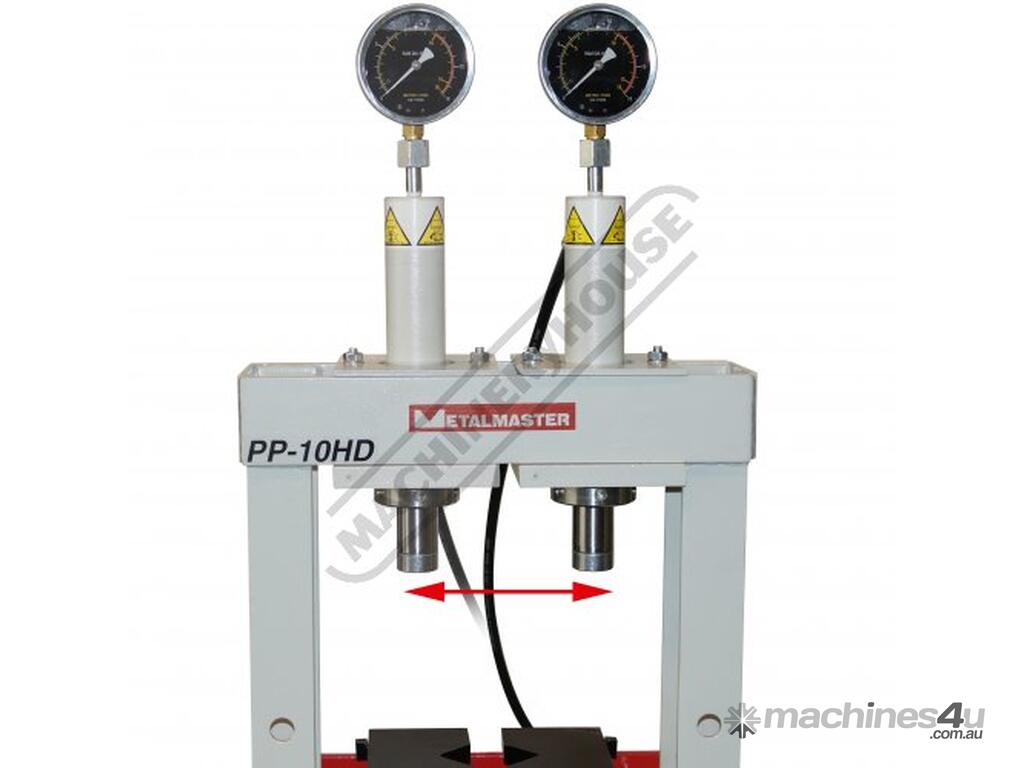

The Metalmaster PP-10HD 10 tonne workshop press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The PP-10HD also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs.

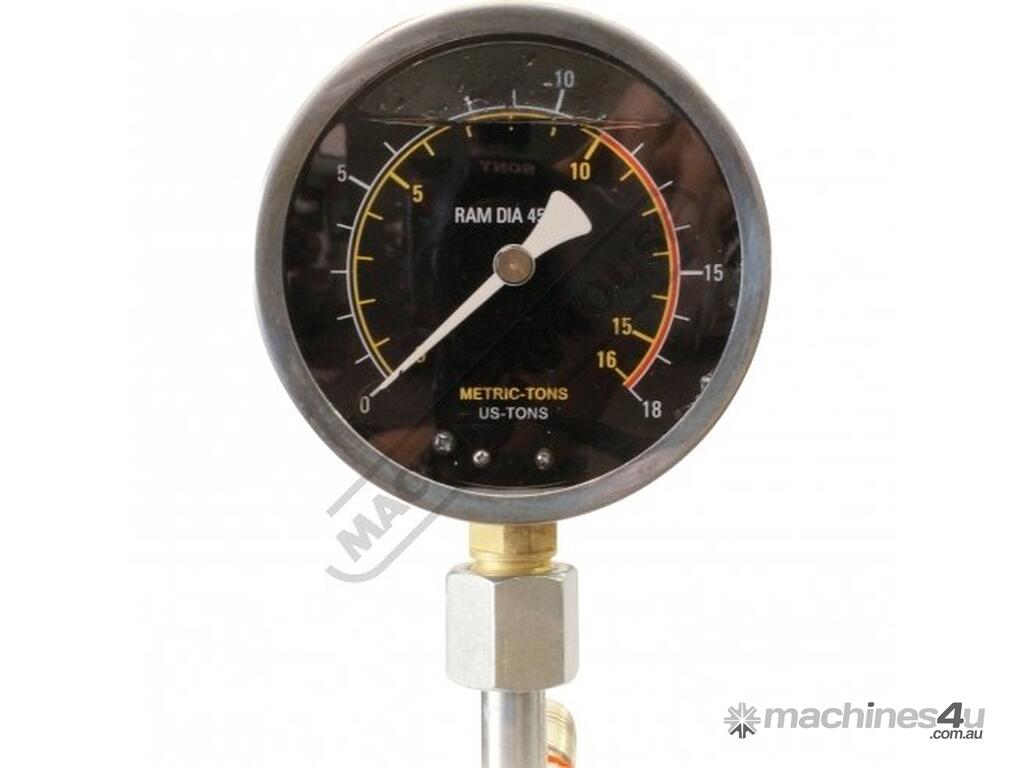

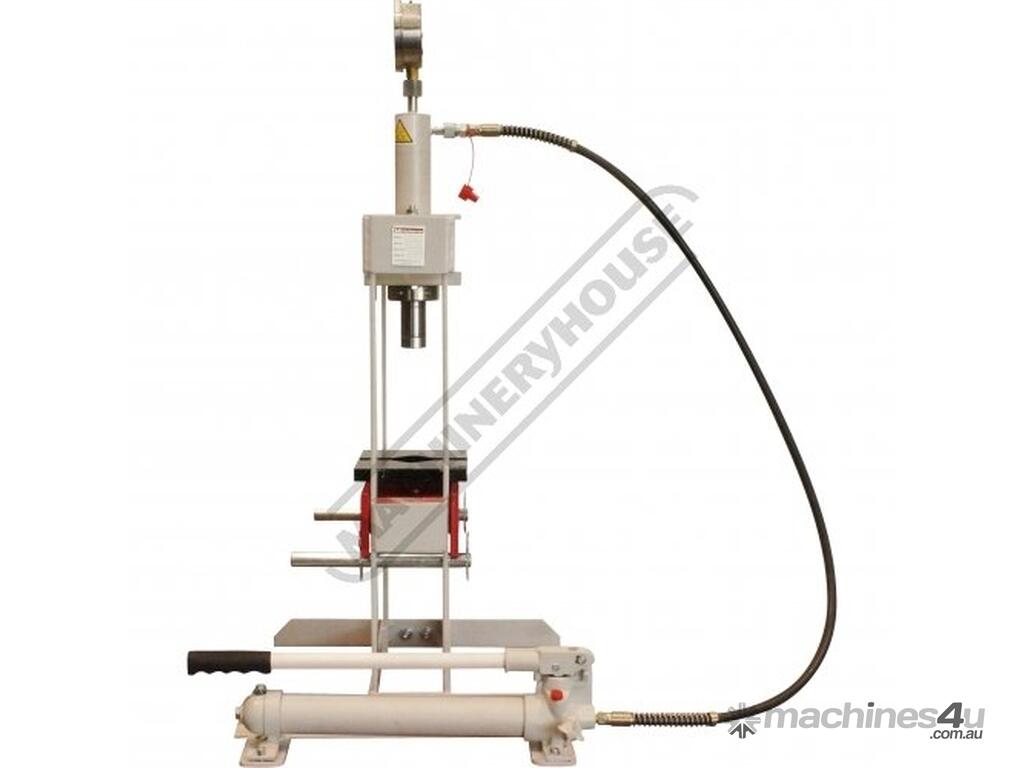

The 10 tonne hydraulic ram and pump unit are also easily removed for use on other pressing jobs outside your workshop such as straightening or bending. The press is supplied with a pressure gauge, two heavy duty pressing plates and has a Robotic fully welded frame construction making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

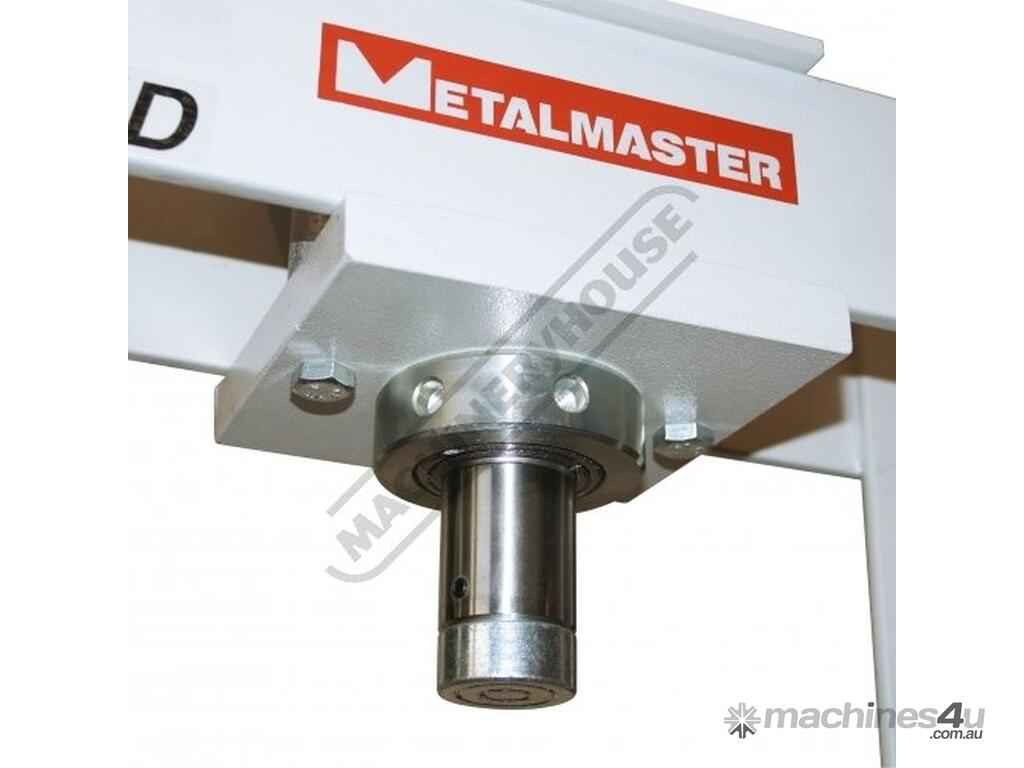

Adjustable horizontal ram position

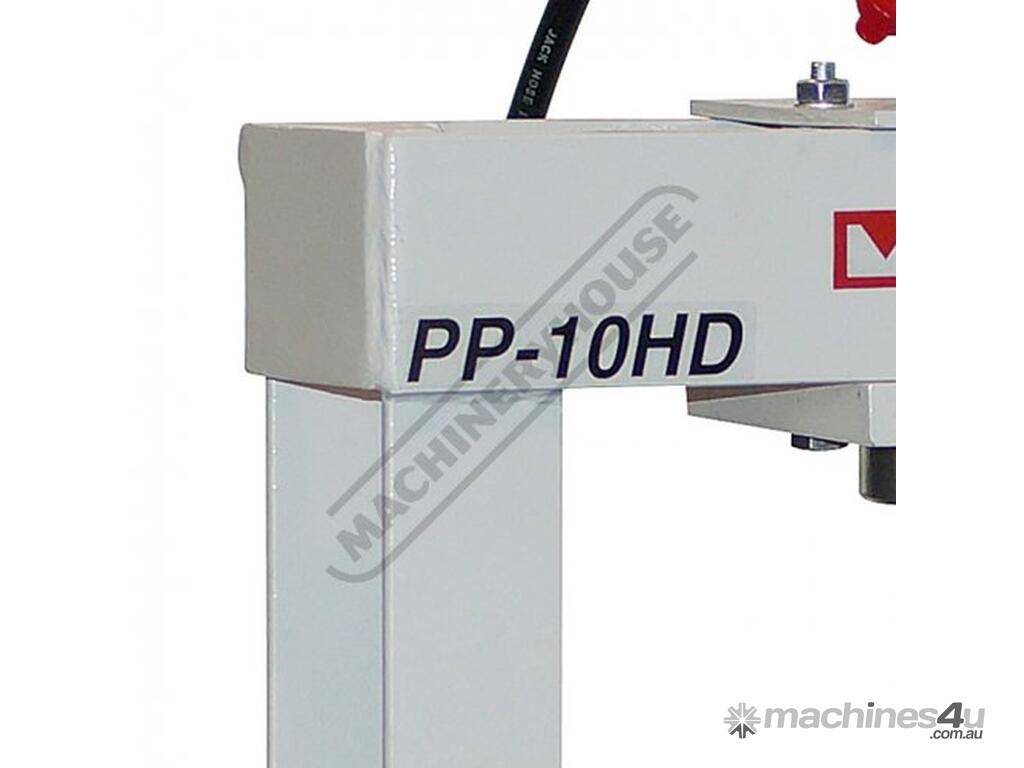

Robotic welded steel frame construction

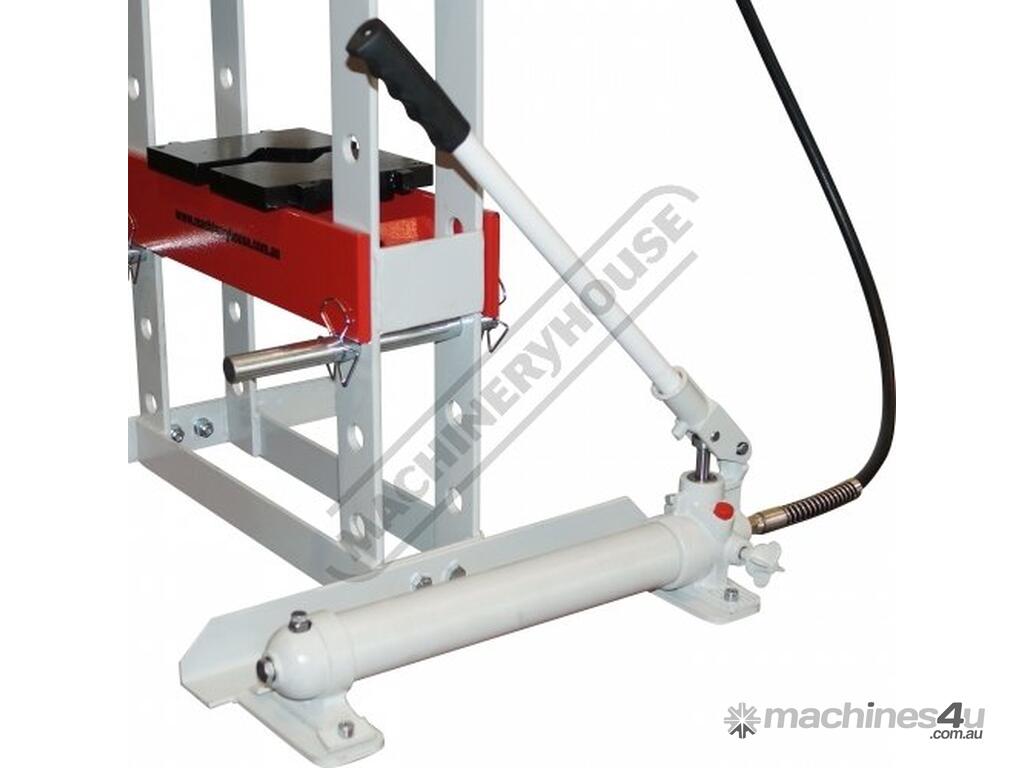

Pump can me mounted left or right side of frame
Hydraulic operation
H Frame style
Spring return ram

Includes:

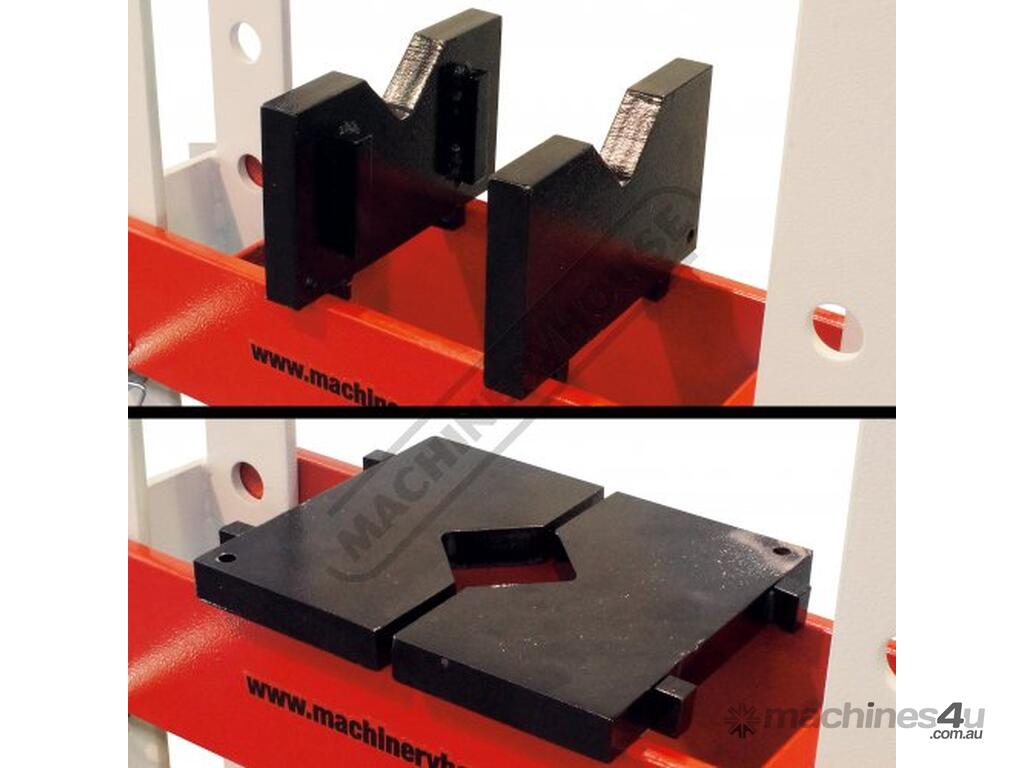

- Complete with bending plates



Specifications:
ORDER CODE: P141
MODEL: PP-10HD
Pressing Capacity (Tonne): 10
Hydraulic Ram Operation (Type): Manual Hand Lever
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes

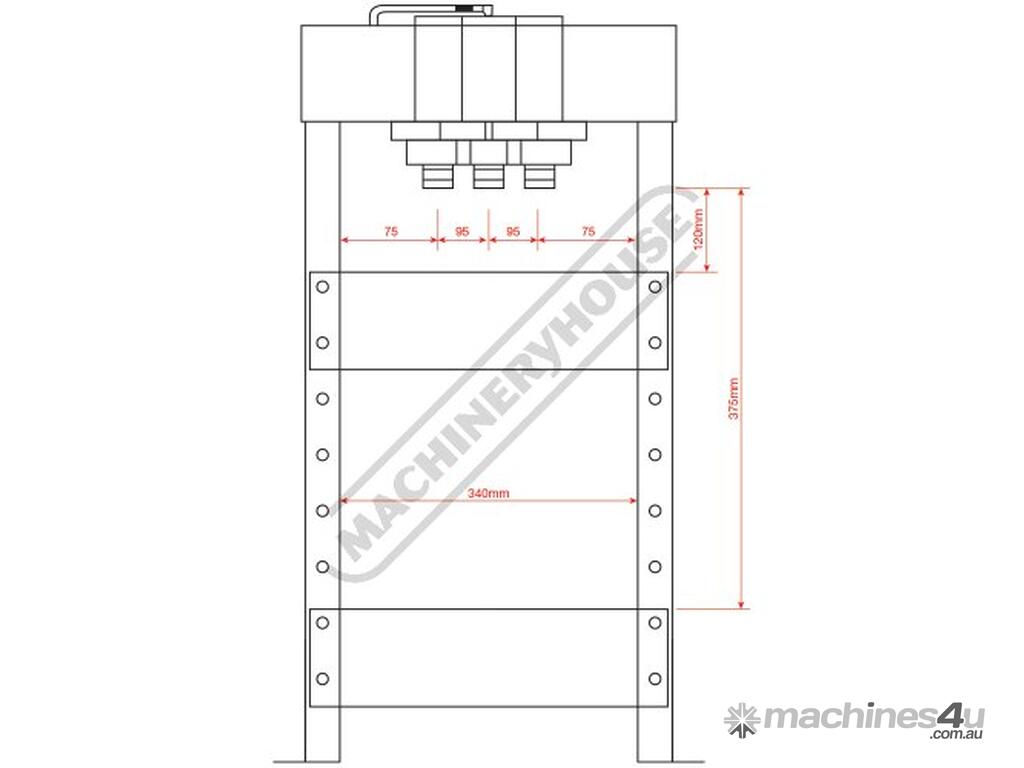

Width Between Front Posts (mm): 340
Width Between Side Posts (mm): 95
Table Top Opening - (Front to Back) (mm): 120
Ram To Table (Max.) (mm): 335
Cylinder Stroke (mm): 180
Ram Diameter (mm): Ø40
Piston Diameter (mm): Ø45
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 755 x 540 x 800
Nett Weight (kg): 57.2
