PPH-51 Pneumatic Planishing Hammer 1.2mm Mild Steel Capacity 500mm Throat Depth

METALMASTER PPH-51 Pneumatic Planishing Hammer 1.2mm Mild Steel Capacity 500mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S227A

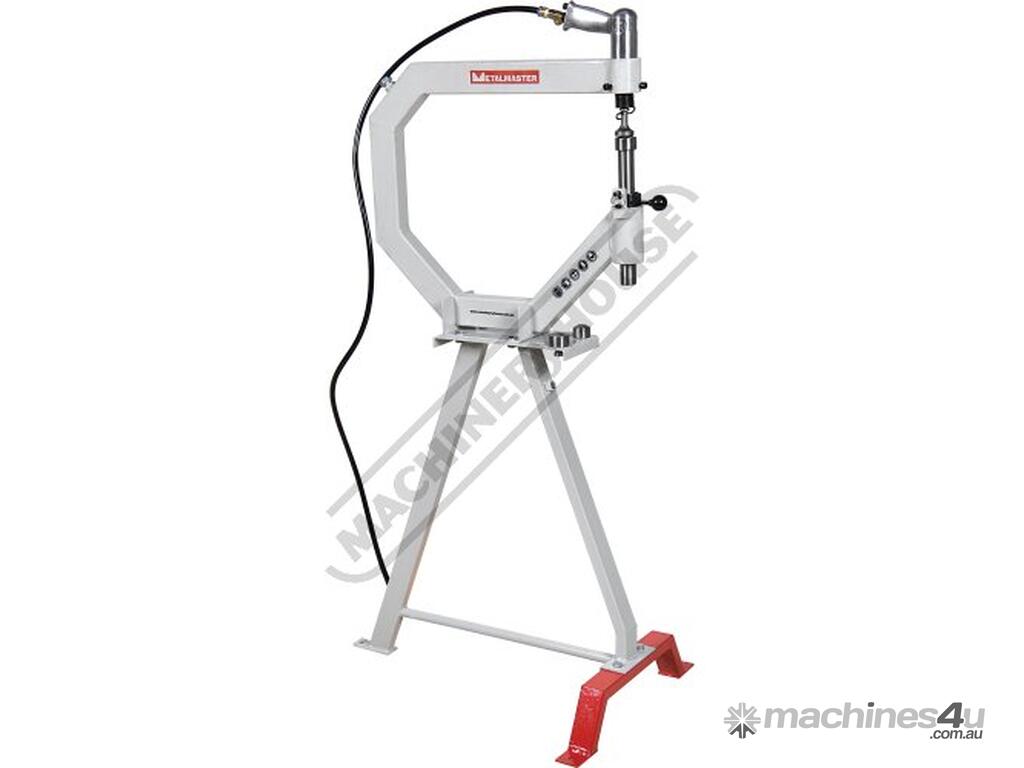

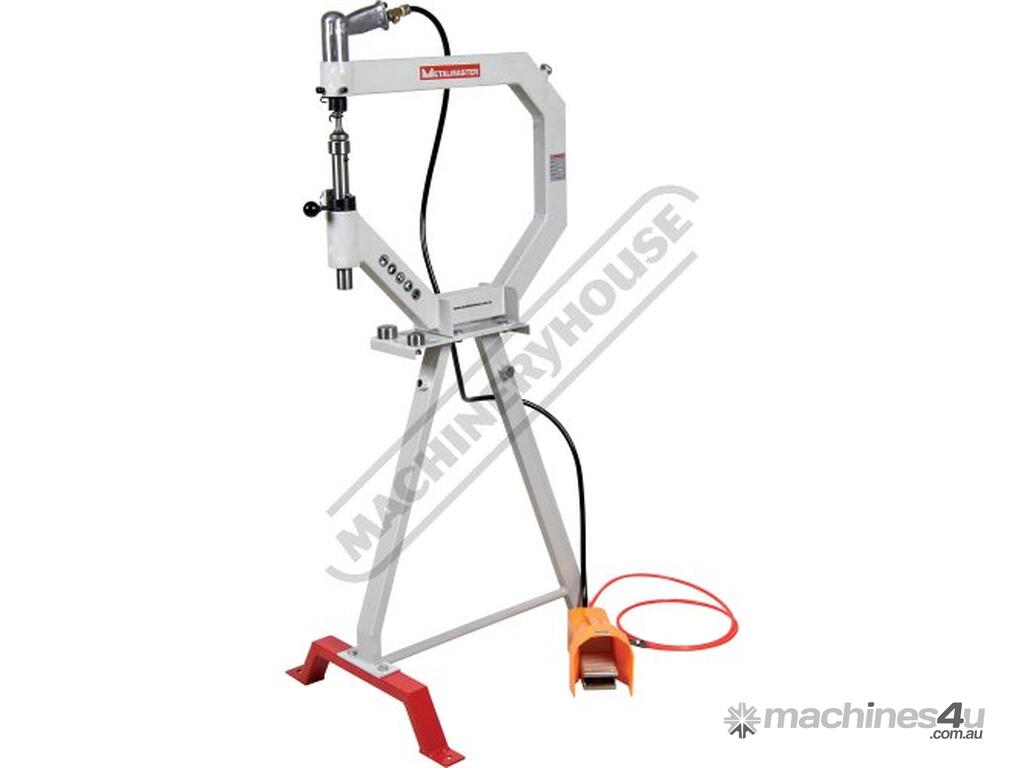

The PPH-51 Planishing Hammer has been long used in metal fabrication and restoration to smooth large areas of metal after it has been roughly shaped with a hammer and sand bag. Common uses are for custom motorcycle gas tank and fender manufacturing, street rod bodies, patch panels for auto restoration, repair and metal sculpting.

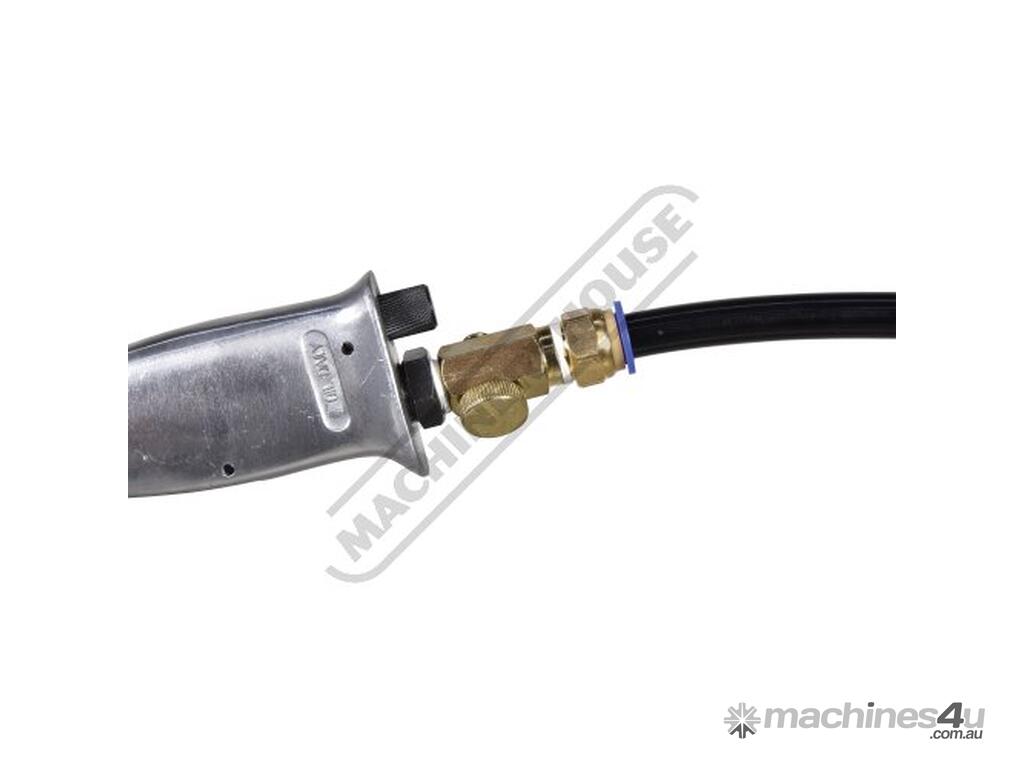

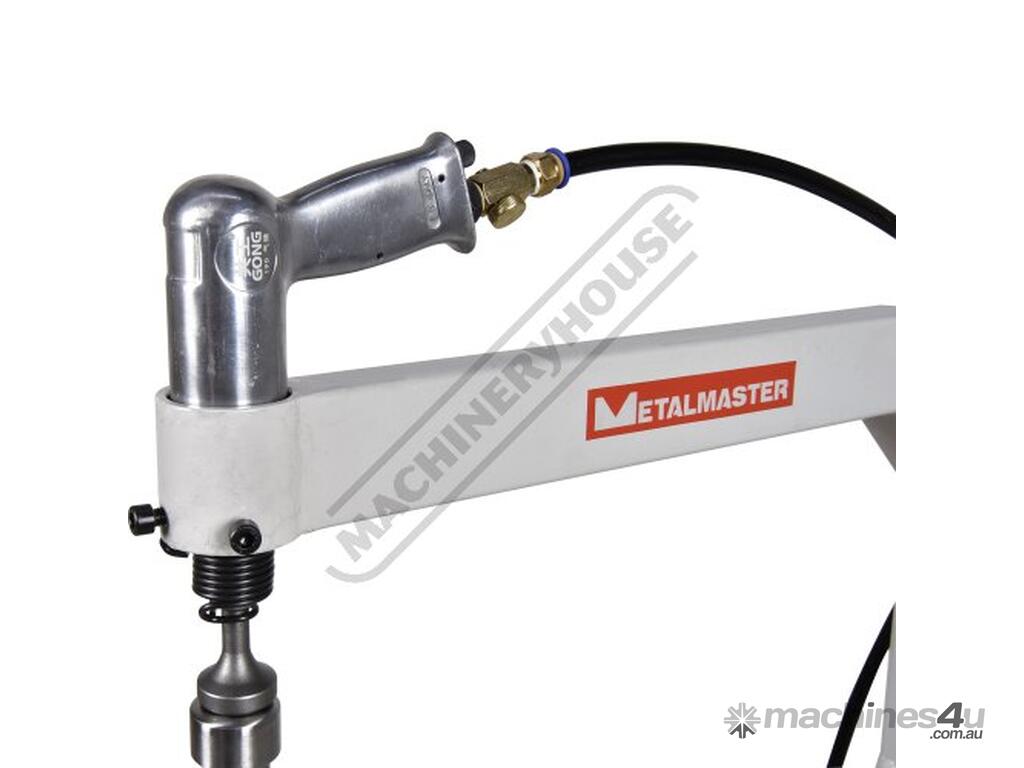

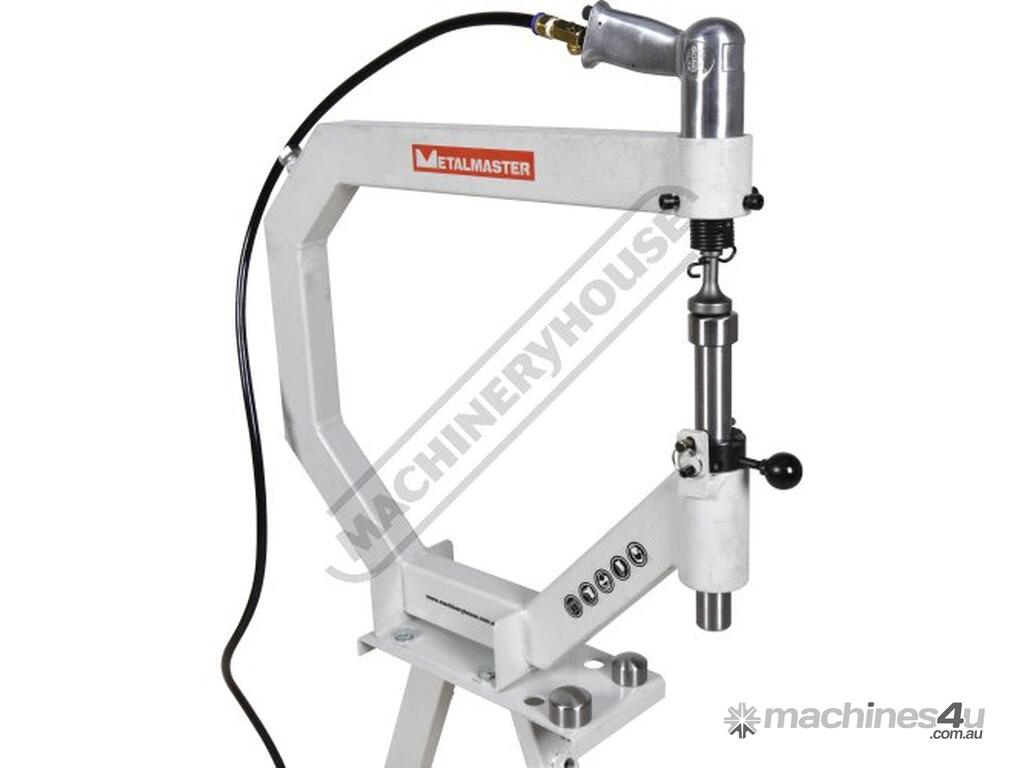

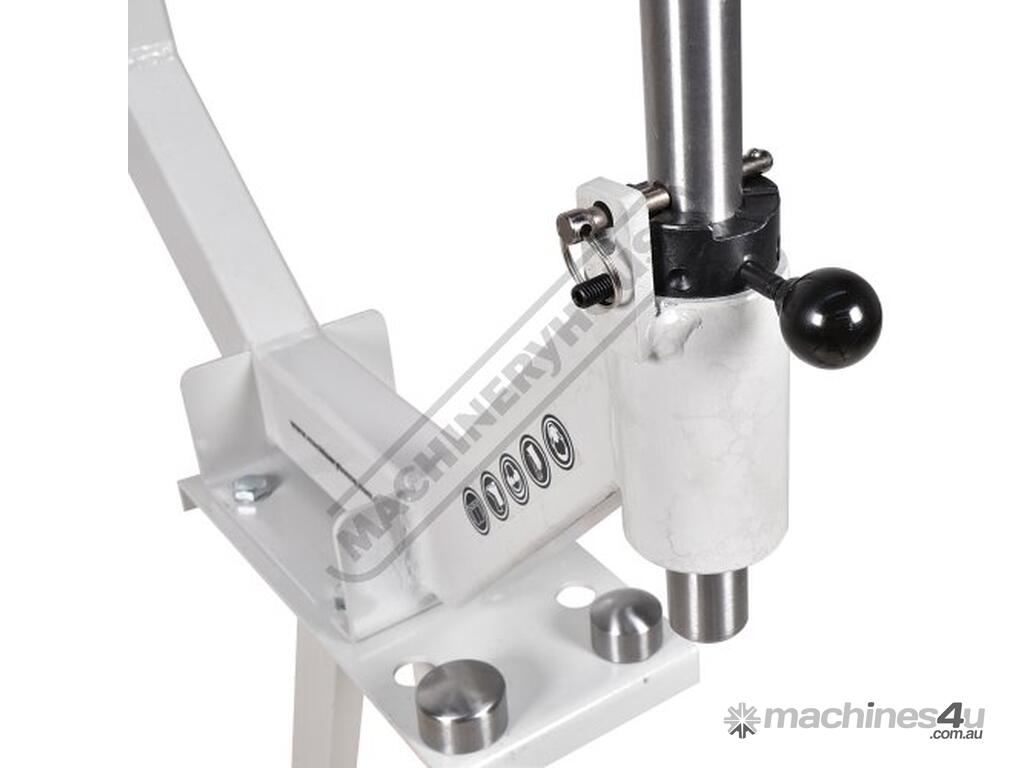

The power head is a heavy-duty aircraft rivet gun, sturdy steel fabricated frame with 500mm throat depth, is beefy enough to smooth 1.2mm mild steel. A quick release allows the lower shaft to slide down, to accept panels with deep flanges. The power head adjustment controls the intensity from 875-1350 blows per minute. A foot control starts and stops the hammering while being hooked up to compressed air.

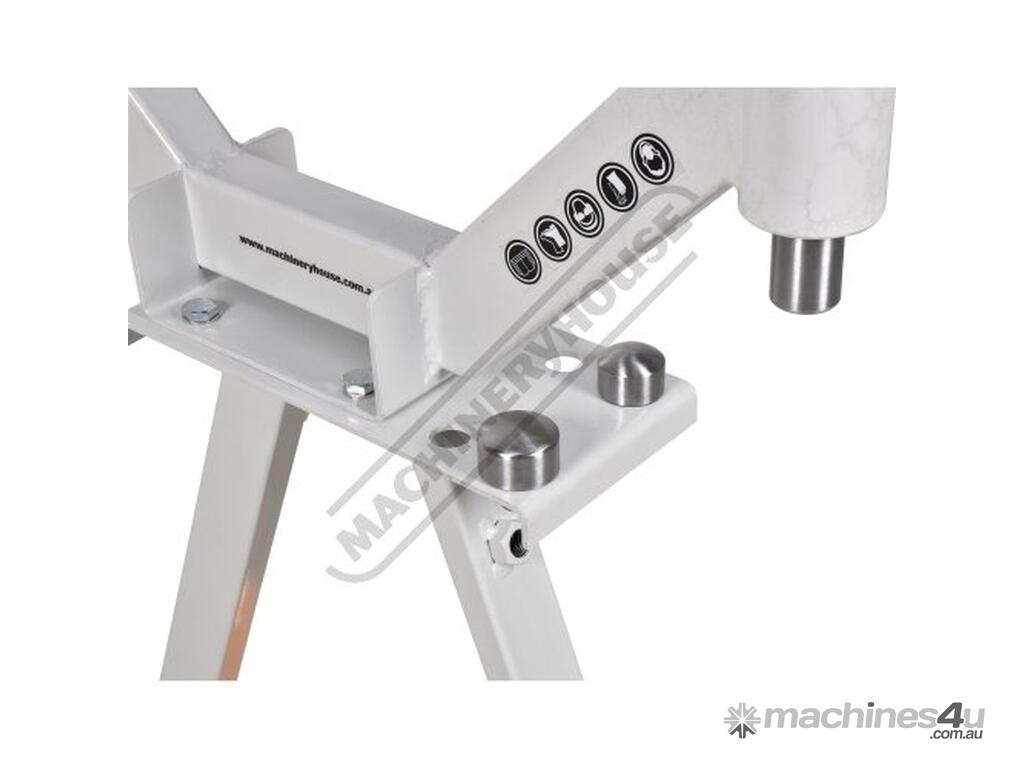

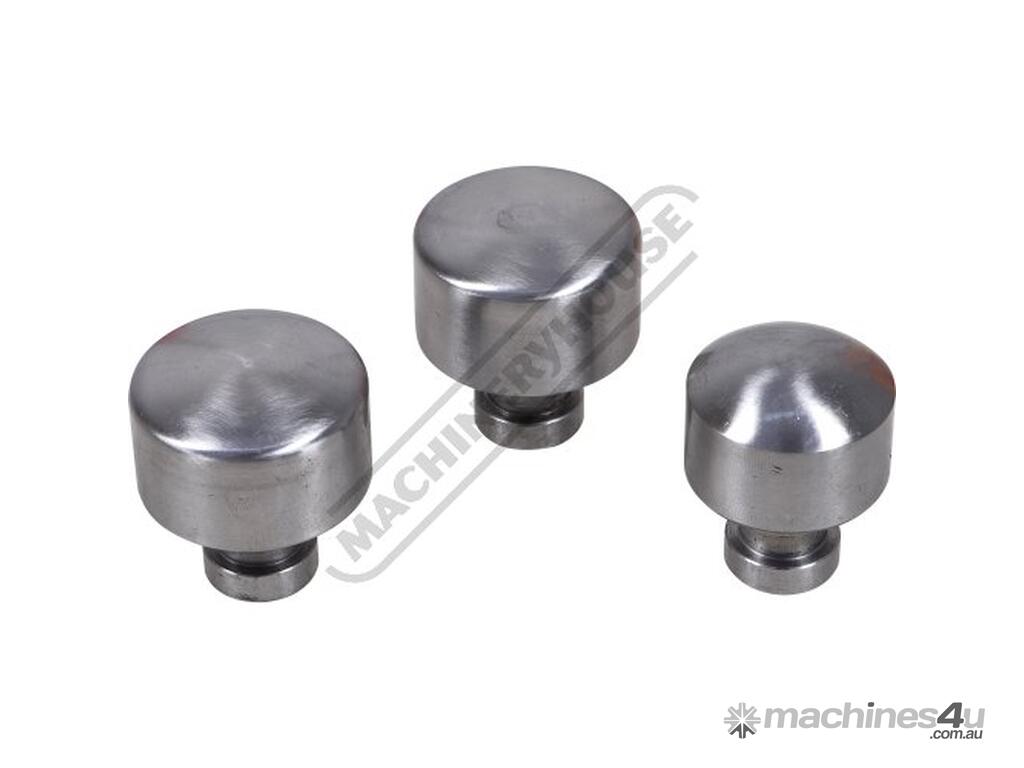

Includes Ø32mm flat top die, 25, 50 and 76mm radius anvils.
The machine weigh's 25kg and has bolt holes to be easily secured to floor.

Features:
500mm throat capacity
1.2mm mild steel capacity

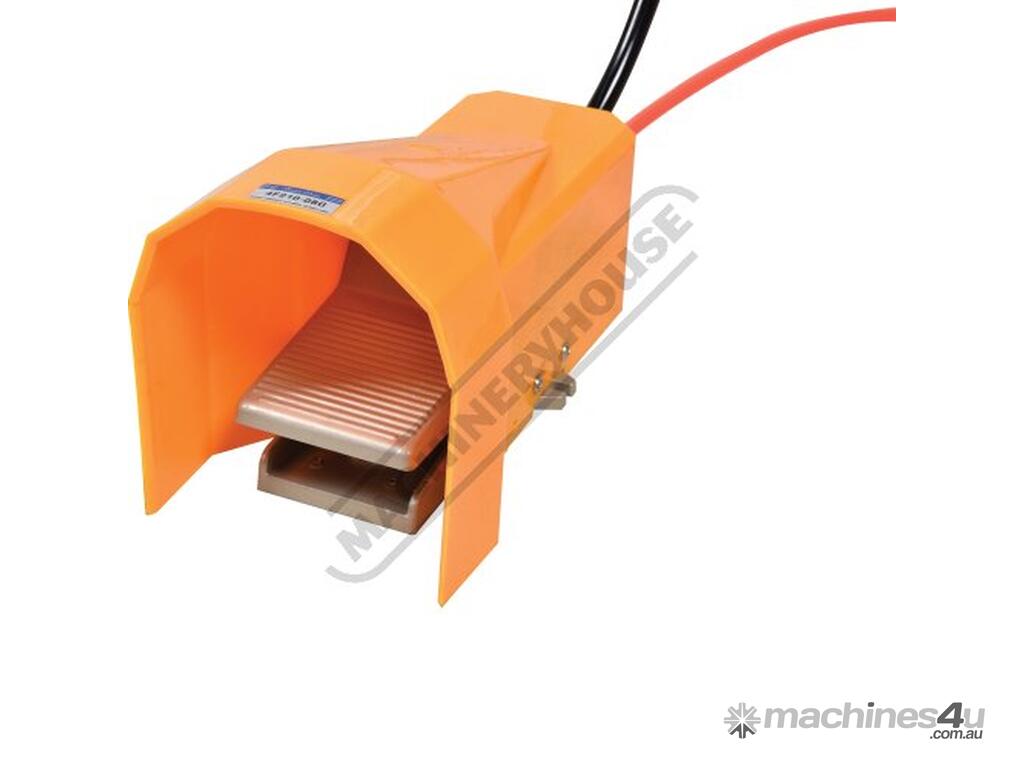

Foot pedal operation
Comes with mm radius anvils
875-1350 blows/minute
50 - 100PSI pressure
4cfm air consumption
Overall height 1220mm
The footprint of the machine is 750mm x 350mm


Specifications:
ORDER CODE: S227A
MODEL: PPH-51
Machine (Type): Pneumatic Planishing
Machine (Type): Hammer
Mild Steel - Capacity (mm / Gauge): 1.2 / 18
Aluminium - Capacity (mm / Gauge): ~
Cubic feet per minute (CFM): ~
Tooling Height Adjustment (mm): ~
Throat Depth (mm): 500
Length of Stroke Adjustment (mm): ~
Radius Anvil Sizes (mm): 25, 50, 76
Speed - blows per minute (BPM): 875 - 1350
Air Consumption (CFM): 4
Working Height (mm): 965
Air Pressure (psi): 50-100 PSI Maximum
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 25
