PPK-20 Steel Press Pin Driver Set - 11 piece Ø10 - Ø30mm

METALMASTER PPK-20 Steel Press Pin Driver Set - 11 piece Ø10 - Ø30mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P1401

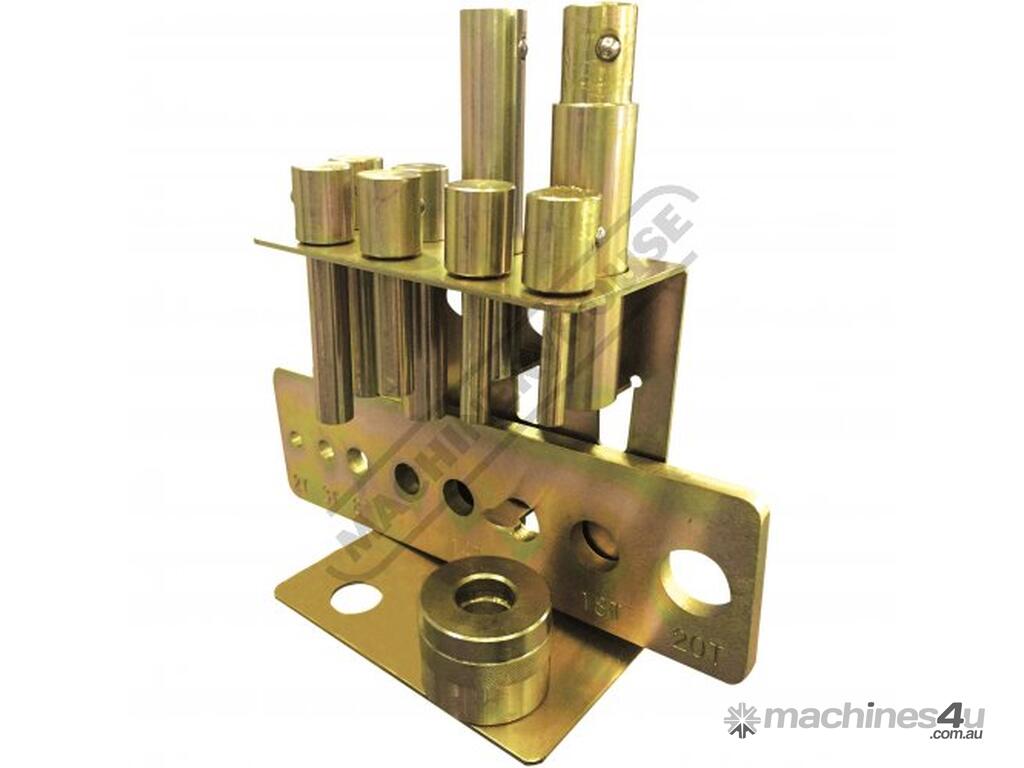

The PPK-20 is a set of eight press pins, rated from 2 - 20 tonne capacity, all finished in a yellow phosphate coating for added corrosion resistance.
Suitable for use with presses which have a female ram assembly diameter of 25mm and are secured with a bolt.

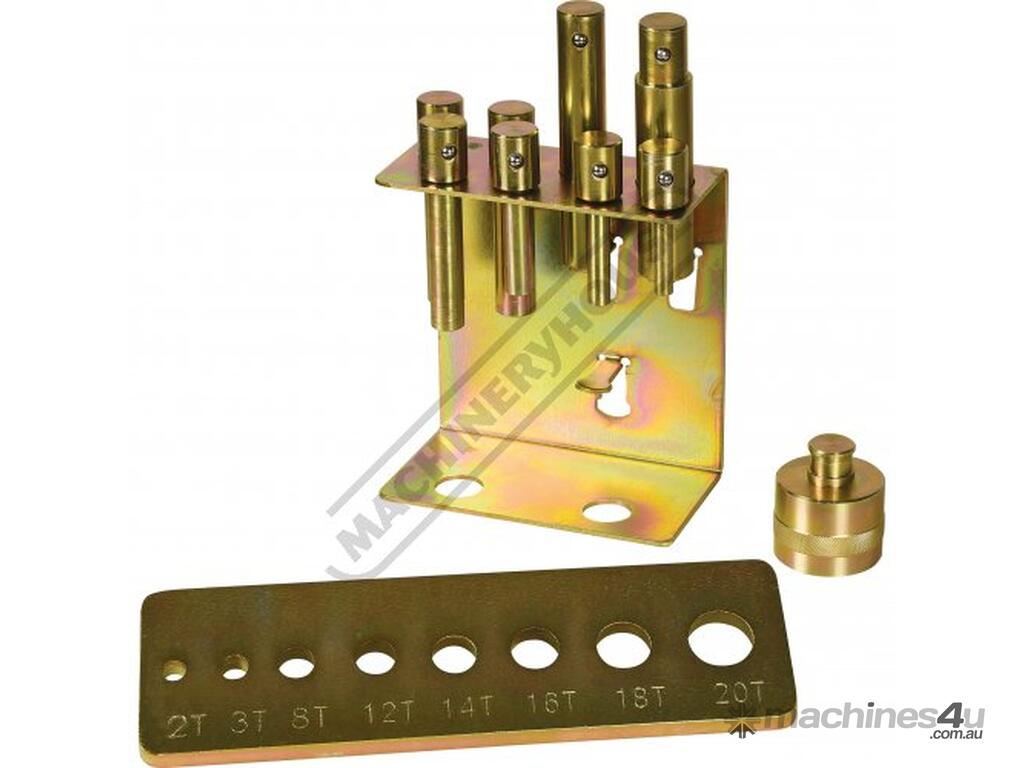

Includes adaptor, punch plate capacity gauge & mountable bracket with fixing points.

Features:
Includes 8 steel press pins 10 - 30mm rated from 2 tonne to 20 tonne
Pins have Ø25mm locating head with positioning detent

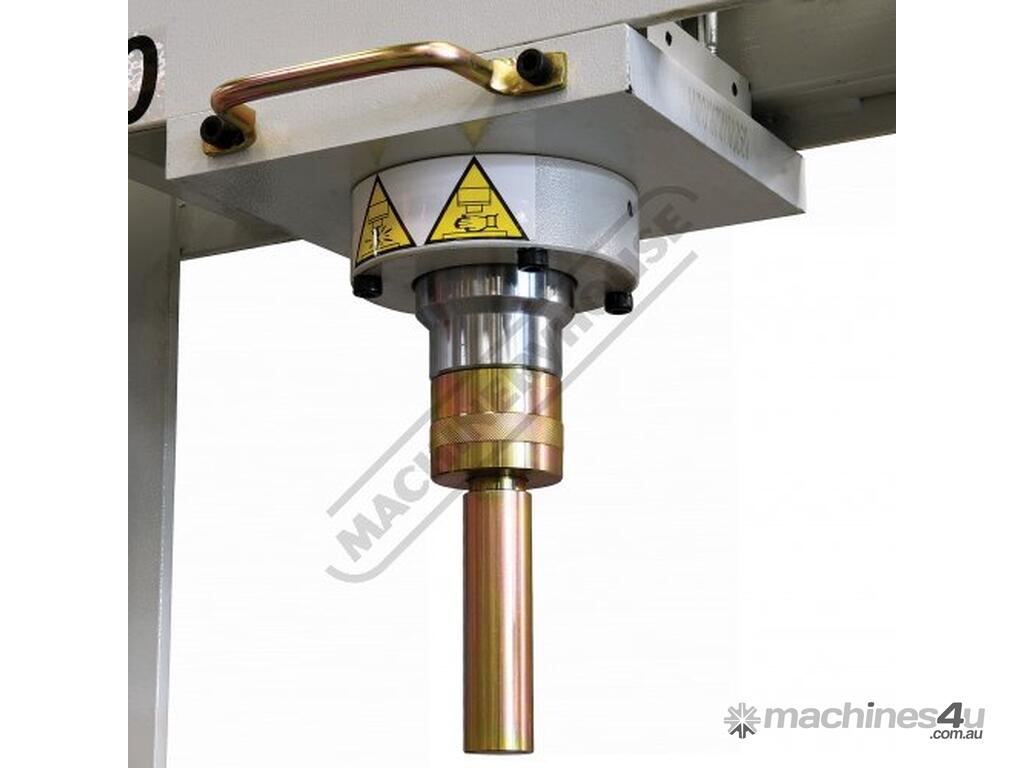

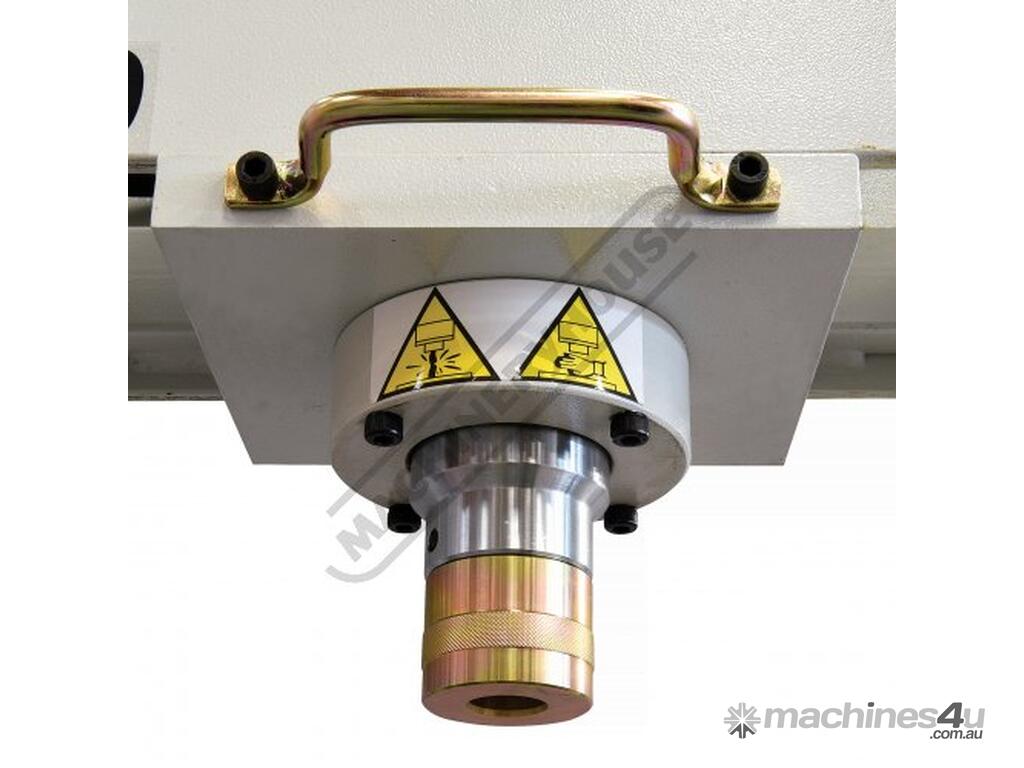

Adapter fits onto press ram to hold pins in place
Punch plate capacity gauge
Mounting storage bracket
Manufactured all from steel

Includes:

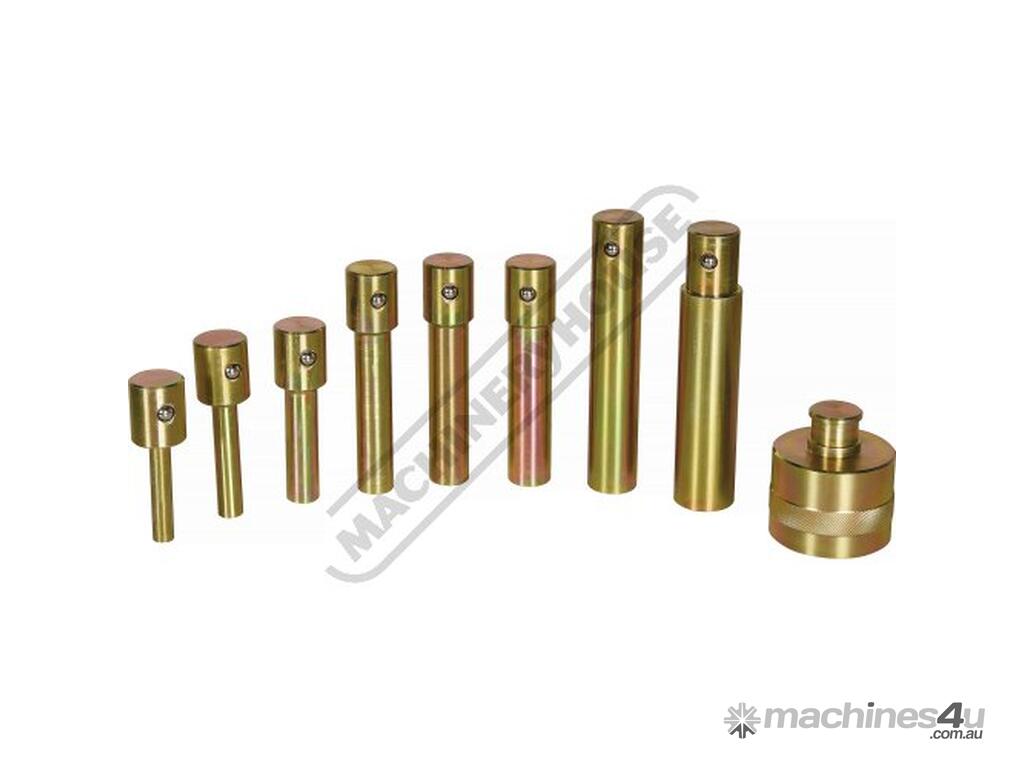

- Pins:
- 2T capacity pin Ø10 x 50mm long
- 3T capacity pin Ø12 x 60mm long
- 8T capacity pin Ø16 x 60mm long
- 12T capacity pin Ø18 x 85mm long
- 14T capacity pin Ø20 x 85mm long
- 16T capacity pin Ø22 x 85mm long
- 18T capacity pin Ø25 x 110mm long
- 20T capacity pin Ø30 x 110mm long



Specifications:
ORDER CODE: P1401
MODEL: PPK-20
Type: Steel Press Pin Set
Capacity (mm): Ø10 - Ø30
Number of Pieces (No.): 11
