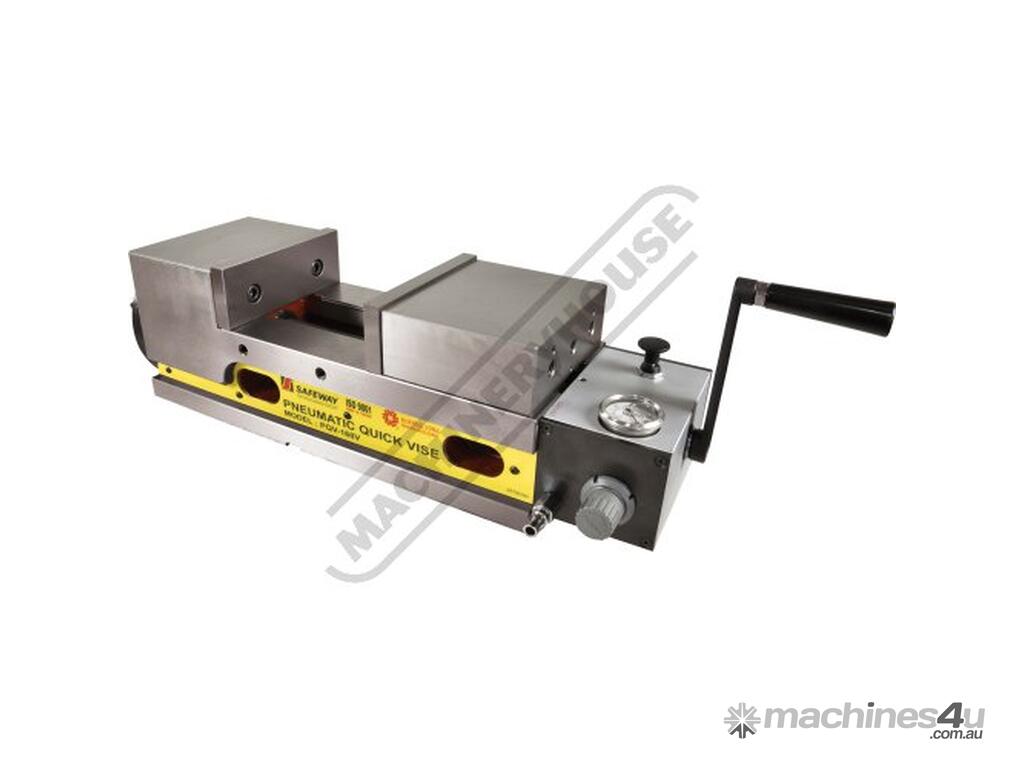

PQV-160V Safeway Pneumatic Production Vice 160mm Jaw Width 150mm Jaw Opening

SAFEWAY PQV-160V Safeway Pneumatic Production Vice 160mm Jaw Width 150mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V342

Designed for production applications with simple ON/OFF operation.

Features:
Robust construction of one piece casting consisting of fixed jaw and vise bed
Rigid casting of high tensile ductile iron FCD60JIS (Equal to GGG60) with 60kgs/mm2 or 80000 psi tensile strength
Suitable for mass production runs on machine centre's milling machines drilling machines or special purpose machines
Compact pneumatic mechanism design. No oil is required only a air supply
Compact total length of vice with Max clamping capacity
Safety locking mechanism for unexpected termination of air supply. After pneumatic clamping. The work piece will be remain clamped firmly even without the air supply
Easy and simple ON-OFF switch control for pneumatic operation
Safety protection with Max. pneumatic clamping stroke is 4mm to prevent inserting operator's finger during clamping operation. (Stroke is 2mm best power capacity)
Rapid ON-OFF only 1.5sec
Free adjusting of Max. pneumatic clamping pressure from 0-1000kgf (4000) by air regulator jaw opening 2mm is best clamping power capacity of workpiece
Vise bed flame hardened to HRC45° to reduce up wear and maintain accuracy
Down trust "semi-spherical segment" mechanism eliminates the jaw and work-piece lifting


Specifications:
ORDER CODE: V342
MODEL: PQV-160V
D - Jaw Width (mm): 160
J - Jaw Opening (mm): 150
K - Jaw Height (mm): 58
Power (kgf): 0-2000
Air Pressure (kg/cm2): 1.5-7.0
Stroke (mm): 0-4
A (mm): 534
B (mm): 432
C (mm): 102
E (mm): 160
F (mm): 163
G (mm): 120
H (mm): 15
I (mm): 130
L (mm): 105
M (mm): 14
N (mm): 18
X (mm): 65
Y (mm): 105
Dimensions (L x W x H) (mm): 760 x 280 x 215
Nett Weight (kg): 55
