PR-134A Motorised Plate Curving Rolls 1300 x 4.0mm Mild Steel Capacity Motorised Up/Down Rear Roll,

Name: PR-134A Motorised Plate Curving Rolls 1300 x 4 0mm Mild Steel Capacity Motorised Up Down Rear Roll
Brand: hafco metalmaster
SKU: S803
Price: 6950 AUD
Availability: InStock

NSW, QLD, VIC, WA - Delivers Nationally

Play Video

$6,950 AUD($7,645 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$24.21
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Wondering about delivery costs?
Get your instant quote today!

120+ million km

Freight posted per year

80,000+

Loads posted per year

Get Instant Transport Quote

Specifications

Condition:

New

Category:

Plate Rolls

Make:

HAFCO METALMASTER

Model:

PR-134A

Year:

Not specified

Member Since: Sep 2007

Platinum Member

Listings: 4167

Sellers stock ID:

S803

Description

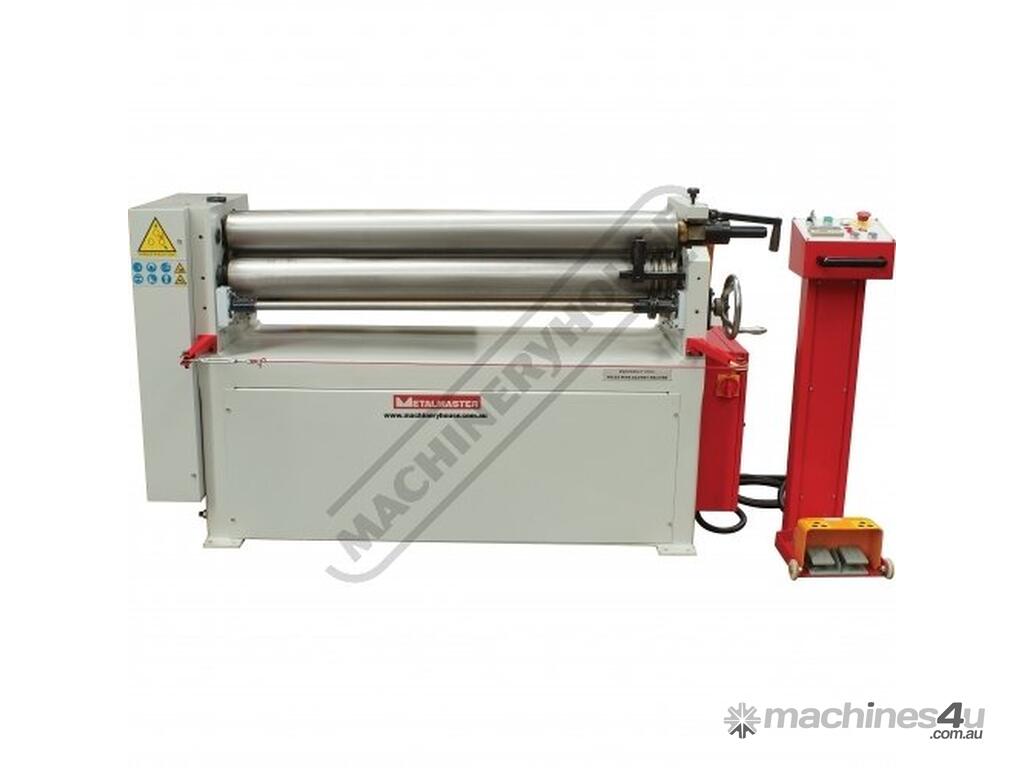

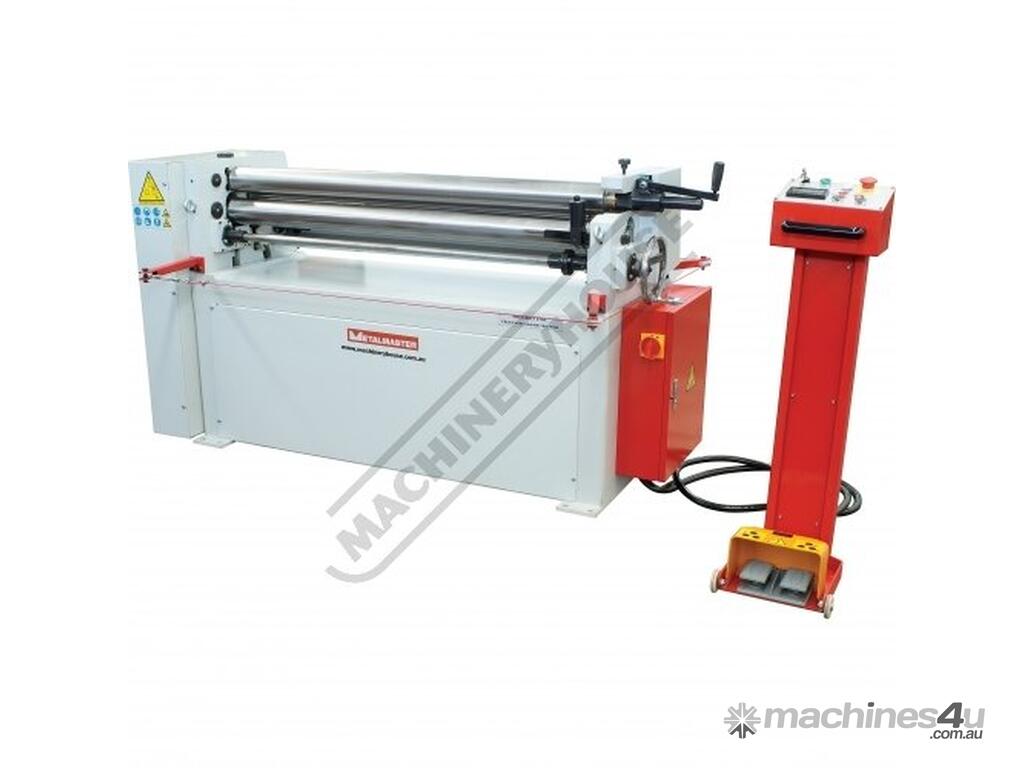

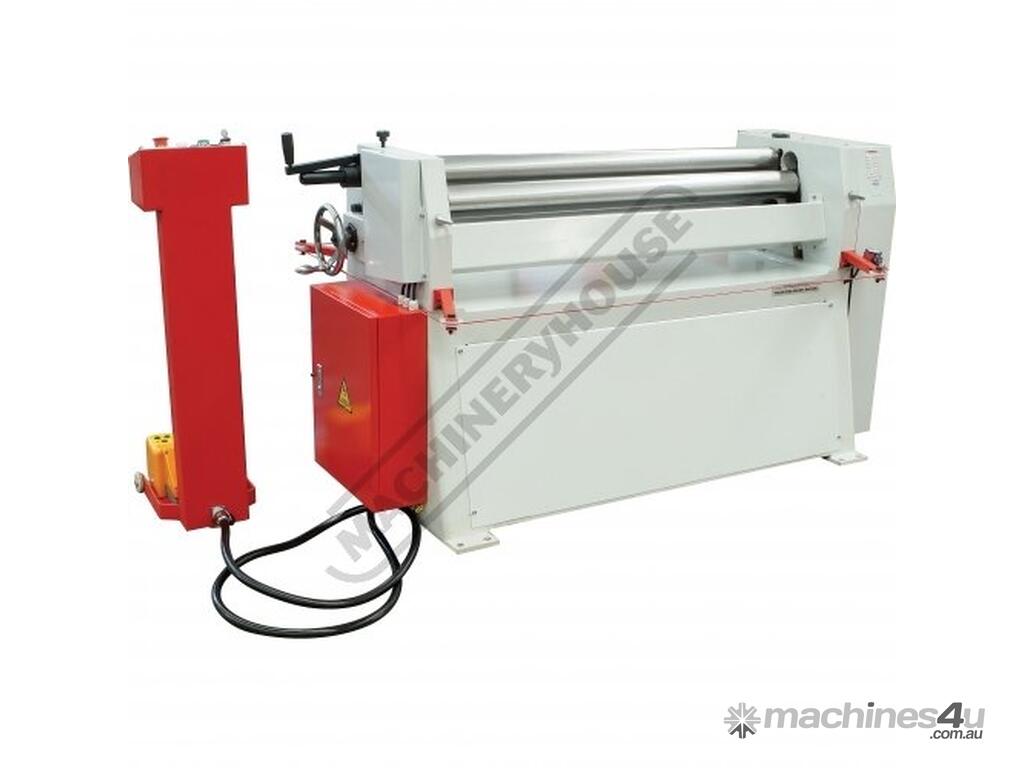

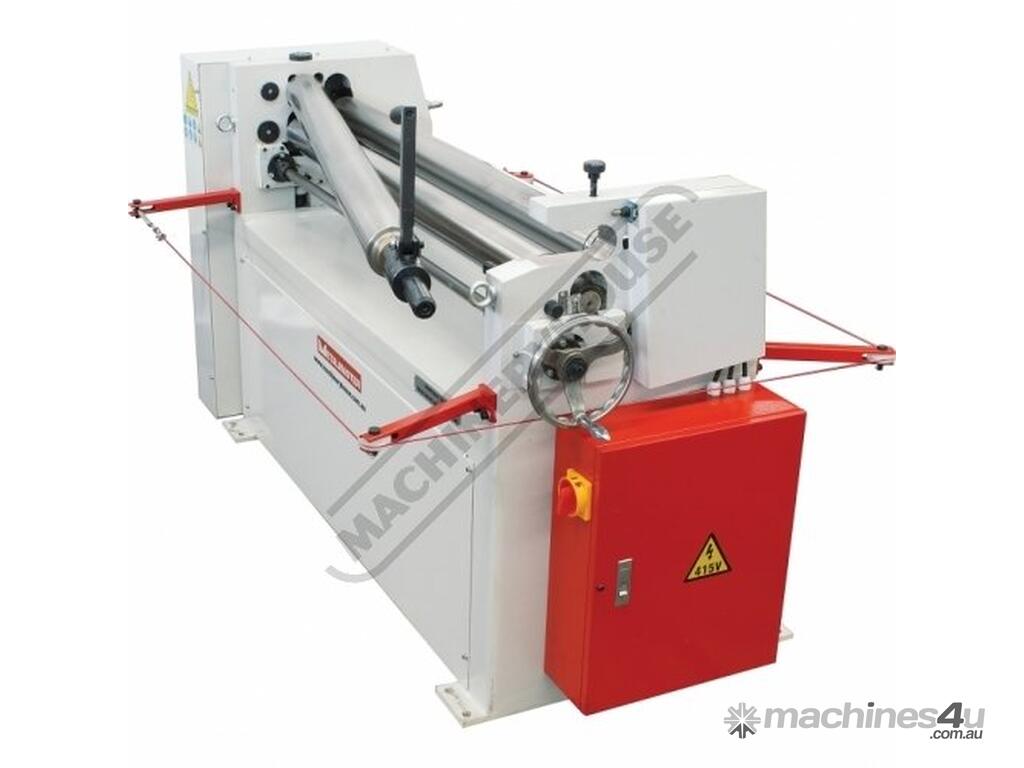

METALMASTER PR-134A Motorised Plate Curving Rolls 1300 x 4.0mm Mild Steel Capacity Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S803

Features:
Initial pinch rolls with pre-bending
Motorised up & down rear curving roll enables quick & easy pre-bending
Digital readout display on rear curving roll position

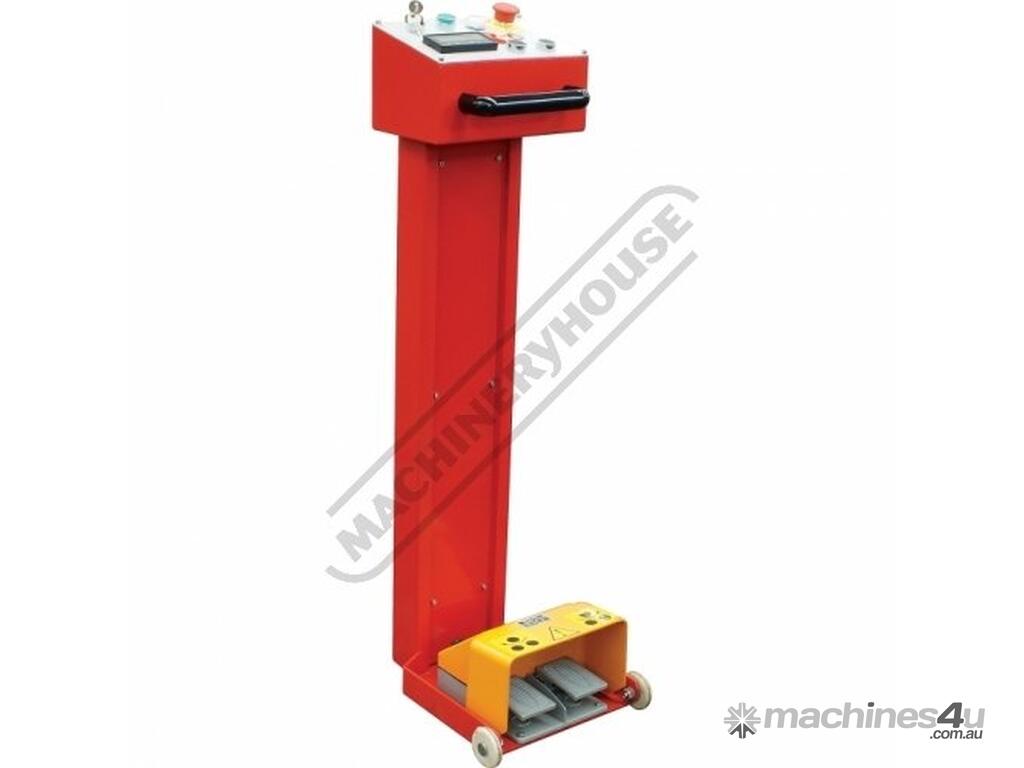

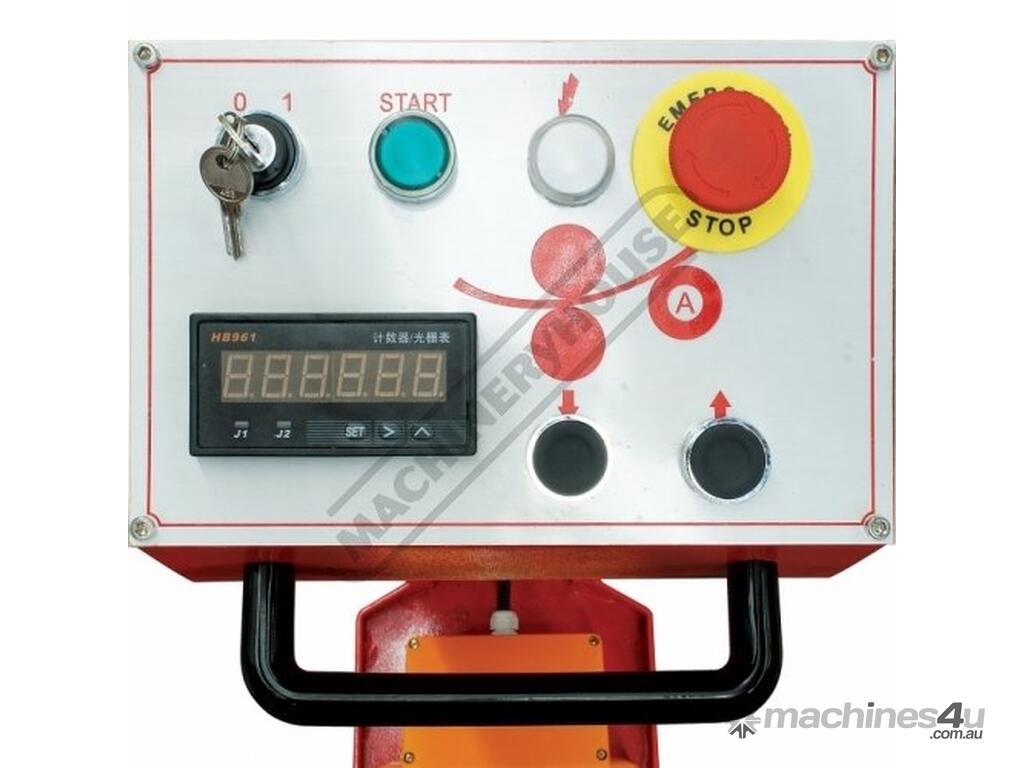

Mobile foot pedal control with digital readout display
Two rolls are powered by reduction gearbox drive system

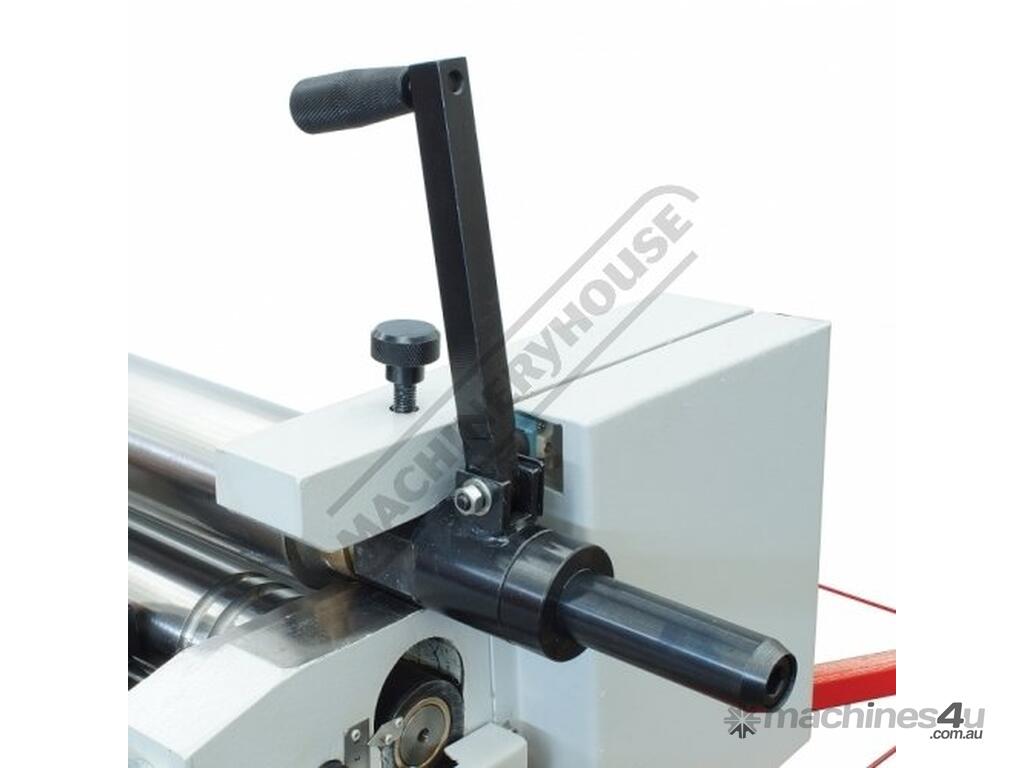

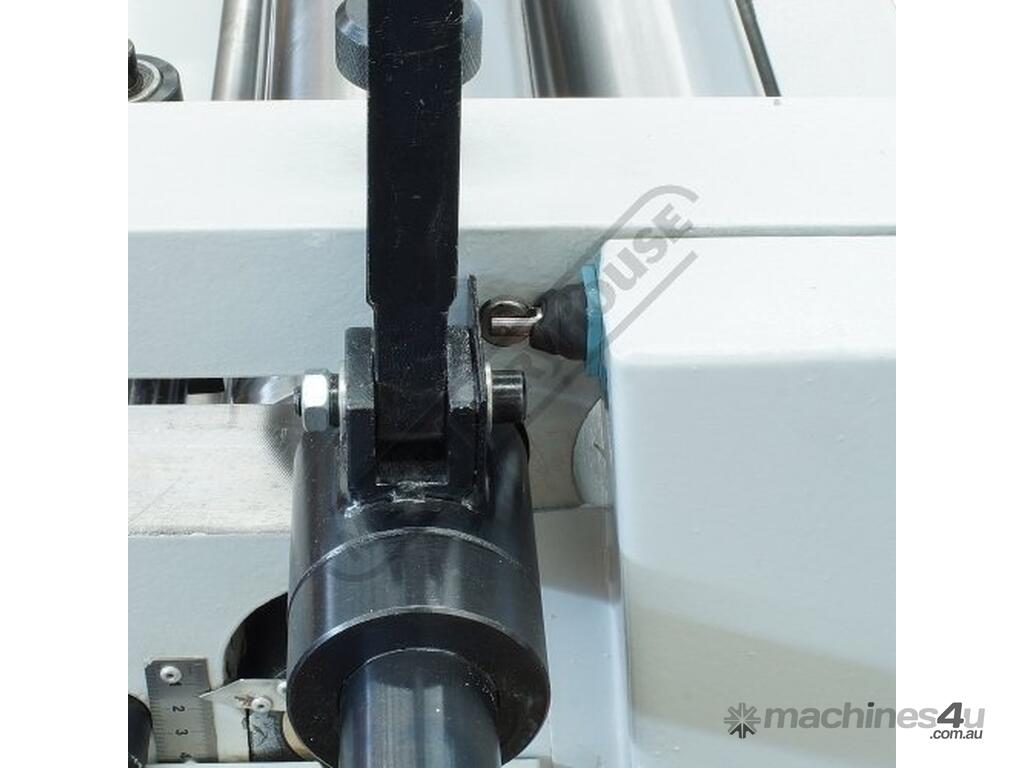

Swing out top roller enables cone or cylinder to be removed

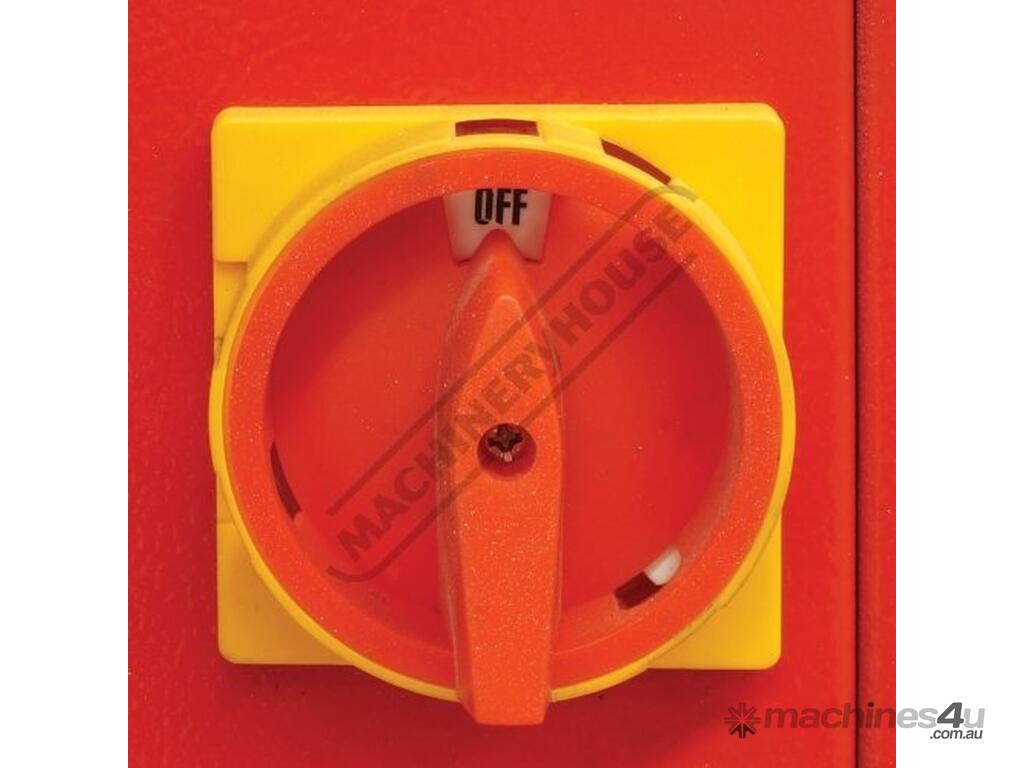

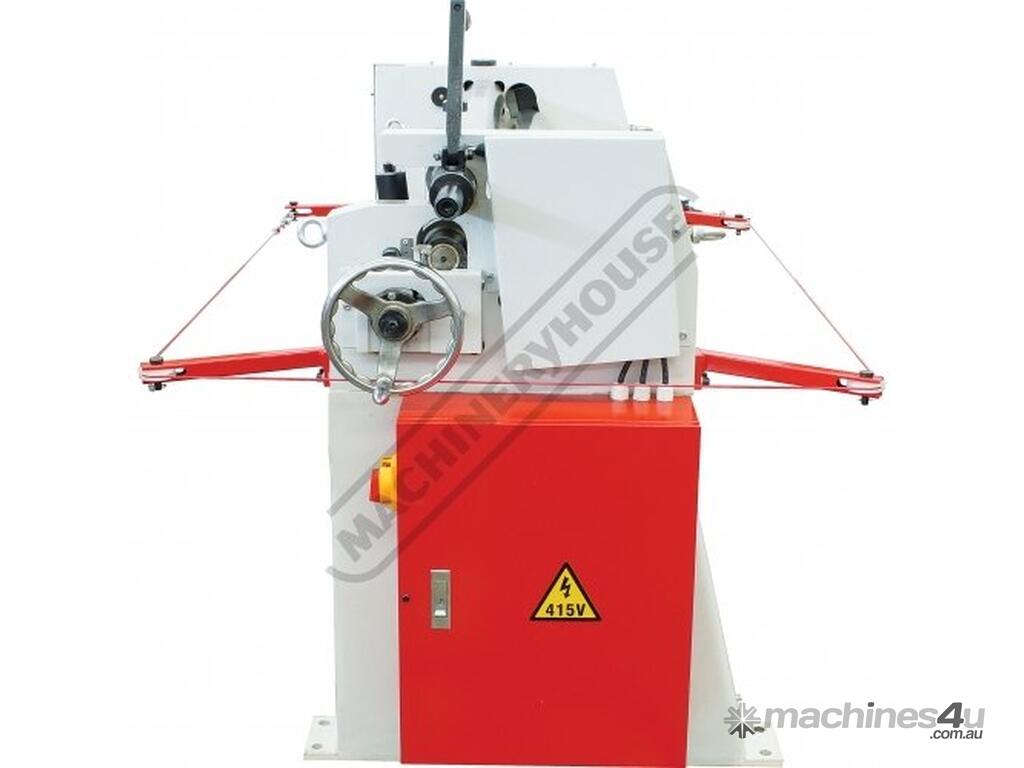

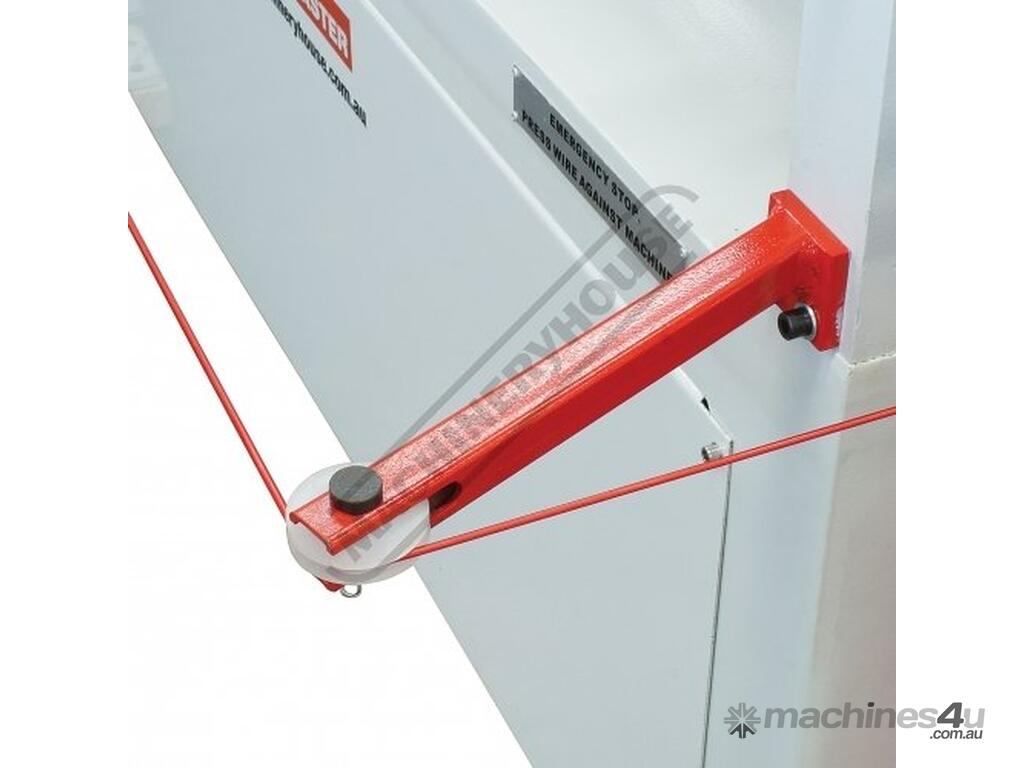

Safety wire interlock system with emergency shut-off

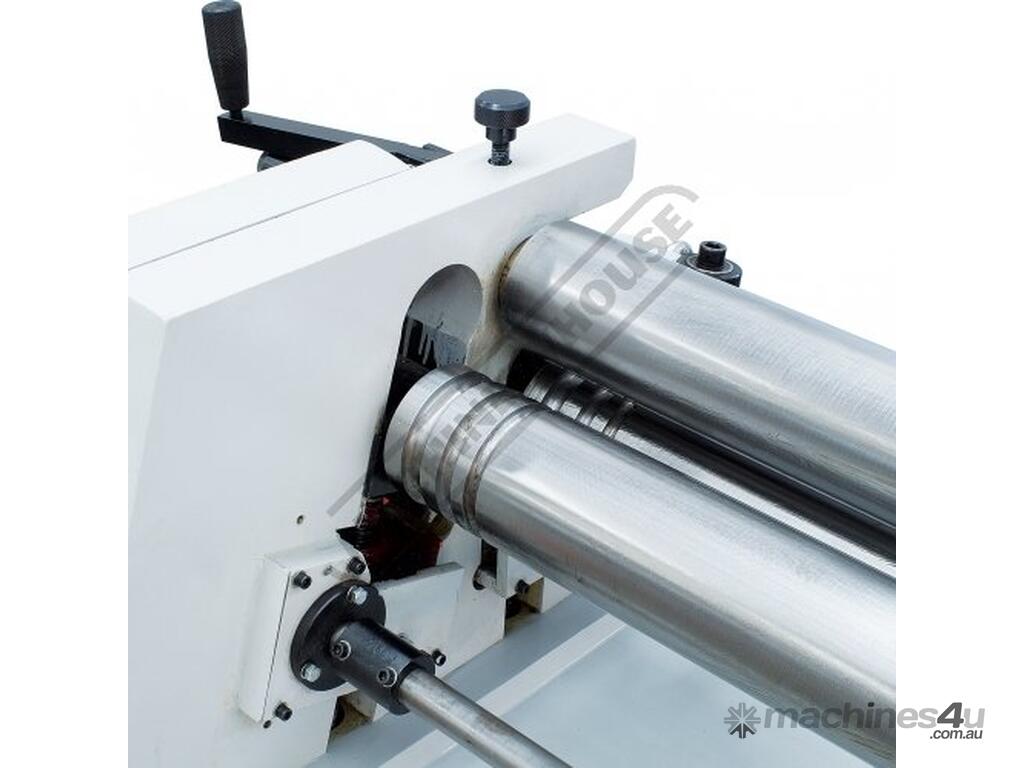

Rolls include wiring grooves

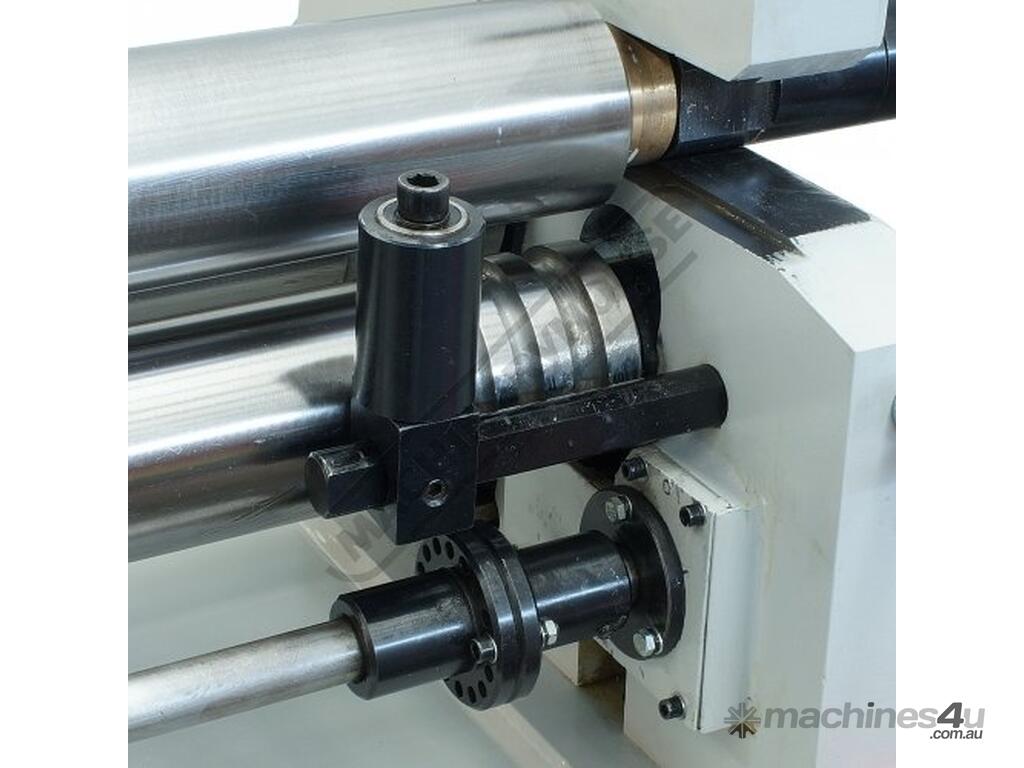

Includes a conical bending guide roller

Mild steel capacity is rated on hot rolled material with 250MPA

Specifications:
ORDER CODE: S803
MODEL: PR-134A
Curving System Type: Initial Pinch
Curving Material Length (mm): 1300
Curving Plate Thickness - Mild Steel (mm): 4.0
Minimum Rolling Diameter (mm): 180
Roll Diameter (mm): 120
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 1810 x 640 x 1050
Floor Space (L x W x H) (mm): 1855 x 1030 x 1050
Nett Weight (kg): 855
