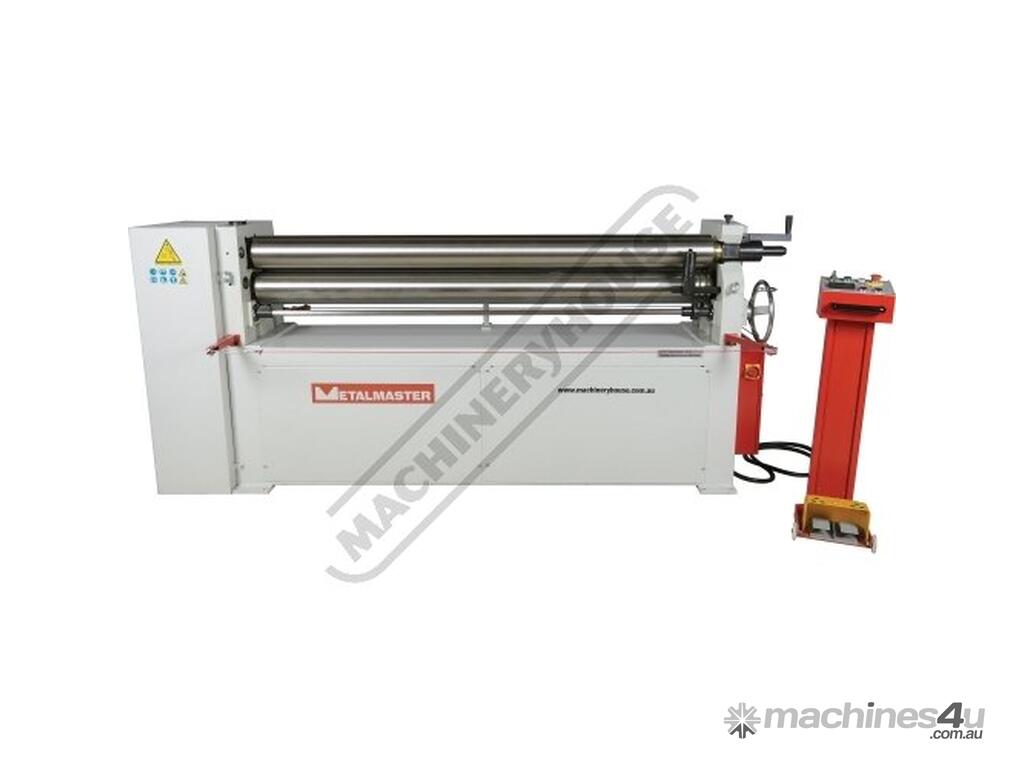

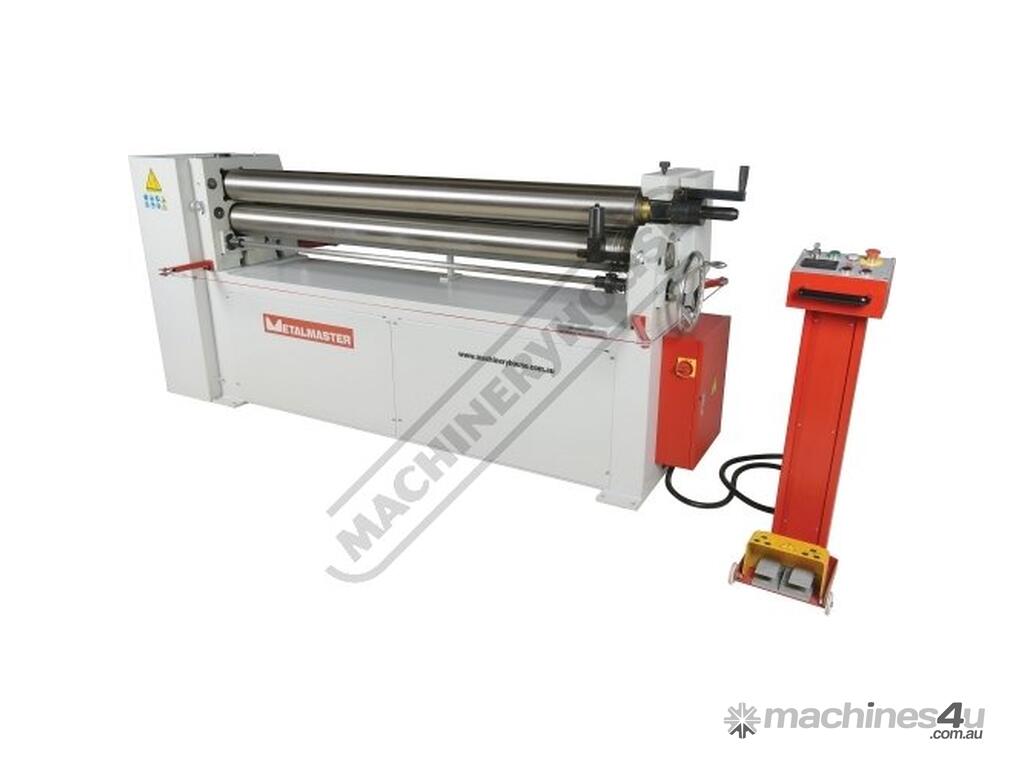

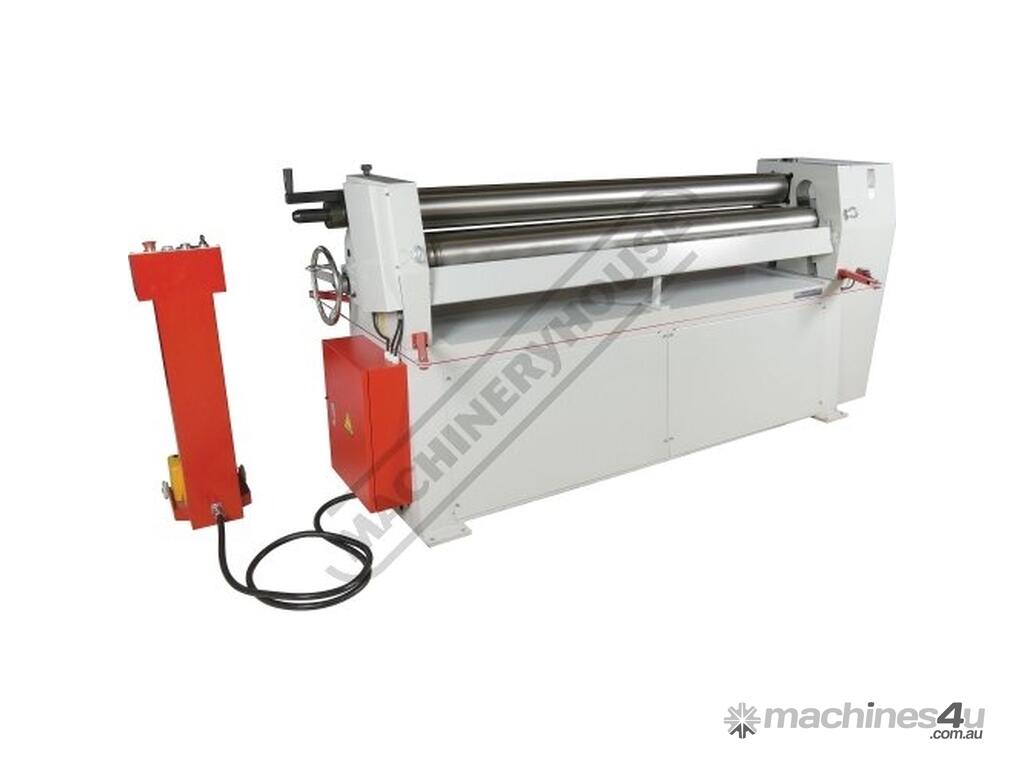

METALMASTER PR-204A Motorised Plate Curving Rolls 2000 x 4mm Mild Steel Capacity Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S805
Features:
Initial pinch rolls with pre-bending
Motorised up & down rear curving roll enables quick & easy pre-bending

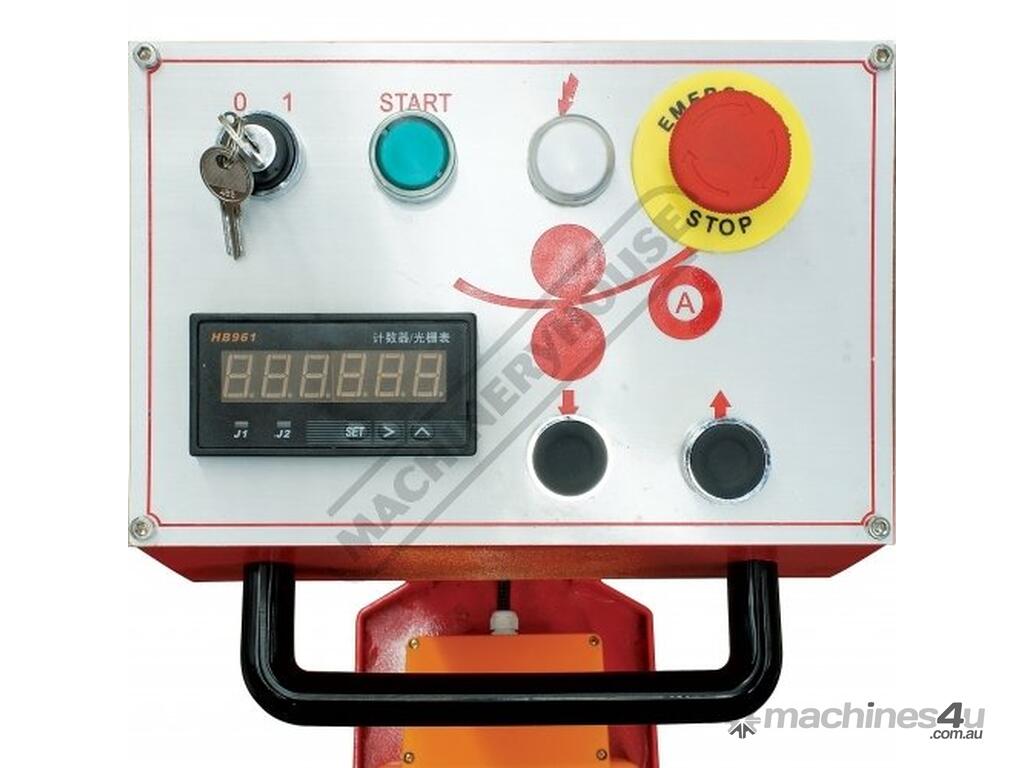

Digital readout display on rear curving roll position

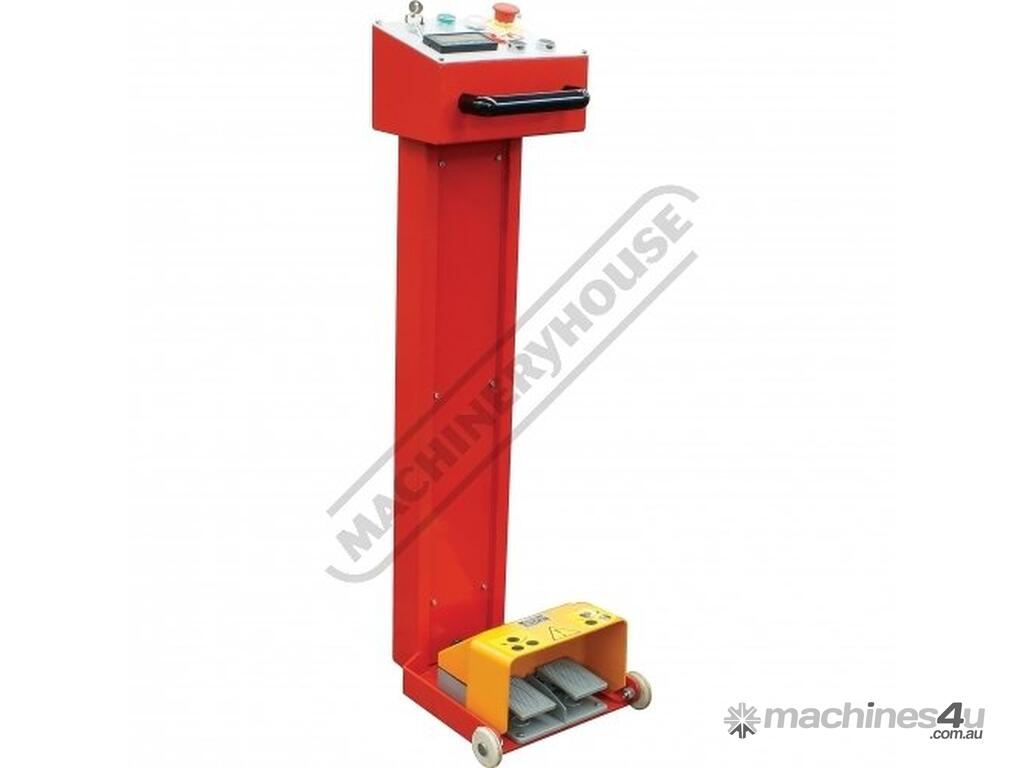

Mobile foot pedal control with digital readout display

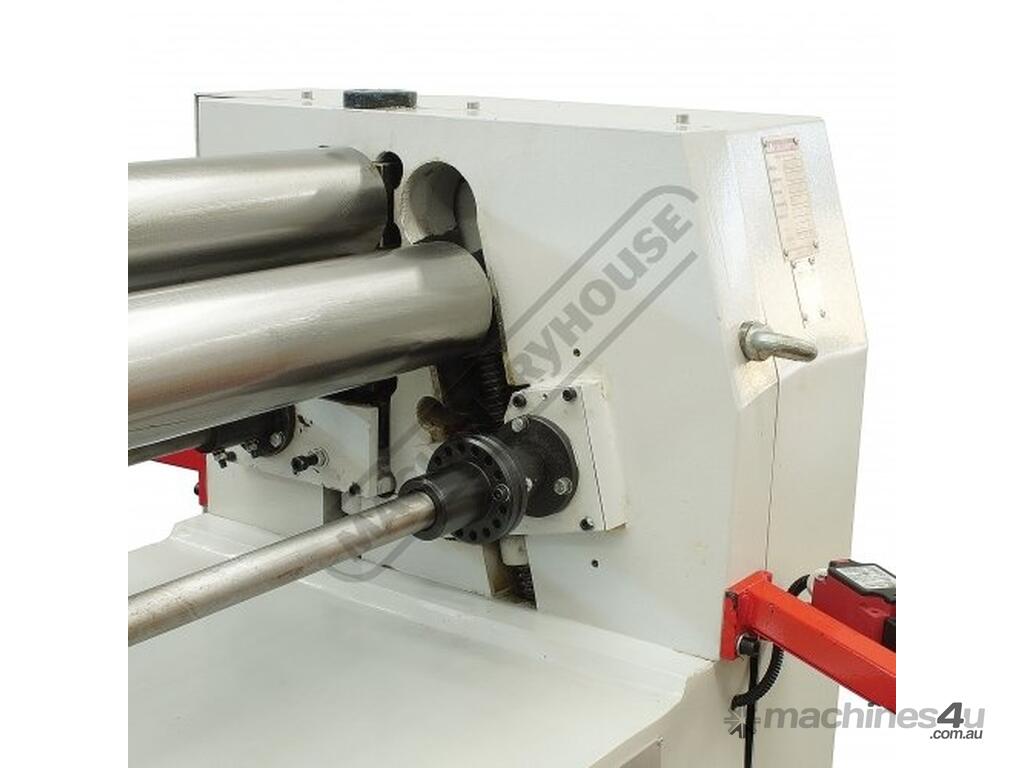

Two rolls are powered by reduction gearbox drive system

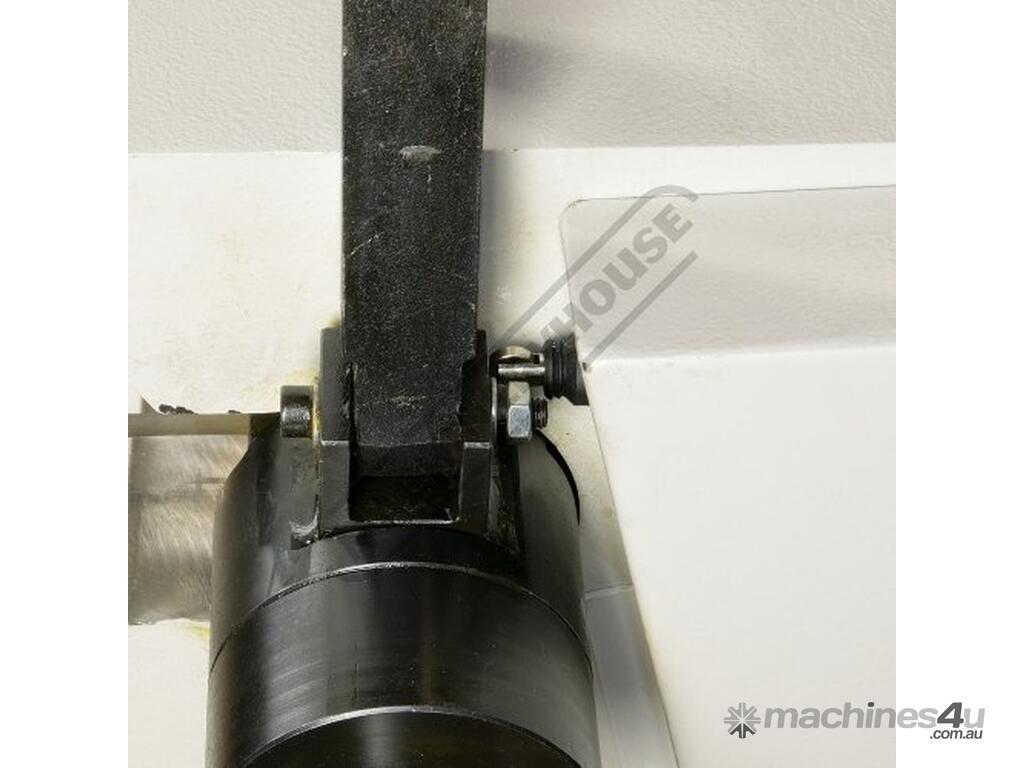

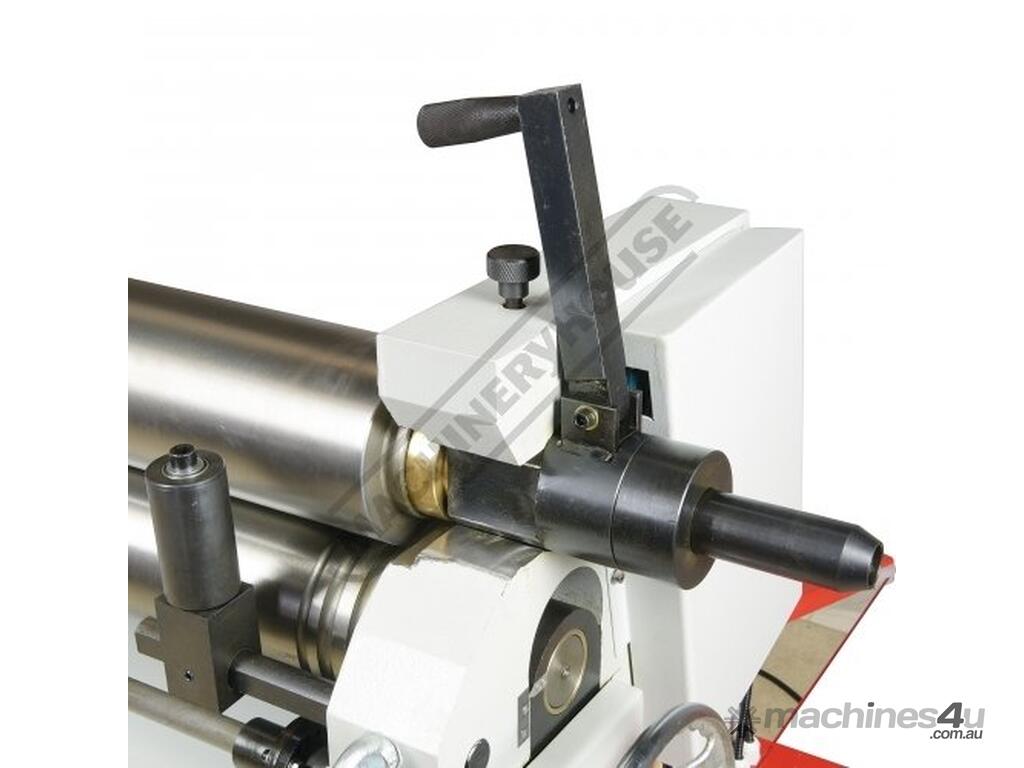

Swing out top roller enables cone or cylinder to be removed

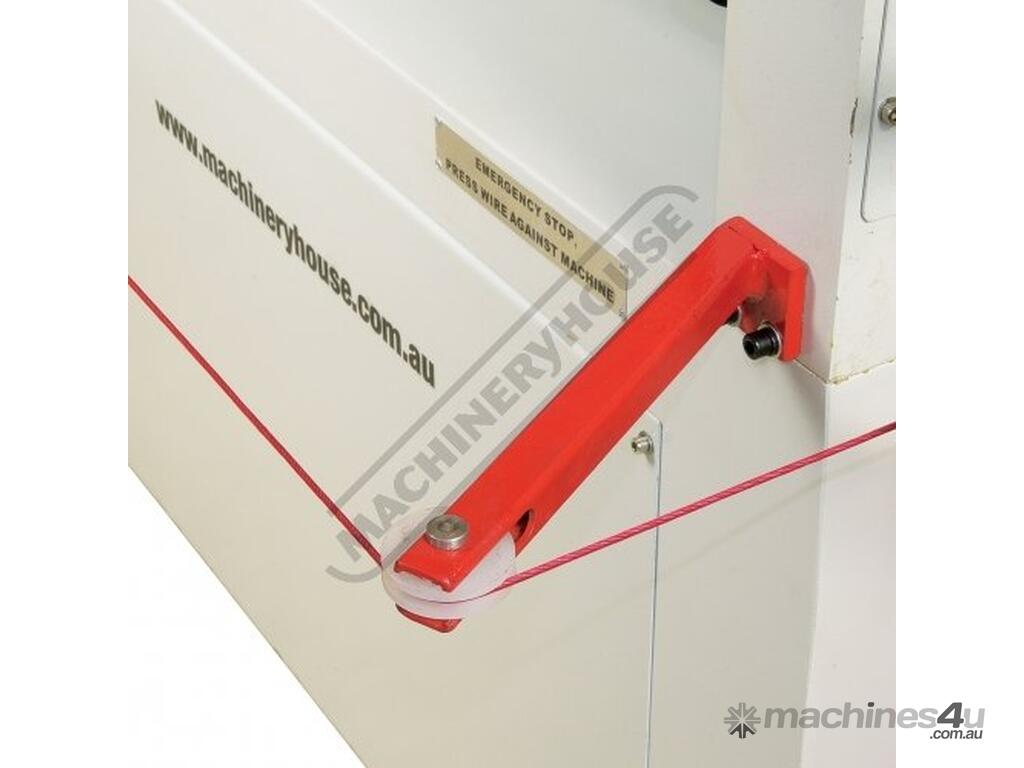

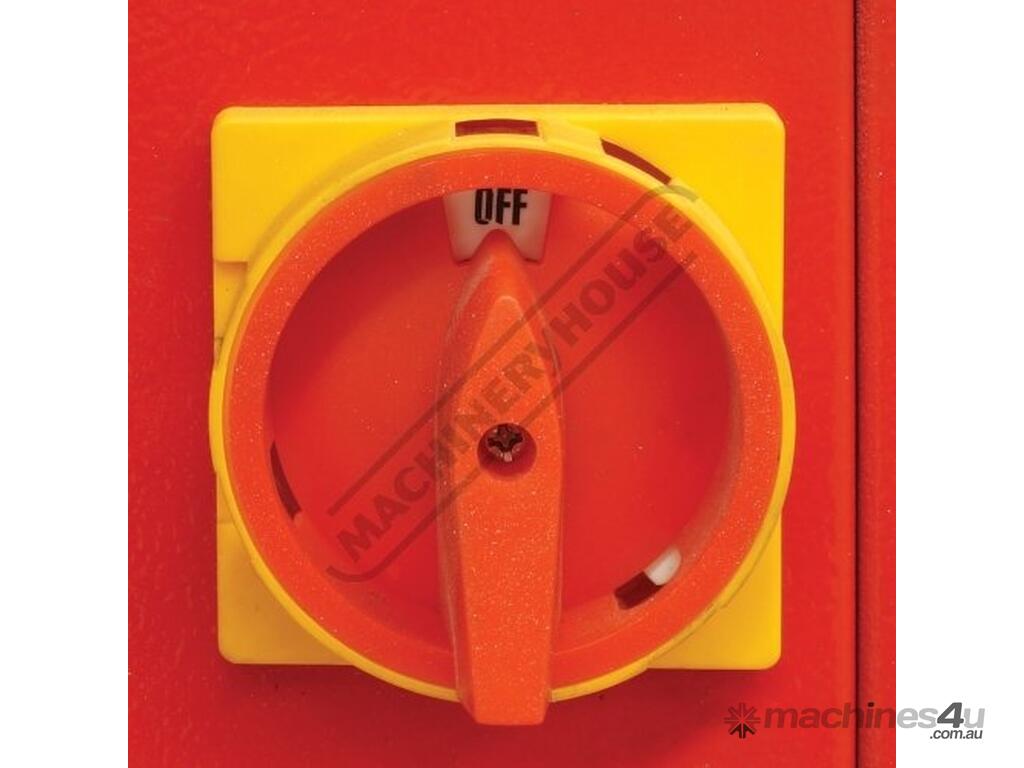

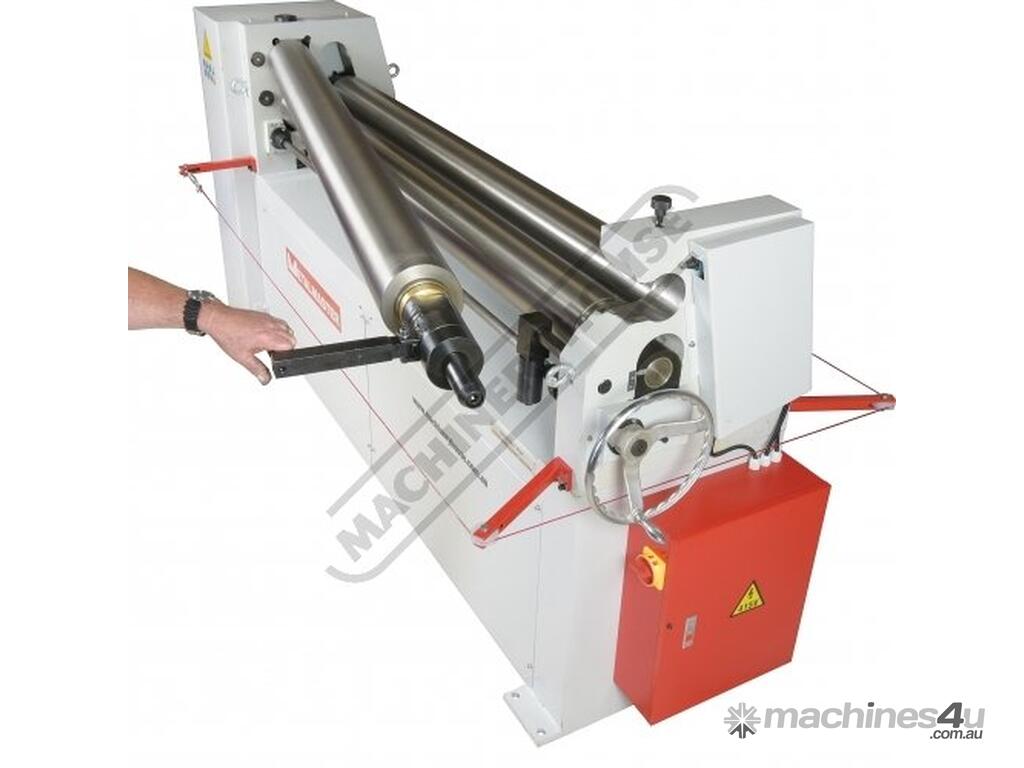

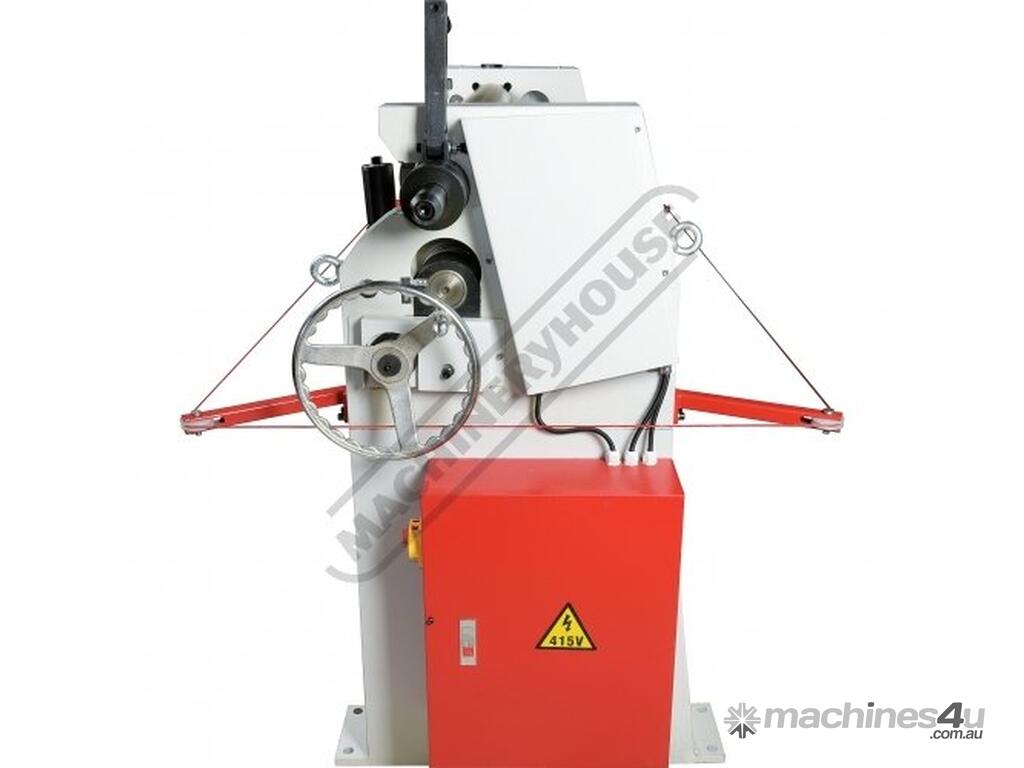

Safety wire interlock system with emergency shut-off

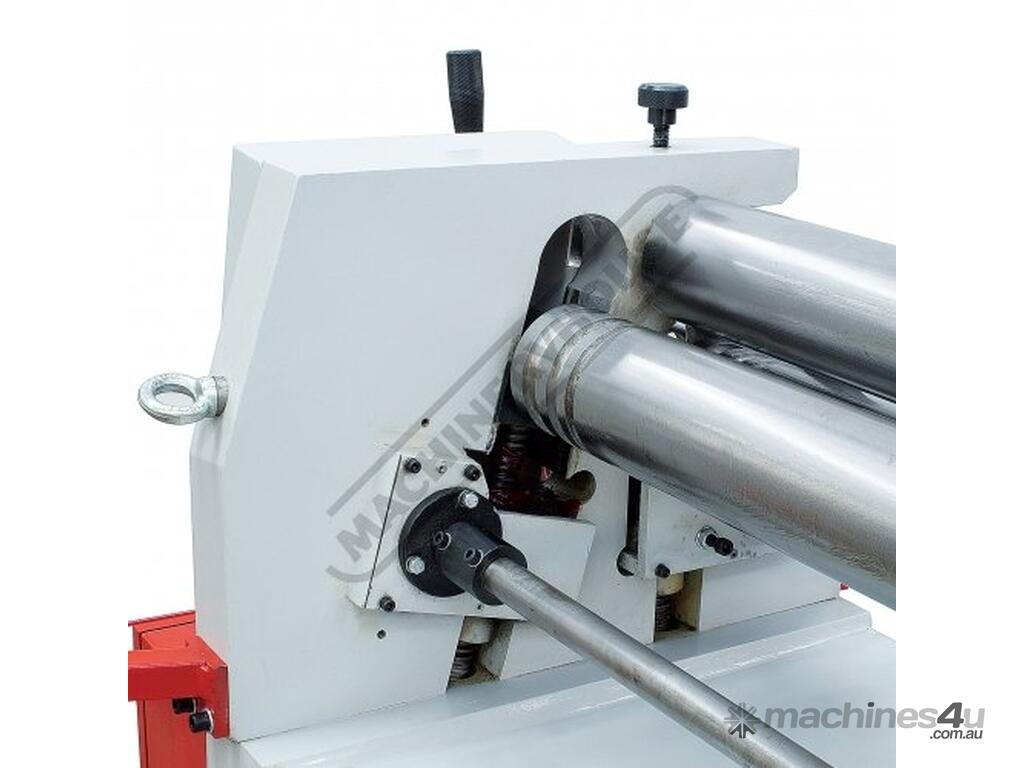

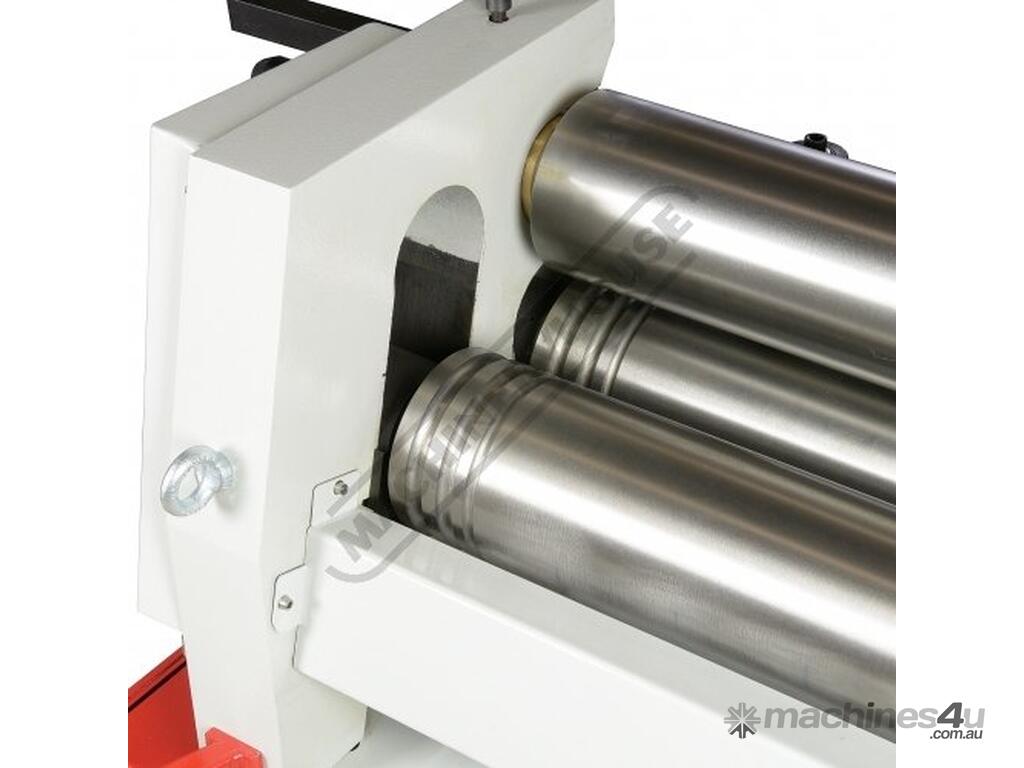

Rolls include wiring grooves

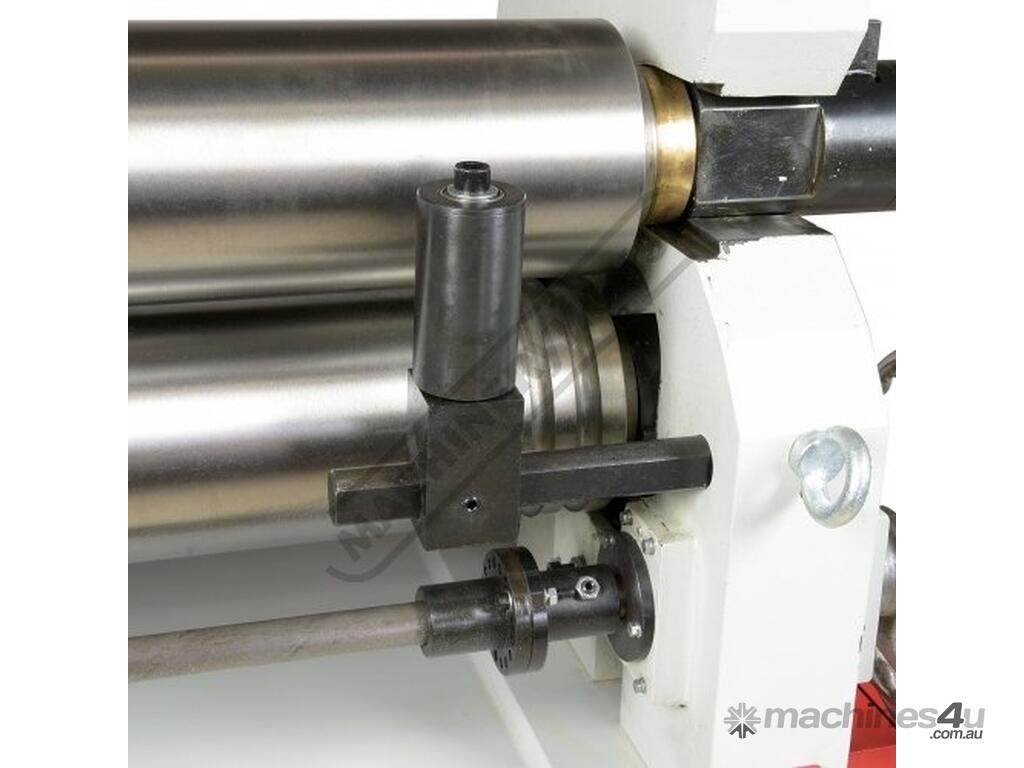

Includes a conical bending guide roller
Mild steel capacity is rated on hot rolled material with 250MPA
Specifications:
ORDER CODE: S805
MODEL: PR-204A
Curving System Type: Initial Pinch
Curving Material Length (mm): 2000
Curving Plate Thickness - Mild Steel (mm): 4
Minimum Rolling Diameter (mm): 225
Roll Diameter (mm): 150
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 2530 x 740 x 1200
Floor Space (L x W x H) (mm): 2695 x 1050 x 1215
Nett Weight (kg): 1620
