PRECISION & DURABILITY GUARANTEED - MEP Tiger 372CNC - Automatic Coldsaw

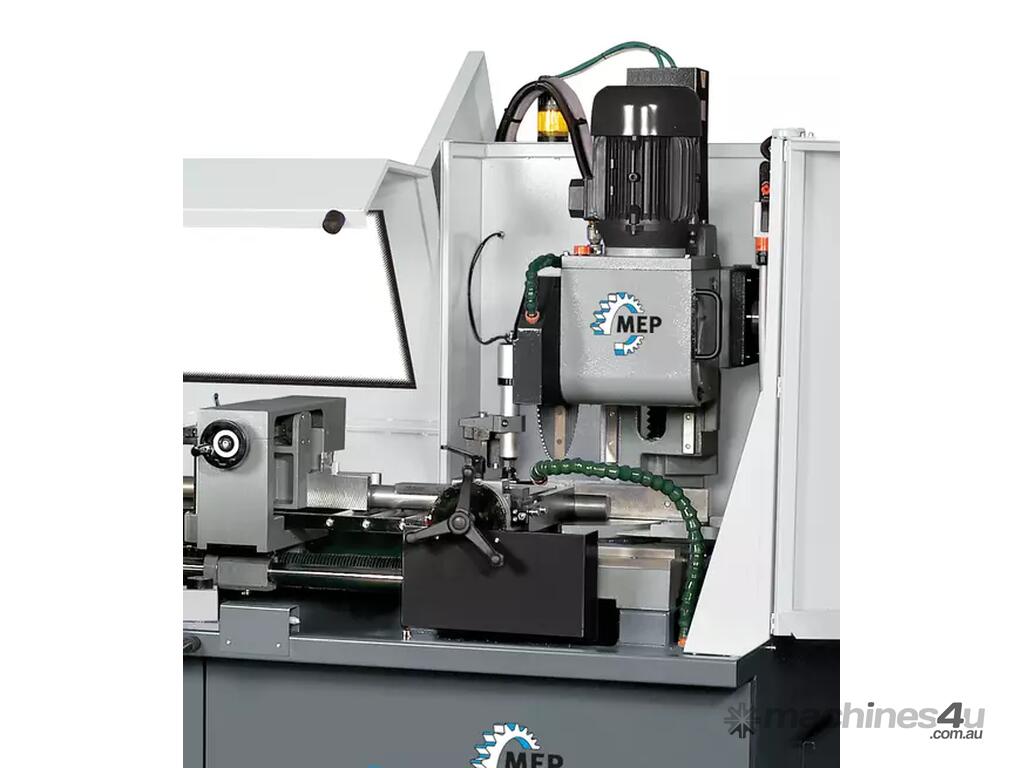

Precision and durability guaranteed with this heavy duty automatic cold saw from quality Italian brand MEP. The MEP Tiger 372CNC LR 4.0 has a vertical sawing operation where the cutting head moves on linear bearings mounted to a cast iron pedestal, providing superior rigidity and significantly reduced cutting vibration. The feeding system is by ballscrew and stepper motor. Compatible with Bundle Loader

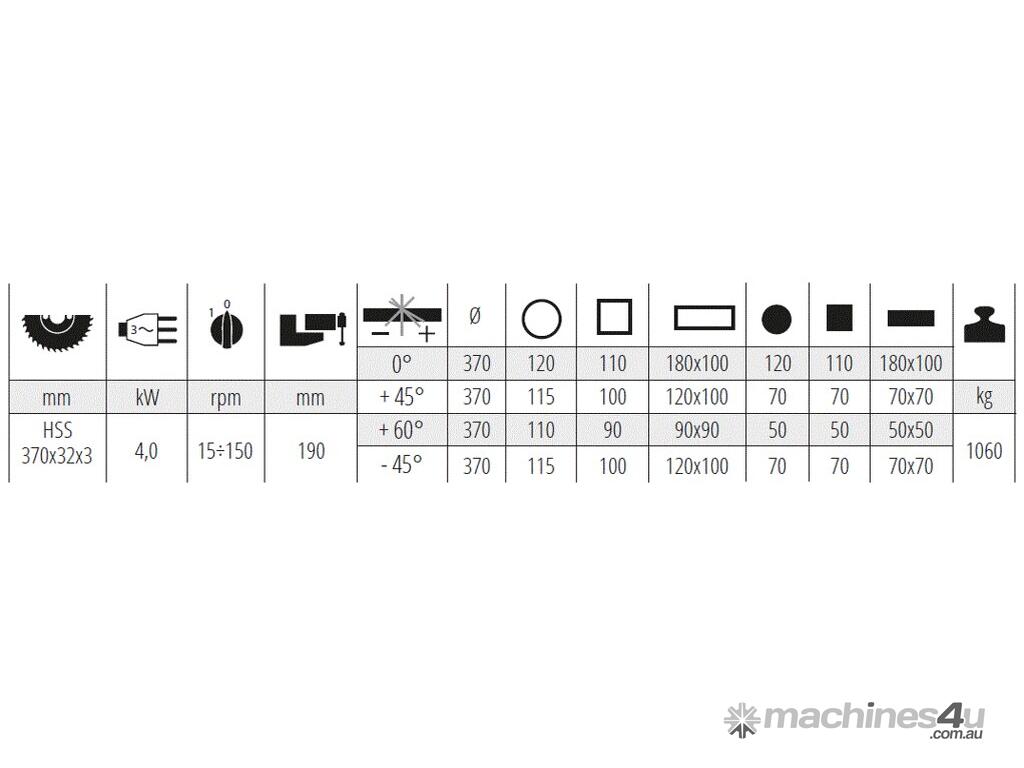

Capacity: 180 x 100mm.

Ideal for a busy workshop with repetitive cutting.

UNIQUE FEATURES

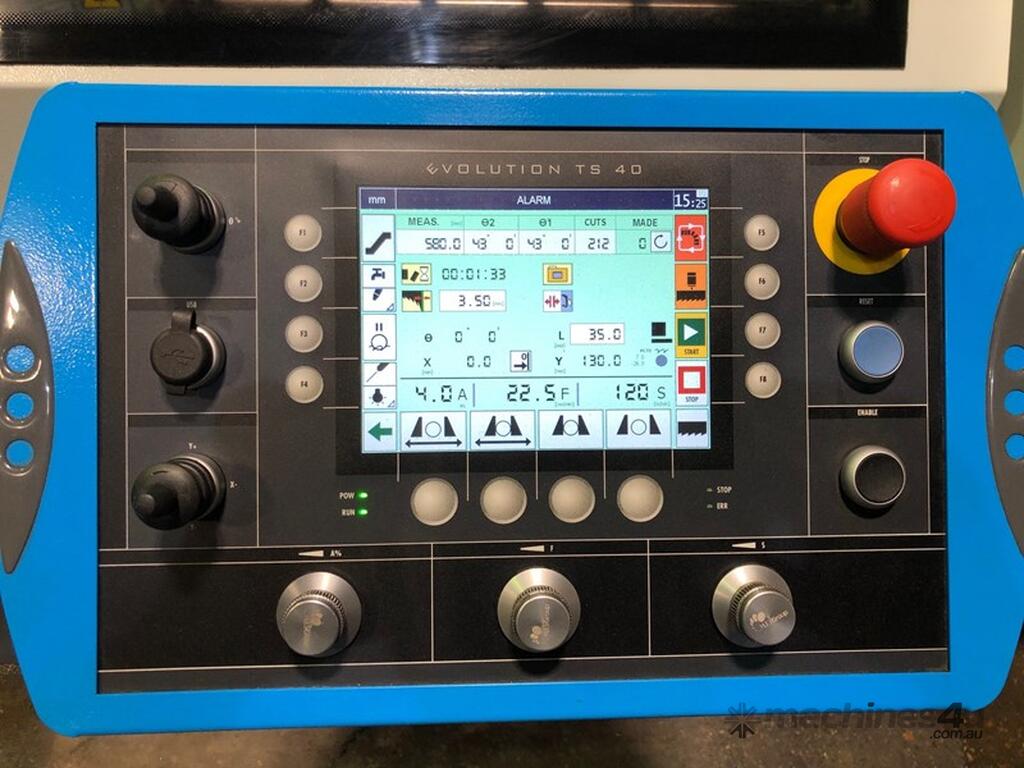

• The controller is an 8” Touch Screen with intuitive, easy-to-use programming.

• Automatic operation with programmable length, including different pieces and batch numbers on the same bar. Pressing the start button activates the clamp, cut, return to the programmed position, unclamp and then feed the new part to the programmed length, then repeat.

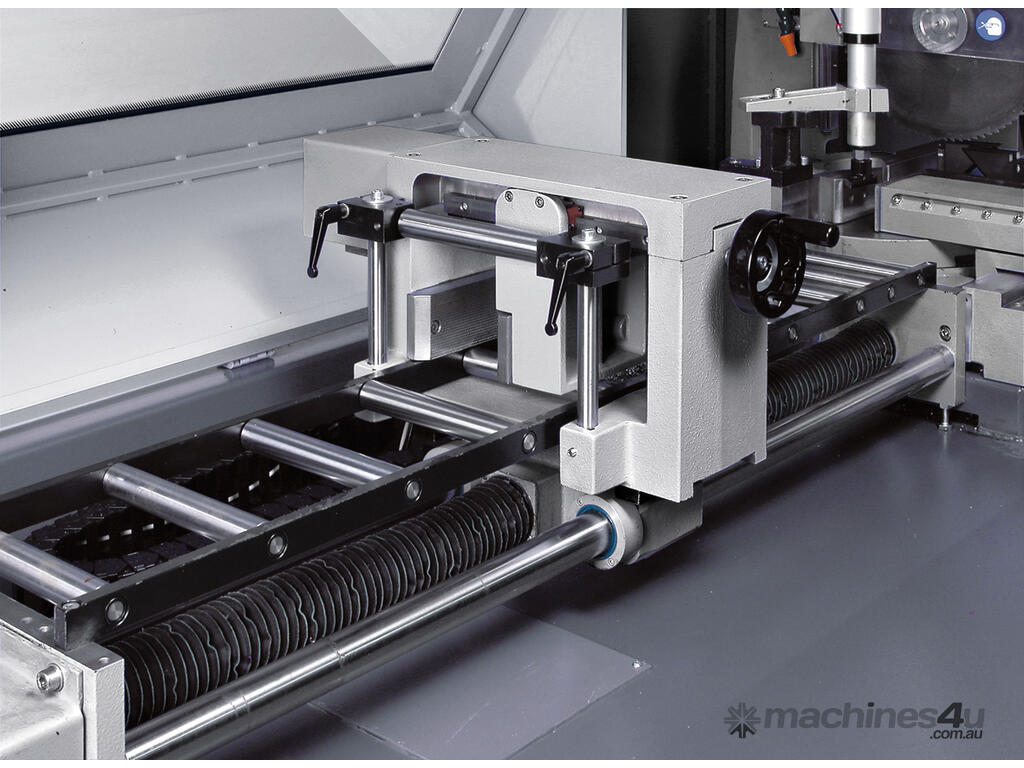

• 1000mm feed length by ballscrew and stepper motor, it will do an infinite number of shuffles to achieve programmed length.

• Electronically infinitely variable speed range 15 – 150 RPM.

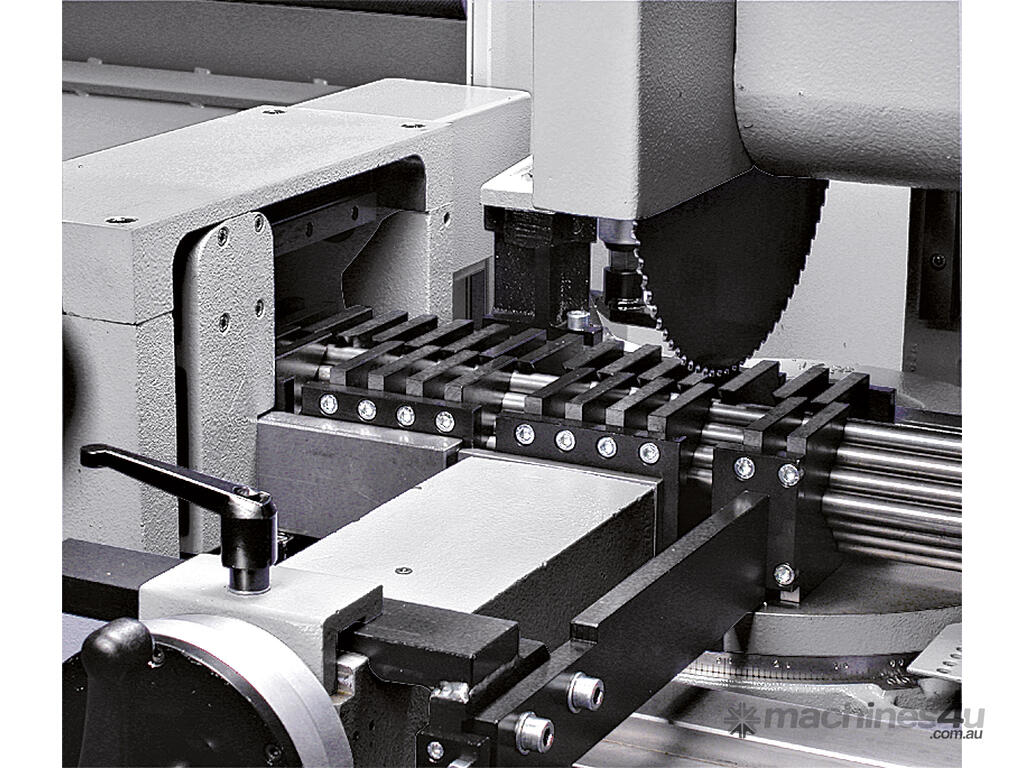

• The head swivels on a turntable mounted on roller bearings, so work is always perfectly positioned on a flatbed, and the slot for the blade is always perfectly aligned.

• Mitre cutting from 45 degrees left to 60 degrees right.

• The vice automatically clamps when the head is pulled down, or you can still clamp manually.

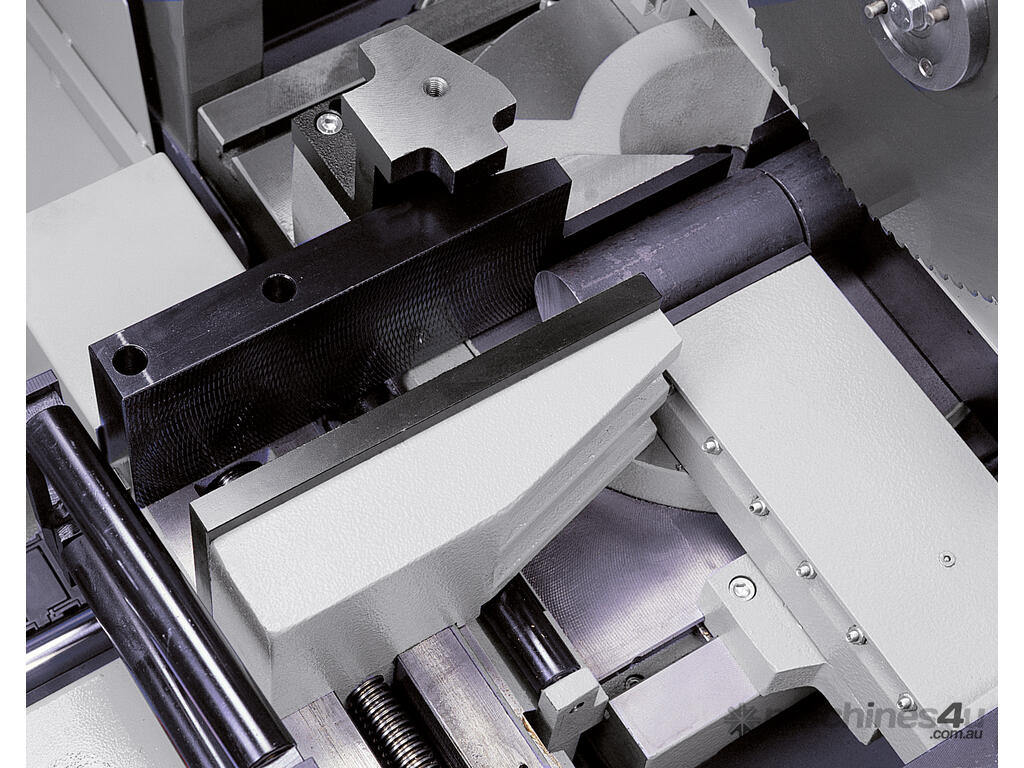

• The vice jaws can be adjusted left to right so you can make sure they are as close as possible to the blade when cutting.

• Low voltage submersible pump to make sure coolant is ready when you are.

• Comes with a pedestal base with the front door. Perfect for storing blades and tools.

• 5.0kW Motor provides plenty of power for cutting.

• Fully enclosed for safety, coolant capture and noise reduction.

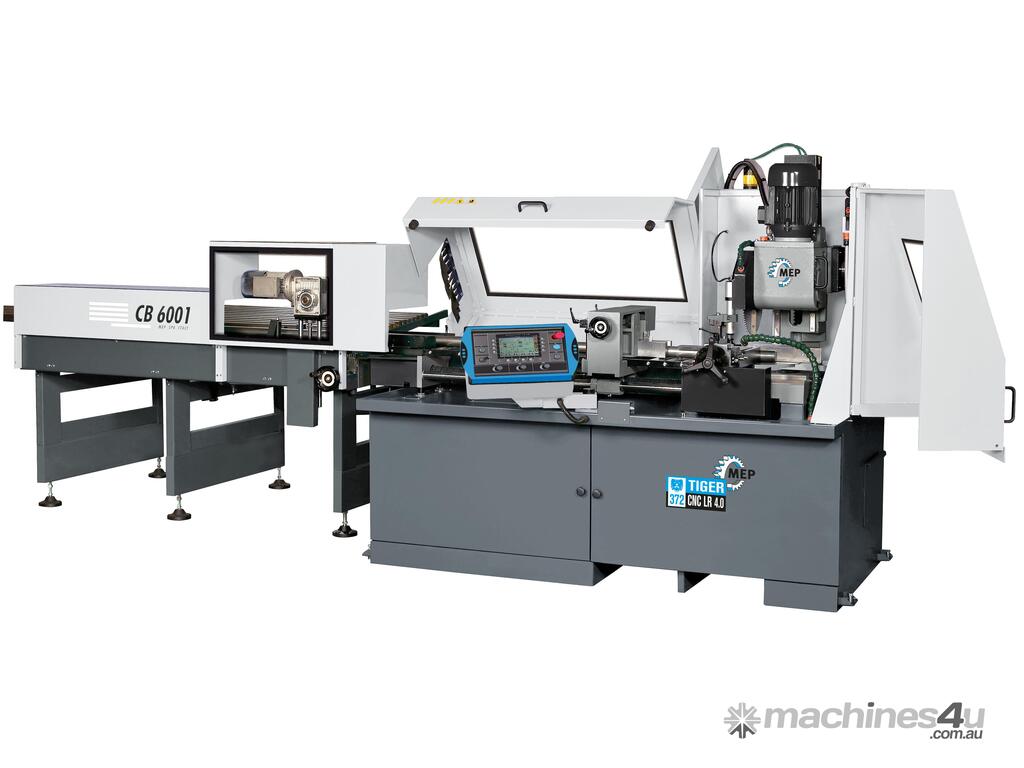

• Compatible with MEP CB6001 Magazine loading system

• Fully complies with Australian safety standards 4024.1

This is an investment in precision and durability. The build quality, cast iron construction, and overnight delivery of any blades or parts ensure you will get years of reliable, fast, straight cutting.

Perfect cuts every time.
