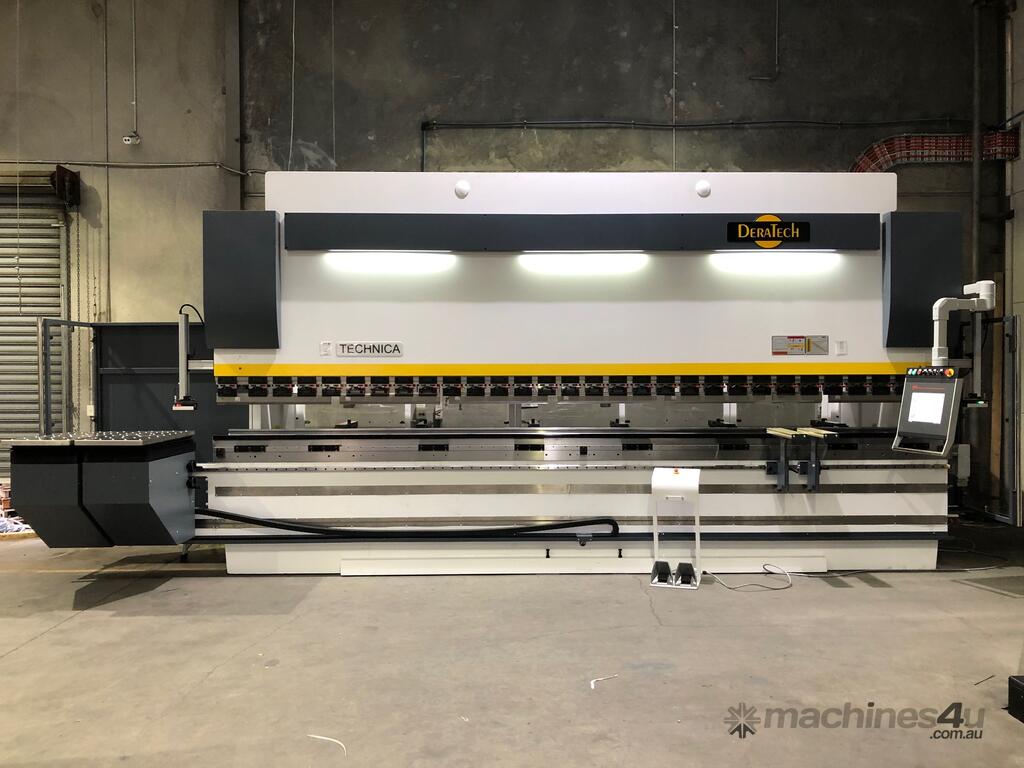

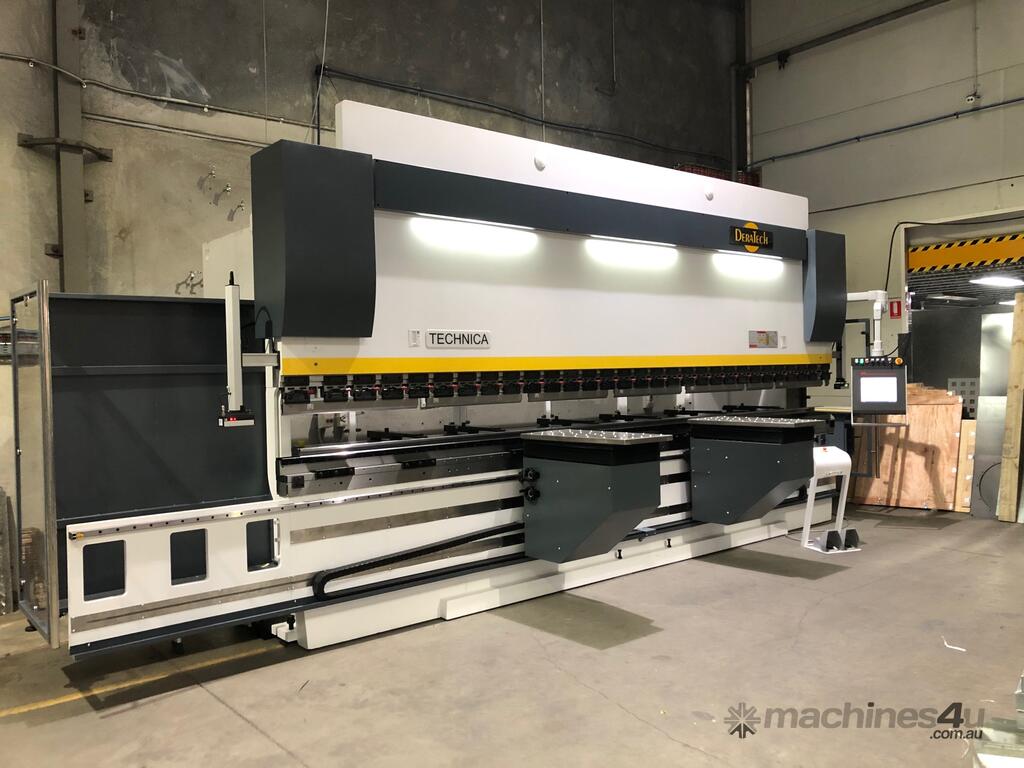

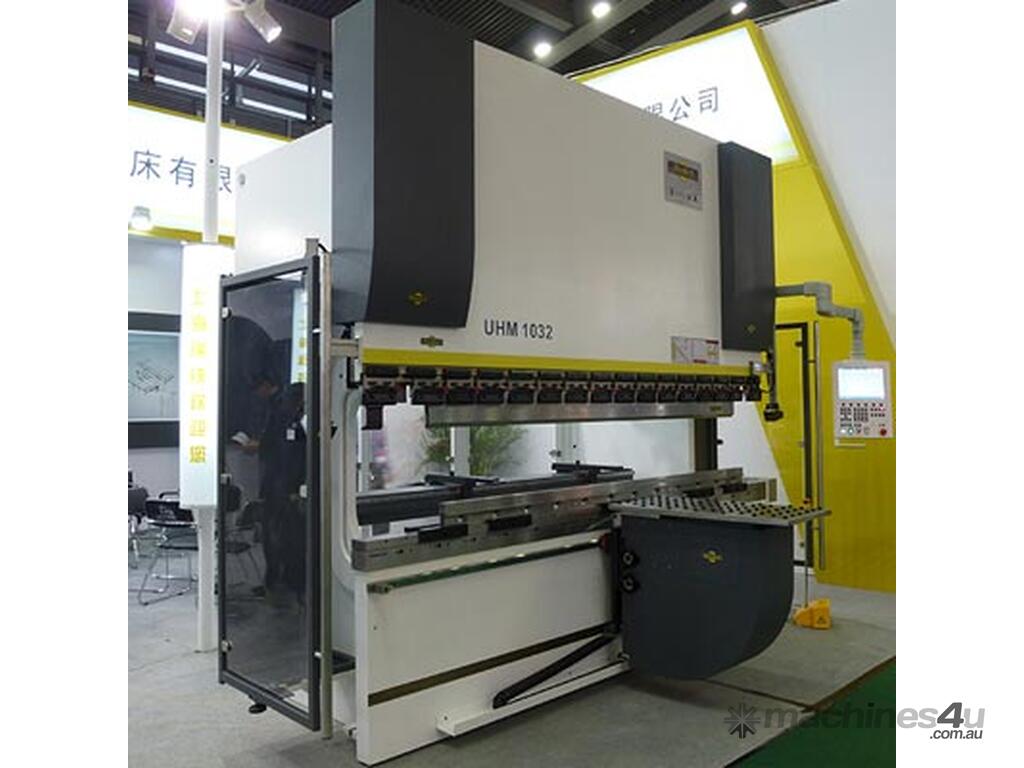

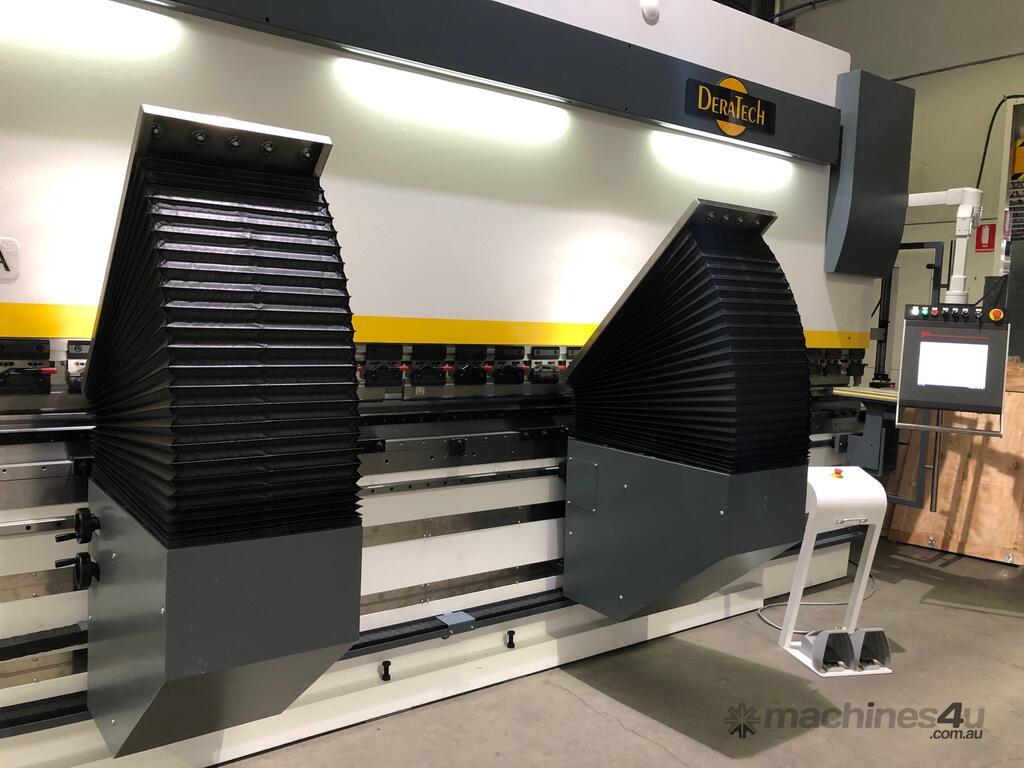

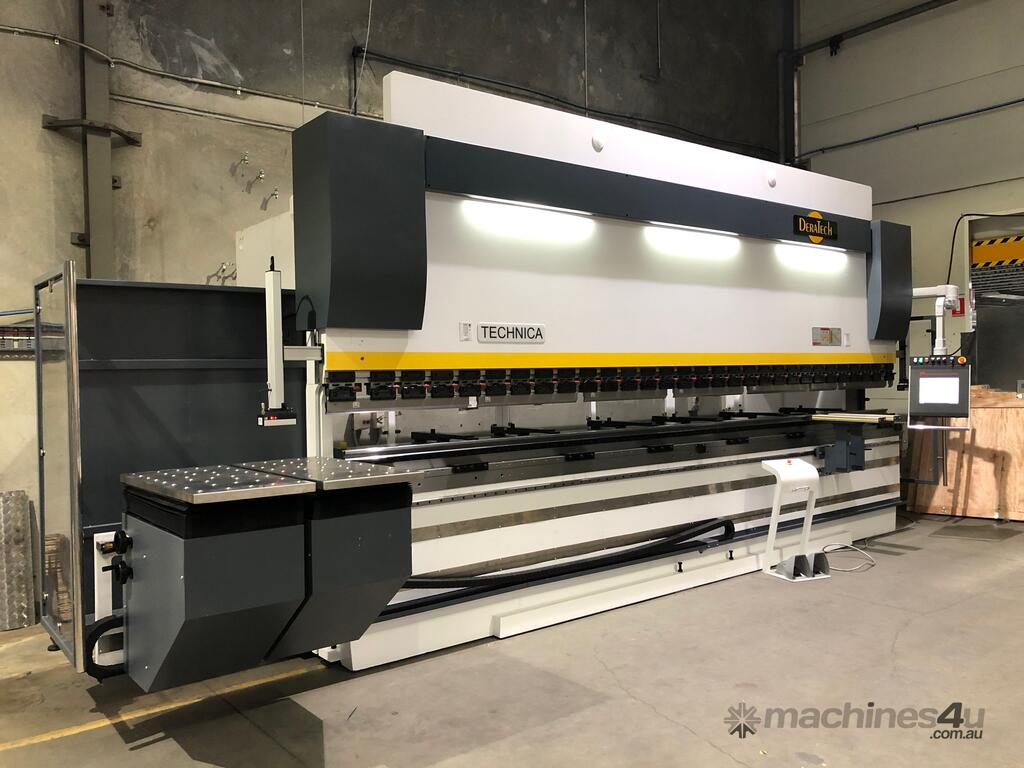

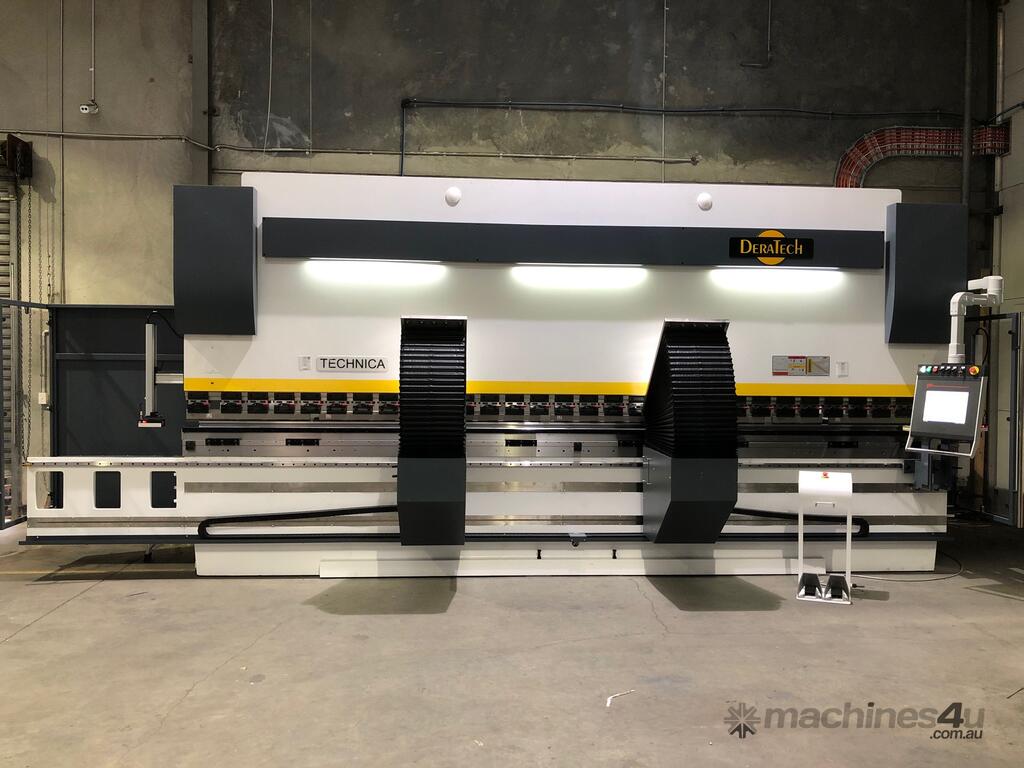

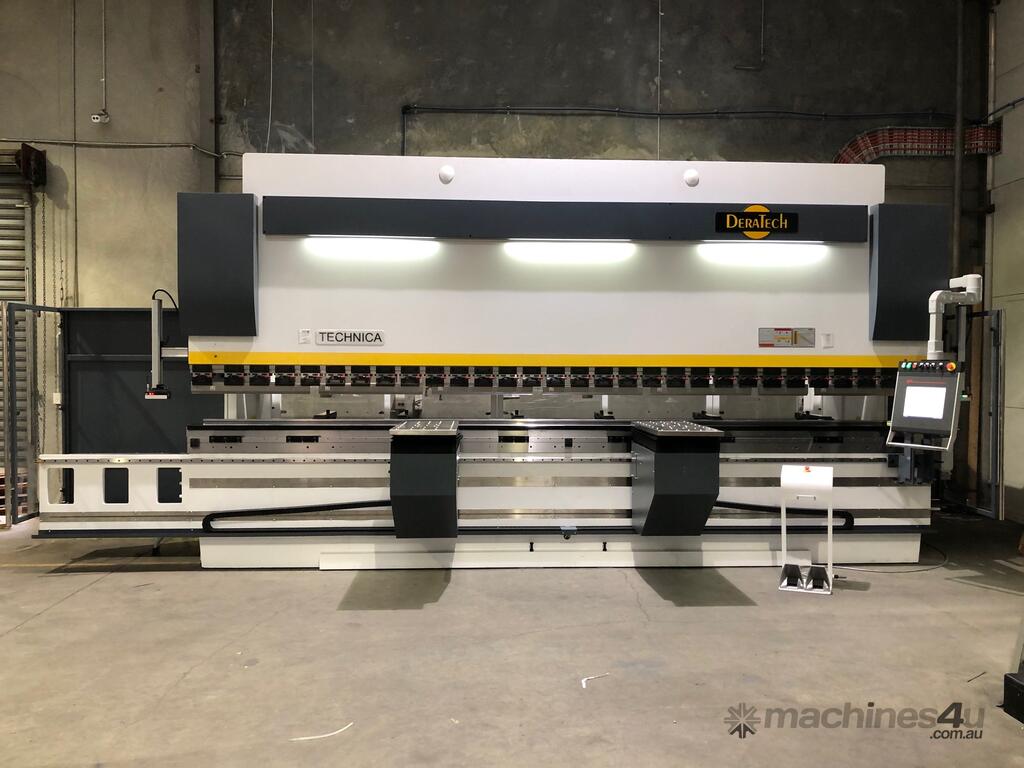

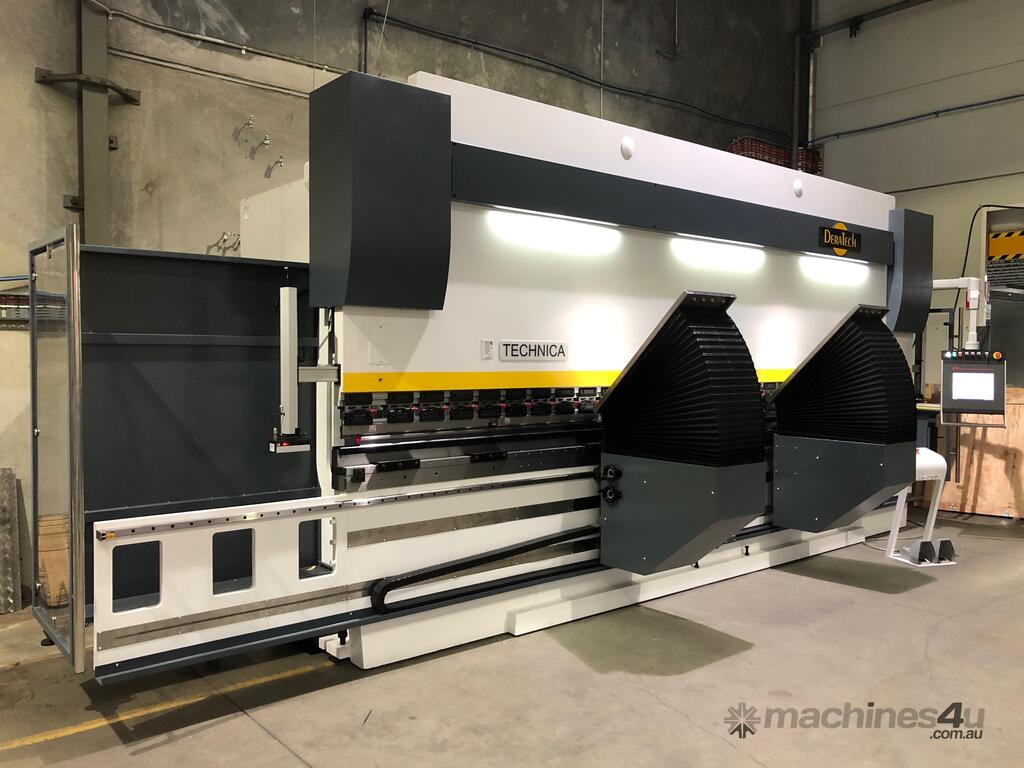

PRESS BRAKE with CNC SHEET SUPPORTS

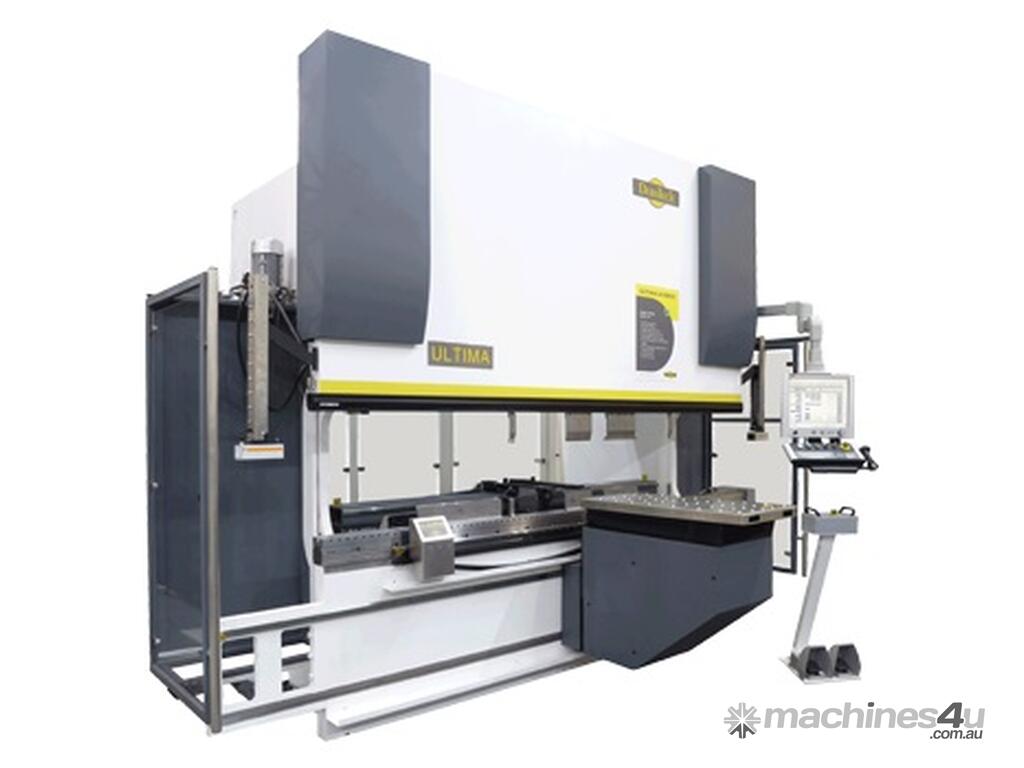

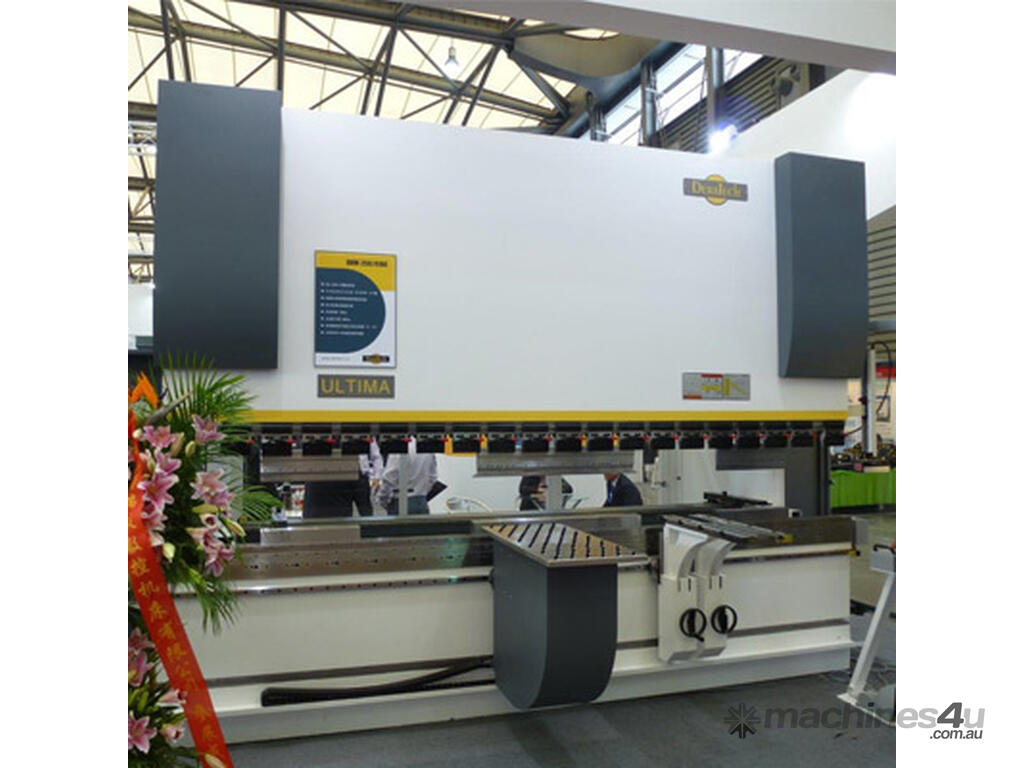

Ultima is a high-end CNC-controlled press brake with hydraulic crowning (on request mechanical crowning) in a basic but very complete configuration. The Ultima machine is equipped with 5 CNC-controlled axes (Y1-Y2, X, R, V). Optional up to 18 CNC-controlled axis.

Technical information
- High-end machine
- Hoerbiger Fast/Precise hydraulic system
- 5 CNC-controlled axis as standard: Y1-Y2-X-R-V
- Hydraulic or mechanical crowning (V), both CNC-controlled

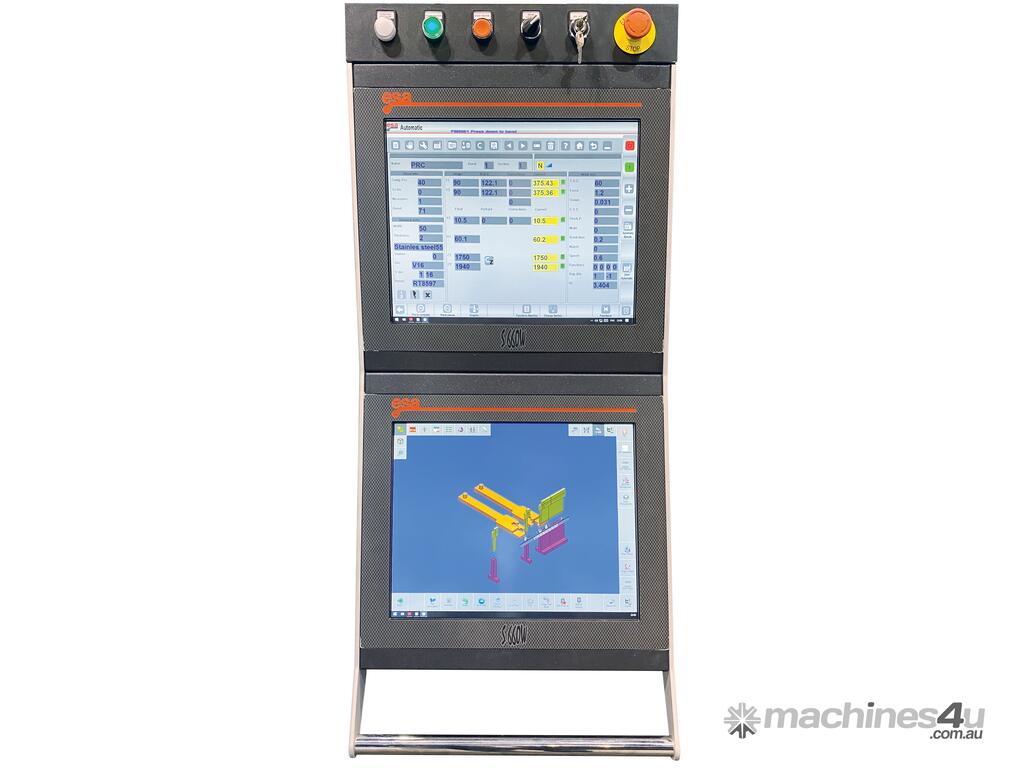

- Touch Screen CNC-controller ESA 650
- Correction database
- Double linear measuring scales ensure a precise positioning from both cylinders Y1 and Y2
- Robust and durable construction with robot-welded and heat-annealed machine frame
- Remote assistance

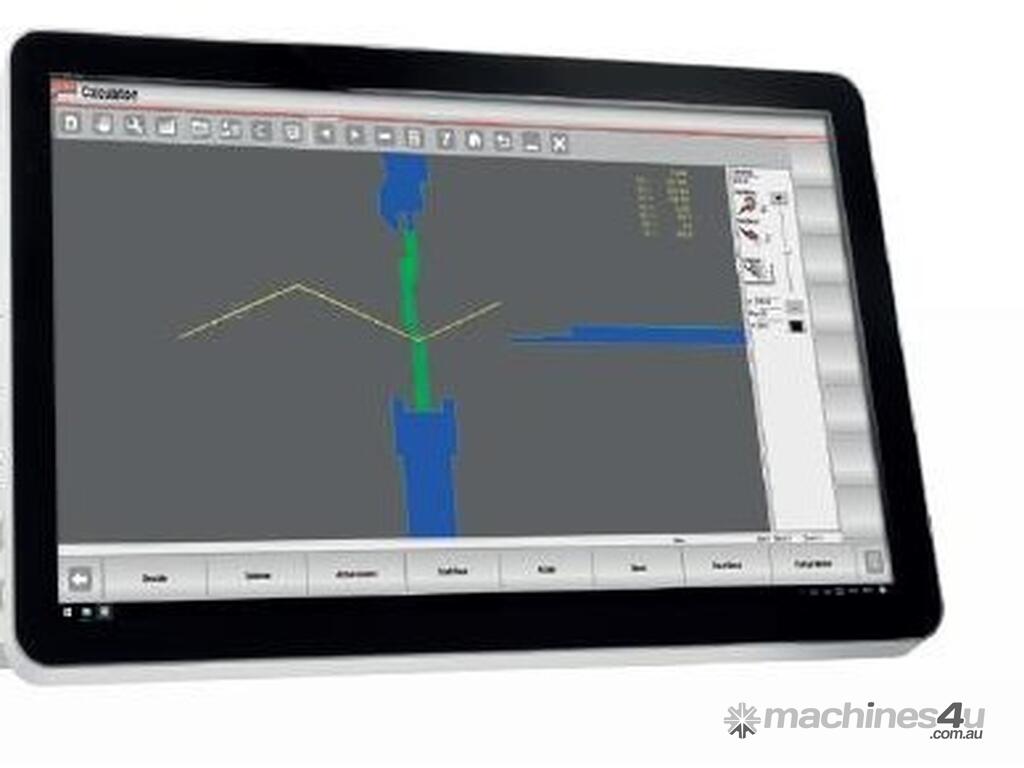

- Offline software

Available options
- Hybrid system available (up to 70% electricity saving)
- D-Alpha: Automatic angle measurement system
- D-STM: Automatic sheet thickness measuring
- D-Crown: dynamic crowning
- E-Drive energy-saving drive system

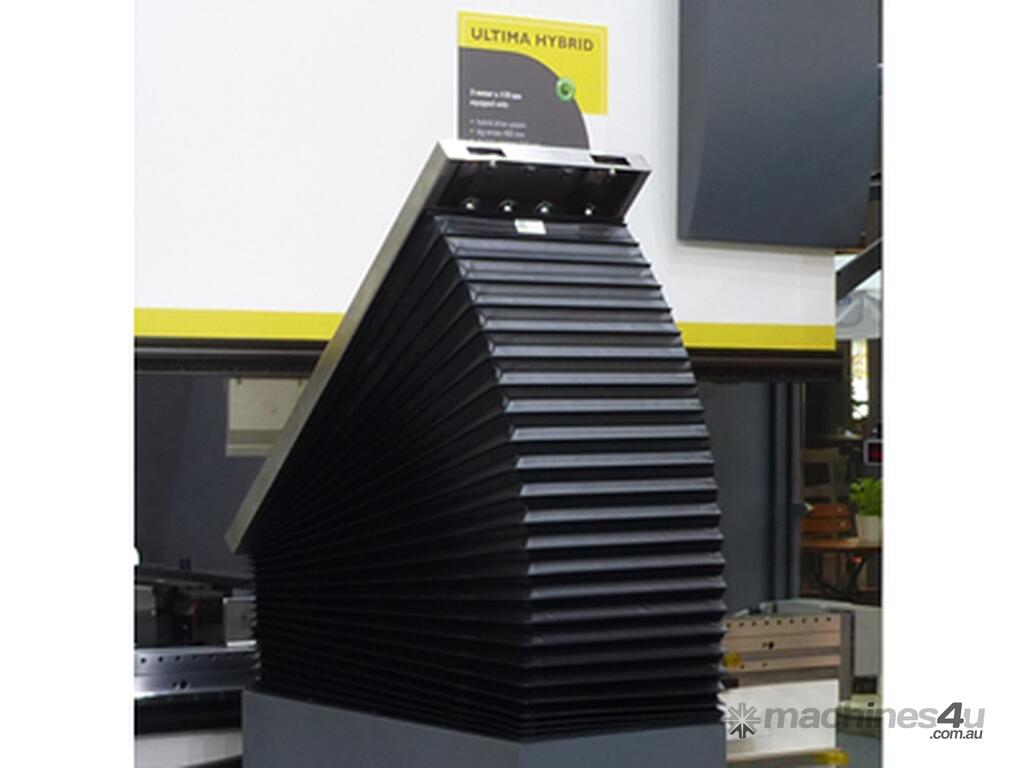

- Bending Aid(s) CNC-controlled
- Automatic hydraulic hemming
- Servo controlled moving table
- X3
- 6 axis backgauge: X1X2 / R1R2 / Z1Z2
- Automatic correction database

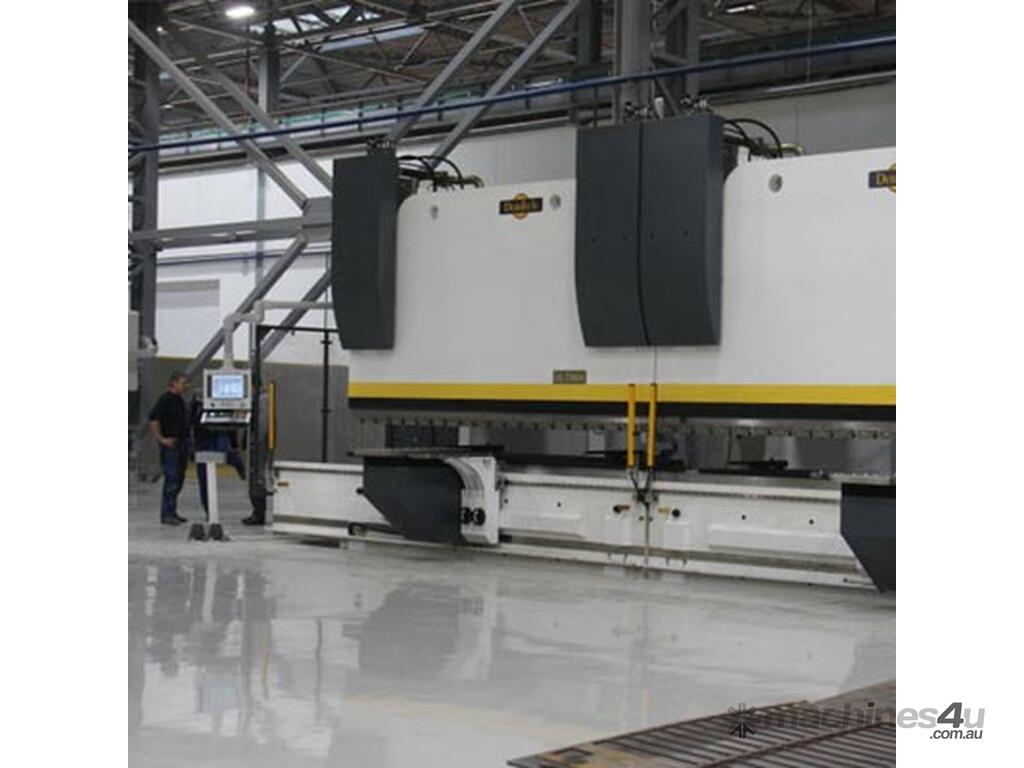

- Tandem configuration
- Backgauge with pneumatic support system
- Remote assistance
- Barcode Scanner
- 3D controller
- Hybrid hydraulic system

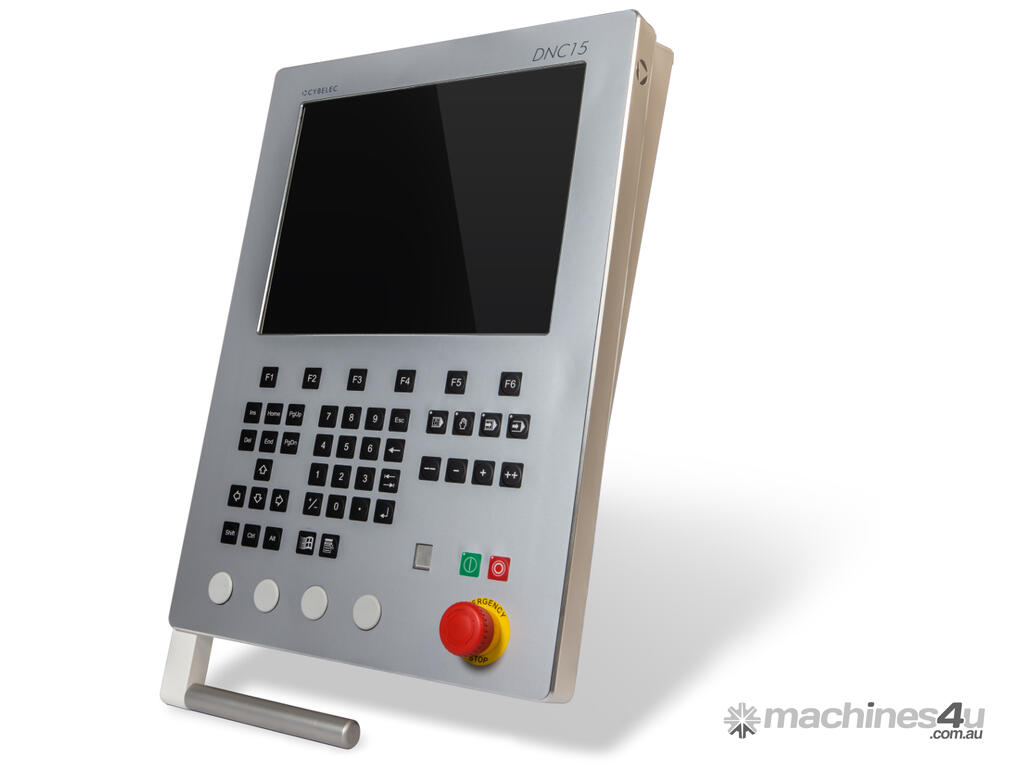

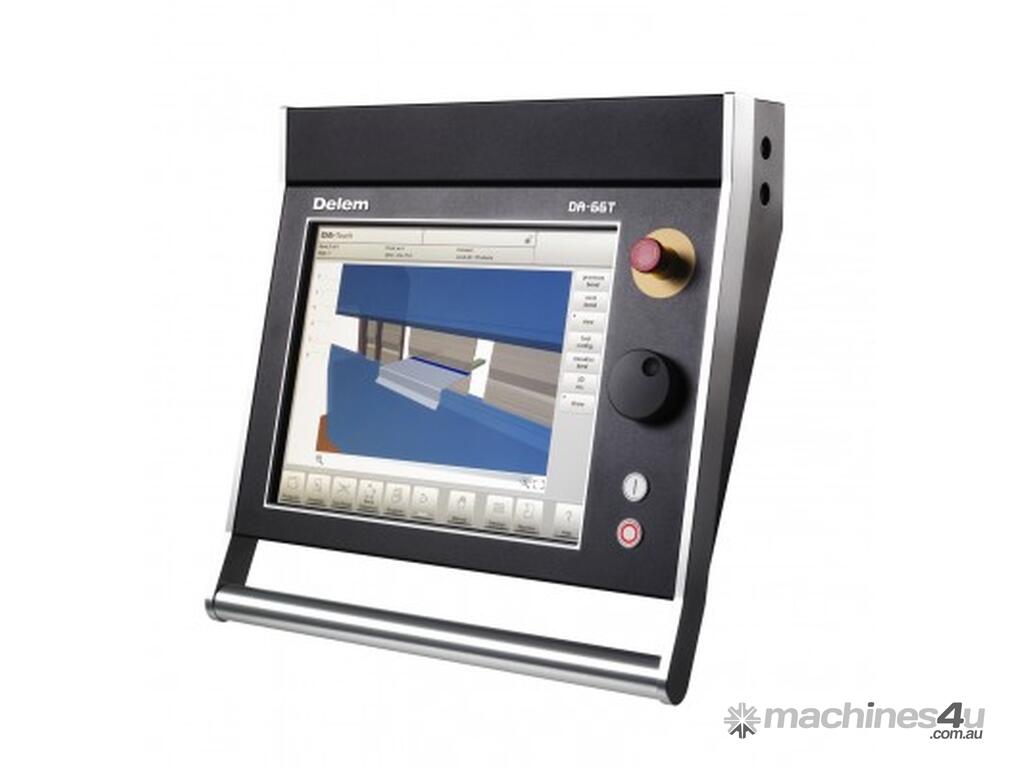

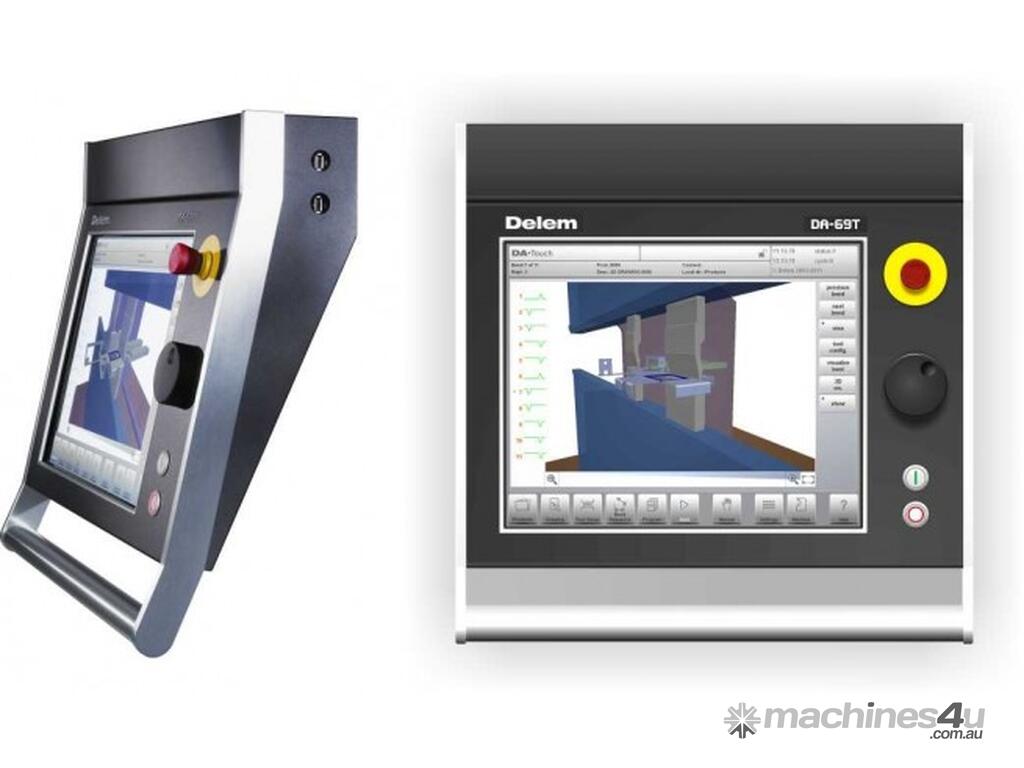

- ESA or DELEM or Cybelec controller
- Lazersafe safety light guard with safety controller
