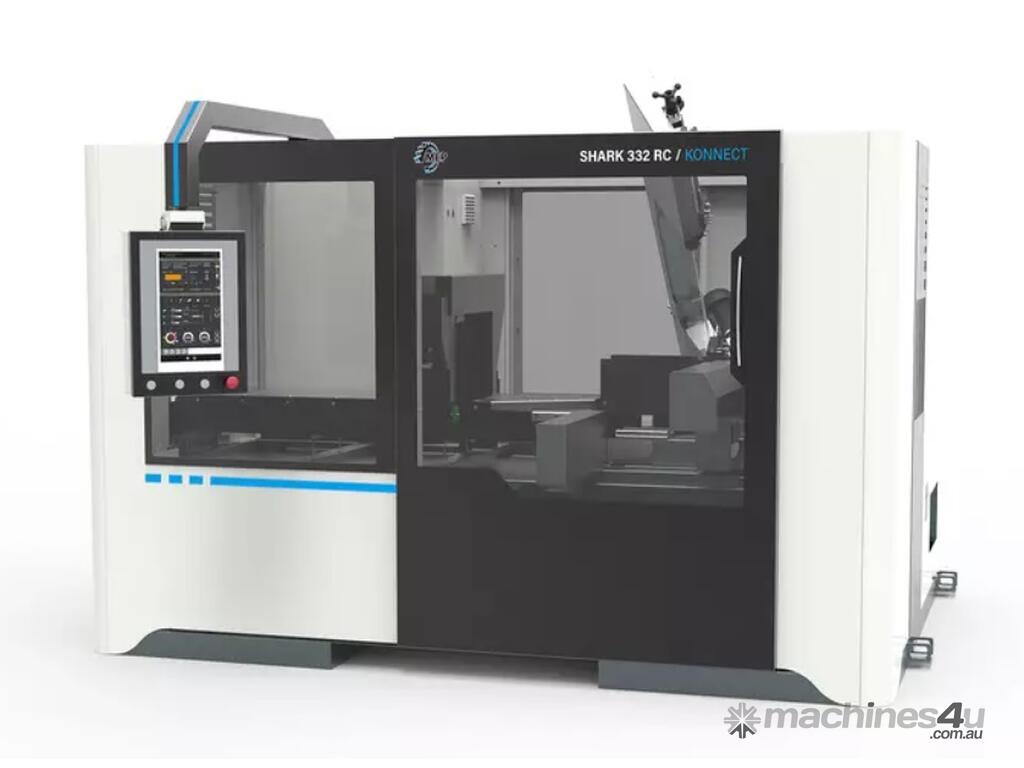

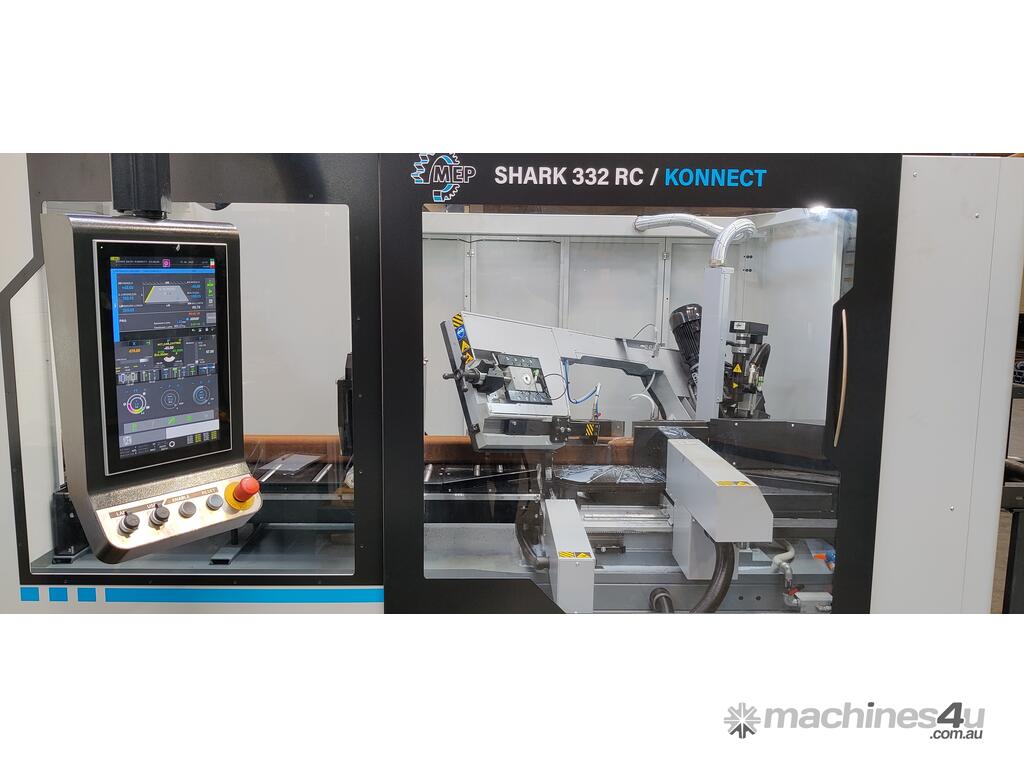

PROGRAMMABLE BANDSAW - MITRES LENGTH AND THE ANGLE! MEP 332RC Konnect

Are you looking for a top quality CNC Mitre Band Saw?The MEP Shark 332 RC Konnect is an investment in Italian precision and durability. It will dramatically reduce the labour required in the cutting process. '

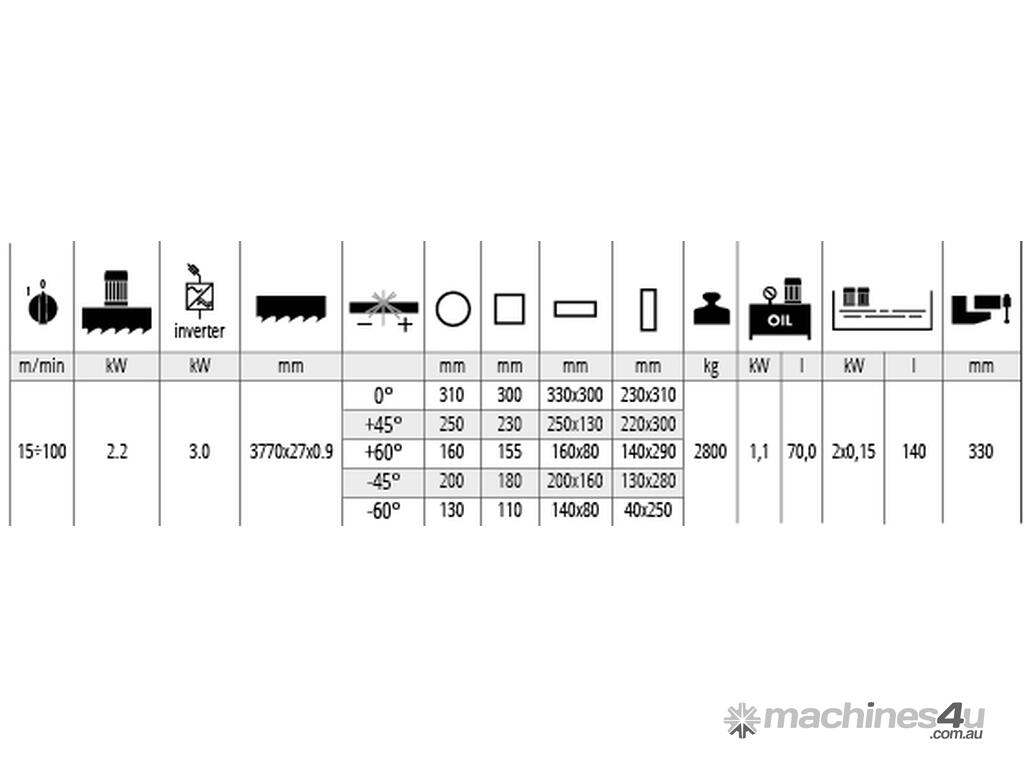

Capacity: 330 x 300

The Konnect features a programmable length 1.5m stroke length and angle capability and you can monitor and program for real-time machine management.


UNIQUE FEATURES

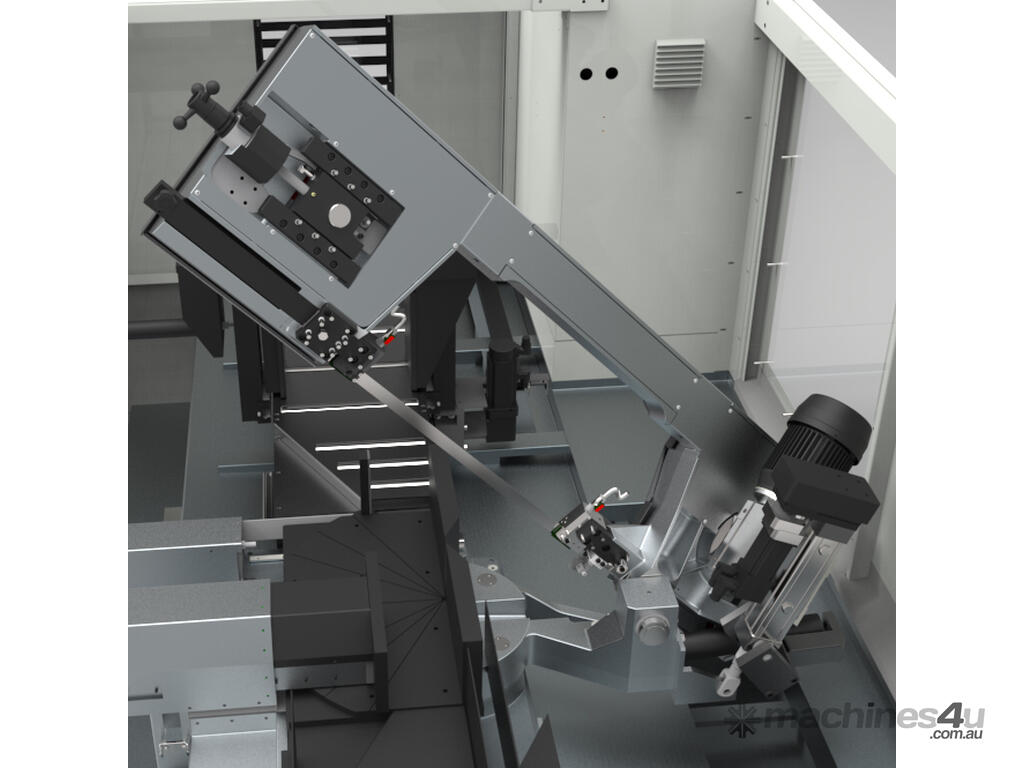

• Head programmable both ways from 60 degrees left to 60 degrees right.

• Feeding length up to 1500 mm in a single stroke driven by a stepper motor and ball screw assembly. It will automatically calculate number of strokes required for any programmed length.

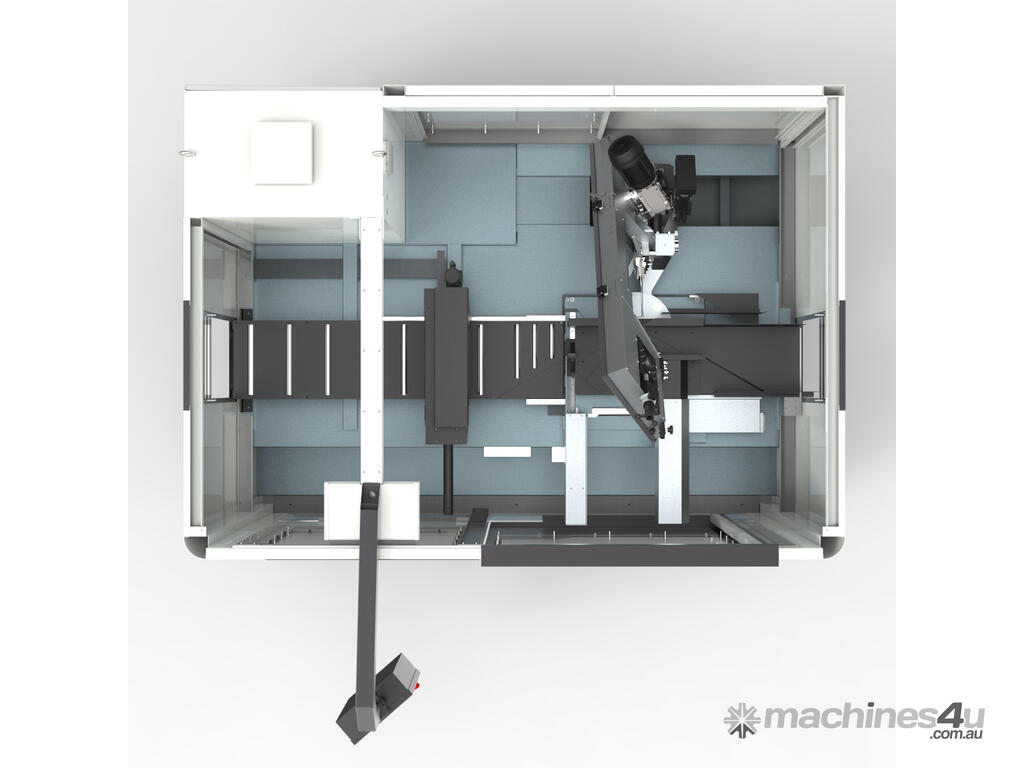

• Full “In Box” design for maximum safety and cleanliness.

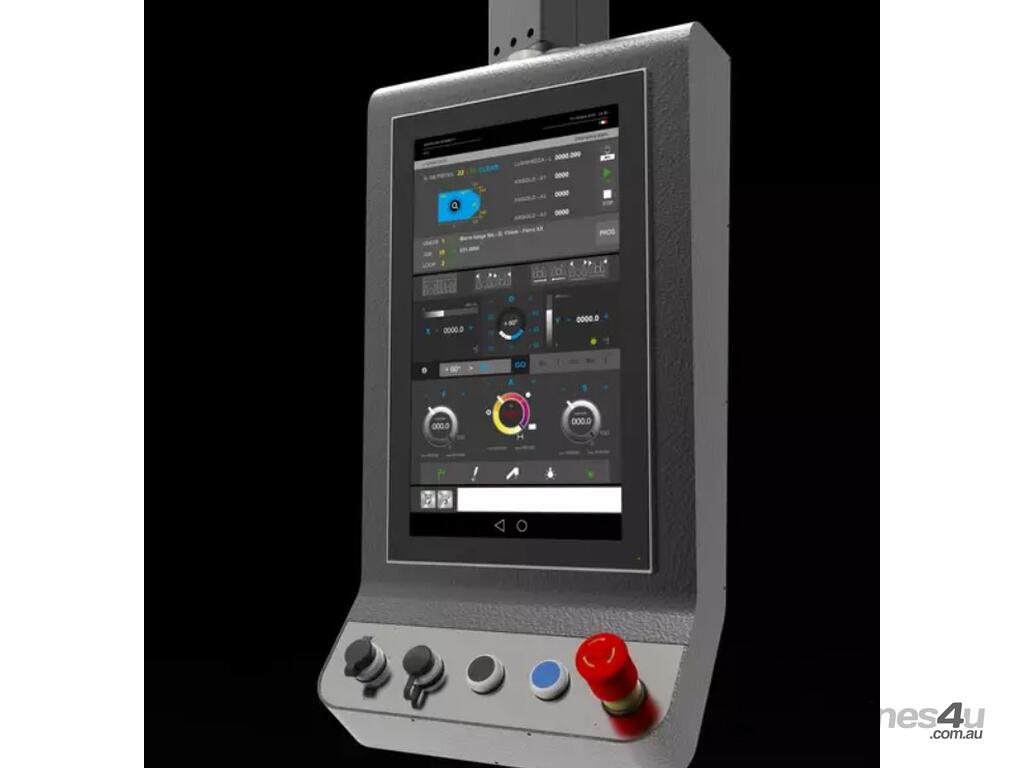

• The 17” Colour Touch Screen PC Control on an articulated arm with a user-friendly graphic interface allows the operator to program and optimise all jobs in real-time.

• The structure in sturdy G25 Cast Iron absorbs vibrations and provides excellent stability for optimal accuracy and blade life.

• The control panel allows for easy viewing of machine operations in real-time.

• Infinitely adjustable cutting speed from 15 to 100 m/min to perfectly match your cutting requirements.

• Electronically detects material for the starting point of the cut

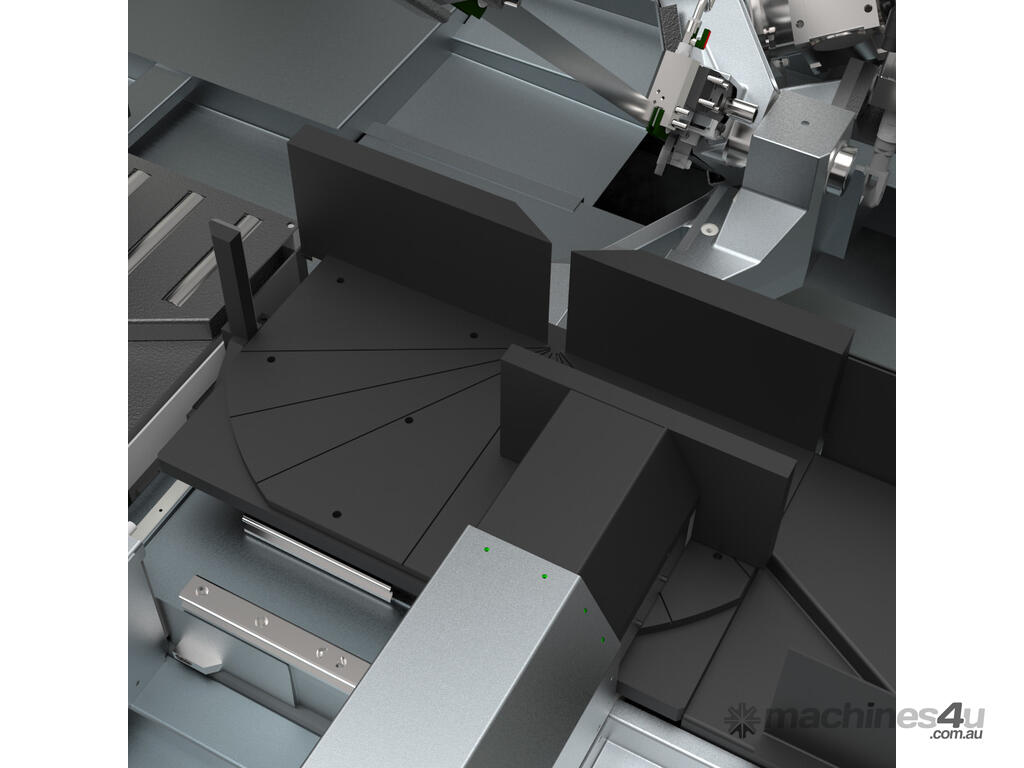

• The saw has a double vice that automatically sets according to the cut angle.

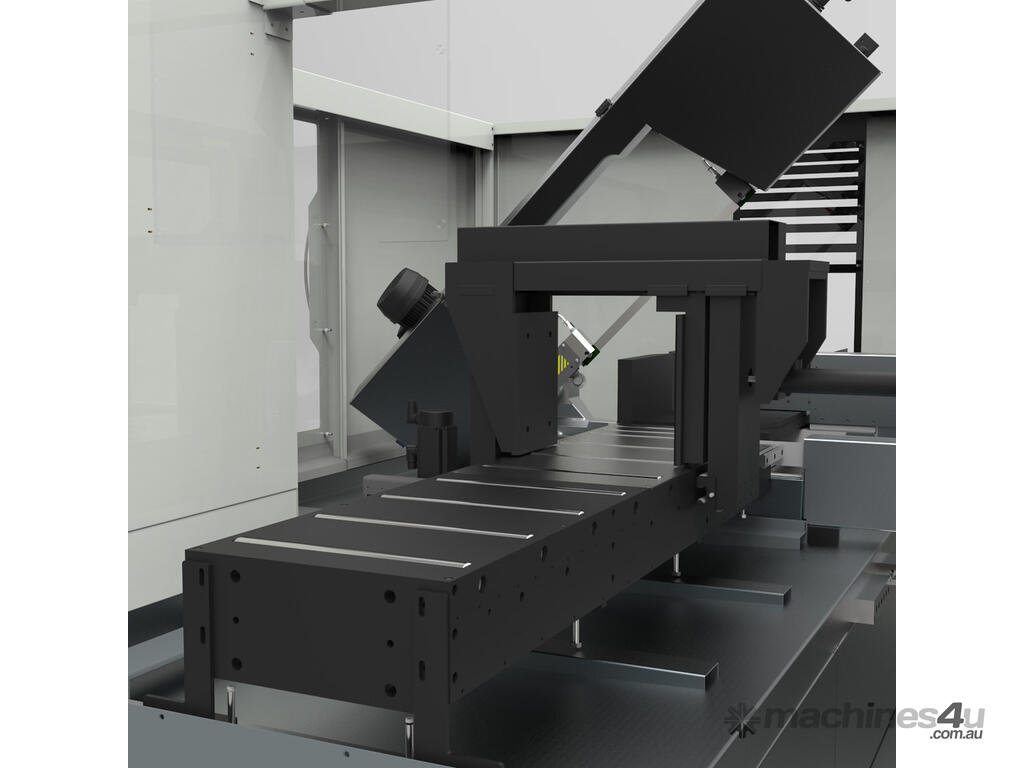

• The feeder vice has sideways movement for self-adjustment in case your material is not straight.

• Electronic transducer for blade tension to ensure the blade is always under perfect load.

• Sound and flashing indicator to let the operator know when the cycle is finished or in case of problems.

The build quality, cast iron construction, and overnight delivery of any blades or parts ensure you will get years of reliable, fast, straight cutting.

Perfect cuts every time
