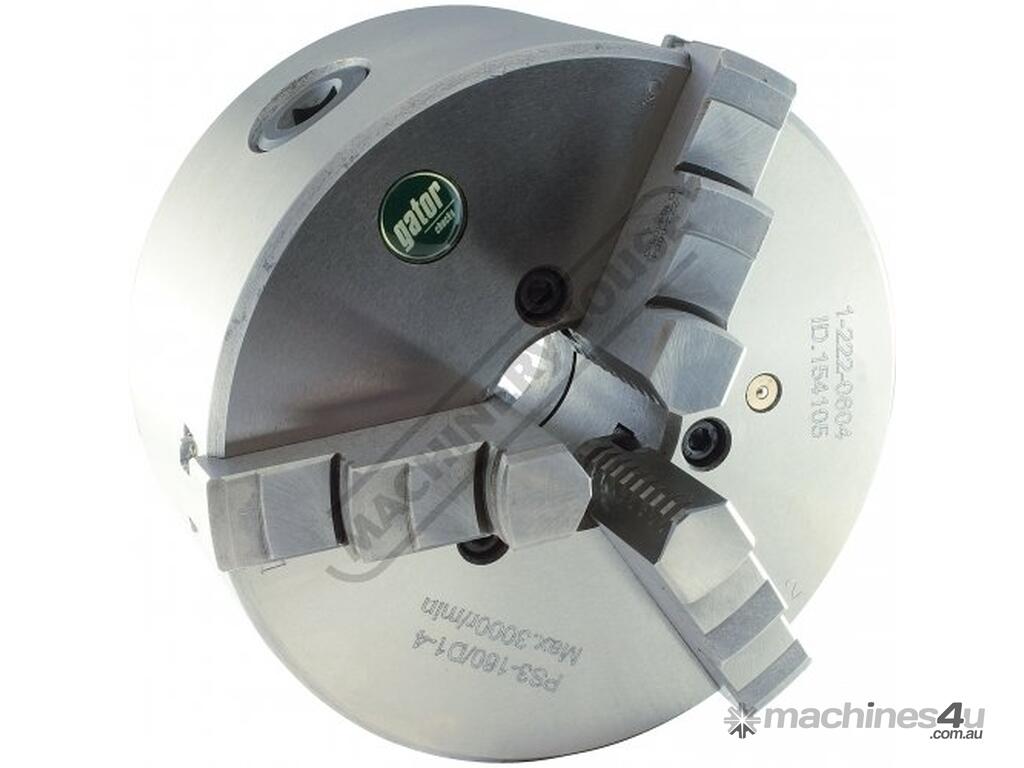

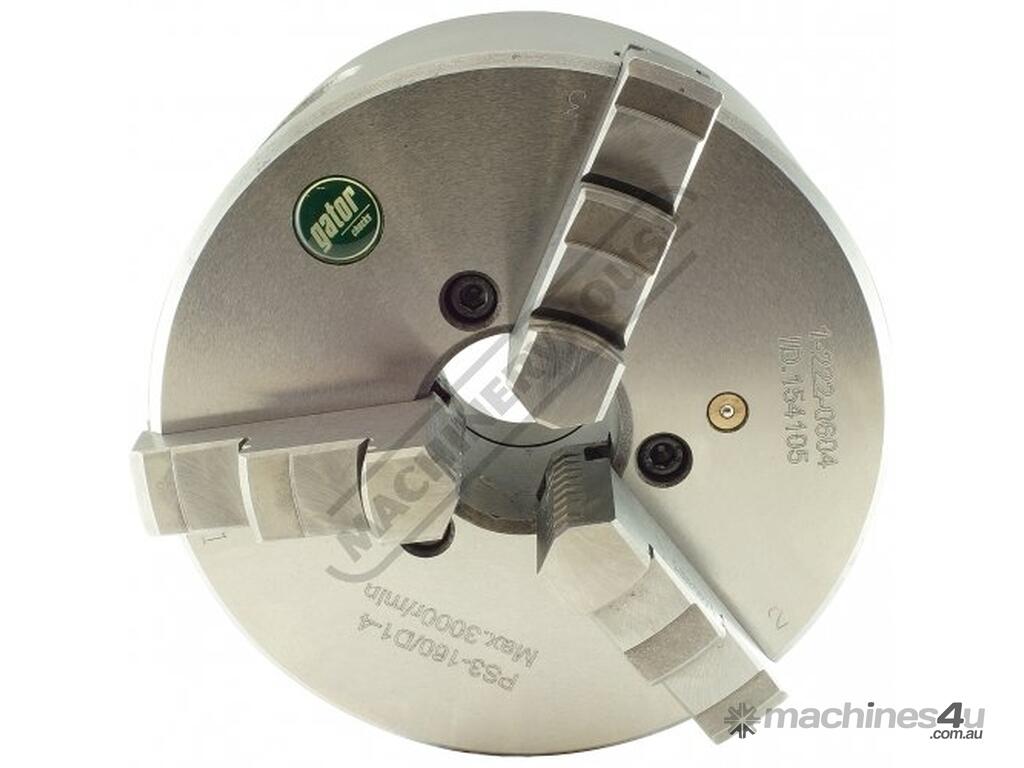

PS3-160/DI4 3 Jaw Self Centring Lathe Chuck Ø160mm D1-4 Camlock Mount

GATOR PS3-160/DI4 3 Jaw Self Centring Lathe Chuck Ø160mm D1-4 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C7064

PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.

Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.

Features:
Comprehensive quality assurance and accuracy testing ensure standards remain high
Each chuck is supplied with a set of inside and outside jaws and a chuck key
All bearing surfaces are precisely machined
Scroll plate is drop forged from fine alloy steel and finished with case hardening
Jaw teeth guideways & pinions are hardened & ground

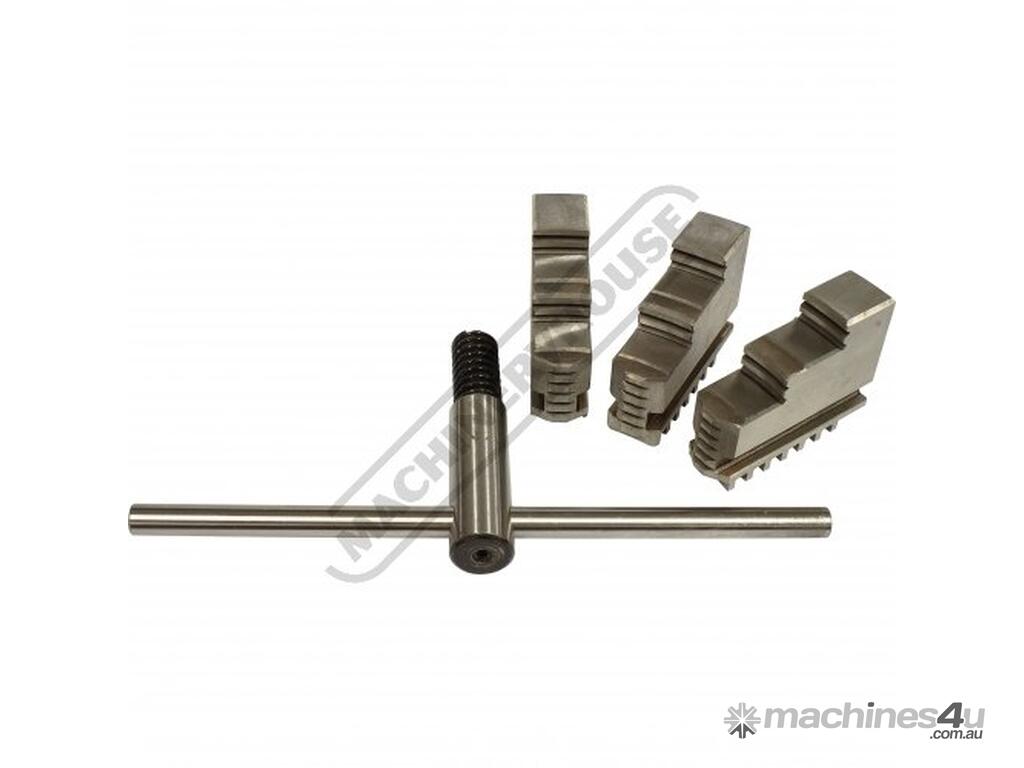

Includes:
- Outside jaws
- Inside jaws
- Chuck key



Specifications:
ORDER CODE: C7064
Chuck Size (mm): Ø160

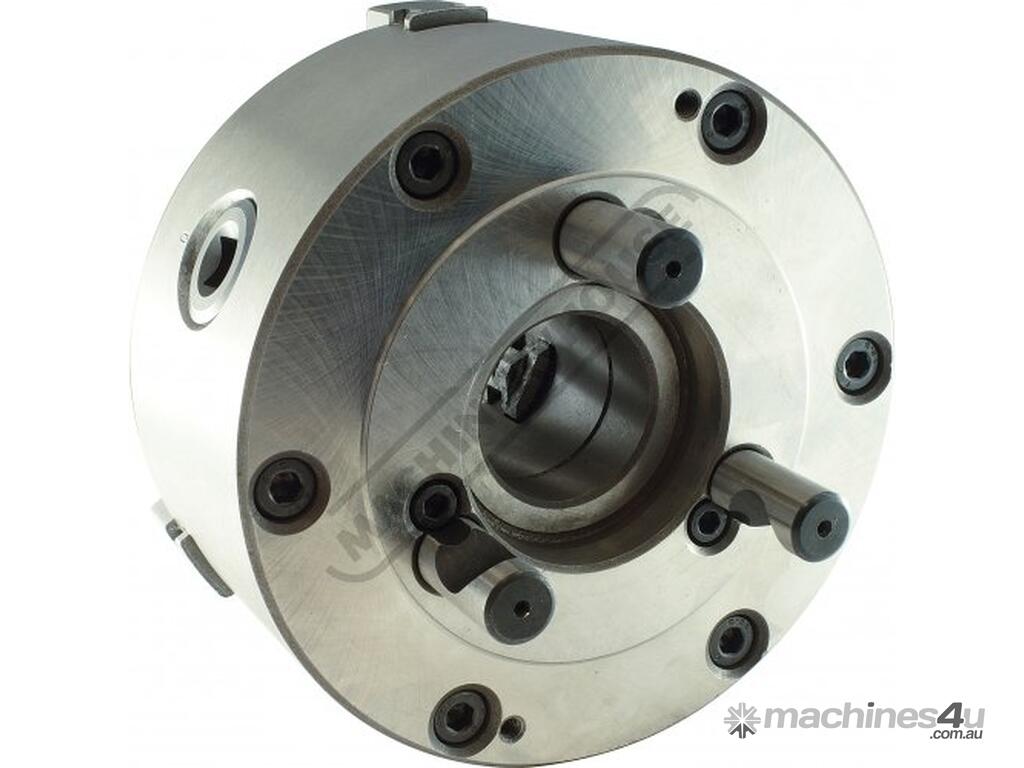

Camlock: D1-4
Outside Jaw (mm): 3 - 64
Inside Jaw (mm): 50 - 160
Speed (rpm): 3000
D1 (mm): 63.52
D2 (mm): 82.6
D3 (mm): 42
H (mm): 105.5
H1 (mm): 81.5
h (mm): 13
Nett Weight (kg): 10


To Purchase Online Please Visit The Machineryhouse & Search For 'C7064'
