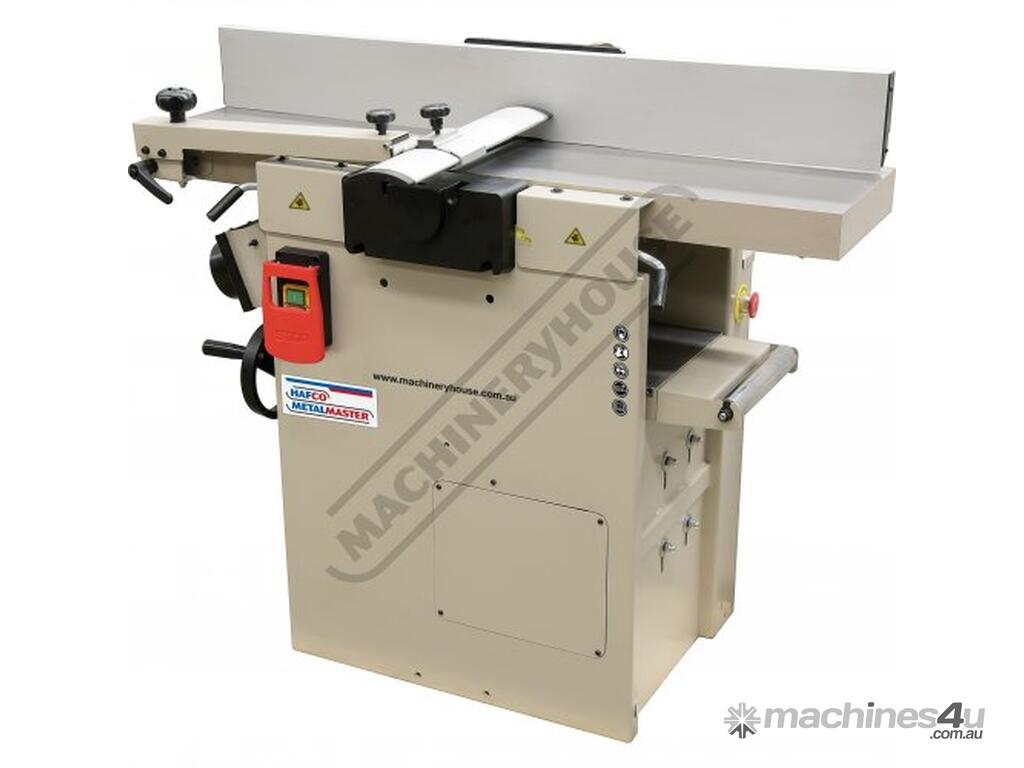

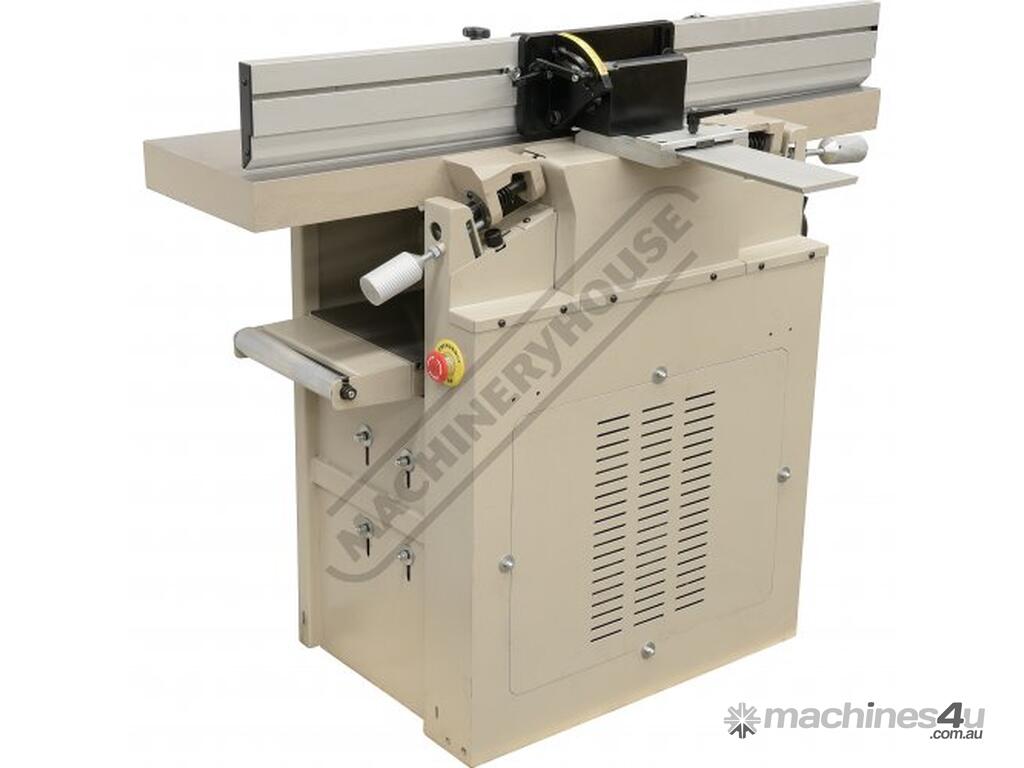

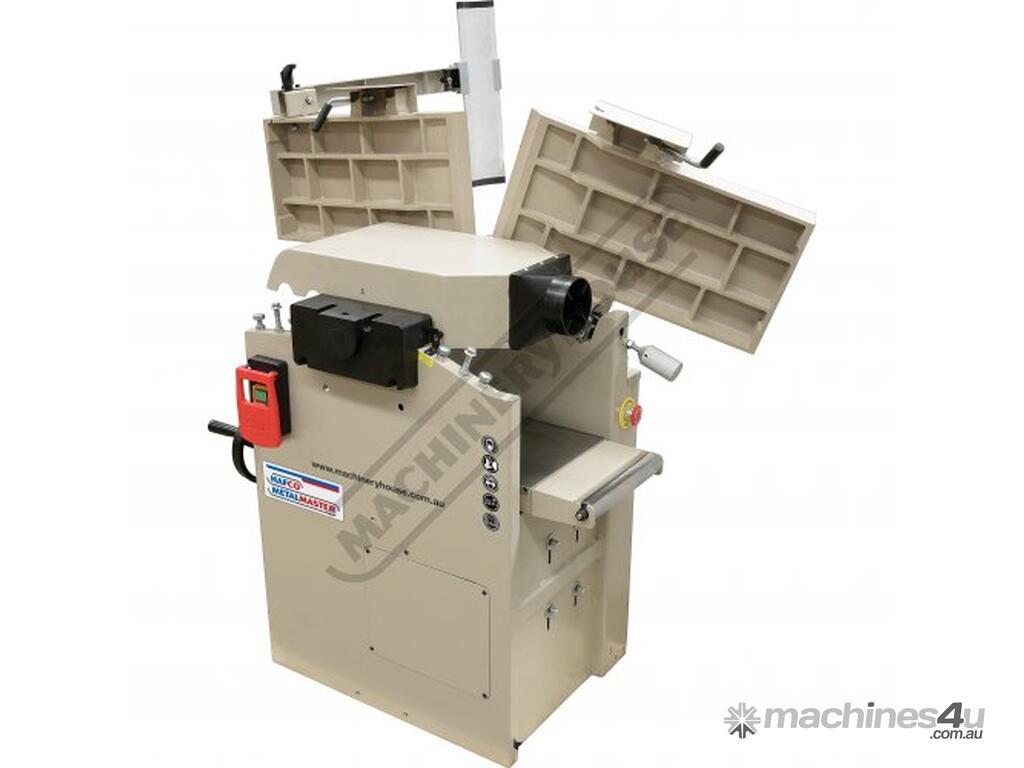

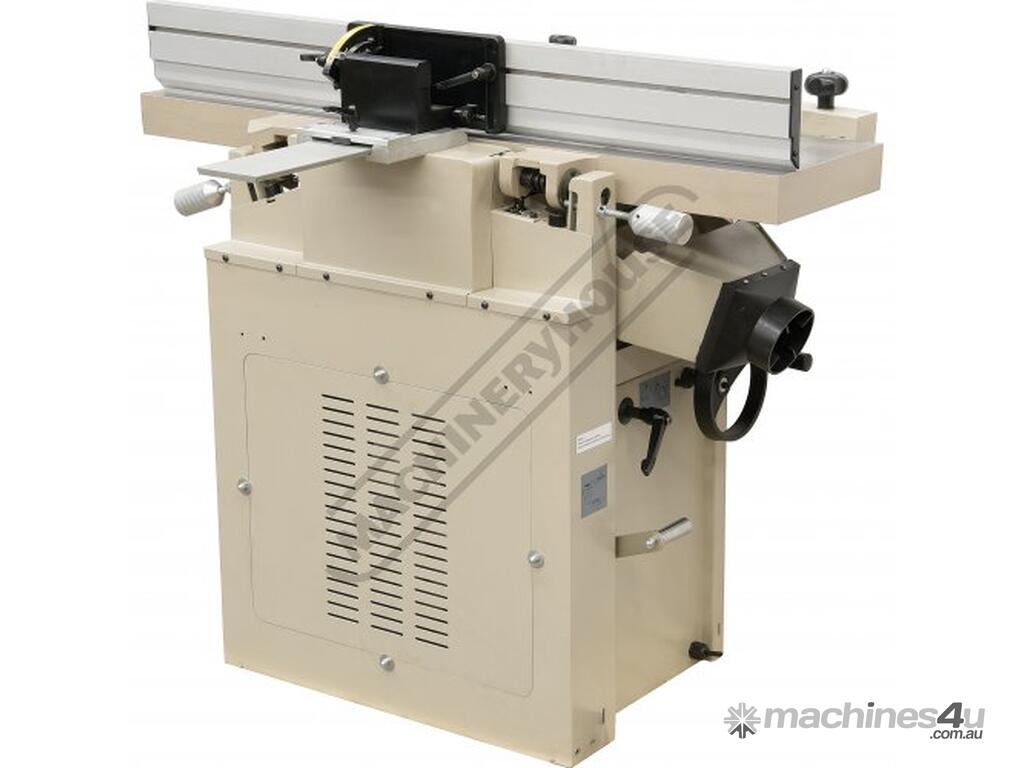

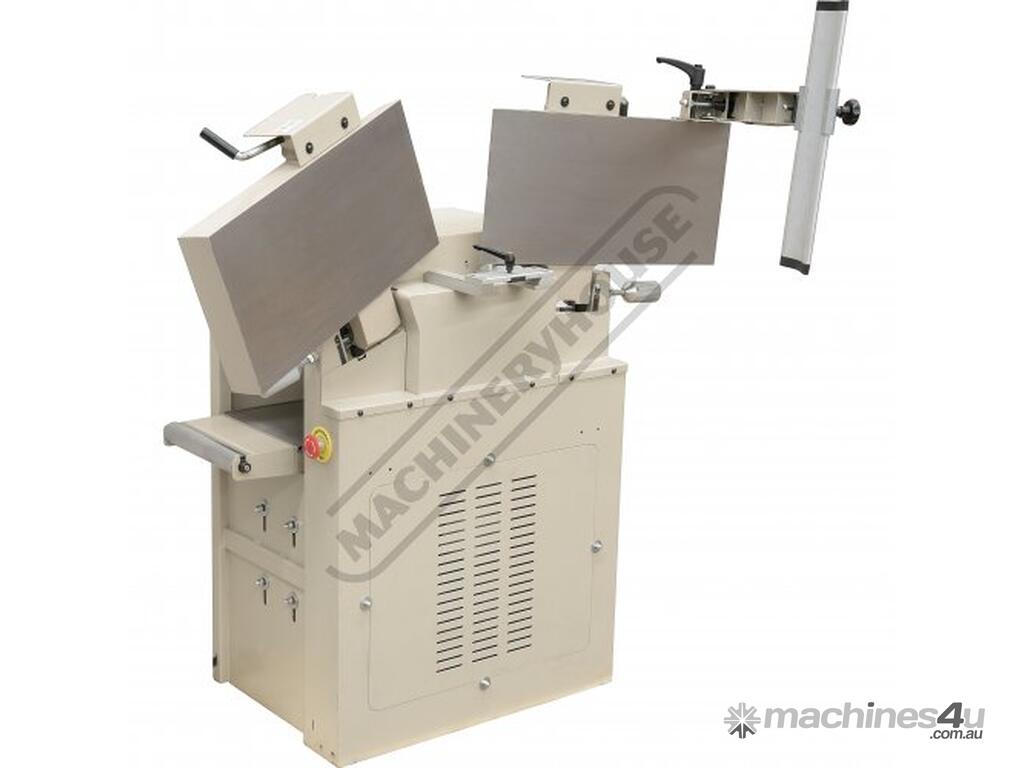

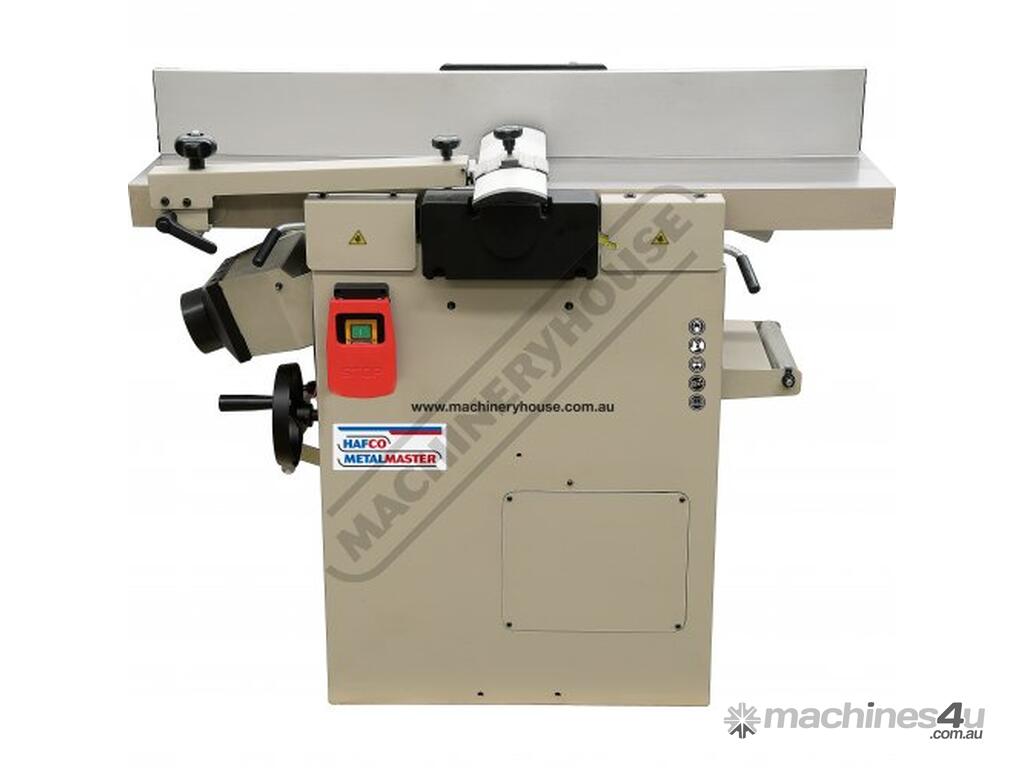

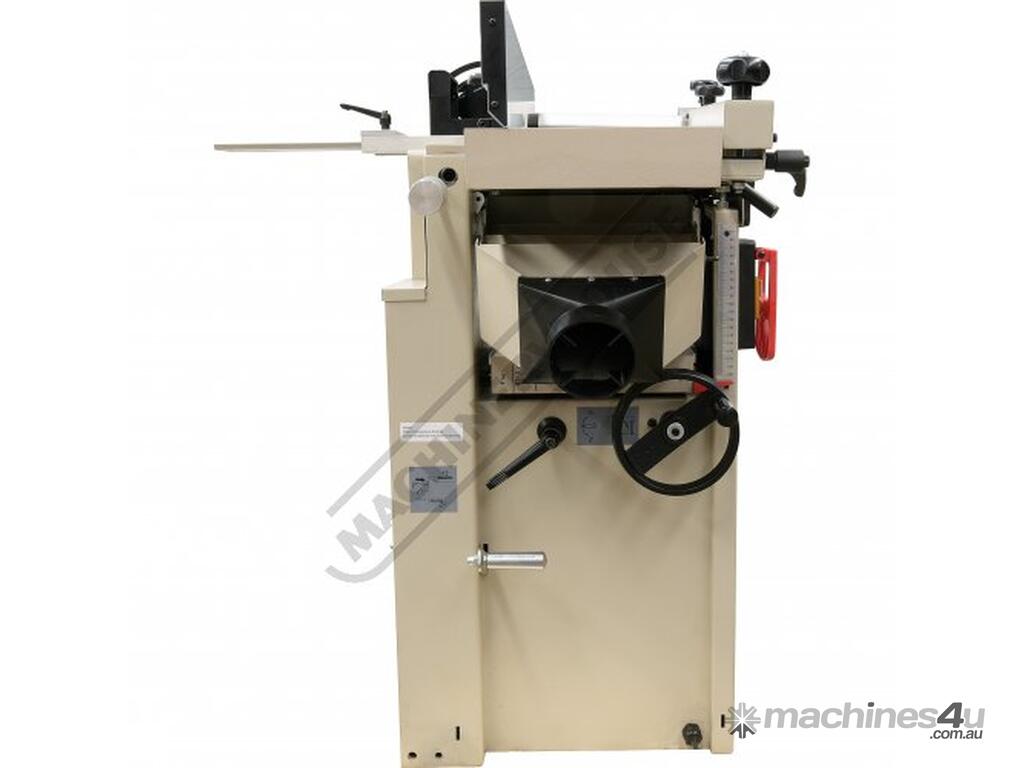

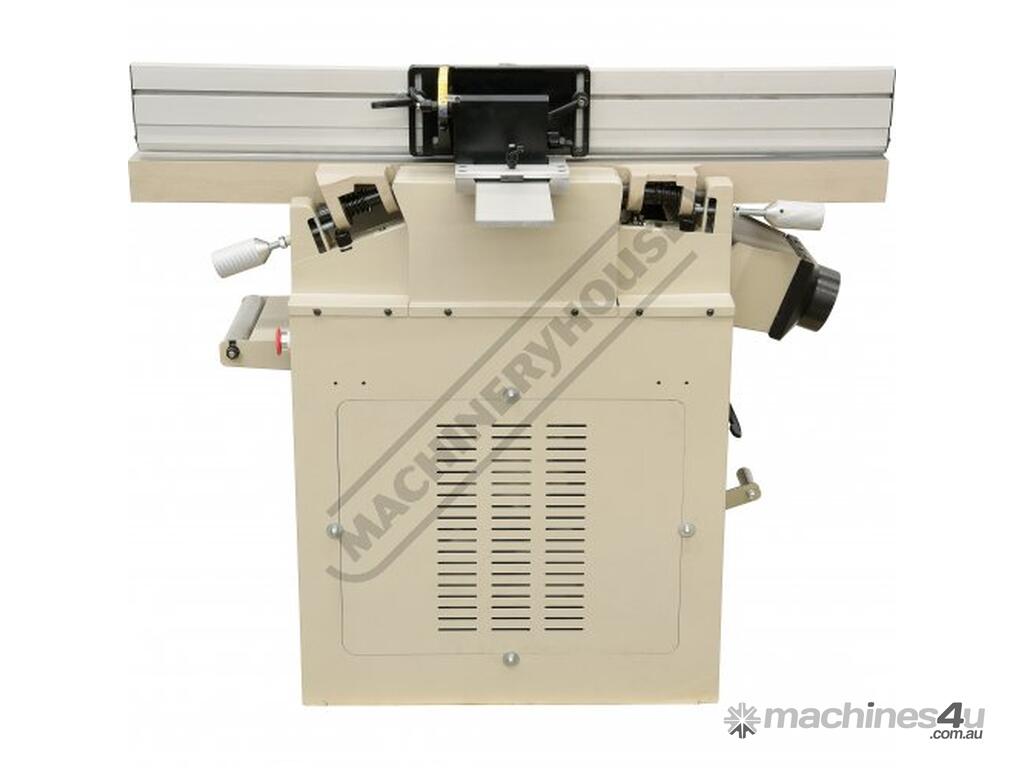

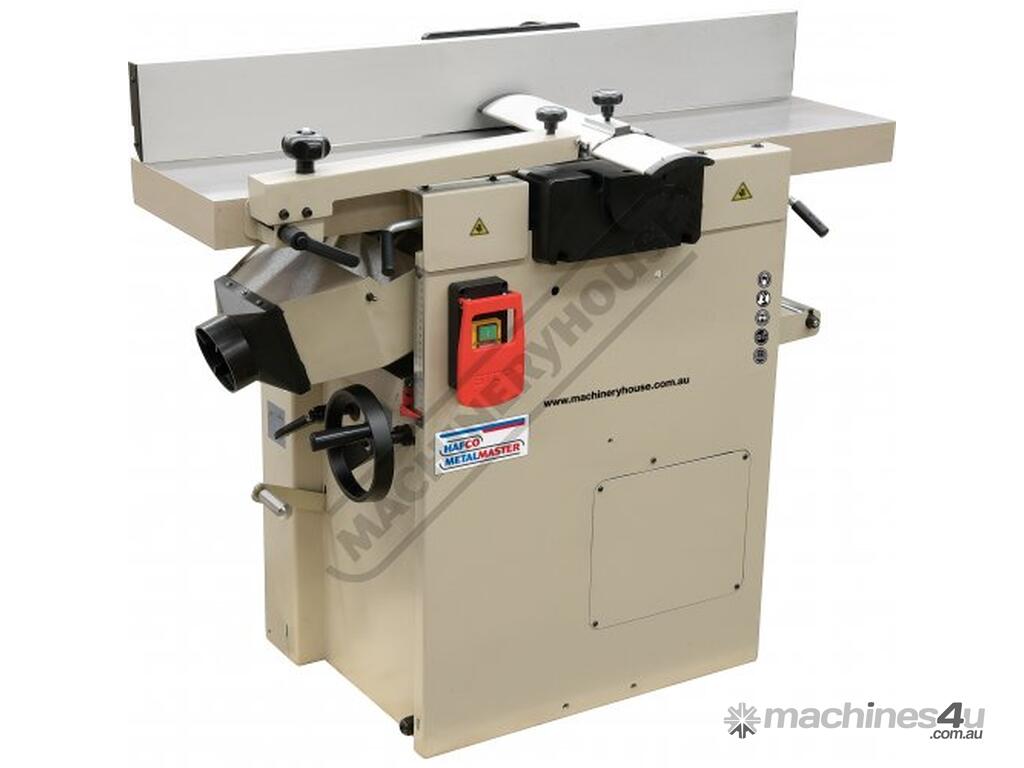

PT-254S Planer & Thicknesser Combination - Spiral Cutter Head 254mm Wide Planer Capacity 254 x 190mm

HAFCO-WOODMASTER PT-254S Planer & Thicknesser Combination - Spiral Cutter Head 254mm Wide Planer Capacity 254 x 190mm (W x H) Thicknesser Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W611

You now don't have to choose between buying a seperate planer or a thicknesser – with the PT-254S you can have the best of both worlds in one machine. Hafco Woodmaster has designed a machine now that includes a "Spiral Cutter Head" that cuts your timber effortlessly smoother and quieter than the conventional HSS blades.

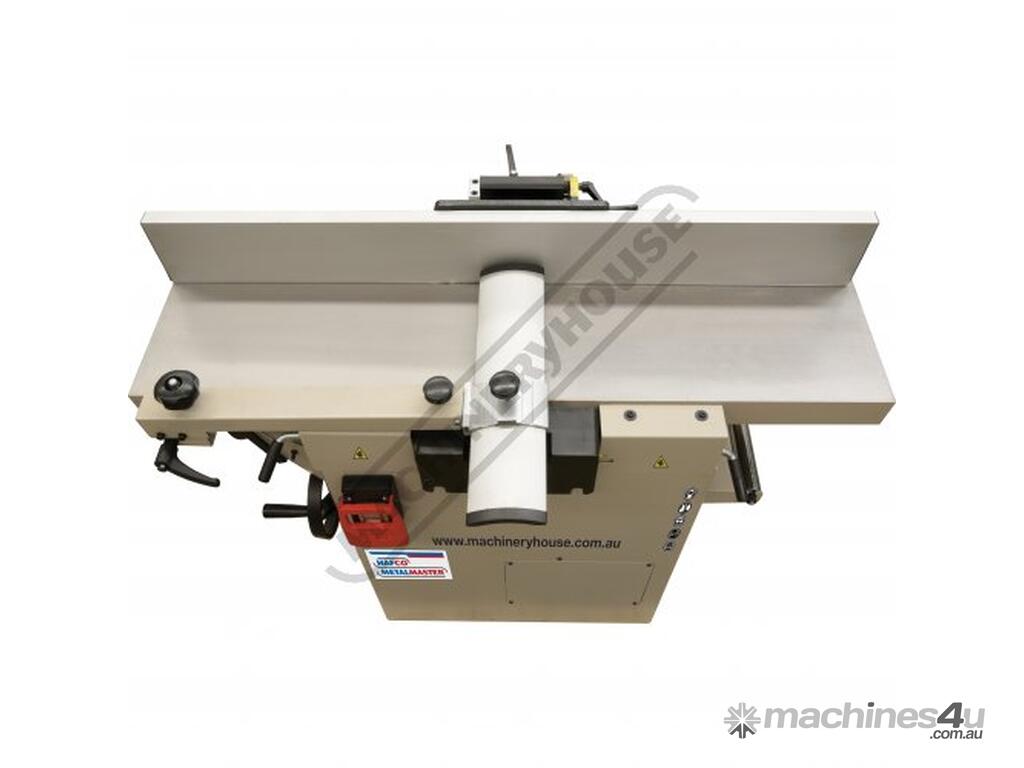

The surfacing tables are 1100mm long, made from cast iron and precision ground finish to ensure material to slide smoothly to produce accurate results. The spiral cutter head is fitted with German quality carbide inserts and powered by a powerful 2.2kW / 3hp, 240V motor that can handle the toughest timbers to achieve superior finish every time.

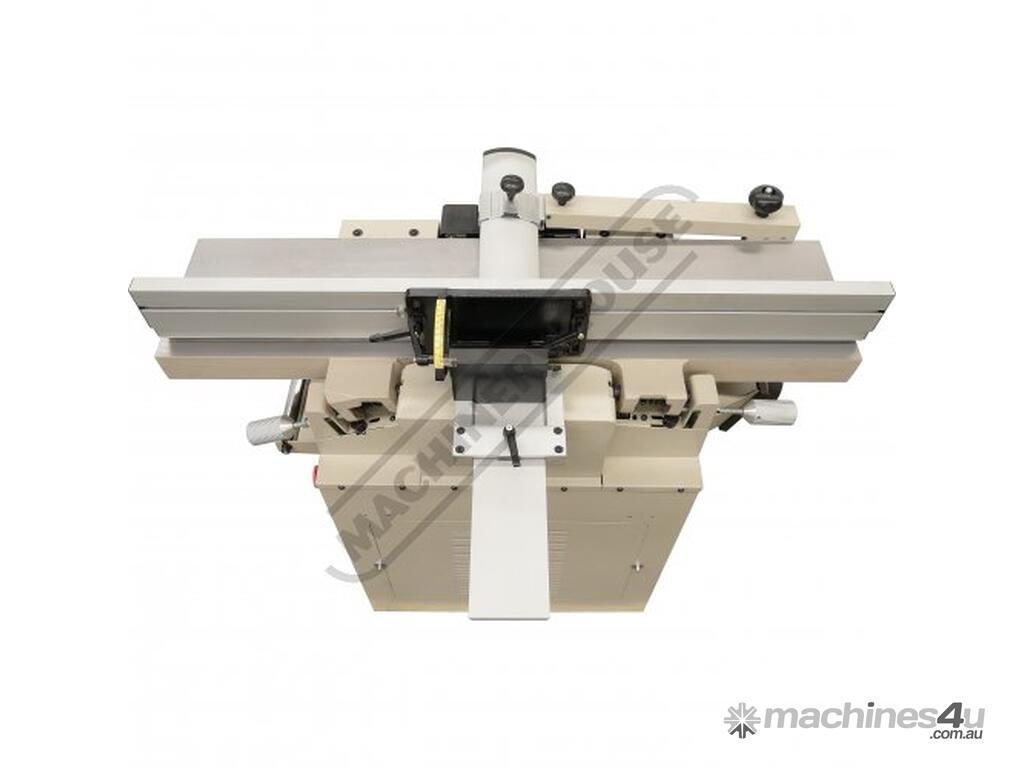

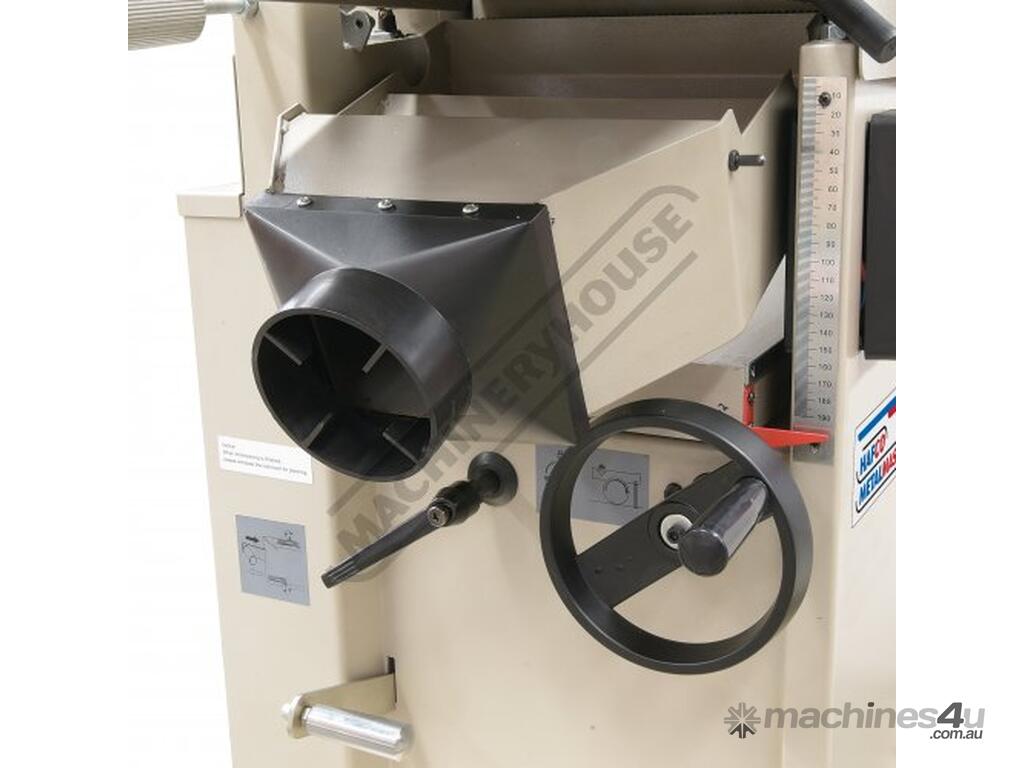

This versatile machine features an extra heavy duty cast aluminium extruded fence with centered controls for quick adjustments, and a built-in dust chute capable of handling both operations.

Features:

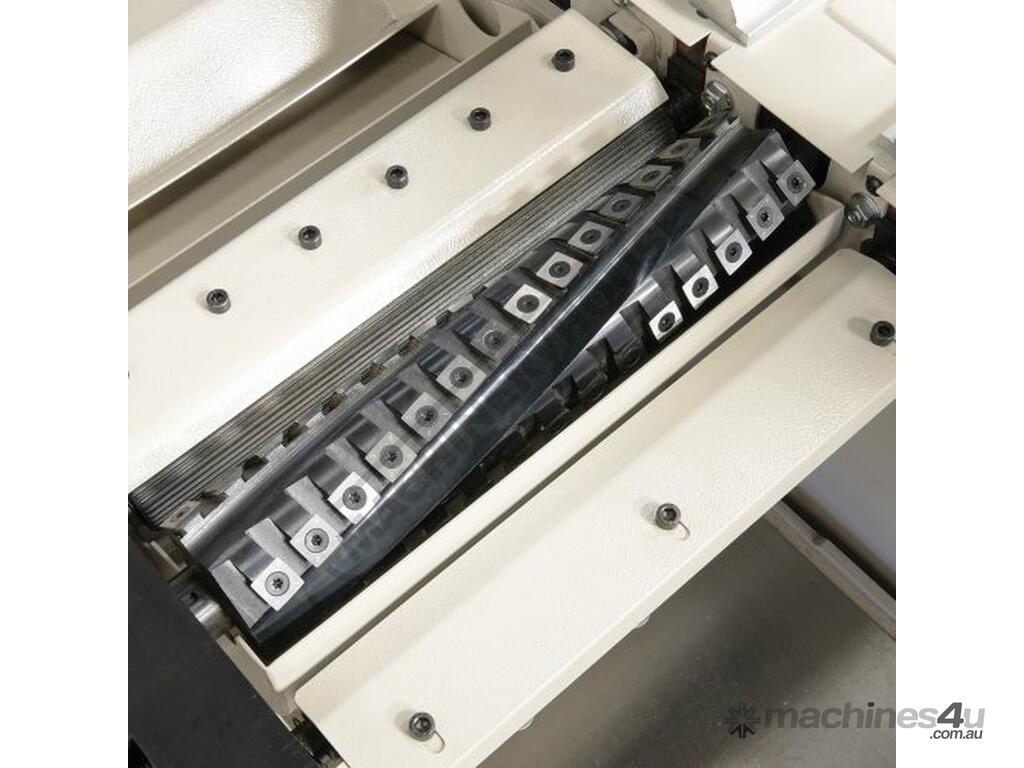

Spiral cutter head with 44 carbide inserts
Heavy-duty 2.2kW / 3hp 240V motor
254mm wide x 190mm high thicknesser capacity
Auto-feed thicknesser rollers 5m/min
4800rpm cutter head speed
1100 x 265mm jointer table size
Large aluminium fence tilts 45-90º with lever locking system and unique sliding design
Heavy duty cast iron tables with ground finish to ensure accuracy and flatness
Large hand-wheel for quick and precise adjustments of thickness height
100mm dust chute

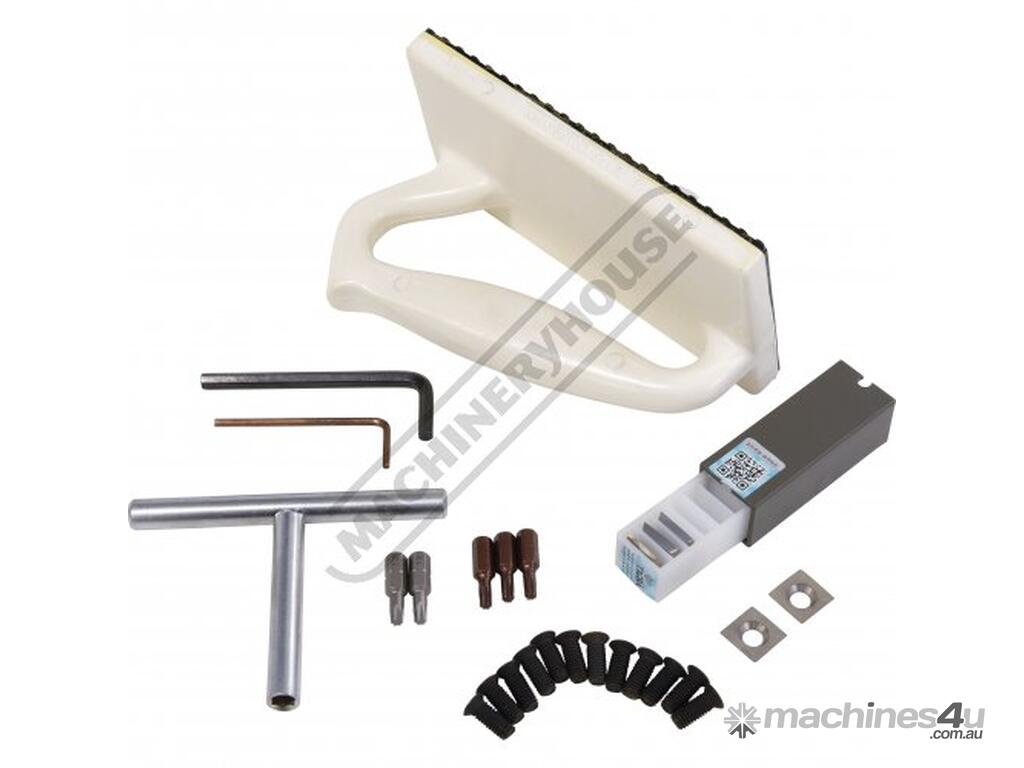

Includes:
- 5 x spare carbide inserts
- 10 x spare insert screws



Specifications:
ORDER CODE: W611
MODEL: PT-254S
Planer Capacity (mm): 254
Cutter Head Type (HSS / Carb): Carbide Inserts
Table Length - Planer (mm): 1110
Table Height - Planer (mm): 810
Length of Infeed Planer Table (mm): 525
Length of Outfeed Planer Table (mm): 525
Fence Length x Height (mm): 1080 x 130
Thicknesser Capacity (mm): 254 x 190
Table Length - Thicknesser (mm): 700 (with roller extension support)
Feed Speed (m/min): 5
Cutter Block Diameter (mm): 70
Cutter Block Speed (rpm): 4800
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1100 x 600 x 940
Nett Weight (kg): 216
