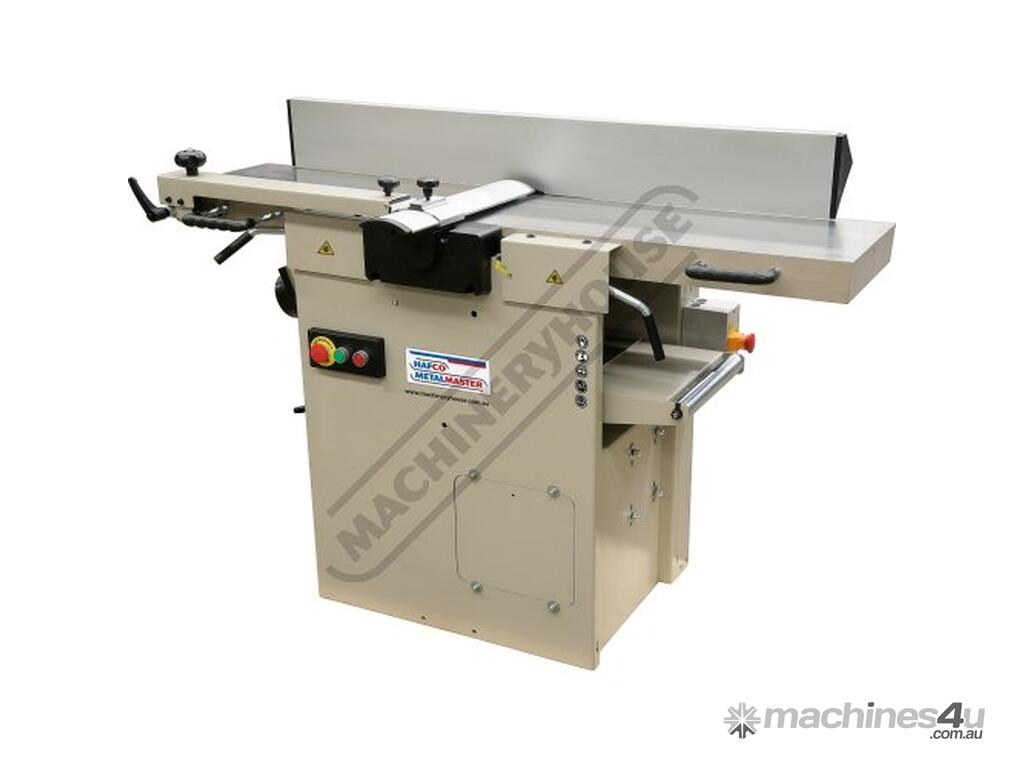

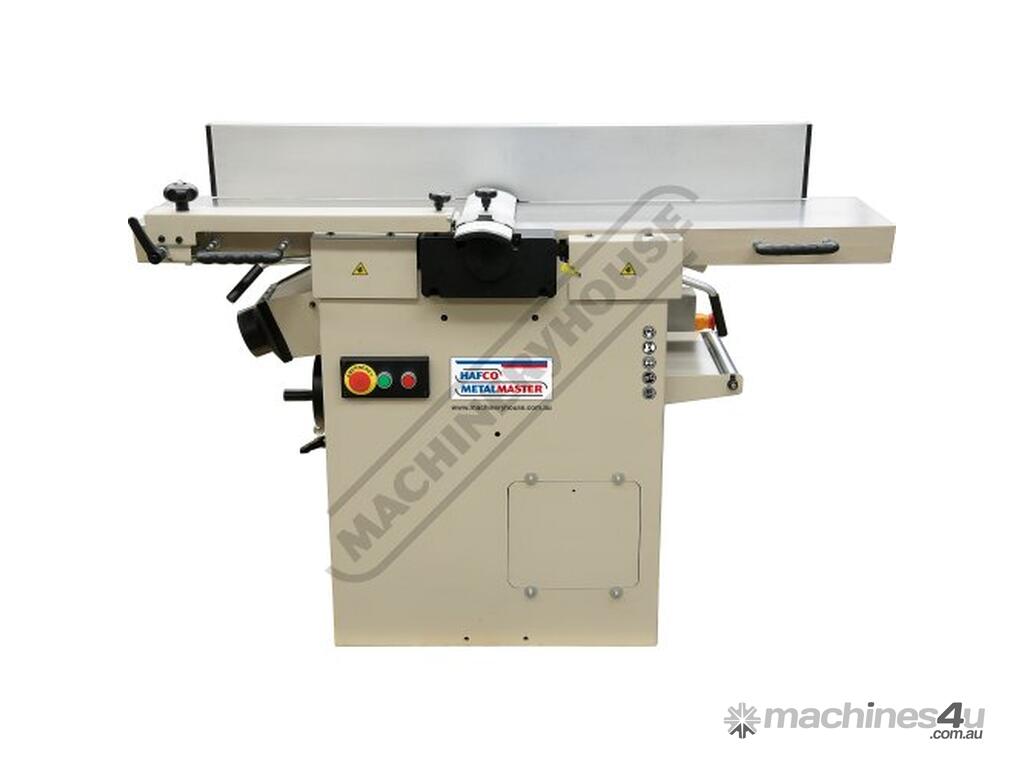

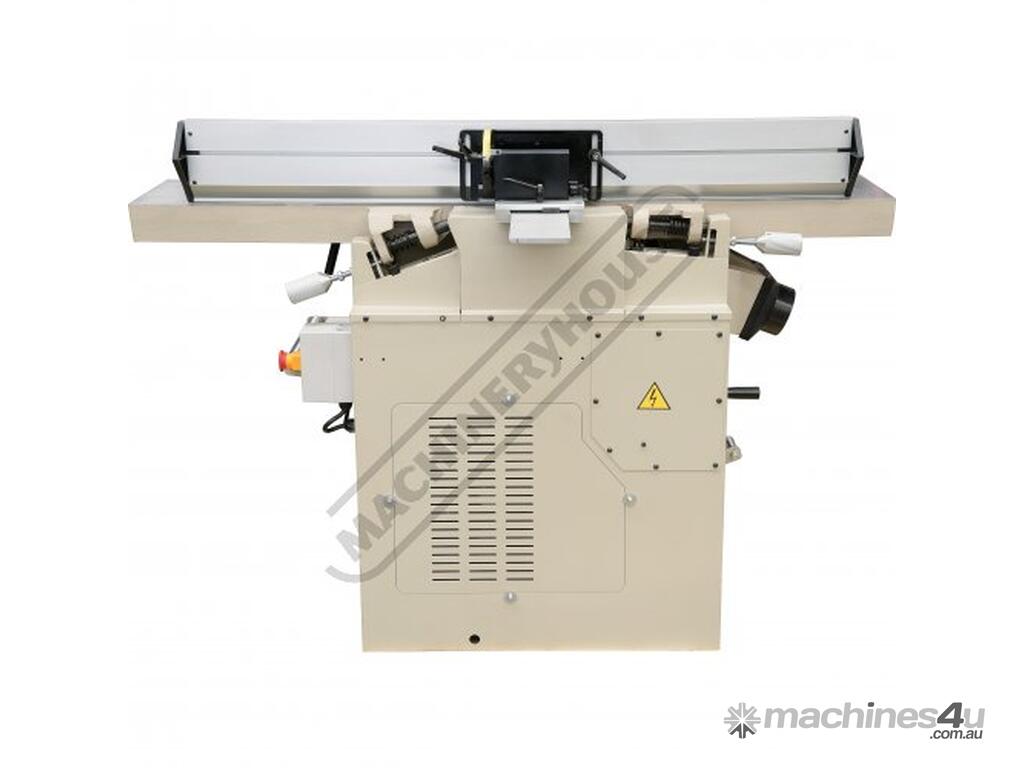

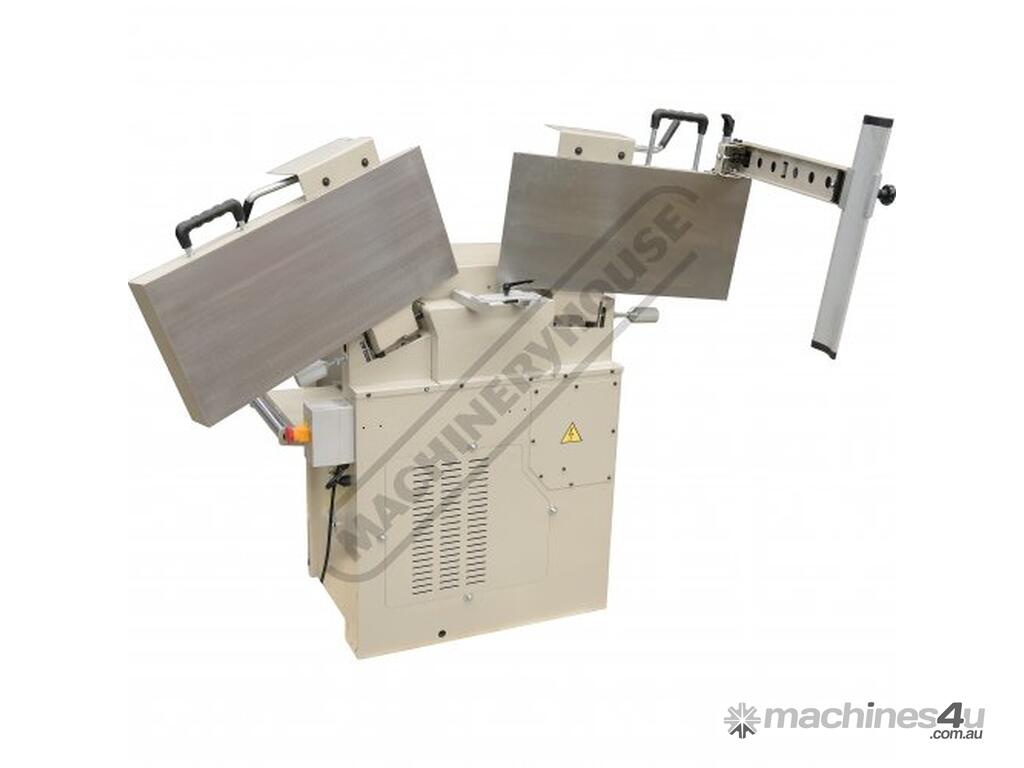

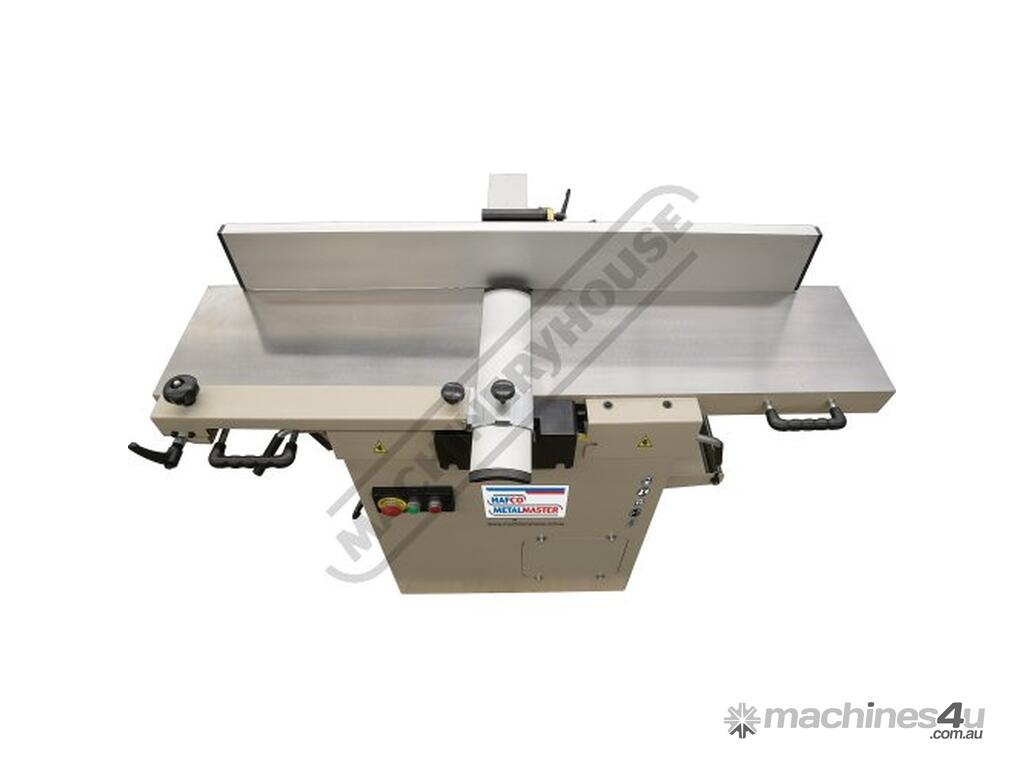

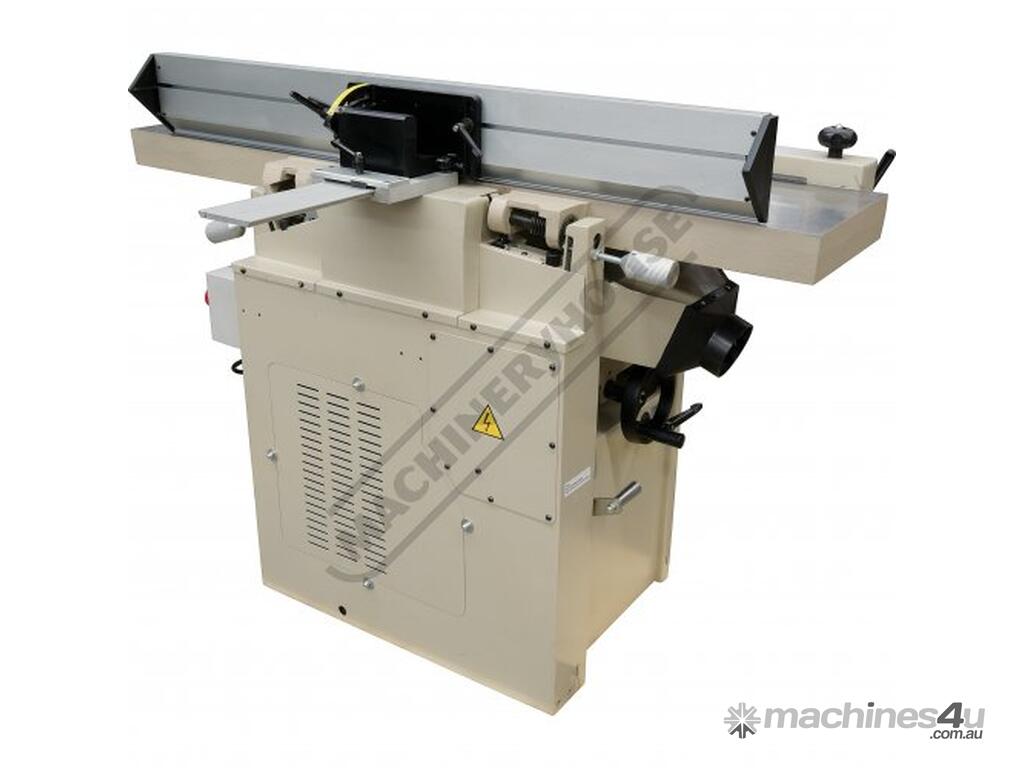

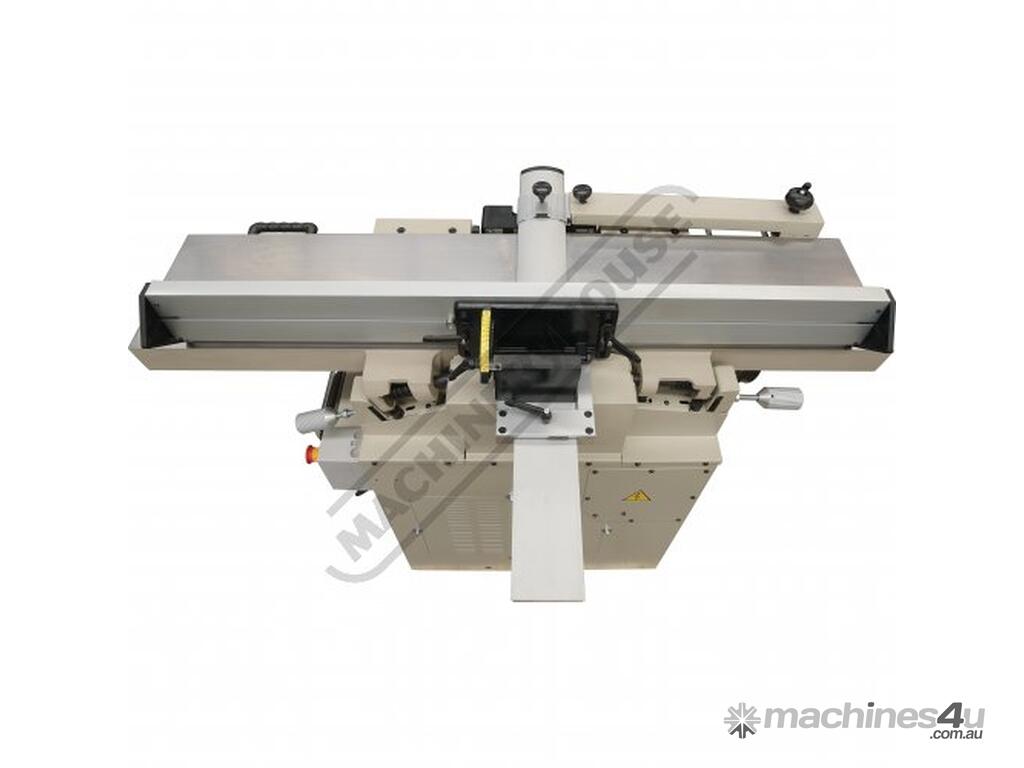

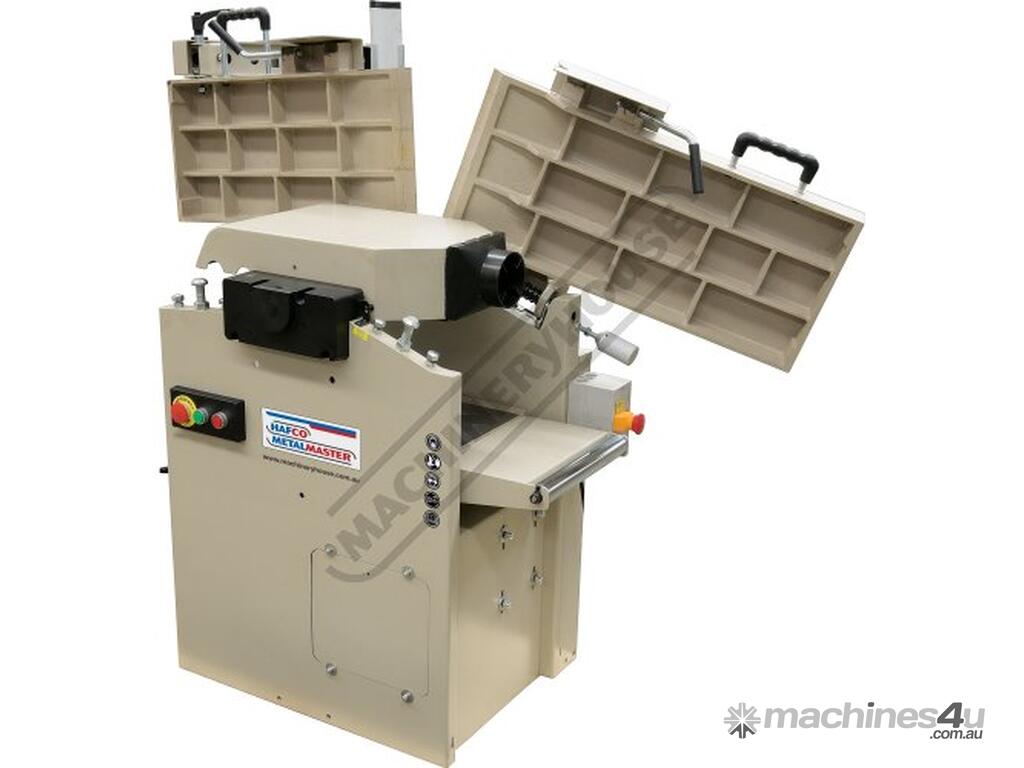

PT-305S Planer & Thicknesser Combination - Spiral Cutter Head 305mm Wide Planer Capacity 305 x 225mm

HAFCO-WOODMASTER PT-305S Planer & Thicknesser Combination - Spiral Cutter Head 305mm Wide Planer Capacity 305 x 225mm (W x H) Thicknesser Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W612

You now don't have to choose between buying a seperate planer or a thicknesser – with the PT-305S you can have the best of both worlds in one machine. Hafco Woodmaster has designed a machine now that includes a "Spiral Cutter Head" that cuts your timber effortlessly smoother and quieter than the conventional HSS blades.

The surfacing tables are 1380mm long, made from cast iron and precision ground finish to ensure material to slide smoothly to produce accurate results. The spiral cutter head is fitted with German quality carbide inserts and powered by a powerful 3kW / 4hp, 240V motor that can handle the toughest timbers to achieve superior finish every time.

This versatile machine features an extra heavy duty cast aluminium extruded fence with centered controls for quick adjustments, and a built-in dust chute capable of handling both operations.

Features:

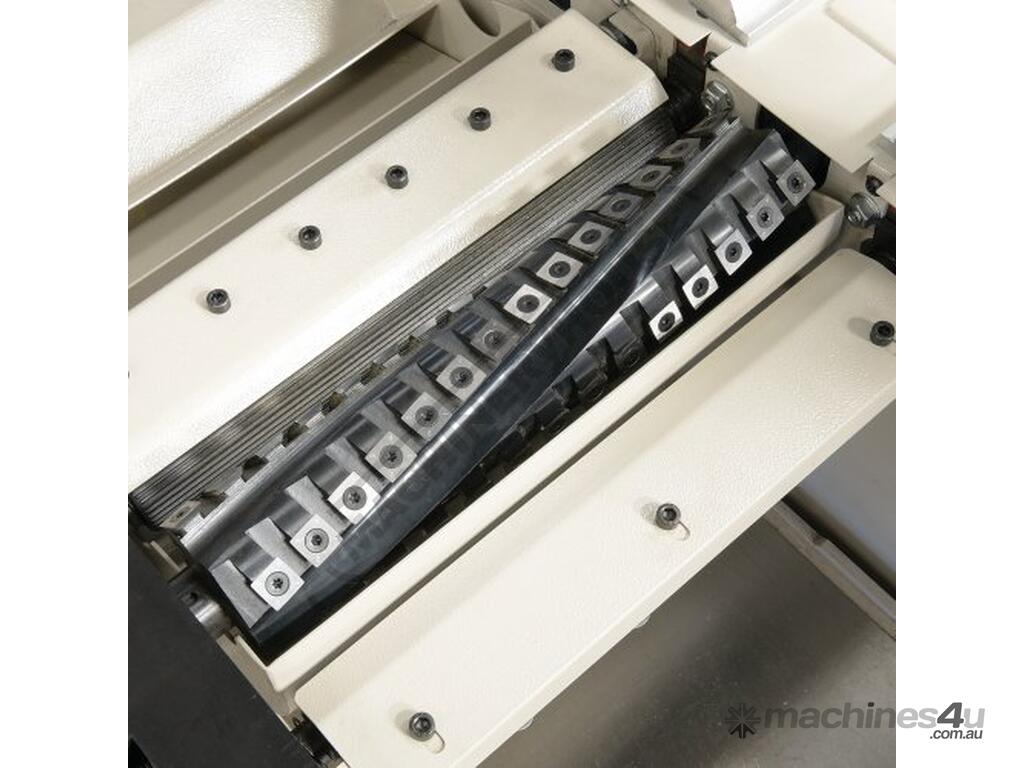

Spiral cutter head with 56 carbide inserts
Heavy-duty 3kW / 4hp 240V motor
305mm wide x 225mm high thicknesser capacity
Auto-feed thicknesser rollers 5m/min
4800rpm cutter head speed
1380 x 310mm jointer table size
Large aluminium fence tilts 45-90º with lever locking system and unique sliding design
Heavy duty cast iron tables with ground finish to ensure accuracy and flatness

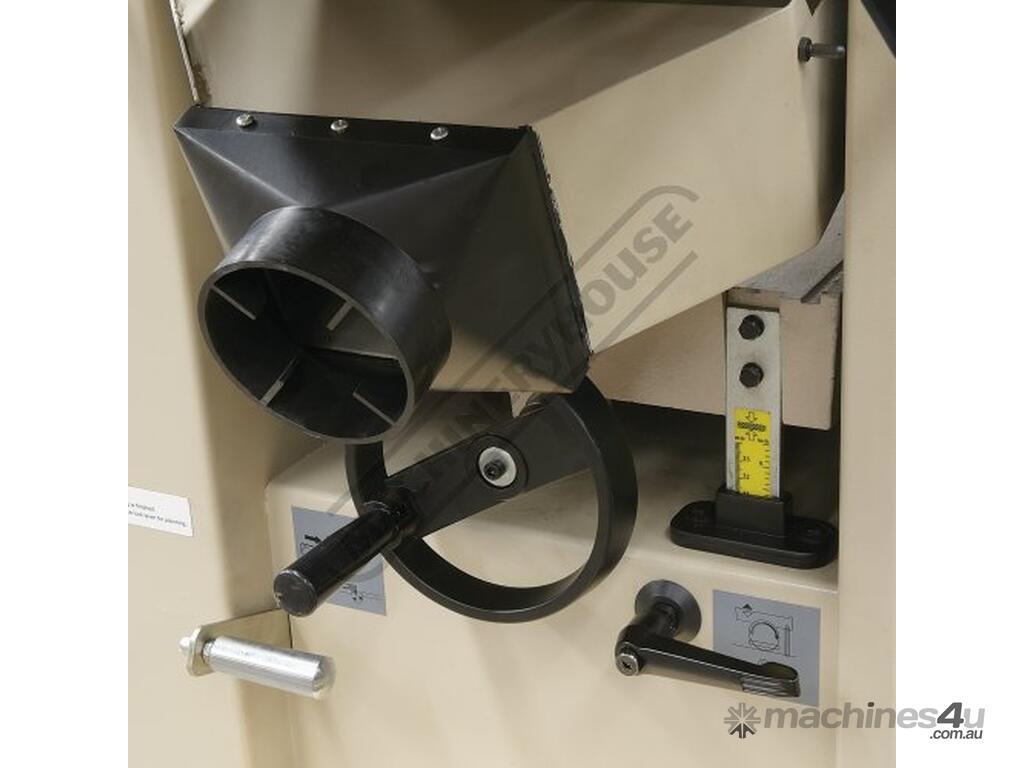

Large hand-wheel for quick and precise adjustments of thickness height
100mm dust chute

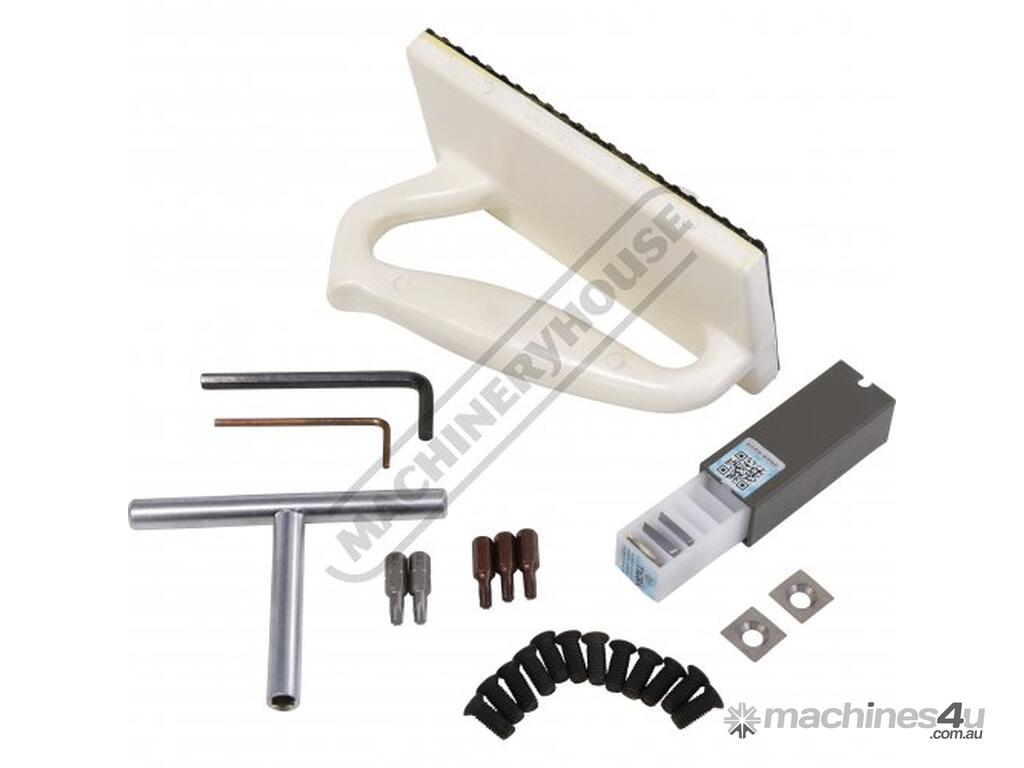

Includes:
- 5 x spare carbide inserts
- 10 x spare insert screws



Specifications:
ORDER CODE: W612
MODEL: PT-305S
Planer Capacity (mm): 305
Cutter Head Type (HSS / Carb): Carbide Inserts
Table Length - Planer (mm): 1380
Table Height - Planer (mm): 850
Length of Infeed Planer Table (mm): 715
Length of Outfeed Planer Table (mm): 635
Fence Length x Height (mm): 1200 x 150
Thicknesser Capacity (mm): 310 x 225
Table Length - Thicknesser (mm): 740 (with roller extension support)
Feed Speed (m/min): 5
Cutter Block Diameter (mm): 70
Cutter Block Speed (rpm): 4800
Motor Power (kW / hp): 3 / 4
Voltage / Amperage (V / amp): 240 / 15A
Floor Space (W x D x H) (mm): 1385 x 705 x 1000
Nett Weight (kg): 303
