PTH Series - Standard

The standard PTH is a hand operated pallet truck with a 2300 kg capacity regardless of the selected fork length.

Power
Manual

Load Capacity
2300 kg

Max. Lift Height
200 mm

Width
450 - 685 mm

Fork Length
795 - 1150 mm


Exceptional Long-Term Value
Pallet trucks should be durable, not disposable. For quality, serviceability and durability, the PTH Series is the leader – hands down.

Durability that Stands the Test of Time-
The PTH Series hand pallet truck features solid construction and generous use of steel – especially at critical stress points – to deliver for long-lasting performance.

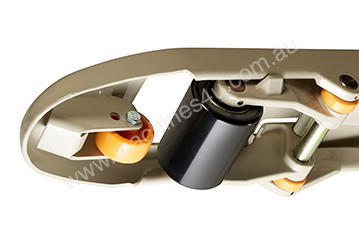

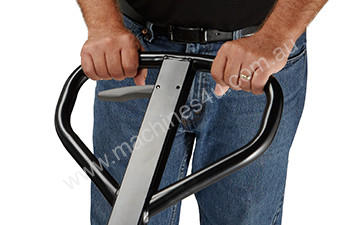

The durability of the PTH Series is enhanced by a reinforced lower handle, strong C-channel forks made of thick steel, cross braces and steel forgings on lift link arms and box-style push rods.

In addition, the PTH Series uses yellow chromate pins and shafts for corrosion protection and hard chrome pistons to minimise rust.


Extra Comfort and Functionality-

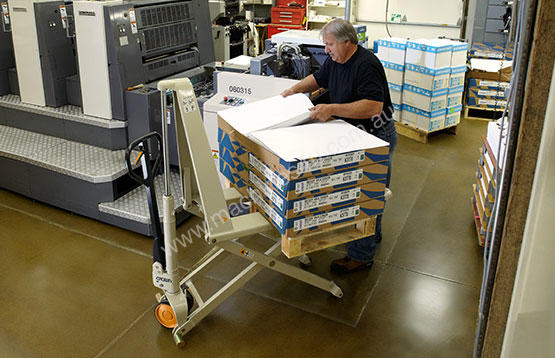

The PTH Series includes a manual and a powered scissor lift model, which offer productivity-enhancing options; they can be used as hand pallet trucks, as storage tables or as workbenches. The lifting forks rise up to 800 mm, which saves the operator unnecessary bending and heavy lifting and increases efficiency in repetitive handling operations.


Service Simplicity-
Crown builds long-term value into all of its trucks and the PTH Series is no exception. The pump valve design minimises contamination and testing to over one million cycles ensures a long life. Crown also uses self-lubricating bushings to reduce maintenance. Crown also makes it easy to perform service on the PTH.

Easily replaceable pump valve cartridge
Snap rings to connect push rods to lift linkage assembly
Bolt and lock nuts used for steer axle mounting


Hand Brake-
The handbrake can be used to secure the pallet truck in a stationary positon.
