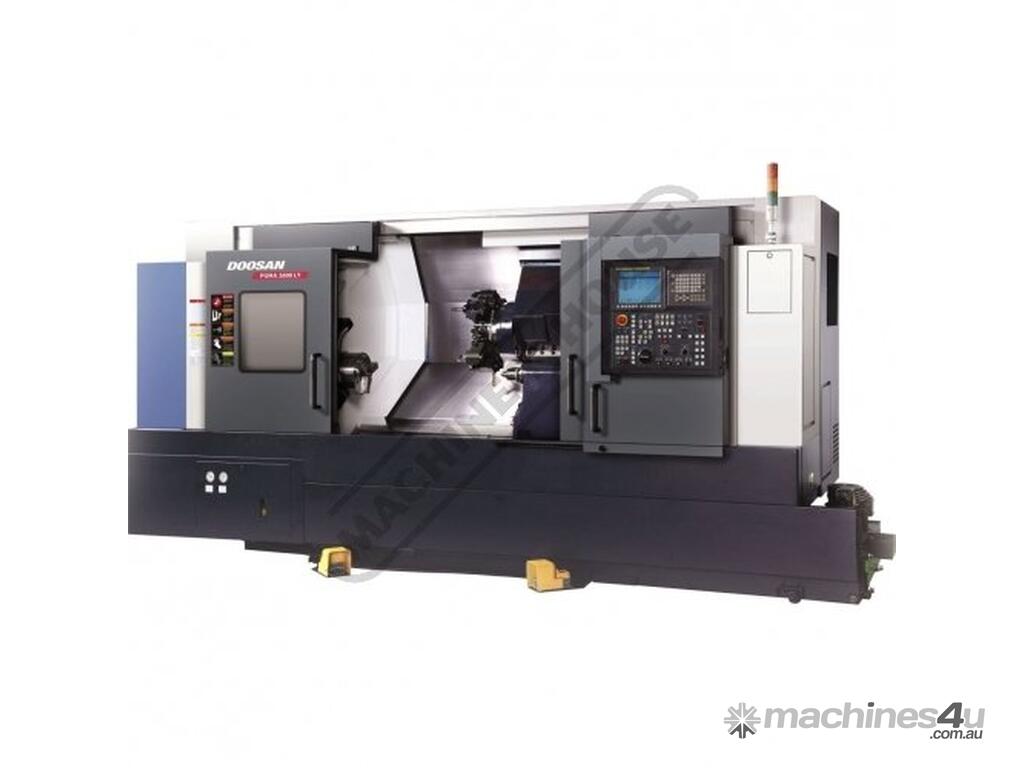

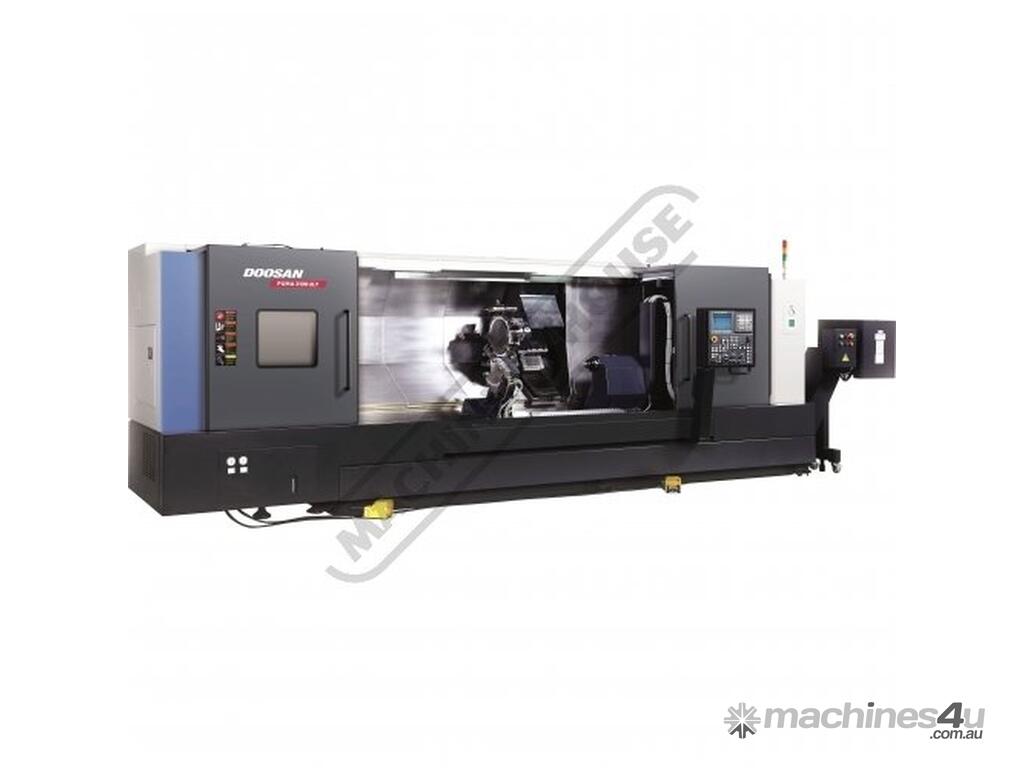

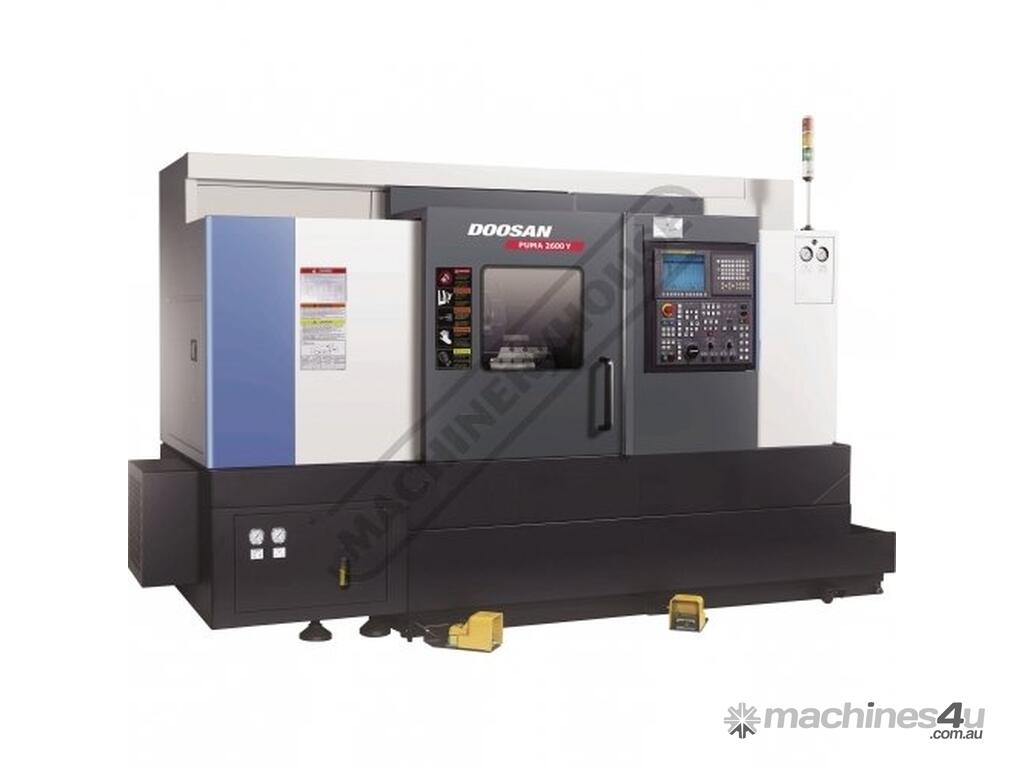

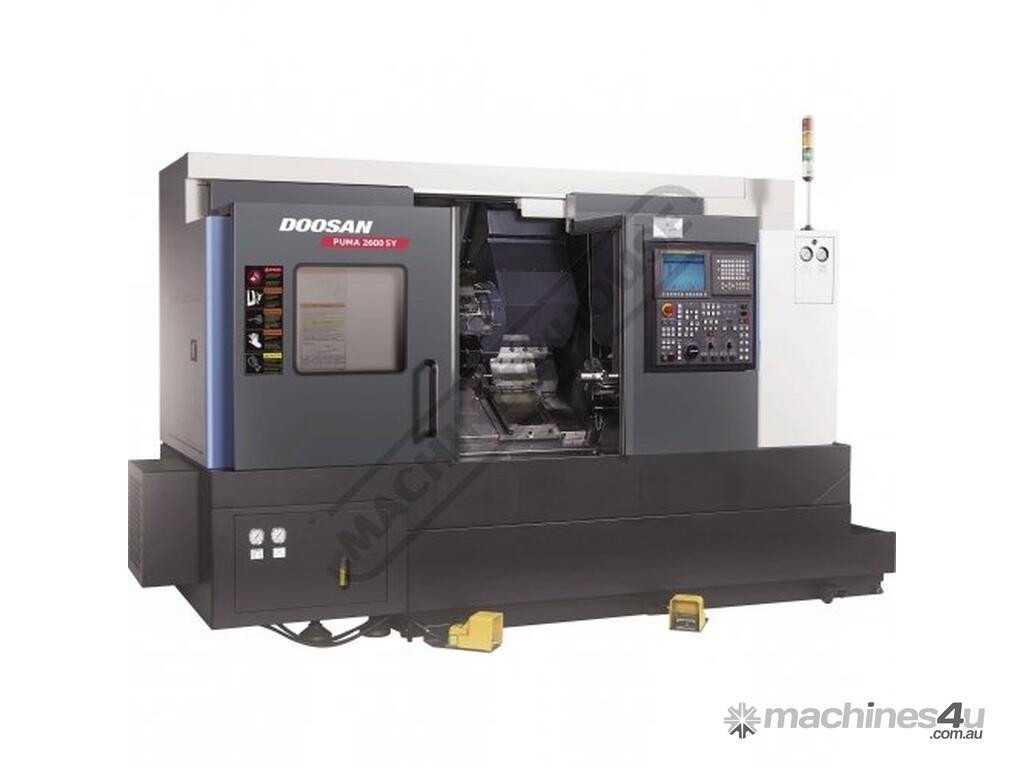

PUMA 2600Y Y Axis CNC Turning Centre

DOOSAN MACHINE TOOLS PUMA 2600Y Y Axis CNC Turning Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7228

Basic Specifications
• 780mm Swing Over Bed
• 630mm Swing Over Saddle
• 760mm Turning Length
• 376mm Turning Ø
• 105mm (±52.5mm) Y Axis Travel
• 3600 (0.0010 Resolution) C Axis
• 220kg Main Spindle Capacity, 710kg Shaft Work Capacity

Main Spindle
• 81mm Bar Capacity
• 255mm Ø Hydraulic Chuck
• 3500RPM Spindle Speed
• 22kW Spindle Power
• 240Nm Spindle Torque

Tailstock
• MT5
• 100mm Quill Ø
• 100mm Quill Travel
• Programmable Positioning

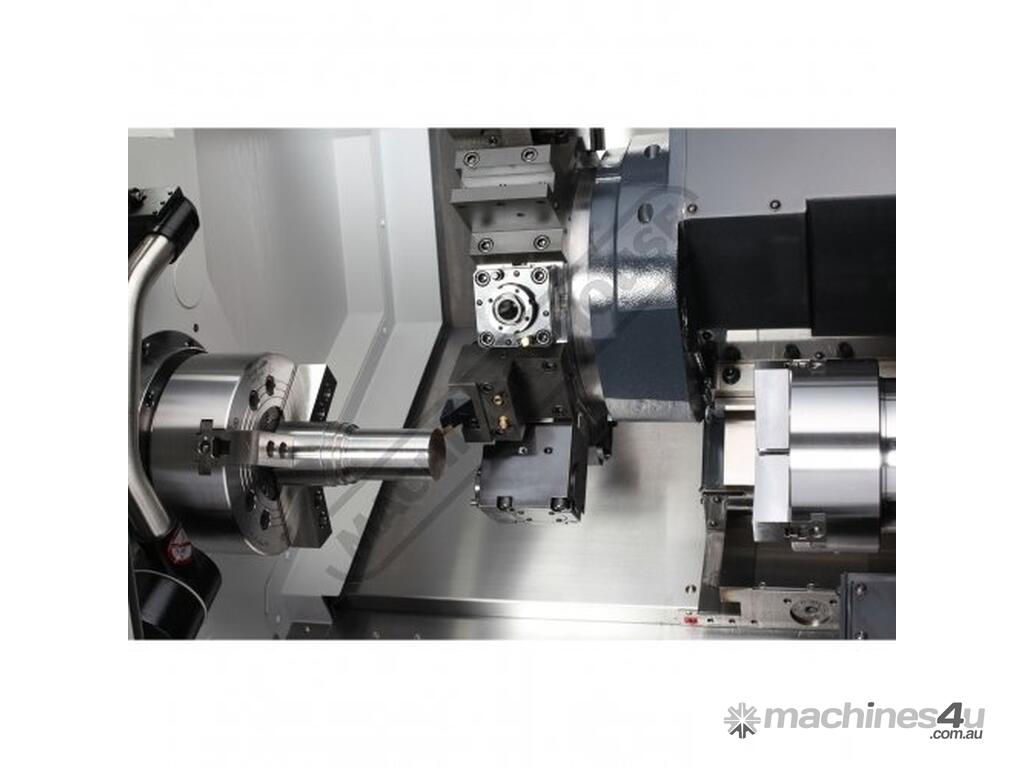

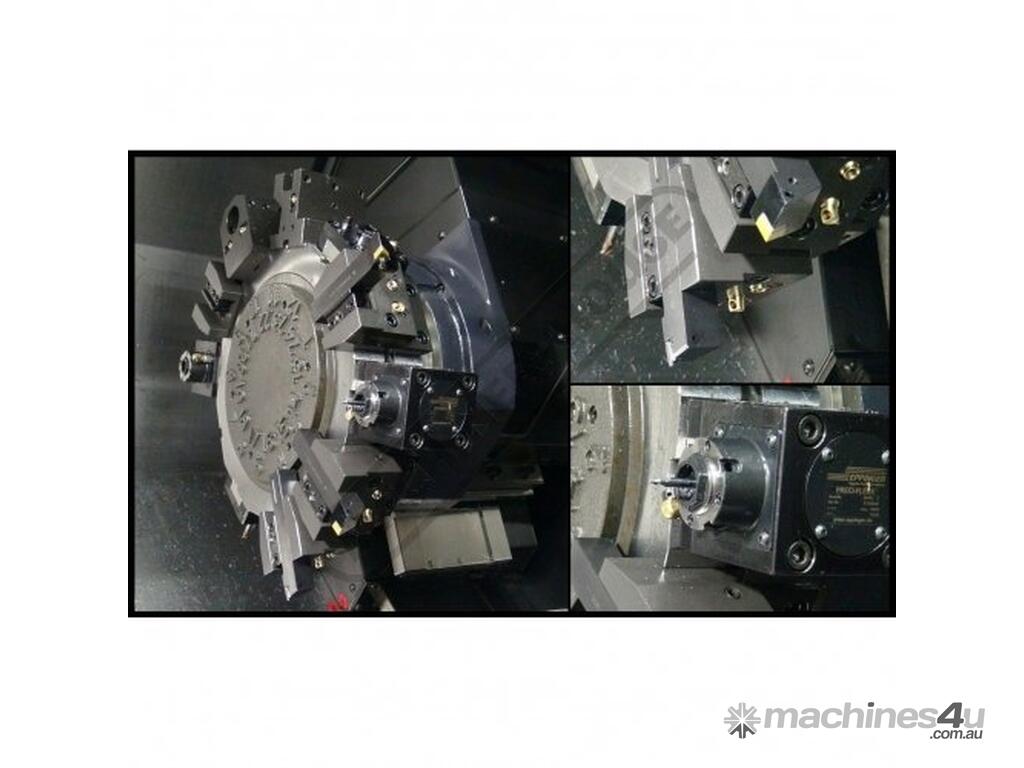

Turret
• BMT 65 Tool Mounting
• 5000RPM Live Tool Speed
• 5.5kW Live Tool Power
• 47.1Nm Live Tool Torque
• 12 Station Turret
• 25mm Square / 50mm Ø Tool Capacity
• ER32 Live Tool Collet Size
• Eppinger Preci-Flex Tooling System


CNC Control
• Doosan Fanuc I Series (0i-Plus) CNC Controller
• 15” Colour LCD Monitor
• Rigid-synchronised tapping
• Custom Macro B
• Ethernet Interface
• RS232 Interface
• USB & PCMCIA Memory Card Slot
• Doosan Ezi Guide “I” Conversational software:
• Graphical Turning Cycles
• Graphical Milling Cycles
• Full 3D Graphical Simulation
• Onboard G & M code assistance
• + more

Standard Equipment - Included
• 3 Jaw Hydraulic Power Chuck
• Chuck Cleaning Air Blast
• Eppinger rotary tool holders with Preci-Flex adapter set
• Coolant supply equipment
• Foot switches
• Transformer
• Full enclosure chip and coolant shield with front door interlock
• Hand tool kit
• Automatic lubrication equipment
• Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
• Safety name plates / tags where required
• Risk assessment
• Work light


Optional Equipment Included
• Chuck open close confirmation proximity switches
• Chip Conveyor (Side Discharge, Hinged Belt)
• Auto Tool Setter (Hydraulically operated)
• Coolant Oil Skimmer
• 7 Bar High Pressure Coolant
• Barfeed Interface
• Programmable Tailstock
• Chuck Cleaning Air Blast

Standard Turret Tool Holder Package Included
• 4 x OD Tool Holder (R & L)
• 3 x ID Tool Holder
• 1 x Face Tool Holder (R & L)
• 1 x U Drill Cap
• 2 x Straight Milling Unit
• 2 x Angular Milling Unit
• 1 x Boring Sleeve Kit
• 1 x U Drill Sleeve Kit
• 1 x Preci-Flex Adapter Kit
• 1 x ER 32 Milling Collet Set
• 1 x Hard & Soft Jaws

Local Service and Support
• Commissioning & Testing Included
• Comprehensive Operator Training Included
• Hare and Forbes In House Service And Applications Staff
• Ongoing Support For Life Of The Machine

Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:


Specifications:
ORDER CODE: L7228
MODEL: PUMA 2600Y
Swing (mm): 780
Max Turning Diameter (mm): 376
Turning Length (mm): 725
Chuck Diameter (mm): 255
Bar Diameter Capacity (mm): 81
Tool Stations (No.): 12
Spindle Speed (rpm): 3500
Spindle Motor (kW): 22
Guideways: Box Guideway
Control: Doosan Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
C Axes Resolution (deg): 0.001
Milling Speed (rpm): 5000
Milling Collets: ER32
Sub Chuck Diameter (mm): ~
Y Axis Travel (mm): 105 (±52.5)
