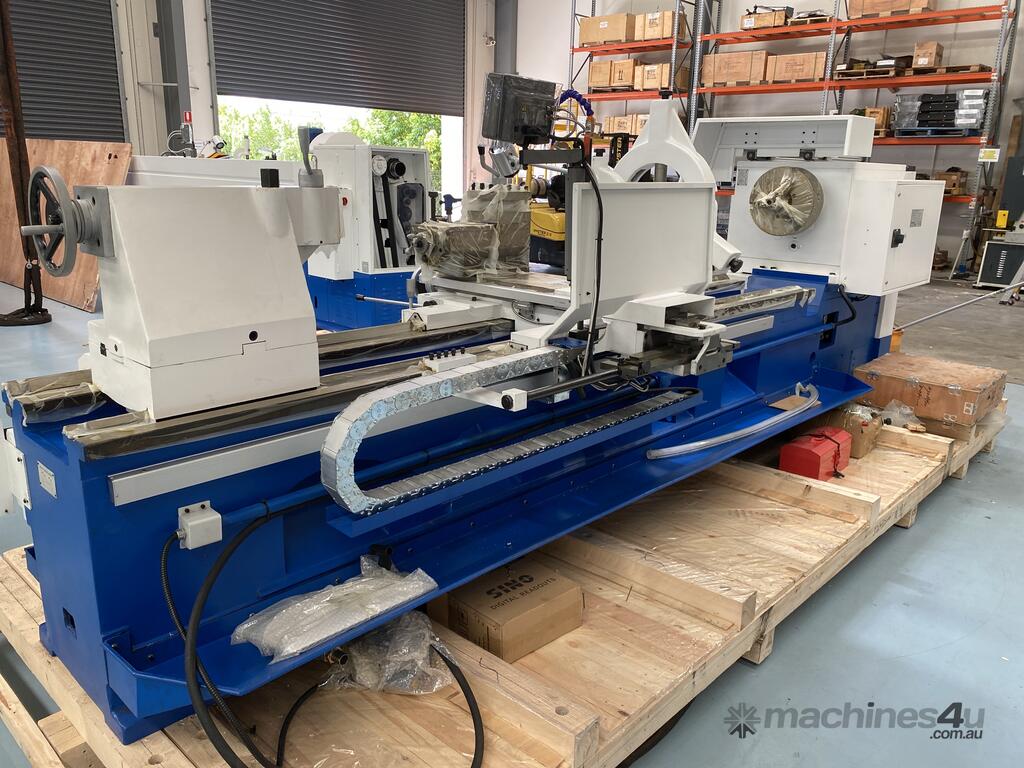

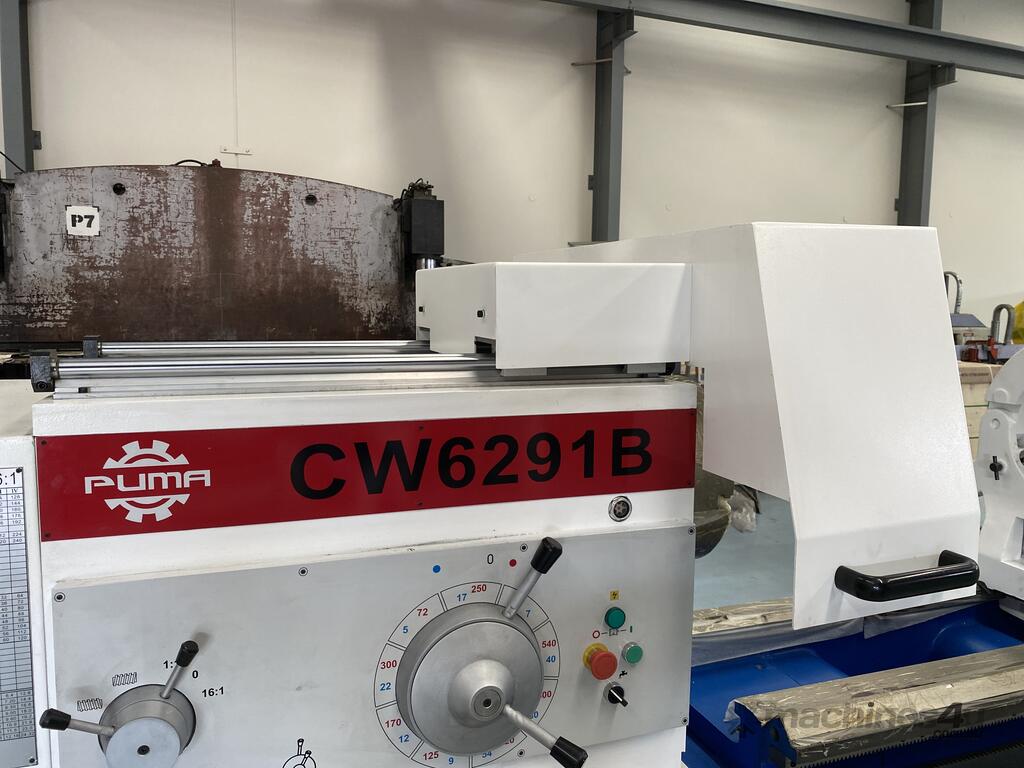

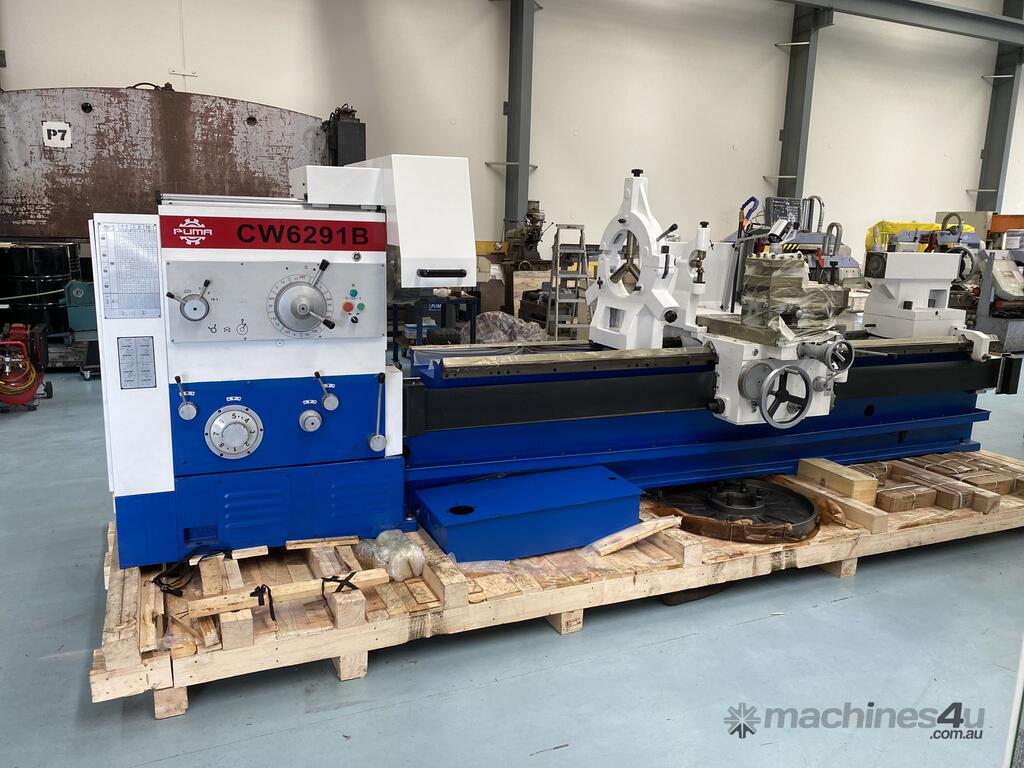

Puma CW6291 x 3000 Manual Lathe - 910mm swing - 105mm spindle bore
The Puma lathe is a heavy duty lathe with a single casting body to ensure less vibration and better cut quality. The lathe has been ordered with a 105mm spindle so faster chuck speeds can be achieved over a larger spindle bore machine. A 2 axes digital readout is fitted on this machine for ease of use. A great workhorse for those companies involved in heavier machining applications.
Accessories:
- 630mm 4-Jaw Chuck

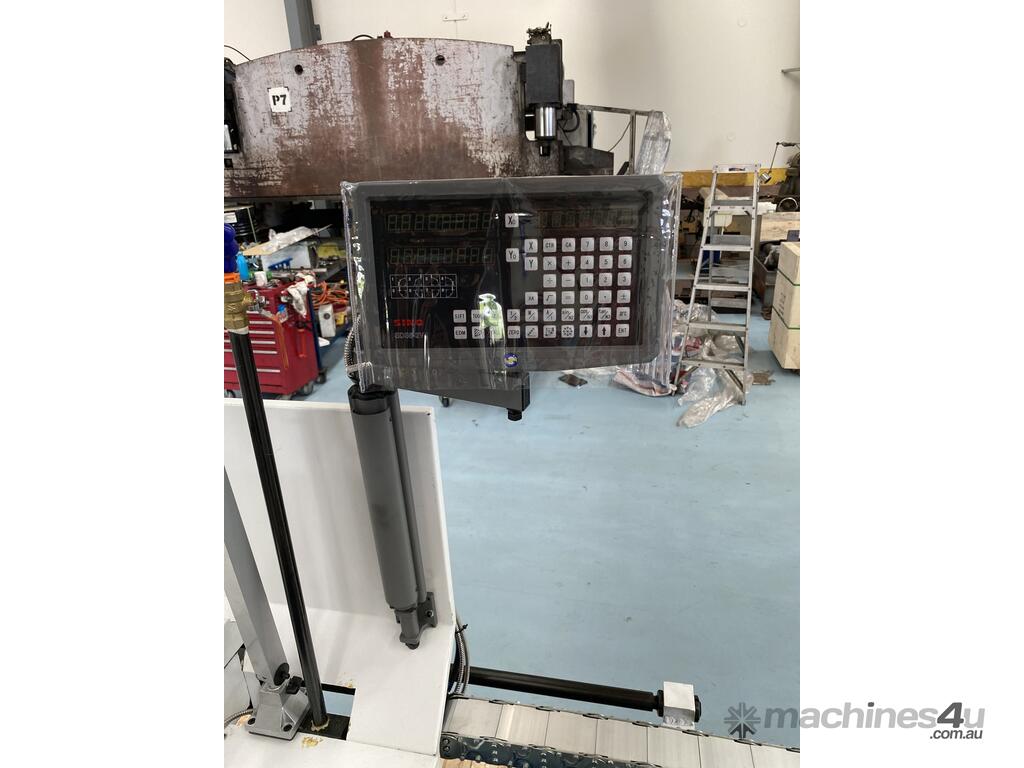

- 2 Axis Digital Readout
- 105mm Spindle Bore
- Chuck cover + toolpost Cover
- Live Center

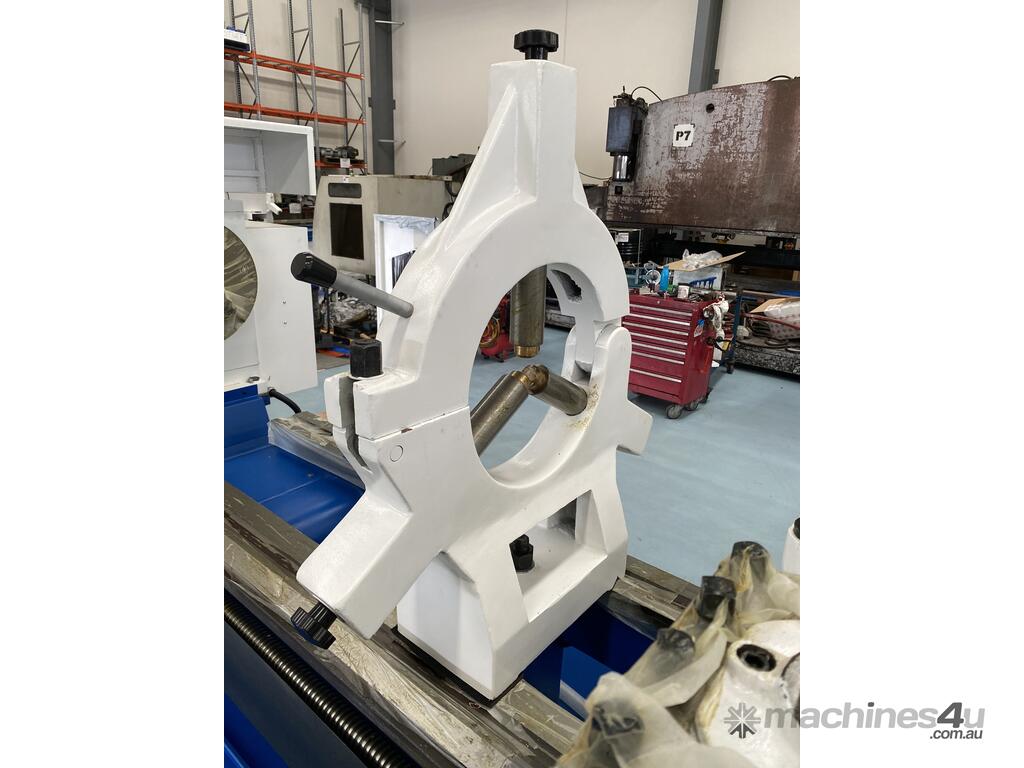

- Steady rest

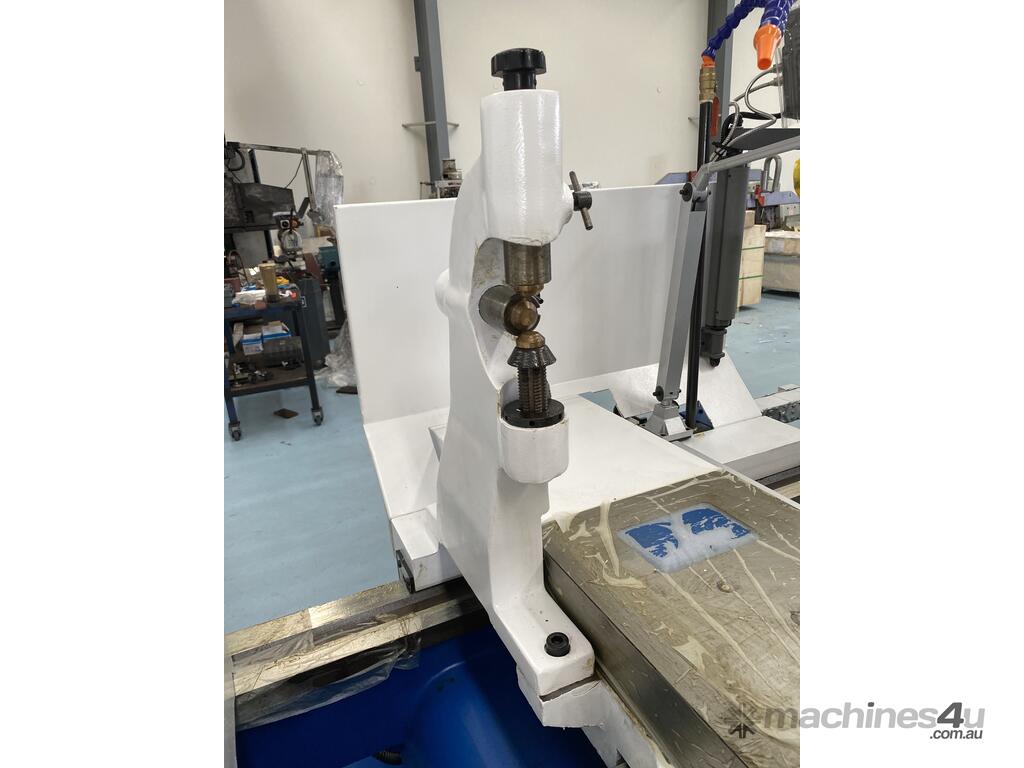

- Follower rest

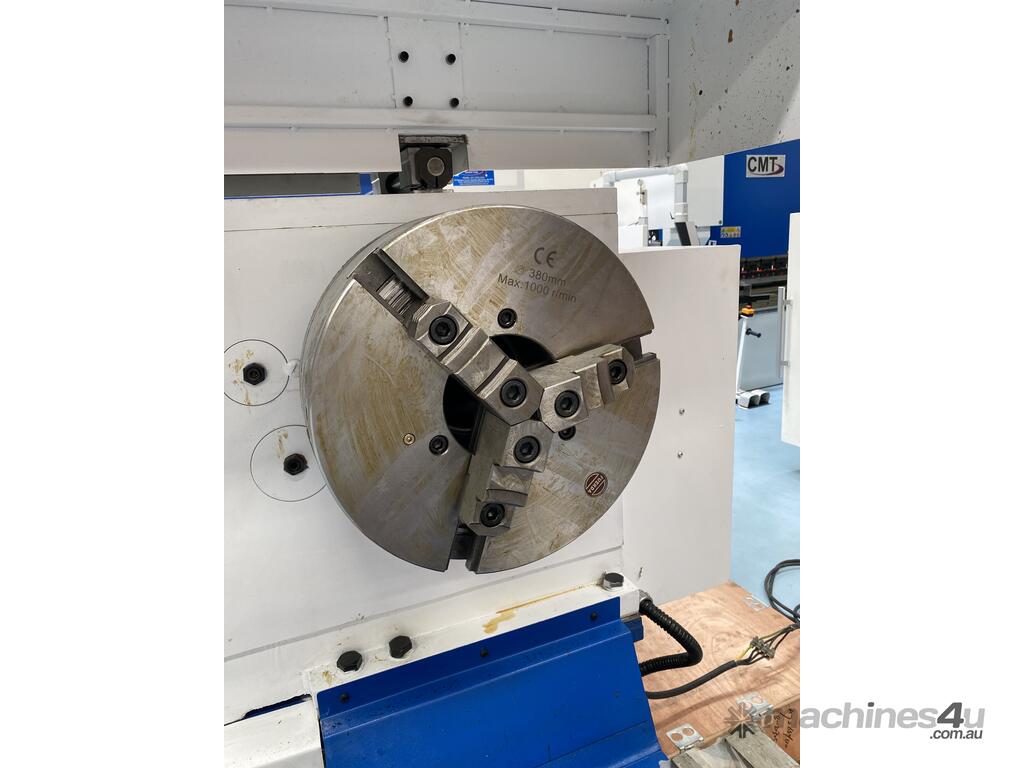

- 380 mm 3-jaw chuck
- Dead center MT6
- Center sleeve MT6
- Manual tools
- Rapid traverse
- One piece base
- Splash Guard at rear of carriage
- Coolant pump
- Work light
- Chuck with backing plate

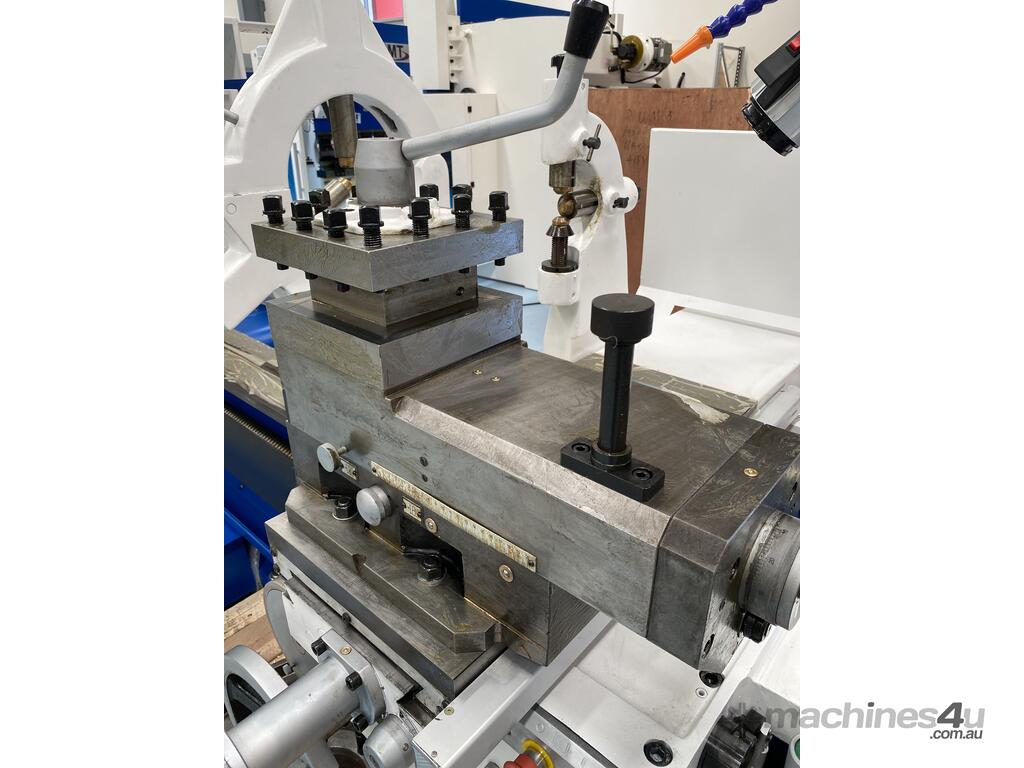

- Taper turning attachment
- Rapid traverse on long and cross travels

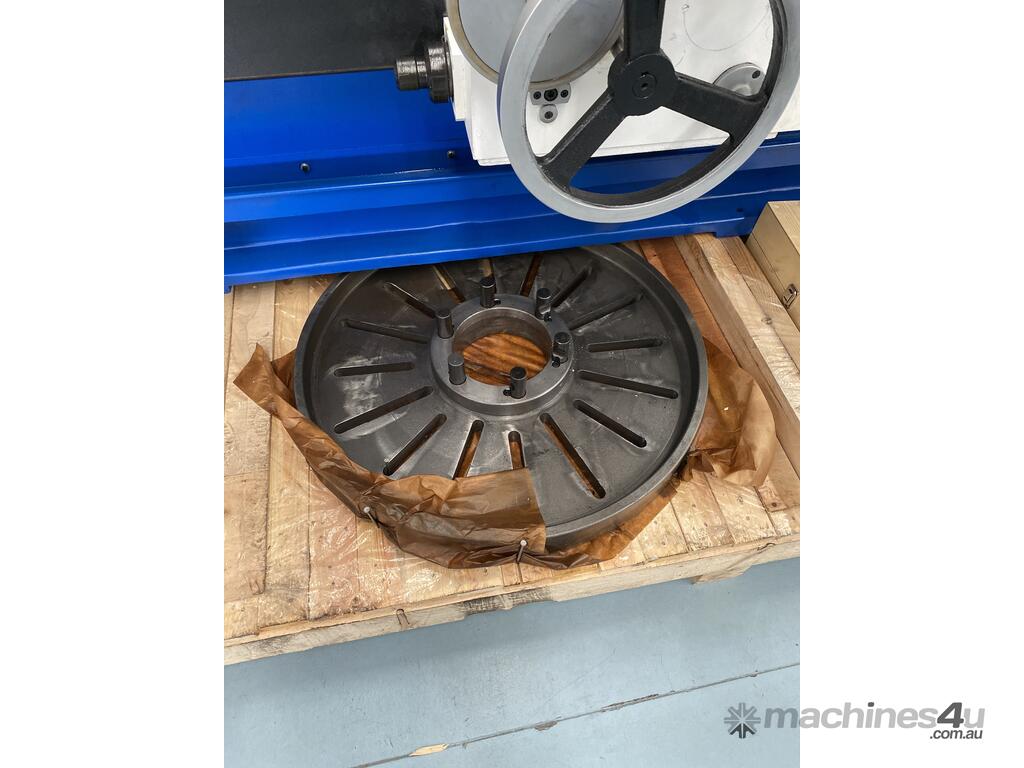

- 800mm faceplate
Specs:
Swing over bed - 910mm
Swing over carriage - 580mm
Max length of workpiece - 3000mm
Max turning length - 2850mm
Pan of guideway - 600mm
Spindle nose - D11

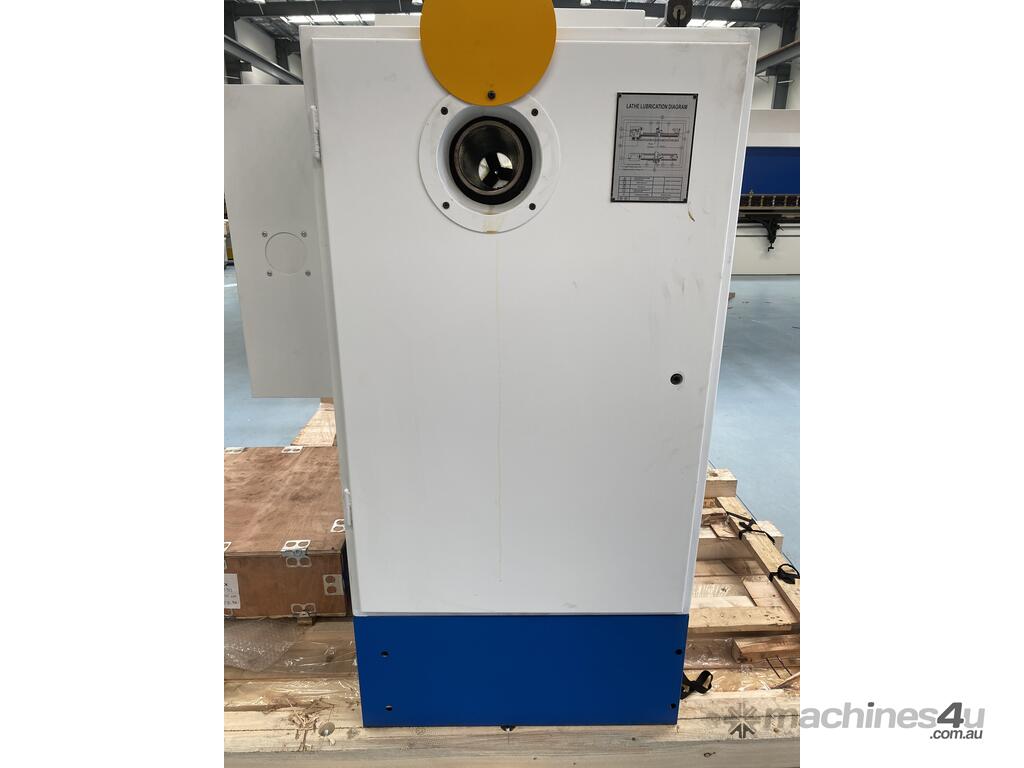

Spindle bore - 105mm
Taper hole of spindle - 1:20

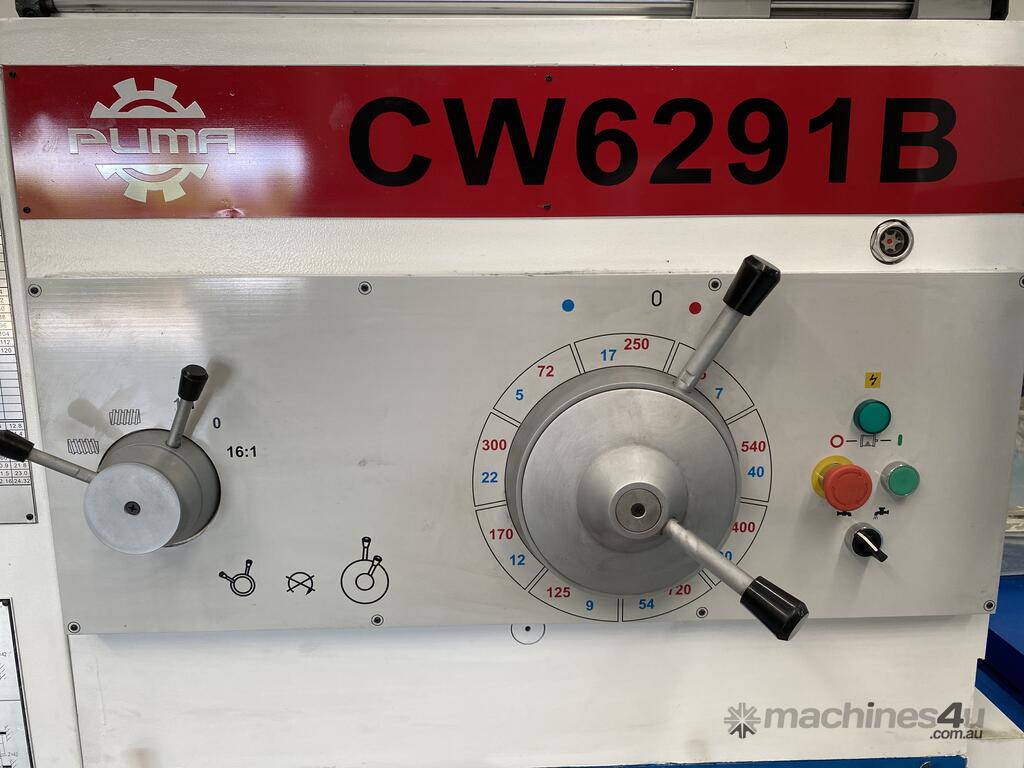

Range of spindle speeds - 18 steps | 5 ~720 rpm
Number of spindle speeds - 18
Longitudinal and cross - 64; 0.1 ~24.32
Cross/long longitudinal feed - 1/2 of longitudinal feeds

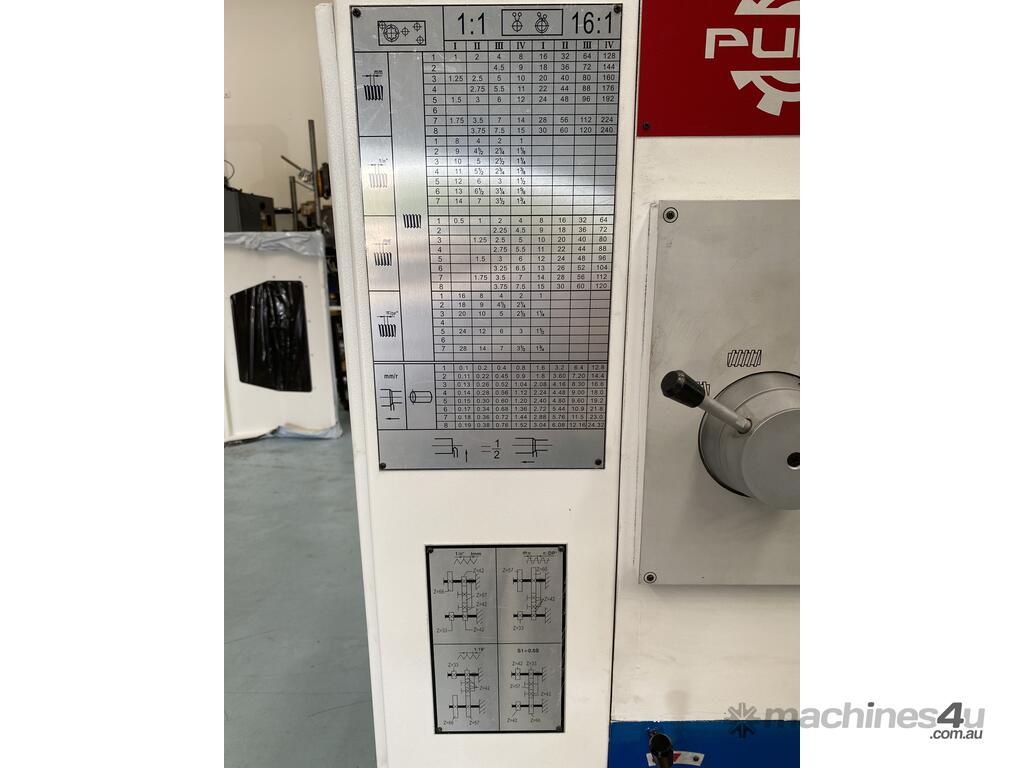

No and range of metric thread - 50; 1~240
No and range of inch thread - 26; 14~1
No and range of module thread - 53; 0.5~120
No and range of dia. thread - 24; 28~1
Rapid traverse speed - 4000mm/min
Distance of spindle and tool plane - 33mm
Tool post swing range +/- 90º
Max travel of cross slide - 500mm
Max travel of top slide - 200mm
Section of tool shank - 32mm

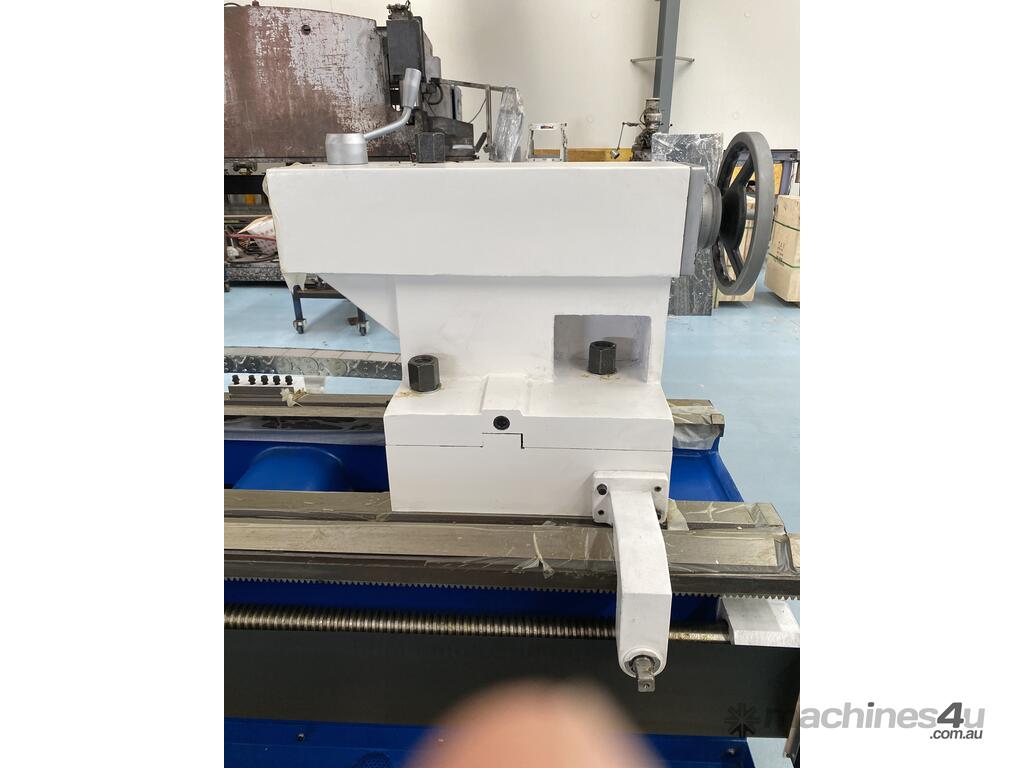

Dia. / Travel of tailstock - 100mm/250mm
Taper hole of tailstock quill - Morse 5
Main motor power - 11KW
415V | 50HZ | 3PH
24V control panel
