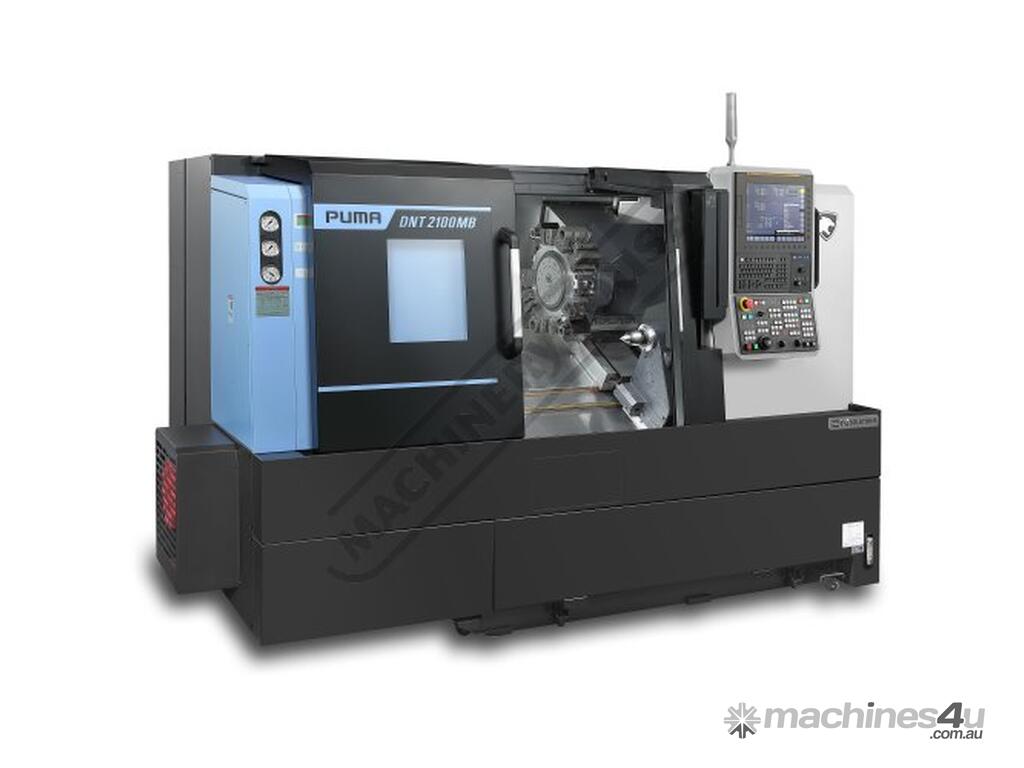

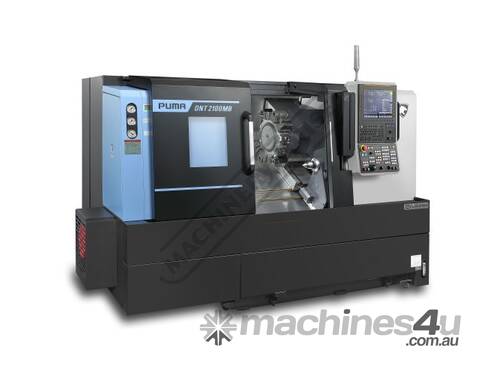

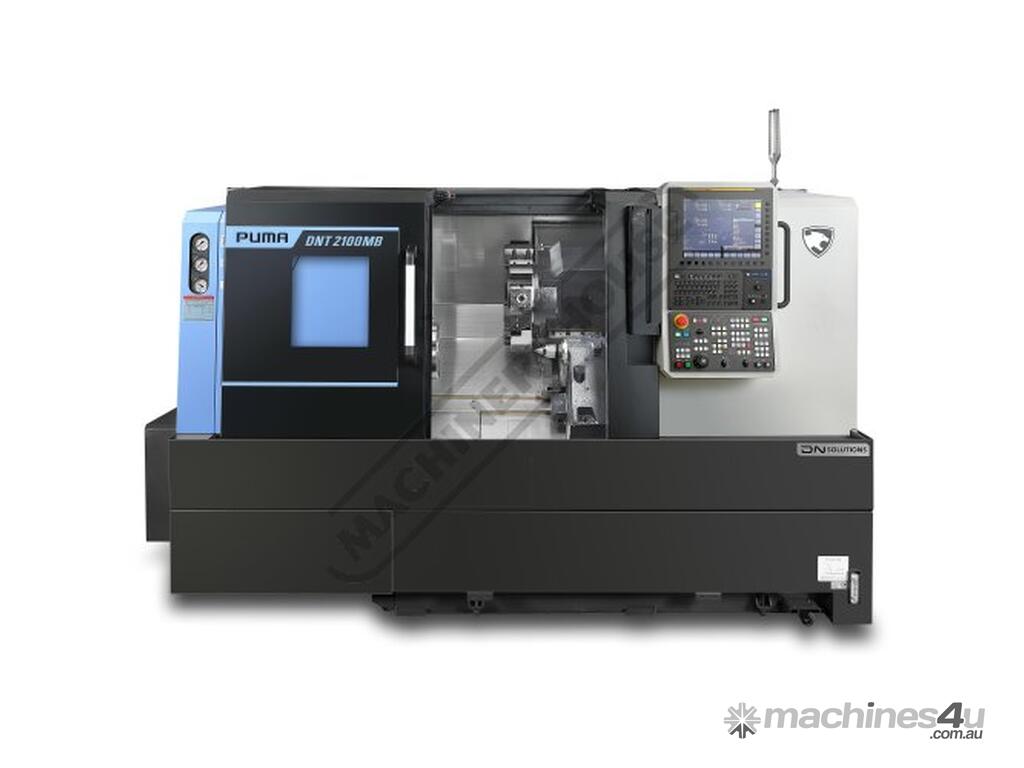

PUMA DNT2100M C Axis CNC Turning Centre

DOOSAN MACHINE TOOLS PUMA DNT2100M C Axis CNC Turning Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7102

Basic Specifications
• 650mm Swing Over Bed
• 460mm Swing Over Saddle
• 513mm Turning Length
• 320mm Turning Ø
• 3600 (0.0010 Resolution) C Axis
• 150kg Main Spindle Capacity, 300kg Shaft Work Capacity

Main Spindle
• 65mm Bar Capacity
• 200mm Ø Hydraulic Chuck
• 4500RPM Spindle Speed
• 18.5kW Spindle Power
• 328Nm Spindle Torque

Tailstock
• MT4
• 80mm Quill Ø
• 100mm Quill Travel
• Programmable Positioning

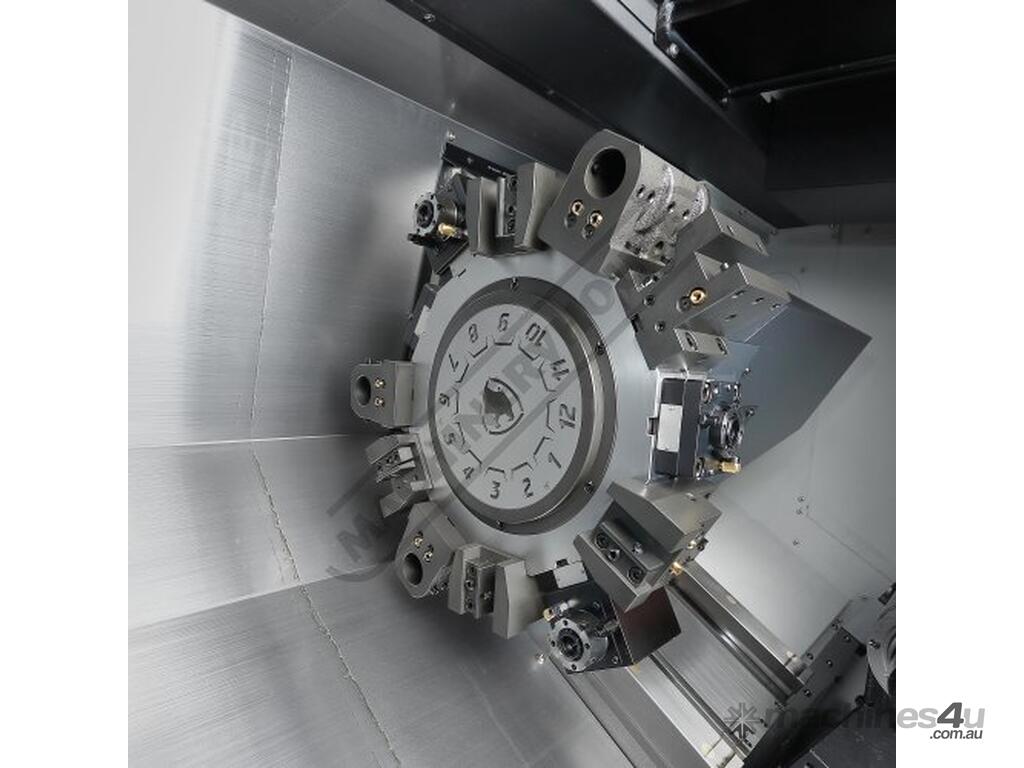

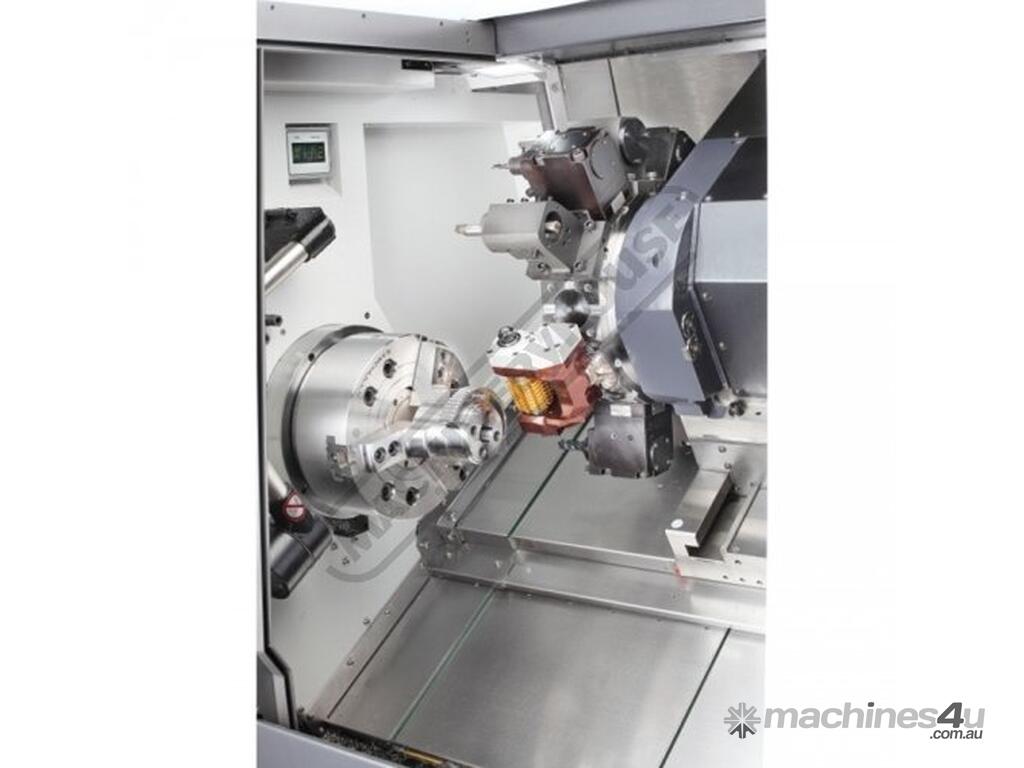

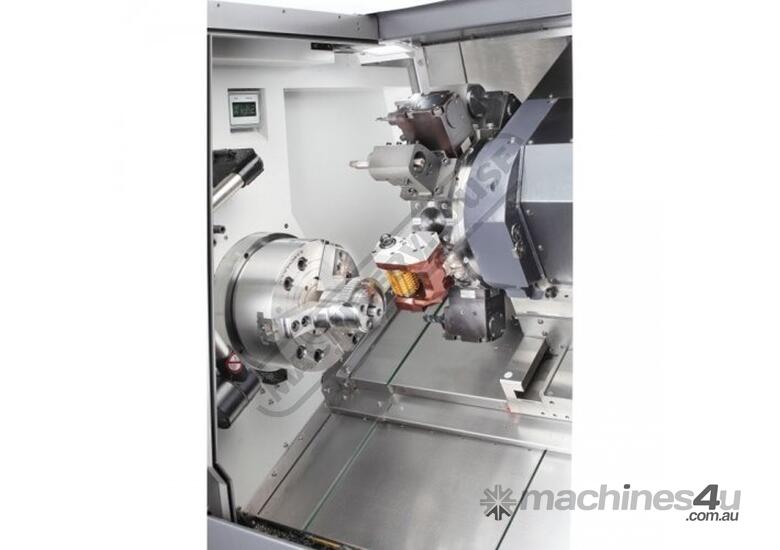

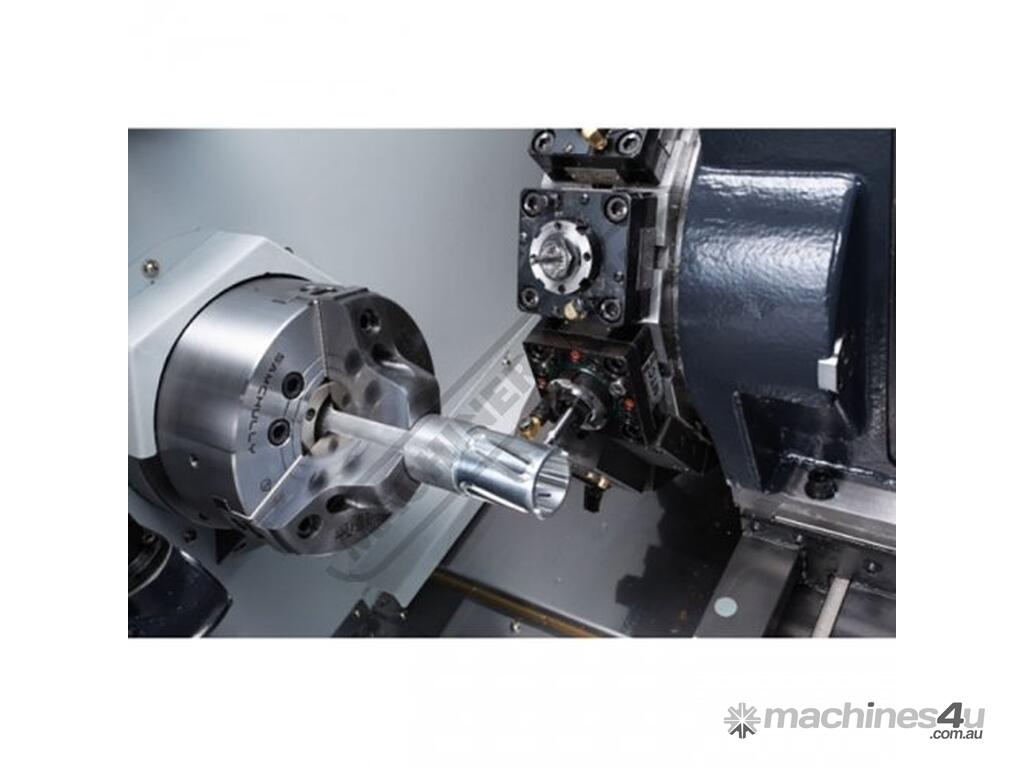

Turret
• BMT 55 Tool Mounting
• 5000RPM Live Tool Speed
• 5.5kW Live Tool Power
• 42Nm Live Tool Torque
• 12 Station Turret
• 25mm Square / 40mm Ø Tool Capacity
• ER25 Live Tool Collet Size
• Eppinger Preci-Flex Tooling System


CNC Control
• Doosan Fanuc I Series (0i-Plus) CNC Controller
• 15” Colour LCD Monitor
• Rigid-synchronised tapping
• Custom Macro B
• Ethernet Interface
• RS232 Interface
• USB & PCMCIA Memory Card Slot
• Doosan Ezi Guide “I” Conversational software:
• Graphical Turning Cycles
• Graphical Milling Cycles
• Full 3D Graphical Simulation
• Onboard G & M code assistance
• + more

Standard Equipment - Included

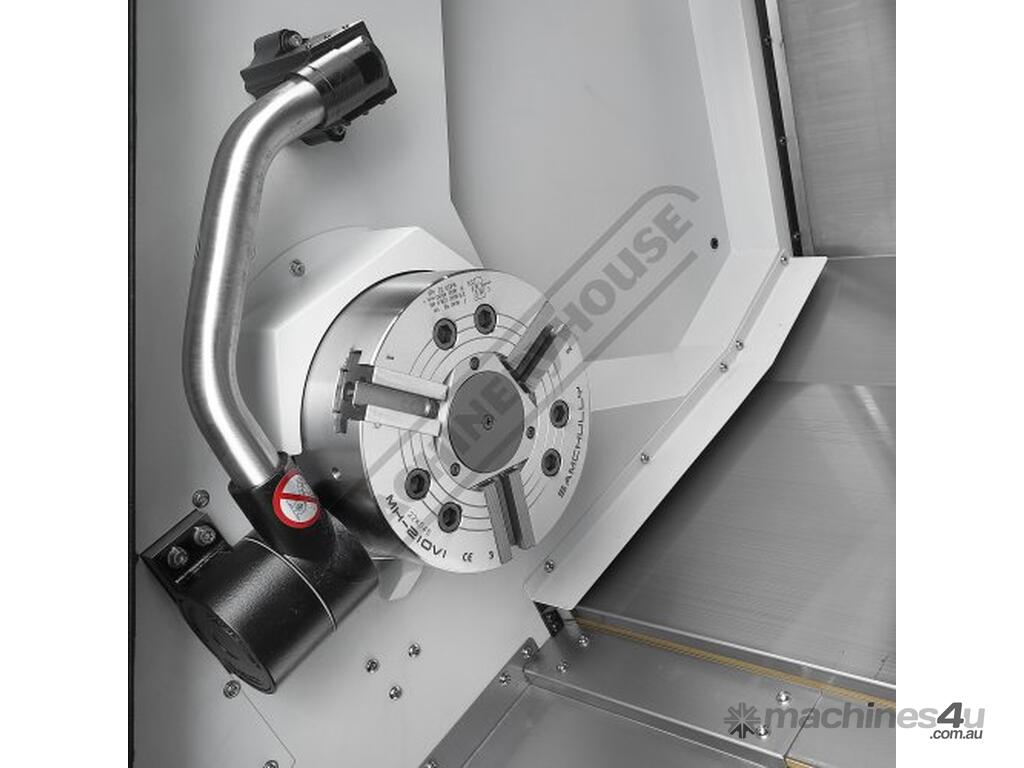

• 3 Jaw Hydraulic Power Chuck
• Chuck Cleaning Air Blast
• Eppinger rotary tool holders with Preci-Flex adapter set
• Coolant supply equipment
• Foot switches
• Transformer
• Full enclosure chip and coolant shield with front door interlock
• Hand tool kit
• Automatic lubrication equipment
• Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
• Safety name plates / tags where required
• Risk assessment
• Work light


Optional Equipment Included
• Chuck open close confirmation proximity switches
• Chip Conveyor (Side Discharge, Hinged Belt)
• Auto Tool Setter (Hydraulically operated)
• Coolant Oil Skimmer
• 7 Bar High Pressure Coolant
• Parts Catcher with Parts Box
• Barfeed Interface
• Programmable Tailstock

Standard Turret Tool Holder Package Included
• 4 x OD Tool Holder (R & L)
• 3 x ID Tool Holder
• 1 x Face Tool Holder (R & L)
• 1 x U Drill Cap
• 2 x Straight Milling Unit
• 2 x Angular Milling Unit
• 1 x Boring Sleeve Kit
• 1 x U Drill Sleeve Kit
• 1 x Preci-Flex Adapter Kit
• 1 x ER 25 Milling Collet Set
• 1 x Hard & Soft Jaws

Local Service and Support
• Commissioning & Testing Included
• Comprehensive Operator Training Included
• Hare and Forbes In House Service And Applications Staff
• Ongoing Support For Life Of The Machine

Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:


Specifications:
ORDER CODE: L7102
MODEL: PUMA DNT2100M
Swing (mm): 650
Max Turning Diameter (mm): 320
Turning Length (mm): 513
Chuck Diameter (mm): 210
Bar Diameter Capacity (mm): 65
Tool Stations (No.): 12
Spindle Speed (rpm): 4500
Spindle Motor (kW): 18.5

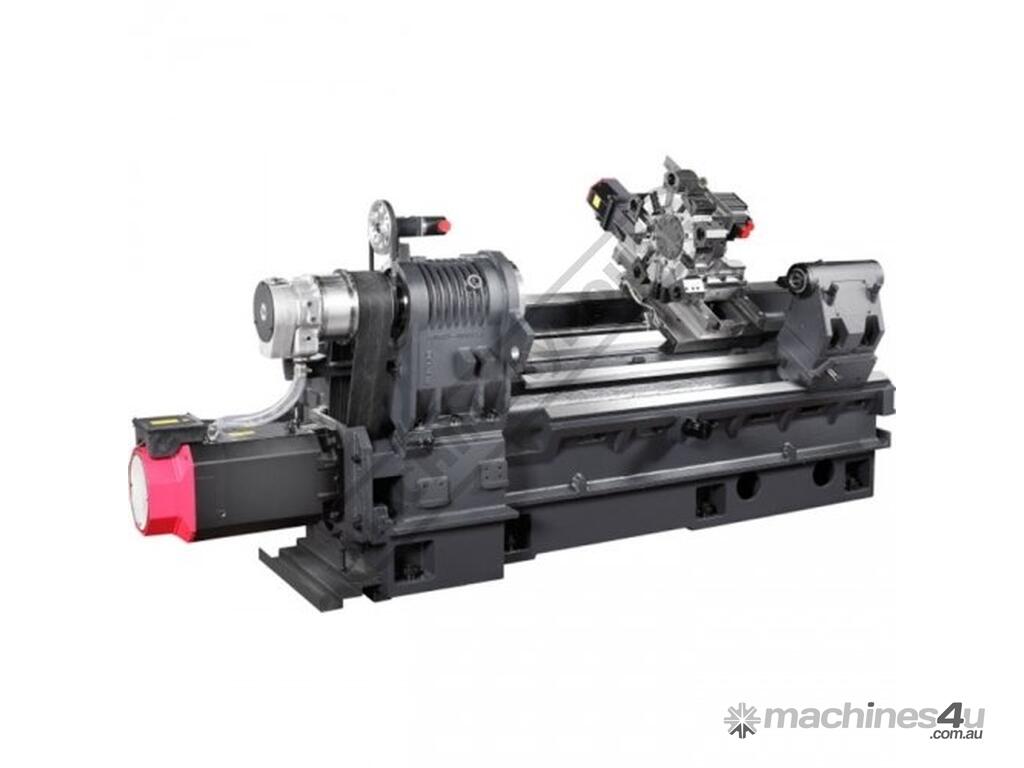

Guideways: Box Guideway
Control: DN Solutions Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
C Axis Resolution (deg): 0.001
Milling Speed (rpm): 5000
Milling collets: ER25
Sub Chuck Diameter: ~
Y Axis Travel: ~
