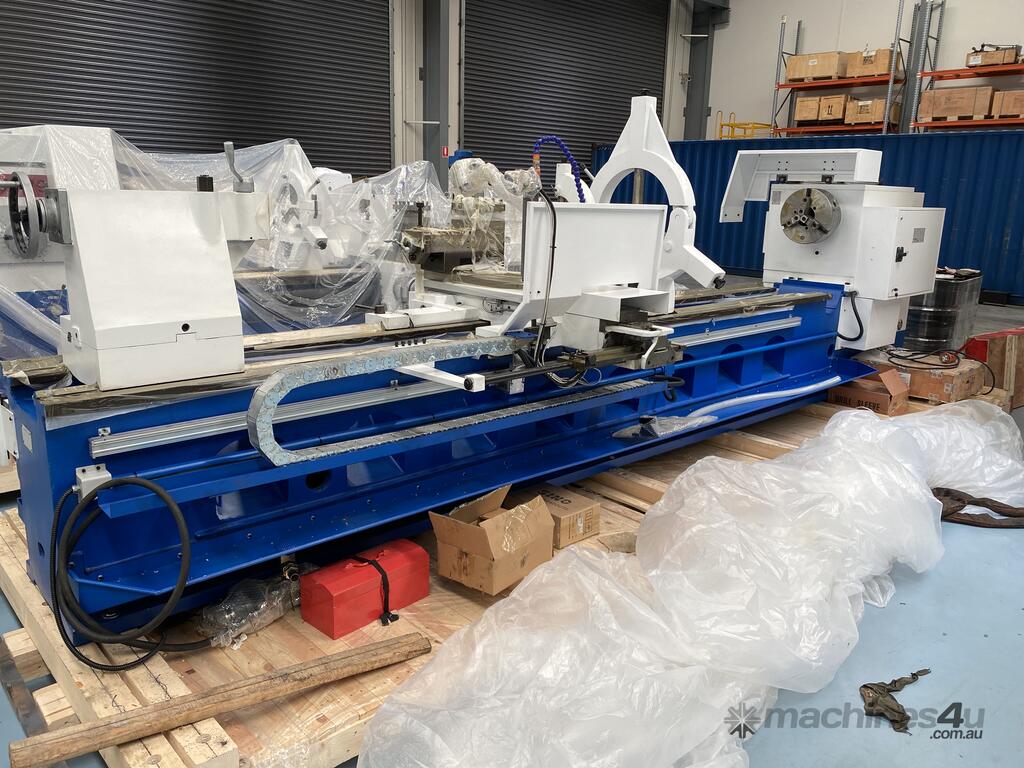

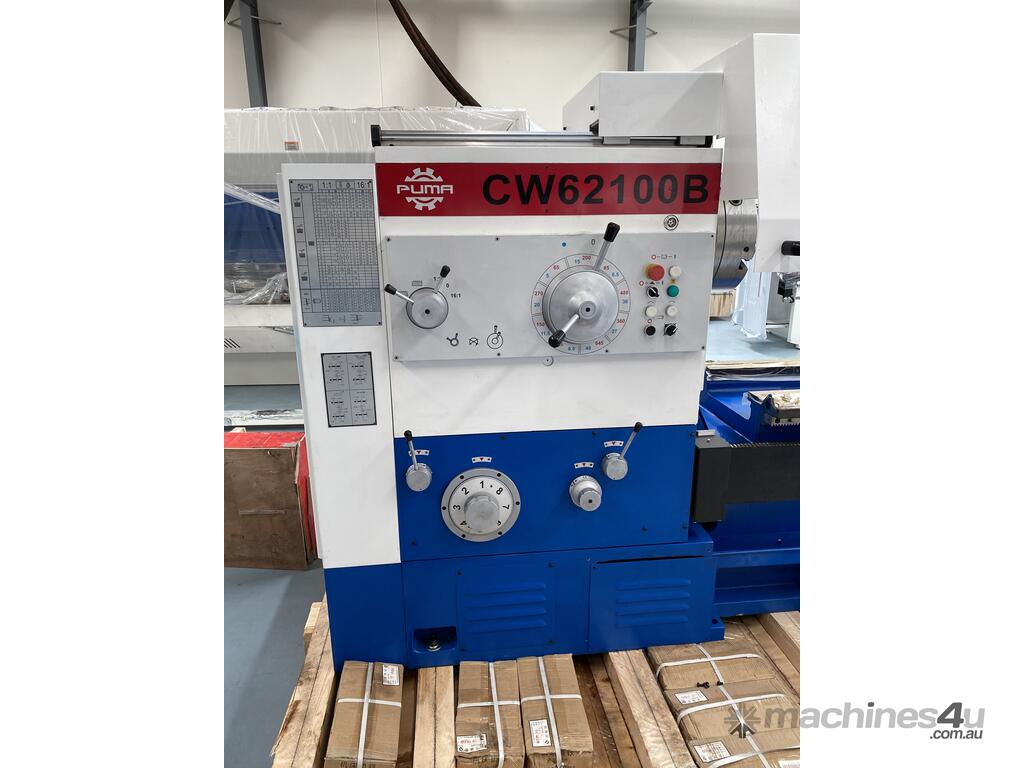

Puma CW62100 x 4000 Manual Lathe - 1000mm swing - 105mm spindle bore
The Puma lathe is a heavy duty lathe with a single casting body to ensure less vibration and better cut quality. The lathe has been ordered with a 105mm spindle so faster chuck speeds can be achieved over a larger spindle bore machine. A 2 axes digital readout is fitted on this machine for ease of use. A great workhorse for those companies involved in heavier machining applications.
Accessories included on this machine:
- 630mm 4-Jaw Chuck

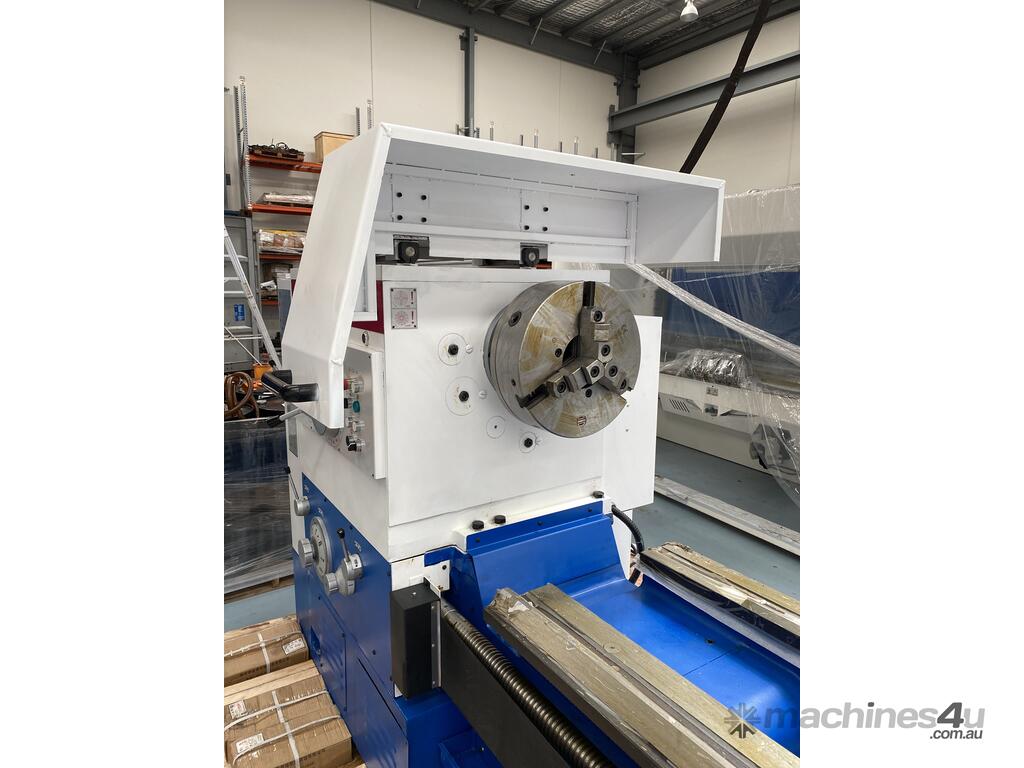

- 380mm 3 jaw chuck

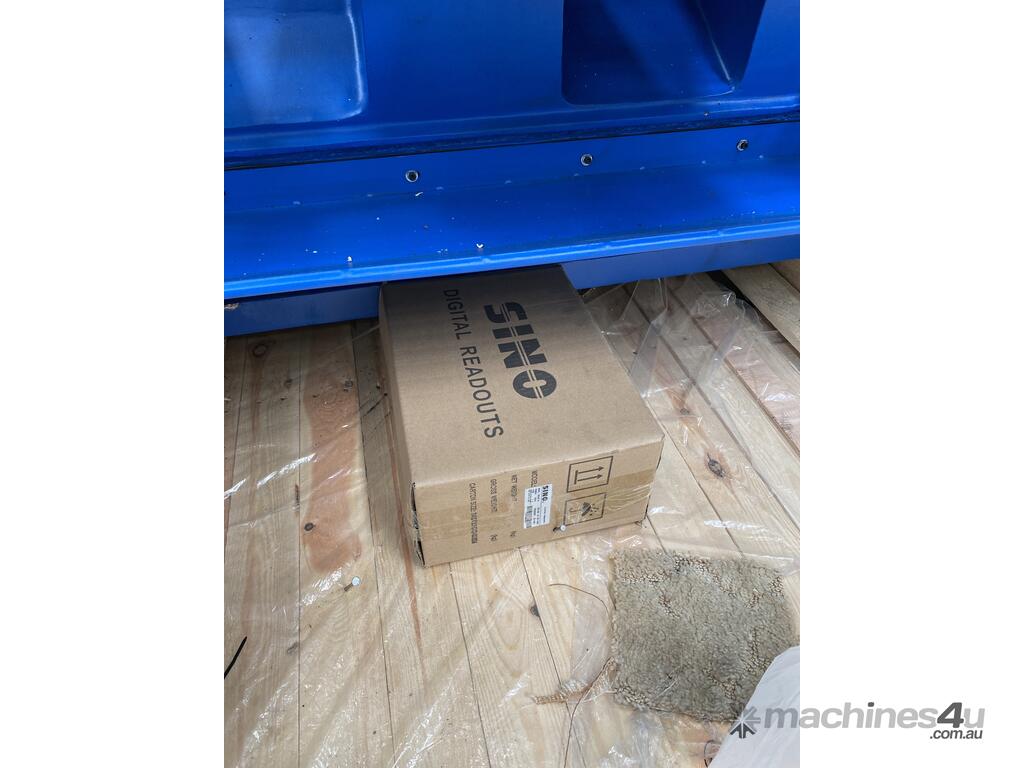

- 2 Axis Digital Readout
- 105mm Spindle Bore
- Chuck cover + toolpost Cover
- Live Center

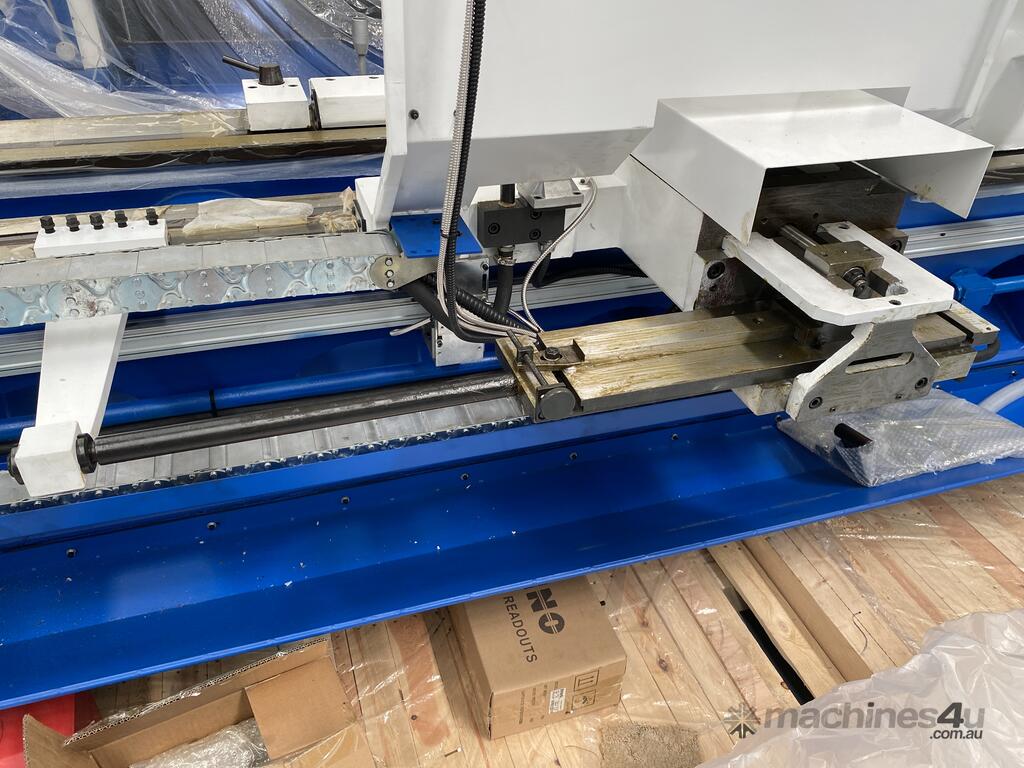

- Splash Guard rear of carriage

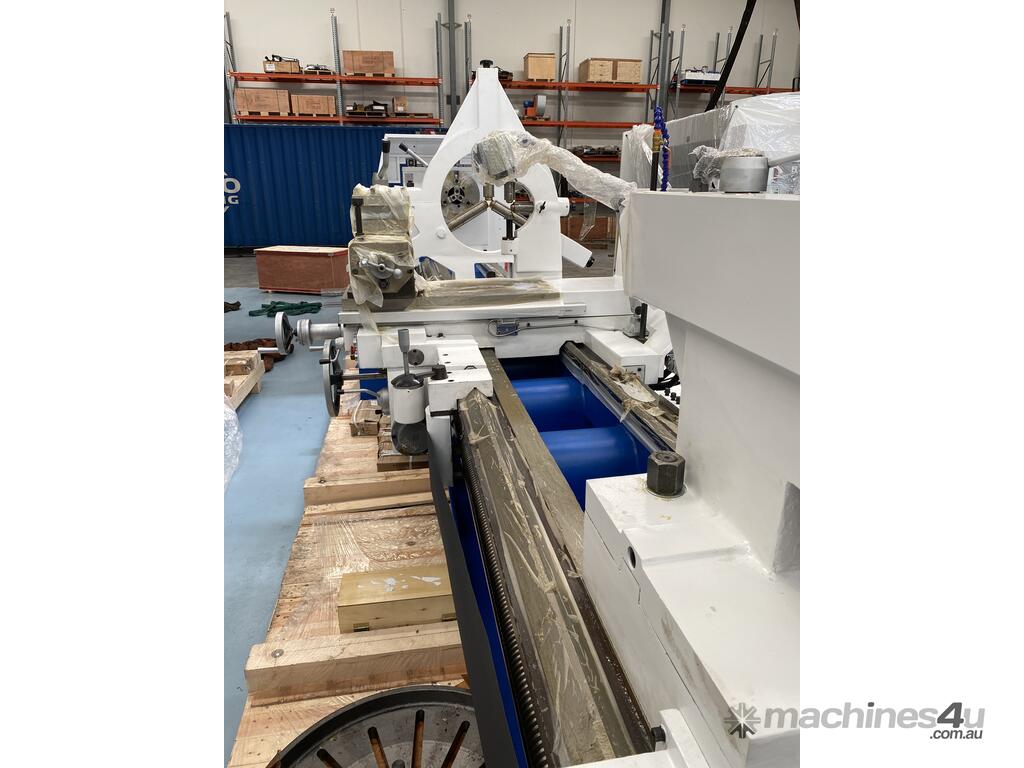

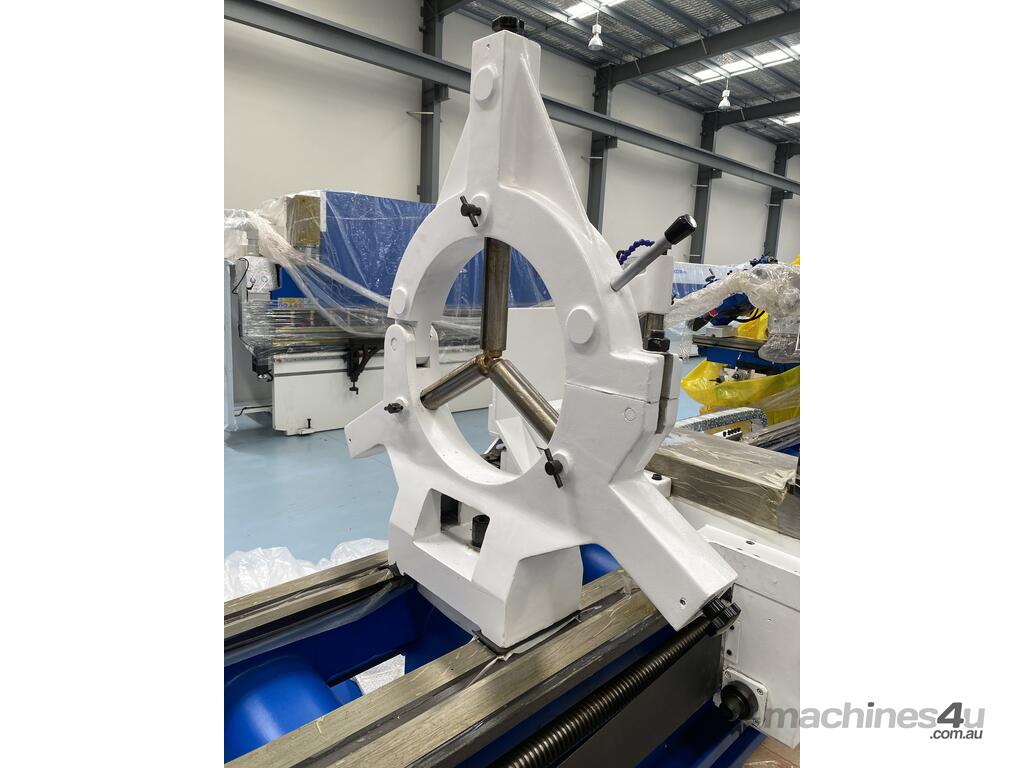

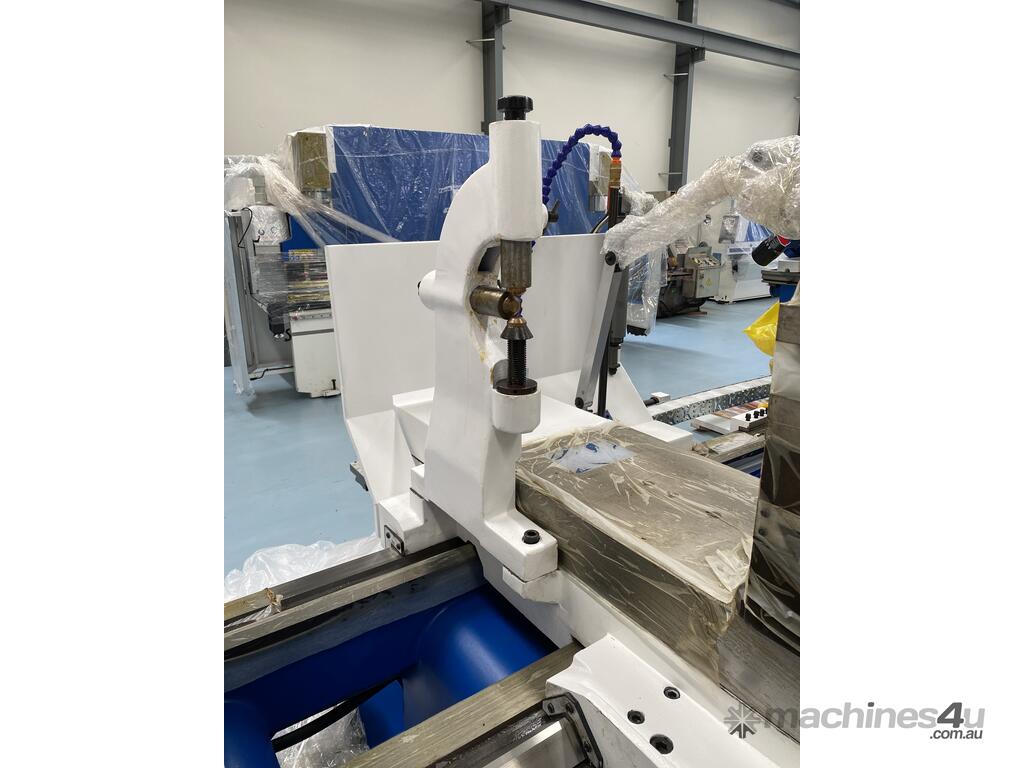

- 40-480mm steady rest
- 30-180 follower rest
- Dead center M6
- Center sleeve M6
- Manual tools
- Rapid traverse
- Taper turning attachment
- One piece base
- Coolant pump
- Work light
- Chuck with backing plate

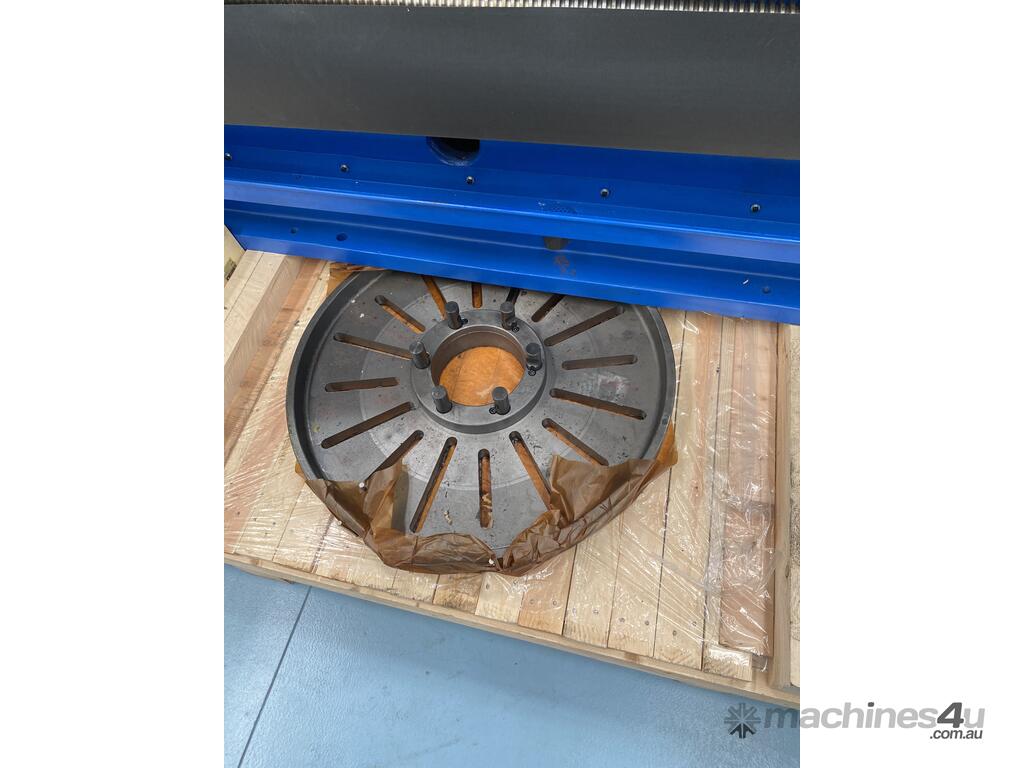

- 800mm faceplate
Specs -
Swing over bed - 1000mm
Swing over carriage - 580mm
Max length of workpiece - 4000mm
Max turning length - 3850mm
Pan of guideway - 600mm
Spindle nose - D11

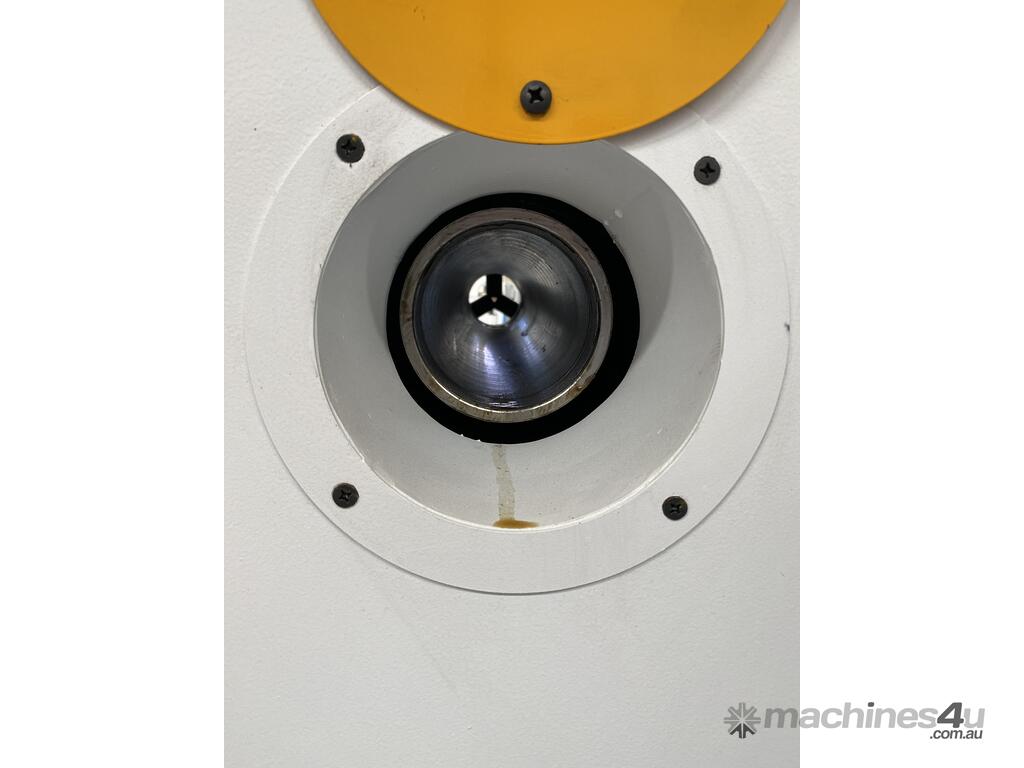

Spindle bore - 105mm
Taper hole of spindle - 1:20

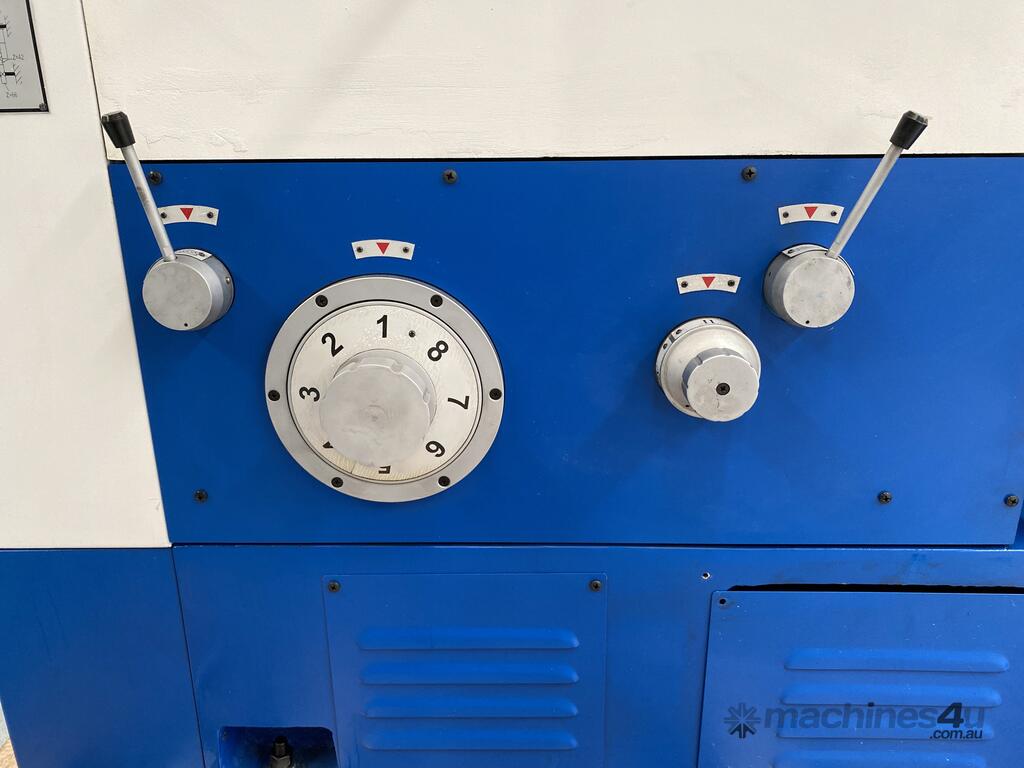

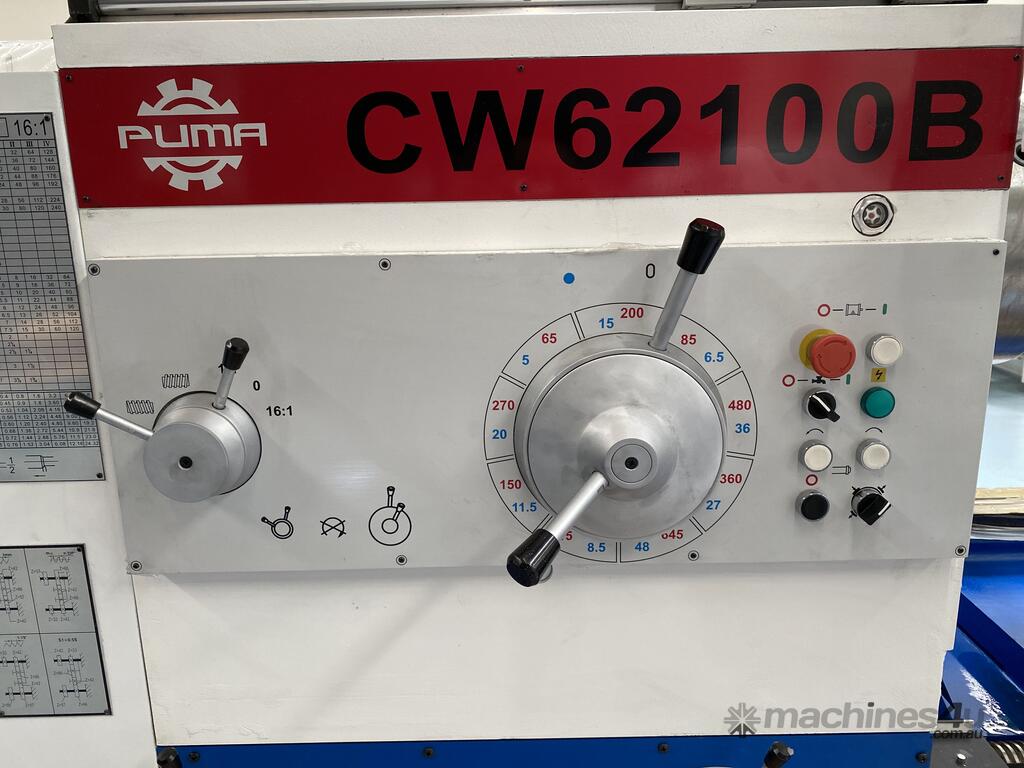

Range of spindle speeds - 18 steps | 5 ~720 rpm
Number of spindle speeds - 18
Longitudinal and cross - 64; 0.1 ~24.32
Cross/long longitudinal feed - 1/2 of longitudinal feeds
No and range of metric thread - 50; 1~240
No and range of inch thread - 26; 14~1
No and range of module thread - 53; 0.5~120
No and range of dia. thread - 24; 28~1
Rapid traverse speed - 4000mm/min
Distance of spindle and tool plane - 33mm
Tool post swing range +/- 90º
Max travel of cross slide - 500mm
Max travel of top slide - 200mm
Section of tool shank - 32mm

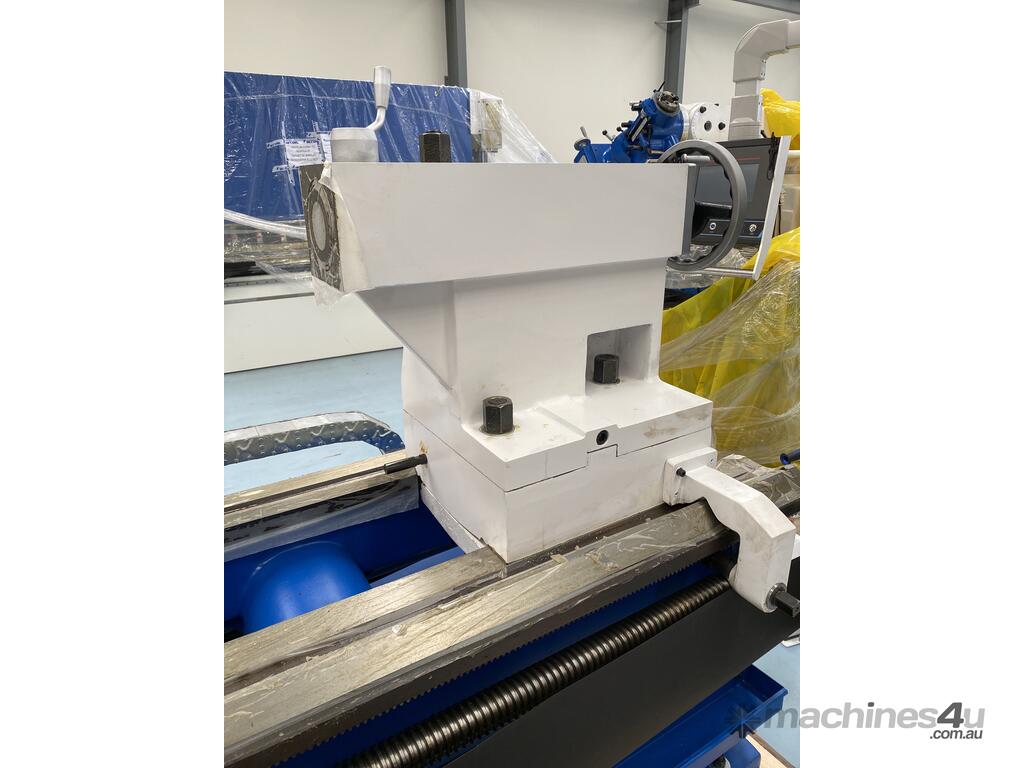

Dia. / Travel of tailstock - 100mm/250mm
Taper hole of tailstock quill - Morse 5
Main motor power - 11KW
415V | 50HZ | 3PH
24V control panel
