PUMA MANUAL HEAVY DUTY LATHE | 6000MM BC | 1250MM SWING | 130MM SPINDLE BORE | DIGI READOUT

Name: PUMA MANUAL HEAVY DUTY LATHE 6000MM BC 1250MM SWING 130MM SPINDLE BORE DIGI READOUT
Brand: puma
SKU: M000331
Price: 170000 AUD
Availability: InStock

QLD, NSW - Delivers Nationally

Play Video

Priced From
$170,000 AUD($187,000 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$592.16
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Wondering about delivery costs?
Get your instant quote today!

120+ million km

Freight posted per year

80,000+

Loads posted per year

Get Instant Transport Quote

Specifications

Condition:

New

Category:

Big Bore Lathe

Make:

PUMA

Model:

CW61125 X 6000

Year:

Not specified

Type of Sale:

Quoted to Customer Spec

Member Since: Nov 2007

Platinum Member

Listings: 527

Label:

Quoted to Customer Spec

Sellers stock ID:

M000331

Description

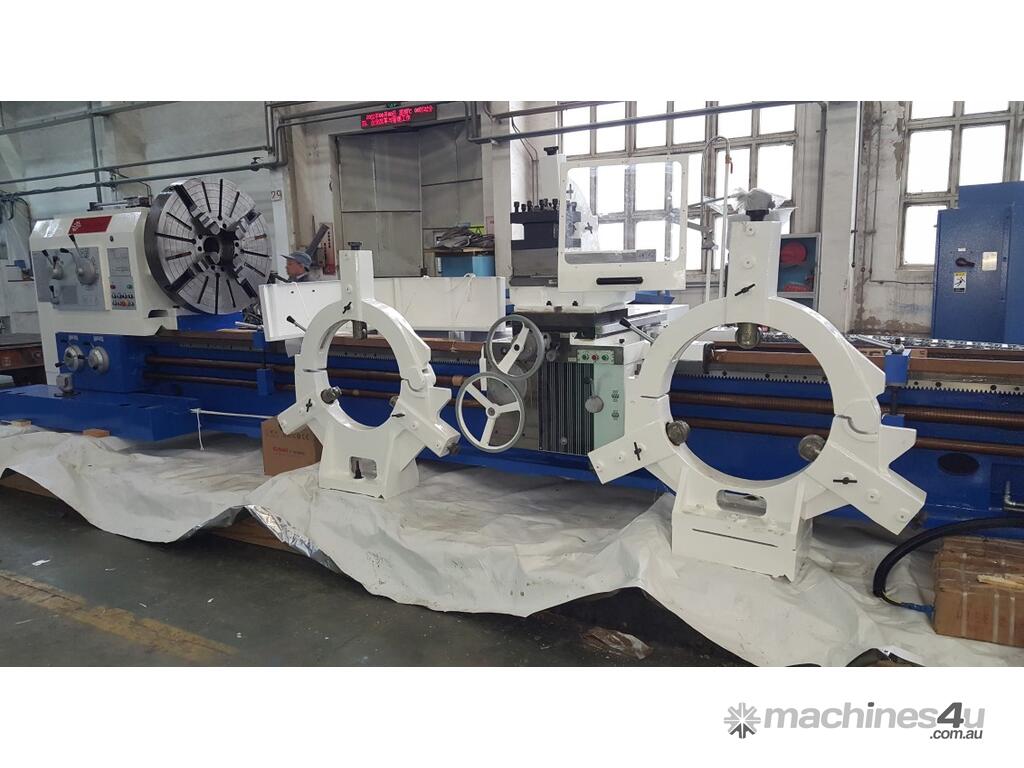

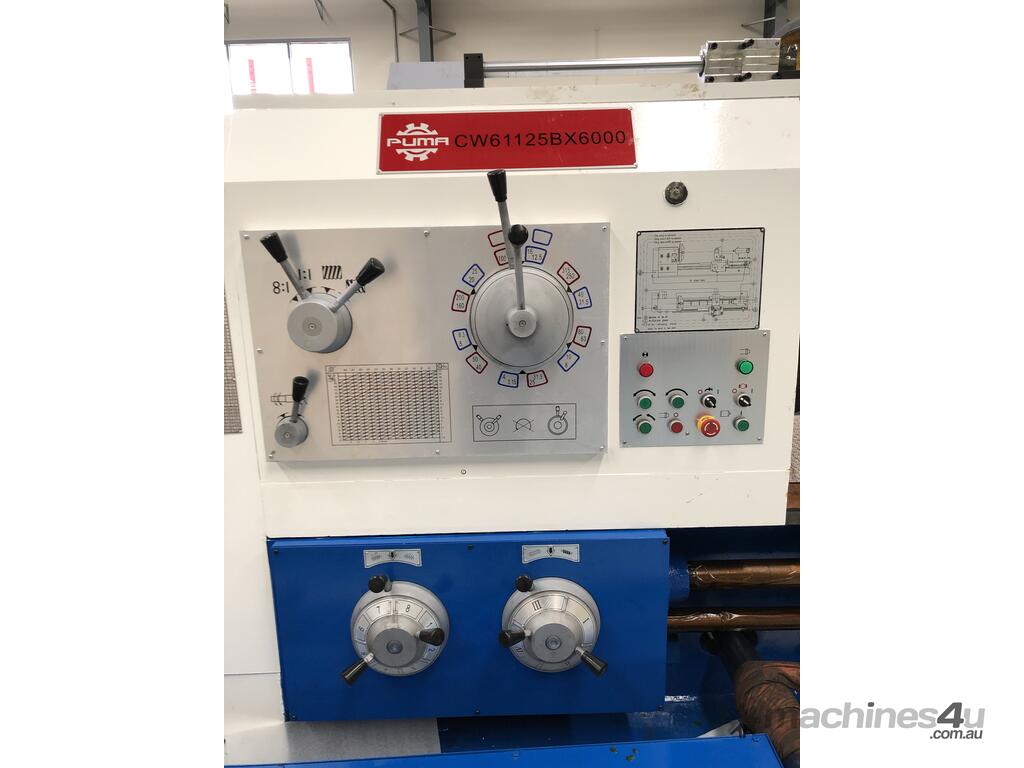

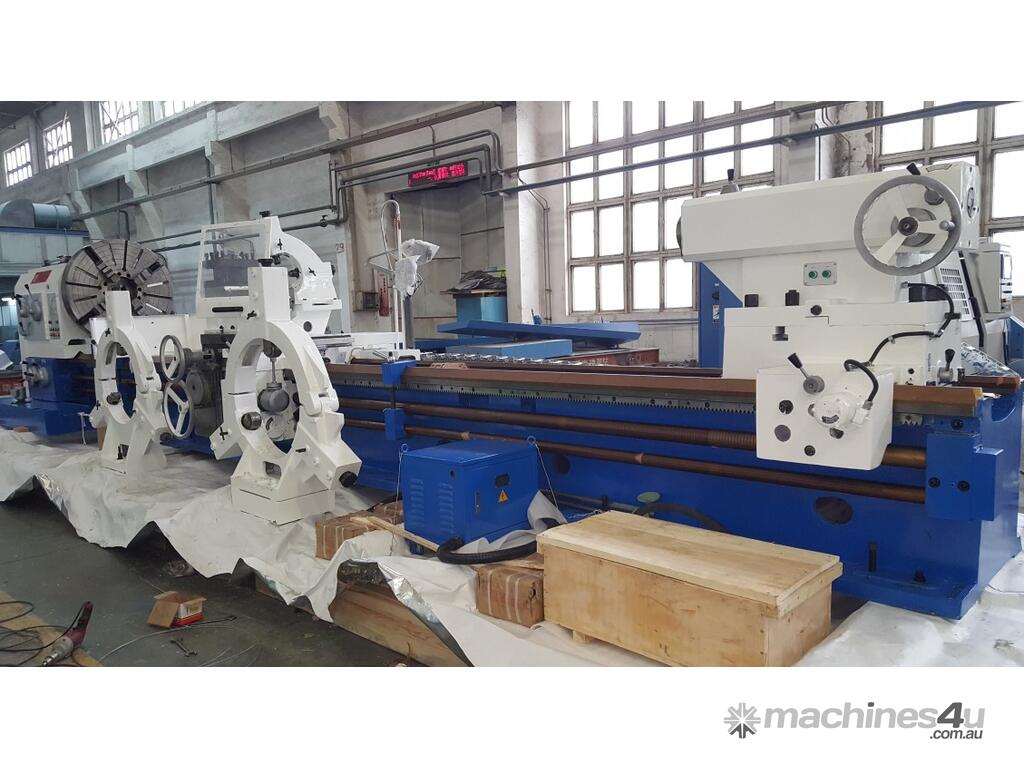

New Puma CW61125B x 6000 Lathe

INCLUDES-

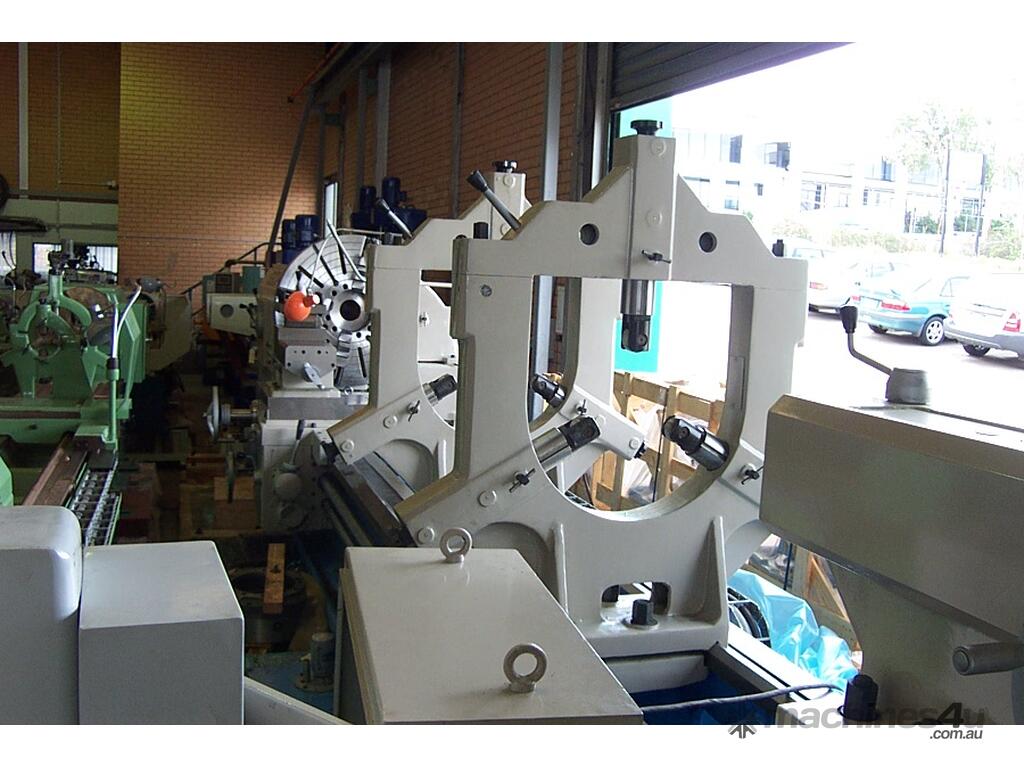

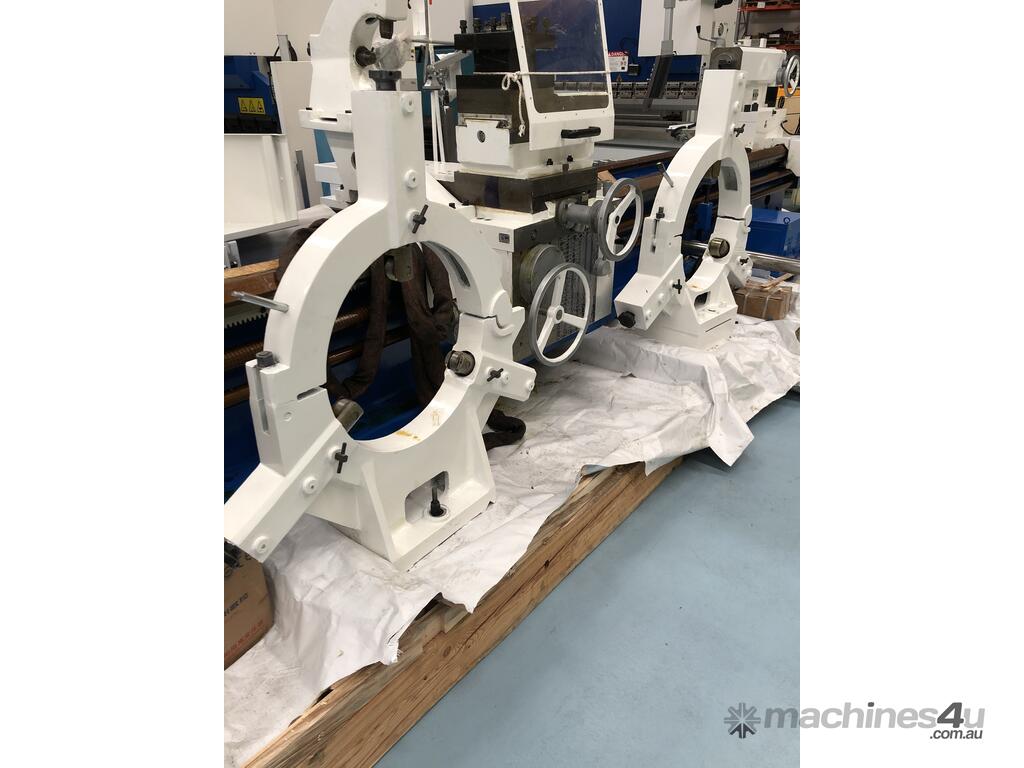

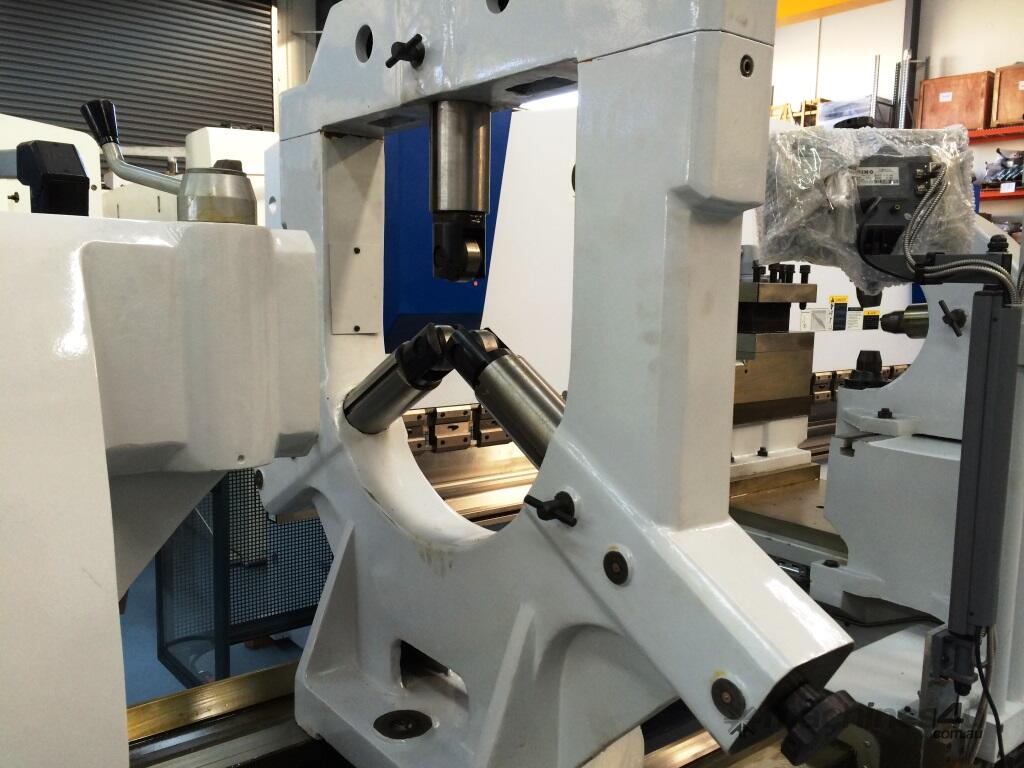

Steady rest 285-635mm
Steady rest 50-475mm
2 axis digital readout

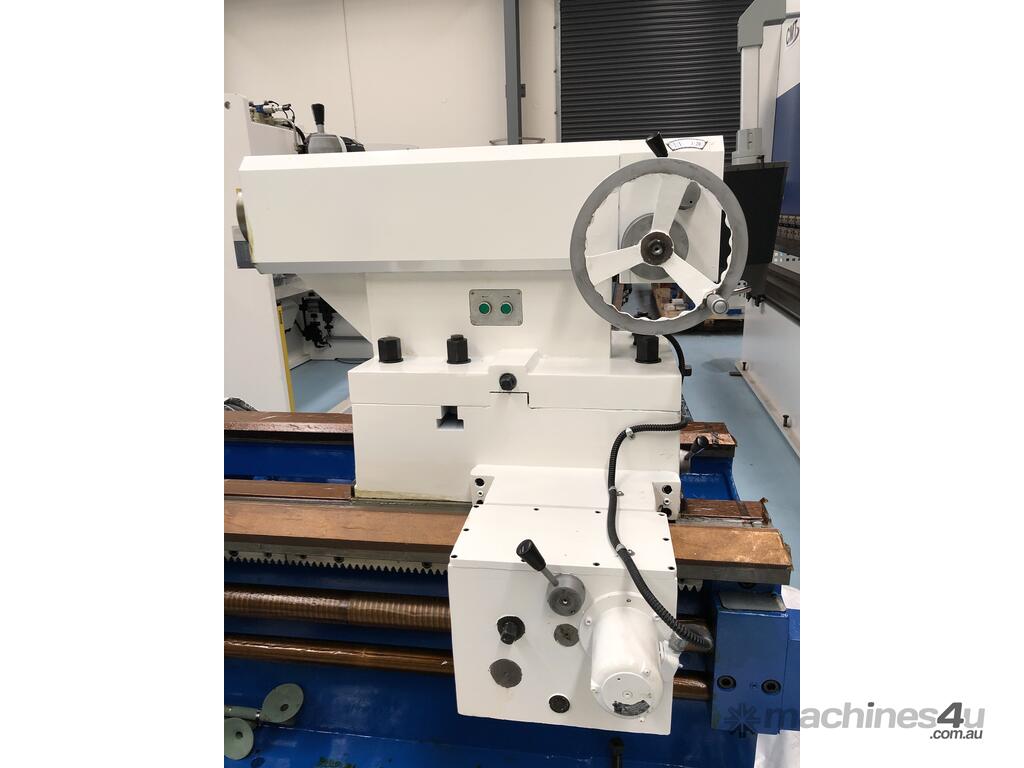

Electric tailstock - movement via a motor

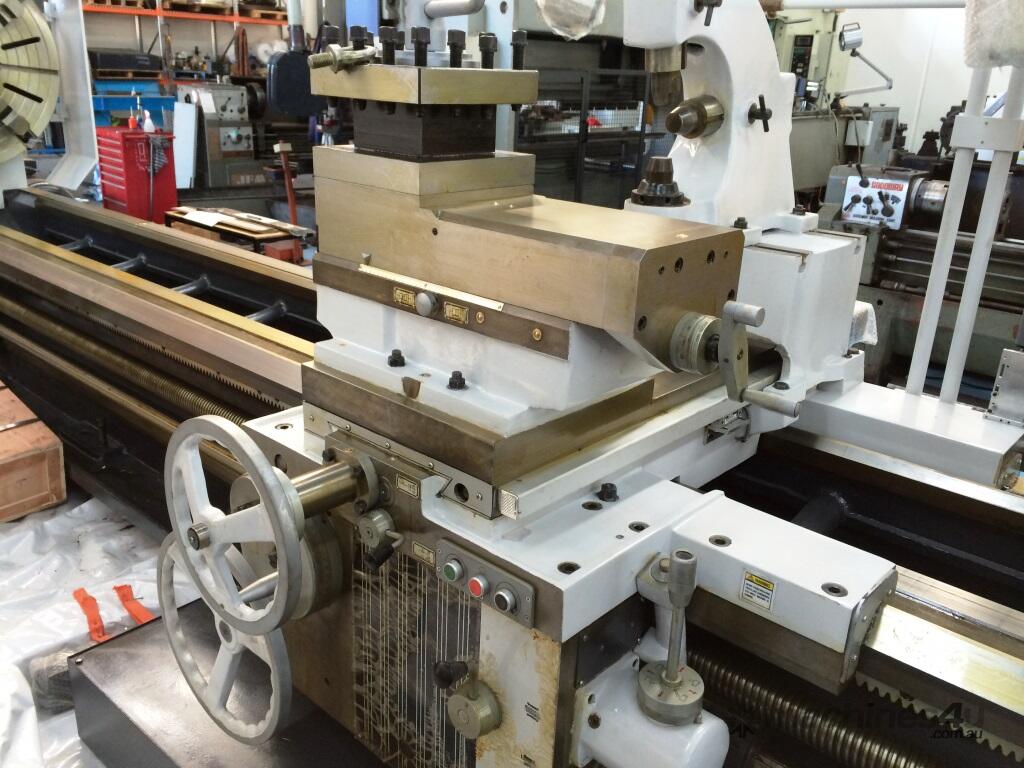

Compound feed

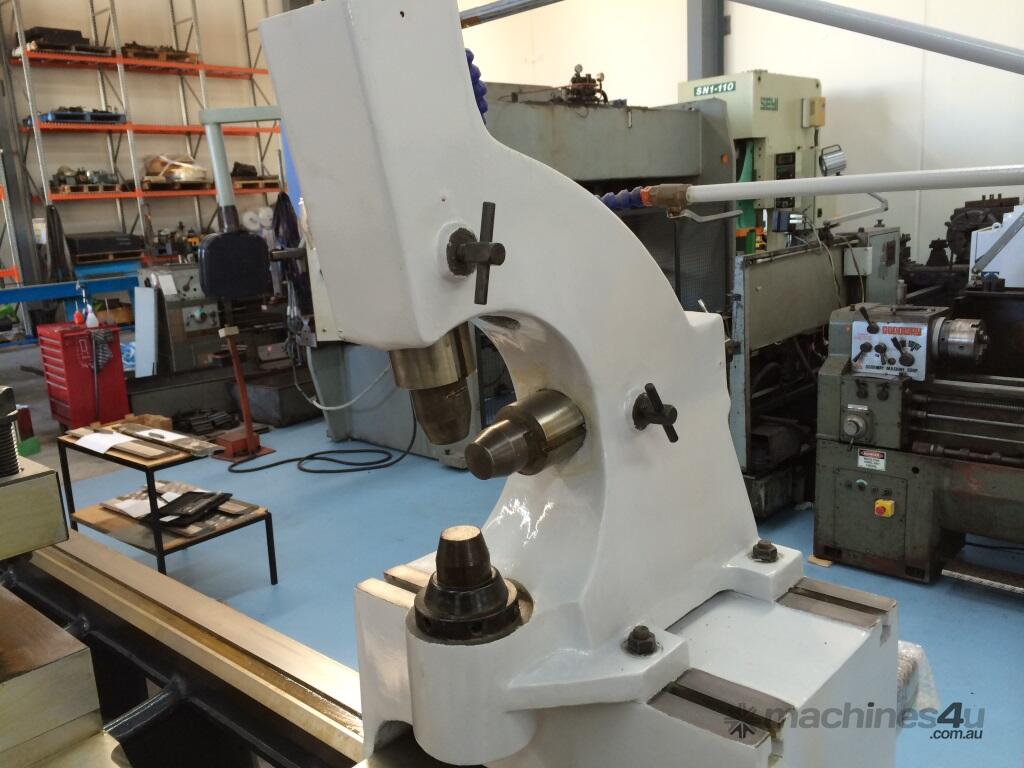

50-220 follow rest

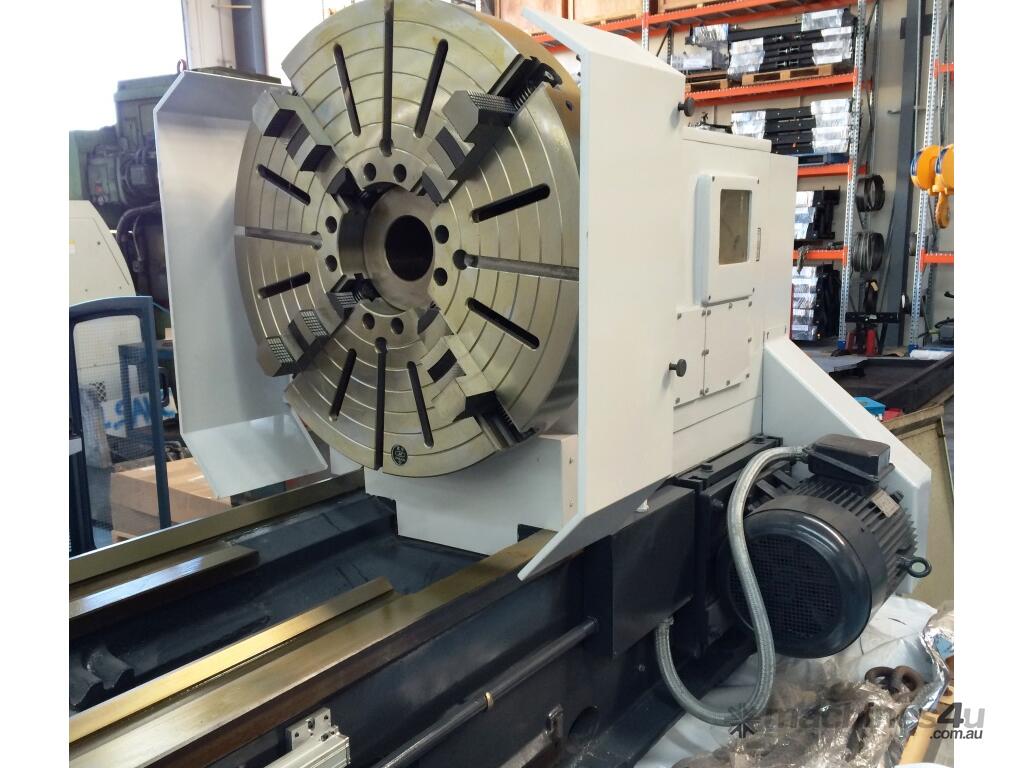

1000mm 4 jaw chuck
Dead center M6
Live center M6
Center sleeve
Manual tools
Introduction book
Foundation bolts

SPECS -

Swing over Bed 1250mm
Swing over Carriage 865mm
Max Length of Workpiece 6000mm
Max Turning Length 5800mm
Pan of Guideway 755mm
Spindle Nose A2 ~15 ( 8 x M22 )
Spindle Bore 130mm
Taper hole of Spindle 1:20/140
Range of spindle speeds 3.15~315r/min 3.5 ~291 r/min
No. of spindle speeds 21 12
Feeds per revolution 0.1 ~ 12 0.05 ~ 6 0.025 ~ 3
No. and range of metric thread 44;1 ~120mm
No. and range of inch thread 31; 28~1/4
No. and range of dia. thread 38; 1/2 ~56DP
Distance of spindle and tool plane 48mm

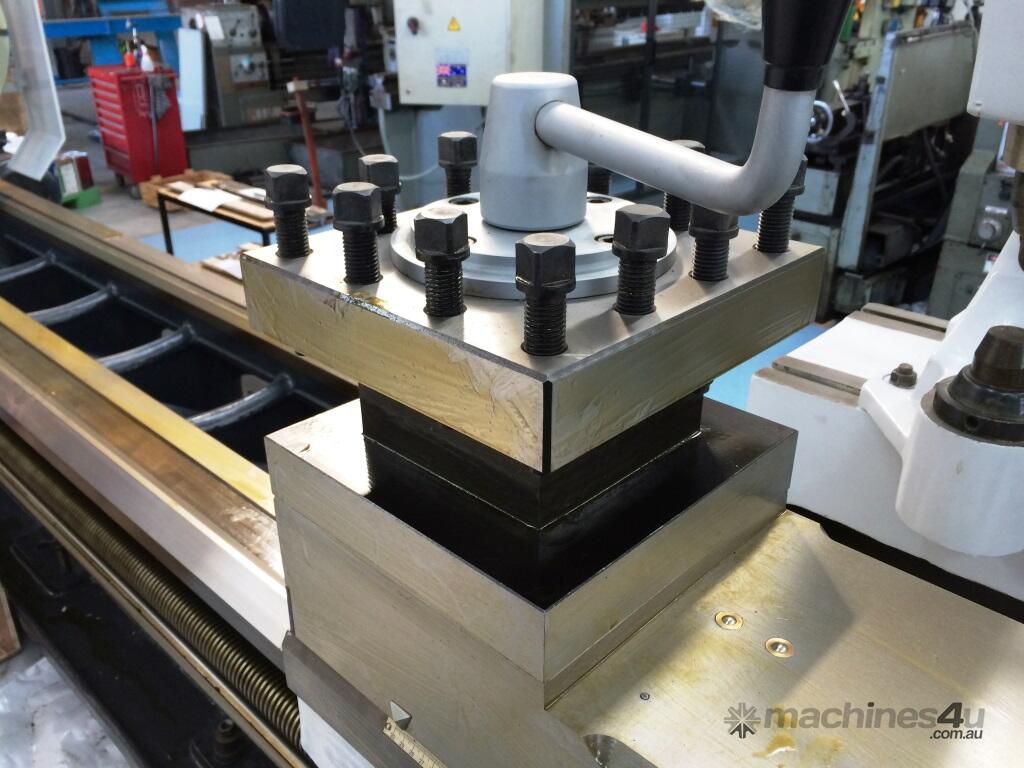

Tool post swing range +/- 90º
Max. travel of cross slide 580mm (22")
Max. travel of top slide 300mm
Section of tool shank 45mm (260x260)
Rapid travel speeds 3740mm/min 1870 mm/min 935 mm/min
Dia. of tailstock 160mm (6")
Travel of tailstock 300mm (12")
Taper hole of tailstock quill Morse 6mm

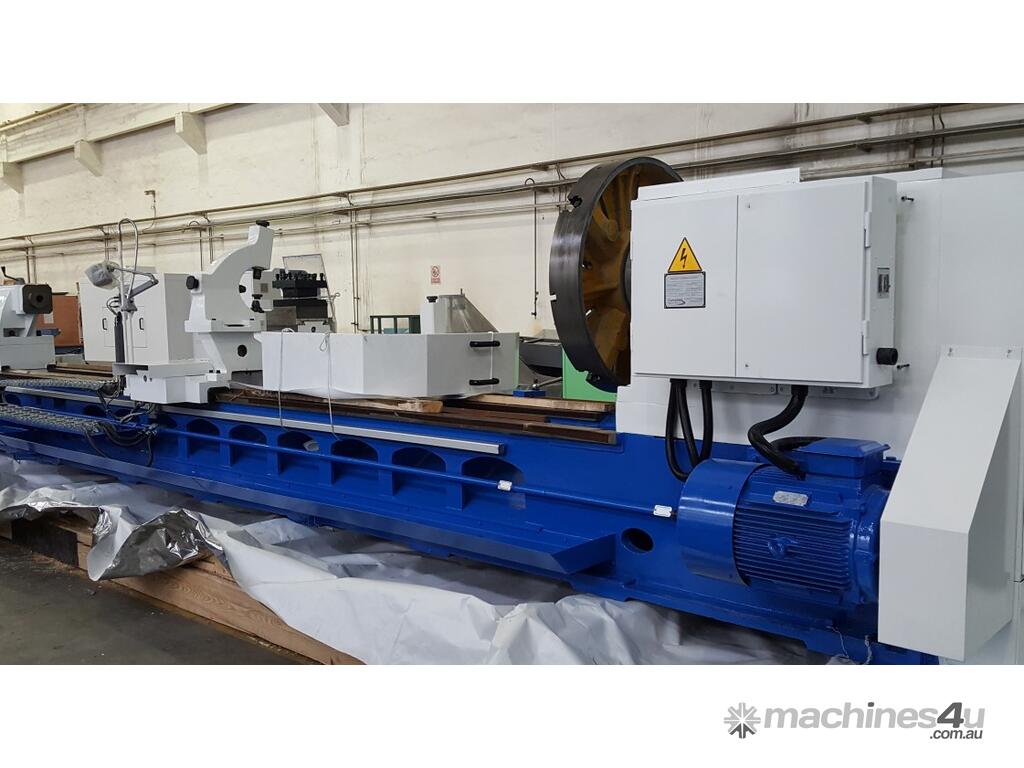

Main motor power 22kW
415V | 50HZ | 3PH
