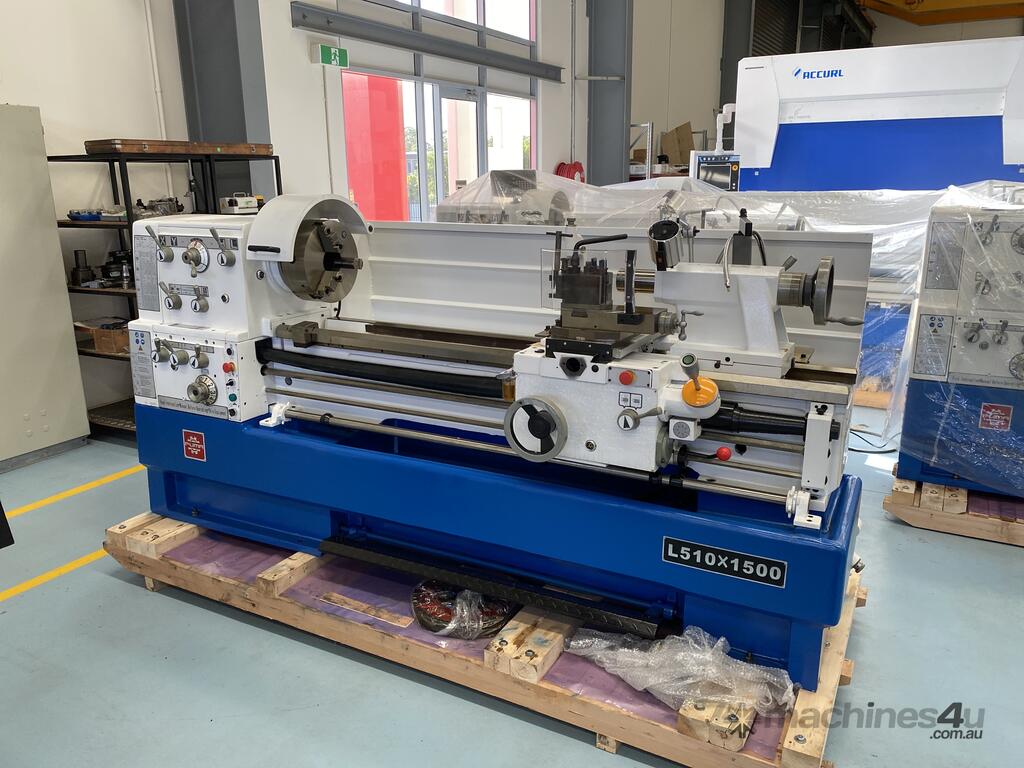

New Puma L510 x 1500 Lathes are a heavy duty 1.5m between centre lathe ideal for any engineering and maintenance workshop. They come with an array of features and standard inclusions to enhance productivity and speed up the machining process. A great machine packed with features
Features:
• 2 AXIS SINO DRO

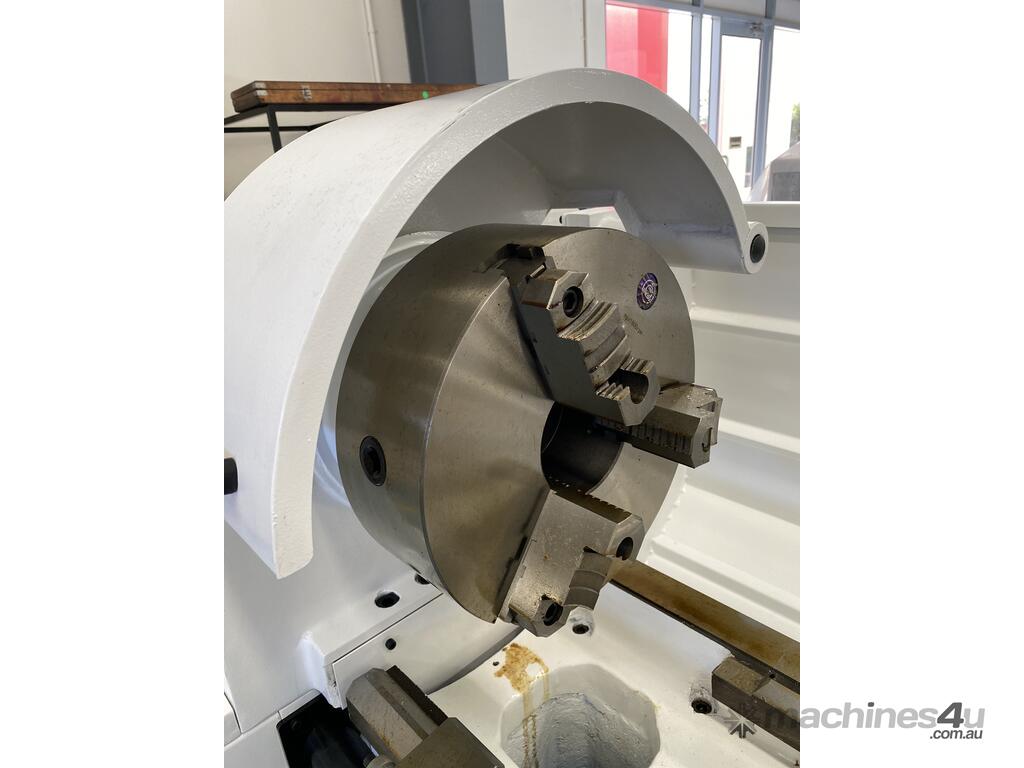

• 3 JAW CHUCK 320MM (DIRECT MOUNT CAMLOCK, NO BACKPLATE)
• 4 JAW CHUCK 400MM (DIRECT MOUNT CAMLOCK, NO BACKPLATE)

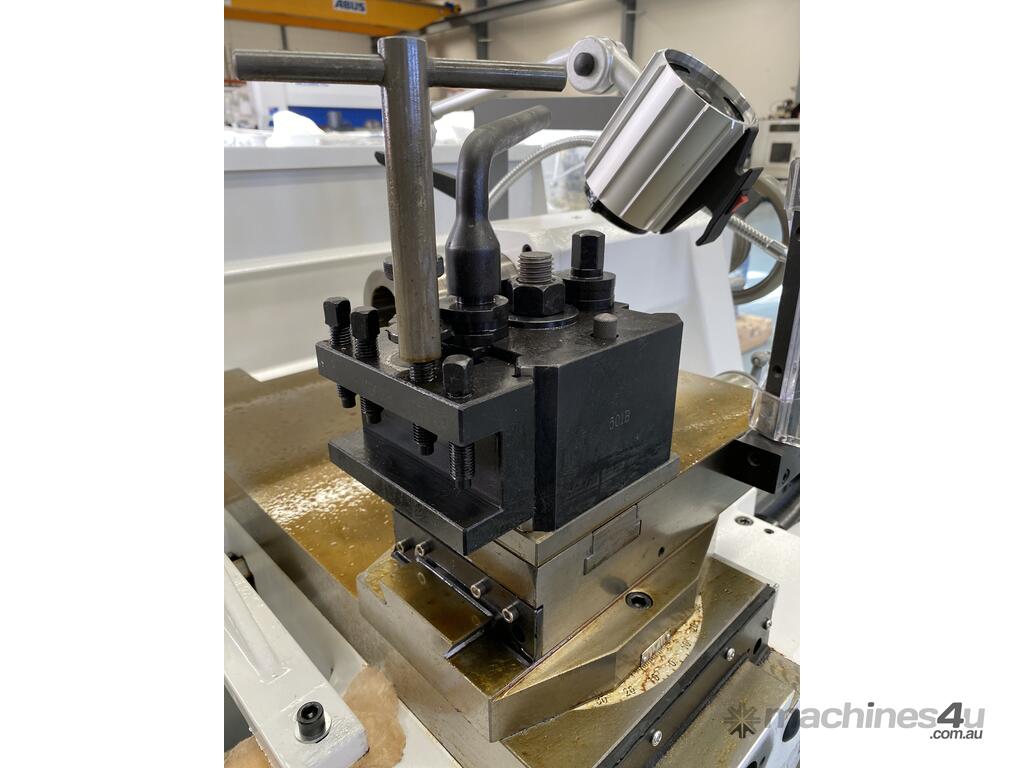

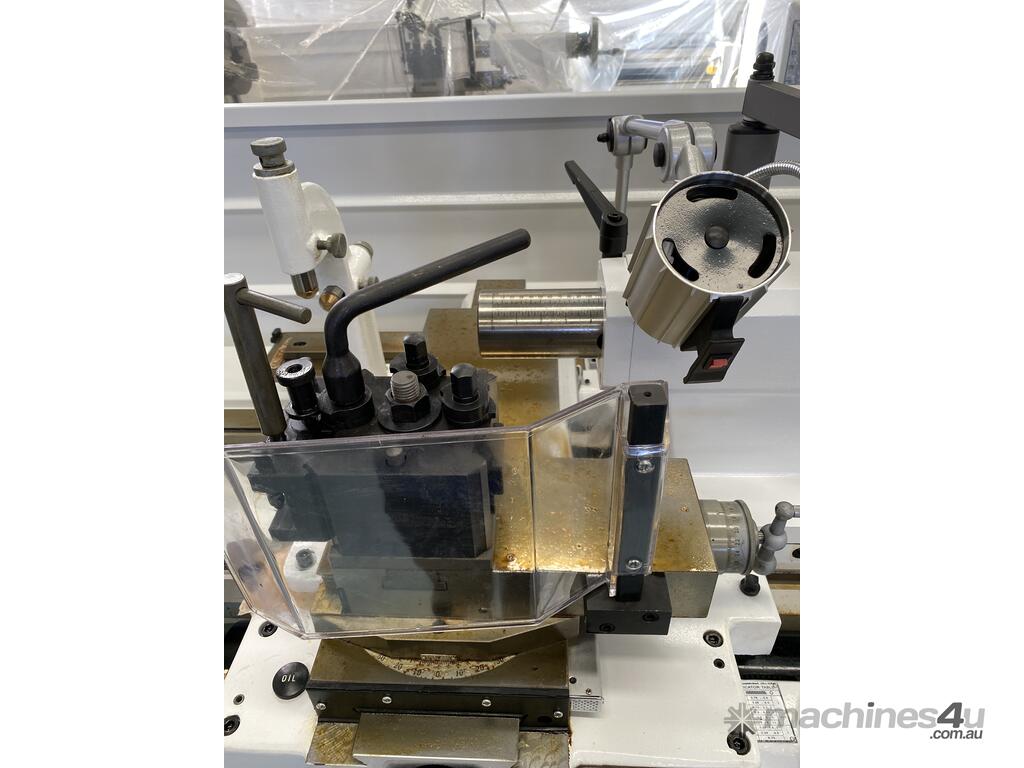

• QUICK CHANGE TOOL POST (ITALIAN STYLE WITH 6 TOOL HOLDERS)

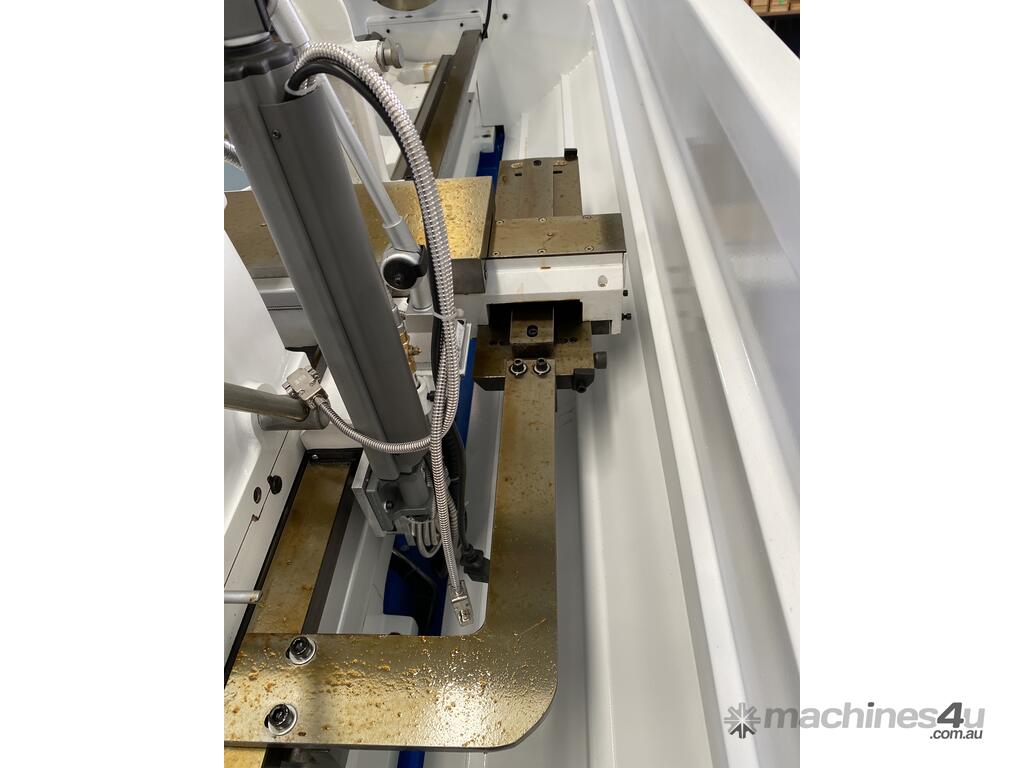

• CHUCK GUARD, BALL SCREW PROTECTION COVER, TOOL POST COVER

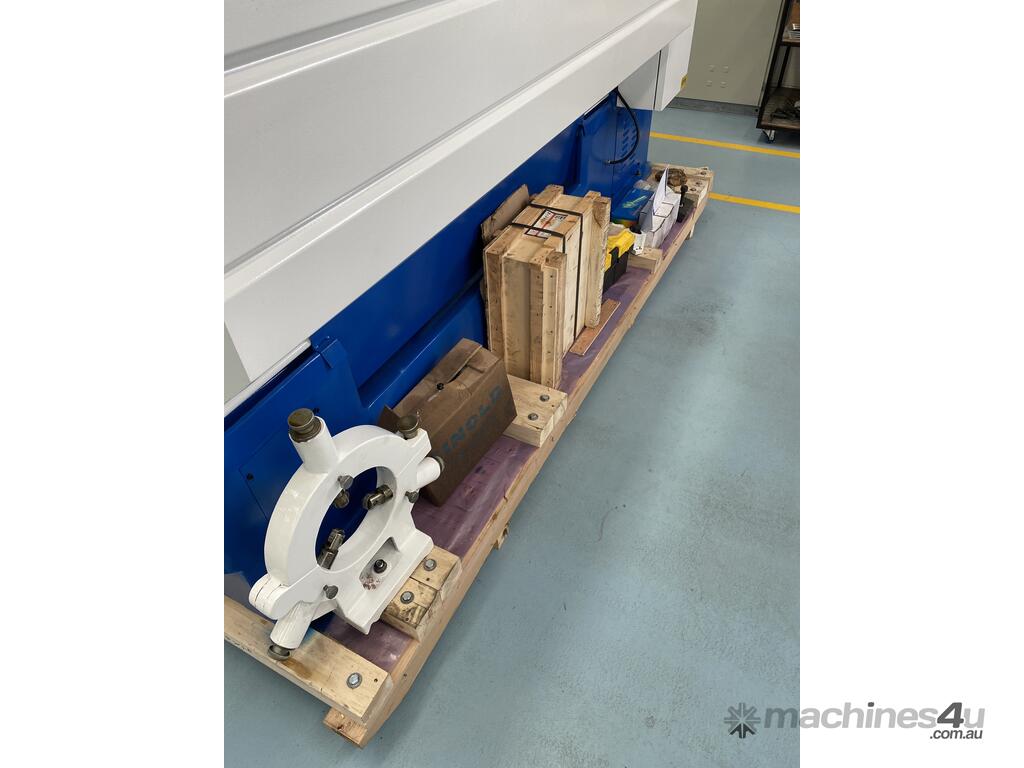

• STEADY REST (19-165MM)
• FOLLOW REST (16-95MM)
• THREAD CHASING DIAL
• OIL GUN
• FOOT BRAKE
• SPLASH GUARD
• CENTRE & LIVE SLEEVE
• WRENCHES
• FACE PLATE
• COOLANT SYSTEM
• LEVELLING PADS
• WORKING LIGHT
• TOOL BOX
• LIVE CENTRE
• TAPER TURNING ATTACHMENT
Specifications:
• SWING OVER BED: 510 mm
• SWING IN GAP: 300 mm
• LENGTH OF GAP: 200 mm
• SPINDLE BORE: 80 mm
• SPINDLE NOSE: D1-8
• TAPER OF SPINDLE BORE: No. 7 Morse

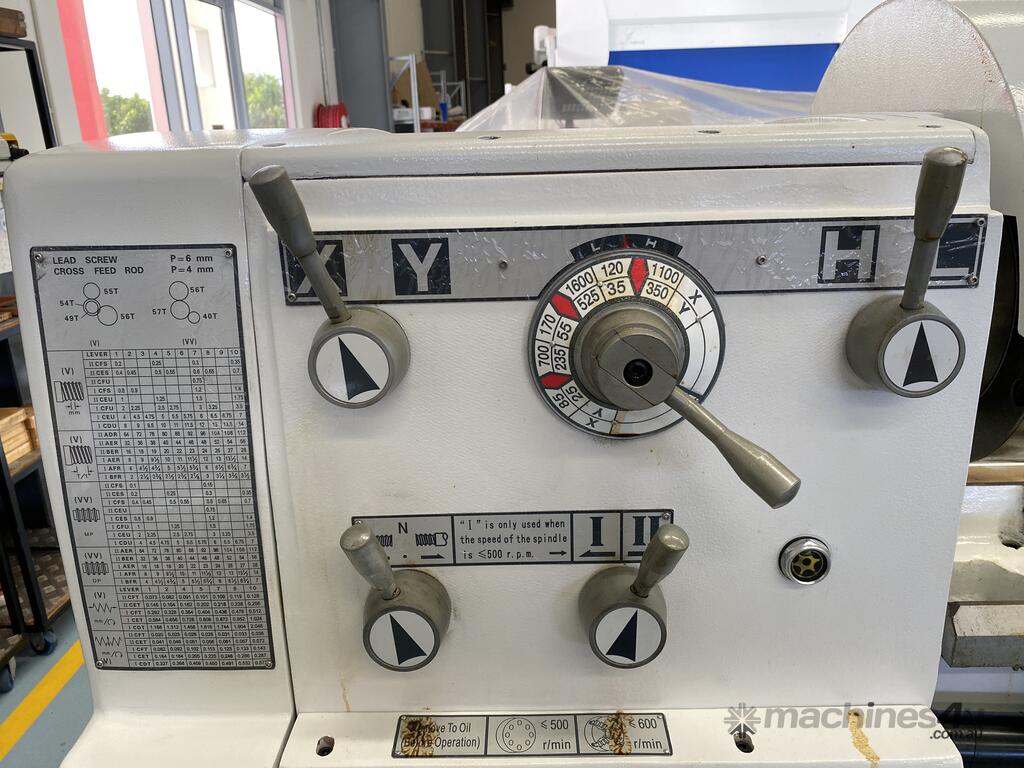

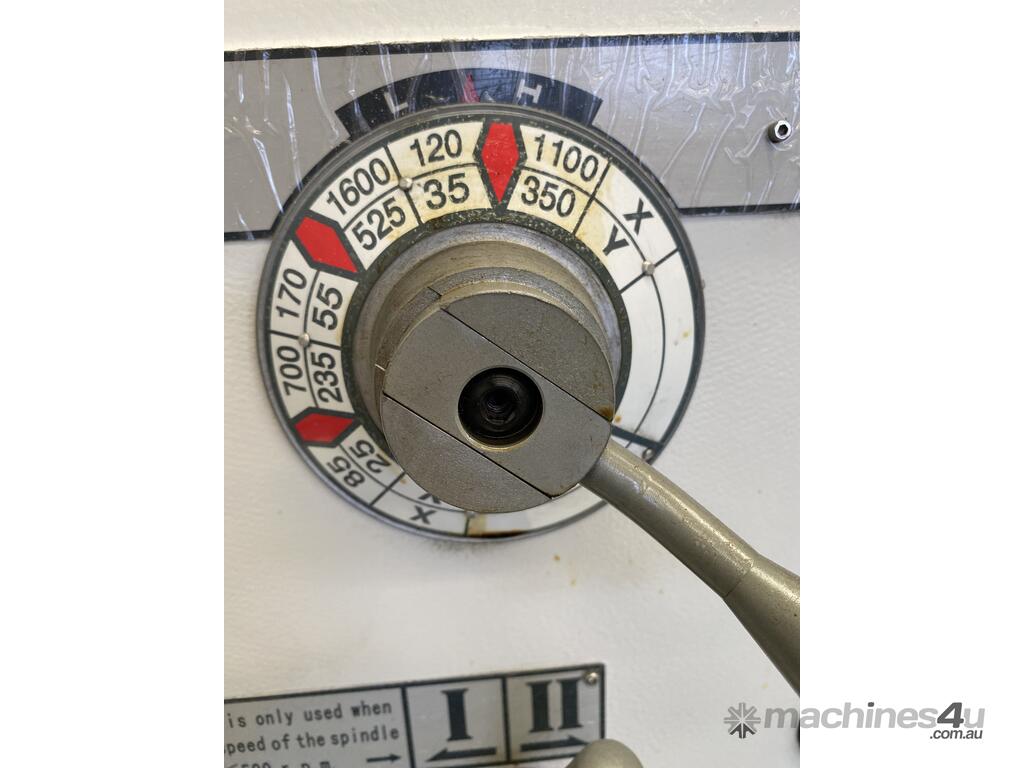

• RANGE OF SPINDLE SPEED: 12 steps 25-1600r/min
• MAX. TRAVEL OF TOP SLIDE: 130mm
• MAX. TRAVEL OF CROSS SLIDE: 326 mm
• MAX SECTION OF TOOL: 25 x 25mm
• PITCH THREAD OF LEADSCREW: 6 mm or 4 TPI
• LONGITUDINAL FEED RANGE: 35 kinds; 0.059-1.646 mm/rev (0.0022” – 0.0612” /rev)
• CROSS FEED RANGE: 35 kinds; 0.020-0.573 mm (0.00048” – 0.01354”)
• METRIC THREADS RANGE: 47 kinds; 0.2 – 14 mm
• INCH THREADS RANGE: 60 kinds; 2 – 112 TPI
• DIAMETRICAL PITCHES RANGE: 50 kinds; 4 – 112 DP
• MODULE PITCHES RANGE: 34 kinds; 0.1 – 7 MP
• DIA. OF TAILSTOCK SLEEVE: 75 mm
• TRAVEL OF TAILSTOCK SLEEVE: 180 mm
• TAPER OF TAILSTOCK SLEEVE: No.5 Morse
• POWER OF MAIN MOTOR: 7.5 Kw (10 HP) 3 PH
• POWER OF COOLANT PUMP: 0.1 Kw (1/8HP) 3 PH
• DIMENSIONS: 2900 x 1120 x 1430 mm
• WEIGHT: 2335 KG
