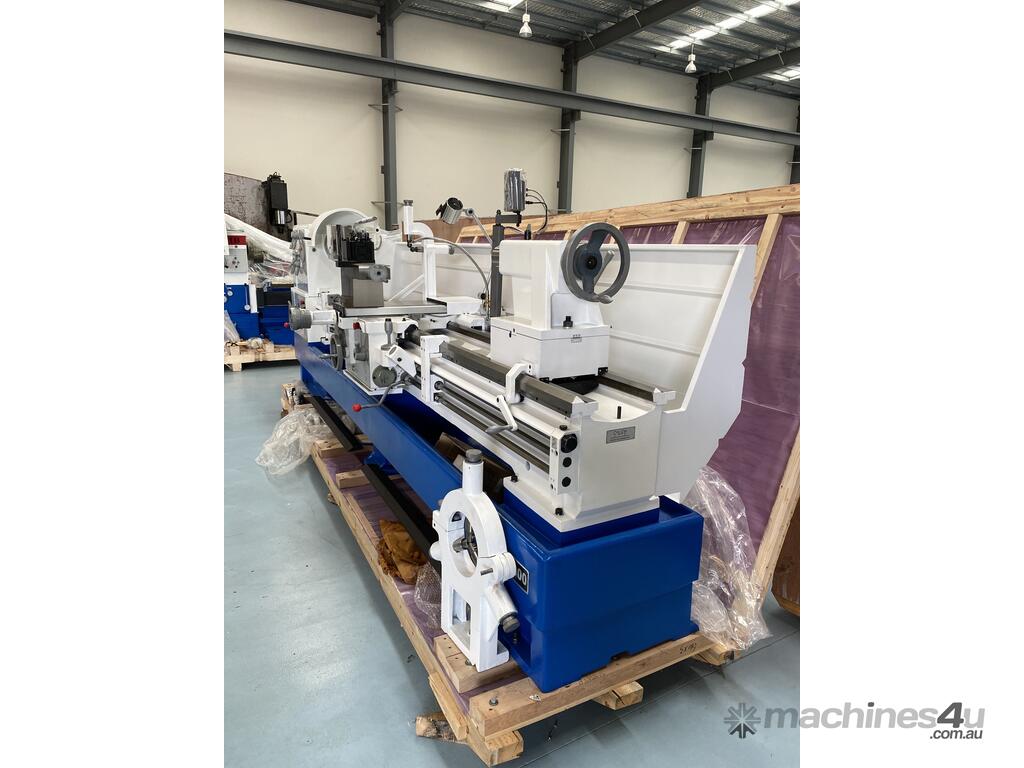

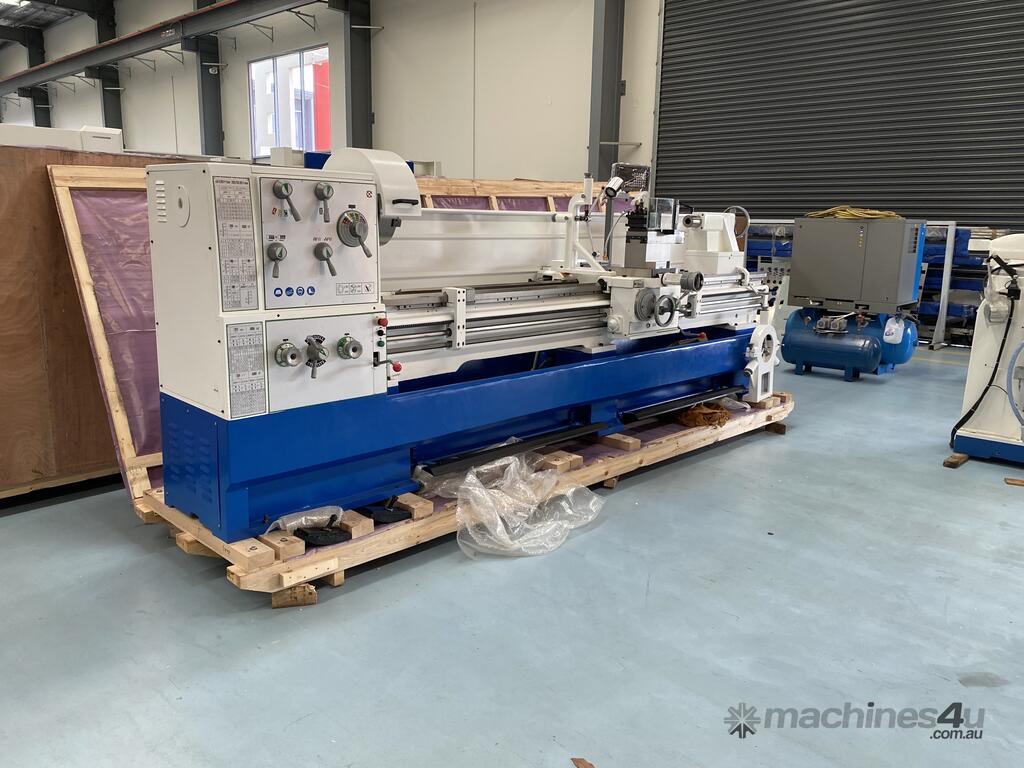

New Puma CQ6280 x 3000 Lathes are a medium duty 3m between centre lathe ideal for any engineering and maintenance workshop with an 800mm swing and 105mm spindle bore. They come with an array of features and standard inclusions to enhance productivity and speed up the machining process. A great machine packed with features
Features:

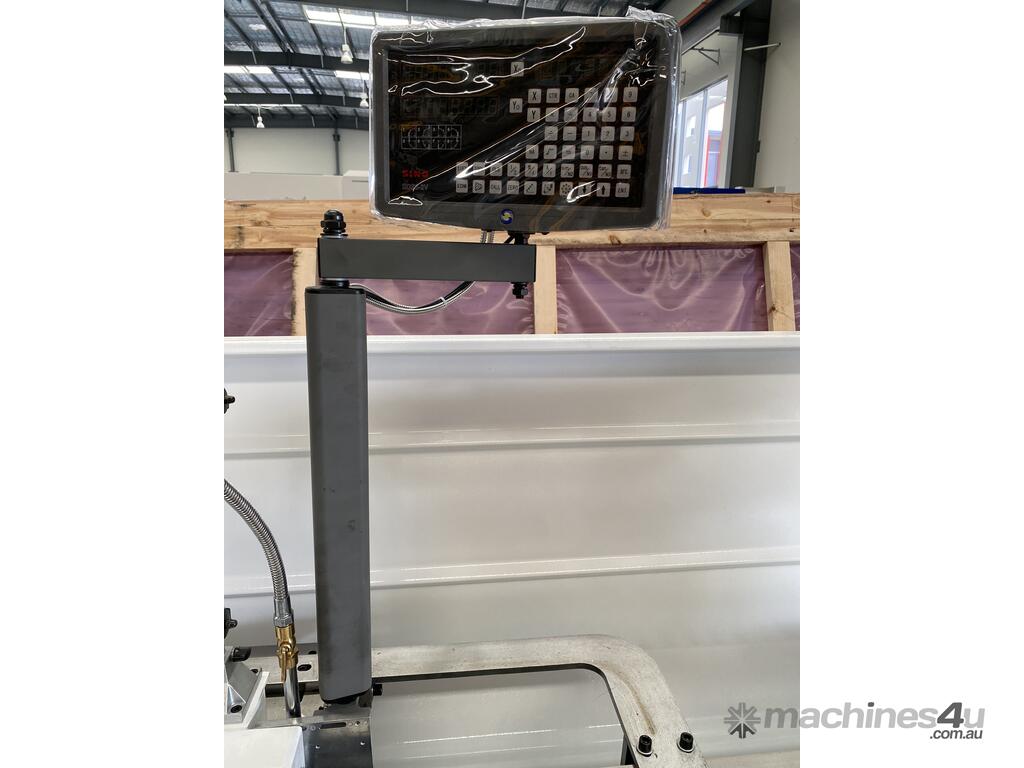

• 2 AXIS SINO DRO

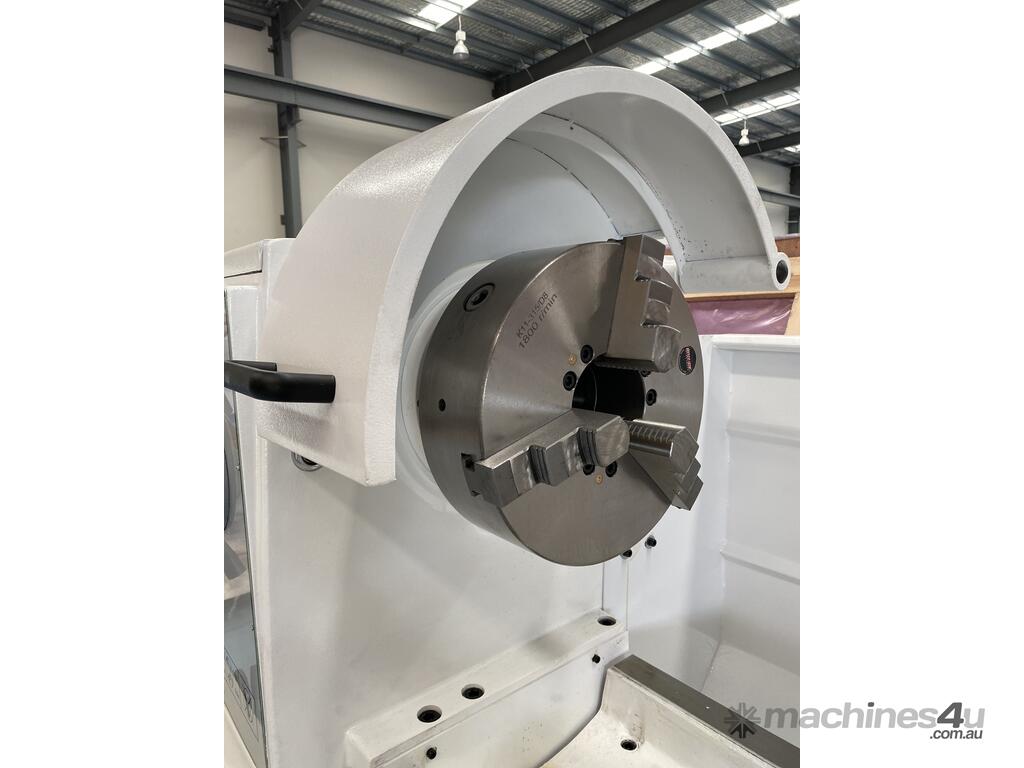

• 3 JAW CHUCK 315MM (DIRECT MOUNT CAMLOCK, NO BACKPLATE)
• 4 JAW CHUCK 400MM (DIRECT MOUNT CAMLOCK, NO BACKPLATE)

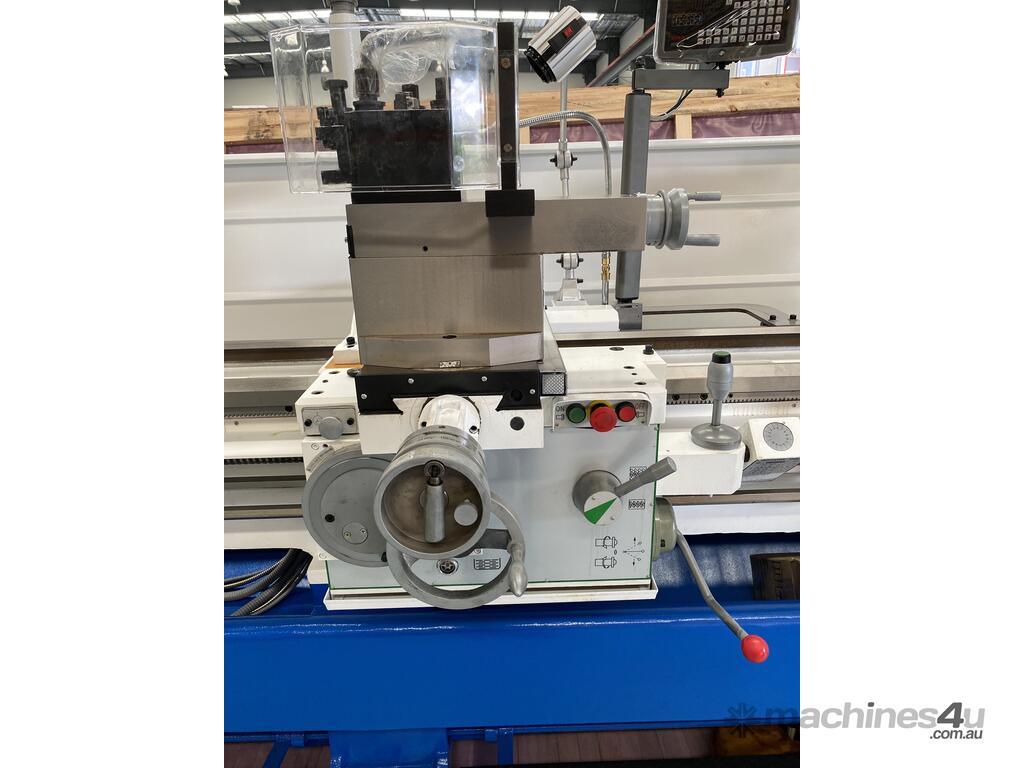

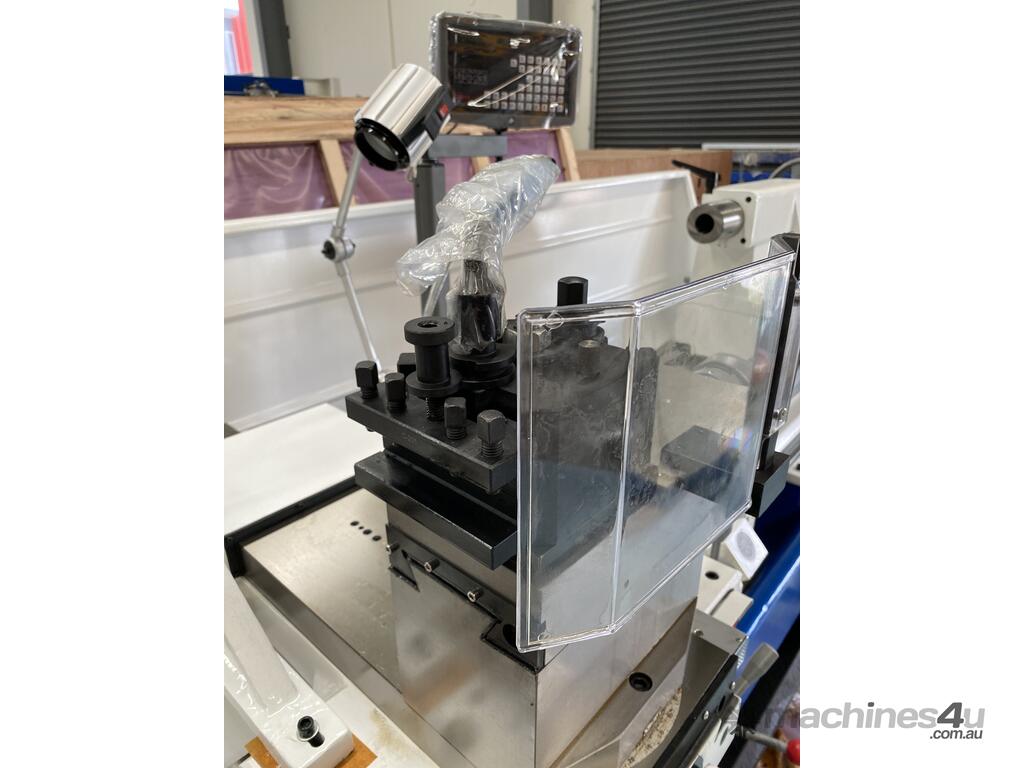

• QUICK CHANGE TOOL POST (ITALIAN STYLE WITH 4 TOOL HOLDERS)
• CHUCK GUARD, LEAD SCREW PROTECTION COVER, TOOL POST COVER
• STEADY REST (20-190MM)

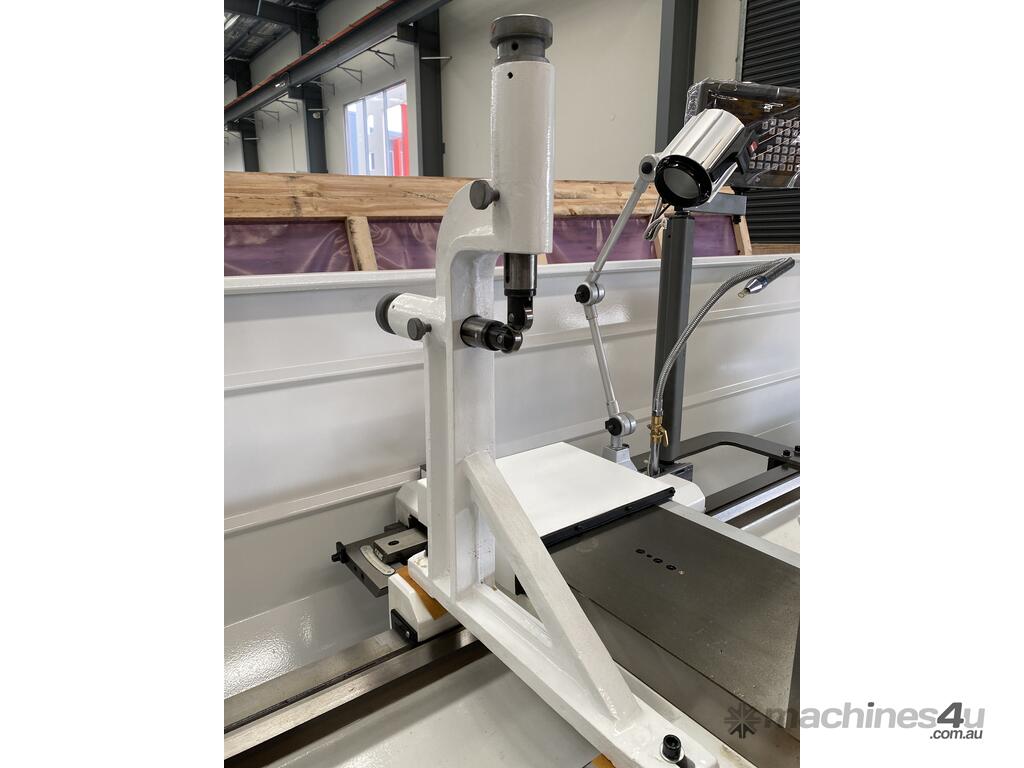

• FOLLOW REST (20-130MM)
• THREAD CHASING DIAL
• OIL GUN
• FOOT BRAKE
• SPLASH GUARD
• CENTRE SLEEVE
• WRENCHES
• FACE PLATE
• COOLANT SYSTEM
• LEVELLING PADS
• WORKING LIGHT
• TOOL BOX
• RAPID TRAVERSE
• LIVE CENTRE

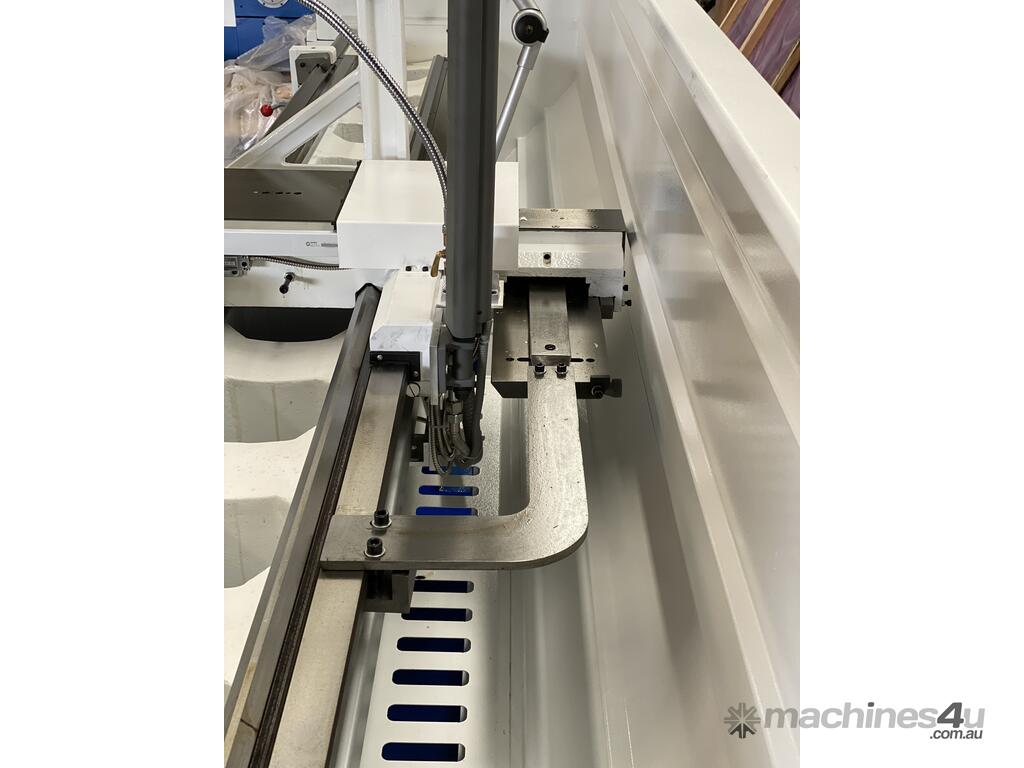

• TAPER TURNING ATTACHMENT
• SOFT JAWS FOR 3 JAW CHUCK

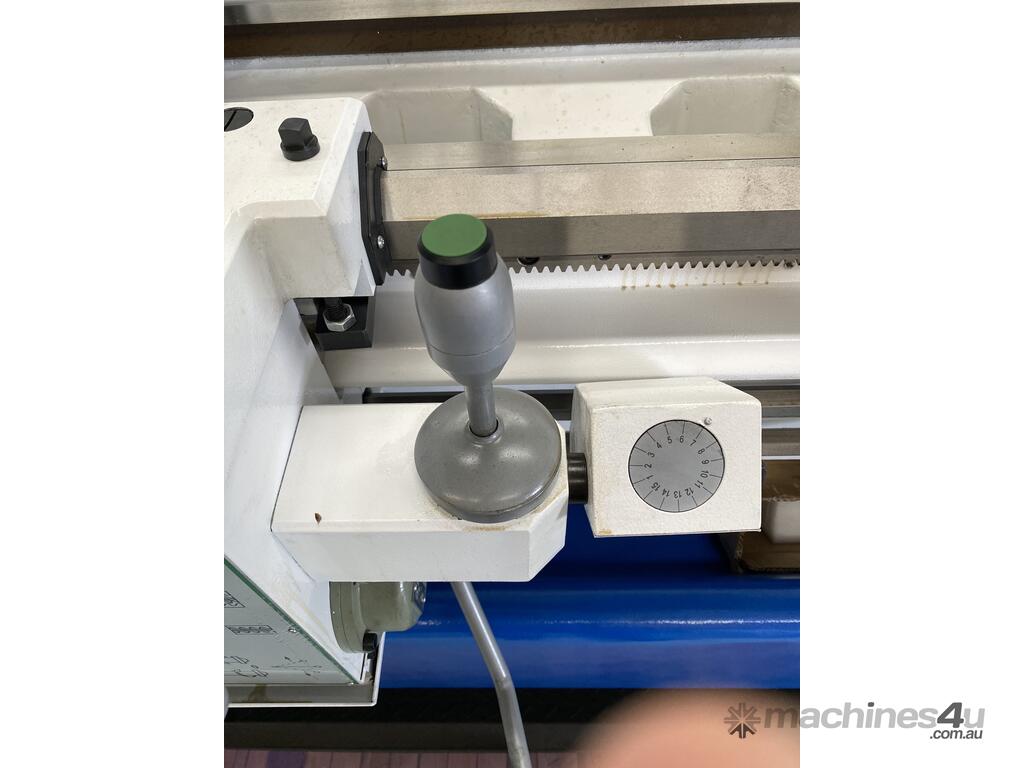

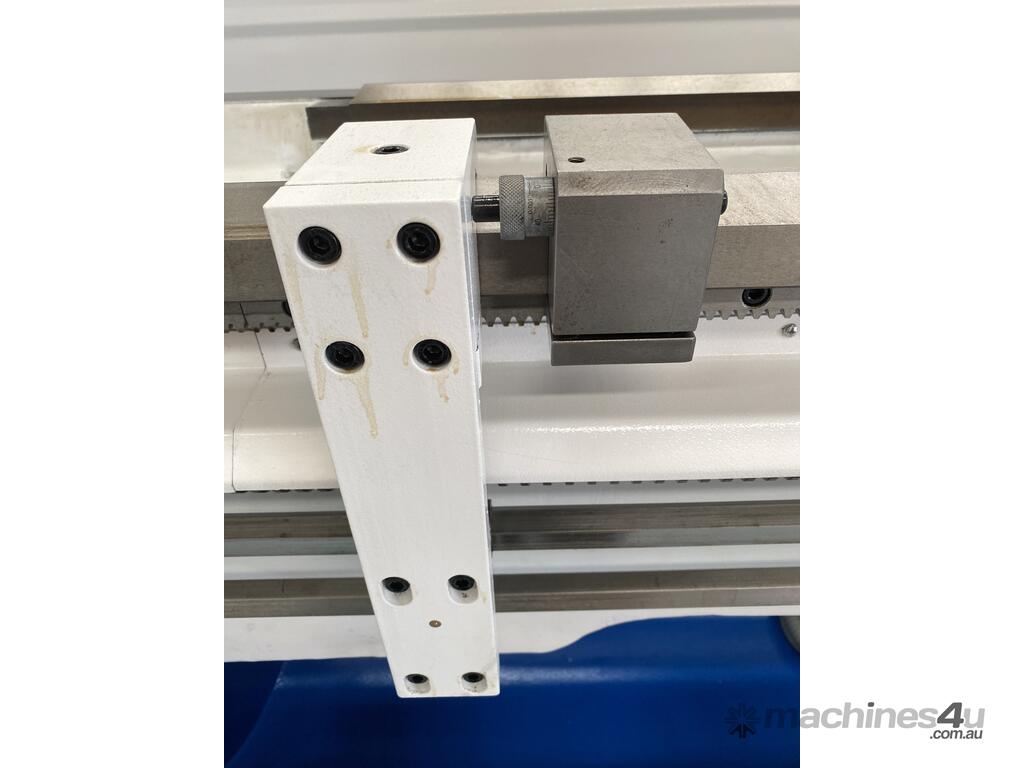

• MICRO CARRIAGE STOP
Specifications:
• SWING OVER BED: 800 mm
• SWING IN GAP: 1035mm
• LENGTH OF GAP: 250 mm
• SPINDLE BORE: 105 mm
• SPINDLE NOSE: D1-8
• TAPER OF SPINDLE BORE: MT5

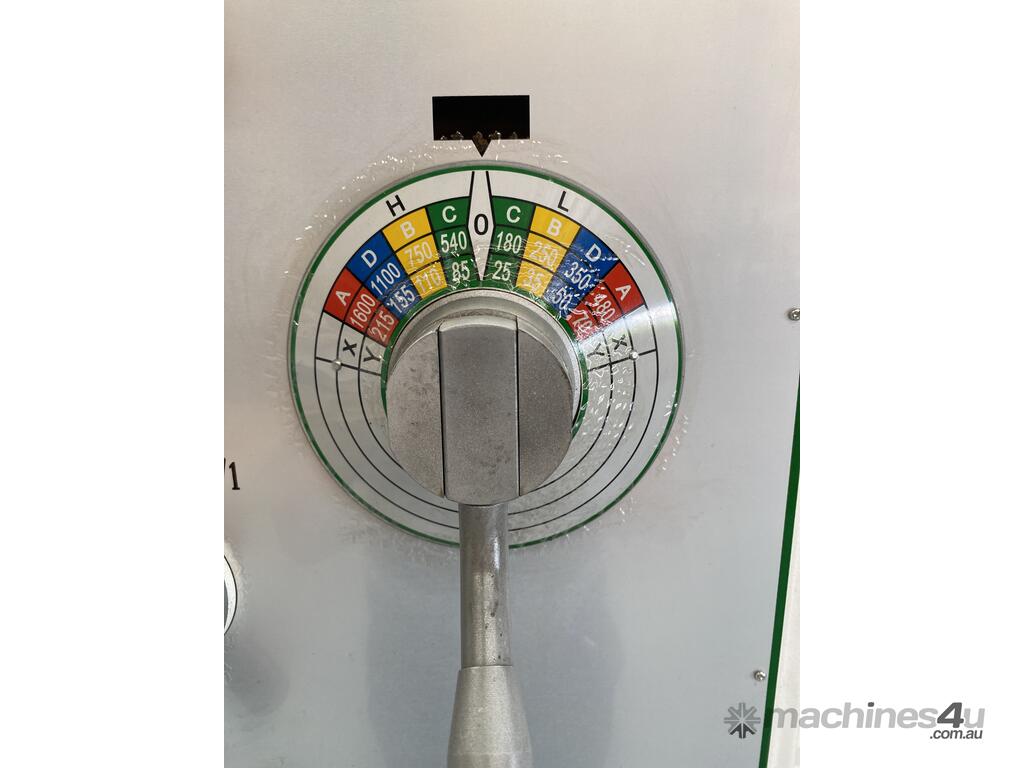

• RANGE OF SPINDLE SPEED: 25-1600 r/min
• MAX. TRAVEL OF TOP SLIDE: 230 mm
• MAX. TRAVEL OF CROSS SLIDE: 418 mm
• MAX SECTION OF TOOL: 25 x 25 mm
• PITCH THREAD OF LEADSCREW: 40 mm X 12mm
• LONGITUDINAL FEED RANGE: 25 kinds; 0.044-1.48 mm/rev (0.0016498” – 0.05497” /rev)
• CROSS FEED RANGE: 25 kinds; 0.022-0.74 mm (0.0008326” – 0.02774”)
• METRIC THREADS RANGE: 54 kinds; 0.45 – 120 mm
• INCH THREADS RANGE: 54 kinds; 7/16 – 80 TPI
• DIAMETRICAL PITCHES RANGE: 42 kinds; 7/8 – 160 DP
• MODULE PITCHES RANGE: 46 kinds; 0.25 – 60 MP

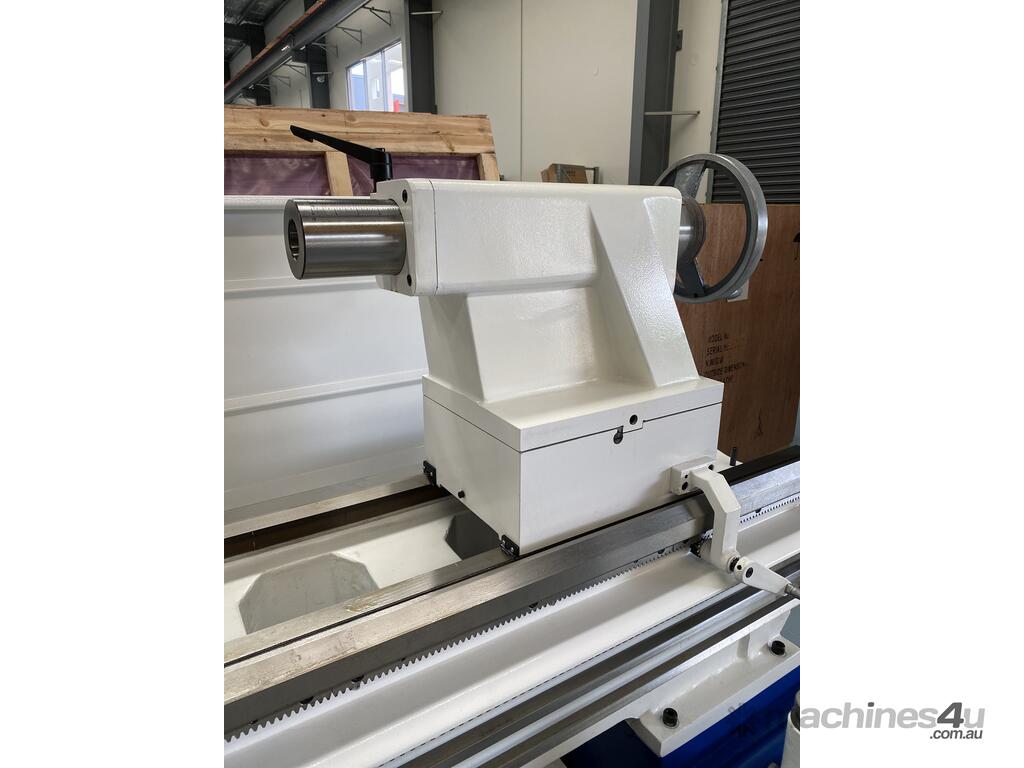

• DIA. OF TAILSTOCK SLEEVE: 90 mm
• TRAVEL OF TAILSTOCK SLEEVE: 235 mm
• TAPER OF TAILSTOCK SLEEVE: No.5 Morse
• POWER OF MAIN MOTOR: 7.5 Kw (10 HP) 3 PH
• POWER OF COOLANT PUMP: 0.1 Kw (1/8 HP) 3 PH
• DIMENSIONS: 471 x 123 x 167 cm
• WEIGHT: 3820 KG
