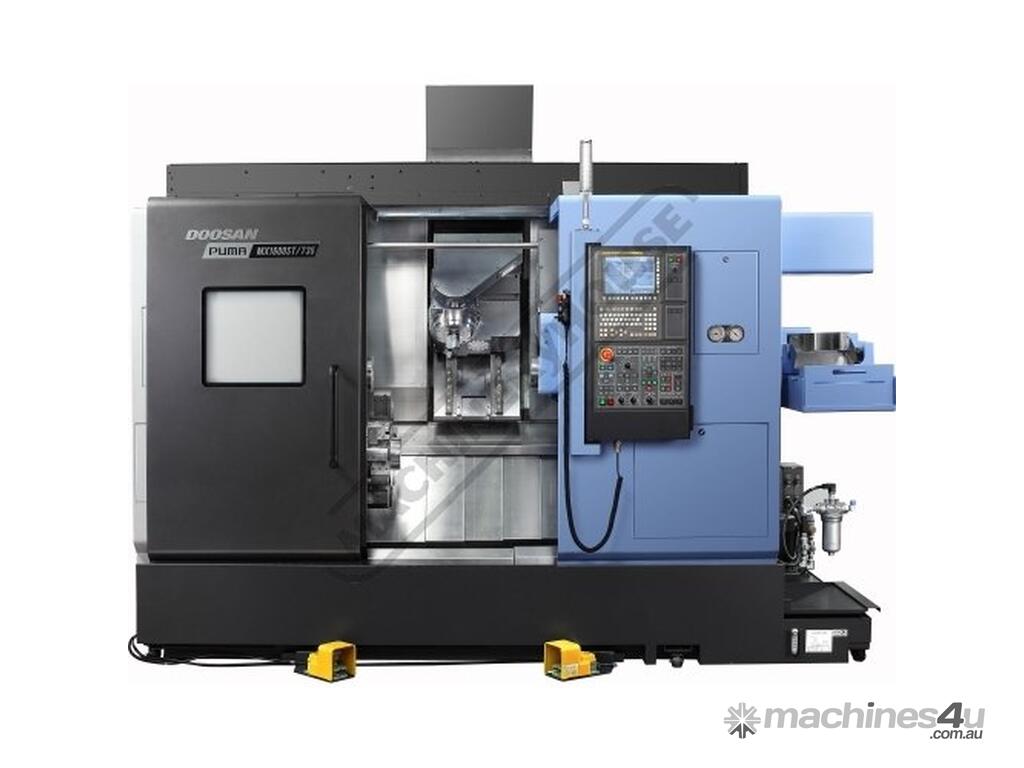

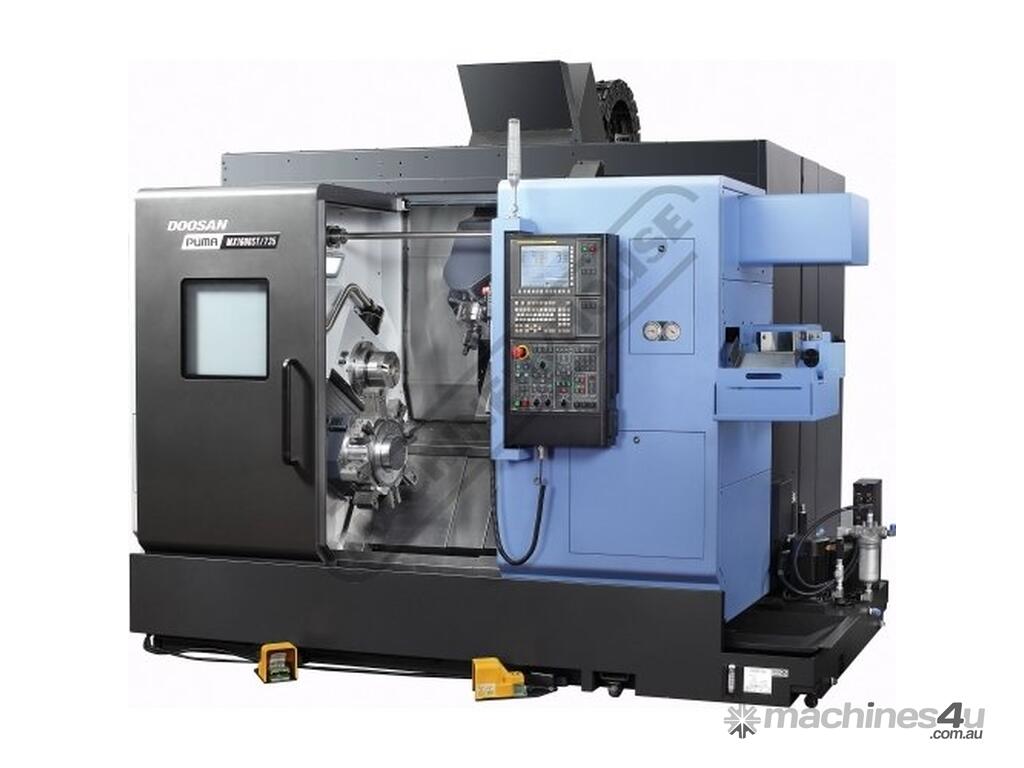

PUMA MX Multi Tasking CNC Turning Centres Series Details

DOOSAN MACHINE TOOLS PUMA MX Multi Tasking CNC Turning Centres Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8018

Features:
Roller Cam Contouring B Axis
Capto C5 Milling Spindle
Through Spindle Coolant
Tool Load Monitoring
Hydraulic Chucks
Hard and Soft Jaws
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide


Specifications:
ORDER CODE: I8018
MODEL: PUMA MX1600
Swing (mm): 680
Max Turning Diameter (mm): 330
Machining Length (mm): 700/900
Chuck Diameter (mm): 150
Bar Diameter Capacity (mm): 51
Turning Spindle Speed (rpm): 6000
Turning Spindle Power (kW): 15
Milling Spindle Taper: Capto C5
Milling Spindle Speed (rpm): 12000-18000
Milling Spindle Power (kW): 9
Milling Spindle Travel (deg): 240 (±85)
Y Axis Travel (mm): 170 (±150)
Auto Tool Change (No.): 40/80
Guideways: Roller LMG
Control: Fanuc 31i
Programming: EZI Guide I Conversational
C Axis Resolution (deg): 0.001
Sub Spindle: Optional
Lower Turret: Optional


To Purchase Online Please Visit The Machineryhouse & Search For 'I8018'
