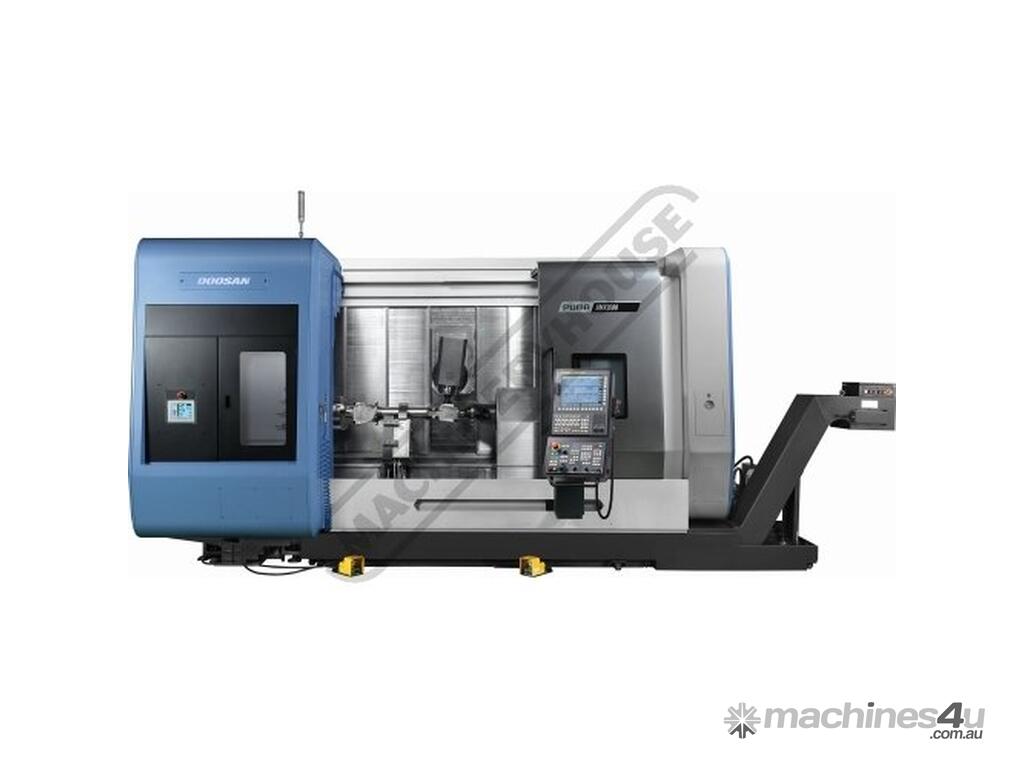

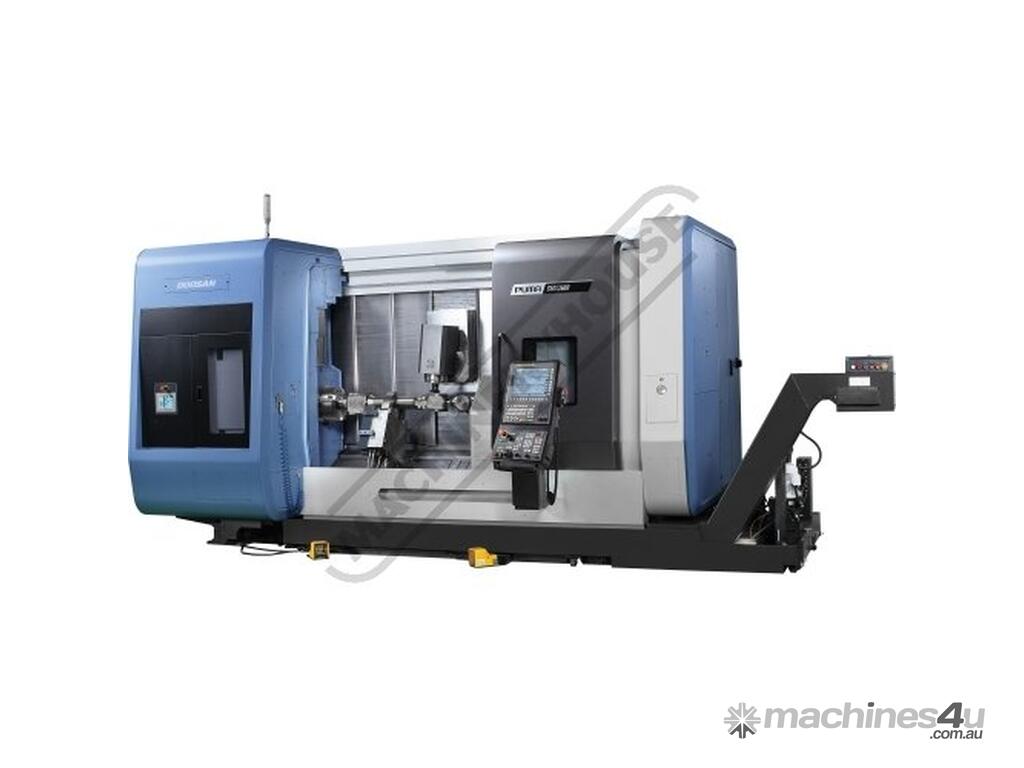

PUMA SMX 2600/3100 Multi Tasking CNC Turning Centres Series Details

DOOSAN MACHINE TOOLS PUMA SMX 2600/3100 Multi Tasking CNC Turning Centres Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8010

Features:

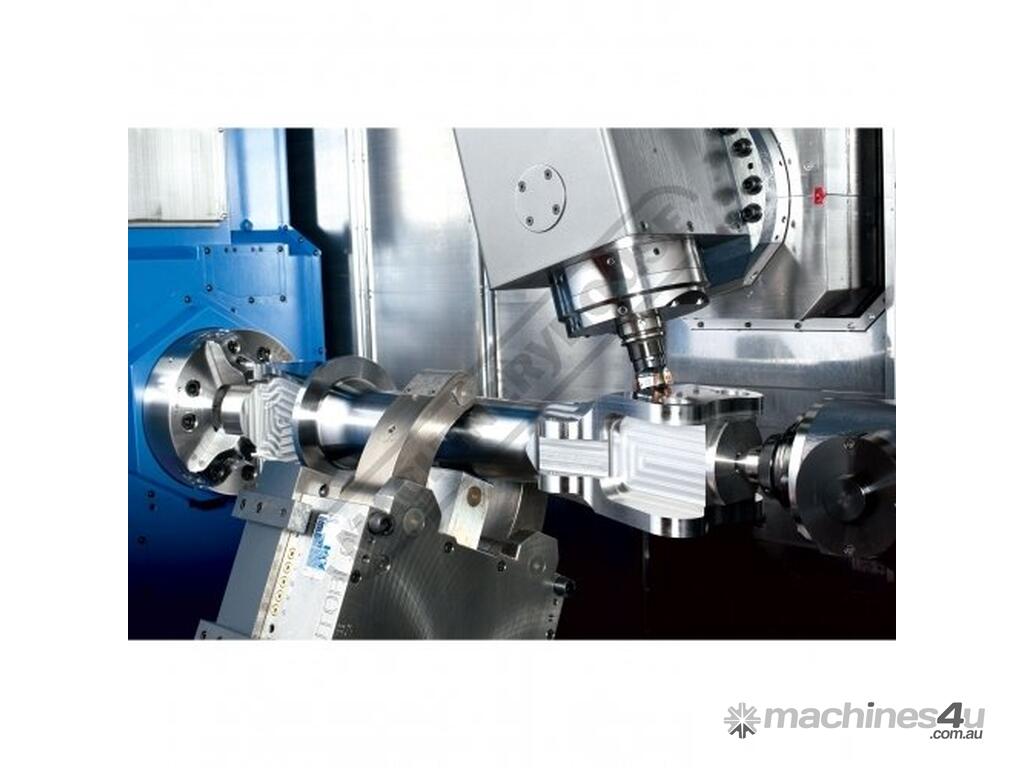

Roller Cam Contouring B Axis

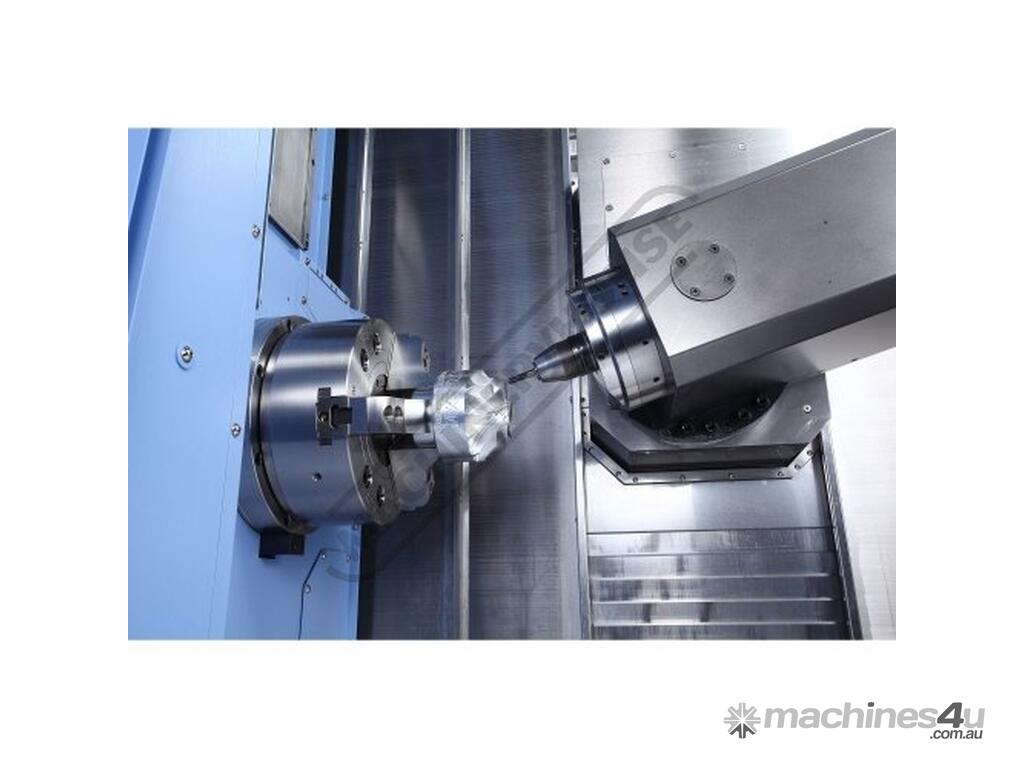

Capto C6 Milling Spindle
Through Spindle Coolant
Ball Nut Cooling
Tool Load Monitoring

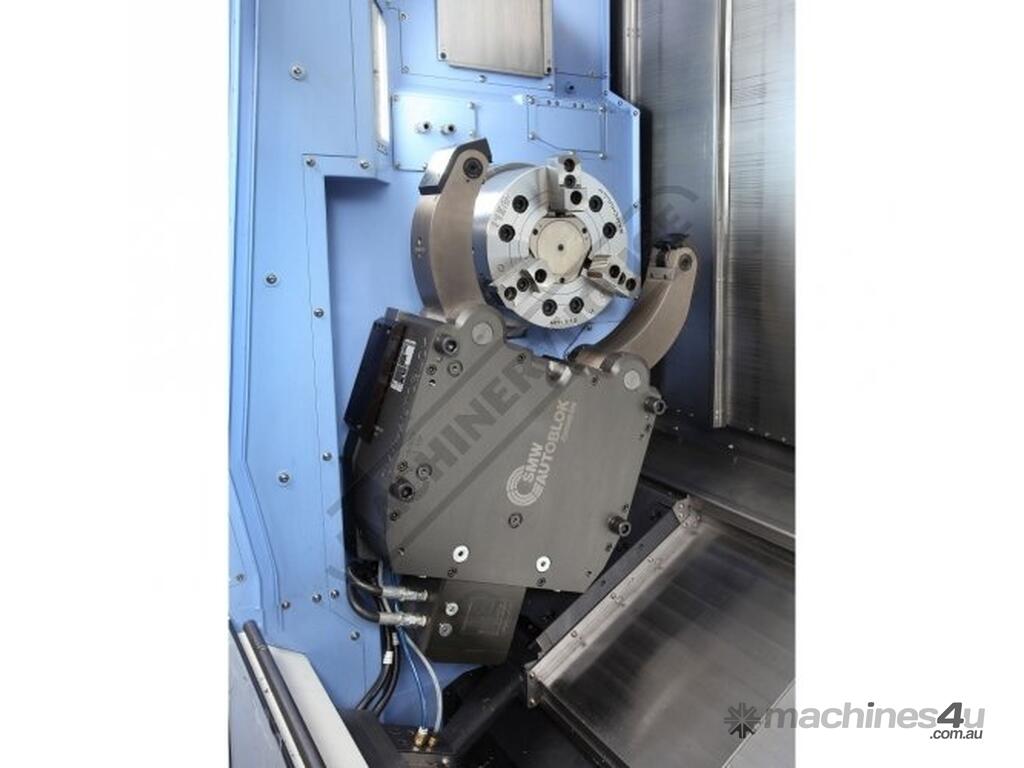

Hydraulic Chucks
Hard and Soft Jaws
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide



Specifications:
ORDER CODE: I8010
MODEL: PUMA SMX2600/3100
Swing (mm): 660
Max Turning Diameter (mm): 660
Machining Length (mm): 1540-2540
Chuck Diameter (mm): 250-380
Bar Diameter Capacity (mm): 81/102
Turning Spindle Speed (rpm): 3000/4000
Turning Spindle Power (kW): 26/30
Milling Spindle Taper: Capto C6
Milling Spindle Speed (rpm): 8000-12000
Milling Spindle Power (kW): 26
Milling Spindle Travel (deg): 240 (±120)
Y Axis Travel (mm): 300 (±150)
Auto Tool Change (No.): 40/80
Guideways: Roller LMG

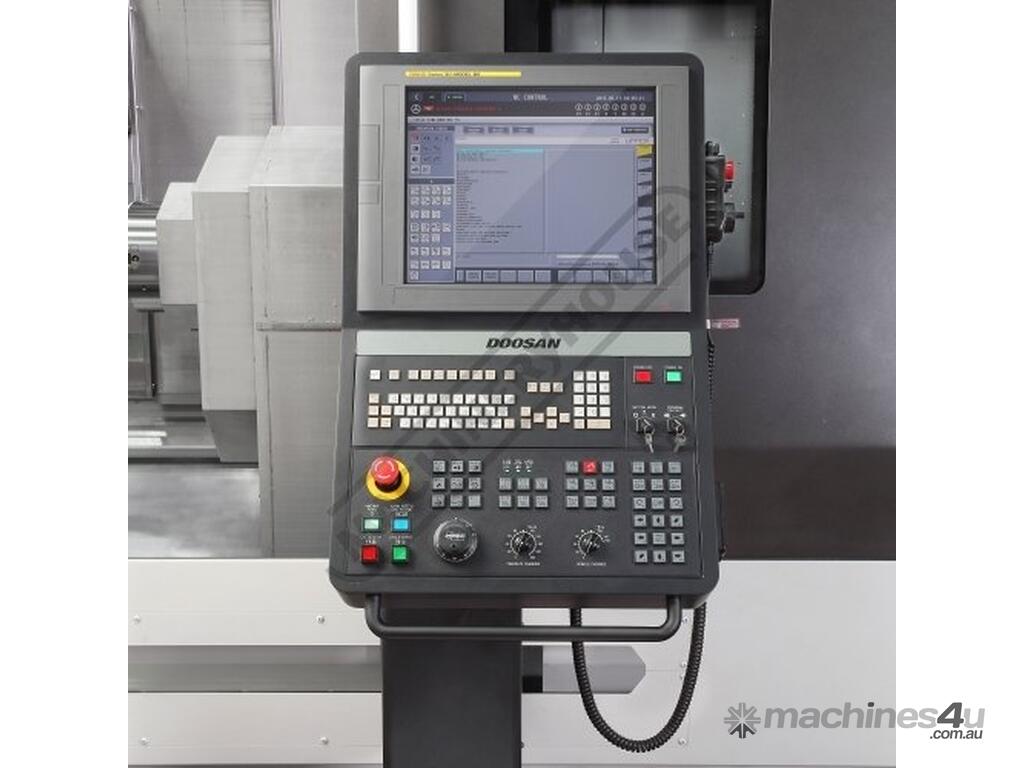

Control: Fanuc 31i-A
Programming: EZI Guide I Conversational
C Axis Resolution (deg): 0.001

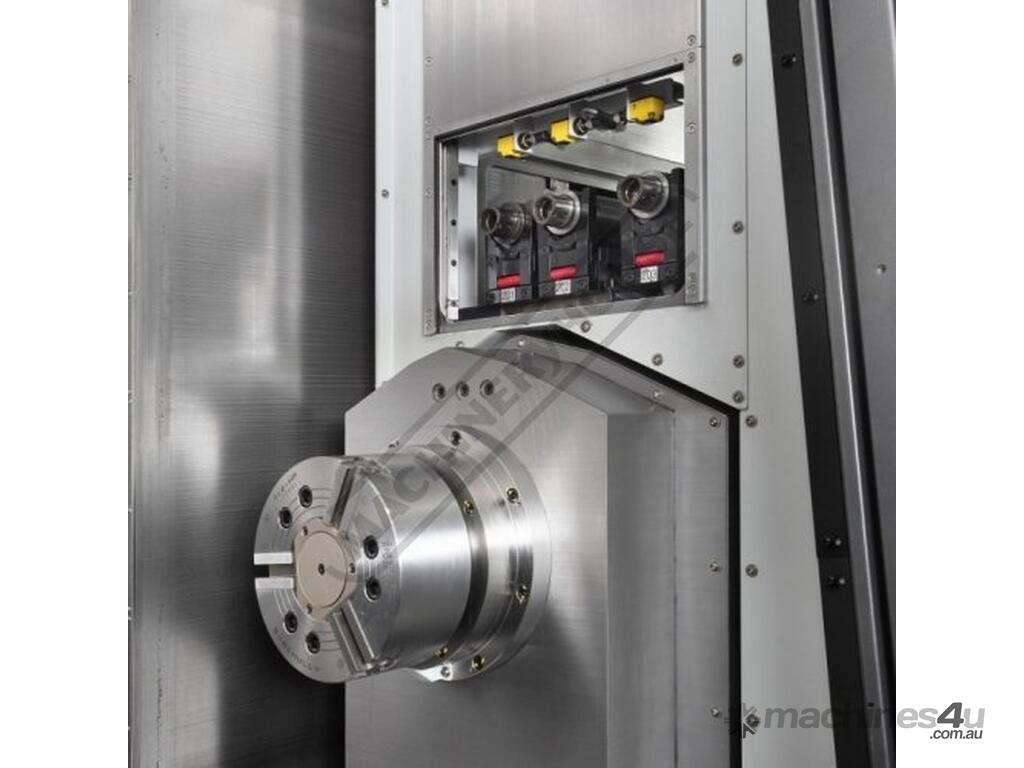

Sub Spindle: Optional SMX2600
Lower Turret: ~


To Purchase Online Please Visit The Machineryhouse & Search For 'I8010'
