PUMA X6325D TURRET MILLING MACHINE Incl Digital Readout

The Puma X6325D turret milling machines come with a wide array of standard features and accessories to enhance productivity and minimize initial setup costs.

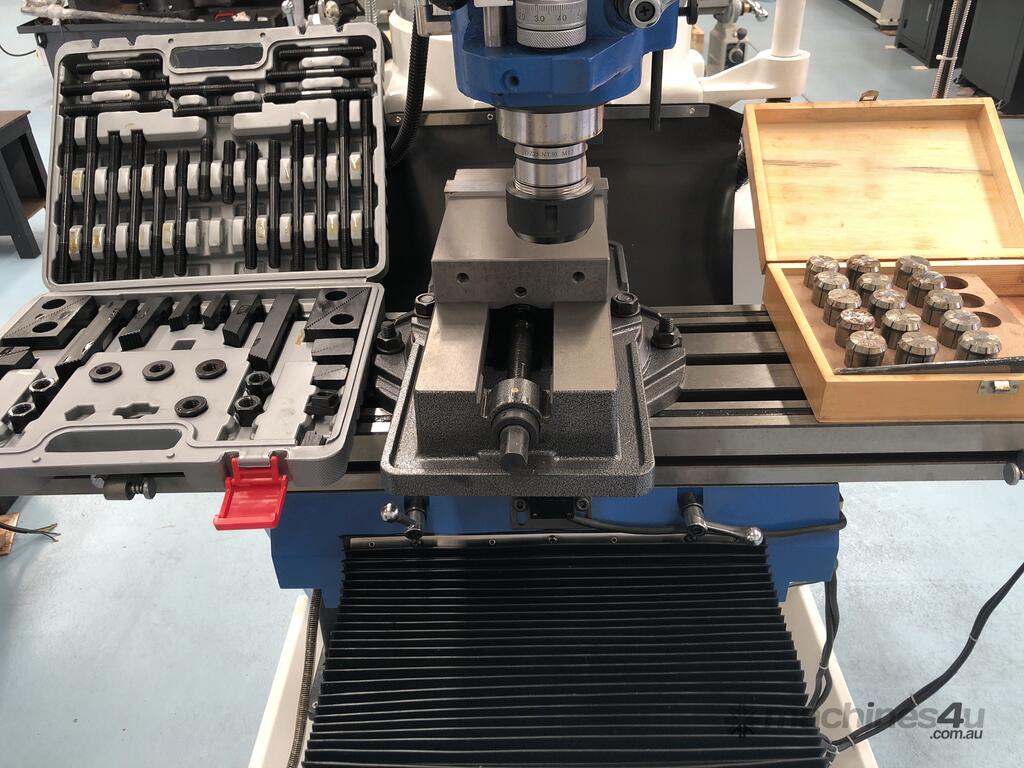

This machine is supplied as standard with a clamp kit, a heavy duty vice and a 15pcs collect set making it a lot easier to get up and running quicker.

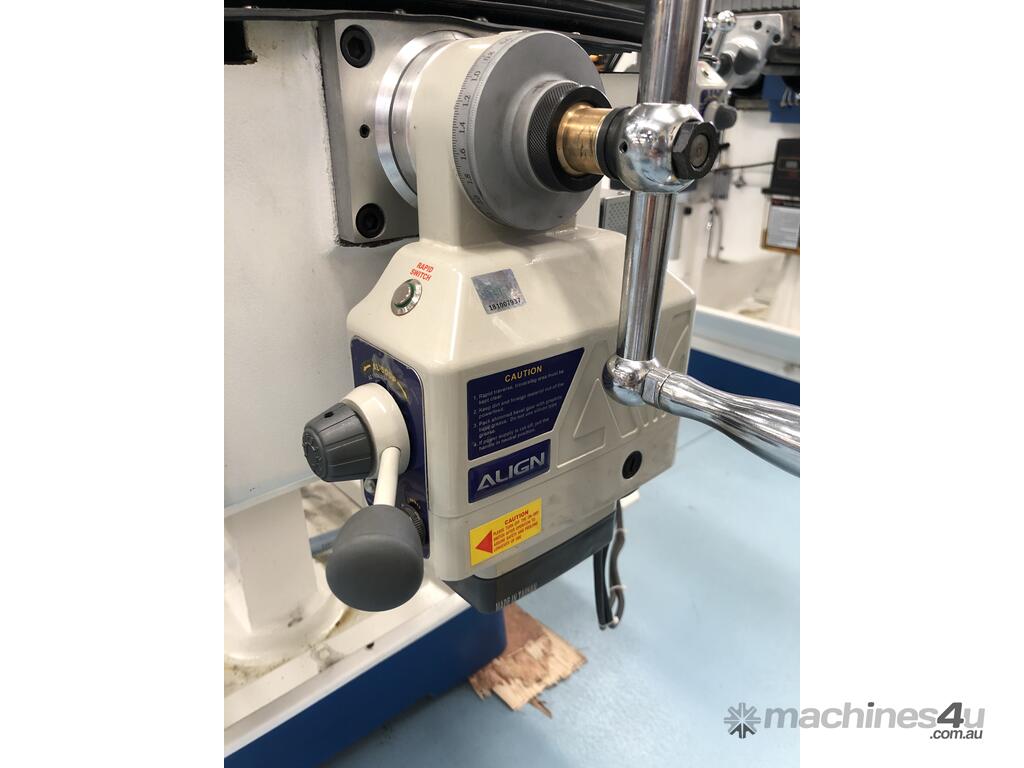

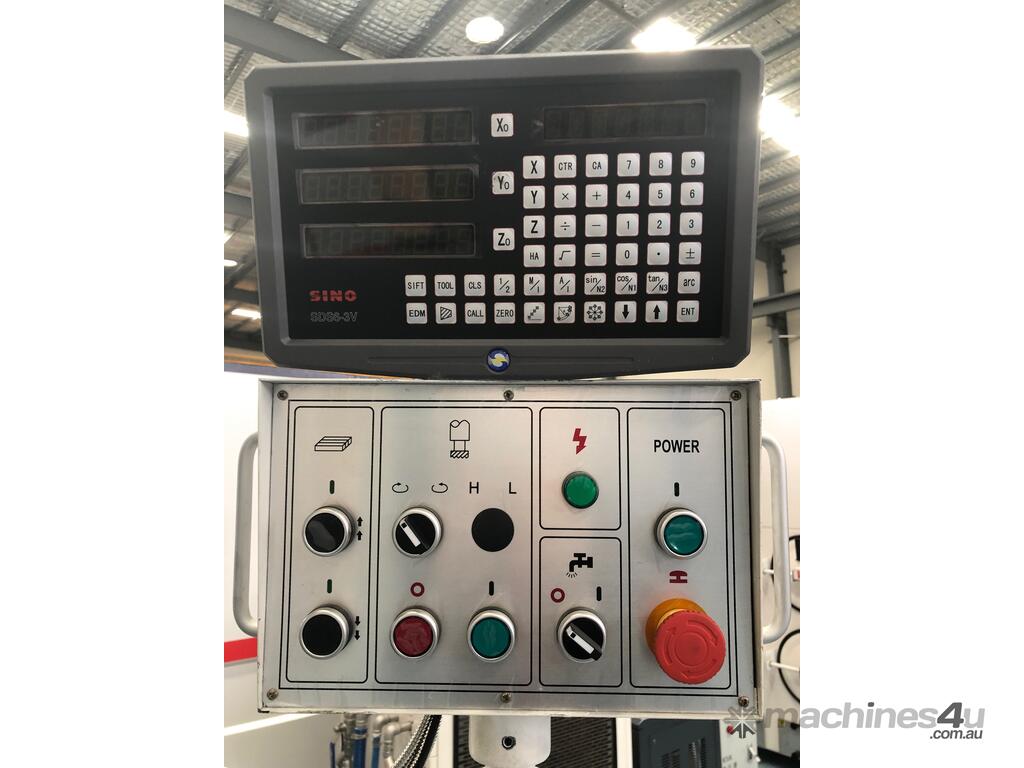

A 3 axis digital readout is on the milling machine reducing the margin for error with a clear and vivid display screen. Two (2) variable speed feed units are fitted on the longitudinal and cross feeds with an adjustable cut off stop giving you the ability to set and forget. A rapid 1 speed motor is fitted to the table to go up and down at a push of a button.

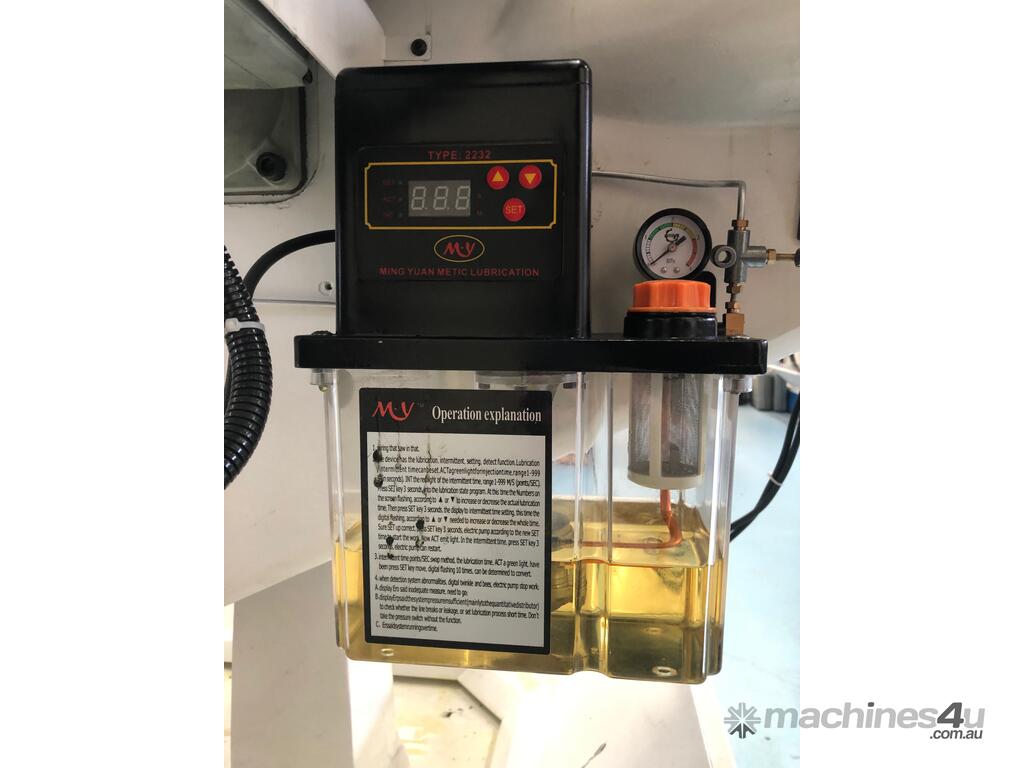

To make things even easier you also get an automatic slideway lubrication system so there is no tedious manual lubrication pump that 9 times out of 10 will be forgotten to be used. The auto lubrication pump adds to the ease of use of this milling machine and also enhances the longevity and accuracy.

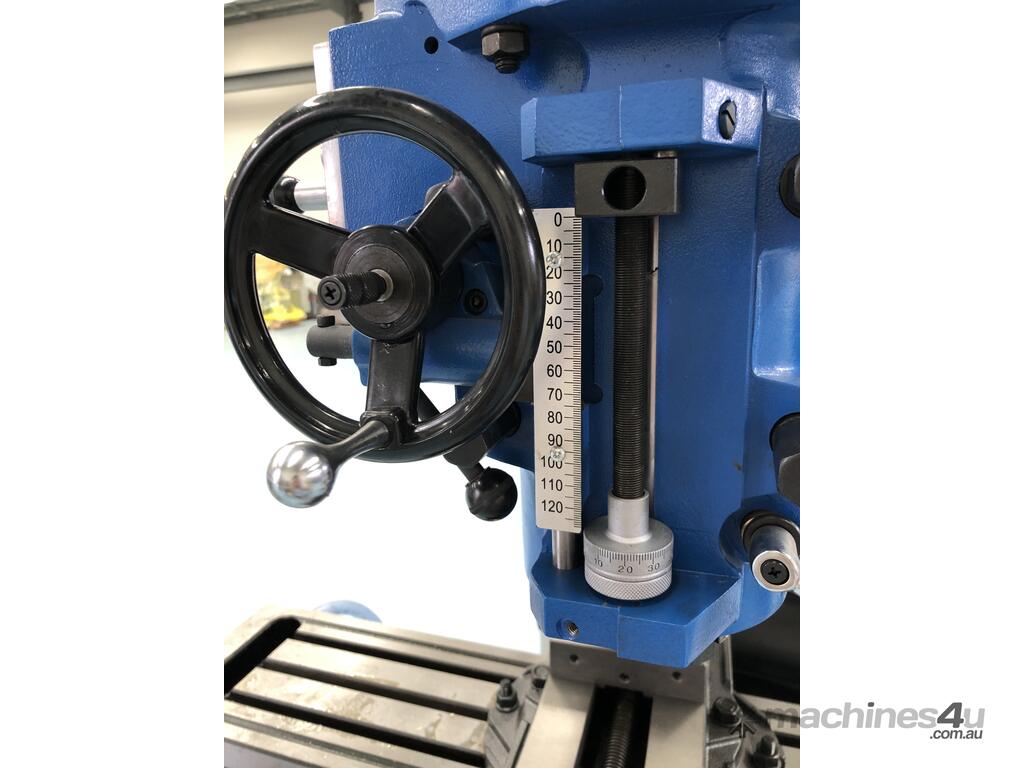

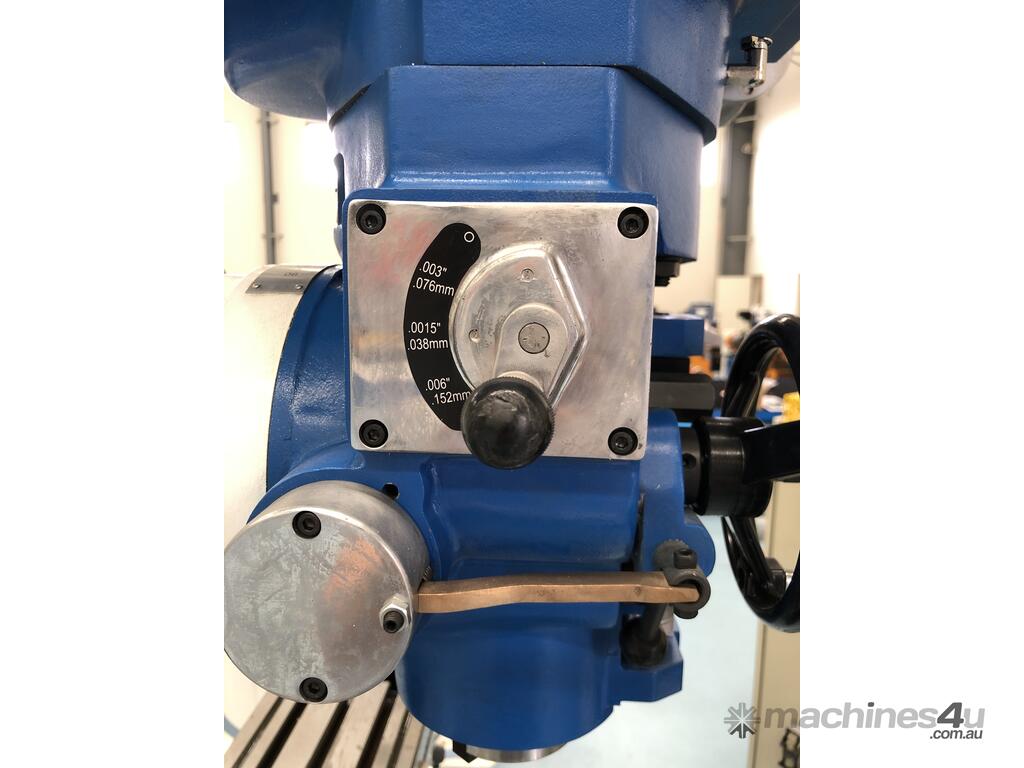

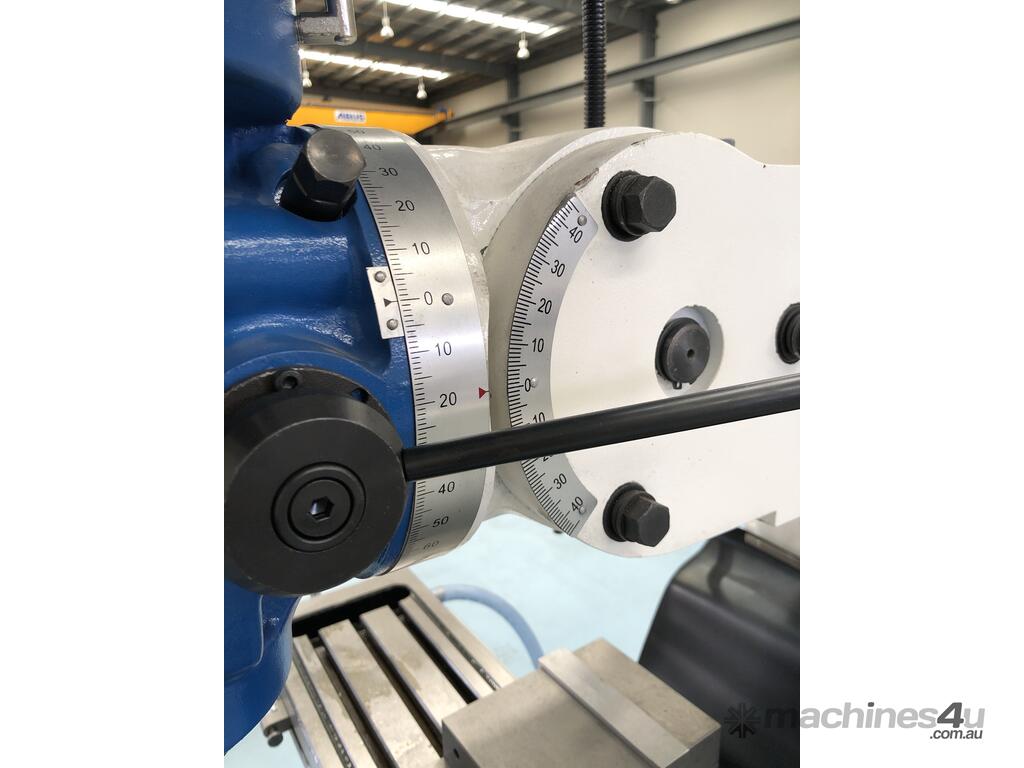

The spindle is ISO / NT40 with a 5HP motor and spindle auto down feed can be set with an adjustable kick out system at the desired depth. The milling head can be adjusted in 3 axis to position the head to the desired location so those tricky jobs are easier to do.

The spindle has a infinitely variable speed pulley with a speed range of 70 through to 3600rpm. This mill is also supplied with a work light, pendant control and a swarf catchment tray at the bottom of the machine.

Specs & Features -

-X travel 865mm
- Y axis travel 420mm
- Z axis travel 400mm
- ISO/NT 40 spindle taper
- Infinitely variable speed spindle speeds 70-3600rpm

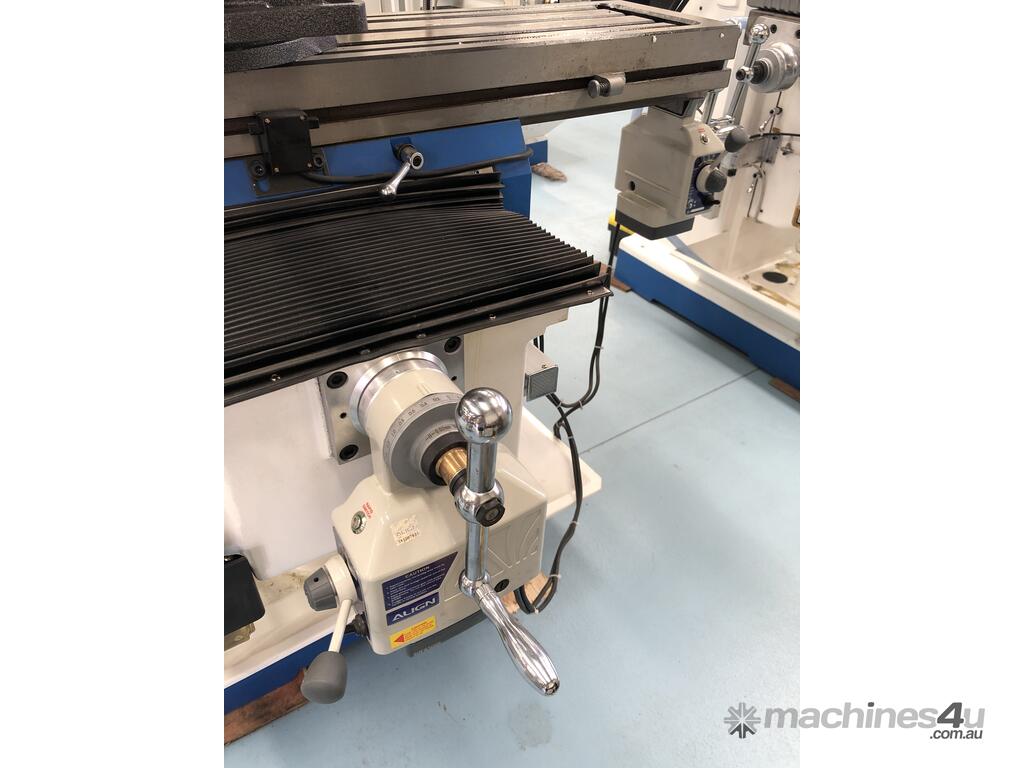

- X axis auto power feed with adjustable auto stop
- Y axis auto power feed with adjustable auto stop
- 3 axis vivid display digital readout (X/Y/Z)
- Lifting motor on table (Z axis) conveniently situated on the control panel
- Coolant system
- Swarf tray
- Automatic slide lubrication pump

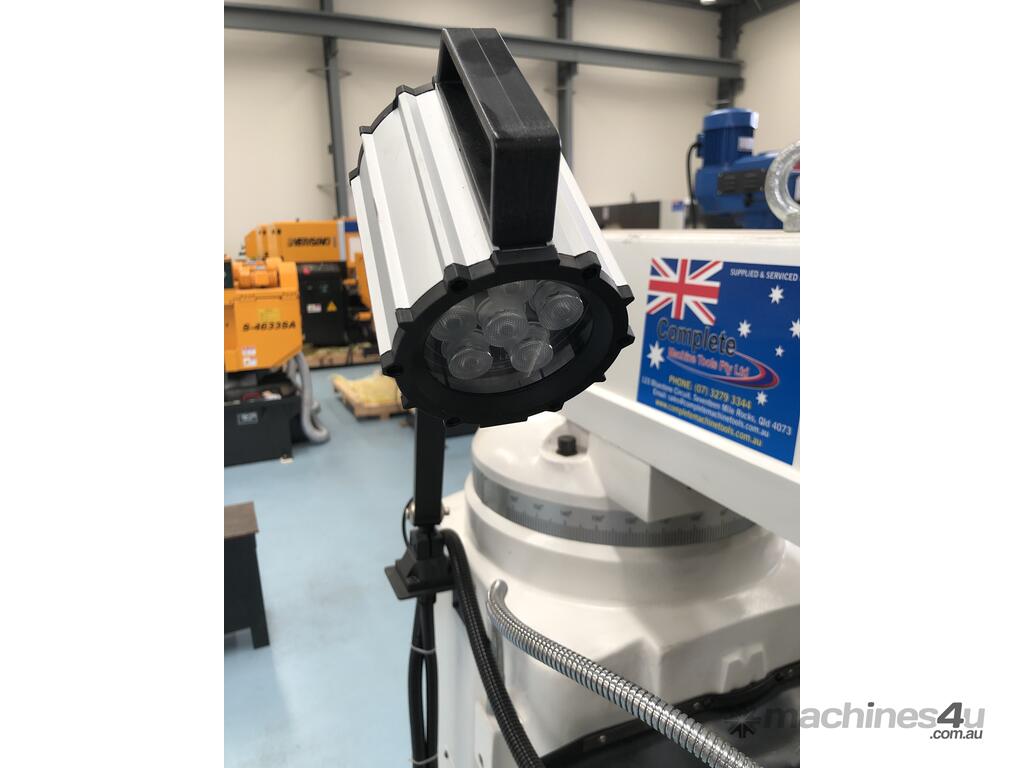

- Work light

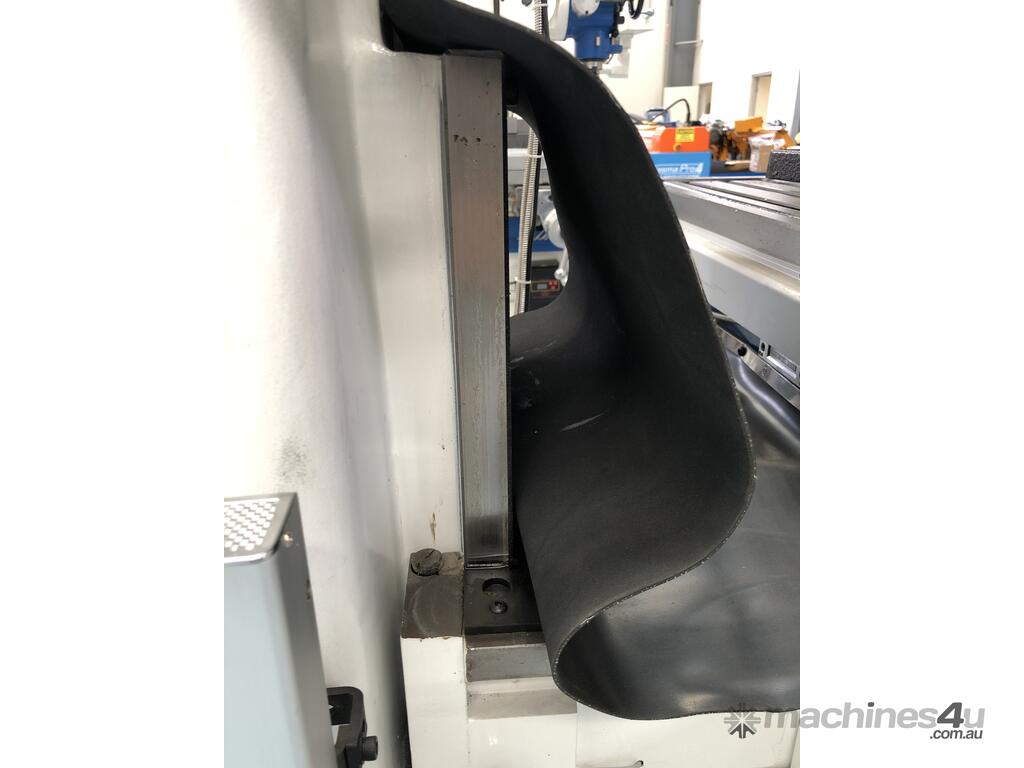

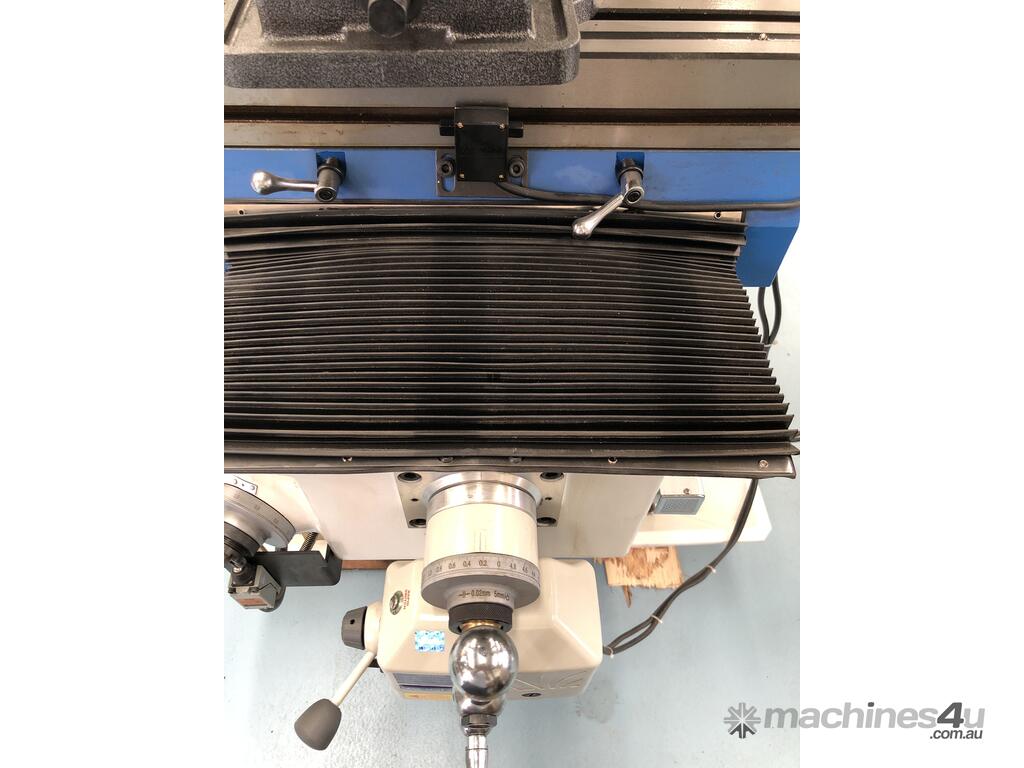

- Swarf protection covers over slides

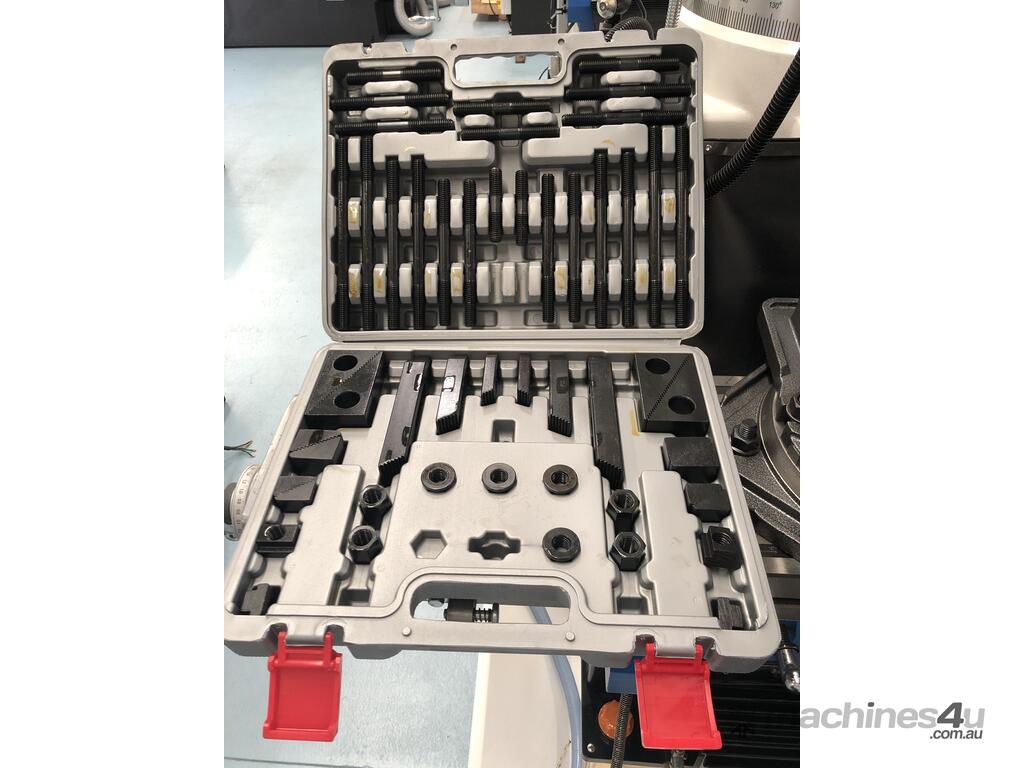

- Clamping kit

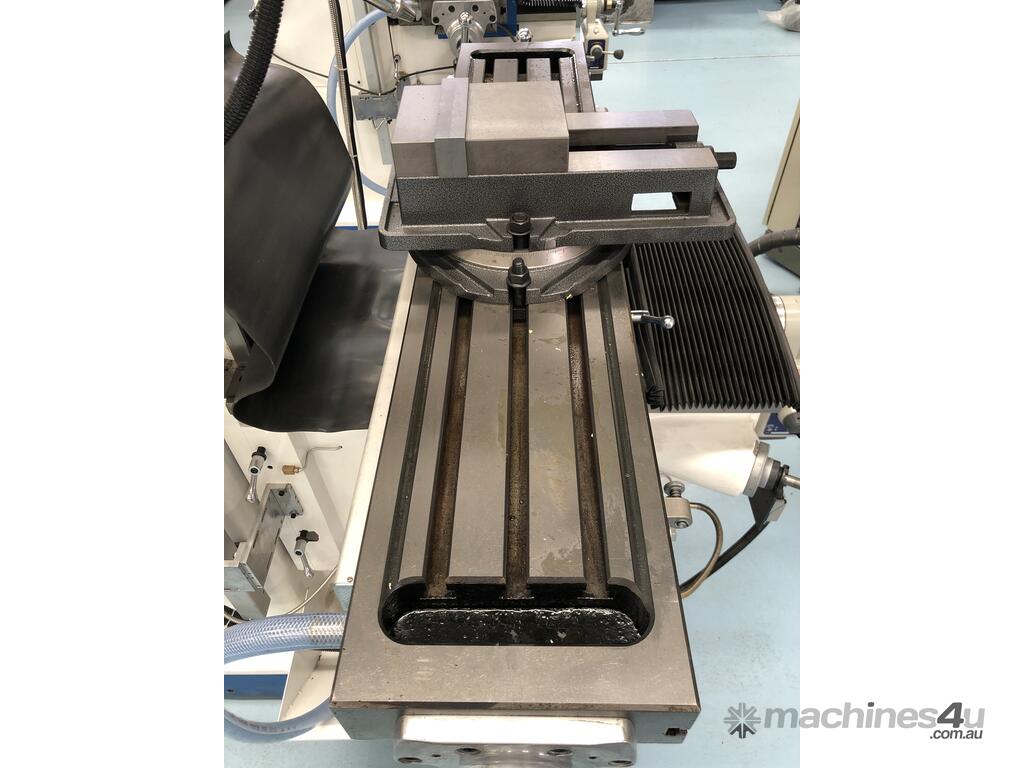

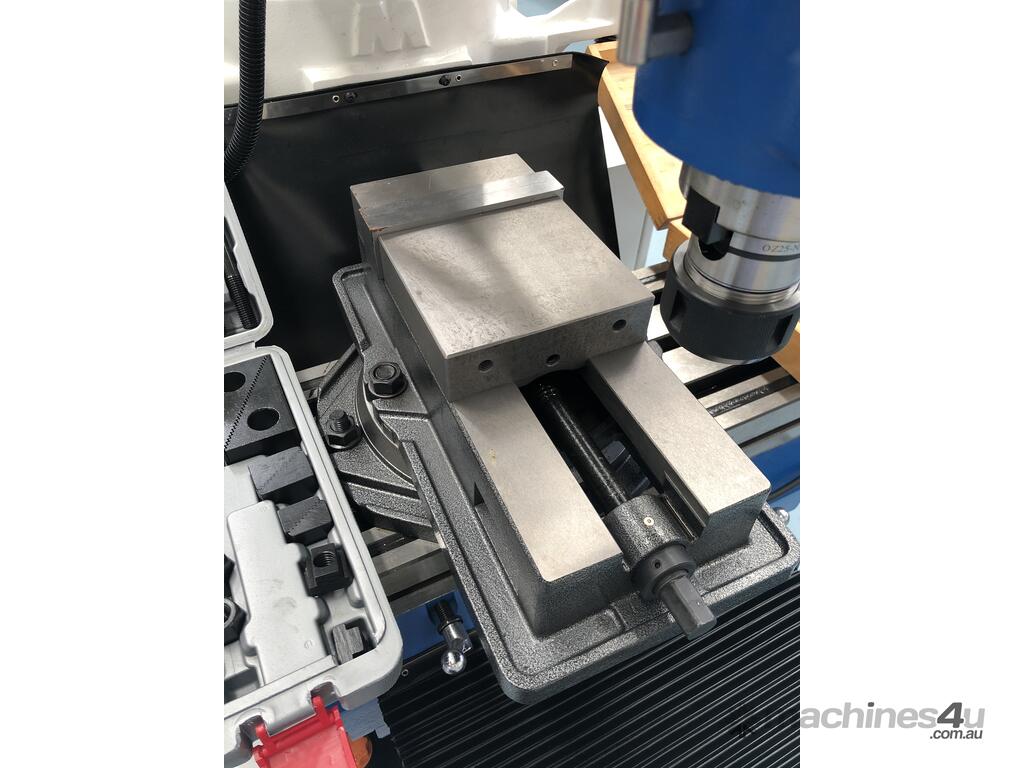

- Heavy duty machine vice

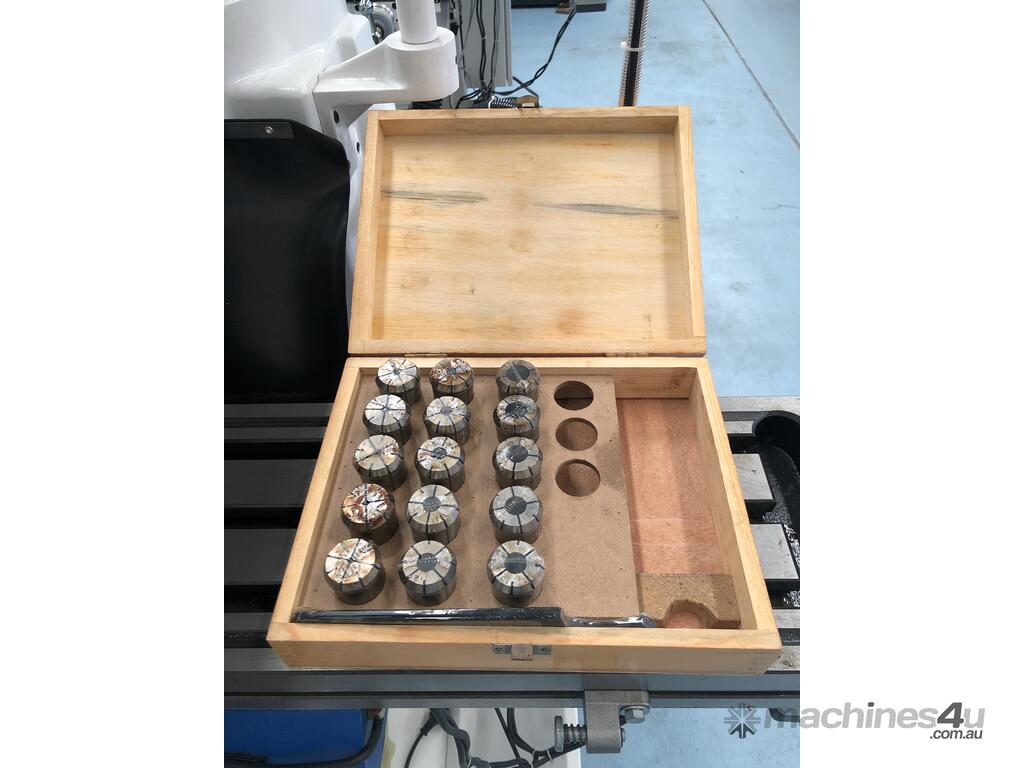

- 15 pce collect set
- 3 phase
- Spindle brake

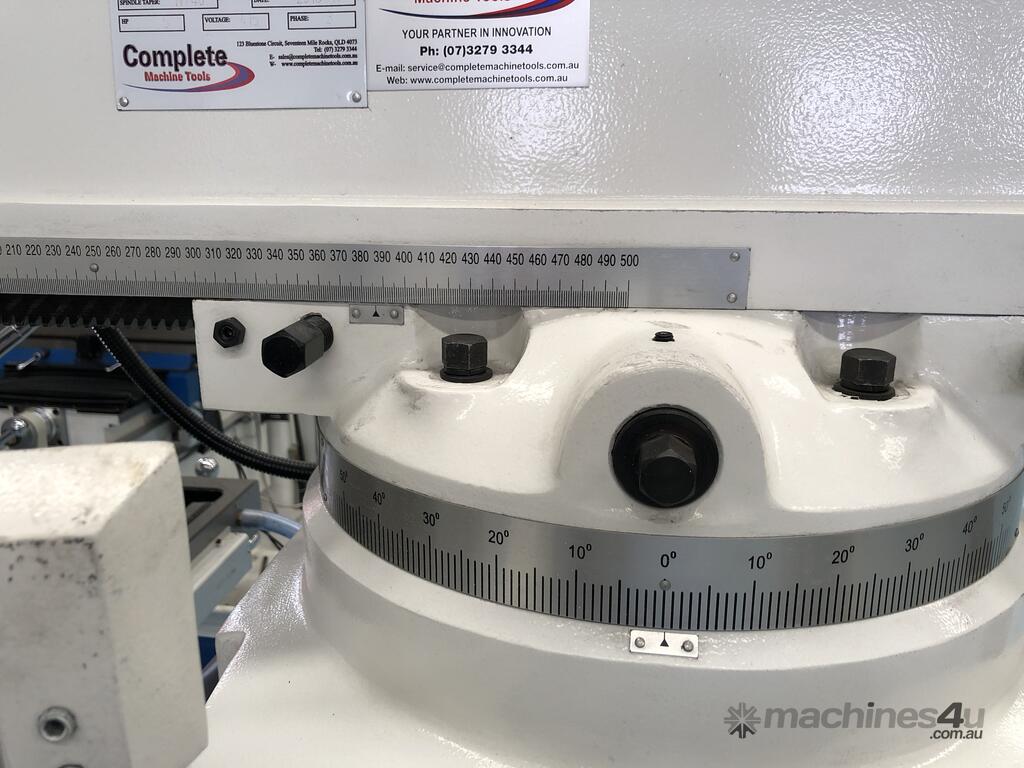

- Adjustable 3 axis on head


These turret mills are well prices and great quality and will add a valued and reliable machine to your machine shop.
