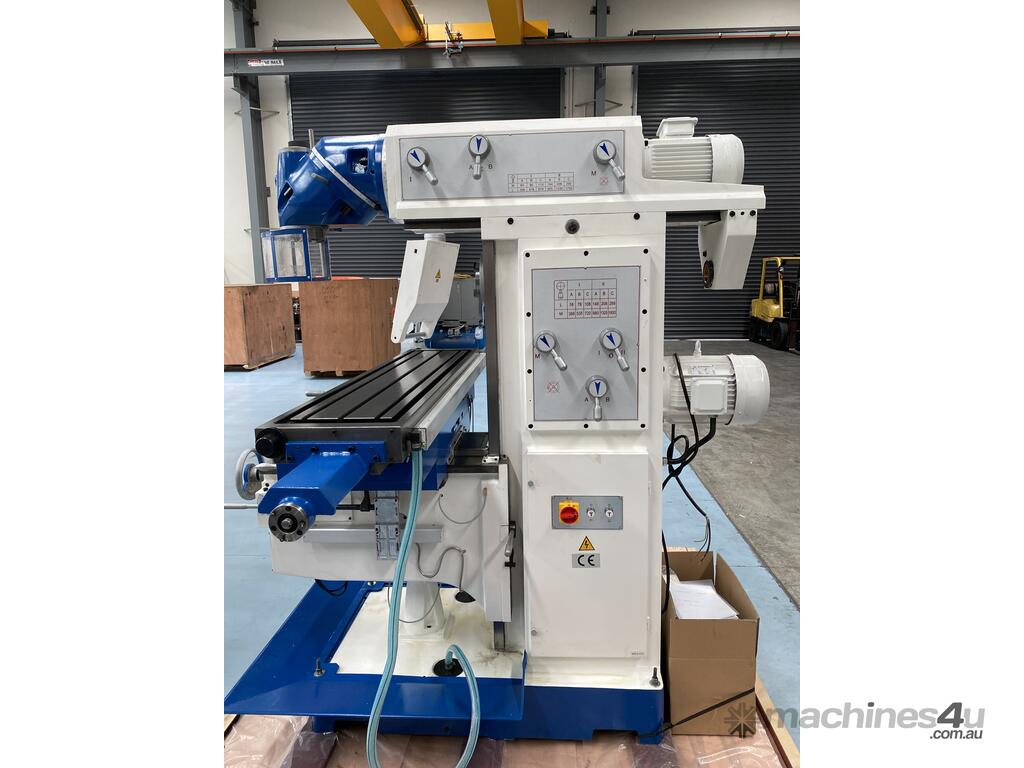

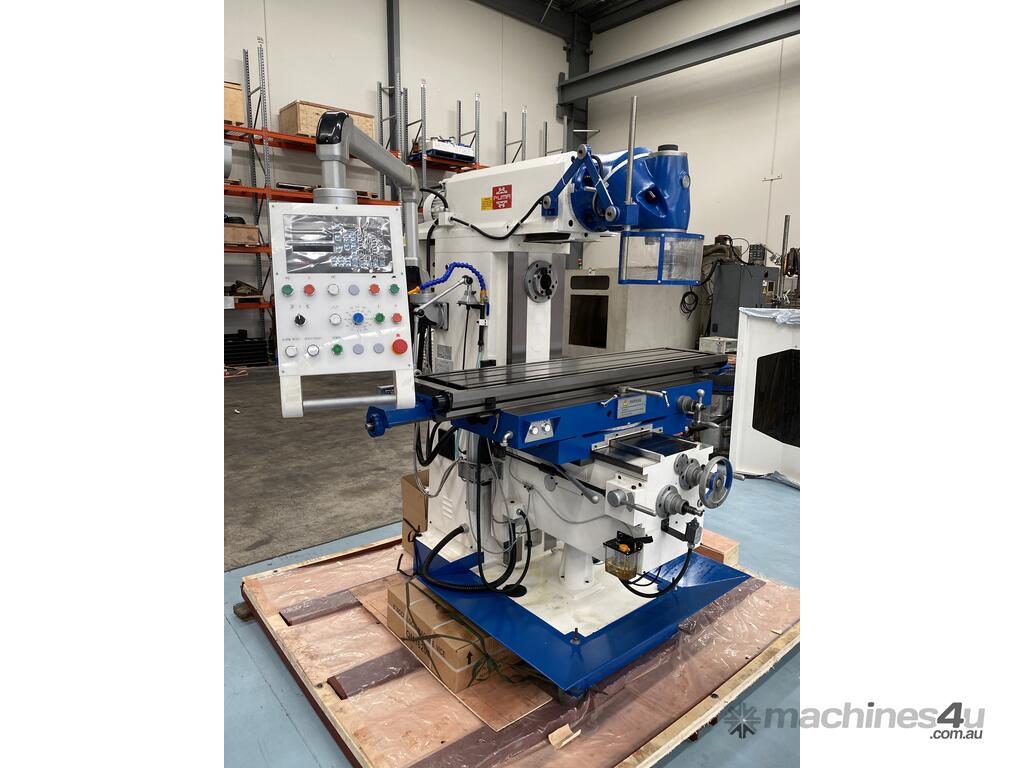

PUMA X6436A UNIVERSAL MILLING MACHINE | HOR & VERT SPINDLES | 1600MM X 360MM TABLE | ISO 50

The Puma X6436A universal milling machine offers a large format universal milling machine at an affordable price. Standard with a 3 axis digital readout, horizontal and vertical spindles, 8" vice and servo motor driven X, Y & Z axes this milling machine not only offers value for money but productivity enhancing features.

Features

- 3 axis SINO DRO

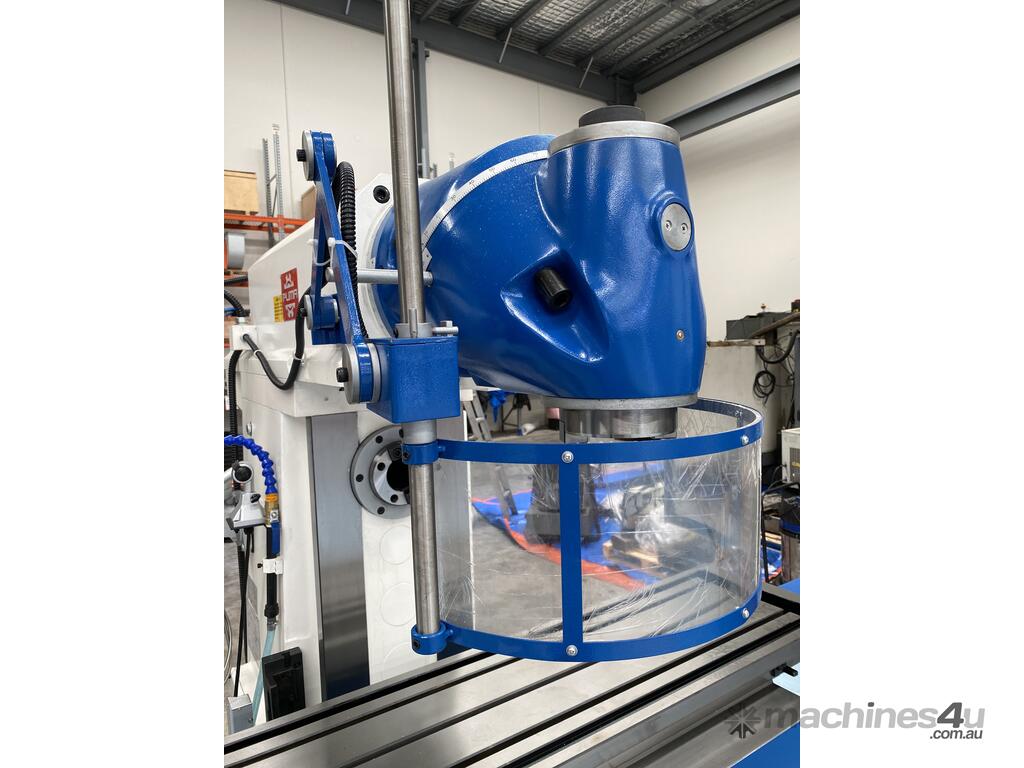

- Spindle cover
- Vice 200mm
- X, Y & Z axis driven by servo motor (Yaskawa)
- Vertical & Horizontal spindles

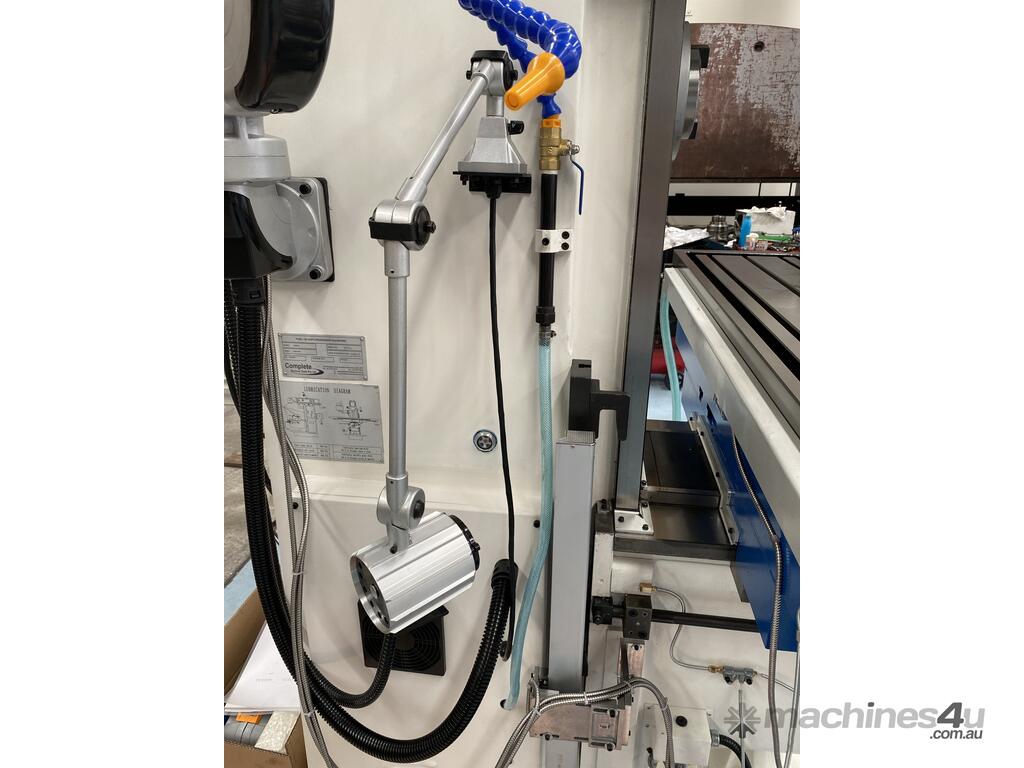

- Work Light
- Coolant system
- ISO 50 horizontal | vertical spindles

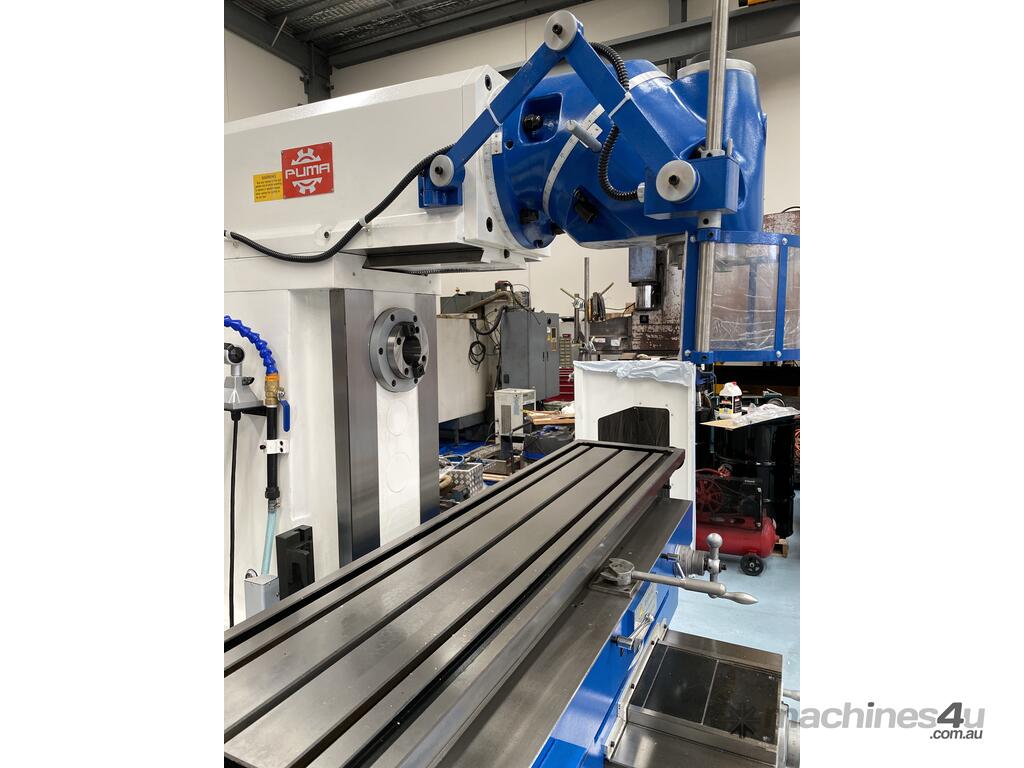

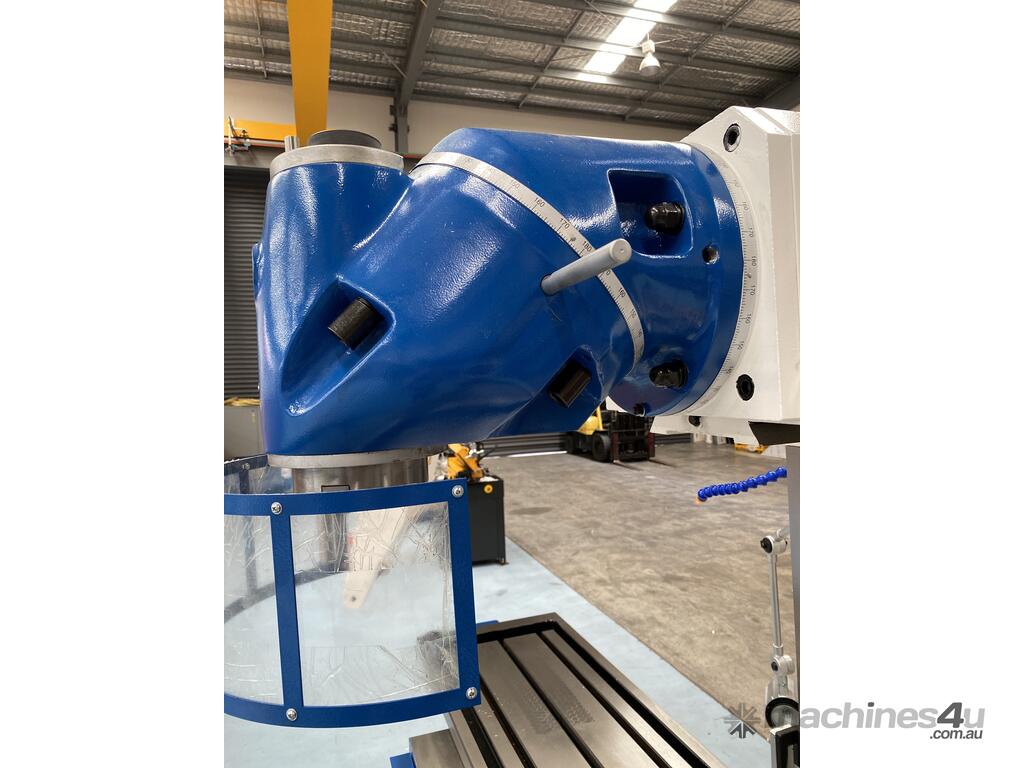

- Universal head
- Swarf tray
- Horizontal spindle arbour & support

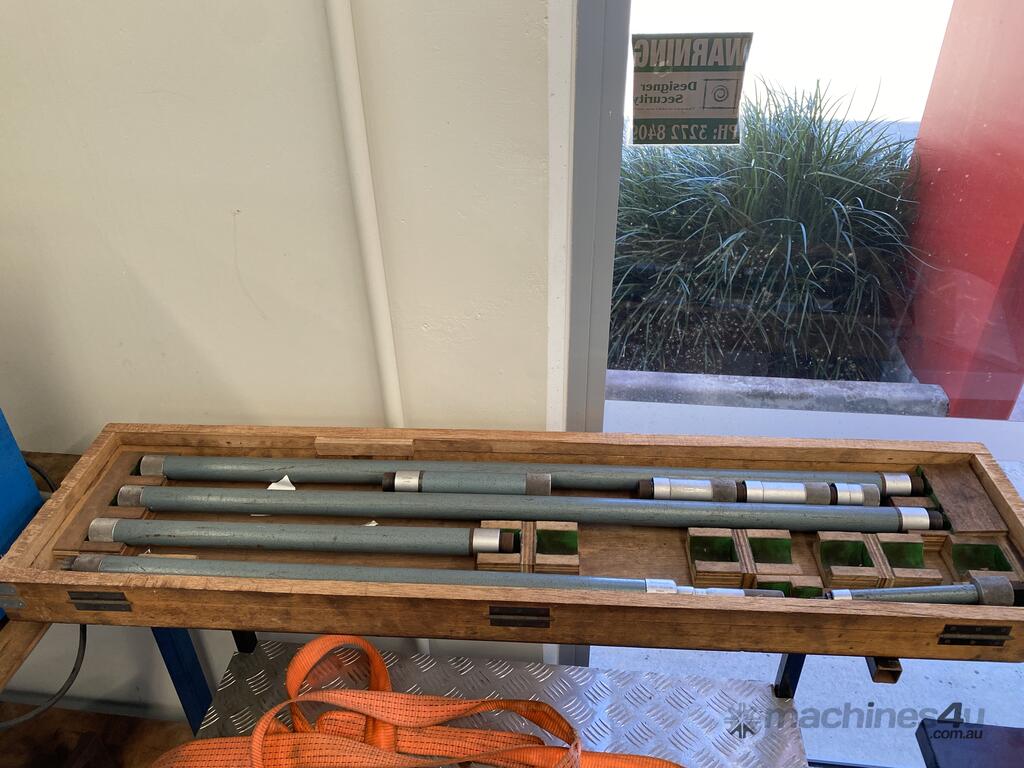

- Draw bars

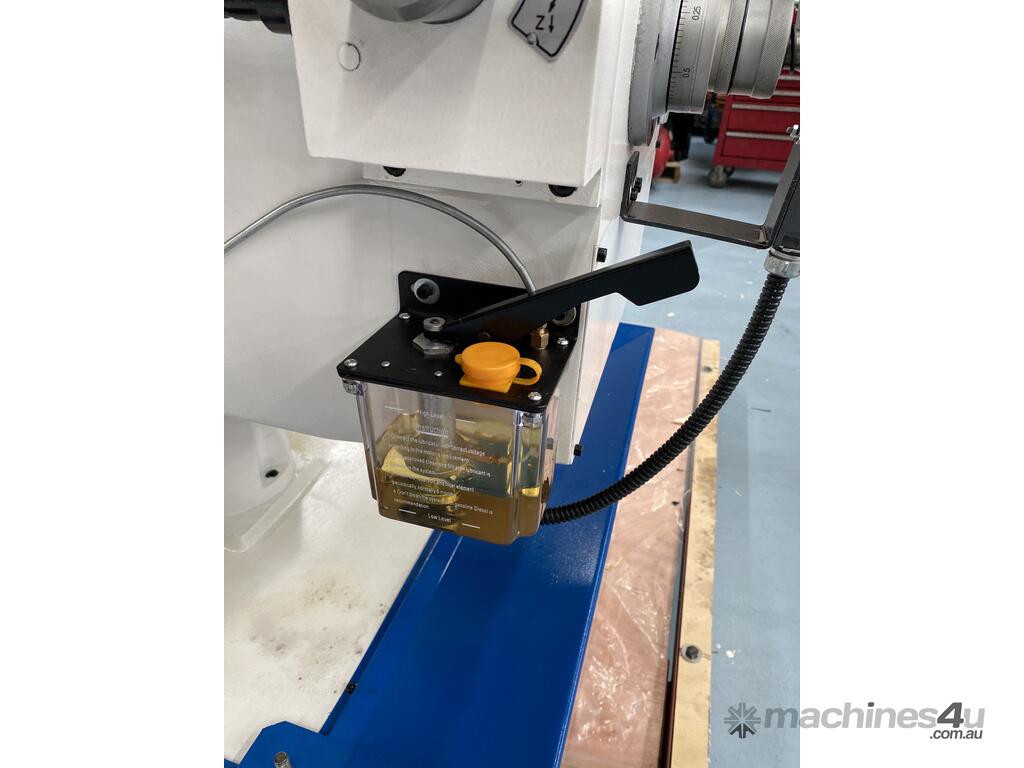

- Slideway lubrication system
- Estop

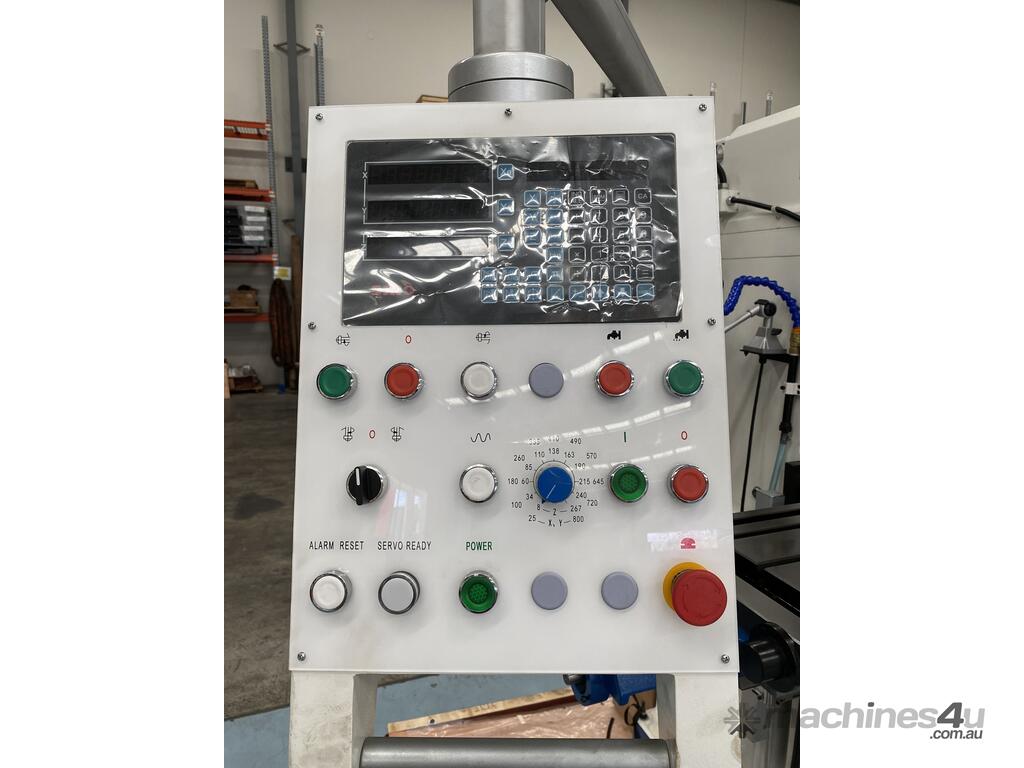

- 24V control panel
- Suspended pendant control
- Work table with the ability to revolve

Specifications

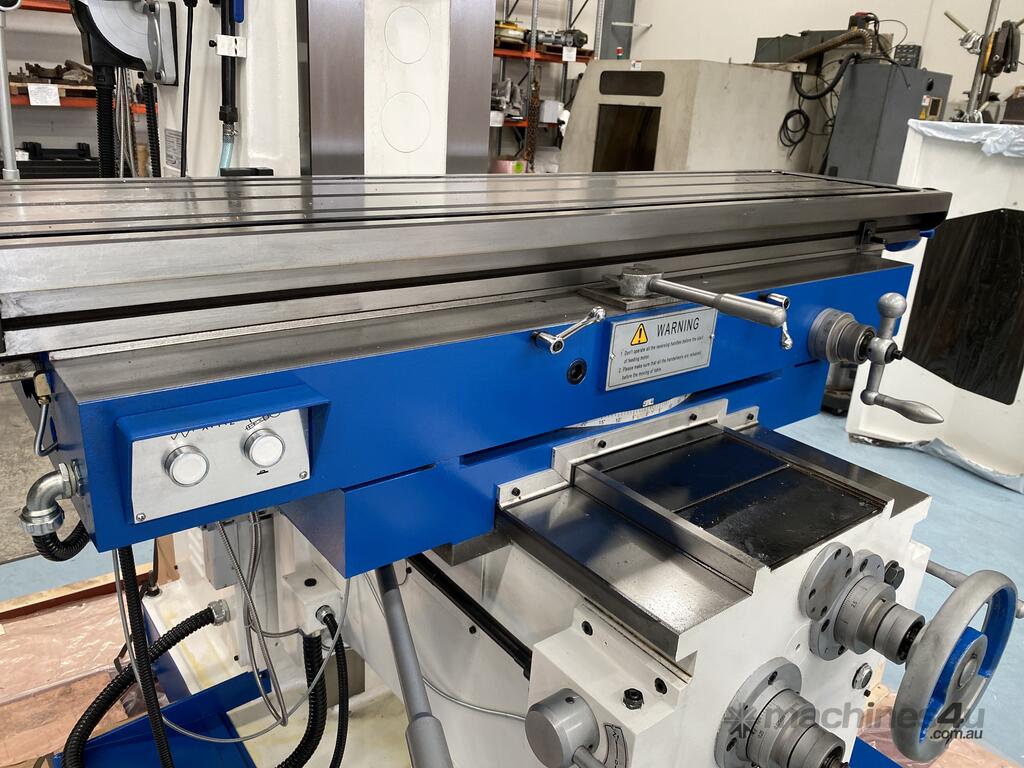

TABLE :

Table size (mm) 1600*360
T slot no 3
Size ( Width ) mm 14
Centre distance (mm) 95
Max. load of Table (kg) 400

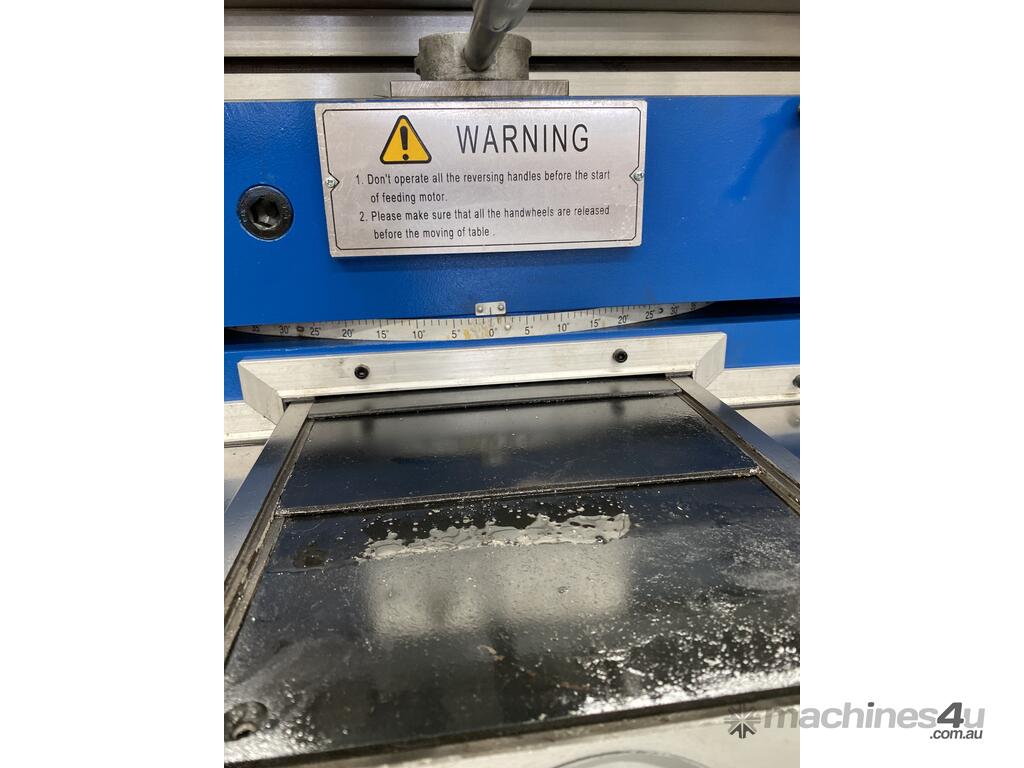

Swivel of table degree ±45º

MACHINING RANGE :

Max.drilling dia.(mm) 30
Max.end milling width (mm) 250
Max. vertical milling Dia.(mm) 40
X table Longitudinal travel(manual/auto) mm 1300
Y table Cross travel (manual/auto) mm 300
Z table Vertical travel(manual/auto)mm 420

MAIN SPINDLE :

Spindle taper ISO50

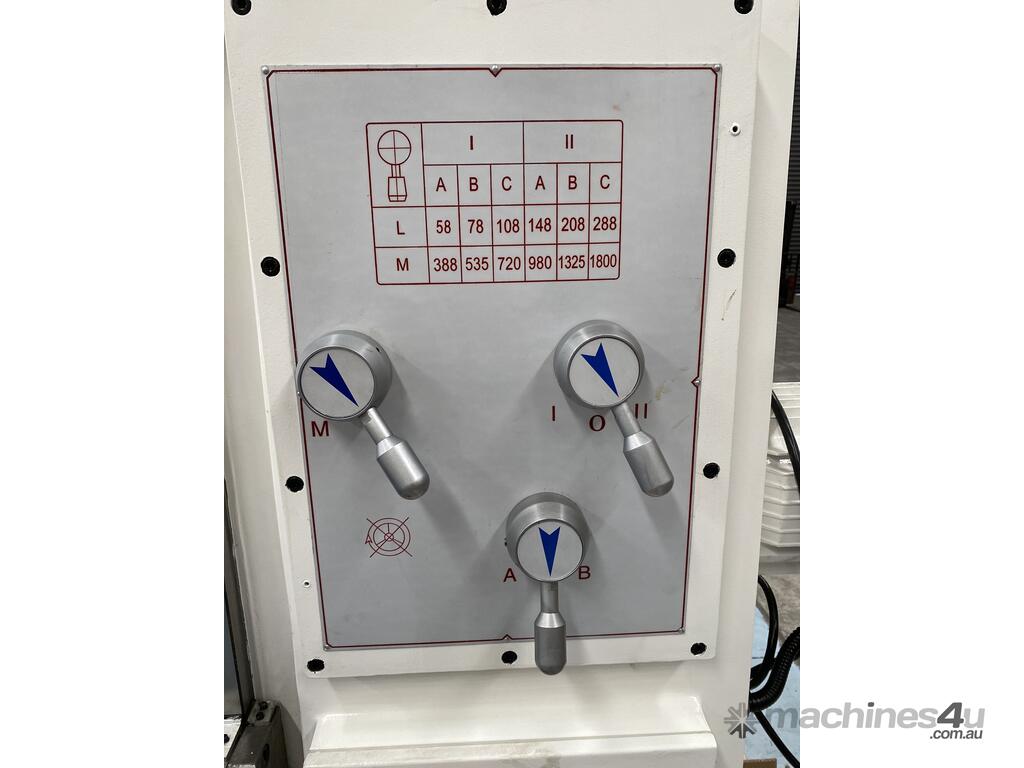

Spindle speed /step -- Vertical (rpm) 58-1800/12

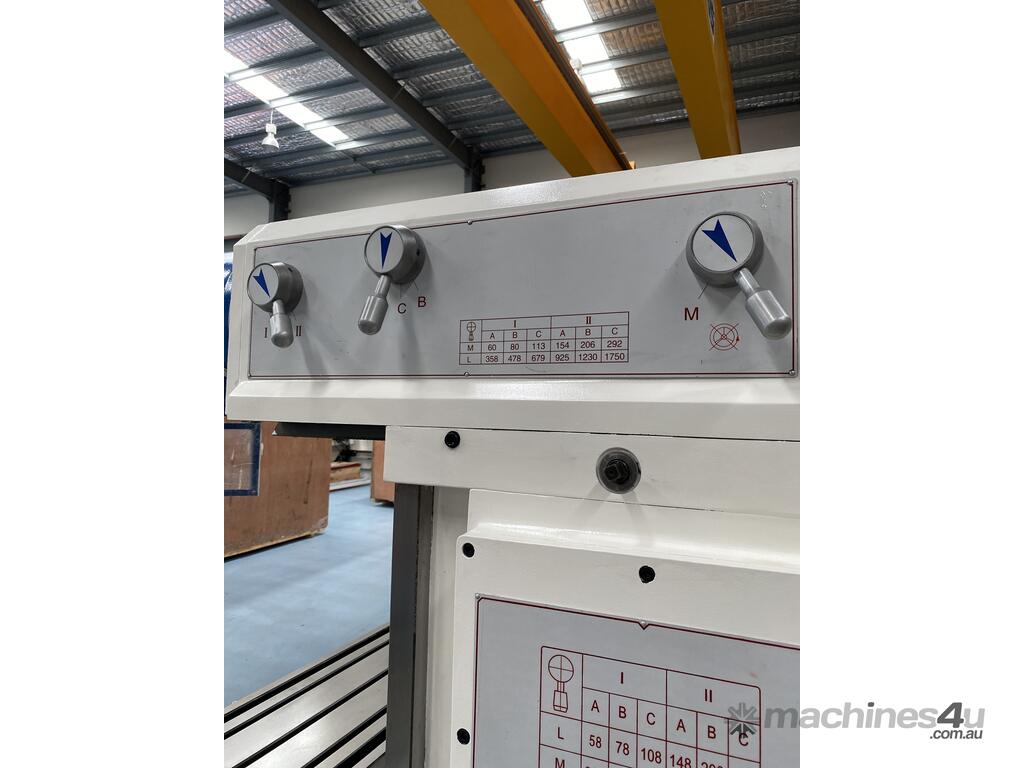

--Horizontal (rpm) 38-1310/12
Swivel angle of swivel head (degree) 360º
Vertical spindle nose to table surface(mm) 170-590
Horizontal spindle axis to table surface(mm) 0-420
Horizontal spindle axis to arm bottom(mm) 175
Arm travel(mm) 500

FEEDS :

X /Y Longitudinal/cross feed (mm / min) 25-800
Z Vertical/step (mm/min) 8-267
X/Y Longitudinal/cross rapid speed (mm / min) 1200
Z Rapid Traverse vertical (mm/min) 400

POWER :

Main motor (kw) 4 /5.5(HP)
X/Y/Z feed motor (kw) 1.8
coolant motor (kw) 0.09

OTHERS:

Overall dimension (cm) 255*216*210
N/W,G/W(kg) 2850/3150
