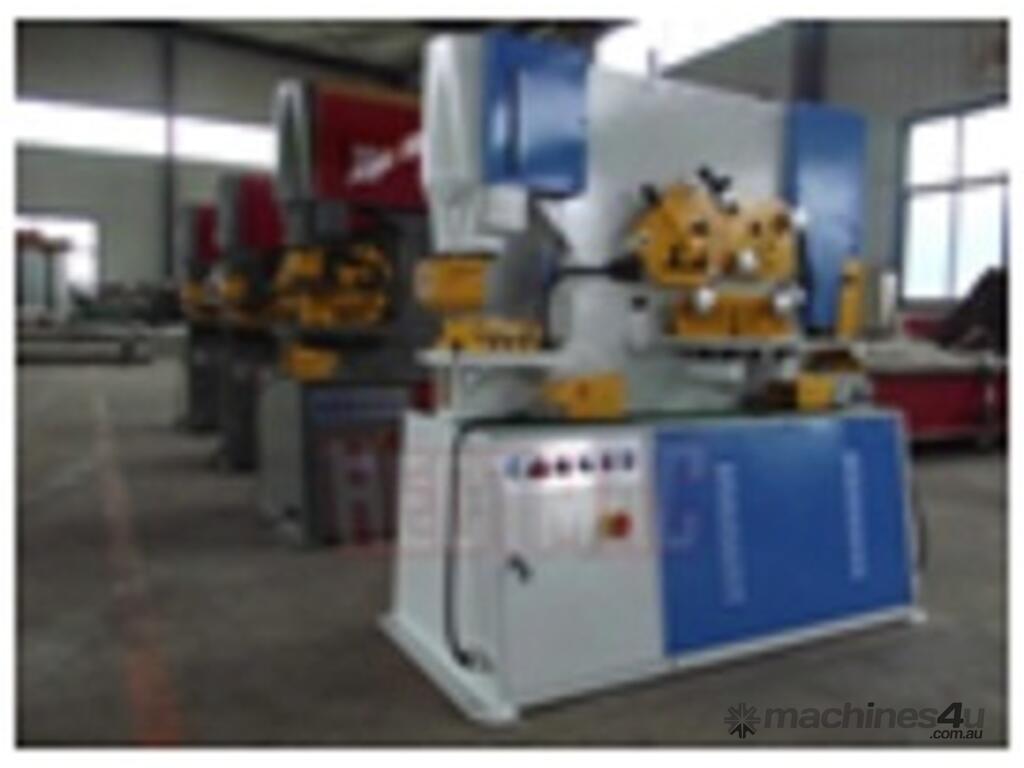

PUNCH & SHEAR Q35-25 120Tons

ACCESSORIES:
8 Sets of Punch & Dies 9,11,15,17,19,22,25,28mm,Larger Punch Holder,60mm die,Punch Length 68mm,head dia 35mm,Neck dia 30mm

OPTIONAL ACCESSORIES:

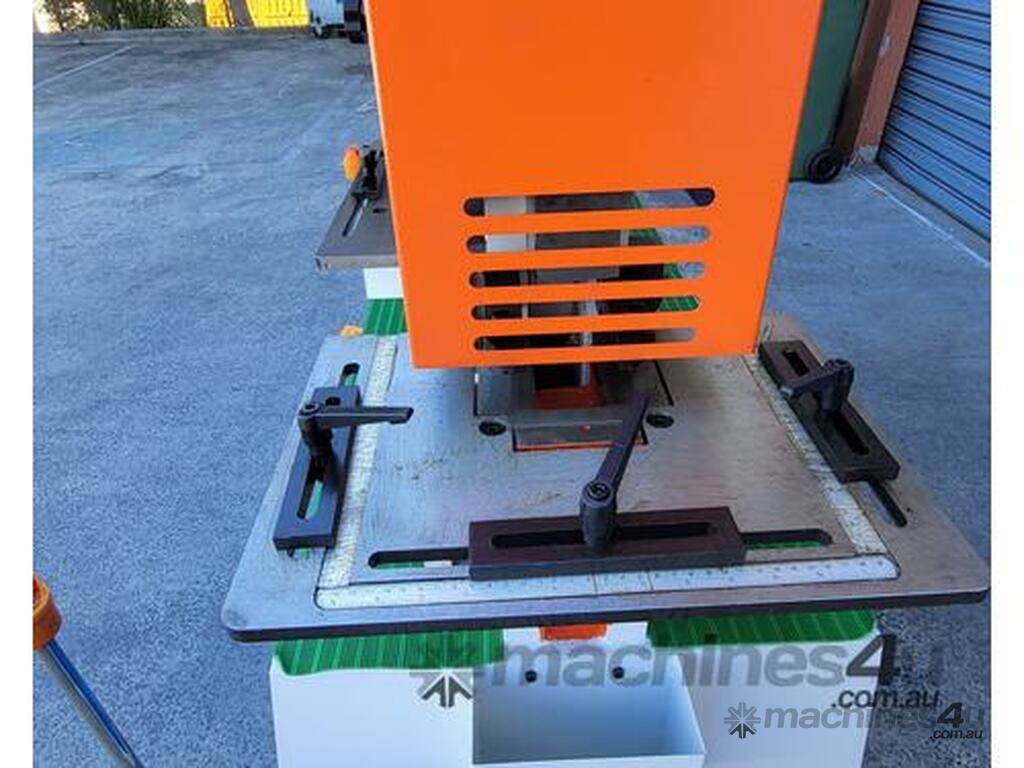

Punch & dies,Larger Punch Table,Bigger Throat Depth,More Power Motor,Vee Pressbrake,Angle Bending Press,Channel Punch Die holder,Pipe Notcher Die Holder,Vee Notcher

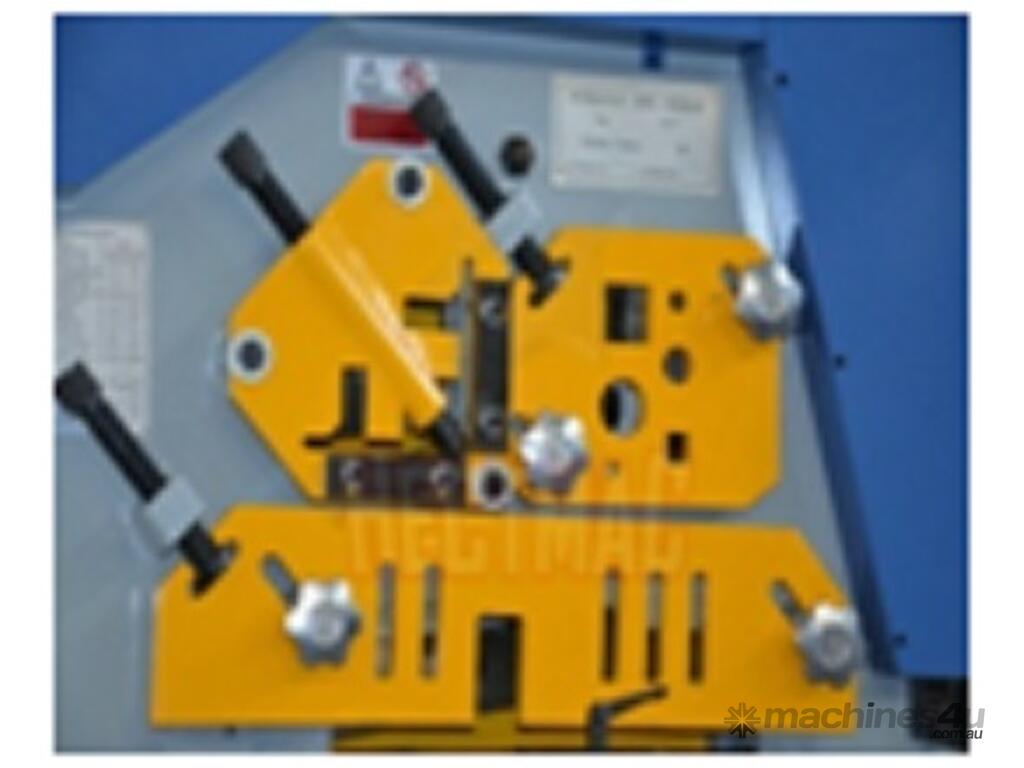

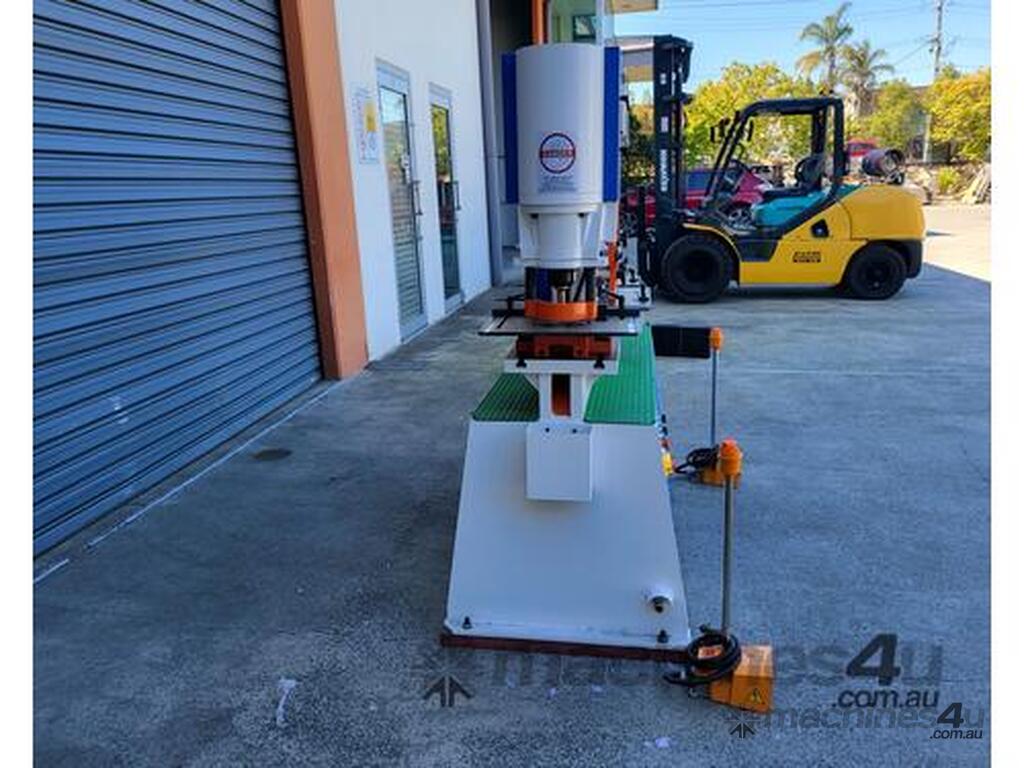

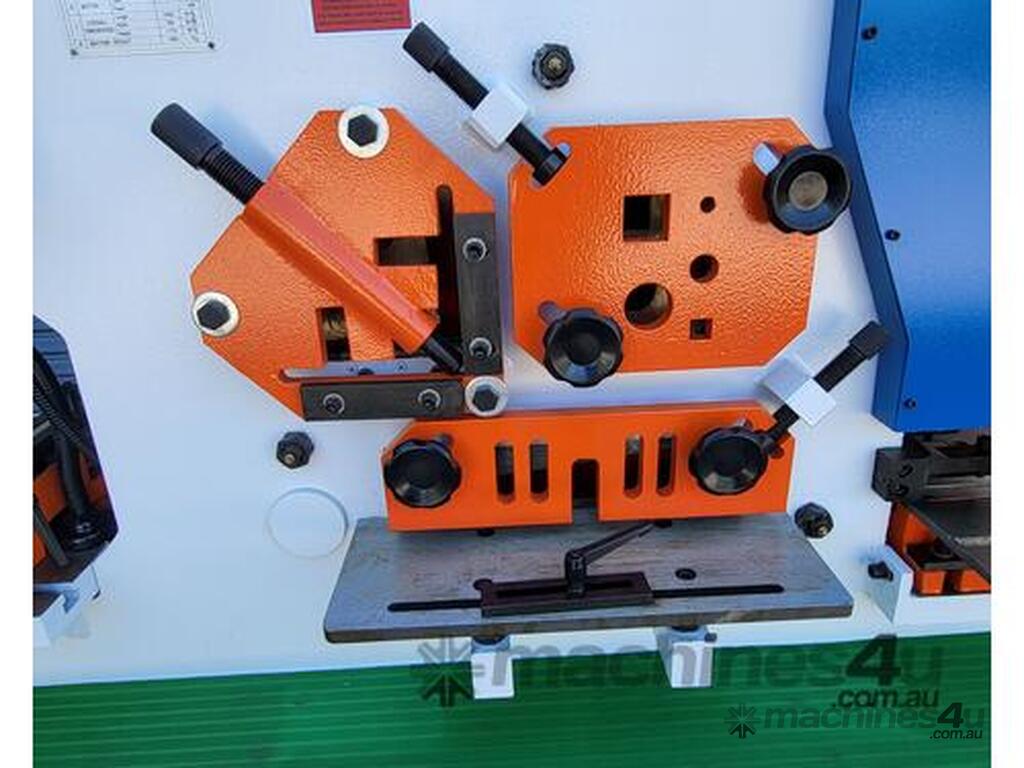

FEATURES:* This is a double Cylinder machine which are well designed and engineeed with high power for rigidity and relability.* Two Control foot pedals for different stations which allows seperate operations to be carried out simultaneously.* Work Stations are for punching,notching,angle iron shearing,round and square bar shearing.* Adjustable length stops can increase punching speed.* Mitre cutting option for angle iron.* Punch as large as 50mm can be accomodated *

Parameters of Category: Sheetmetal Machinery
Punching Force 120Ton
Punching Capacity Dia35x25mm/
Throat Depth 400mm
Max Stroke 80mm
Flat Shearing 25x330mm/16x600mm
Angle Shearing 160x14mm990deg/60x60x6 45deg

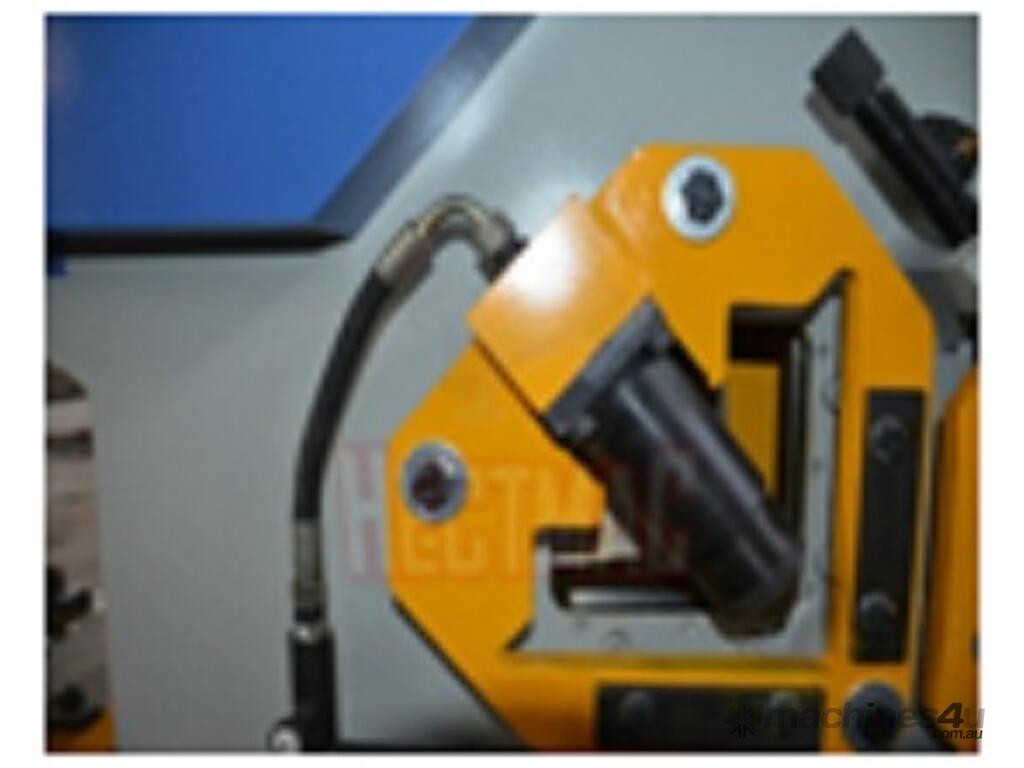

Mitre Shearing 60x60x6mm45deg
Round Bar Shear 60mm
Square Bar Shear 50x50mm
Channel Shear 160x160mm
I Beam Shear 200x102xx9mm I beam
Motor 5.5Kw
Weight Nett/Gross 3800/4200
Volume 2.8272
