PVE 15VM Vibratory Hammer and Power Pack - Crane Suspended - Variable Moment - Single/Double Clamp - Hire

Eccentric moment: 0-14.7 kgm
Max. centrifugal force: 870 kN
Max. frequency: 2,300 rpm
Max. amplitude: 12.6 mm
Total weight: 4,300 kg

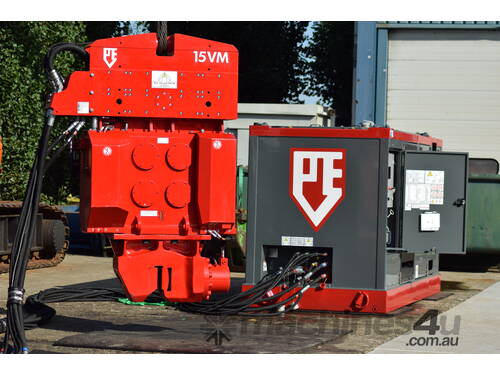

Comes with PVE 400 Power Pack, 30m hose set, and either single or double clamp.

The principle of a variable moment vibratory hammer is based on adjustable eccentrics to achieve resonance free starting and
stopping. During startup an adjustment motor shifts the eccentrics in to a zero moment position. When the vibratory hammer reaches the desirable speed, eccentrics can infinitely be rotated and set to the eccentric moment. As a result the vibratory hammer will start to vibrate.

APPLICATIONS:
• Urban areas and vibration sensitive projects
• Safe working close to existing buildings, under structures,
railways etc.

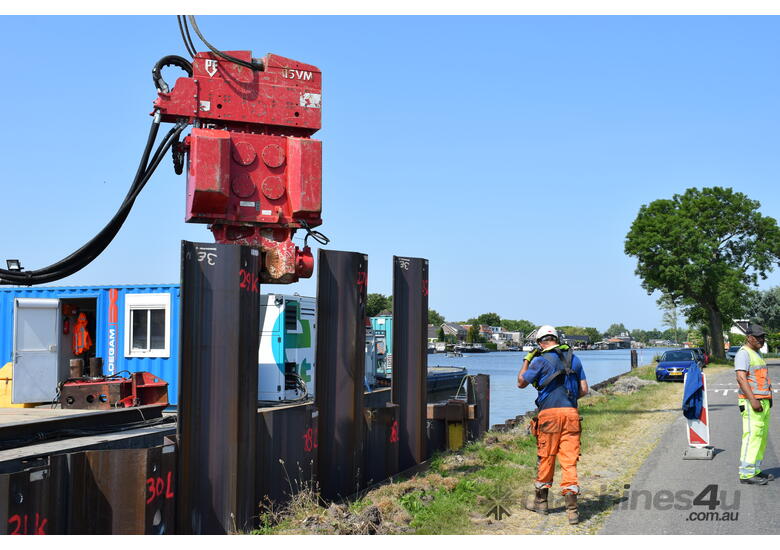

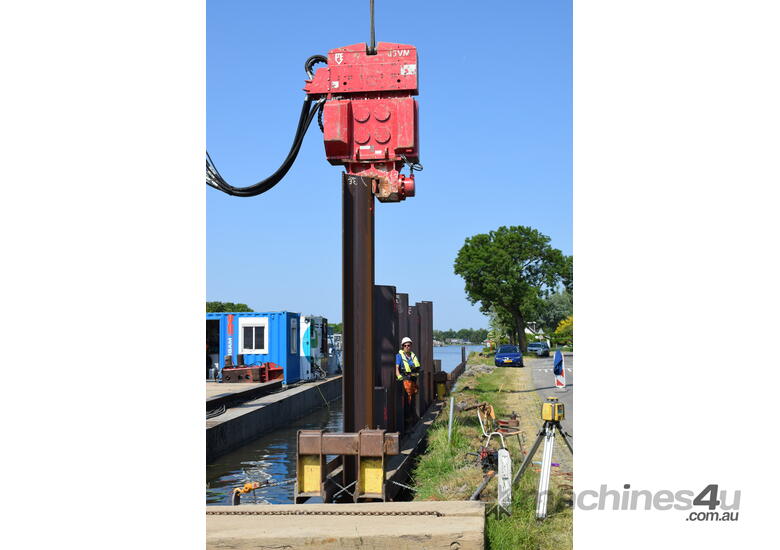

• General pile driving projects
• Suitable for most soil types

ADVANTAGES:
• Forced lubrication system
• Cooling system
• Excellent quality
• Wide range of clamping solutions
• Silent power packs
- Open loop hydraulic system
- Advanced iQan intelligence and management
- Tier/Stage 2 to 4-final compliant
- Suitable for other hydraulic equipment

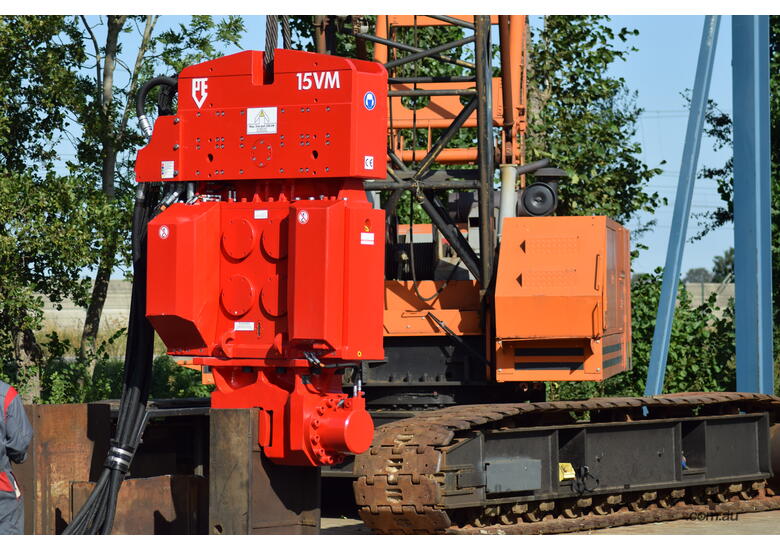

• Suspendable from telescopic mobile crane

The variable eccentric moment of this series results in resonance free starting and stopping of the machine. This makes the PVE VM hammer ideal for pile driving in vibration sensitive areas.

Our experts are available to help you find the most suitable vibratory hammer for your project.
