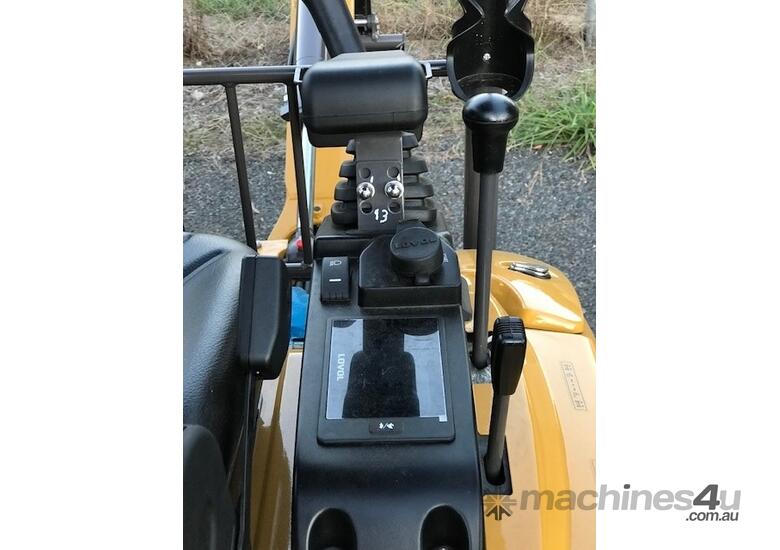

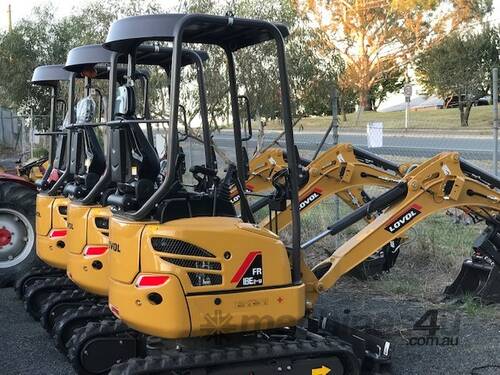

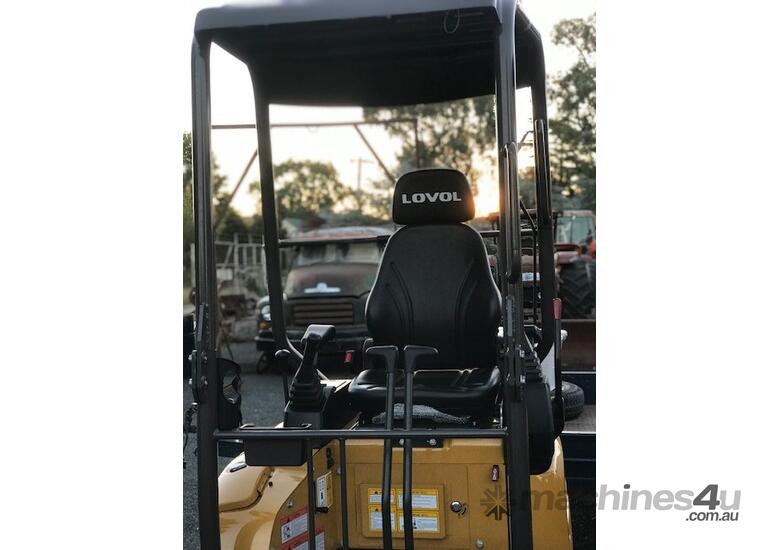

The Lovol FR18E2-u excavator is a 1.8 tonne zero swing mini excavator equipped with a Yanmar engine and a mechanical fuel pump, so there is no ECU. It also uses a high quality Japanese hydraulic system with oil operated joy sticks with no ECU, eliminating many electrical problems. Given its heavy duty construction it is highly suited to Australia's harsh conditions.
FEATURES
Model FR18E2-u
Engine Yanmar 3TNV74 - SPFN 3cyl Tier 2, 11.5kw/15.4hp
No Engine ECU
Japanese Nachi final drives
Nachi Hydraulic Pump - 99lpm
Nabtesco Main Valve
Eaton Swing Motor
Two speed final drives
Hammer Piping

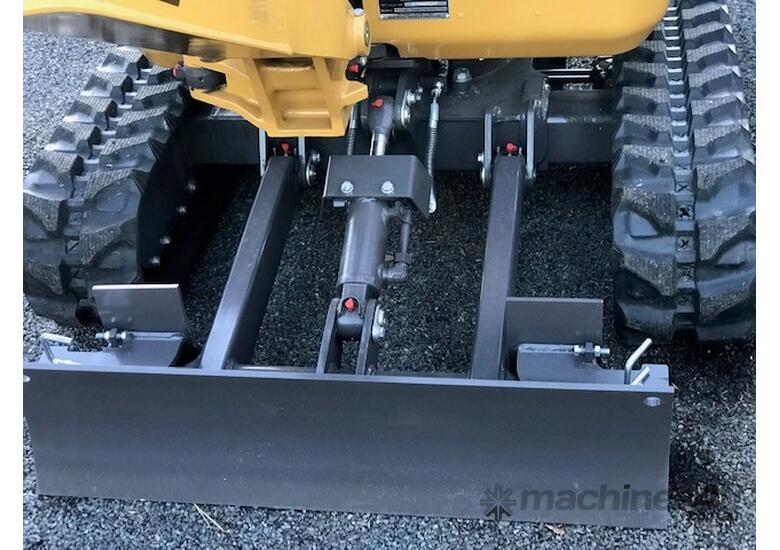

Bulldozing Blade
Retractable rubber tracks 990mm In - 1230mm Out
Flashing light
Travel alarm
Operation manual
Warranty booklet
SPECIFICATIONS
Operation weight kg 1810
Engine power/speed kw/rpm 11.5/2400
Standard bucket capacity m3 0.04
Bucket digging force kN 15.2
Dipper arm force kN 8.5
Max. digging radius mm 3905
Max. digging depth mm 2310
Max. uploading height mm 2440
Max. Width in/out mm 990/1280
Max. Height mm 2347
Travel Speed (fast/slow) km/h 3.7/1.9
Swing Speed rpm 9
ACCESORIES
Quick Hitch
GP Bucket
Hammer Piping
Plant Trailer
FACTORY WARRANTIES
Yanmar Engine 3 years or 3000 hours
Hydraulics 3 years or 3000 hours
20 SERVICE OUTLETS
