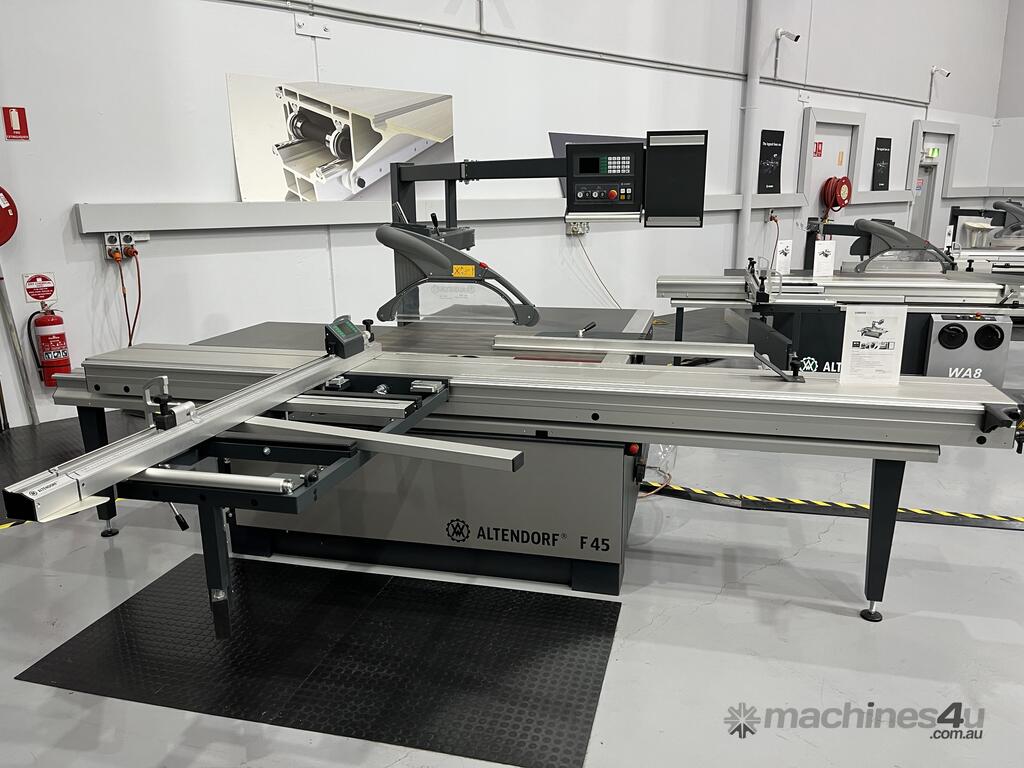

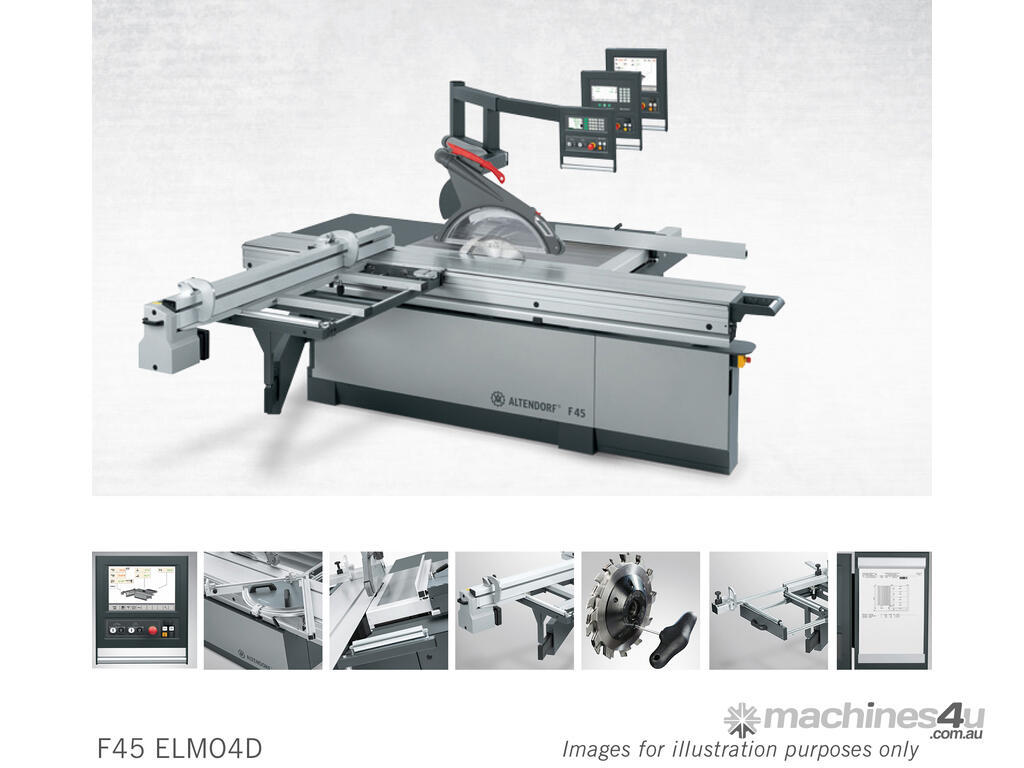

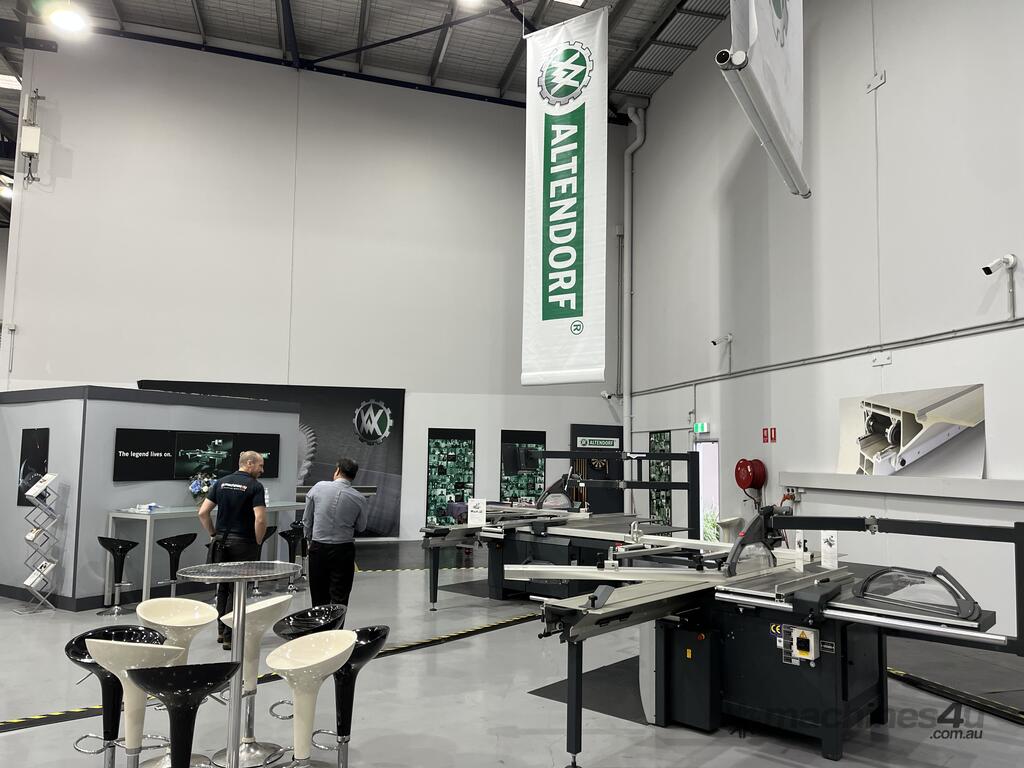

Panel Saw: Altendorf F45 ELMO 4D - Industry Leading Quality!

F 45 Elmo Drive
- Motorised rise/fall and tilt adjustment (up to 46° to either side)* for the main saw blade with automatic height correction and digital display
- Motorised rip fence adjustment*
- Motorised crosscut fence adjustment with one motorised axis*
- Automatic position correction for rip fence and crosscut fence when saw blade tilted
- Digital speed display or infinitely variable speed control (VARIO)*

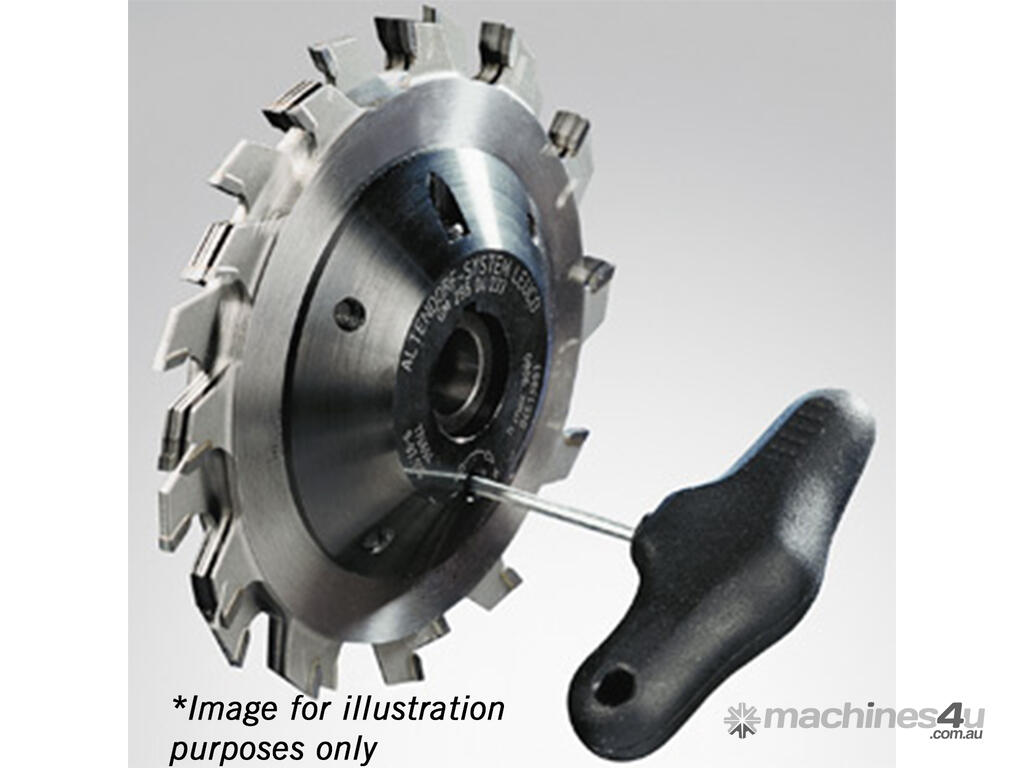

- Motorised scorer unit, two or three axes*
- Continuous precision axis control using +/- keys*
- Control of the vacuum clamping system in the sliding table*
- Easy axis calibration
- Machine diagnostics
- Operating hours counter
- USB interface
- "Back" function to recall last set of dimensions entered
- Memory for 99 cutting programmes
- Automatic conversion of inside to outside dimensions for the rip fence and crosscut fence as a function of material thickness and tilt angle
- Compound mitre function with automatic calculation of missing angles/dimensions
- Enhanced tool management
· Scorer position memory (three-axis scorer)*
· Storage of saw blade plate thickness and cutting width
· Storage of main saw blade speed
· Memory for a maximum of 100 saw blades
- Additional functions
· Grooving: rip fence positioned automatically step by step to create the groove
· Incremental dimensions: rip fence moves out or in automatically by a specified distance
· Bevel rip: the rip fence is set automatically to cut away the required angle from strips pre-cut at 90 degrees, as a function of material thickness and tilt angle
· Memory for 999 cutting programmes
- Calculator function, with results transferred to the relevant axes
- Geometric shapes with automatic calculation of missing angles/dimensions
- Mitre joints between pieces of different widths with automatic calculation of missing angles/dimensions
- Interface for connecting to a PC, for example to allow running of cut optimisation programmes*
- Memory for 9 999 cutting programmes

*Optional Extras

Technical Specifications:

Motorised rise/fall and tilt adjustment (0° - 46°) for the main saw blade with automatic cutting height correction when saw blade tilted

Eye-level ElmoDrive control unit, swivelling + clipboard

Sliding table length 3800 mm

CNC Rip fence, cutting width 1300 mm

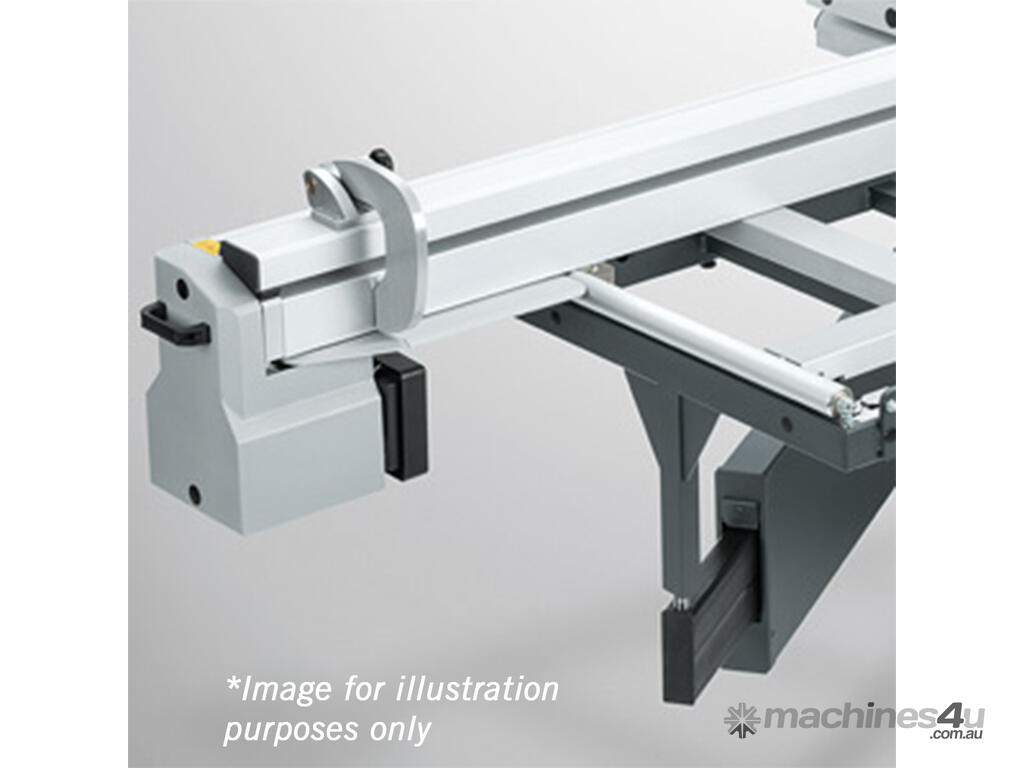

CNC Crosscut Fence - DUO 90 max 3500mm

For more information, please contact Altendorf Asia Pacific Pty. Ltd today.
All images are for illustration purposes.
*Specifications are subject to change without notice.
