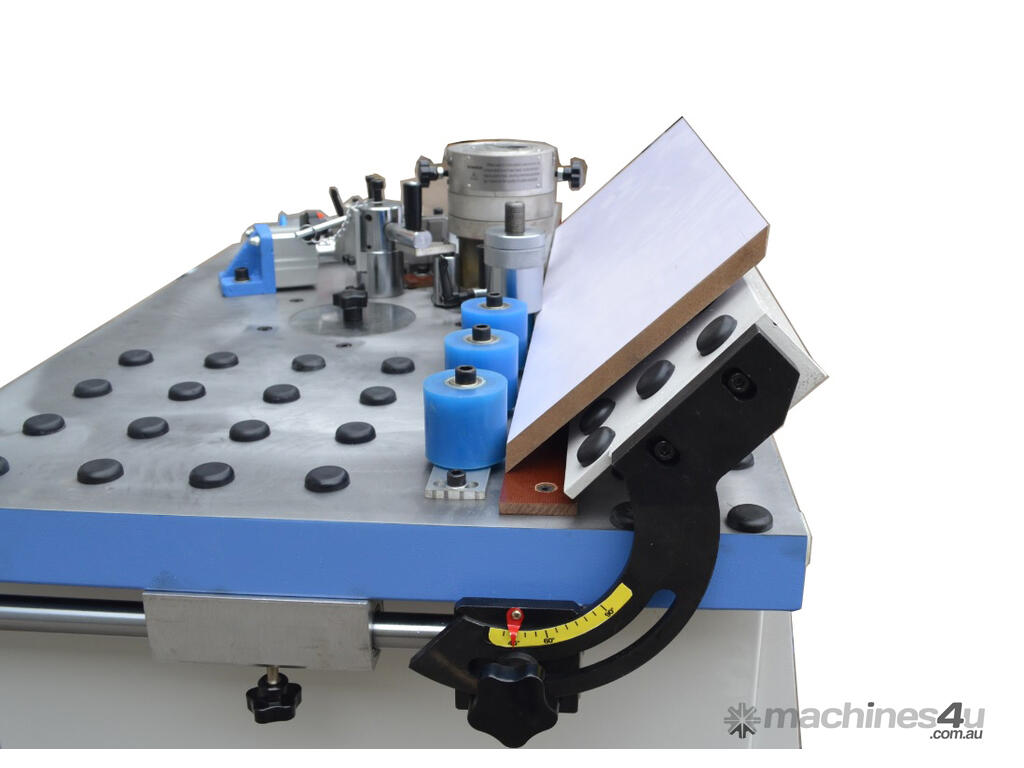

Paneltex F-50S Curved & Angle Manual Edgebander

The F50 Edgebander offers a small affordable option for performing curved and angled edgebanding.

Features – Hot Melt Glue Pot | Tape Cutting Guillotine | Gear Driven Main roller.
User Control Panel allows operator to set tape length and speed.
Variable Temperature Control
Heat Blower System to assist with tape preparation for curve work
Large Teflon glue pot
Rubber Pressure Rollers
Guillotine Knife by air for tape cutting
Tilting table for angle edging


Technical Data | Feed Speed 12-20m/min | Panel Thickness 10mm to 50mm | Edge Thickness 0.4mm to 2mm | Floorprint size 1100mm x 830mm


Stock No F-50S
Feed Speed 12 – 20m/min
Edge Thickness 1 – 3mm
Panel Thickness 10 to 50mm
Working pressure 0.4-0.5Mpa
Total power 2.5kw
Body length width 1110*830mm
Body height 1020mm
