Paneltex PE6132E (3.2) Program Panel Saw

Paneltex PE6132E (3.2) Program Panel Saw
Designed and Specs to suit the Australian market for quality and value Quality Rip fence movement with Ball screw on linear rails driven by servo motor

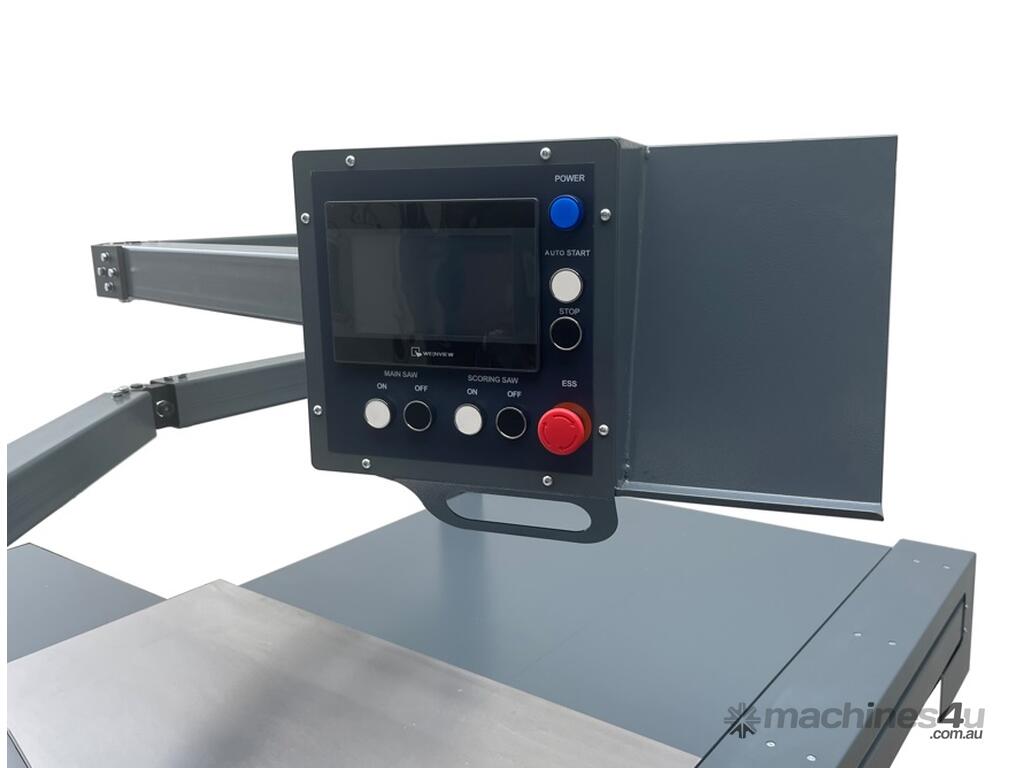

Touch screen Operation Sliding Table in 3.2 metre length.

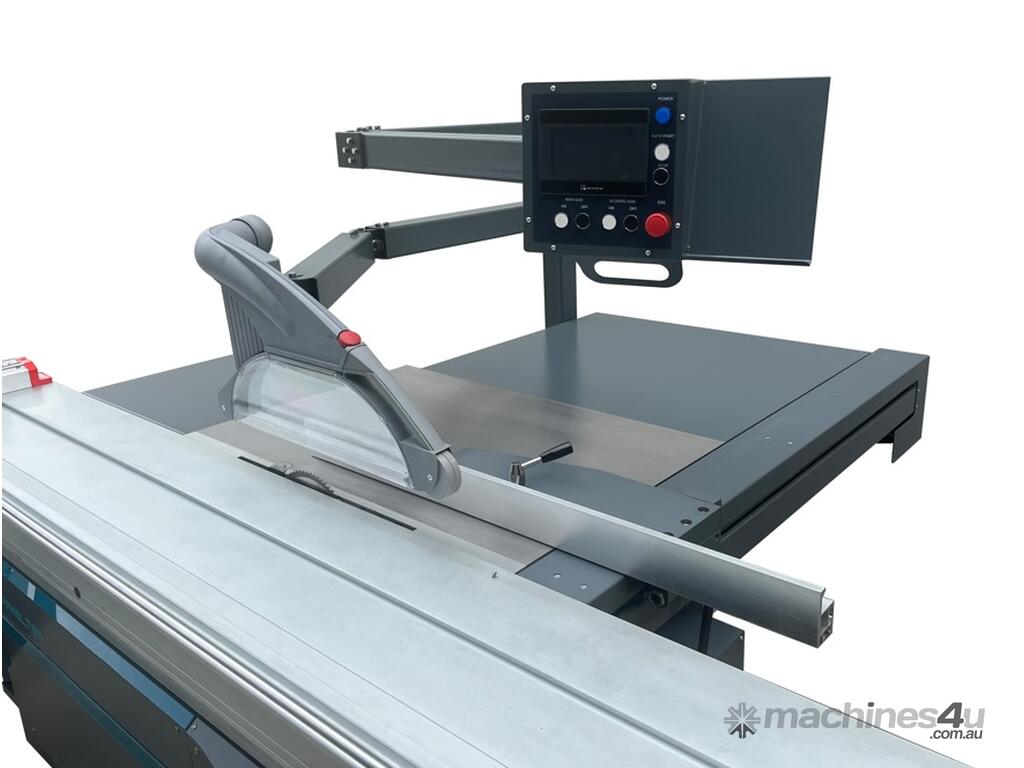

Rip Capacity 1300mm Overhead control panel and guard

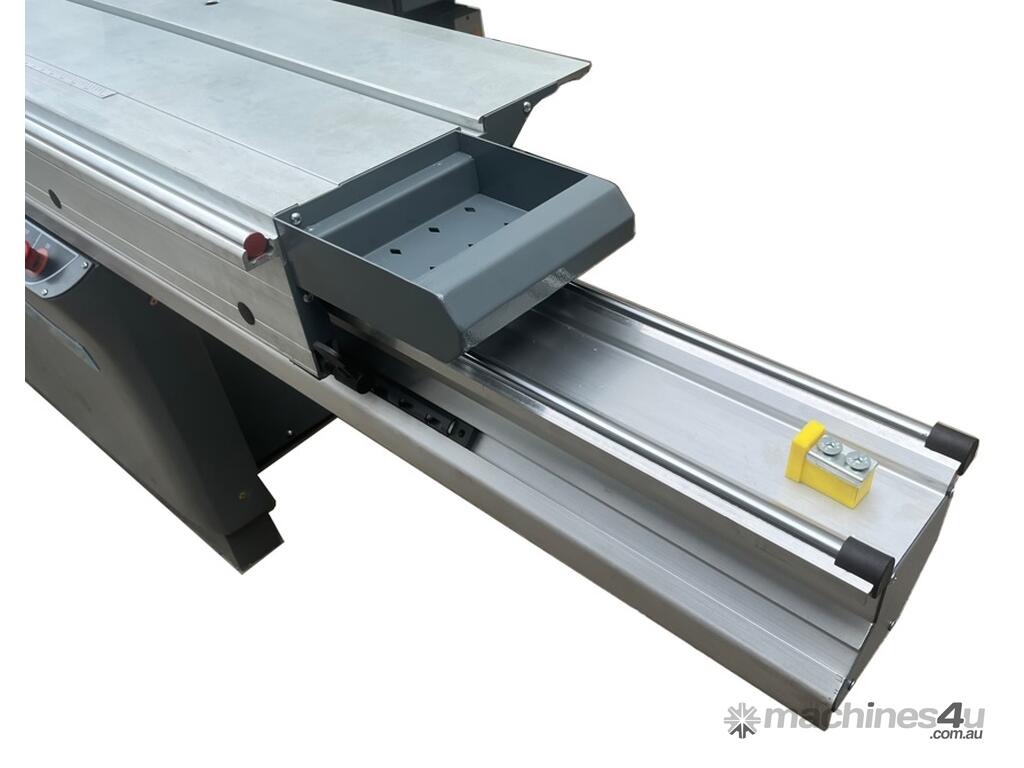

Solid steel round bars for sliding table
Electric rise and fall of blade
Electric tilting of blades
Heavy Design rip fence supported by solid steel round bar

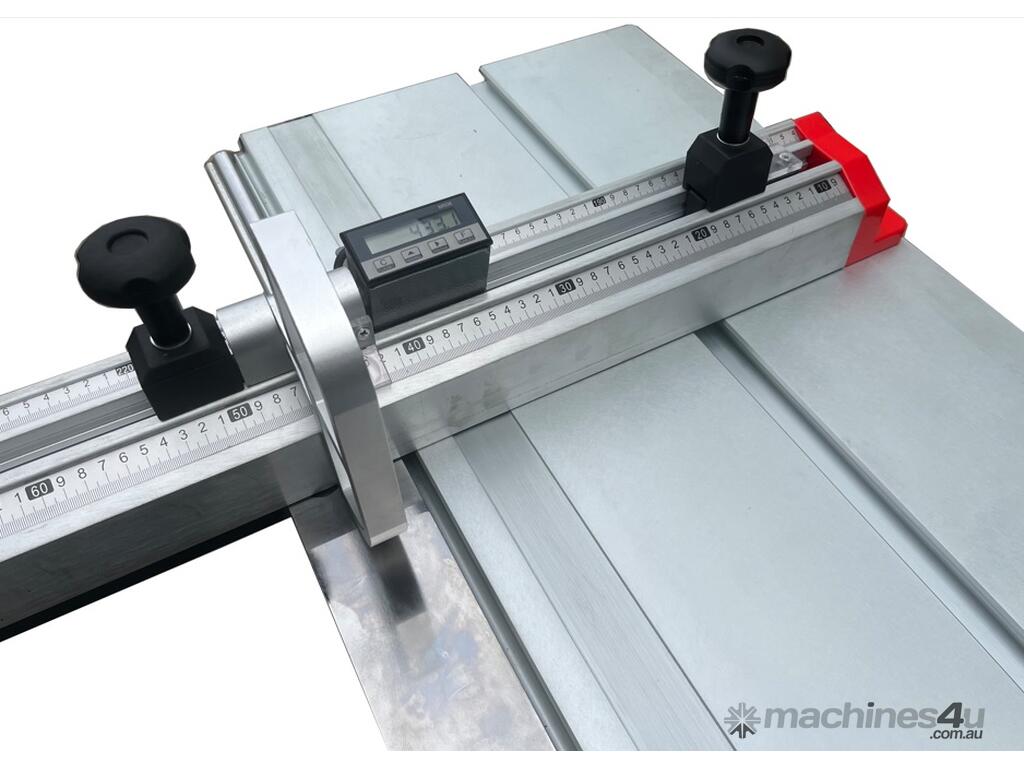

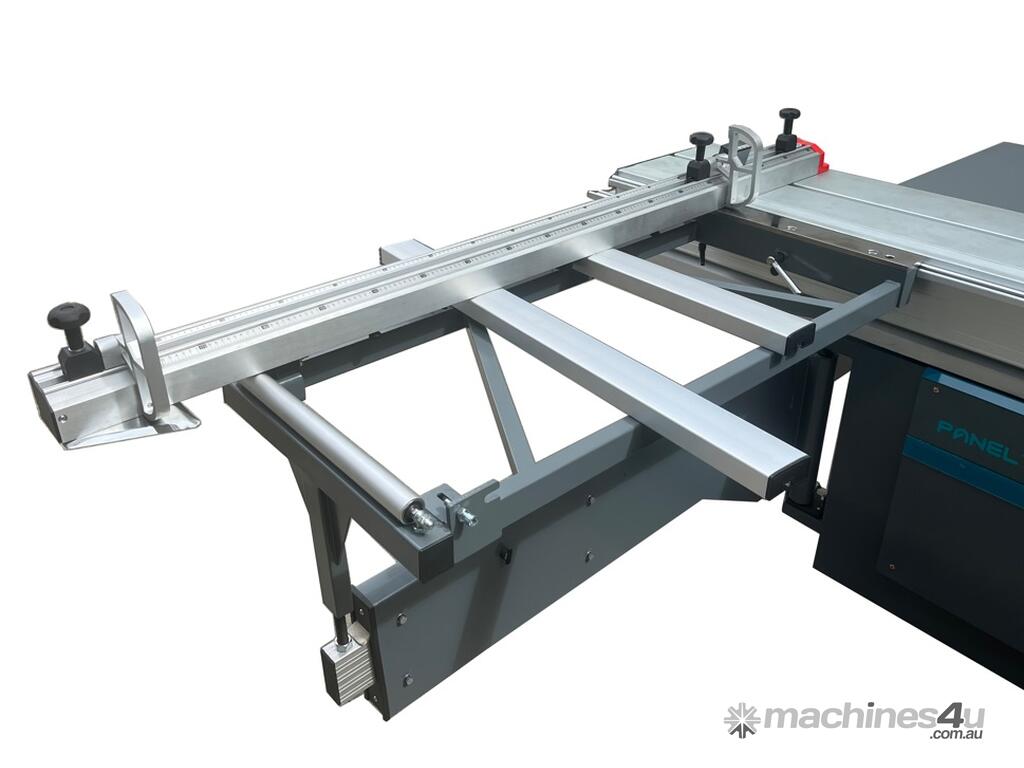

Digital Readout on Flip Stops

ADDITIONAL INFORMATION
Stock Number Paneltex-PE6132E
Blade Speed 4500rpm
Main Blade Diameter 350 x 30
Scoring Saw Diameter 120 x 20
Sliding Table Length 3200mm
Tilting Arbor 45 Electronic
Bore 30mm
Ripping Capacity 1200mm
Motor 7.5hp 415v
Dust Outlets 1 x 5” / 1 x 4”
Max Cutting Height 110mm
Floorprint 3200mm x 2600mm
Material Steel Round bar slide Table with Solid Cabinet stand
