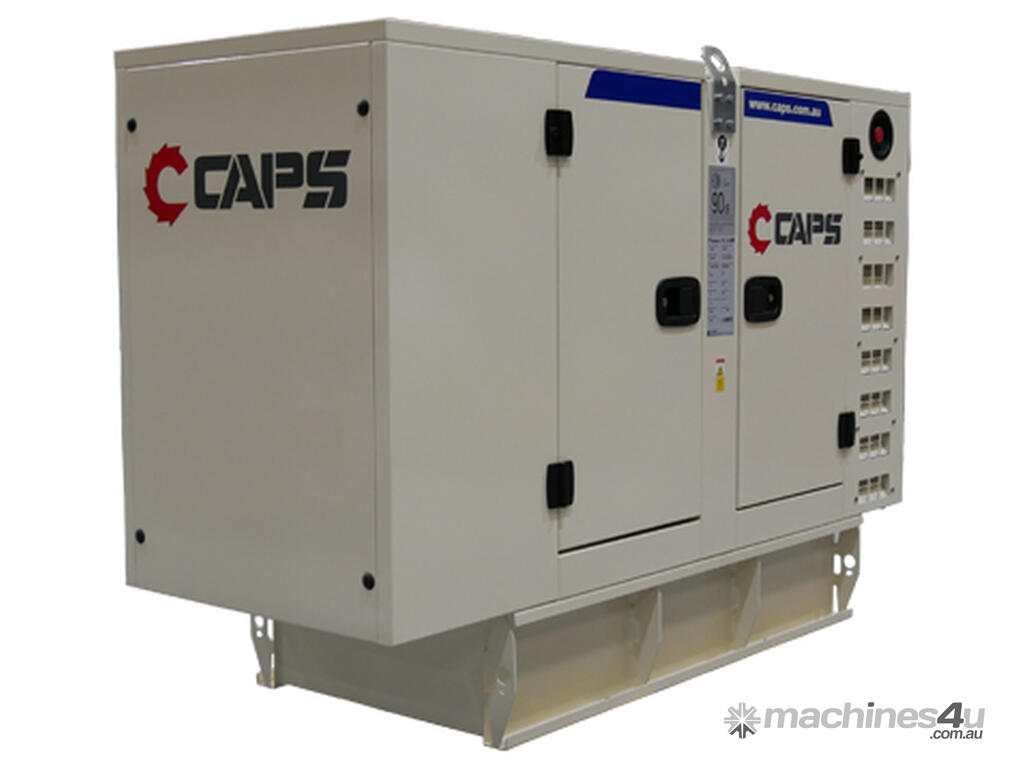

Perkins 10KVA Diesel Generator Three Phase

CAPS has partnered with major manufacturer and supplier to the European market, Teksan. Together we have created an affordable generator for Australia while still using many European sourced components.

These Include:
- Perkins Engine
- Leroy Somer alternator
- Deepsea Controller with auto start mode
- ABB Switch gear (4 pole)

This unit would be an ideal backup generator for a business, home, workshop, farm, or industrial application.
When connected to one of our auto transfer switches (ATS), the unit can automatically start up on mains power failure and provide backup power until mains power returns. It will then shut down and return to standby mode for the next power failure.
ATS sold separately.

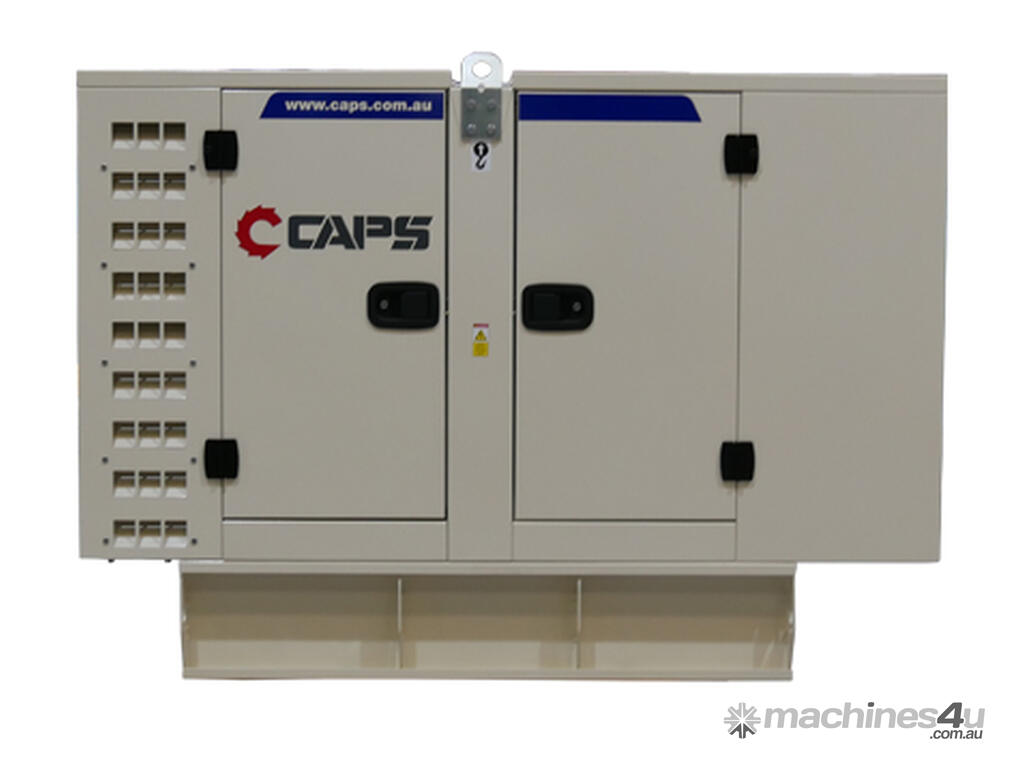

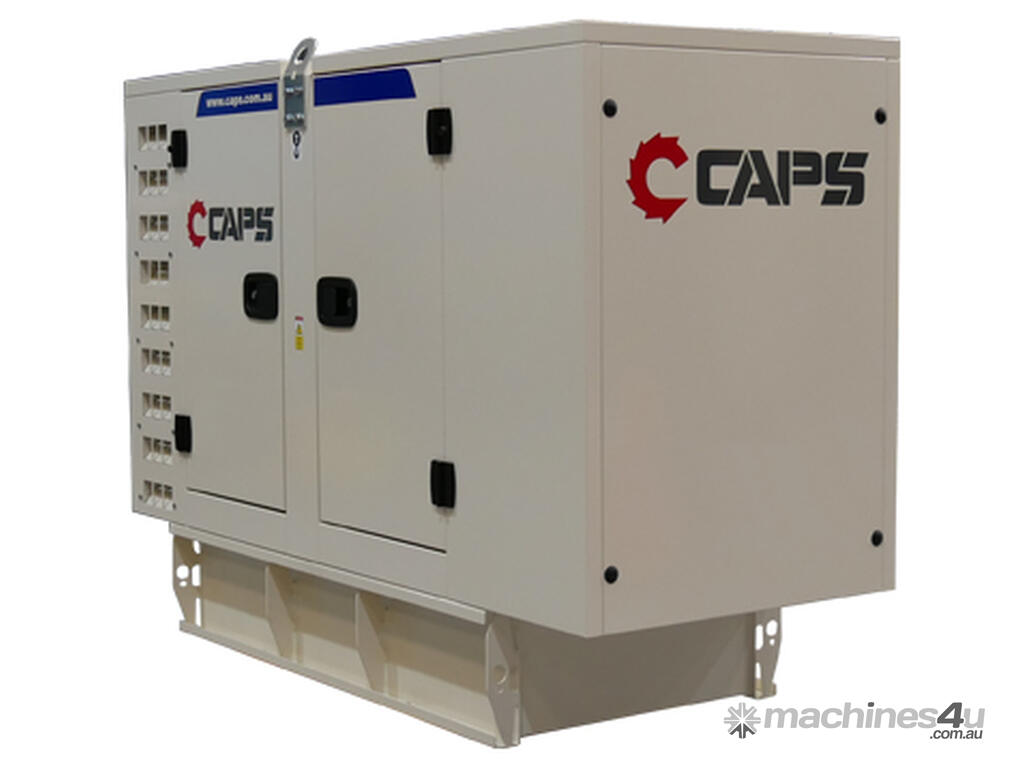

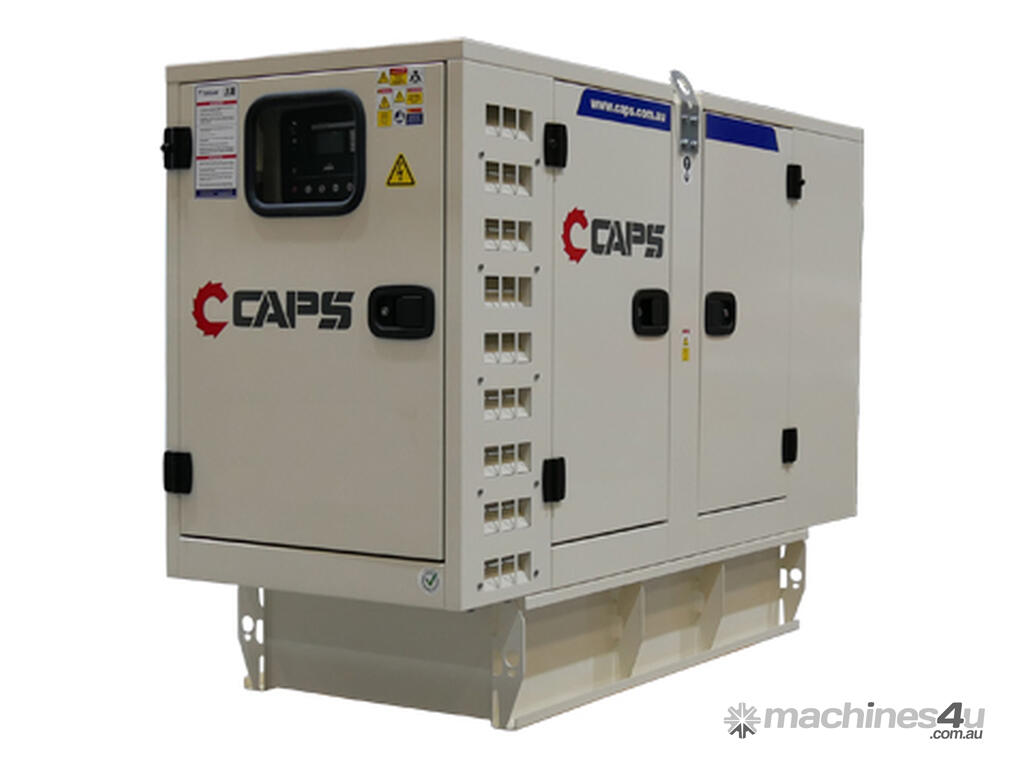

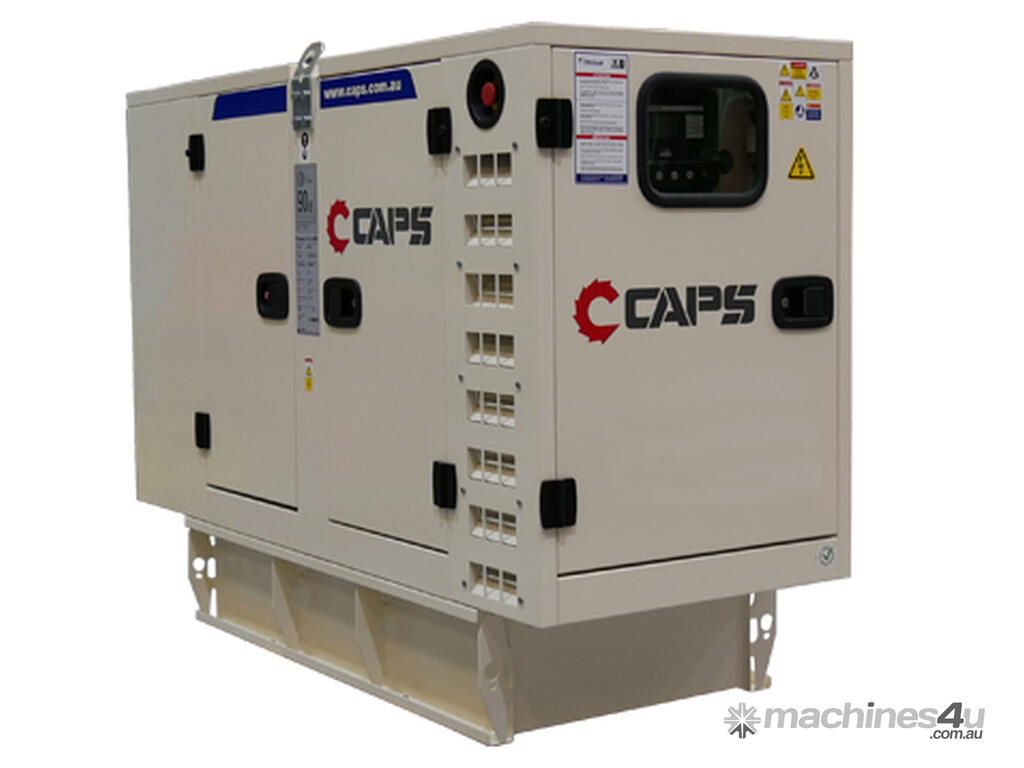

A sturdy 65dBA soundproof cabinet keeps the generator and quality Perkins engine quiet.

Additional Features:
- 2 Emergency stop buttons
- Battery Isolator
- Double walled (bunded) chassis
- Electronic fuel level sensor
- Low fuel alarm
- Inbuilt battery charger and jacket water heater
- Pre-wired for auto start capability
- Rain cap on exhaust
- Lifting points
- 50 deg C tropical radiator.
- Australian wiring colour standards

Compliance with International engine driven generator standards: ISO 8528, ISO 3046, BS 5514, DIN 6271, EC 60034-1; CEI EN 60034-1; BS 4999-5000; VDE 0530, NF 51- 100,111; OVE M-10, NEMA MG 1.22
Factory Standard: ISO9001:2015
Quality Assurance: ISO14001: 2015
Environmental: ISO45001: 2018 OHS

Generator Specifications:
Prime Power output: 9kVA / 7.2kW
Standby Output: 10kVA / 8kW
Frequency: 50Hz
Voltage: 400V
Power factor: Three Phase 0.8

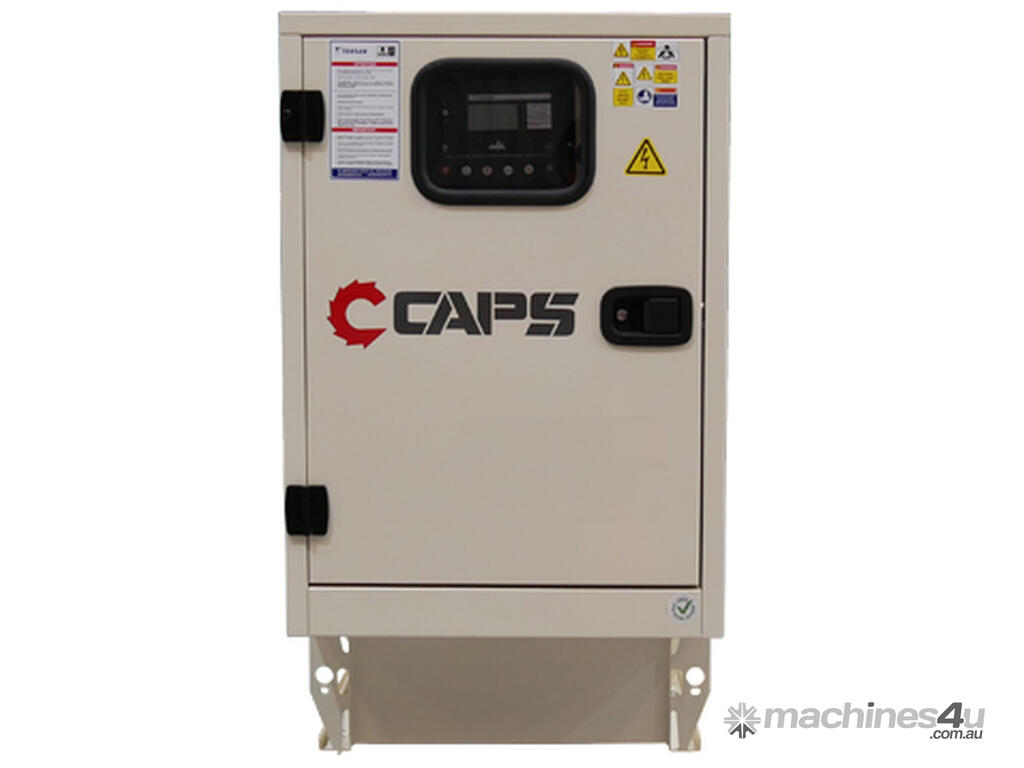

Controller:
Make / Model: DSE 7320 MKII
Auto start and manual start modes
RS-232 and RS485 communications.

Engine:
Make / Model: Perkins 403A-11G1
Output rating: 9.5kW / 1500rpm / 50Hz
Cylinders: 1.1 Litre, 3 Cylinder naturally aspirated

Fuel tank capacity: 75 Litres
Approx run time: 37 hours 75% load

Alternator:
Make / Model: Leroy Somer TAL040B
Type: Brushless
Insulation Class: H
Excitation System: AVR
Voltage regulation: ± 1%

Standby units are designed to be wired to an ATS.
If you require power outlet sockets, then CAPS can fit these at extra cost.

Dimensions
LxWxH (mm): 1,771 x 700 x 1,273
Weight: 485kg (dry weight)

Manufacturer: Teksan, Istanbul, Turkey to CAPS Australia specifications.
For almost 40 years, CAPS has been Australia’s largest independent supplier of compressed air and power generation products. With proven global engineering and export capabilities, our expert team can design, supply, install and commissioning a solution for you and then provide ongoing long term maintenance support.

Note: Specifications and dimensions subject to change without notice.
