Pezzolato PTH900 Chipper

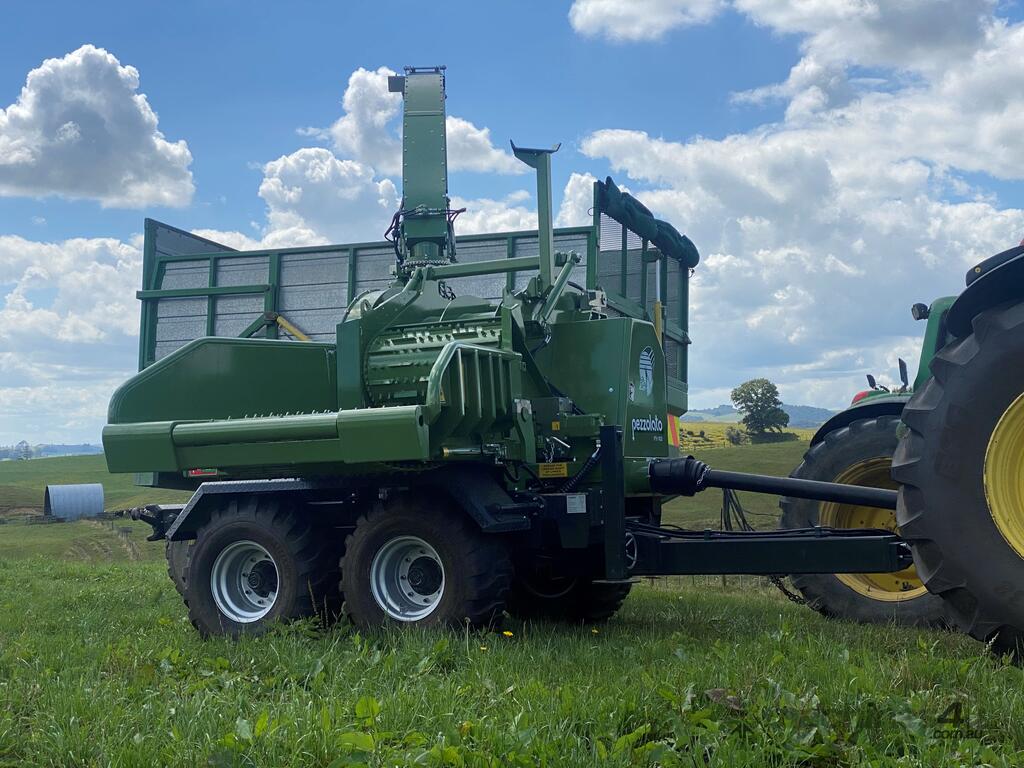

PTH 900 Chipper with Palfinger crane for feeding logs- is one of the medium power machines within Pezzolato drum chippers, whose drum diameter measures 660 mm (25.98”).

Its feeding mouth is 950 mm (3? 1.40”) wide.

Able to produce up to 100 m³ chips per hour, it guarantees high throughput. Maximum chipping Diameter 500mm

Minimum required tractor 140HP

The design of the conical hopper (without bottlenecks that tend to trap the material), combined with a catenary system able to move the material to the drum, allows feeding of bulk material.

The large fan (1250 mm) mounted on the drum shaft is able to work at a low speed (less than 600 revs) to help reduce dust and increase wood chip quality.

Each standard installation includes a single axis trailer which provides compactness and increases agility and maneuverability in tight spaces.

The wear parts of all machines are cost-effective and simple to replace in short maintenance times.

The drum with cutting system interchangeable where required, makes these chippers ideal for the production of wood chips used with domestic boilers, large power plants or gasifiers.
