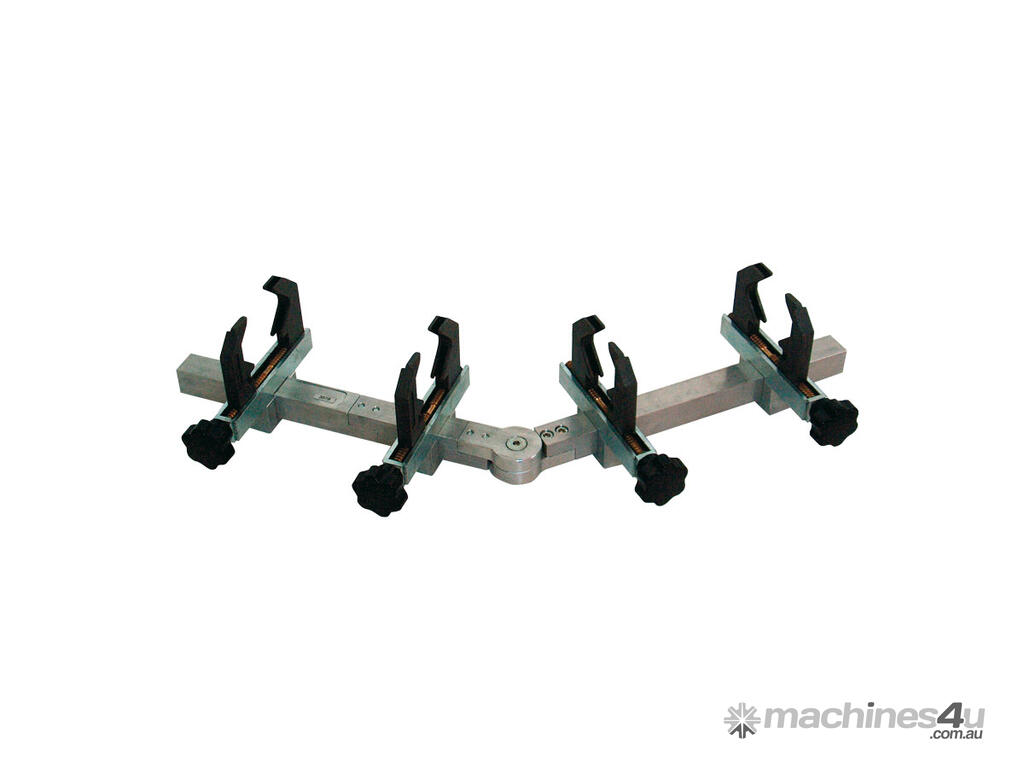

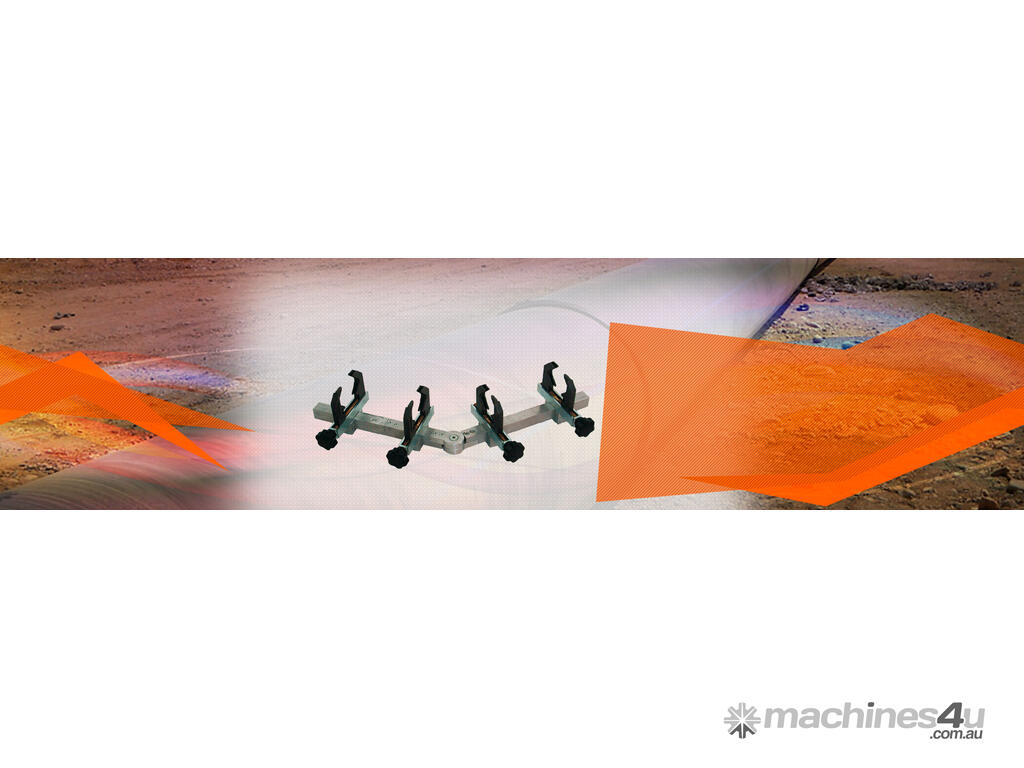

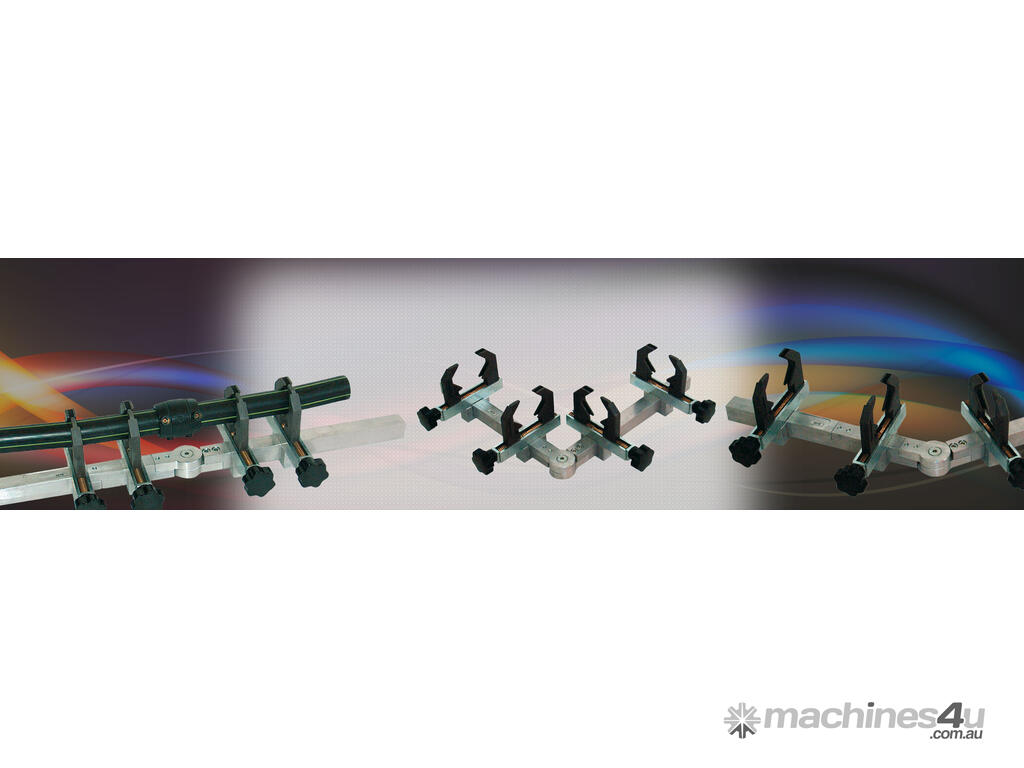

The UNIVERSAL ALIGNER 63 is made almost entirely in a special Aluminium alloy and features a central joint for the fixed positions at 45° and 90°, four self-centring clamps that require no adapters.

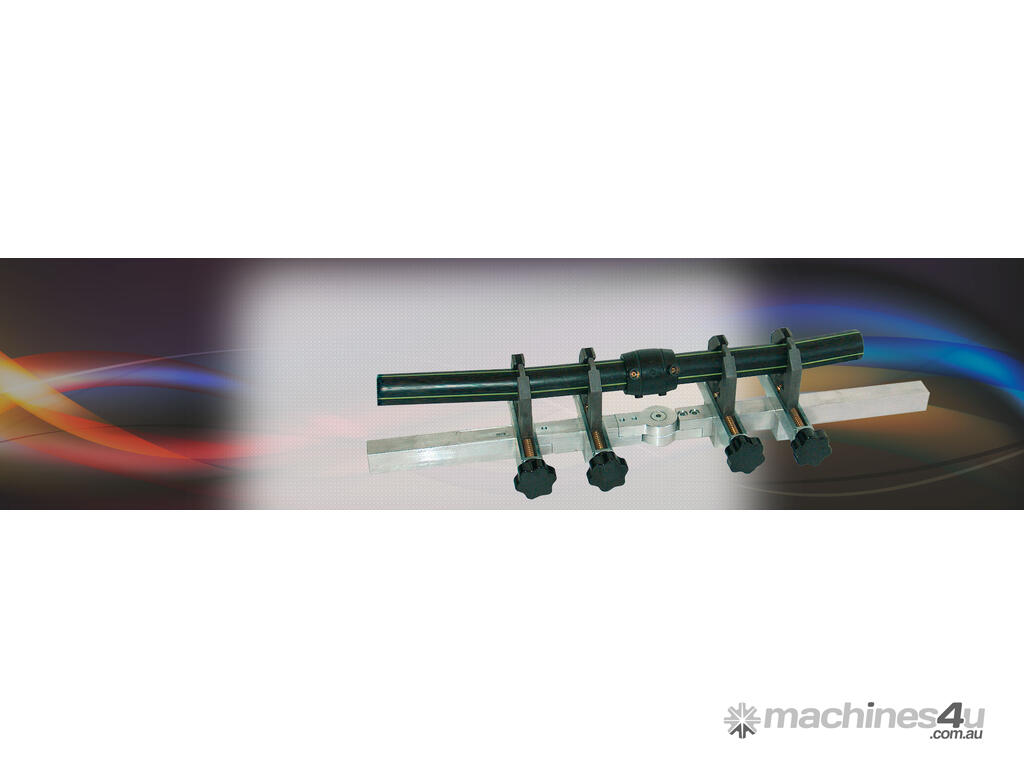

The possibility to remove one part of the axis that carries the clamps and one clamp it self, allows the use of tapping tees during the fusion.
Working range
Ø 20 ÷ 63 mm
Maxi overall dimensions
600 x 160 x 116 mm
Transport bag
440 x 190 x 140 mm
Weight aligner
3,40 Kg
Weight bag
0,5 Kg
